Pig4Cloud之登陆验证（一）客户端认证处理

## 前端登陆

```

handleLogin() {

this.$refs.loginForm.validate(valid => {

if (valid) {

this.$store

.dispatch("LoginByUsername", this.loginForm)

.then(() => {

this.$router.push({path: this.tagWel.value});

})

.catch(() => {

this.refreshCode();

});

}

});

}

```

看一下`LoginByUsername`，在/src/store/modules/user.js中

```

const scope = 'server'

export const loginByUsername = (username, password, code, randomStr) => {

const grant_type = 'password'

let dataObj = qs.stringify({'username': username, 'password': password})

let basicAuth = 'Basic ' + window.btoa(website.formLoginClient)

// 保存当前选中的 basic 认证信息

setStore({

name: 'basicAuth',

content: basicAuth,

type: 'session'

})

return request({

url: '/auth/oauth2/token',

headers: {

isToken: false,

Authorization: basicAuth

},

method: 'post',

params: {randomStr, code, grant_type, scope},

data: dataObj

})

}

```

## 客户端认证

当访问 OAuth2 相关接口时（`/oauth2/token`、`/oauth2/introspect`、`/oauth2/revoke`），授权服务器需要进行客户端认证。

Spring Authorization Server 截至目前支持如下五种客户端认证方式：`client_secret_basic`、`client_secret_post`、`client_secret_jwt`、`private_key_jwt`、`none` (针对公共客户端)

### OAuth2ClientAuthenticationFilter

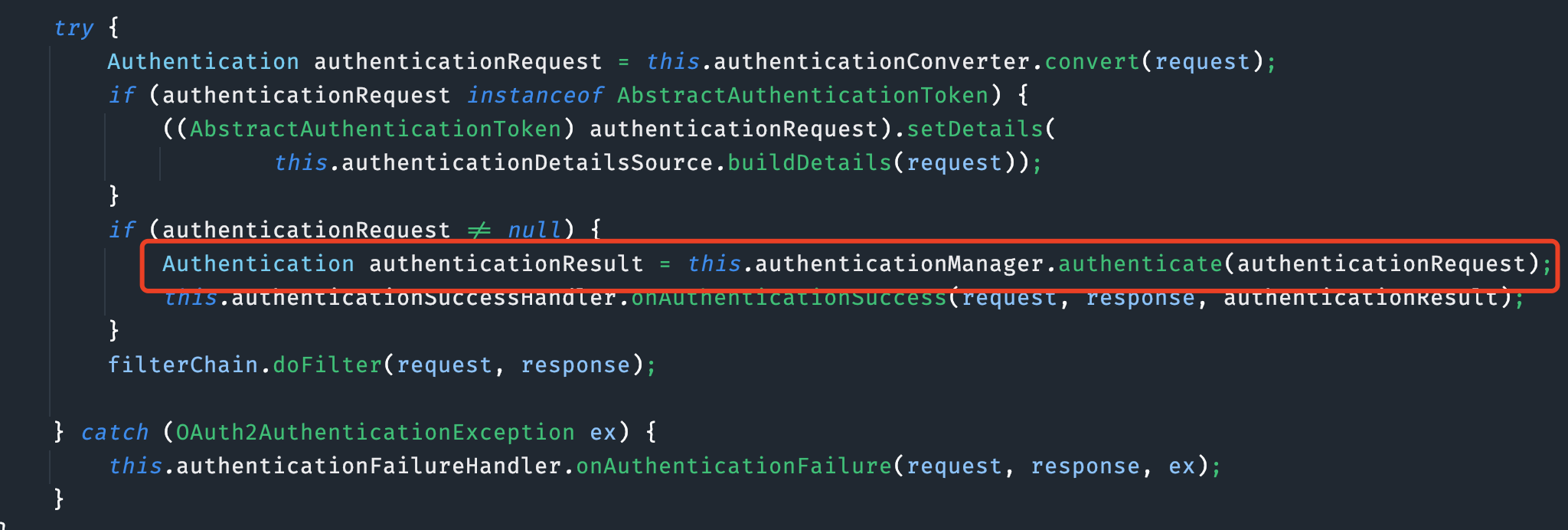

实现客户端认证的拦截器就是 `OAuth2ClientAuthenticationFilter`。 其核心代码如下：

```

@Override

protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)

throws ServletException, IOException {

if (!this.requestMatcher.matches(request)) {

filterChain.doFilter(request, response);

return;

}

try {

Authentication authenticationRequest = this.authenticationConverter.convert(request);

if (authenticationRequest instanceof AbstractAuthenticationToken) {

((AbstractAuthenticationToken) authenticationRequest).setDetails(

this.authenticationDetailsSource.buildDetails(request));

}

if (authenticationRequest != null) {

Authentication authenticationResult = this.authenticationManager.authenticate(authenticationRequest);

this.authenticationSuccessHandler.onAuthenticationSuccess(request, response, authenticationResult);

}

filterChain.doFilter(request, response);

} catch (OAuth2AuthenticationException ex) {

this.authenticationFailureHandler.onAuthenticationFailure(request, response, ex);

}

}

```

其核心逻辑就是通过 `authenticationConverter `从 request 中解析出客户端认证信息，构建成 Authentication，再通过 `authenticationManager` 对 Authentication 进行认证。

#### DelegatingAuthenticationConverter

`authenticationConverter` 的类型实际上是 `DelegatingAuthenticationConverter`，它持有一个 `AuthenticationConverter` 列表（不同的认证请求，其参数不同，所以会有不同的`AuthenticationConverter`实现类）。

`DelegatingAuthenticationConverter` 在解析请求时会遍历 `AuthenticationConverter` 列表，当某个 `AuthenticationConverter` 解析成功时，立即返回，这也能确定此请求是什么认证方式，后续再执行对应的认证逻辑。

```

private AuthenticationConverter authenticationConverter;

public OAuth2ClientAuthenticationFilter(AuthenticationManager authenticationManager,

RequestMatcher requestMatcher) {

Assert.notNull(authenticationManager, "authenticationManager cannot be null");

Assert.notNull(requestMatcher, "requestMatcher cannot be null");

this.authenticationManager = authenticationManager;

this.requestMatcher = requestMatcher;

this.authenticationConverter = new DelegatingAuthenticationConverter(

Arrays.asList(

new JwtClientAssertionAuthenticationConverter(),

new ClientSecretBasicAuthenticationConverter(),

new ClientSecretPostAuthenticationConverter(),

new PublicClientAuthenticationConverter()));

}

```

#### ProviderManager

`authenticationManager` 的类型实际上是 `ProviderManager`，它持有一个 `AuthenticationProvider` 列表（不同的认证方式，其认证逻辑不同，所以会有不同的`AuthenticationProvider`实现类）。

`AuthenticationManager` 接口的默认实现为` ProviderManager`


`authenticationManager`调用`authenticate`


调用 `AuthenticationProvider` 中的 supports(Class<?> authentication) 方法，判断是否支持当前的 `Authentication` 请求。

```

public Authentication authenticate(Authentication authentication)

throws AuthenticationException {

......

for (AuthenticationProvider provider : getProviders()) {

if (!provider.supports(toTest)) {

continue;

}

```

只有支持当前 `Authentication` 请求的 `AuthenticationProvider` 才会继续后续逻辑处理。

然后调用 `AuthenticationProvider` 中的 `authenticate `方法进行身份认证。

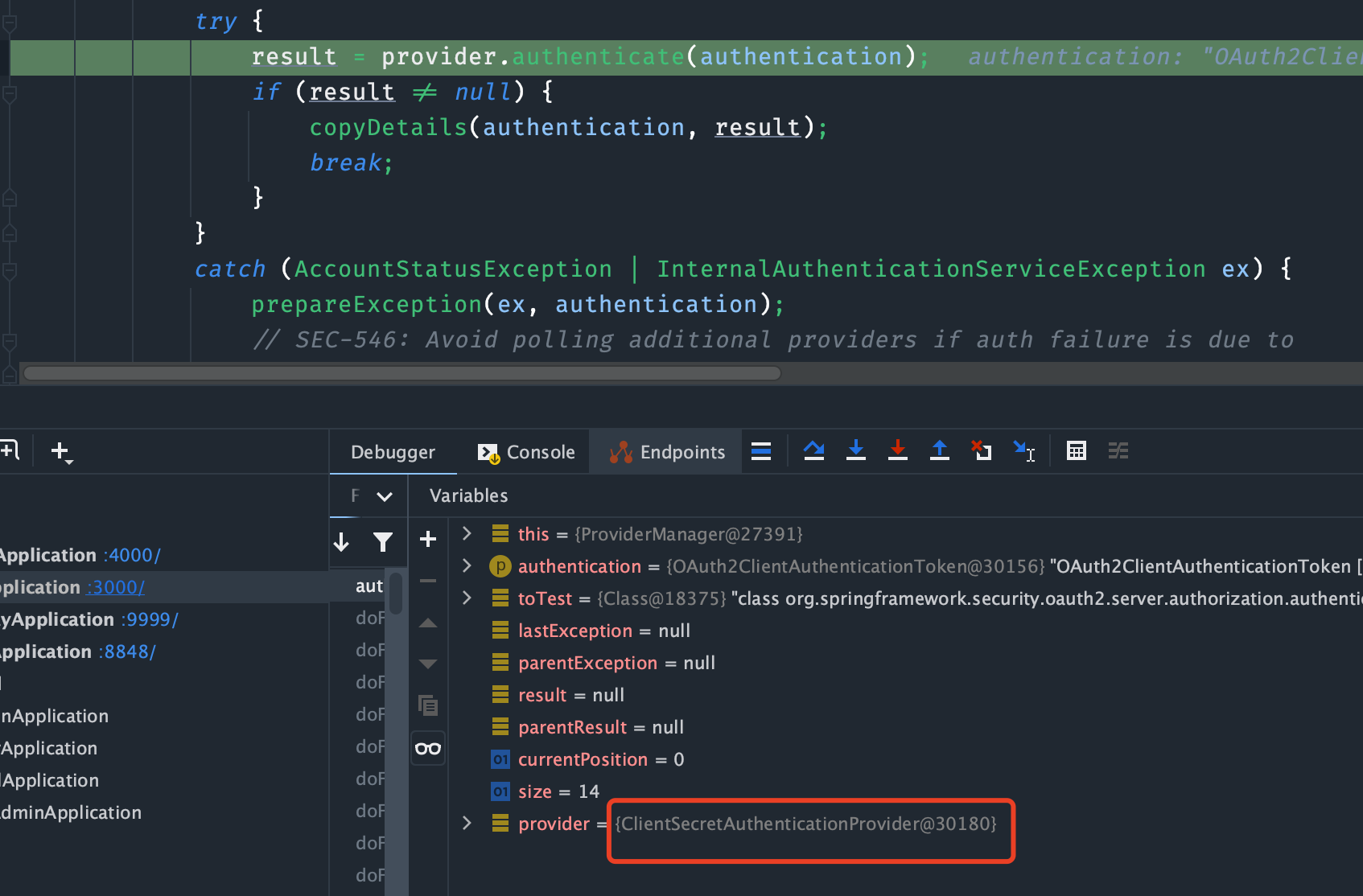

此处的provider为`ClientSecretAuthenticationProvider`


```

public Authentication authenticate(Authentication authentication)

throws AuthenticationException {

......

for (AuthenticationProvider provider : getProviders()) {

if (!provider.supports(toTest)) {

continue;

}

......

try {

result = provider.authenticate(authentication);

......

}

```

在`ClientSecretAuthenticationProvider`中调用`RegisteredClientRepository`,通过`clientId`去数据库查询`client`



如果认证成功且返回的结果不为 null，则执行 `authentication details` 的拷贝逻辑。

```

try {

result = provider.authenticate(authentication);

if (result != null) {

copyDetails(authentication, result);

break;

}

}

......

private void copyDetails(Authentication source, Authentication dest) {

if ((dest instanceof AbstractAuthenticationToken) && (dest.getDetails() == null)) {

AbstractAuthenticationToken token = (AbstractAuthenticationToken) dest;

token.setDetails(source.getDetails());

}

}

```

如果发生 `AccountStatusException` 或 `InternalAuthenticationServiceException` 异常，则会通过Spring事件发布器`AuthenticationEventPublisher `发布异常事件。

```

catch (AccountStatusException e) {

prepareException(e, authentication);

// SEC-546: Avoid polling additional providers if auth failure is due to

// invalid account status

throw e;

}

catch (InternalAuthenticationServiceException e) {

prepareException(e, authentication);

throw e;

}

......

private void prepareException(AuthenticationException ex, Authentication auth) {

eventPublisher.publishAuthenticationFailure(ex, auth);

}

```

如果异常为其它类型的 `AuthenticationException`，则将此异常设置为` lastException `并返回。

```

catch (AuthenticationException e) {

lastException = e;

}

```

如果认证结果为 null，且存在父 `AuthenticationManager`，则调用父 `AuthenticationManager` 进行同样的身份认证操作，其处理逻辑基本同上。

```

if (result == null && parent != null) {

// Allow the parent to try.

try {

result = parentResult = parent.authenticate(authentication);

}

catch (ProviderNotFoundException e) {

// ignore as we will throw below if no other exception occurred prior to

// calling parent and the parent

// may throw ProviderNotFound even though a provider in the child already

// handled the request

}

catch (AuthenticationException e) {

lastException = parentException = e;

}

}

```

如果认证结果不为 null，同时，此时的 `eraseCredentialsAfterAuthentication `参数为 true，且此时认证后的`Authentication` 实现了 `CredentialsContainer `接口，那么即调用 `CredentialsContainer` 接口的凭据擦除方法，即`eraseCredentials`，擦除相关凭据信息。

```

if (result != null) {

if (eraseCredentialsAfterAuthentication

&& (result instanceof CredentialsContainer)) {

// Authentication is complete. Remove credentials and other secret data

// from authentication

((CredentialsContainer) result).eraseCredentials();

}

// If the parent AuthenticationManager was attempted and successful than it will publish an AuthenticationSuccessEvent

// This check prevents a duplicate AuthenticationSuccessEvent if the parent AuthenticationManager already published it

if (parentResult == null) {

eventPublisher.publishAuthenticationSuccess(result);

}

return result;

}

```

其中，有一个防止重复发布 `AuthenticationSuccessEvent` 事件的处理，即 `parentResult `为空。如果 `parentResult`为 null，则代表父 `AuthenticationManager `不存在或者没有身份认证成功，也即没有发布过 `AuthenticationSuccessEvent` 事件。此时，便由此处发布 `AuthenticationSuccessEvent` 事件。

如果`lastException `为 null，则代表当前的 `Authentication` 并没有对应支持的 `Provider`。此时，便会抛出相应异常。

```

if (lastException == null) {

lastException = new ProviderNotFoundException(messages.getMessage(

"ProviderManager.providerNotFound",

new Object[] { toTest.getName() },

"No AuthenticationProvider found for {0}"));

}

```

如同防止重复发布 `AuthenticationSuccessEvent` 事件的处理一样，也有一个防止 `AbstractAuthenticationFailureEvent` 事件重复发布的逻辑处理。如果 `parentException `为 null，则代表父`AuthenticationManager `不存在、没有进行身份认证或者发布过 `AbstractAuthenticationFailureEvent `事件，此时，便由此处发布 `AbstractAuthenticationFailureEvent `事件。

```

if (parentException == null) {

prepareException(lastException, authentication);

}

throw lastException;

```

最后，抛出 lastException。
