# 尚医通-搭建环境

# 预约挂号微服务模块搭建

# 项目模块构建

  • hospital-manage：医院接口模拟端
  • yygh-parent：根目录，管理子模块：
    • common：公共模块父节点
      • common-util：工具类模块，所有模块都可以依赖于它
      • rabbit-util：rabbitmq业务封装
      • service-util：service服务的工具包，包含service服务的公共配置类，所有 service模块依赖于它
    • server-gateway：服务网关
    • model：实体类模块
    • service：api接口服务父节点
      • service-hosp：医院api接口服务
      • service-cmn：公共api接口服务
      • service-user：用户api接口服务
      • service-order：订单api接口服务
      • service-oss：文件api接口服务
      • service-sms：短信 api接口服务
      • service-task：定时任务服务
      • service-statistics：统计api接口服务
    • service-client：feign服务调用父节点
    • service-cmn-client：公共api接口
    • service-hosp-client：医院api接口 + service-order-client：订单api接口
    • service-user：用户api接口

# 父工程模块构建

  • 添加依赖
代码语言：javascript
代码运行次数：0
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.2.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.frx01</groupId>
    <artifactId>yygh_parent</artifactId>
    <packaging>pom</packaging>
    <version>0.0.1-SNAPSHOT</version>
    <name>yygh_parent</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <cloud.version>Hoxton.RELEASE</cloud.version>
        <alibaba.version>2.2.0.RELEASE</alibaba.version>
        <mybatis-plus.version>3.3.1</mybatis-plus.version>
        <mysql.version>5.1.46</mysql.version>
        <swagger.version>2.7.0</swagger.version>
        <jwt.version>0.7.0</jwt.version>
        <fastjson.version>1.2.29</fastjson.version>
        <httpclient.version>4.5.1</httpclient.version>
        <easyexcel.version>2.2.0-beta2</easyexcel.version>
        <aliyun.version>4.1.1</aliyun.version>
        <oss.version>3.9.1</oss.version>
        <jodatime.version>2.10.1</jodatime.version>
    </properties>

    <!--配置dependencyManagement锁定依赖的版本-->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!--mybatis-plus 持久层-->
            <dependency>
            <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>${mybatis-plus.version}</version>
            </dependency>

            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>

            <!--swagger-->
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger2</artifactId>
                <version>${swagger.version}</version>
            </dependency>
            <!--swagger ui-->
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger-ui</artifactId>
                <version>${swagger.version}</version>
            </dependency>

            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt</artifactId>
                <version>${jwt.version}</version>
            </dependency>

            <dependency>
                <groupId>org.apache.httpcomponents</groupId>
                <artifactId>httpclient</artifactId>
                <version>${httpclient.version}</version>
            </dependency>

            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson.version}</version>
            </dependency>

            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>easyexcel</artifactId>
                <version>${easyexcel.version}</version>
            </dependency>

            <dependency>
                <groupId>com.aliyun</groupId>
                <artifactId>aliyun-java-sdk-core</artifactId>
                <version>${aliyun.version}</version>
            </dependency>

            <dependency>
                <groupId>com.aliyun.oss</groupId>
                <artifactId>aliyun-sdk-oss</artifactId>
                <version>${oss.version}</version>
            </dependency>

            <!--日期时间工具-->
            <dependency>
                <groupId>joda-time</groupId>
                <artifactId>joda-time</artifactId>
                <version>${jodatime.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

# 搭建common父模块

  1. 新建maven工程，模块名为common
  2. 删除src
  3. 配置pom.xml
代码语言：javascript
代码运行次数：0
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>common</artifactId>
    <packaging>pom</packaging>
    <version>1.0</version>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <scope>provided </scope>
        </dependency>

        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <scope>provided </scope>
        </dependency>

        <!--lombok用来简化实体类：需要安装lombok插件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
        </dependency>
    </dependencies>

</project>

# 搭建common-util模块

配置pom.xml

代码语言：javascript
代码运行次数：0
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath>../../pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>common-util</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>

        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
        </dependency>

        <!-- 日期工具栏依赖 -->
        <dependency>
            <groupId>joda-time</groupId>
            <artifactId>joda-time</artifactId>
        </dependency>
    </dependencies>
</project>

# 添加公共工具类

工具类名

作用

YyghException

自定义全局异常

Result

API统一返回结果封装类

ResultCodeEnum

API统一返回结果状态信息

BeanUtils

实体bean copy工具类

MD5

MD5加密工具类

# 搭建service-util模块

配置pom.xml

代码语言：javascript
代码运行次数：0
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>common</artifactId>
        <groupId>com.frx01</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>service-util</artifactId>
    <packaging>jar</packaging>
    <name>service-util</name>
    <description>service-util</description>
    <dependencies>
        <dependency>
            <groupId>com.frx01</groupId>
            <artifactId>common-util</artifactId>
            <version>0.0.1-SNAPSHOT</version>
        </dependency>
        <!-- redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- spring2.X集成redis所需common-pool2-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>2.6.0</version>
        </dependency>
    </dependencies>
</project>

# 添加service-util公共类

类名

作用

MybatisPlusConfig

MybatisPlus配置类

CommonMetaObjectHandler

Mybatis plus Handler配置类

# 搭建model模块

配置pom.xml

代码语言：javascript
代码运行次数：0
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>model</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>
    <name>model</name>
    <description>model</description>
    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <scope>provided </scope>
        </dependency>
        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <scope>provided </scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
            <scope>provided </scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-mongodb</artifactId>
            <scope>provided </scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <scope>provided </scope>
        </dependency>
    </dependencies>
</project>

# 搭建service父模块

配置pom.xml

代码语言：javascript
代码运行次数：0
运行
复制
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>yygh_parent</artifactId>
        <groupId>com.frx01</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>service</artifactId>
    <packaging>pom</packaging>
    <version>1.0</version>
    <dependencies>
    <dependency>
        <groupId>com.frx01</groupId>
        <artifactId>service-util</artifactId>
        <version>1.0</version>
    </dependency>
    <dependency>
        <groupId>com.frx01</groupId>
        <artifactId>model</artifactId>
        <version>1.0</version>
    </dependency>
    <!--web-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--开发者工具-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- 服务调用feign -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!-- 服务注册 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!-- 流量控制 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>
    </dependencies>
    <build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
    <resources>
    <resource>
        <directory>src/main/java</directory>
        <includes>
            <include>**/*.yml</include>
            <include>**/*.properties</include>
            <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
    </resource>
    <resource>
        <directory>src/main/resources</directory>
        <includes> <include>**/*.yml</include>
            <include>**/*.properties</include>
            <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
    </resource>
    </resources>
    </build>
</project>

# gitee 的使用

  1. 新建仓库

打开项目并点击菜单栏上的【VCS】--》【Import into version control】--》【Create Git Repository】创建本地仓库

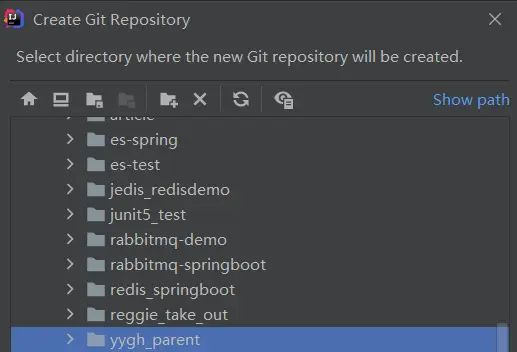

在打开的【Create Git Repository】对话框内选择本地仓库的位置，这里我选择项目的根目录。

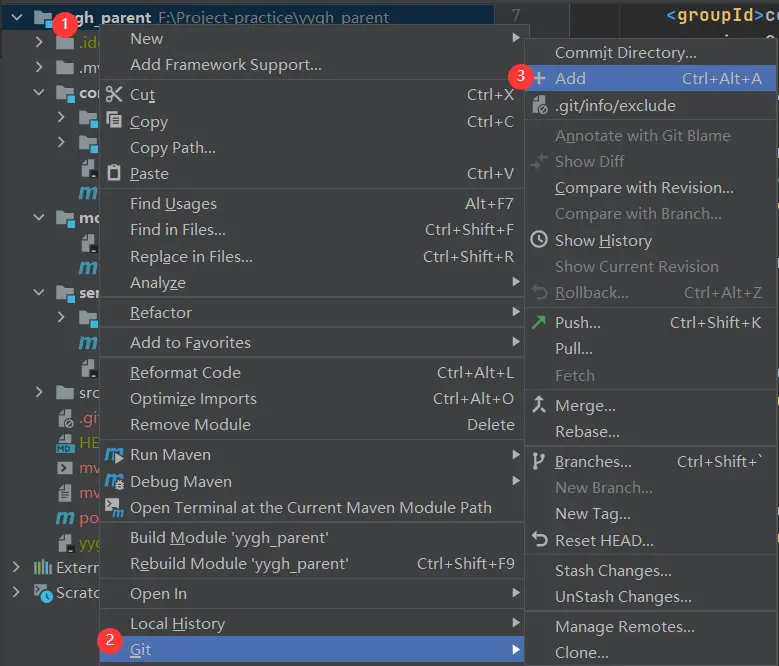

右击项目点击【Git】--》【Add】，接着点击【Git】--》【Commit Directory】在打开的窗口中选择要上传到本地仓库的代码并添加注释后提交到本地仓库内。

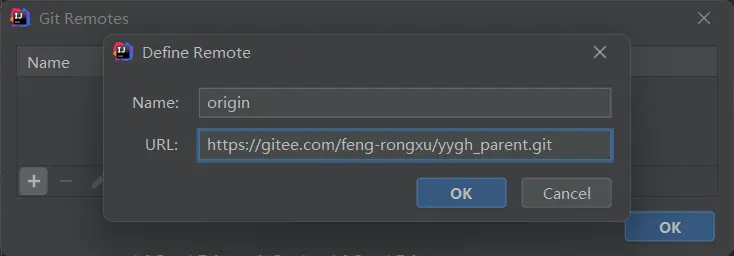

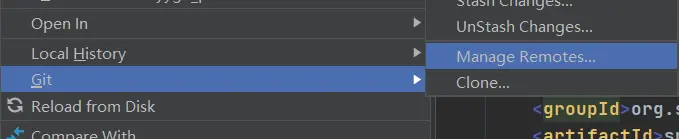

右击项目点击【Git】--》【Manage Remotes...】窗口中添加码云的远程仓库。

点击【OK】后接着输入码云的账号密码。

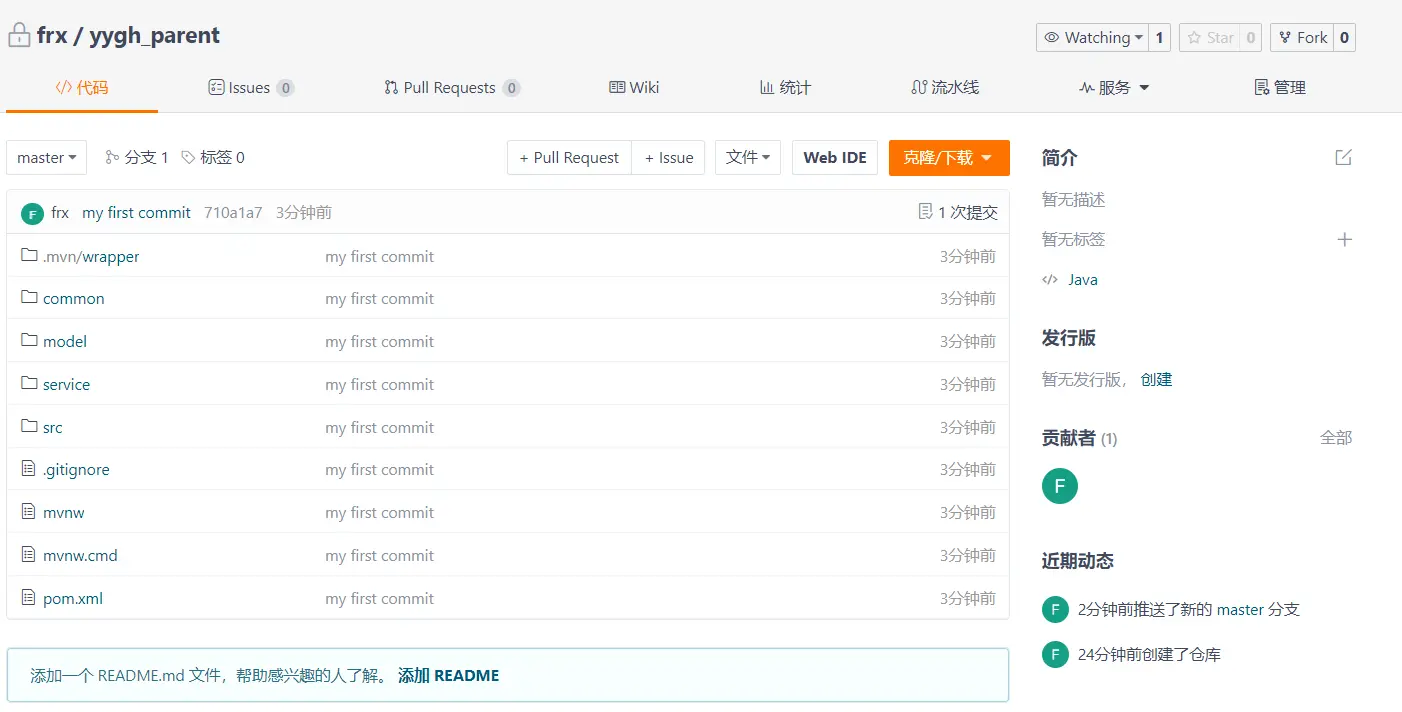

上传代码到码云，右击项目点击【Git】--》【Repository】--》【Push...】在打开的【Push commits】内可以看到已提交到本地仓库的提交信息。点击【Push】按钮将本地仓库的代码上传到码云上，上传成功后就可以在码云上看到。

本文参与 腾讯云自媒体同步曝光计划，分享自作者个人站点/博客。
原始发表：2022-10-20，如有侵权请联系 cloudcommunity@tencent.com 删除
api
微服务
git
xml

本文分享自 作者个人站点/博客 前往查看

如有侵权，请联系 cloudcommunity@tencent.com 删除。

本文参与 腾讯云自媒体同步曝光计划  ，欢迎热爱写作的你一起参与！

api
微服务
git
xml
评论
登录后参与评论
0 条评论
热度
最新
登录 后参与评论
推荐阅读
目录
  • # 尚医通-搭建环境
    • # 预约挂号微服务模块搭建
      • # 项目模块构建
      • # 父工程模块构建
      • # 搭建common父模块
      • # 搭建common-util模块
      • # 添加公共工具类
      • # 搭建service-util模块
      • # 添加service-util公共类
      • # 搭建model模块
      • # 搭建service父模块
    • # gitee 的使用
领券

腾讯云开发者

扫码关注腾讯云开发者

扫码关注腾讯云开发者

领取腾讯云代金券

热门产品

热门推荐

更多推荐

Copyright © 2013 - 2025 Tencent Cloud. All Rights Reserved. 腾讯云 版权所有

深圳市腾讯计算机系统有限公司 ICP备案/许可证号：粤B2-20090059 深公网安备号 44030502008569

腾讯云计算（北京）有限责任公司 京ICP证150476号 |  京ICP备11018762号 | 京公网安备号11010802020287

问题归档专栏文章快讯文章归档关键词归档开发者手册归档开发者手册 Section 归档

Copyright © 2013 - 2025 Tencent Cloud.

All Rights Reserved. 腾讯云 版权所有

登录 后参与评论
