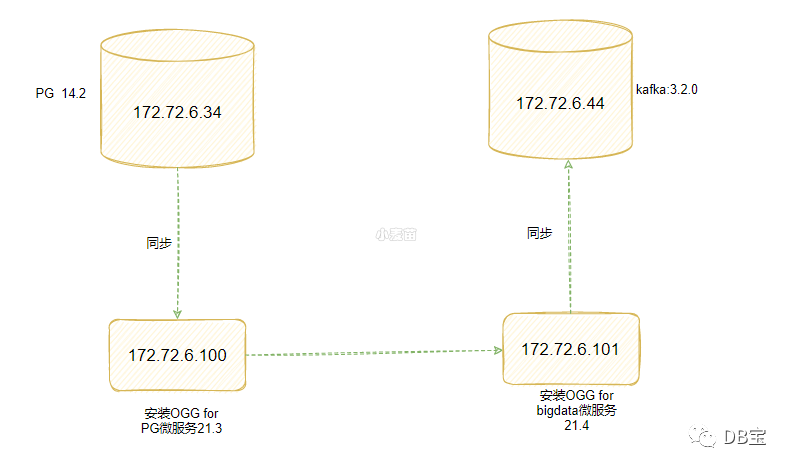

环境准备

PG环境

-- 创建专用网络
docker network create --subnet=172.72.6.0/24 pg-network

-- PG
docker rm -f lhrpg
docker run -d --name lhrpg -h lhrpg \
   -p : --net=pg-network --ip 172.72.6.34 \
   -e POSTGRES_PASSWORD=lhr \
   -e TZ=Asia/Shanghai \
   postgres:14.2



psql -U postgres -h 192.168.1.35 -p


create database lhrdb;
\c lhrdb
create table t1(id int primary key);
create table t2(id int primary key);
create schema ogg;


-- 需要重启库
alter system set wal_level='logical';
select pg_reload_conf();


docker restart lhrpg





sysbench /usr/share/sysbench/oltp_common.lua --db-driver=pgsql \
--pgsql-host=172.72.6.34 --pgsql-port=5432 \
--pgsql-user=postgres --pgsql-password=lhr --pgsql-db=lhrdb \
--table-size=100 --tables=10 --threads=10 \
--events=999999999 --time=60 prepare



psql -U postgres -h 192.168.1.35 -p 64320 -d lhrdb
lhrdb=# \dt
          List of relations
 Schema |   Name   | Type  |  Owner
--------+----------+-------+----------
 public | sbtest1  | table | postgres
 public | sbtest10 | table | postgres
 public | sbtest2  | table | postgres
 public | sbtest3  | table | postgres
 public | sbtest4  | table | postgres
 public | sbtest5  | table | postgres
 public | sbtest6  | table | postgres
 public | sbtest7  | table | postgres
 public | sbtest8  | table | postgres
 public | sbtest9  | table | postgres
 public | t1       | table | postgres
 public | t2       | table | postgres
(12 rows)

目标端kafka环境

docker pull lhrbest/kafka:3.2.0


docker rm -f lhrkafka
docker run -itd --name lhrkafka -h lhrkafka \
  --net=pg-network --ip 172.72.6.44 \
  -p 9092:9092 -p 2181:2181 \
  -v /sys/fs/cgroup:/sys/fs/cgroup \
  --privileged=true lhrbest/kafka:3.2.0 \
  /usr/sbin/init

docker exec -it lhrkafka bash


-- 启动（默认已启动）
/usr/local/kafka/bin/zookeeper-server-start.sh /usr/local/kafka/config/zookeeper.properties &
/usr/local/kafka/bin/kafka-server-start.sh /usr/local/kafka/config/server.properties &

[root@lhrkafka /]# jps
 QuorumPeerMain
 Kafka
 Jps
[root@lhrkafka /]# ps -ef|grep java
/*
* 提示：该行代码过长，系统自动注释不进行高亮。一键复制会移除系统注释
* root                   : ?        :: java -Xmx512M -Xms512M -server -XX:+UseG1GC -XX:MaxGCPauseMillis= -XX:InitiatingHeapOccupancyPercent= -XX:+ExplicitGCInvokesConcurrent -XX:MaxInlineLevel= -Djava.awt.headless=true -Xloggc:/usr/local/kafka/bin/../logs/zookeeper-gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles= -XX:GCLogFileSize=M -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Dkafka.logs.dir=/usr/local/kafka/bin/../logs -Dlog4j.configuration=file:/usr/local/kafka/bin/../config/log4j.properties -cp /usr/local/kafka/bin/../libs/activation-1.1.1.jar:/usr/local/kafka/bin/../libs/aopalliance-repackaged-2.6.1.jar:/usr/local/kafka/bin/../libs/argparse4j-0.7.0.jar:/usr/local/kafka/bin/../libs/audience-annotations-0.5.0.jar:/usr/local/kafka/bin/../libs/commons-cli-1.4.jar:/usr/local/kafka/bin/../libs/commons-lang3-3.8.1.jar:/usr/local/kafka/bin/../libs/connect-api-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-basic-auth-extension-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-json-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-mirror-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-mirror-client-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-runtime-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-transforms-3.2.0.jar:/usr/local/kafka/bin/../libs/hk2-api-2.6.1.jar:/usr/local/kafka/bin/../libs/hk2-locator-2.6.1.jar:/usr/local/kafka/bin/../libs/hk2-utils-2.6.1.jar:/usr/local/kafka/bin/../libs/jackson-annotations-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-core-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-databind-2.12.6.1.jar:/usr/local/kafka/bin/../libs/jackson-dataformat-csv-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-datatype-jdk8-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-jaxrs-base-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-jaxrs-json-provider-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-module-jaxb-annotations-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-module-scala_2.13-2.12.6.jar:/usr/local/kafka/bin/../libs/jakarta.activation-api-1.2.1.jar:/usr/local/kafka/bin/../libs/jakarta.annotation-api-1.3.5.jar:/usr/local/kafka/bin/../libs/jakarta.inject-2.6.1.jar:/usr/local/kafka/bin/../libs/jakarta.validation-api-2.0.2.jar:/usr/local/kafka/bin/../libs/jakarta.ws.rs-api-2.1.6.jar:/usr/local/kafka/bin/../libs/jakarta.xml.bind-api-2.3.2.jar:/usr/local/kafka/bin/../libs/javassist-3.27.0-GA.jar:/usr/local/kafka/bin/../libs/javax.servlet-api-3.1.0.jar:/usr/local/kafka/bin/../libs/javax.ws.rs-api-2.1.1.jar:/usr/local/kafka/bin/../libs/jaxb-api-2.3.0.jar:/usr/local/kafka/bin/../libs/jersey-client-2.34.jar:/usr/local/kafka/bin/../libs/jersey-common-2.34.jar:/usr/local/kafka/bin/../libs/jersey-container-servlet-2.34.jar:/usr/local/kafka/bin/../libs/jersey-container-servlet-core-2.34.jar:/usr/local/kafka/bin/../libs/jersey-hk2-2.34.jar:/usr/local/kafka/bin/../libs/jersey-server-2.34.jar:/usr/local/kafka/bin/../libs/jetty-client-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-continuation-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-http-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-io-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-security-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-server-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-servlet-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-servlets-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-util-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-util-ajax-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jline-3.21.0.jar:/usr/local/kafka/bin/../libs/jopt-simple-5.0.4.jar:/usr/local/kafka/bin/../libs/jose4j-0.7.9.jar:/usr/local/kafka/bin/../libs/kafka_2.13-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-clients-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-log4j-appender-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-metadata-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-raft-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-server-common-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-shell-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-storage-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-storage-api-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-examples-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-scala_2.13-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-test-utils-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-tools-3.2.0.jar:/usr/local/kafka/bin/../libs/lz4-java-1.8.0.jar:/usr/local/kafka/bin/../libs/maven-artifact-3.8.4.jar:/usr/local/kafka/bin/../libs/metrics-core-2.2.0.jar:/usr/local/kafka/bin/../libs/metrics-core-4.1.12.1.jar:/usr/local/kafka/bin/../libs/netty-buffer-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-codec-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-common-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-handler-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-resolver-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-tcnative-classes-2.0.46.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-classes-epoll-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-native-epoll-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-native-unix-common-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/osgi-resource-locator-1.0.3.jar:/usr/local/kafka/bin/../libs/paranamer-2.8.jar:/usr/local/kafka/bin/../libs/plexus-utils-3.3.0.jar:/usr/local/kafka/bin/../libs/reflections-0.9.12.jar:/usr/local/kafka/bin/../libs/reload4j-1.2.19.jar:/usr/local/kafka/bin/../libs/rocksdbjni-6.29.4.1.jar:/usr/local/kafka/bin/../libs/scala-collection-compat_2.13-2.6.0.jar:/usr/local/kafka/bin/../libs/scala-java8-compat_2.13-1.0.2.jar:/usr/local/kafka/bin/../libs/scala-library-2.13.8.jar:/usr/local/kafka/bin/../libs/scala-logging_2.13-3.9.4.jar:/usr/local/kafka/bin/../libs/scala-reflect-2.13.8.jar:/usr/local/kafka/bin/../libs/slf4j-api-1.7.36.jar:/usr/local/kafka/bin/../libs/slf4j-reload4j-1.7.36.jar:/usr/local/kafka/bin/../libs/snappy-java-1.1.8.4.jar:/usr/local/kafka/bin/../libs/trogdor-3.2.0.jar:/usr/local/kafka/bin/../libs/zookeeper-3.6.3.jar:/usr/local/kafka/bin/../libs/zookeeper-jute-3.6.3.jar:/usr/local/kafka/bin/../libs/zstd-jni-1.5.2-1.jar org.apache.zookeeper.server.quorum.QuorumPeerMain /usr/local/kafka/config/zookeeper.properties
*/
/*
* 提示：该行代码过长，系统自动注释不进行高亮。一键复制会移除系统注释
* root                  : ?        :: java -Xmx1G -Xms1G -server -XX:+UseG1GC -XX:MaxGCPauseMillis= -XX:InitiatingHeapOccupancyPercent= -XX:+ExplicitGCInvokesConcurrent -XX:MaxInlineLevel= -Djava.awt.headless=true -Xloggc:/usr/local/kafka/bin/../logs/kafkaServer-gc.log -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCTimeStamps -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles= -XX:GCLogFileSize=M -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.port= -Dkafka.logs.dir=/usr/local/kafka/bin/../logs -Dlog4j.configuration=file:/usr/local/kafka/bin/../config/log4j.properties -cp /usr/local/kafka/bin/../libs/activation-1.1.1.jar:/usr/local/kafka/bin/../libs/aopalliance-repackaged-2.6.1.jar:/usr/local/kafka/bin/../libs/argparse4j-0.7.0.jar:/usr/local/kafka/bin/../libs/audience-annotations-0.5.0.jar:/usr/local/kafka/bin/../libs/commons-cli-1.4.jar:/usr/local/kafka/bin/../libs/commons-lang3-3.8.1.jar:/usr/local/kafka/bin/../libs/connect-api-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-basic-auth-extension-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-json-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-mirror-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-mirror-client-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-runtime-3.2.0.jar:/usr/local/kafka/bin/../libs/connect-transforms-3.2.0.jar:/usr/local/kafka/bin/../libs/hk2-api-2.6.1.jar:/usr/local/kafka/bin/../libs/hk2-locator-2.6.1.jar:/usr/local/kafka/bin/../libs/hk2-utils-2.6.1.jar:/usr/local/kafka/bin/../libs/jackson-annotations-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-core-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-databind-2.12.6.1.jar:/usr/local/kafka/bin/../libs/jackson-dataformat-csv-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-datatype-jdk8-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-jaxrs-base-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-jaxrs-json-provider-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-module-jaxb-annotations-2.12.6.jar:/usr/local/kafka/bin/../libs/jackson-module-scala_2.13-2.12.6.jar:/usr/local/kafka/bin/../libs/jakarta.activation-api-1.2.1.jar:/usr/local/kafka/bin/../libs/jakarta.annotation-api-1.3.5.jar:/usr/local/kafka/bin/../libs/jakarta.inject-2.6.1.jar:/usr/local/kafka/bin/../libs/jakarta.validation-api-2.0.2.jar:/usr/local/kafka/bin/../libs/jakarta.ws.rs-api-2.1.6.jar:/usr/local/kafka/bin/../libs/jakarta.xml.bind-api-2.3.2.jar:/usr/local/kafka/bin/../libs/javassist-3.27.0-GA.jar:/usr/local/kafka/bin/../libs/javax.servlet-api-3.1.0.jar:/usr/local/kafka/bin/../libs/javax.ws.rs-api-2.1.1.jar:/usr/local/kafka/bin/../libs/jaxb-api-2.3.0.jar:/usr/local/kafka/bin/../libs/jersey-client-2.34.jar:/usr/local/kafka/bin/../libs/jersey-common-2.34.jar:/usr/local/kafka/bin/../libs/jersey-container-servlet-2.34.jar:/usr/local/kafka/bin/../libs/jersey-container-servlet-core-2.34.jar:/usr/local/kafka/bin/../libs/jersey-hk2-2.34.jar:/usr/local/kafka/bin/../libs/jersey-server-2.34.jar:/usr/local/kafka/bin/../libs/jetty-client-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-continuation-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-http-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-io-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-security-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-server-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-servlet-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-servlets-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-util-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jetty-util-ajax-9.4.44.v20210927.jar:/usr/local/kafka/bin/../libs/jline-3.21.0.jar:/usr/local/kafka/bin/../libs/jopt-simple-5.0.4.jar:/usr/local/kafka/bin/../libs/jose4j-0.7.9.jar:/usr/local/kafka/bin/../libs/kafka_2.13-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-clients-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-log4j-appender-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-metadata-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-raft-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-server-common-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-shell-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-storage-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-storage-api-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-examples-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-scala_2.13-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-streams-test-utils-3.2.0.jar:/usr/local/kafka/bin/../libs/kafka-tools-3.2.0.jar:/usr/local/kafka/bin/../libs/lz4-java-1.8.0.jar:/usr/local/kafka/bin/../libs/maven-artifact-3.8.4.jar:/usr/local/kafka/bin/../libs/metrics-core-2.2.0.jar:/usr/local/kafka/bin/../libs/metrics-core-4.1.12.1.jar:/usr/local/kafka/bin/../libs/netty-buffer-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-codec-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-common-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-handler-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-resolver-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-tcnative-classes-2.0.46.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-classes-epoll-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-native-epoll-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/netty-transport-native-unix-common-4.1.73.Final.jar:/usr/local/kafka/bin/../libs/osgi-resource-locator-1.0.3.jar:/usr/local/kafka/bin/../libs/paranamer-2.8.jar:/usr/local/kafka/bin/../libs/plexus-utils-3.3.0.jar:/usr/local/kafka/bin/../libs/reflections-0.9.12.jar:/usr/local/kafka/bin/../libs/reload4j-1.2.19.jar:/usr/local/kafka/bin/../libs/rocksdbjni-6.29.4.1.jar:/usr/local/kafka/bin/../libs/scala-collection-compat_2.13-2.6.0.jar:/usr/local/kafka/bin/../libs/scala-java8-compat_2.13-1.0.2.jar:/usr/local/kafka/bin/../libs/scala-library-2.13.8.jar:/usr/local/kafka/bin/../libs/scala-logging_2.13-3.9.4.jar:/usr/local/kafka/bin/../libs/scala-reflect-2.13.8.jar:/usr/local/kafka/bin/../libs/slf4j-api-1.7.36.jar:/usr/local/kafka/bin/../libs/slf4j-reload4j-1.7.36.jar:/usr/local/kafka/bin/../libs/snappy-java-1.1.8.4.jar:/usr/local/kafka/bin/../libs/trogdor-3.2.0.jar:/usr/local/kafka/bin/../libs/zookeeper-3.6.3.jar:/usr/local/kafka/bin/../libs/zookeeper-jute-3.6.3.jar:/usr/local/kafka/bin/../libs/zstd-jni-1.5.2-1.jar kafka.Kafka /usr/local/kafka/config/server.properties
*/
root                : pts/    :: grep --color=auto java
[root@lhrkafka /]# netstat -tulnp | grep java
tcp               0.0.0.0:            0.0.0.0:*               LISTEN      /java
tcp               0.0.0.0:            0.0.0.0:*               LISTEN      /java
tcp               0.0.0.0:           0.0.0.0:*               LISTEN      /java
tcp               0.0.0.0:           0.0.0.0:*               LISTEN      /java
tcp               0.0.0.0:           0.0.0.0:*               LISTEN      /java
tcp               0.0.0.0:            0.0.0.0:*               LISTEN      /java

kafka默认占用9092端口，ZK默认占用2181端口。

kafka日志：

tailf /usr/local/kafka/logs/server.log

测试一下，在服务器上创建一个topic为test，然后生产几条信息：

-- 生产者
/usr/local/kafka/bin/kafka-console-producer.sh --broker-list 127.0.0.1:9092 --topic test
>hello
>world



-- 在另一台机器上，开启消费者控制台，监听test的topic，发现可以收到数据
/usr/local/kafka/bin/kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092  --topic test --from-beginning
hello
word




-- 查看当前服务器中的所有 topic
/usr/local/kafka/bin/kafka-topics.sh --list  --bootstrap-server  localhost:9092

源端OGG for PG微服务环境

-- OGG机器
docker pull lhrbest/ogg213mapg:v1.0

docker rm -f lhrogg213mapg
docker run -d --name lhrogg213mapg -h lhrogg213mapg \
  --net=pg-network --ip 172.72.6.100 \
  -p 9391:3389 -p 29000-29005:9000-9005 \
  -v /sys/fs/cgroup:/sys/fs/cgroup \
  --privileged=true lhrbest/ogg213mapg:v1.0 \
  /usr/sbin/init


docker exec -it lhrogg213mapg bash



-- OGGMA
cat > /ogg213c/ogg_ma/odbc.ini <<"EOF"
[ODBC Data Sources]
PGDSN=DataDirect 13 PostgreSQL Wire Protocol

[ODBC]
IANAAppCodePage=106
InstallDir=/ogg213c/ogg_ma

[PGDSN]
Driver=/ogg213c/ogg_ma/lib/GGpsql25.so
#Driver=/usr/lib64/psqlodbcw.so
Description=DataDirect 13 PostgreSQL Wire Protocol
Database=lhrdb
HostName=172.72.6.34
PortNumber=5432
LogonID=postgres
Password=lhr

EOF


su - pg
adminclient
CONNECT http://127.0.0.1:9000 deployment deploy213 as oggadmin password lhr

访问：http://192.168.1.35:29001 ，用户名：oggadmin，密码：lhr

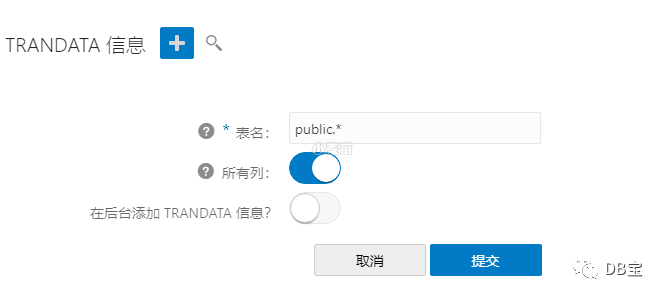

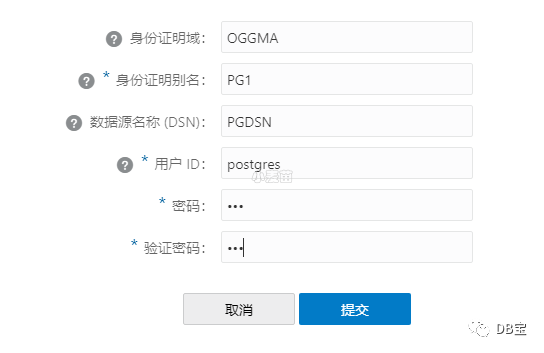

创建身份证明、添加trandata

目标端OGG for bigdata微服务环境

docker pull lhrbest/ogg214mabigdata:v1.0

docker rm -f lhrogg214mabigdata
docker run -d --name lhrogg214mabigdata -h lhrogg214mabigdata \
  --net=pg-network --ip 172.72.6.101 \
  -p 9191:3389 -p 9000-9005:9000-9005 \
  -v /sys/fs/cgroup:/sys/fs/cgroup \
  --privileged=true lhrbest/ogg214mabigdata:v1.0 \
  /usr/sbin/init


docker exec -it lhrogg214mabigdata bash


-- 配置kafka参数
vi /ogg214c/ogg_deploy/etc/conf/ogg/kafka.props
gg.handler.kafkahandler.schemaTopicName=LHR_OGG


vi  /ogg214c/ogg_deploy/etc/conf/ogg/custom_kafka_producer.properties
bootstrap.servers=172.72.6.44:9092

访问：http://192.168.1.35:9001 ，用户名：oggadmin，密码：lhr

全量同步

注意：在此阶段，源端需要停业务，不能产生新数据。

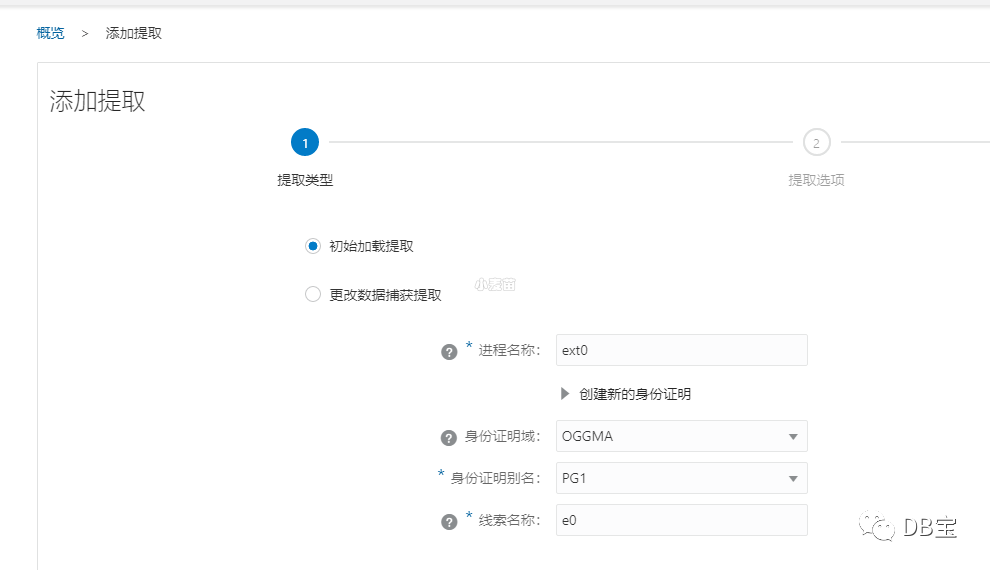

源端创建初始化加载

image-20220725094050700

EXTRACT ext0
SETENV(PGCLIENTENCODING = "UTF8")
SETENV(ODBCINI="/ogg213c/ogg_ma/odbc.ini")
SOURCEDB PGDSN USERIDALIAS PG1, DOMAIN OGGMA
EXTFILE ./dirdat/e0 ,  PURGE
TABLE public.*;

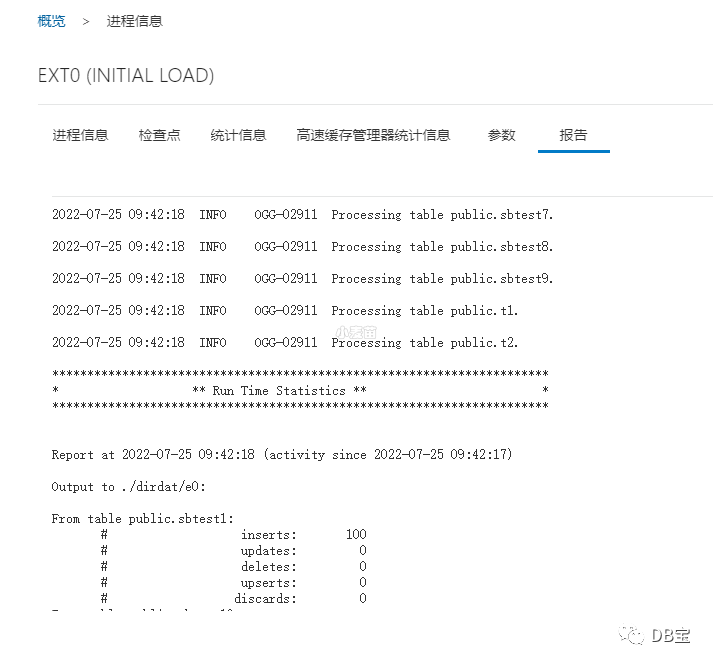

查询报告，说明数据已经传输到目标端了，如下：

进入OS查询：

[root@lhrogg213mapg /]# cd /ogg213c/ogg_deploy/var/lib/data/dirdat
[root@lhrogg213mapg dirdat]# ll
total 272
-rw-r----- 1 oracle oinstall 278395 Jul 25 09:42 e0000000
[root@lhrogg213mapg dirdat]# ll -h
total 272K
-rw-r----- 1 oracle oinstall 272K Jul 25 09:42 e0000000
[root@lhrogg213mapg dirdat]#

使用scp将文件传递到目标端

scp  /ogg213c/ogg_deploy/var/lib/data/dirdat/e0000000 root@172.72.6.101:/ogg214c/ogg_deploy/var/lib/data/dirdat/

cd /ogg214c/ogg_deploy/var/lib/data/dirdat/
chown oracle.oinstall -R ./dirdat/

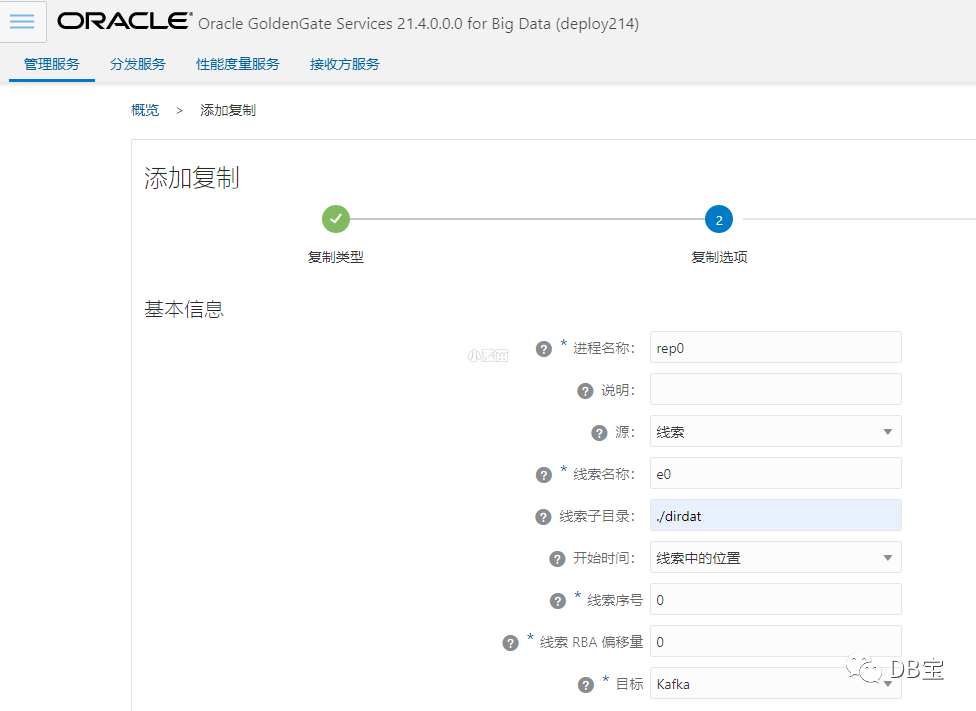

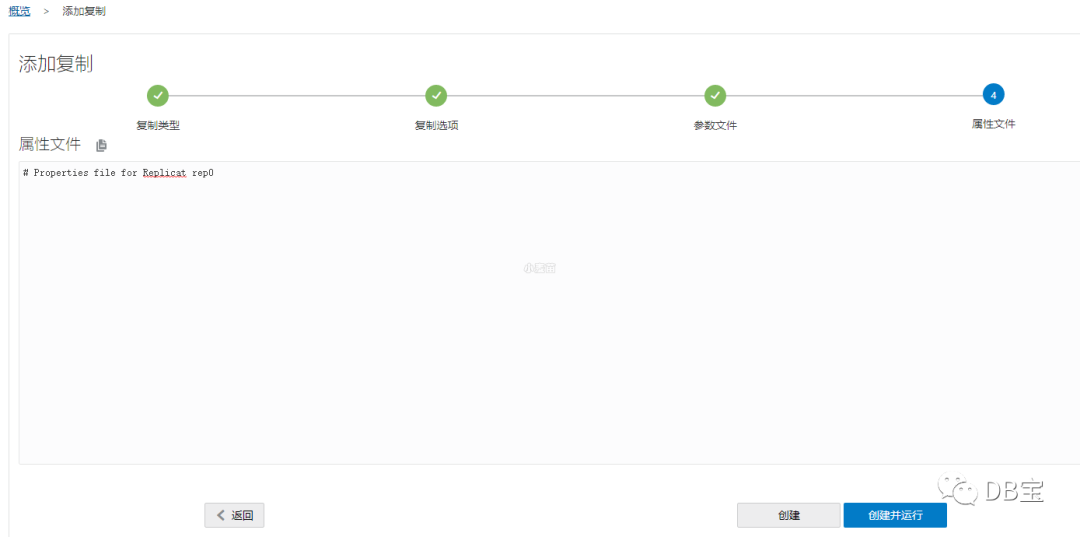

目标端kafka数据全量初始化

REPLICAT rep0
targetdb libfile libggjava.so set property=/ogg214c/ogg_deploy/etc/conf/ogg/kafka.props
end runtime
map public.*, target public.*;

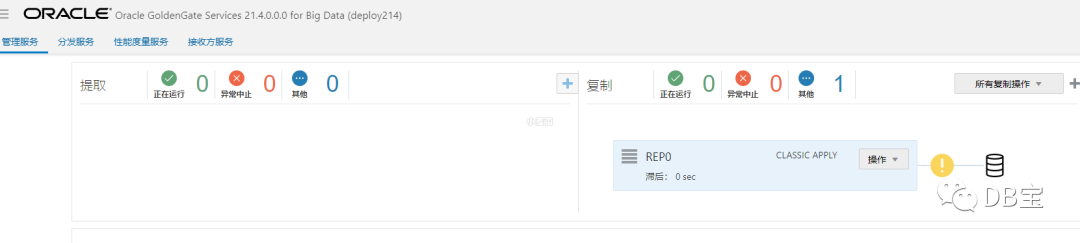

运行完后，自动停止：

全量同步结果检查

-- 查看所有历史数据
/usr/local/kafka/bin/kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092  --topic LHR_OGG --from-beginning



-- 查看当前服务器中的所有 topic
/usr/local/kafka/bin/kafka-topics.sh --list  --bootstrap-server  localhost:9092


-- topic详情
/usr/local/kafka/bin/kafka-topics.sh --bootstrap-server  localhost:9092 --describe --topic LHR_OGG

一张表一个主题，如下：

[root@lhrkafka /]# /usr/local/kafka/bin/kafka-topics.sh --list  --bootstrap-server  localhost:9092
__consumer_offsets
test
[root@lhrkafka /]# /usr/local/kafka/bin/kafka-topics.sh --list  --bootstrap-server  localhost:9092
LHR_OGG
__consumer_offsets
sbtest1
sbtest10
sbtest2
sbtest3
sbtest4
sbtest5
sbtest6
sbtest7
sbtest8
sbtest9
[root@lhrkafka /]# /usr/local/kafka/bin/kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092  --topic sbtest1 --from-beginning | wc -l
^CProcessed a total of 100 messages

数据已全量同步完成。

增量同步

配置复制槽

在配置PostgreSQL实时同步之前，需要先配置复制槽。

su - oracle
adminclient
CONNECT http://127.0.0.1:9001 deployment deploy213 as oggadmin password lhr
dblogin useridalias PG1 DOMAIN OGGMA
REGISTER EXTRACT  ext1

若不配置复制槽，会报错：OGG-25374 Oracle GoldenGate Capture for PostgreSQL, EXT1.prm: The replication slot 'ext1_eaa1c3d574a94c47' for group 'EXT1' does not exist in the database 'lhrdb'.

过程：

[root@lhrogg213mapg dirdat]# su  - oracle
Last login: Fri Dec  3 10:58:49 CST 2021 on pts/0
[oracle@lhrogg213mapg ~]$ adminclient
Oracle GoldenGate Administration Client for PostgreSQL
Version 21.3.0.0.0 OGGCORE_21.3.0.0.0_PLATFORMS_210728.1047

Copyright (C) 1995, 2021, Oracle and/or its affiliates. All rights reserved.

Oracle Linux 7, x64, 64bit (optimized) on Aug  4 2021 19:52:45
Operating system character set identified as UTF-8.

OGG (not connected) > CONNECT http://127.0.0.1: deployment deploy213 as oggadmin password lhr

OGG (http://127.0.0.1: deploy213) > dblogin useridalias PG1 DOMAIN OGGMA
Successfully logged into database.

OGG (http://127.0.0.1: deploy213 as PG1@lhrdb) > REGISTER EXTRACT  ext1
-07-25T02::Z  INFO    OGG-25355  Successfully created replication slot 'ext1_eaa1c3d574a94c47' for Extract group 'EXT1' in database 'lhrdb'.

OGG (http://127.0.0.1: deploy213 as PG1@lhrdb) >

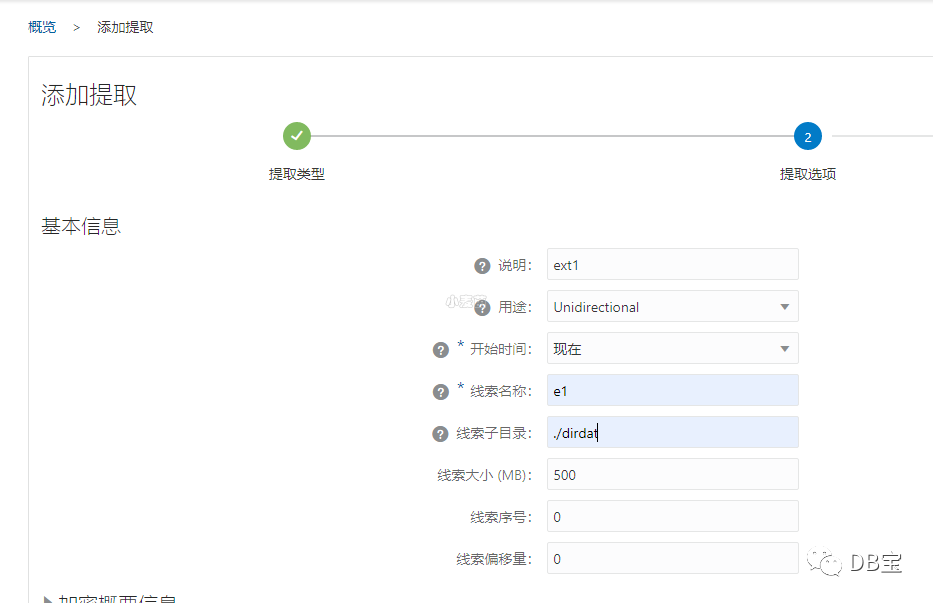

PG端配置

extract ext1
SETENV(PGCLIENTENCODING = "UTF8" )
SETENV(ODBCINI="/ogg213c/ogg_ma/odbc.ini" )
SOURCEDB PGDSN USERIDALIAS PG1, DOMAIN OGGMA
exttrail ./dirdat/e1
IGNOREREPLICATES
table public.*;

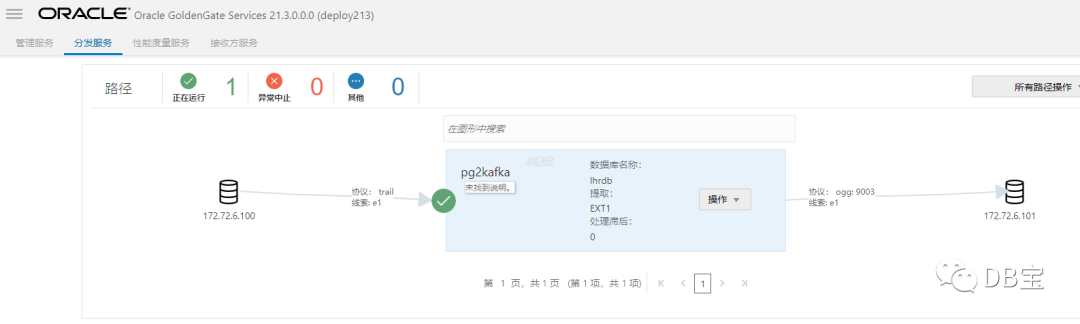

源端配置数据分发服务

登陆：http://192.168.1.35:29002

trail://172.72.6.100:9002/services/v2/sources?trail=./dirdat/e1
ogg://172.72.6.101:9003/services/v2/targets?trail=./dirdat/e1

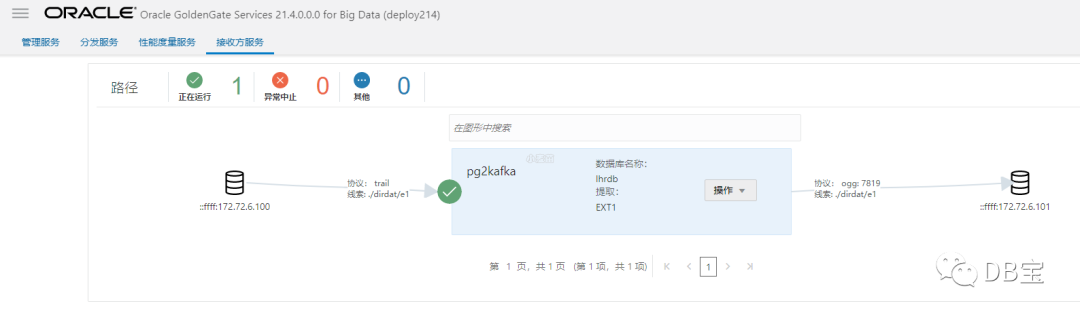

此时，bigdata会自动添加接收方服务：

文件已传输到目标端：

[root@lhrogg214mabigdata dirdat]# ll
total 276
-rwxrwxrwx 1 oracle oinstall 278395 Jul 25 09:51 e0000000
-rw-r----- 1 oracle oinstall   1534 Jul 25 10:31 e1000000000
[root@lhrogg214mabigdata dirdat]# pwd
/ogg214c/ogg_deploy/var/lib/data/dirdat

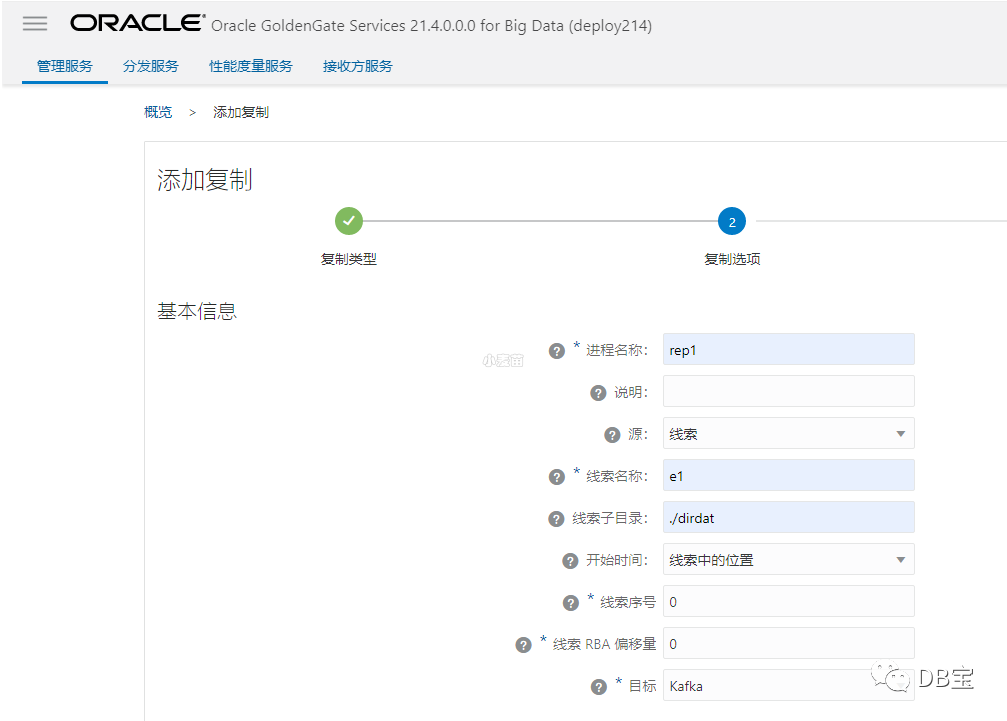

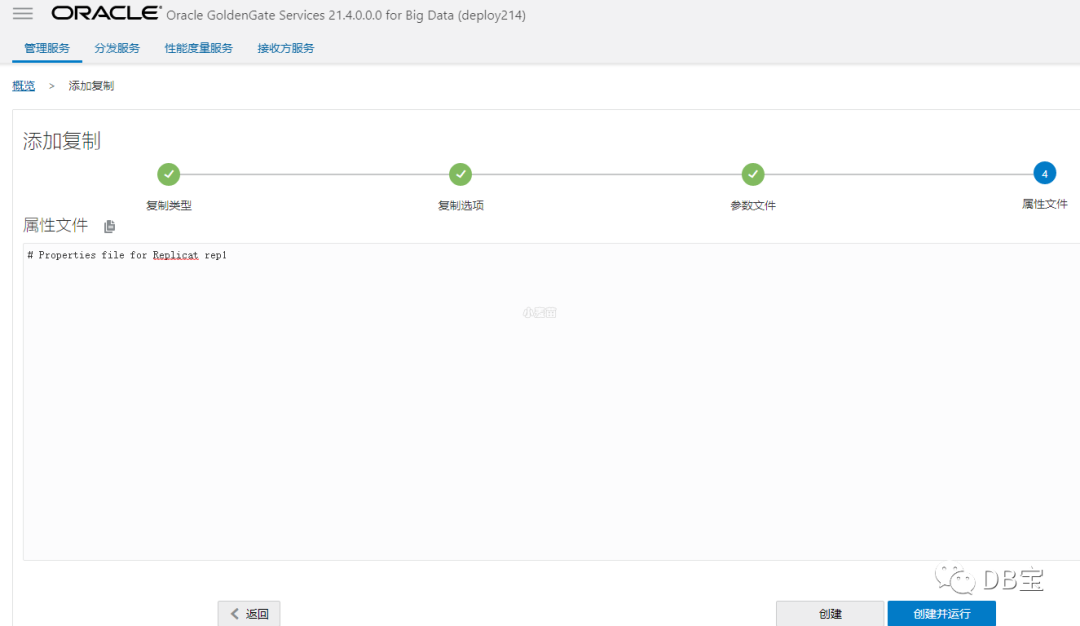

kafka端应用配置

目标端选项较多，包括：Warehouse、Cassandra、HBase、HDFS、JDBC、Kafka和Kafka Connect等。

REPLICAT rep1
targetdb libfile libggjava.so set property=/ogg214c/ogg_deploy/etc/conf/ogg/kafka.props
map public.*, target public.*;

增量测试

lhrdb=# insert into t1 values (1),(2);
INSERT
lhrdb=# delete from sbtest1 where id<=1;
DELETE
lhrdb=#

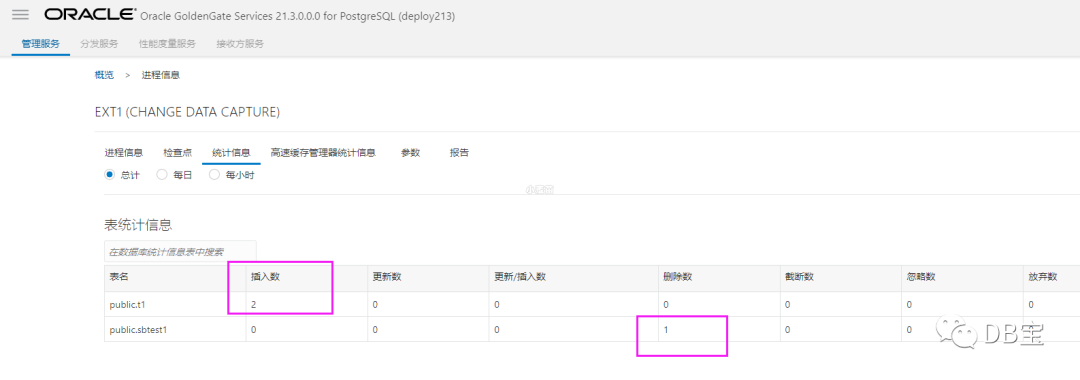

源端：

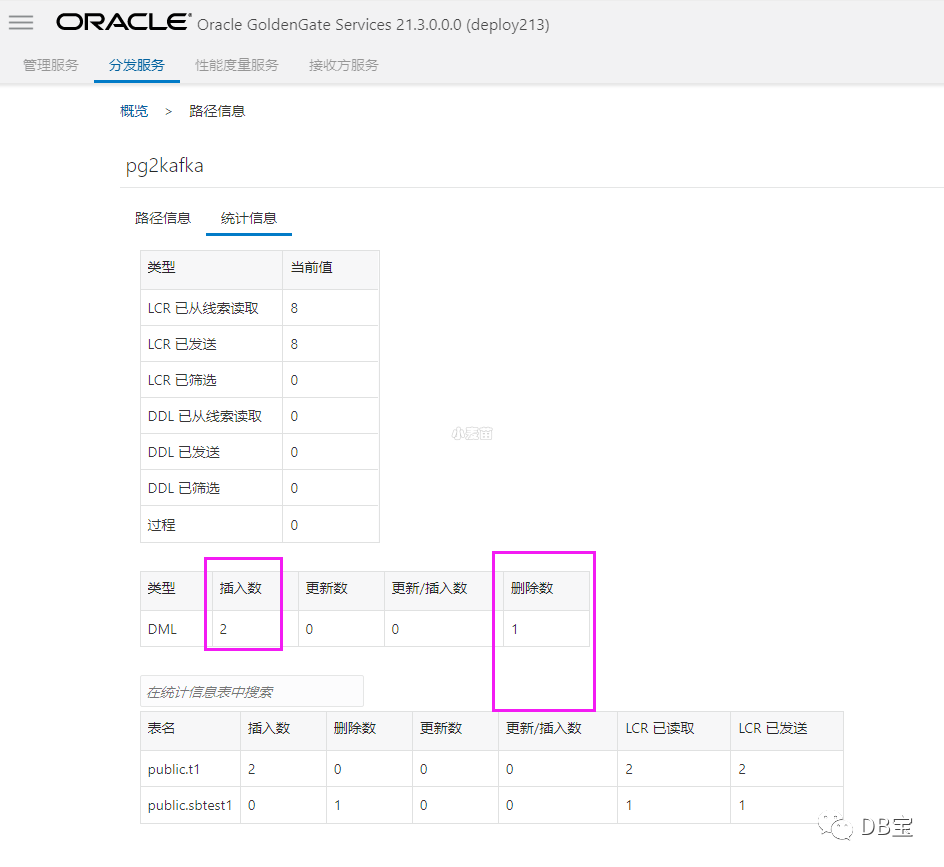

数据分发：

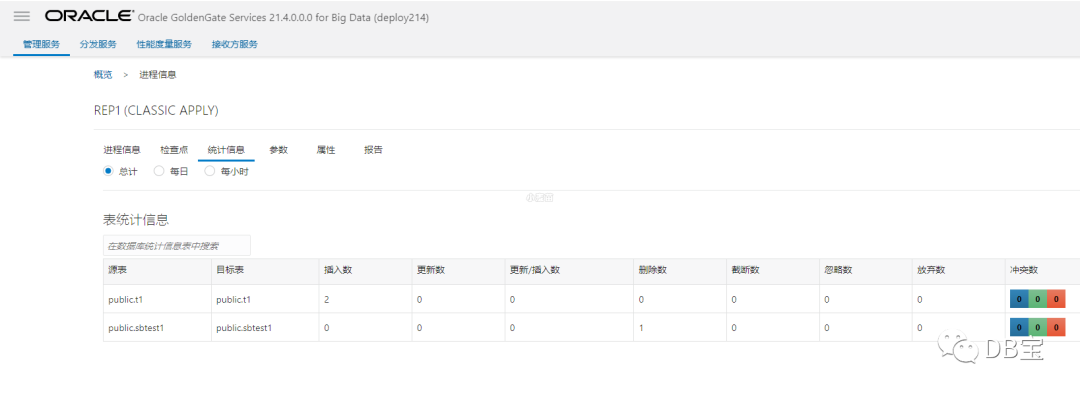

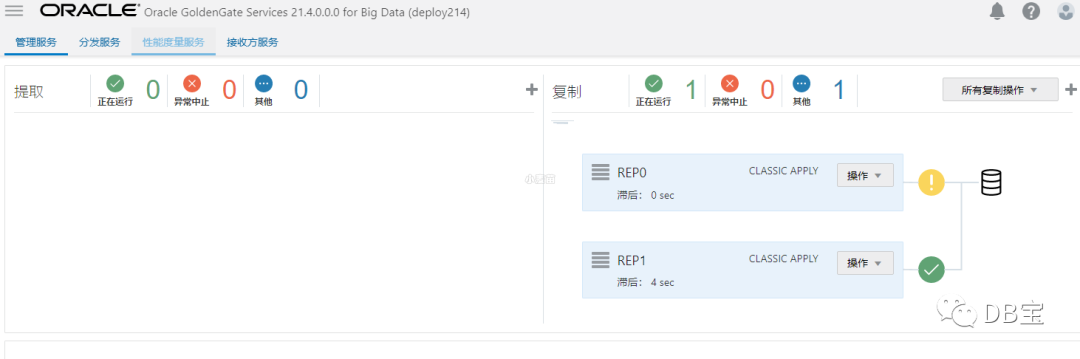

kafka端：

命令行接收：

[root@lhrkafka /]# /usr/local/kafka/bin/kafka-console-consumer.sh --bootstrap-server 127.0.0.1:9092  --topic t1
public.t1I42022-07-25 10:34:36.05799942022-07-25 10:34:40.889000(00000000000000001820
public.t1I42022-07-25 10:34:36.05799942022-07-25 10:34:41.005000(00000000000000001922

可见，数据会增量同步的。

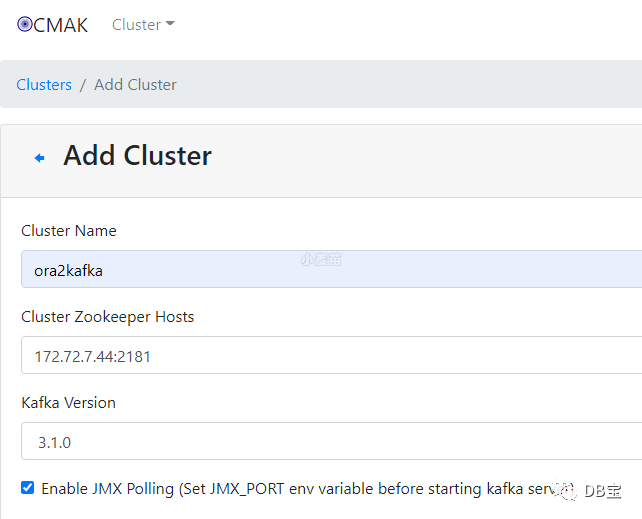

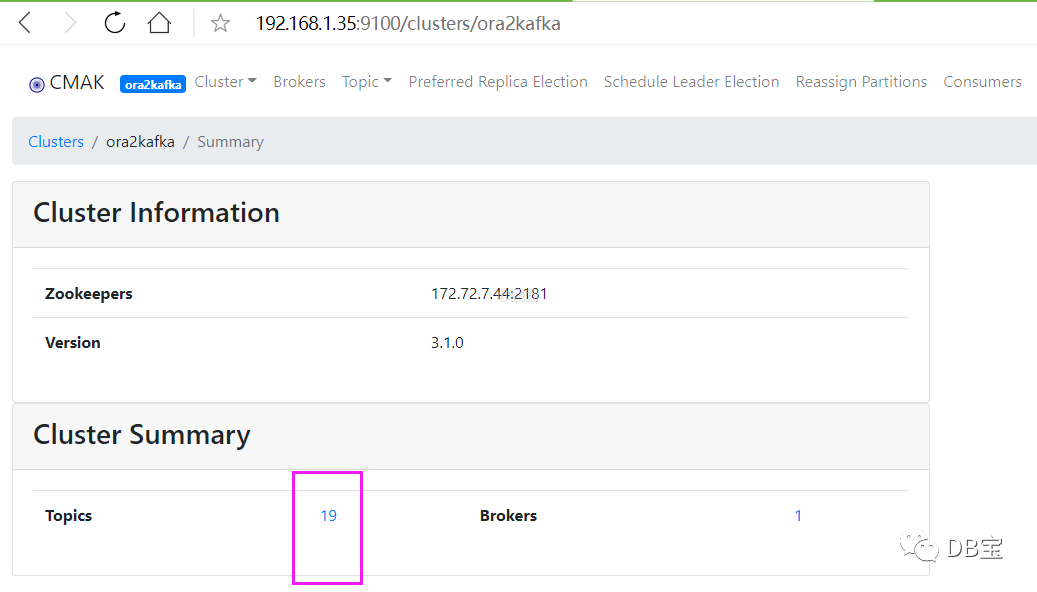

使用kafka manager查看kafka数据

参考：https://www.xmmup.com/kafkatuxingguanligongjucmakkafka-manageranzhuangjishiyong.html

docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/kafkamanager_cmak:3.0.0.6

docker rm -f lhrkafkamanager
docker run -itd --name lhrkafkamanager -h lhrkafkamanager \
  --net=ora-network --ip 172.72.6.45 \
  -p 9100:9000  \
  -v /sys/fs/cgroup:/sys/fs/cgroup \
  --privileged=true lhrbest/kafkamanager_cmak:3.0.0.6 \
  /usr/sbin/init

docker exec -it lhrkafkamanager bash

web登陆地址：http://192.168.1.35:9100/
