实战教程：利用Docker容器化技术部署Szurubooru图像分享平台

root@ubuntu-001:~# systemctl status docker
● docker.service - Docker Application Container Engine
     Loaded: loaded (/lib/systemd/system/docker.service; enabled; vendor preset: enabled)
     Active: active (running) since Sun 2024-09-29 08:29:36 UTC; 18min ago
TriggeredBy: ● docker.socket
       Docs: https://docs.docker.com
   Main PID: 5227 (dockerd)
      Tasks: 123
     Memory: 272.5M
        CPU: 9.692s
     CGroup: /system.slice/docker.service
             ├─5227 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock

root@ubuntu-001:~# docker -v
Docker version 24.0.7, build 24.0.7-0ubuntu2~22.04.1

root@ubuntu-001:~#  docker compose version
Docker Compose version v2.19.1

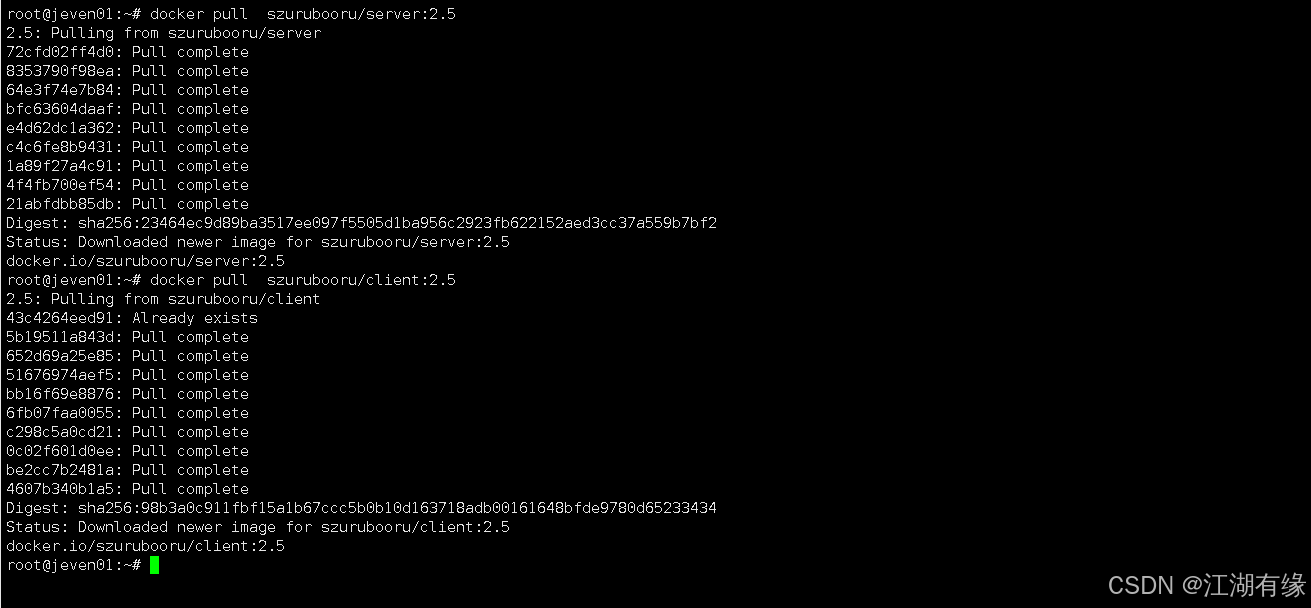

docker pull  szurubooru/server:2.5
docker pull  szurubooru/client:2.5

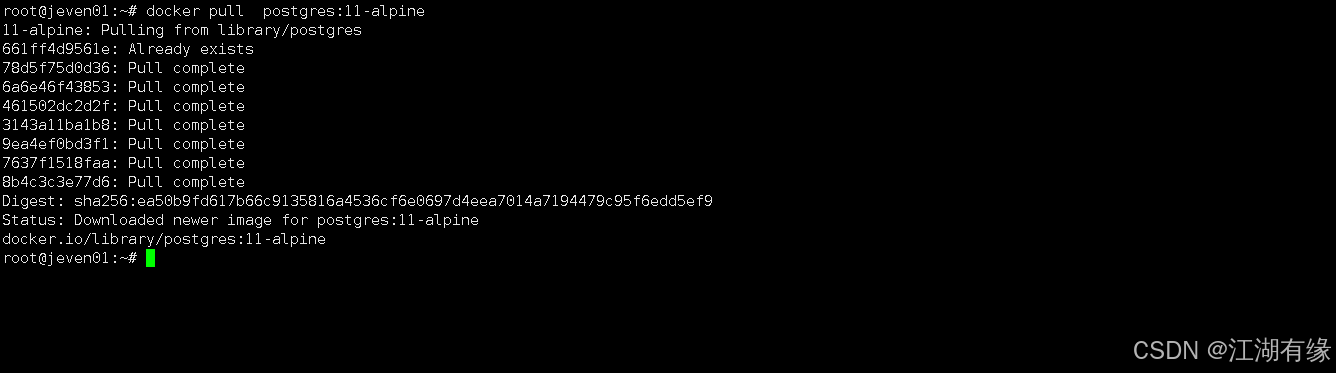

docker pull  postgres:11-alpine

mkdir -p /data/szurubooru && cd /data/szurubooru

chmod -R 777 /data/szurubooru/

vim config.yaml

# rather than editing this file, it is strongly suggested to create config.yaml
# and override only what you need.

# shown in the website title and on the front page
name: szurubooru
# full url to the homepage of this szurubooru site, with no trailing slash
domain: # example: http://example.com
# used to salt the users' password hashes and generate filenames for static content
secret: change

# Delete thumbnails and source files on post delete
# Original functionality is no, to mitigate the impacts of admins going
# on unchecked post purges.
delete_source_files: no

thumbnails:
    avatar_width: 300
    avatar_height: 300
    post_width: 300
    post_height: 300

# settings used to download files from the web on behalf of the api users
user_agent:
max_dl_filesize: 25.0E+6 # maximum filesize limit in bytes

# automatically convert animated GIF uploads to video formats
convert:
   gif:
     to_webm: false
     to_mp4: false

# allow posts to be uploaded even if some image processing errors occur
allow_broken_uploads: false

# used to send password reset e-mails
smtp:
    host: # example: localhost
    port: # example: 25
    user: # example: bot
    pass: # example: groovy123
    from: # example: noreply@example.com
    # if host is left empty the password reset feature will be disabled,
    # in which case it is recommended to fill contactEmail so that users
    # know who to contact when they want to reset their password

contact_email: # example: bob@example.com. Meant for manual password reset procedures

enable_safety: yes

tag_name_regex: ^\S+$
tag_category_name_regex: ^[^\s%+#/]+$

pool_name_regex: ^\S+$
pool_category_name_regex: ^[^\s%+#/]+$

# don't make these more restrictive unless you want to annoy people; if you do
# customize them, make sure to update the instructions in the registration form
# template as well.
password_regex: '^.{5,}$'
user_name_regex: '^[a-zA-Z0-9_-]{1,32}$'

# webhooks to call when events occur (such as post/tag/user/etc. changes)
# the listed urls will be called with a HTTP POST request with a payload
# containing a snapshot resource as JSON. See doc/API.md for details
webhooks:
    # - https://api.example.com/webhooks/

default_rank: regular

privileges:
    'users:create:self':            anonymous # Registration permission
    'users:create:any':             administrator
    'users:list':                   regular
    'users:view':                   regular
    'users:edit:any:name':          moderator
    'users:edit:any:pass':          moderator
    'users:edit:any:email':         moderator
    'users:edit:any:avatar':        moderator
    'users:edit:any:rank':          moderator
    'users:edit:self:name':         regular
    'users:edit:self:pass':         regular
    'users:edit:self:email':        regular
    'users:edit:self:avatar':       regular
    'users:edit:self:rank':         moderator # one can't promote themselves or anyone to upper rank than their own.
    'users:delete:any':             administrator
    'users:delete:self':            regular

    'user_tokens:list:any':         administrator
    'user_tokens:list:self':        regular
    'user_tokens:create:any':       administrator
    'user_tokens:create:self':      regular
    'user_tokens:edit:any':         administrator
    'user_tokens:edit:self':        regular
    'user_tokens:delete:any':       administrator
    'user_tokens:delete:self':      regular

    'posts:create:anonymous':       regular
    'posts:create:identified':      regular
    'posts:list':                   anonymous
    'posts:reverse_search':         regular
    'posts:view':                   anonymous
    'posts:view:featured':          anonymous
    'posts:edit:content':           power
    'posts:edit:flags':             regular
    'posts:edit:notes':             regular
    'posts:edit:relations':         regular
    'posts:edit:safety':            power
    'posts:edit:source':            regular
    'posts:edit:tags':              regular
    'posts:edit:thumbnail':         power
    'posts:feature':                moderator
    'posts:delete':                 moderator
    'posts:score':                  regular
    'posts:merge':                  moderator
    'posts:favorite':               regular
    'posts:bulk-edit:tags':         power
    'posts:bulk-edit:safety':       power
    'posts:bulk-edit:delete':       power

    'tags:create':                  regular
    'tags:edit:names':              power
    'tags:edit:category':           power
    'tags:edit:description':        power
    'tags:edit:implications':       power
    'tags:edit:suggestions':        power
    'tags:list':                    regular
    'tags:view':                    anonymous
    'tags:merge':                   moderator
    'tags:delete':                  moderator

    'tag_categories:create':        moderator
    'tag_categories:edit:name':     moderator
    'tag_categories:edit:color':    moderator
    'tag_categories:edit:order':    moderator
    'tag_categories:list':          anonymous
    'tag_categories:view':          anonymous
    'tag_categories:delete':        moderator
    'tag_categories:set_default':   moderator

    'pools:create':                 regular
    'pools:edit:names':             power
    'pools:edit:category':          power
    'pools:edit:description':       power
    'pools:edit:posts':             power
    'pools:list':                   regular
    'pools:view':                   anonymous
    'pools:merge':                  moderator
    'pools:delete':                 moderator

    'pool_categories:create':       moderator
    'pool_categories:edit:name':    moderator
    'pool_categories:edit:color':   moderator
    'pool_categories:list':         anonymous
    'pool_categories:view':         anonymous
    'pool_categories:delete':       moderator
    'pool_categories:set_default':  moderator

    'comments:create':              regular
    'comments:delete:any':          moderator
    'comments:delete:own':          regular
    'comments:edit:any':            moderator
    'comments:edit:own':            regular
    'comments:list':                regular
    'comments:view':                regular
    'comments:score':               regular

    'snapshots:list':               power

    'uploads:create':               regular
    'uploads:use_downloader':       power

## ONLY SET THESE IF DEPLOYING OUTSIDE OF DOCKER
#debug: 0 # generate server logs?
#show_sql: 0 # show sql in server logs?
#data_url: /data/
#data_dir: /var/www/data
## usage: schema://user:password@host:port/database_name
## example: postgres://szuru:dog@localhost:5432/szuru_test
#database:

vim  .env

# Database credentials
POSTGRES_USER=jeven
POSTGRES_PASSWORD=jeven
# This shows up on the homescreen, indicating build information
BUILD_INFO=latest

# Port to expose HTTP service
# Set to 127.0.0.1:8080 if you wish to reverse-proxy the docker's port,
# otherwise the port specified here will be publicly accessible
PORT=8080

# How many waitress threads to start
# 4 is the default amount of threads. If you experience performance
# degradation with a large number of posts, increasing this may
# improve performance, since waitress is most likely clogging up with Tasks.
THREADS=4

# URL base to run szurubooru under
# See "Additional Features" section in INSTALL.md
BASE_URL=/

# Directory to store image data
MOUNT_DATA=/data/szurubooru/data

# Directory to store database files
MOUNT_SQL=/data/szurubooru/sql

vim docker-compose.yaml

## Example Docker Compose configuration
##
## Use this as a template to set up docker-compose, or as guide to set up other
## orchestration services
version: '2'

services:

  server:
    image: szurubooru/server:2.5
    depends_on:
      - sql
    environment:
      ## These should be the names of the dependent containers listed below,
      ## or FQDNs/IP addresses if these services are running outside of Docker
      POSTGRES_HOST: sql
      ## Credentials for database:
      POSTGRES_USER:
      POSTGRES_PASSWORD:
      ## Commented Values are Default:
      #POSTGRES_DB: defaults to same as POSTGRES_USER
      #POSTGRES_PORT: 5432
      #LOG_SQL: 0 (1 for verbose SQL logs)
      THREADS:
    volumes:
      - "${MOUNT_DATA}:/data"
      - "./config.yaml:/opt/app/config.yaml"

  client:
    image: szurubooru/client:2.5
    depends_on:
      - server
    environment:
      BACKEND_HOST: server
      BASE_URL:
    volumes:
      - "${MOUNT_DATA}:/data:ro"
    ports:
      - "${PORT}:80"

  sql:
    image: postgres:11-alpine
    restart: unless-stopped
    environment:
      POSTGRES_USER:
      POSTGRES_PASSWORD:
    volumes:
      - "${MOUNT_SQL}:/var/lib/postgresql/data"


root@jeven01:/data/szurubooru# docker compose up -d
[+] Running 4/4
 ✔ Network szurubooru_default     Created                                                                                                         0.1s
 ✔ Container szurubooru-sql-1     Started                                                                                                         0.4s
 ✔ Container szurubooru-server-1  Started                                                                                                         0.6s
 ✔ Container szurubooru-client-1  Started                                                                                                         0.8s

root@jeven01:/data/szurubooru# docker compose ps
NAME                  IMAGE                   COMMAND                  SERVICE             CREATED             STATUS              PORTS
szurubooru-client-1   szurubooru/client:2.5   "/docker-entrypoint.…"   client              36 seconds ago      Up 35 seconds       0.0.0.0:8080->80/tcp, :::8080->80/tcp
szurubooru-server-1   szurubooru/server:2.5   "/opt/app/docker-sta…"   server              36 seconds ago      Up 35 seconds       6666/tcp
szurubooru-sql-1      postgres:11-alpine      "docker-entrypoint.s…"   sql                 37 seconds ago      Up 36 seconds       5432/tcp

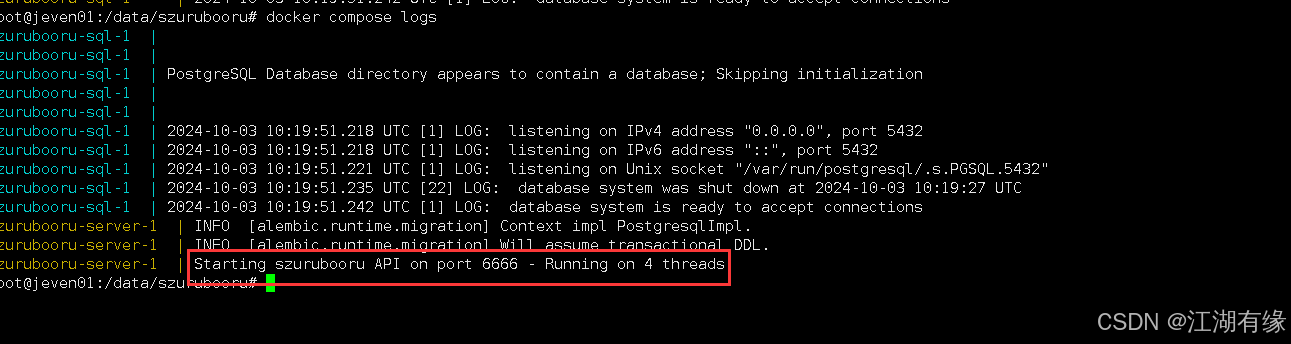

root@jeven01:/data/szurubooru# docker compose logs
szurubooru-sql-1  |
szurubooru-sql-1  |
szurubooru-sql-1  | PostgreSQL Database directory appears to contain a database; Skipping initialization
szurubooru-sql-1  |
szurubooru-sql-1  |
szurubooru-sql-1  | 2024-10-03 10:19:51.218 UTC [1] LOG:  listening on IPv4 address "0.0.0.0", port 5432
szurubooru-sql-1  | 2024-10-03 10:19:51.218 UTC [1] LOG:  listening on IPv6 address "::", port 5432
szurubooru-sql-1  | 2024-10-03 10:19:51.221 UTC [1] LOG:  listening on Unix socket "/var/run/postgresql/.s.PGSQL.5432"
szurubooru-sql-1  | 2024-10-03 10:19:51.235 UTC [22] LOG:  database system was shut down at 2024-10-03 10:19:27 UTC
szurubooru-sql-1  | 2024-10-03 10:19:51.242 UTC [1] LOG:  database system is ready to accept connections
szurubooru-server-1  | INFO  [alembic.runtime.migration] Context impl PostgresqlImpl.
szurubooru-server-1  | INFO  [alembic.runtime.migration] Will assume transactional DDL.
szurubooru-server-1  | Starting szurubooru API on port 6666 - Running on 4 threads
