第一篇：如何拆分微服务

GeekLiHua

发布于 2025-01-21 22:00:38

15610

代码可运行

文章被收录于专栏：JavaJava

运行总次数：0

代码可运行

SpringCloud教学文章

第一篇：如何拆分微服务

简介：本文讲解如何如何利用SpringCloud进行微服务的拆分。

样例结构

cloud-demo：父工程，管理依赖

order-service：订单微服务，负责订单相关业务
user-service：用户微服务，负责用户相关业务

要求：

订单微服务和用户微服务都必须有各自的数据库，相互独立
订单服务和用户服务都对外暴露Restful的接口
订单服务如果需要查询用户信息，只能调用用户服务的Restful接口，不能查询用户数据库

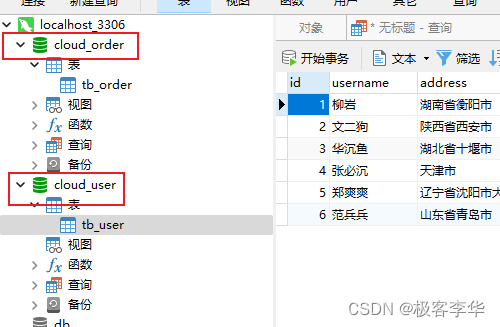

数据库数据

cloud-order.sql

-- ----------------------------
-- Table structure for tb_order
-- ----------------------------
DROP TABLE IF EXISTS `tb_order`;
CREATE TABLE `tb_order`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '订单id',
  `user_id` bigint(20) NOT NULL COMMENT '用户id',
  `name` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '商品名称',
  `price` bigint(20) NOT NULL COMMENT '商品价格',
  `num` int(10) NULL DEFAULT 0 COMMENT '商品数量',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `username`(`name`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 109 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Compact;

-- ----------------------------
-- Records of tb_order
-- ----------------------------
INSERT INTO `tb_order` VALUES (101, 1, 'Apple 苹果 iPhone 12 ', 699900, 1);
INSERT INTO `tb_order` VALUES (102, 2, '雅迪 yadea 新国标电动车', 209900, 1);
INSERT INTO `tb_order` VALUES (103, 3, '骆驼（CAMEL）休闲运动鞋女', 43900, 1);
INSERT INTO `tb_order` VALUES (104, 4, '小米10 双模5G 骁龙865', 359900, 1);
INSERT INTO `tb_order` VALUES (105, 5, 'OPPO Reno3 Pro 双模5G 视频双防抖', 299900, 1);
INSERT INTO `tb_order` VALUES (106, 6, '美的（Midea) 新能效 冷静星II ', 544900, 1);
INSERT INTO `tb_order` VALUES (107, 2, '西昊/SIHOO 人体工学电脑椅子', 79900, 1);
INSERT INTO `tb_order` VALUES (108, 3, '梵班（FAMDBANN）休闲男鞋', 31900, 1);

cloud-user.sql

-- ----------------------------
-- Table structure for tb_user
-- ----------------------------
DROP TABLE IF EXISTS `tb_user`;
CREATE TABLE `tb_user`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `username` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '收件人',
  `address` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '地址',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `username`(`username`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 109 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Compact;

-- ----------------------------
-- Records of tb_user
-- ----------------------------
INSERT INTO `tb_user` VALUES (1, '柳岩', '湖南省衡阳市');
INSERT INTO `tb_user` VALUES (2, '文二狗', '陕西省西安市');
INSERT INTO `tb_user` VALUES (3, '华沉鱼', '湖北省十堰市');
INSERT INTO `tb_user` VALUES (4, '张必沉', '天津市');
INSERT INTO `tb_user` VALUES (5, '郑爽爽', '辽宁省沈阳市大东区');
INSERT INTO `tb_user` VALUES (6, '范兵兵', '山东省青岛市');

后端配置

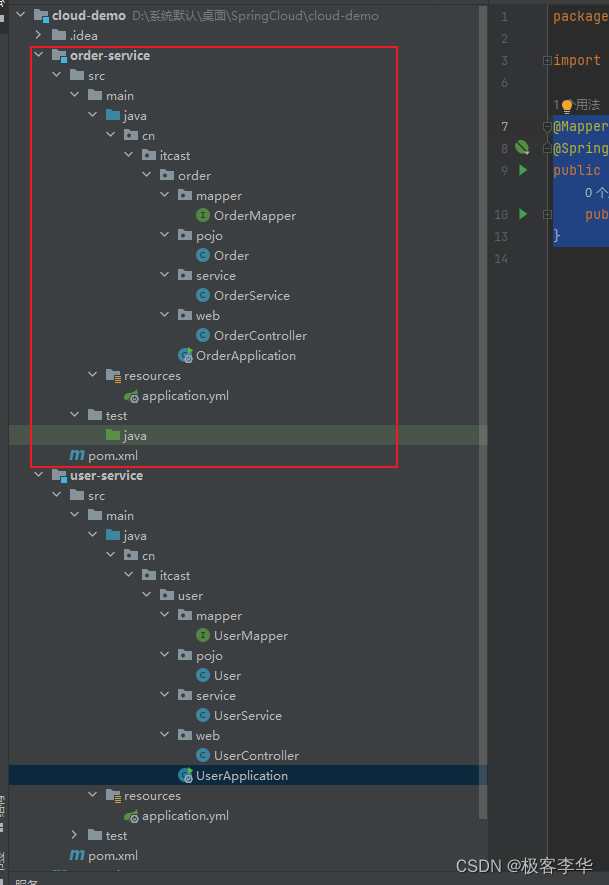

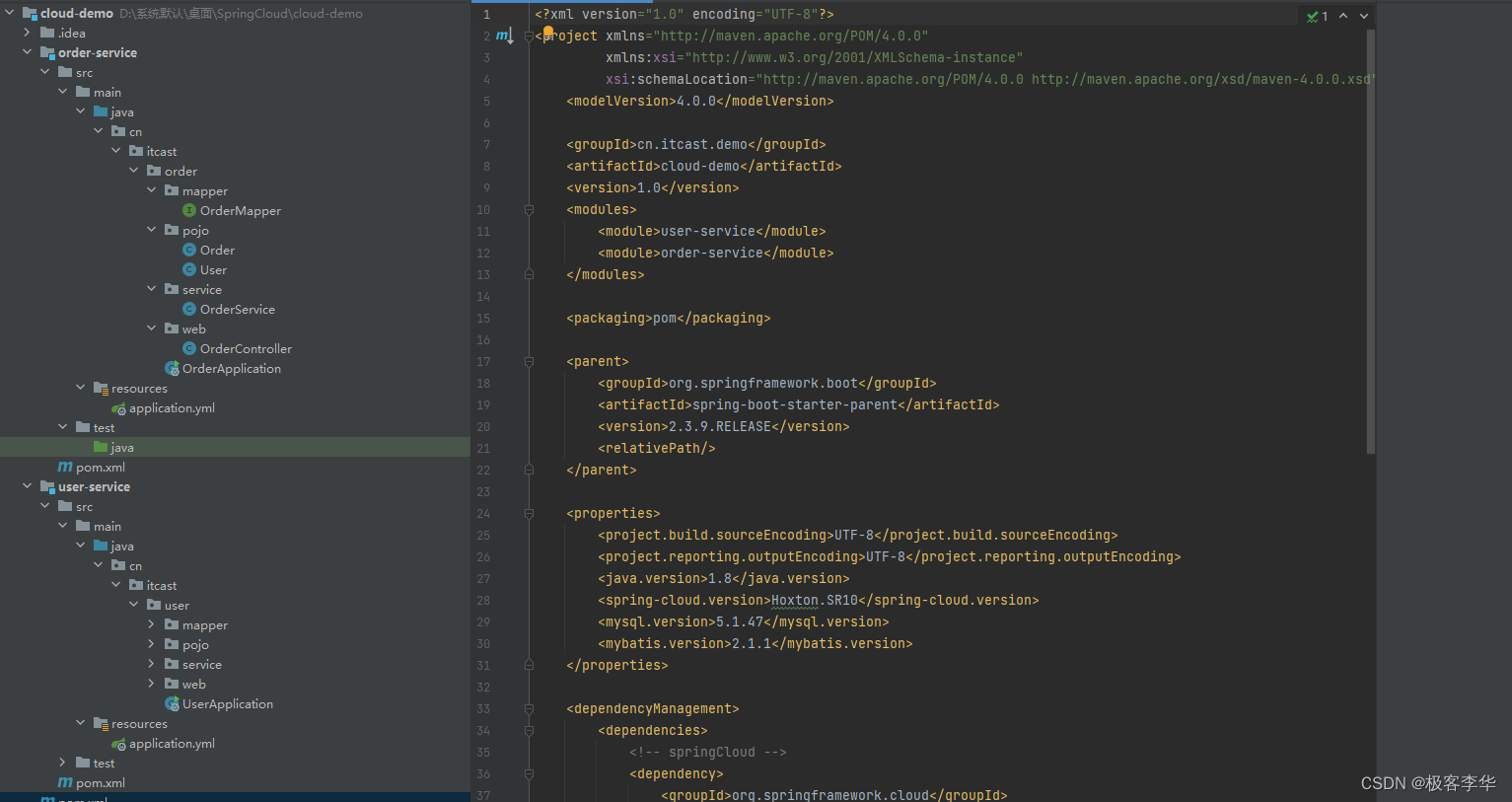

项目结构

父工程

文件结构

pom.xml

这个父工程的pom.xml算是祖传的

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.itcast.demo</groupId>
    <artifactId>cloud-demo</artifactId>
    <version>1.0</version>
    <modules>
        <module>user-service</module>
        <module>order-service</module>
    </modules>

    <packaging>pom</packaging>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.9.RELEASE</version>
        <relativePath/>
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR10</spring-cloud.version>
        <mysql.version>5.1.47</mysql.version>
        <mybatis.version>2.1.1</mybatis.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!-- springCloud -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- mysql驱动 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <!--mybatis-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>
</project>

子工程

order-service

pom.xml 对于子工程要通过，<parent>来引入父工程的pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud-demo</artifactId>
        <groupId>cn.itcast.demo</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>order-service</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

application.yml

server:
  port: 8080
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/cloud_order?useSSL=false
    username: root
    password: 123456
    driver-class-name: com.mysql.jdbc.Driver
mybatis:
  type-aliases-package: cn.itcast.user.pojo
  configuration:
    map-underscore-to-camel-case: true
logging:
  level:
    cn.itcast: debug
  pattern:
    dateformat: MM-dd HH:mm:ss:SSS

OrderApplication

@MapperScan("cn.itcast.order.mapper")
@SpringBootApplication
public class OrderApplication {

    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }

}

OrderMapper

public interface OrderMapper {

    @Select("select * from tb_order where id = #{id}")
    Order findById(Long id);
}

Order

@Data
public class Order {
    private Long id;
    private Long price;
    private String name;
    private Integer num;
    private Long userId;
    private User user;
}

User

@Data
public class User {
    private Long id;
    private String username;
    private String address;
}

OrderService

@Service
public class OrderService {

    @Autowired
    private OrderMapper orderMapper;

    public Order queryOrderById(Long orderId) {
        // 1.查询订单
        Order order = orderMapper.findById(orderId);
        // 4.返回
        return order;
    }
}

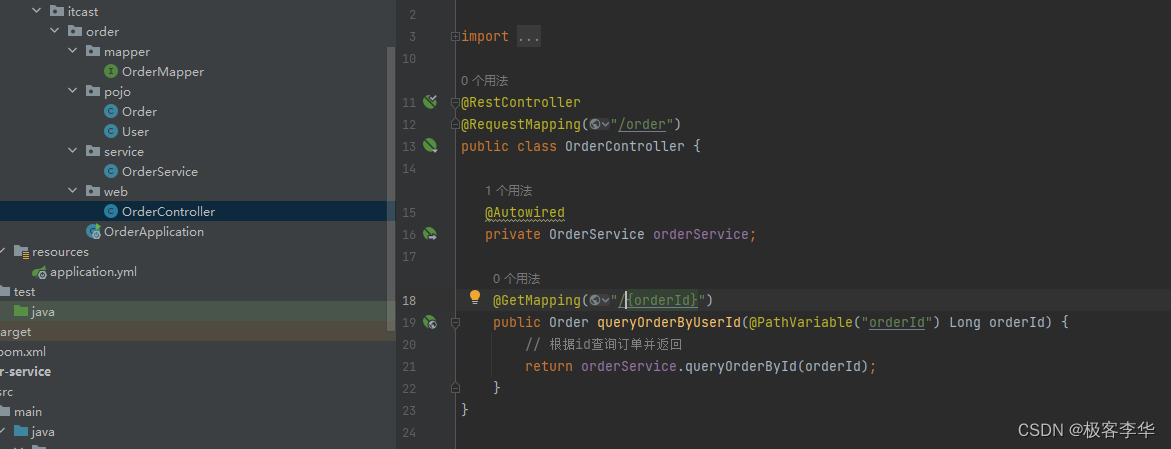

OrderController

@RestController
@RequestMapping("order/")
public class OrderController {

   @Autowired
   private OrderService orderService;

    @GetMapping("{orderId}")
    public Order queryOrderByUserId(@PathVariable("orderId") Long orderId) {
        // 根据id查询订单并返回
        return orderService.queryOrderById(orderId);
    }
}

user-service

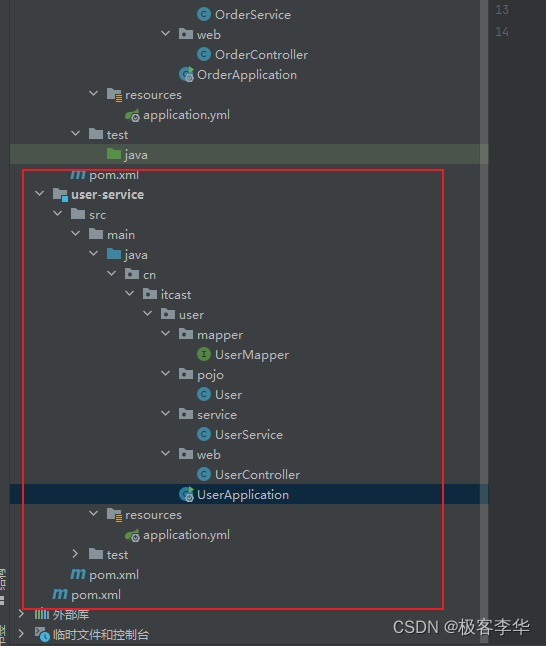

文件结构

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud-demo</artifactId>
        <groupId>cn.itcast.demo</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>user-service</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
    </dependencies>
    <build>
        <finalName>app</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

application.yml

server:
  port: 8081
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/cloud_user?useSSL=false
    username: root
    password: 123456
    driver-class-name: com.mysql.jdbc.Driver
mybatis:
  type-aliases-package: cn.itcast.user.pojo
  configuration:
    map-underscore-to-camel-case: true
logging:
  level:
    cn.itcast: debug
  pattern:
    dateformat: MM-dd HH:mm:ss:SSS

UserApplication

@MapperScan("cn.itcast.user.mapper")
@SpringBootApplication
public class UserApplication {
    public static void main(String[] args) {
        SpringApplication.run(UserApplication.class, args);
    }
}

UserMapper

public interface UserMapper {

    @Select("select * from tb_user where id = #{id}")
    User findById(@Param("id") Long id);
}

User

@Data
public class User {
    private Long id;
    private String username;
    private String address;
}

UserService

@Service
public class UserService {

    @Autowired
    private UserMapper userMapper;

    public User queryById(Long id) {
        return userMapper.findById(id);
    }
}

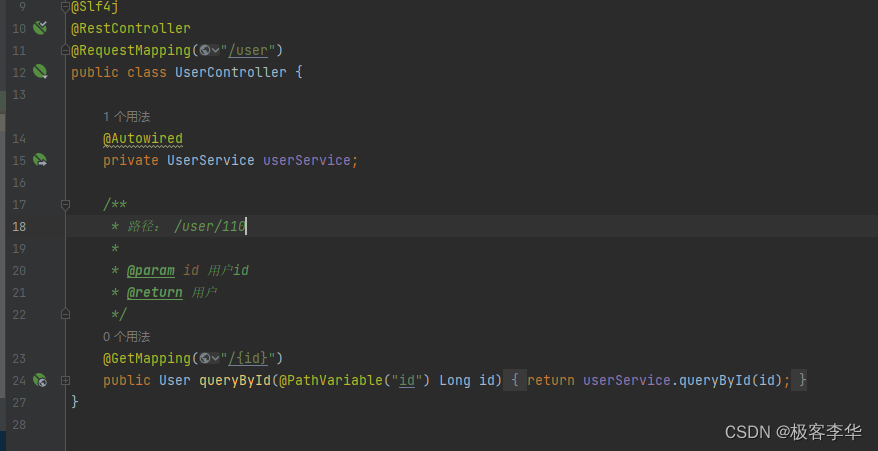

UserController

@Slf4j
@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    /**
     * 路径： /user/110
     *
     * @param id 用户id
     * @return 用户
     */
    @GetMapping("/{id}")
    public User queryById(@PathVariable("id") Long id) {
        return userService.queryById(id);
    }
}

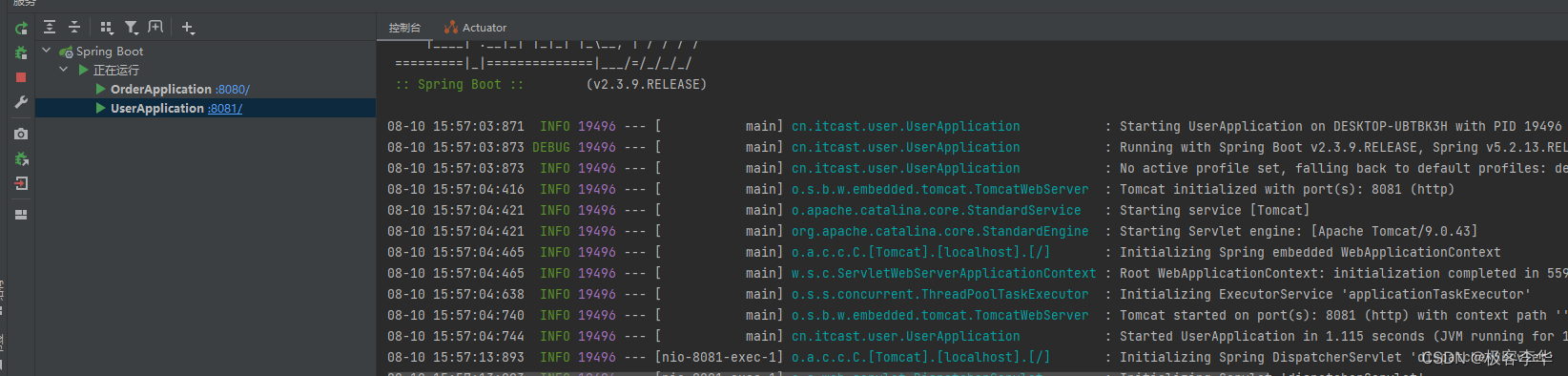

项目运行演示

在order-service服务中，有一个根据id查询订单的接口：

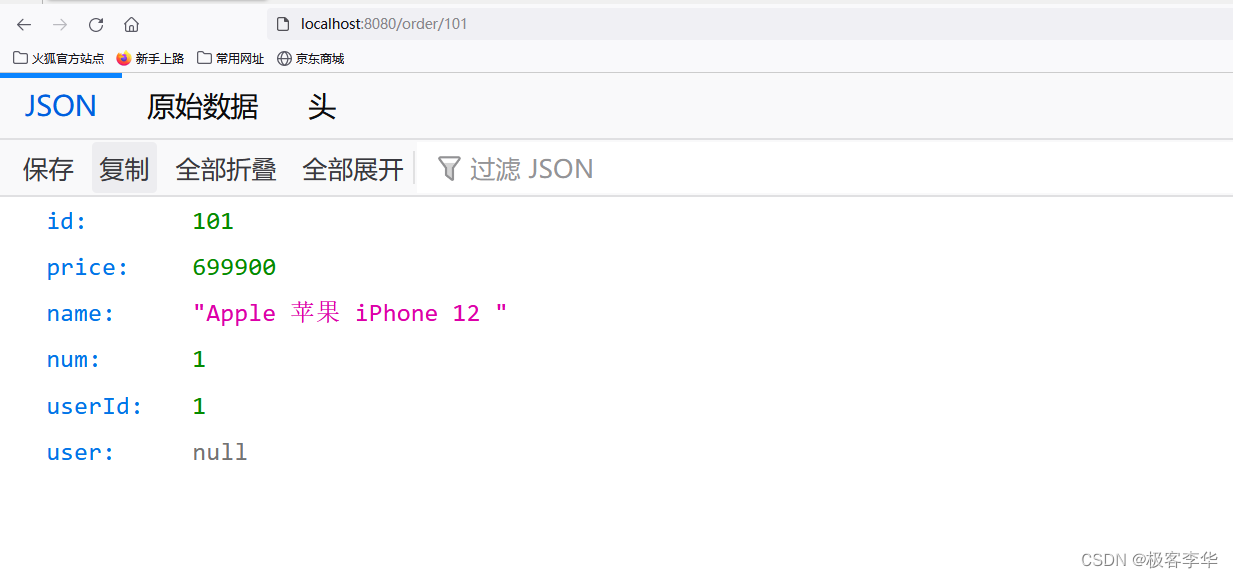

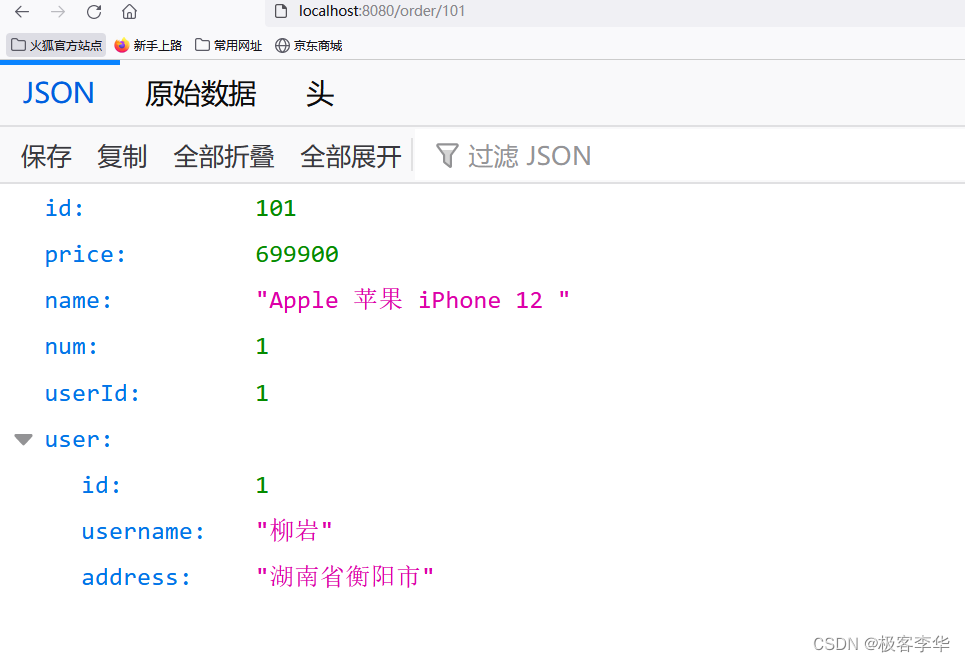

根据id查询订单，返回值是Order对象，如图：其中的user为null

在user-service中有一个根据id查询用户的接口：

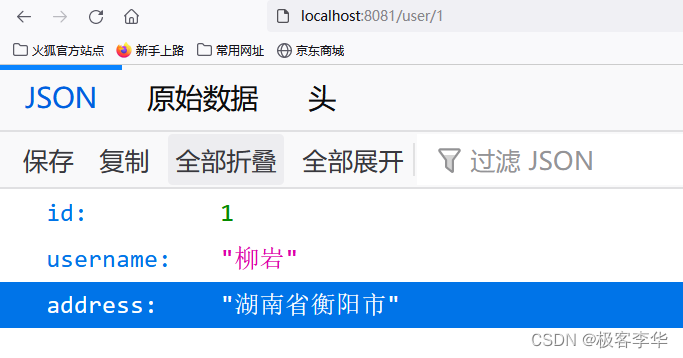

查询的结果如图：

案例需求

简介

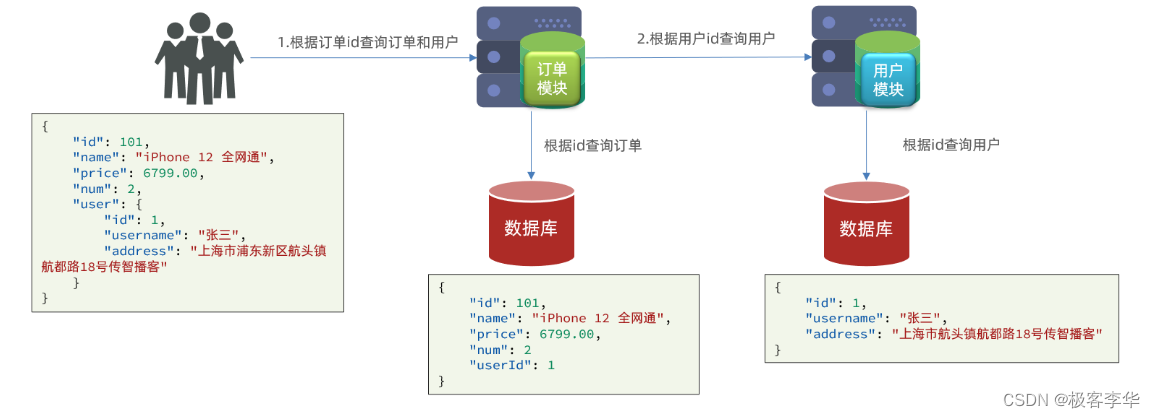

修改order-service中的根据id查询订单业务，要求在查询订单的同时，根据订单中包含的userId查询出用户信息，一起返回。

因此，我们需要在order-service中向user-service发起一个http的请求，调用http://localhost:8081/user/{userId}这个接口。

大概的步骤是这样的：

注册一个RestTemplate的实例到Spring容器
修改order-service服务中的OrderService类中的queryOrderById方法，根据Order对象中的userId查询User
将查询的User填充到Order对象，一起返回

注册RestTemplate

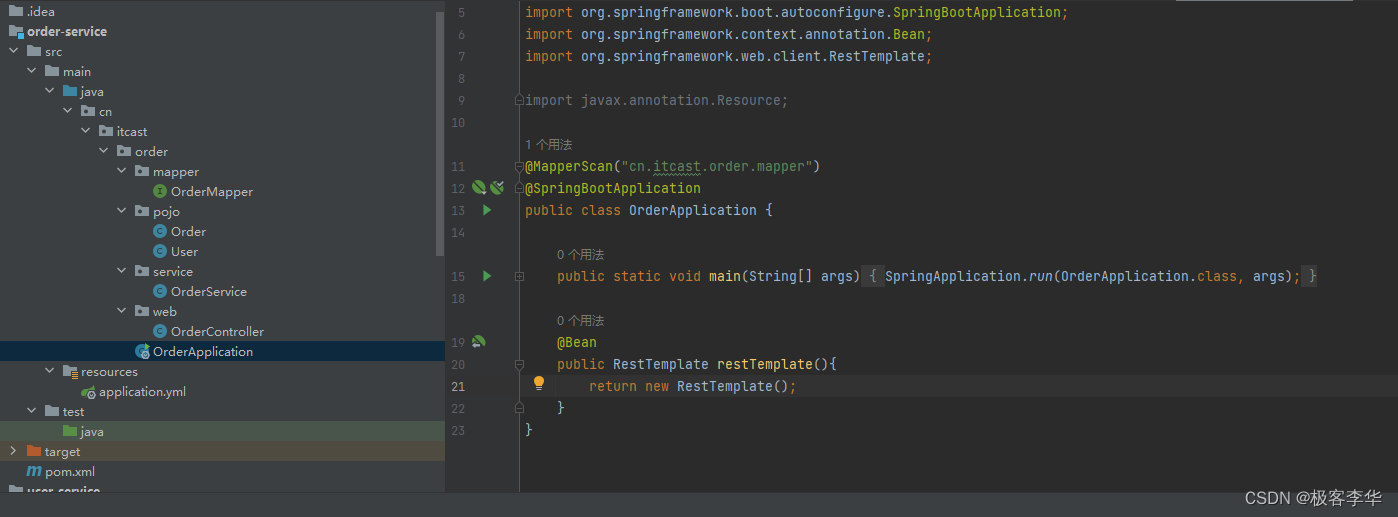

首先，我们在order-service服务中的OrderApplication启动类中，注册RestTemplate实例：

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@MapperScan("cn.itcast.order.mapper")
@SpringBootApplication
public class OrderApplication {

    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }

    @Bean
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }
}

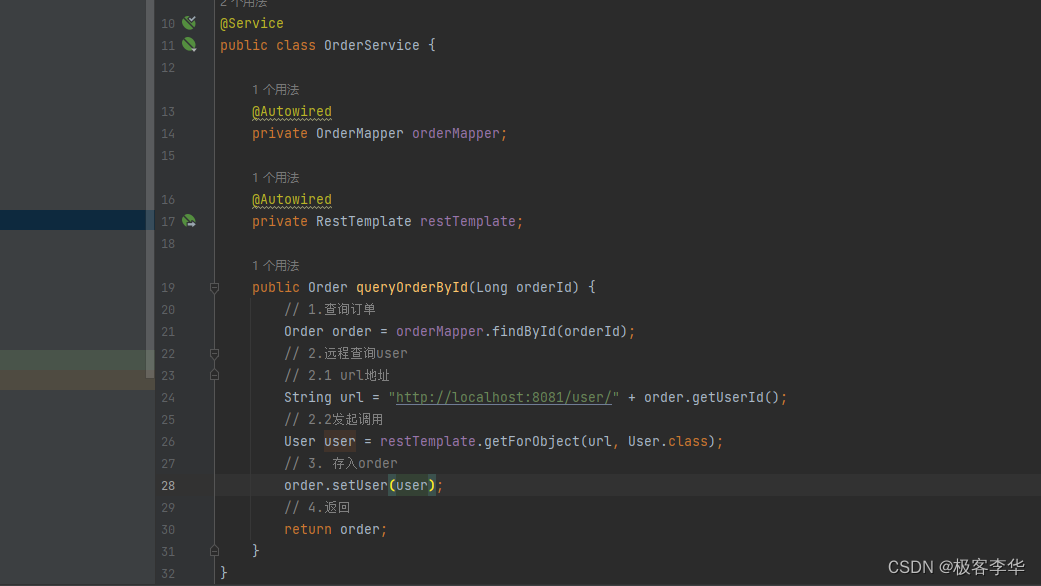

实现远程调用

修改order-service服务中的cn.itcast.order.service包下的OrderService类中的queryOrderById方法：

@Service
public class OrderService {

    @Autowired
    private OrderMapper orderMapper;

    @Autowired
    private RestTemplate restTemplate;

    public Order queryOrderById(Long orderId) {
        // 1.查询订单
        Order order = orderMapper.findById(orderId);
        // 2.远程查询user
        // 2.1 url地址
        String url = "http://localhost:8081/user/" + order.getUserId();
        // 2.2发起调用
        User user = restTemplate.getForObject(url, User.class);
        // 3. 存入order
        order.setUser(user);
        // 4.返回
        return order;
    }
}
