一文入门高性能计算HPC-详解1

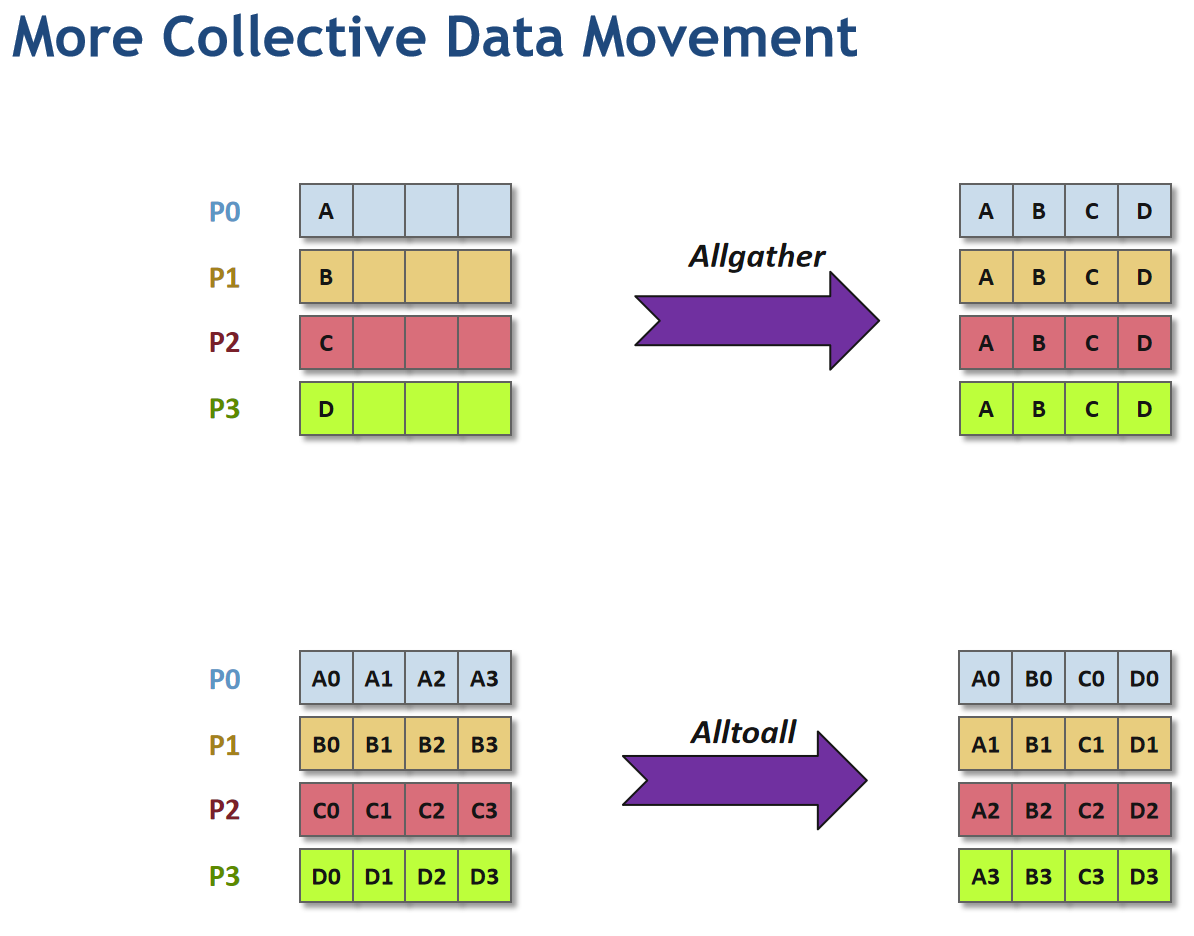

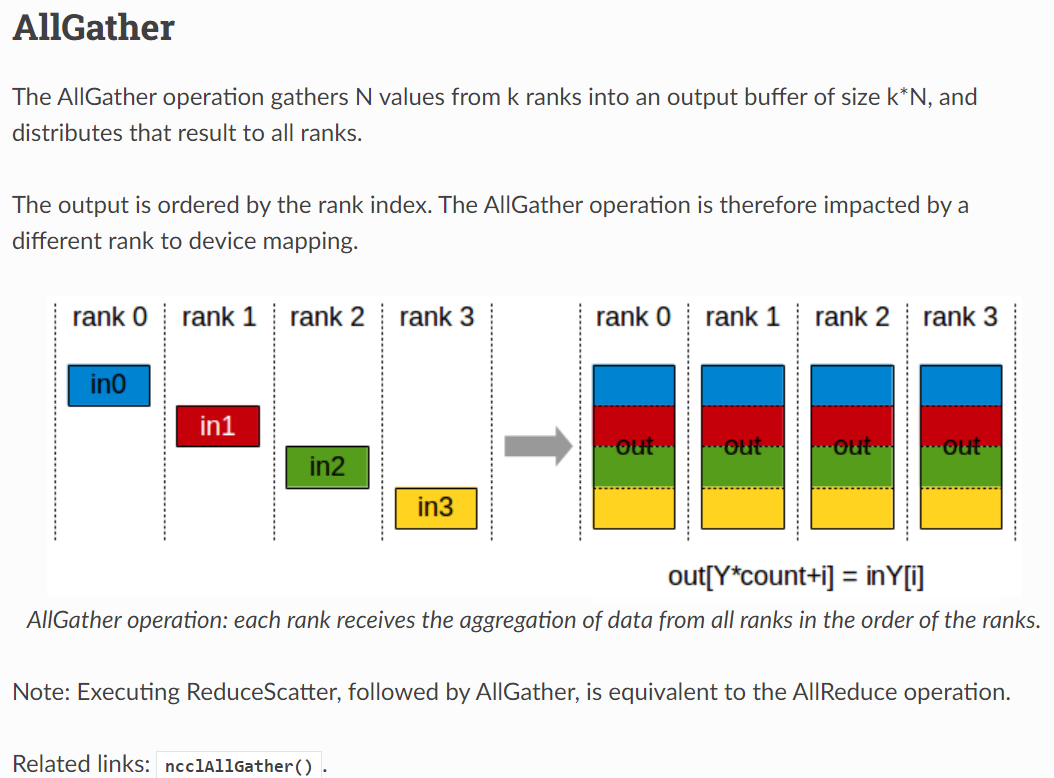

rank    send buf                        recv buf
----    --------                        --------
 0      a,b,c         MPI_Allgather     a,b,c,A,B,C,#,@,%
 1      A,B,C        ---------------->  a,b,c,A,B,C,#,@,%
 2      #,@,%                           a,b,c,A,B,C,#,@,%

 // SameResult
 rank    send buf                        recv buf
----    --------                        --------
 0      a             MPI_Allgather     a,A,#
 1      A            ---------------->  a,A,#
 2      #                               a,A,#

rank    send buf                        recv buf
----    --------                        --------
 0      a,b,c          MPI_Alltoall     a,A,#
 1      A,B,C        ---------------->  b,B,@
 2      #,@,%                           c,C,%
​
(a more elaborate case with two elements per process 更复杂的情况)
​
rank    send buf                        recv buf
----    --------                        --------
 0      a,b,c,d,e,f    MPI_Alltoall     a,b,A,B,#,@
 1      A,B,C,D,E,F  ---------------->  c,d,C,D,%,$
 2      #,@,%,$,&,*                     e,f,E,F,&,*

 // SameResult
 rank    send buf                        recv buf
----    --------                        --------
 0      a,a,a          MPI_Alltoall     a,A,#
 1      A,A,A        ---------------->  a,A,#
 2      #,#,#                           a,A,#

operation      send buf size      recv buf size
---------      -------------      -------------
MPI_Allgather  sendcnt            n_procs * sendcnt
MPI_Alltoall   n_procs * sendcnt  n_procs * sendcnt

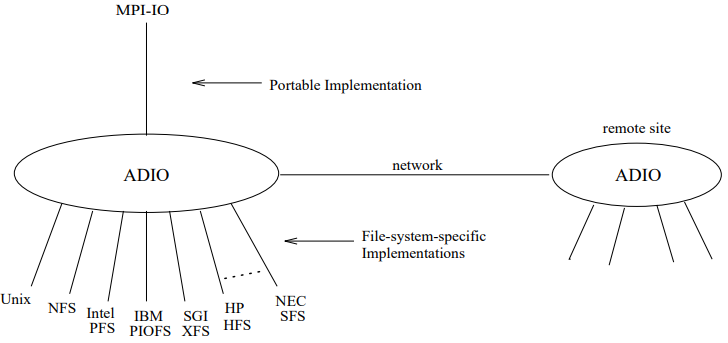

src/mpi/romio/adio/include/mpipr.h
...
#define MPI_Send PMPI_Send
...

src/binding/abi/mpi_abi.h
...
int PMPI_Send(const void *buf, int count, MPI_Datatype datatype, int dest, int tag, MPI_Comm comm);
...

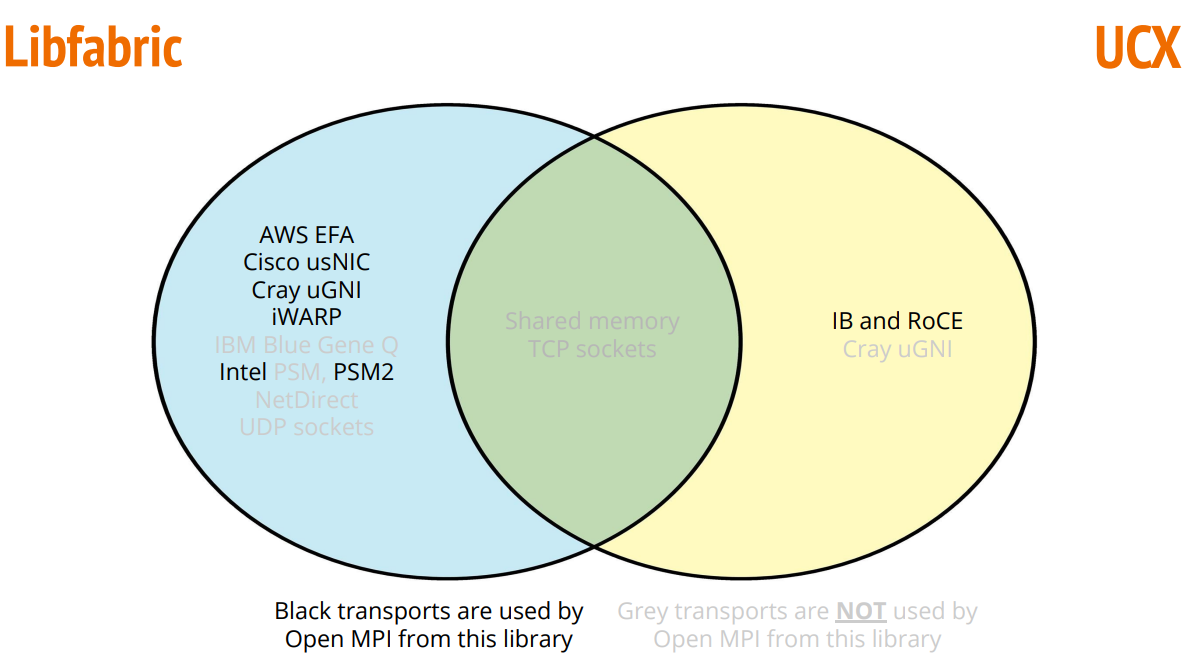

fi_dgram_pingpong : Latency test for datagram endpoints
​
fi_msg_bw : Message transfer bandwidth test for connected (MSG) endpoints.
​
fi_msg_pingpong : Message transfer latency test for connected (MSG) endpoints.
​
fi_rdm_cntr_pingpong : Message transfer latency test for reliable-datagram (RDM) endpoints that uses counters as the completion mechanism.
​
fi_rdm_pingpong : Message transfer latency test for reliable-datagram (RDM) endpoints.
​
fi_rdm_tagged_bw : Tagged message bandwidth test for reliable-datagram (RDM) endpoints.
​
fi_rdm_tagged_pingpong : Tagged message latency test for reliable-datagram (RDM) endpoints.
​
fi_rma_bw : An RMA read and write bandwidth test for reliable (MSG and RDM) endpoints.
​
fi_rma_pingpong : An RMA write and writedata latency test for reliable-datagram (RDM) endpoints.

服务端:
export PATH=./build/fabtests/bin:$PATH
gdb --args ./build/fabtests/bin/fi_pingpong -e rdm -p "verbs;ofi_rxm" -m tagged -d mlx5_0 -v -I 2
#fi_pingpong -e rdm -p "verbs;ofi_rxm" -m tagged -d ib17-0 -v -I 2
​
客户端:
export PATH=./build/fabtests/bin:$PATH
fi_pingpong -e rdm -p "verbs;ofi_rxm" -m tagged -d ib17-0 -v -I 2

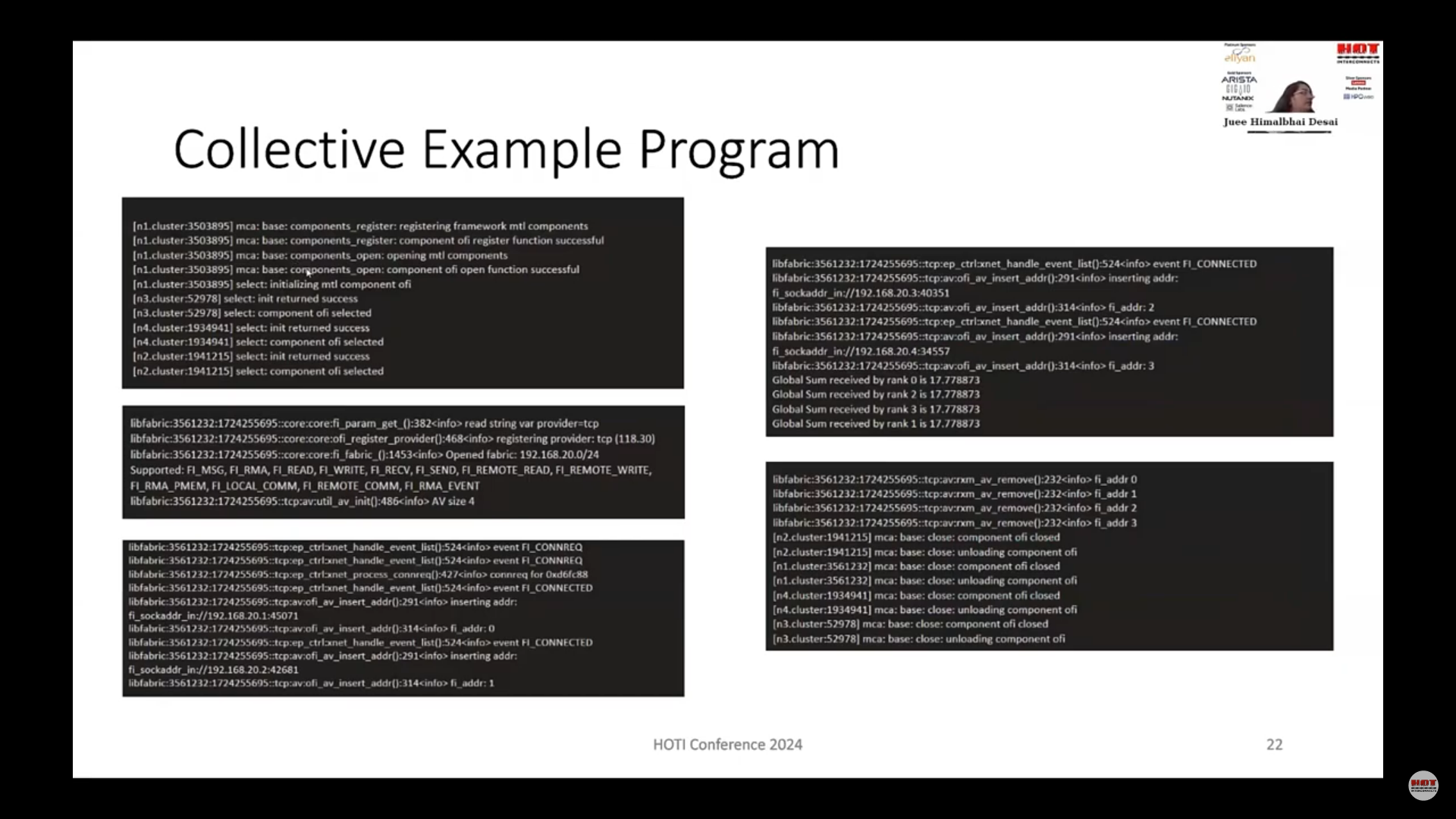

struct coll_test tests[] = {
    {
        .name = "join_test",
        .setup = coll_setup,
        .run = join_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_BARRIER,
        .op = FI_NOOP,
        .datatype = FI_VOID,
    },
    {
        .name = "barrier_test",
        .setup = coll_setup,
        .run = barrier_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_BARRIER,
        .op = FI_NOOP,
        .datatype = FI_VOID,
    },
    {
        .name = "sum_all_reduce_test",
        .setup = coll_setup,
        .run = sum_all_reduce_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_ALLREDUCE,
        .op = FI_SUM,
        .datatype = FI_UINT64,
    },
    {
        .name = "sum_all_reduce_w_stride_test",
        .setup = coll_setup_w_stride,
        .run = sum_all_reduce_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_ALLREDUCE,
        .op = FI_SUM,
        .datatype = FI_UINT64,
    },
    {
        .name = "all_gather_test",
        .setup = coll_setup,
        .run = all_gather_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_ALLGATHER,
        .op = FI_NOOP,
        .datatype = FI_UINT64,
    },
    {
        .name = "scatter_test",
        .setup = coll_setup,
        .run = scatter_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_SCATTER,
        .op = FI_NOOP,
        .datatype = FI_UINT64
    },
    {

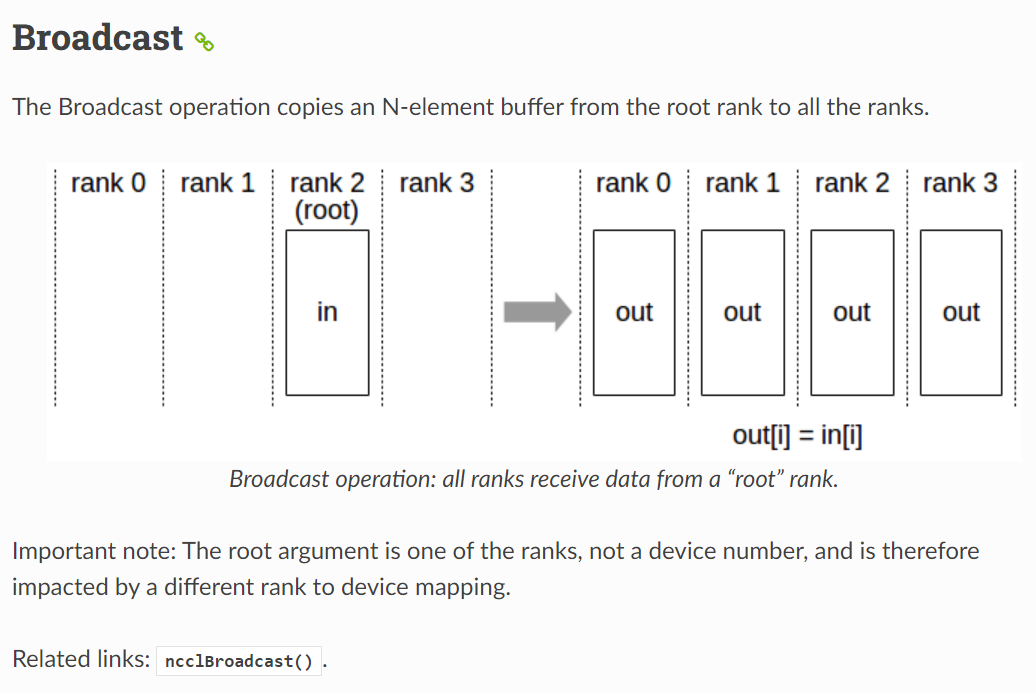

        .name = "broadcast_test",
        .setup = coll_setup,
        .run = broadcast_test_run,
        .teardown = coll_teardown,
        .coll_op = FI_BROADCAST,
        .op = FI_NOOP,
        .datatype = FI_UINT64
    },
    {
        .name = "empty_test_to_stop_the_sequence_of_execution",
        .run = NULL,
    },
};

主流程(服务端或客户端):
1. 主函数中解析命令行参数(parse_cmd), 设置默认服务端口
2. 初始化上下文(ucs_async_context_create, 异步事件上下文用于管理定时器和FD通知), 在其中, 初始化多生产者/多消费者队列(ucs_mpmc_queue_init), 初始化非阻塞异步轮询器(ucs_async_poll_init), 初始化可重入自旋锁上下文等
3. 创建工人(uct_worker_create), 工人代表着 progress 的引擎。 可以在应用程序中创建多个进度引擎，例如供多个线程使用
4. 根据入参查找期望的传输层(dev_tl_lookup, 由最小延迟决定要使用的设备和传输)
5. 设置回调(uct_iface_set_am_handler), 设置服务端接收到客户端数据后的回调
6. 建立socket连接(connect_common), 服务端监听端口, 等待客户端发起socket连接
7. 客户端连接服务端后, 两边交换地址(sendrecv, 先通过socket发送和接收长度, 然后发送和接收地址, 交换地址)
8. 创建端点(uct_ep_create), 获取端点地址(uct_ep_get_address), 连接对等端点(uct_ep_connect_to_ep, 内部通过 ibv_modify_qp 设置QP状态机建立QP连接)
9. 连接建立后, 客户端调用短消息(do_am_short)/缓冲区(do_am_bcopy)/零拷贝(do_am_zcopy)发送数据
10. 显示驱动工人推进(uct_worker_progress, 该例程显式地处理任何未完成的通信操作和活动消息请求, 底层通过poll网卡完成事件,ibv_poll_cq)
11. 资源销毁(uct_ep_destroy,free其他资源等)

代码位置: examples/uct_hello_world.c
编译: cd examples; make && ./uct_hello_world
•
服务端执行(指定RDMA网口和零拷贝模式):
/home/xb/project/ucx/examples/.libs/lt-uct_hello_world -d mlx5_0:1 -t rc_verbs -z
•
客户端执行(指定RDMA网口和零拷贝模式, 以及服务端IP):
/home/xb/project/ucx/examples/.libs/lt-uct_hello_world -d mlx5_0:1 -t rc_verbs -n 172.17.29.63 -z

​
基准测试:
服务端:
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/home/xb/project/ucx/install-debug/lib
export PATH=/home/xb/project/ucx/install-debug/bin:$PATH
#gdb --args ucx_perftest -c 0
ucx_perftest -c 0
​
客户端:
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/home/xb/project/ucx/install-debug/lib
export PATH=/home/xb/project/ucx/install-debug/bin:$PATH
#
ucx_perftest 172.17.29.63 -t tag_lat -c 1
​

UCT对外API的头文件: src/uct/api/uct.h
PUT操作
uct_ep_put_short
uct_ep_put_bcopy
uct_ep_put_zcopy
​
GET操作
uct_ep_get_short
uct_ep_get_bcopy
uct_ep_get_zcopy
​
AM活动消息
uct_ep_am_short
uct_ep_am_short_iov
uct_ep_am_bcopy
uct_ep_am_zcopy

原子操作
uct_ep_atomic_cswap64
uct_ep_atomic_cswap32
uct_ep_atomic32_post
uct_ep_atomic64_post
uct_ep_atomic32_fetch
uct_ep_atomic64_fetch
​

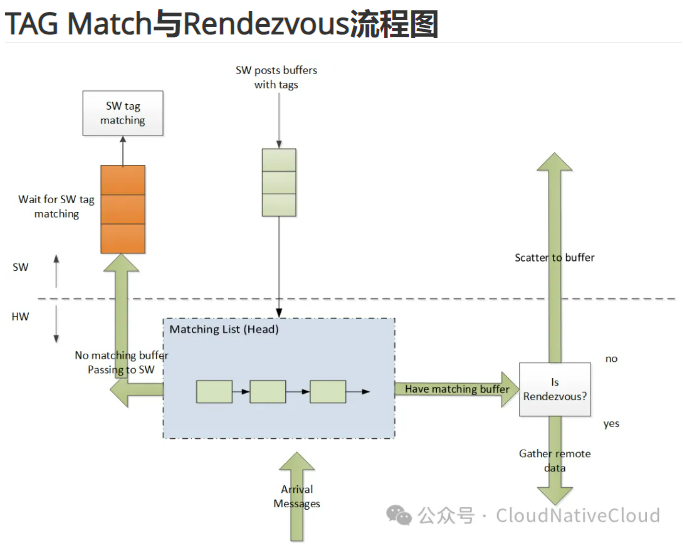

TAG操作
uct_ep_tag_eager_short
uct_ep_tag_eager_bcopy
uct_ep_tag_eager_zcopy
uct_ep_tag_rndv_zcopy
uct_ep_tag_rndv_cancel
uct_ep_tag_rndv_request
uct_iface_tag_recv_zcopy
uct_iface_tag_recv_cancel

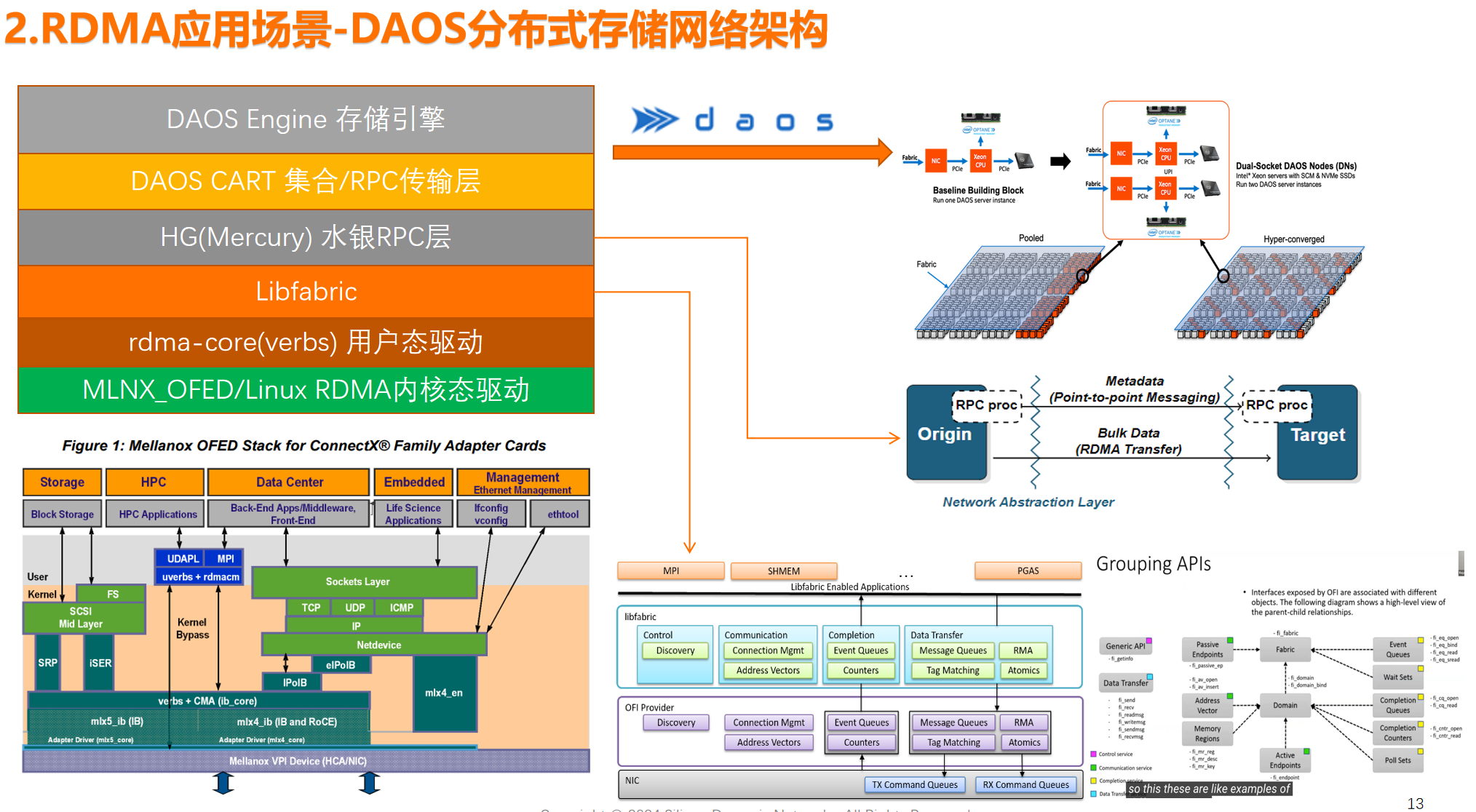

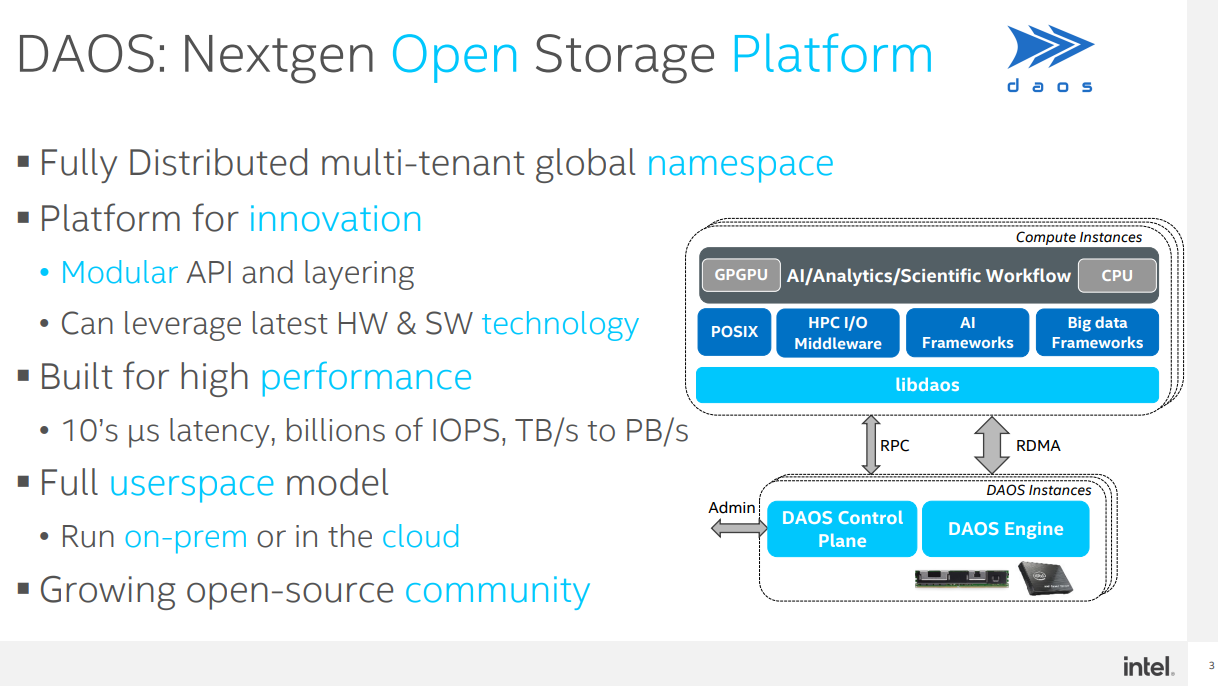

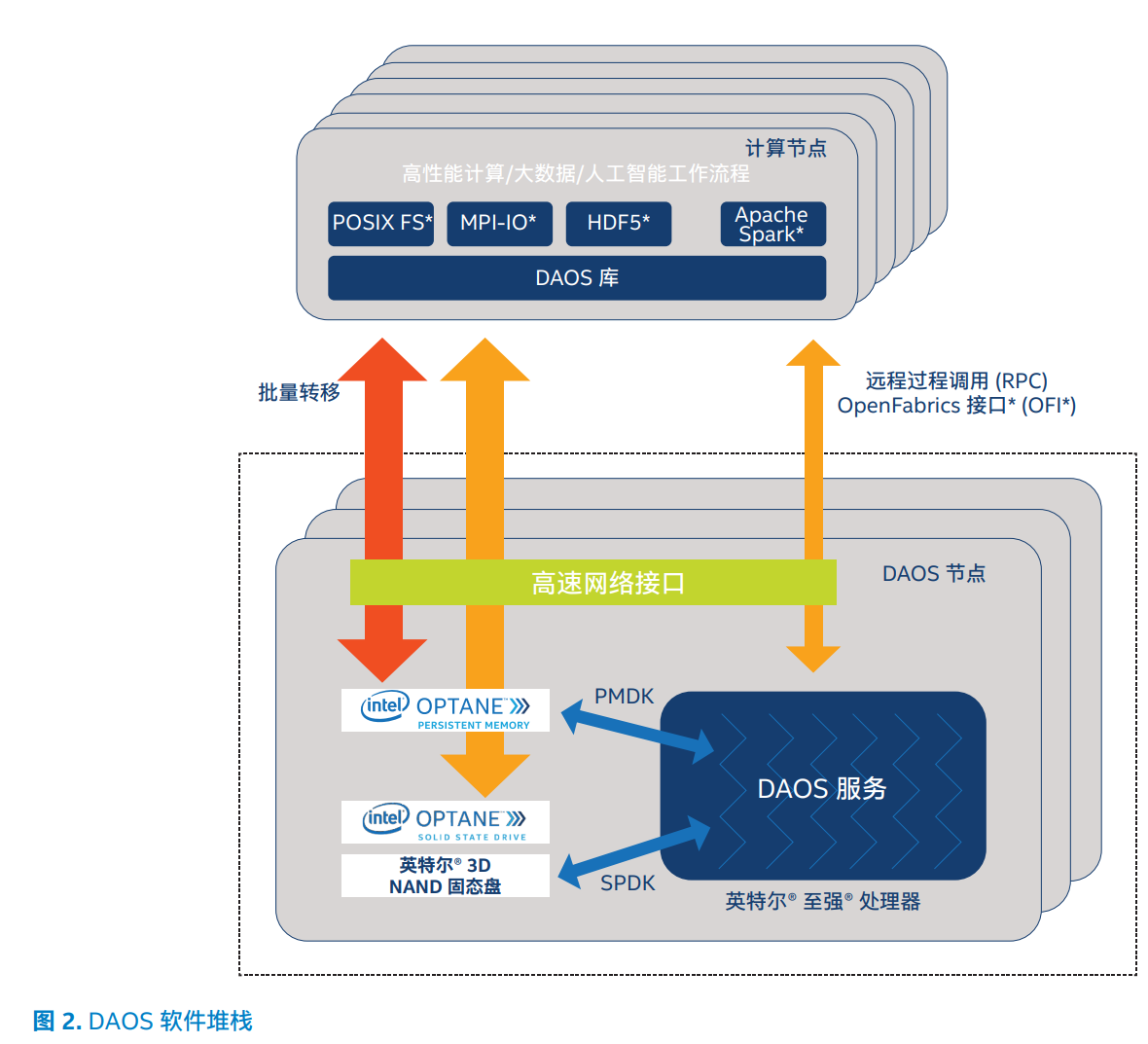

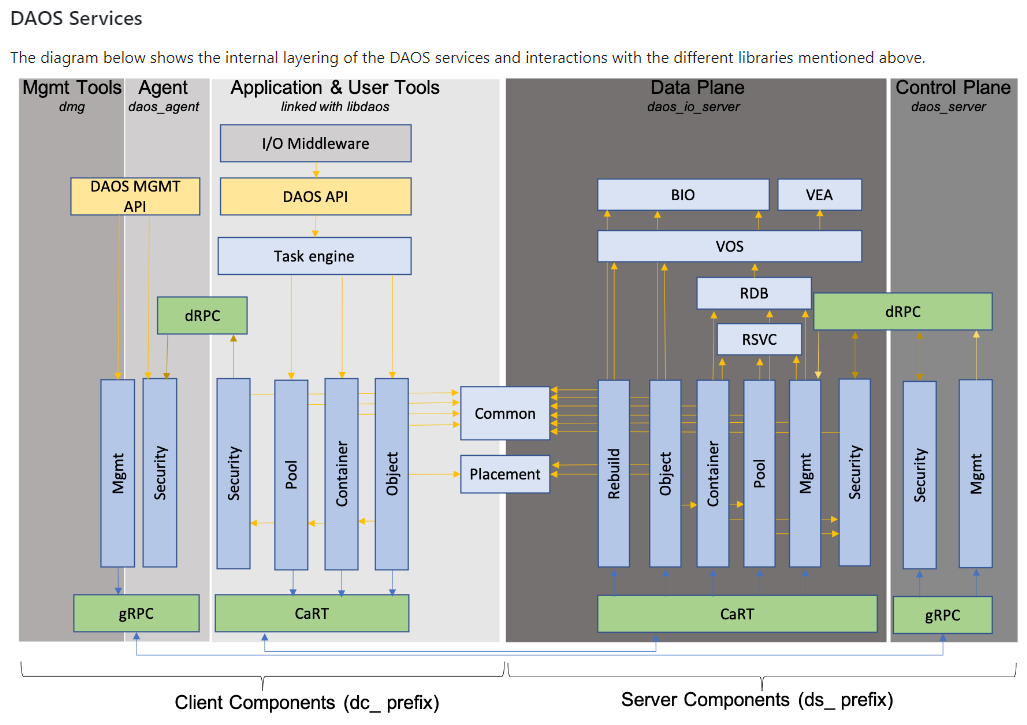

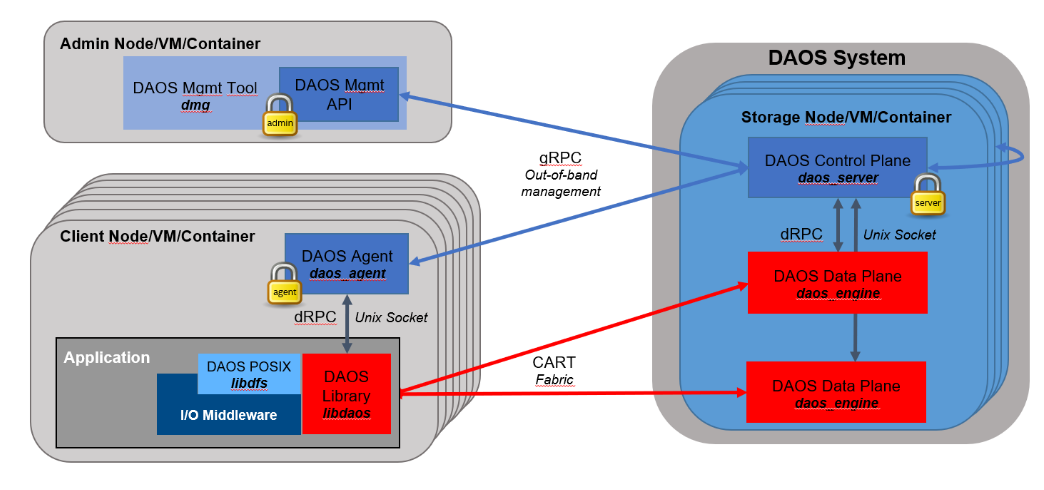

[component]
component=daos

[commit_versions]
argobots=v1.2
fuse=fuse-3.16.2
pmdk=2.1.0
isal=v2.30.0
isal_crypto=v2.23.0
spdk=v22.01.2
ofi=v1.22.0
mercury=v2.4.0
protobufc=v1.3.3
ucx=v1.14.1

[repos]
argobots=https://github.com/pmodels/argobots.git
fuse=https://github.com/libfuse/libfuse.git
pmdk=https://github.com/pmem/pmdk.git
isal=https://github.com/intel/isa-l.git
isal_crypto=https://github.com/intel/isa-l_crypto.git
spdk=https://github.com/spdk/spdk.git
ofi=https://github.com/ofiwg/libfabric.git
mercury=https://github.com/mercury-hpc/mercury.git
protobufc=https://github.com/protobuf-c/protobuf-c.git
ucx=https://github.com/openucx/ucx.git

[patch_versions]
spdk=https://github.com/spdk/spdk/commit/b0aba3fcd5aceceea530a702922153bc75664978.diff,https://github.com/spdk/spdk/commit/445a4c808badbad3942696ecf16fa60e8129a747.diff
fuse=https://github.com/libfuse/libfuse/commit/c9905341ea34ff9acbc11b3c53ba8bcea35eeed8.diff
mercury=https://raw.githubusercontent.com/daos-stack/mercury/f3dc286fb40ec1a3a38a2e17c45497bc2aa6290d/na_ucx.patch
pmdk=https://github.com/pmem/pmdk/commit/2abe15ac0b4eed894b6768cd82a3b0a7c4336284.diff
argobots=https://github.com/pmodels/argobots/pull/397/commits/411e5b344642ebc82190fd8b125db512e5b449d1.diff,https://github.com/pmodels/argobots/commit/bb0c908abfac4bfe37852eee621930634183c6aa.diff

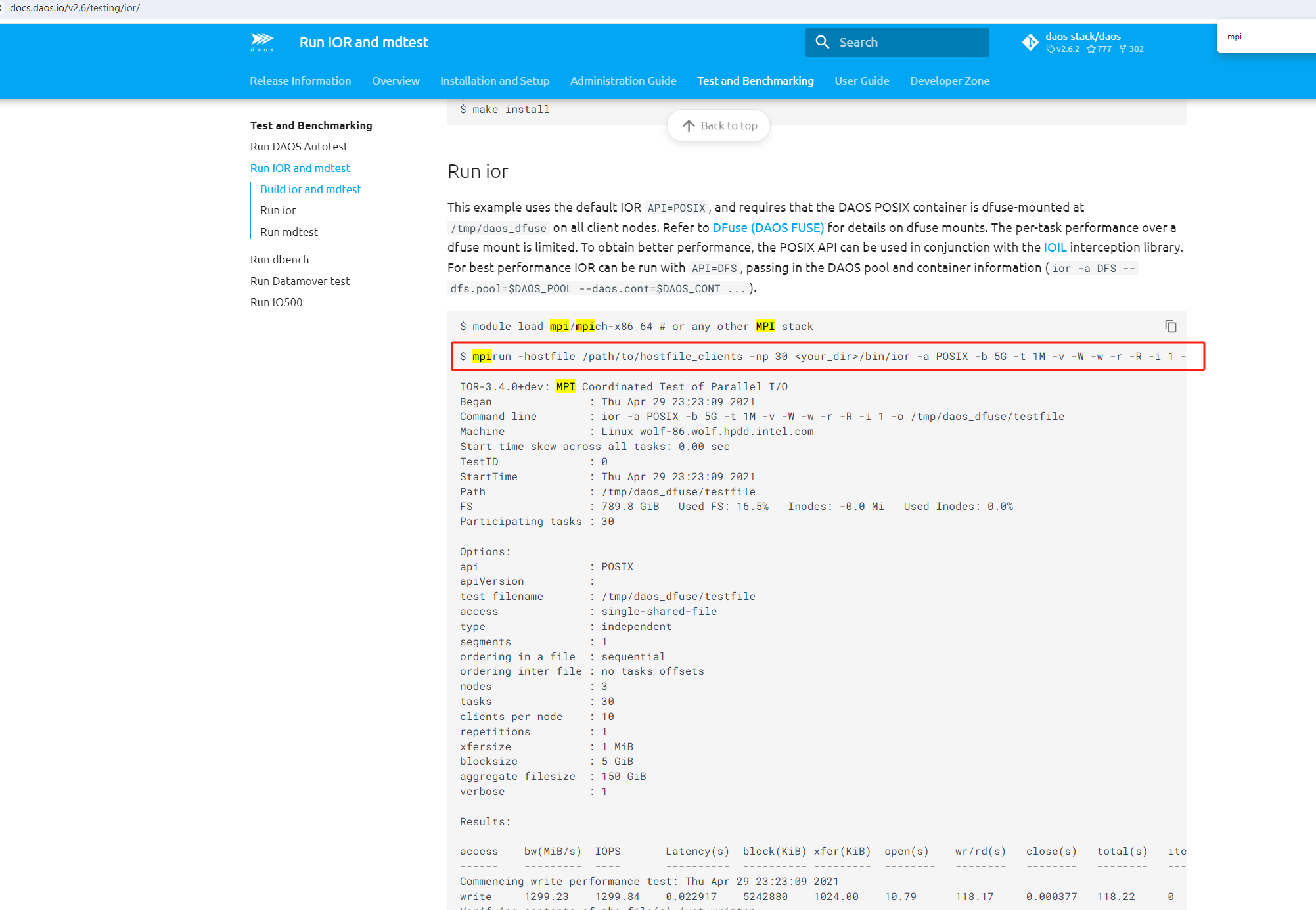

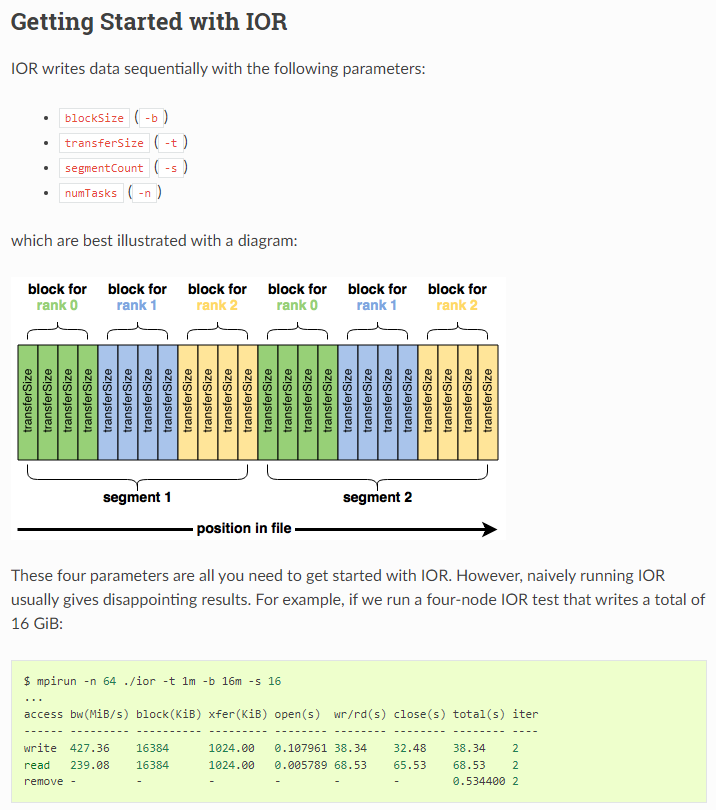

Get IOR:
git clone https://github.com/hpc/ior.git

Build:
After configure and building MPICH (see directions here):
cd ior/
./bootstrap
mkdir build; cd build;
MPICC=mpicc ../configure --with-mpiio

make
Run:
Launch server(s)
Using all the directions from this page for client side execution:

create pool with dmg and export related env variables
cd into the ior build dir from above

cd src/
mpirun -np 8 --hostfile ~/cli_hosts  ./ior -a MPIIO -w -W -r -R -t 1m -b 1g -o daos:testFile -V -S -C -c
the ior options can be varied for different MPI-IO configurations:
The main option is the file name to include daos: prefix to use the MPI-IO DAOS ADIO driver
-a apistr
-b blockSize
-w -W -r -R
-k (keep file) then relaunch with -r -R to check data after relaunch
-F for file per process (default is single shared file)
-C reorderTasks, change task order for data read back
-c for using MPI-IO collective IO calls
-V for using MPI file views
-S to indicate strided IO pattern
-d interTestDelay
-t transferSize
-r readFile
-R checkRead
-w writeFile
-W checkWrite
-i repetitions

option_help * createGlobalOptions(IOR_param_t * params){
  char APIs[1024];
  char APIs_legacy[1024];
  aiori_supported_apis(APIs, APIs_legacy, IOR);
  char * apiStr = safeMalloc(1024);
  sprintf(apiStr, "API for I/O [%s]", APIs);

  option_help o [] = {
    {'a', NULL,        apiStr, OPTION_OPTIONAL_ARGUMENT, 's', & params->api},
    {'A', NULL,        "refNum -- user supplied reference number to include in the summary", OPTION_OPTIONAL_ARGUMENT, 'd', & params->referenceNumber},
    {'b', NULL,        "blockSize -- contiguous bytes to write per task  (e.g.: 8, 4k, 2m, 1g)", OPTION_OPTIONAL_ARGUMENT, 'l', & params->blockSize},
    {'c', "collective",    "Use collective I/O", OPTION_FLAG, 'd', & params->collective},
    {'C', NULL,        "reorderTasks -- changes task ordering for readback (useful to avoid client cache)", OPTION_FLAG, 'd', & params->reorderTasks},
    {'d', NULL,        "interTestDelay -- delay between reps in seconds", OPTION_OPTIONAL_ARGUMENT, 'd', & params->interTestDelay},
    {'D', NULL,        "deadlineForStonewalling -- seconds before stopping write or read phase", OPTION_OPTIONAL_ARGUMENT, 'd', & params->deadlineForStonewalling},
    {.help="  -O stoneWallingWearOut=1           -- once the stonewalling timeout is over, all process finish to access the amount of data", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O stoneWallingWearOutIterations=N -- stop after processing this number of iterations, needed for reading data back written with stoneWallingWearOut", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O stoneWallingStatusFile=FILE     -- this file keeps the number of iterations from stonewalling during write and allows to use them for read", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O minTimeDuration=0           -- minimum Runtime for the run (will repeat from beginning of the file if time is not yet over)", .arg = OPTION_OPTIONAL_ARGUMENT},
#ifdef HAVE_CUDA
    {.help="  -O allocateBufferOnGPU=X           -- allocate I/O buffers on the GPU: X=1 uses managed memory - verifications are run on CPU; X=2 managed memory - verifications on GPU; X=3 device memory with verifications on GPU.", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O GPUid=X                         -- select the GPU to use, use -1 for round-robin among local procs.", .arg = OPTION_OPTIONAL_ARGUMENT},
#ifdef HAVE_GPU_DIRECT
    {0, "gpuDirect",        "allocate I/O buffers on the GPU and use gpuDirect to store data; this option is incompatible with any option requiring CPU access to data.", OPTION_FLAG, 'd', & params->gpuDirect},
#endif
#endif
    {'e', NULL,        "fsync -- perform a fsync() operation at the end of each read/write phase", OPTION_FLAG, 'd', & params->fsync},
    {'E', NULL,        "useExistingTestFile -- do not remove test file before write access", OPTION_FLAG, 'd', & params->useExistingTestFile},
    {'f', NULL,        "scriptFile -- test script name", OPTION_OPTIONAL_ARGUMENT, 's', & params->testscripts},
    {'F', NULL,        "filePerProc -- file-per-process", OPTION_FLAG, 'd', & params->filePerProc},
    {'g', NULL,        "intraTestBarriers -- use barriers between open, write/read, and close", OPTION_FLAG, 'd', & params->intraTestBarriers},
    /* This option toggles between Incompressible Seed and Time stamp sig based on -l,
     * so we'll toss the value in both for now, and sort it out in initialization
     * after all the arguments are in and we know which it keep.
     */
    {'G', NULL,        "setTimeStampSignature -- set value for time stamp signature/random seed", OPTION_OPTIONAL_ARGUMENT, 'd', & params->setTimeStampSignature},
    {'i', NULL,        "repetitions -- number of repetitions of test", OPTION_OPTIONAL_ARGUMENT, 'd', & params->repetitions},
    {'j', NULL,        "outlierThreshold -- warn on outlier N seconds from mean", OPTION_OPTIONAL_ARGUMENT, 'd', & params->outlierThreshold},
    {'k', NULL,        "keepFile -- don't remove the test file(s) on program exit", OPTION_FLAG, 'd', & params->keepFile},
    {'K', NULL,        "keepFileWithError  -- keep error-filled file(s) after data-checking", OPTION_FLAG, 'd', & params->keepFileWithError},
    {'l', "dataPacketType",        "datapacket type-- type of packet that will be created [offset|incompressible|timestamp|random|o|i|t|r]", OPTION_OPTIONAL_ARGUMENT, 's', &  params->buffer_type},
    {'m', NULL,        "multiFile -- use number of reps (-i) for multiple file count", OPTION_FLAG, 'd', & params->multiFile},
    {'M', NULL,        "memoryPerNode -- hog memory on the node  (e.g.: 2g, 75%)", OPTION_OPTIONAL_ARGUMENT, 's', & params->memoryPerNodeStr},
    {'N', NULL,        "numTasks -- number of tasks that are participating in the test (overrides MPI)", OPTION_OPTIONAL_ARGUMENT, 'd', & params->numTasks},
    {'o', NULL,        "testFile -- full name for test", OPTION_OPTIONAL_ARGUMENT, 's', & params->testFileName},
    {'O', NULL,        "string of IOR directives (e.g. -O checkRead=1,GPUid=2)", OPTION_OPTIONAL_ARGUMENT, 'p', & decodeDirectiveWrapper},
    {'Q', NULL,        "taskPerNodeOffset for read tests use with -C & -Z options (-C constant N, -Z at least N)", OPTION_OPTIONAL_ARGUMENT, 'd', & params->taskPerNodeOffset},
    {'r', NULL,        "readFile -- read existing file", OPTION_FLAG, 'd', & params->readFile},
    {'R', NULL,        "checkRead -- verify that the output of read matches the expected signature (used with -G)", OPTION_FLAG, 'd', & params->checkRead},
    {'s', NULL,        "segmentCount -- number of segments", OPTION_OPTIONAL_ARGUMENT, 'l', & params->segmentCount},
    {'t', NULL,        "transferSize -- size of transfer in bytes (e.g.: 8, 4k, 2m, 1g)", OPTION_OPTIONAL_ARGUMENT, 'l', & params->transferSize},
    {'T', NULL,        "maxTimeDuration -- max time in minutes executing repeated test; it aborts only between iterations and not within a test!", OPTION_OPTIONAL_ARGUMENT, 'd', & params->maxTimeDuration},
    {'u', NULL,        "uniqueDir -- use unique directory name for each file-per-process", OPTION_FLAG, 'd', & params->uniqueDir},
    {'v', NULL,        "verbose -- output information (repeating flag increases level)", OPTION_FLAG, 'd', & params->verbose},
    {'w', NULL,        "writeFile -- write file", OPTION_FLAG, 'd', & params->writeFile},
    {'W', NULL,        "checkWrite -- check read after write", OPTION_FLAG, 'd', & params->checkWrite},
    {'x', NULL,        "singleXferAttempt -- do not retry transfer if incomplete", OPTION_FLAG, 'd', & params->singleXferAttempt},
    {'X', NULL,        "reorderTasksRandomSeed -- random seed for -Z option", OPTION_OPTIONAL_ARGUMENT, 'd', & params->reorderTasksRandomSeed},
    {'y', NULL,        "dualMount -- use dual mount points for a filesystem", OPTION_FLAG, 'd', & params->dualMount},
    {'Y', NULL,        "fsyncPerWrite -- perform sync operation after every write operation", OPTION_FLAG, 'd', & params->fsyncPerWrite},
    {'z', NULL,        "randomOffset -- access is to shuffled, not sequential, offsets within a file, specify twice for random (potentially overlapping)", OPTION_FLAG, 'd', & params->randomOffset},
    {0, "randomPrefill", "For random -z access only: Prefill the file with this blocksize, e.g., 2m", OPTION_OPTIONAL_ARGUMENT, 'l', & params->randomPrefillBlocksize},
    {0, "random-offset-seed",        "The seed for -z", OPTION_OPTIONAL_ARGUMENT, 'd', & params->randomSeed},
    {'Z', NULL,        "reorderTasksRandom -- changes task ordering to random select regions for readback, use twice for shuffling", OPTION_FLAG, 'd', & params->reorderTasksRandom},
    {0, "warningAsErrors",        "Any warning should lead to an error.", OPTION_FLAG, 'd', & params->warningAsErrors},
    {.help="  -O summaryFile=FILE                 -- store result data into this file", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O summaryFormat=[default,JSON,CSV] -- use the format for outputting the summary", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O saveRankPerformanceDetailsCSV=<FILE> -- store the performance of each rank into the named CSV file.", .arg = OPTION_OPTIONAL_ARGUMENT},
    {.help="  -O savePerOpDataCSV=<FILE> -- store the performance of each rank into an individual file prefixed with this option.", .arg = OPTION_OPTIONAL_ARGUMENT},
    {0, "dryRun",      "do not perform any I/Os just run evtl. inputs print dummy output", OPTION_FLAG, 'd', & params->dryRun},
    LAST_OPTION,
  };
  option_help * options = malloc(sizeof(o));
  memcpy(options, & o, sizeof(o));
  return options;
}

$ module load mpi/mpich-x86_64 # or any other MPI stack

$ mpirun -hostfile /path/to/hostfile_clients -np 30 <your_dir>/bin/ior -a POSIX -b 5G -t 1M -v -W -w -r -R -i 1 -o /tmp/daos_dfuse/testfile

IOR-3.4.0+dev: MPI Coordinated Test of Parallel I/O
Began               : Thu Apr 29 23:23:09 2021
Command line        : ior -a POSIX -b 5G -t 1M -v -W -w -r -R -i 1 -o /tmp/daos_dfuse/testfile
Machine             : Linux wolf-86.wolf.hpdd.intel.com
Start time skew across all tasks: 0.00 sec
TestID              : 0
StartTime           : Thu Apr 29 23:23:09 2021
Path                : /tmp/daos_dfuse/testfile
FS                  : 789.8 GiB   Used FS: 16.5%   Inodes: -0.0 Mi   Used Inodes: 0.0%
Participating tasks : 30

Options:
api                 : POSIX
apiVersion          :
test filename       : /tmp/daos_dfuse/testfile
access              : single-shared-file
type                : independent
segments            : 1
ordering in a file  : sequential
ordering inter file : no tasks offsets
nodes               : 3
tasks               : 30
clients per node    : 10
repetitions         : 1
xfersize            : 1 MiB
blocksize           : 5 GiB
aggregate filesize  : 150 GiB
verbose             : 1

Results:

access    bw(MiB/s)  IOPS       Latency(s)  block(KiB) xfer(KiB)  open(s)    wr/rd(s)   close(s)   total(s)   iter
------    ---------  ----       ----------  ---------- ---------  --------   --------   --------   --------   ----
Commencing write performance test: Thu Apr 29 23:23:09 2021
write     1299.23    1299.84    0.022917    5242880    1024.00    10.79      118.17     0.000377   118.22     0
Verifying contents of the file(s) just written.
Thu Apr 29 23:25:07 2021

Commencing read performance test: Thu Apr 29 23:25:35 2021

read      5429       5431       0.005523    5242880    1024.00    0.012188   28.28      0.000251   28.29      0
Max Write: 1299.23 MiB/sec (1362.35 MB/sec)
Max Read:  5429.38 MiB/sec (5693.11 MB/sec)

Summary of all tests:
Operation   Max(MiB)   Min(MiB)  Mean(MiB)     StdDev   Max(OPs)   Min(OPs)  Mean(OPs)     StdDev    Mean(s) Stonewall(s) Stonewall(MiB) Test# #Tasks tPN reps fPP reord reordoff reordrand seed segcnt   blksiz    xsize aggs(MiB)   API RefNum
write        1299.23    1299.23    1299.23       0.00    1299.23    1299.23    1299.23       0.00  118.22343         NA            NA     0     30  10    1   0     0        1         0    0      1 5368709120  1048576  153600.0 POSIX      0
read         5429.38    5429.38    5429.38       0.00    5429.38    5429.38    5429.38       0.00   28.29054         NA            NA     0     30  10    1   0     0        1         0    0      1 5368709120  1048576  153600.0 POSIX      0
Finished            : Thu Apr 29 23:26:03 2021


元数据测试:
$ mpirun -hostfile /path/to/hostfile_clients -np 10 <your_dir>/bin/mdtest -a POSIX -z 0 -F -C -i 1 -n 3334 -e 4096 -d /tmp/daos_dfuse/ -w 4096

-- started at 04/29/2021 23:28:11 --

mdtest-3.4.0+dev was launched with 10 total task(s) on 3 node(s)
Command line used: mdtest '-a' 'POSIX' '-z' '0' '-F' '-C' '-i' '1' '-n' '3334' '-e' '4096' '-d' '/tmp/daos_dfuse/' '-w' '4096'
Path: /tmp/daos_dfuse
FS: 36.5 GiB   Used FS: 18.8%   Inodes: 2.3 Mi   Used Inodes: 5.9%

Nodemap: 1001001001
10 tasks, 33340 files

SUMMARY rate: (of 1 iterations)
   Operation                      Max            Min           Mean        Std Dev

---------                      ---            ---           ----        -------

   File creation             :       2943.697       2943.674       2943.686          0.006
   File stat                 :          0.000          0.000          0.000          0.000
   File read                 :          0.000          0.000          0.000          0.000
   File removal              :          0.000          0.000          0.000          0.000
   Tree creation             :       1079.858       1079.858       1079.858          0.000
   Tree removal              :          0.000          0.000          0.000          0.000
-- finished at 04/29/2021 23:28:22 --

ior中抽象IO(aio)回调定义:
typedef struct ior_aiori {
        char *name;
        char *name_legacy;
        aiori_fd_t *(*create)(char *, int iorflags, aiori_mod_opt_t *);
        int (*mknod)(char *);
        aiori_fd_t *(*open)(char *, int iorflags, aiori_mod_opt_t *);
        /*
         Allow to set generic transfer options that shall be applied to any subsequent IO call.
        */
        void (*xfer_hints)(aiori_xfer_hint_t * params);
        IOR_offset_t (*xfer)(int access, aiori_fd_t *, IOR_size_t *,
                             IOR_offset_t size, IOR_offset_t offset, aiori_mod_opt_t * module_options);
        void (*close)(aiori_fd_t *, aiori_mod_opt_t * module_options);
        void (*remove)(char *, aiori_mod_opt_t * module_options);
        char* (*get_version)(void);
        void (*fsync)(aiori_fd_t *, aiori_mod_opt_t * module_options);
        IOR_offset_t (*get_file_size)(aiori_mod_opt_t * module_options, char * filename);
        int (*statfs) (const char *, ior_aiori_statfs_t *, aiori_mod_opt_t * module_options);
        int (*mkdir) (const char *path, mode_t mode, aiori_mod_opt_t * module_options);
        int (*rmdir) (const char *path, aiori_mod_opt_t * module_options);
        int (*access) (const char *path, int mode, aiori_mod_opt_t * module_options);
        int (*stat) (const char *path, struct stat *buf, aiori_mod_opt_t * module_options);
        void (*initialize)(aiori_mod_opt_t * options); /* called once per program before MPI is started */
        void (*finalize)(aiori_mod_opt_t * options); /* called once per program after MPI is shutdown */
        int (*rename) (const char *oldpath, const char *newpath, aiori_mod_opt_t * module_options);
        option_help * (*get_options)(aiori_mod_opt_t ** init_backend_options, aiori_mod_opt_t* init_values); /* initializes the backend options as well and returns the pointer to the option help structure */
        int (*check_params)(aiori_mod_opt_t *); /* check if the provided module_optionseters for the given test and the module options are correct, if they aren't print a message and exit(1) or return 1*/
        void (*sync)(aiori_mod_opt_t * ); /* synchronize every pending operation for this storage */
        bool enable_mdtest;
} ior_aiori_t;

daos回调实现:
ior_aiori_t dfs_aiori = {
        .name		= "DFS",
        .initialize	= DFS_Init,
        .finalize	= DFS_Finalize,
        .create		= DFS_Create,
        .open		= DFS_Open,
        .xfer		= DFS_Xfer,
        .close		= DFS_Close,
        .remove		= DFS_Delete,
        .get_version	= DFS_GetVersion,
        .fsync		= DFS_Fsync,
        .sync		= DFS_Sync,
        .get_file_size	= DFS_GetFileSize,
        .xfer_hints	= DFS_init_xfer_options,
        .statfs		= DFS_Statfs,
        .mkdir		= DFS_Mkdir,
        .rename		= DFS_Rename,
        .rmdir		= DFS_Rmdir,
        .access		= DFS_Access,
        .stat		= DFS_Stat,
        .get_options	= DFS_options,
        .check_params	= DFS_check_params,
        .enable_mdtest	= true,
};


ior
int main(int argc, char **argv) -> ior_main(argc, argv)
    MPI_CHECK(MPI_Init(&argc, &argv), "cannot initialize MPI")
    MPI_CHECK(MPI_Comm_rank(MPI_COMM_WORLD, &rank), "cannot get rank")
    InitTests(tests_head)
        DistributeHints(com)
            MPI_CHECK(MPI_Bcast(&hintCount, sizeof(hintCount), MPI_BYTE, 0, com), "cannot broadcast hints")
            for (i = 0; i < hintCount; i++)
                MPI_CHECK(MPI_Bcast(&hint[i], MAX_STR, MPI_BYTE, 0, com), "cannot broadcast hints")
        params->tasksBlockMapping = QueryNodeMapping(com,false)
            MPI_Comm_size(comm, &num_ranks)
            MPI_Bcast(roothost, MAX_PATHLEN, MPI_CHAR, 0, comm)
            MPI_Gather( &same_as_root, 1, MPI_INT, node_map, 1, MPI_INT, 0, comm)
            MPI_Bcast(&ret, 1, MPI_INT, 0, comm)
    for (tptr = tests_head; tptr != NULL; tptr = tptr->next)
        int participate = test_initialize(tptr)
            backend->initialize(test->params.backend_options) -> DFS_Init(aiori_mod_opt_t * options)
                objectClass = daos_oclass_name2id(o->oclass)
                rc = daos_init()
                rc = d_hash_table_create(D_HASH_FT_EPHEMERAL | D_HASH_FT_NOLOCK | D_HASH_FT_LRU, 4, NULL, &hdl_hash_ops, &aiori_dfs_hash)
                rc = daos_pool_connect(o->pool, o->group, DAOS_PC_RW, &poh, &pool_info, NULL)
                rc = daos_cont_open(poh, o->cont, DAOS_COO_RW, &coh, &co_info, NULL)
                rc = dfs_cont_create_with_label(poh, o->cont, NULL, NULL, &coh, NULL)
                rc = dfs_mount(poh, coh, O_RDWR, &dfs)
                HandleDistribute(POOL_HANDLE)
                    MPI_CHECK(MPI_Bcast(&global.iov_buf_len, 1, MPI_UINT64_T, 0, testComm),
                    MPI_CHECK(MPI_Bcast(global.iov_buf, global.iov_buf_len, MPI_BYTE, 0, testComm),
            TestIoSys(tptr)
                WriteOrReadSingle
                    amtXferred = backend->xfer(access, fd, buffer, transfer, offset, test->backend_options) -> static IOR_offset_t DFS_Xfer(int access, aiori_fd_t *file, IOR_size_t *buffer, IOR_offset_t length, IOR_offset_t off, aiori_mod_opt_t *param)
                        while (remaining > 0)
                            d_iov_set(&iov, (void *)ptr, remaining)
                            if (access == WRITE)
                                rc = dfs_write(dfs, obj, &sgl, off, NULL)
                            else rc = dfs_read(dfs, obj, &sgl, off, &ret, NULL)
            ShowTestEnd(tptr)
            test_finalize(tptr)
    MPI_CHECK(MPI_Finalize(), "cannot finalize MPI")
    DestroyTests(tests_head)

src/mpi/romio/adio/include/adioi.h
struct ADIOI_Fns_struct {
    void (*ADIOI_xxx_Open) (ADIO_File fd, int *error_code);
    void (*ADIOI_xxx_OpenColl) (ADIO_File fd, int rank, int access_mode, int *error_code);
    void (*ADIOI_xxx_ReadContig) (ADIO_File fd, void *buf, MPI_Aint count,
                                  MPI_Datatype datatype, int file_ptr_type,
                                  ADIO_Offset offset, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_WriteContig) (ADIO_File fd, const void *buf, MPI_Aint count,
                                   MPI_Datatype datatype, int file_ptr_type,
                                   ADIO_Offset offset, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_ReadStridedColl) (ADIO_File fd, void *buf, MPI_Aint count,
                                       MPI_Datatype datatype, int file_ptr_type,
                                       ADIO_Offset offset, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_WriteStridedColl) (ADIO_File fd, const void *buf, MPI_Aint count,
                                        MPI_Datatype datatype, int file_ptr_type,
                                        ADIO_Offset offset, ADIO_Status * status, int *error_code);
     ADIO_Offset(*ADIOI_xxx_SeekIndividual) (ADIO_File fd, ADIO_Offset offset,
                                             int whence, int *error_code);
    void (*ADIOI_xxx_Fcntl) (ADIO_File fd, int flag, ADIO_Fcntl_t * fcntl_struct, int *error_code);
    void (*ADIOI_xxx_SetInfo) (ADIO_File fd, MPI_Info users_info, int *error_code);
    void (*ADIOI_xxx_ReadStrided) (ADIO_File fd, void *buf, MPI_Aint count,
                                   MPI_Datatype datatype, int file_ptr_type,
                                   ADIO_Offset offset, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_WriteStrided) (ADIO_File fd, const void *buf, MPI_Aint count,
                                    MPI_Datatype datatype, int file_ptr_type,
                                    ADIO_Offset offset, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_Close) (ADIO_File fd, int *error_code);
    void (*ADIOI_xxx_IreadContig) (ADIO_File fd, void *buf, MPI_Aint count,
                                   MPI_Datatype datatype, int file_ptr_type,
                                   ADIO_Offset offset, ADIO_Request * request, int *error_code);
    void (*ADIOI_xxx_IwriteContig) (ADIO_File fd, const void *buf, MPI_Aint count,
                                    MPI_Datatype datatype, int file_ptr_type,
                                    ADIO_Offset offset, ADIO_Request * request, int *error_code);
    int (*ADIOI_xxx_ReadDone) (ADIO_Request * request, ADIO_Status * status, int *error_code);
    int (*ADIOI_xxx_WriteDone) (ADIO_Request * request, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_ReadComplete) (ADIO_Request * request, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_WriteComplete) (ADIO_Request * request, ADIO_Status * status, int *error_code);
    void (*ADIOI_xxx_IreadStrided) (ADIO_File fd, void *buf, MPI_Aint count,
                                    MPI_Datatype datatype, int file_ptr_type,
                                    ADIO_Offset offset, ADIO_Request * request, int *error_code);
    void (*ADIOI_xxx_IwriteStrided) (ADIO_File fd, const void *buf, MPI_Aint count,
                                     MPI_Datatype datatype, int file_ptr_type,
                                     ADIO_Offset offset, ADIO_Request * request, int *error_code);
    void (*ADIOI_xxx_Flush) (ADIO_File fd, int *error_code);
    void (*ADIOI_xxx_Resize) (ADIO_File fd, ADIO_Offset size, int *error_code);
    void (*ADIOI_xxx_Delete) (const char *filename, int *error_code);
    int (*ADIOI_xxx_Feature) (ADIO_File fd, int flag);
    const char *fsname;
    void (*ADIOI_xxx_IreadStridedColl) (ADIO_File fd, void *buf, MPI_Aint count,
                                        MPI_Datatype datatype, int file_ptr_type,
                                        ADIO_Offset offset, ADIO_Request * request,
                                        int *error_code);
    void (*ADIOI_xxx_IwriteStridedColl) (ADIO_File fd, const void *buf, MPI_Aint count,
                                         MPI_Datatype datatype, int file_ptr_type,
                                         ADIO_Offset offset, ADIO_Request * request,
                                         int *error_code);
    int (*ADIOI_xxx_SetLock) (ADIO_File fd, int cmd, int type, ADIO_Offset offset, int whence,
                              ADIO_Offset len);
};

src/mpi/romio/adio/ad_daos/ad_daos.c
struct ADIOI_Fns_struct ADIO_DAOS_operations = {
    ADIOI_DAOS_Open,    /* Open */
    ADIOI_DAOS_OpenColl,        /* OpenColl */
    ADIOI_DAOS_ReadContig,      /* ReadContig */
    ADIOI_DAOS_WriteContig,     /* WriteContig */
    ADIOI_GEN_ReadStridedColl,  /* ReadStridedColl */
    ADIOI_GEN_WriteStridedColl, /* WriteStridedColl */
    ADIOI_GEN_SeekIndividual,   /* SeekIndividual */
    ADIOI_DAOS_Fcntl,   /* Fcntl */
    ADIOI_DAOS_SetInfo, /* SetInfo */
    ADIOI_DAOS_ReadStrided,     /* ReadStrided */
    ADIOI_DAOS_WriteStrided,    /* WriteStrided */
    ADIOI_DAOS_Close,   /* Close */
    ADIOI_DAOS_IReadContig,     /* IreadContig */
    ADIOI_DAOS_IWriteContig,    /* IwriteContig */
    ADIOI_FAKE_IODone,  /* ReadDone */
    ADIOI_FAKE_IODone,  /* WriteDone */
    ADIOI_FAKE_IOComplete,      /* ReadComplete */
    ADIOI_FAKE_IOComplete,      /* WriteComplete */
    ADIOI_DAOS_IreadStrided,    /* IreadStrided */
    ADIOI_DAOS_IwriteStrided,   /* IwriteStrided */
    ADIOI_DAOS_Flush,   /* Flush */
    ADIOI_DAOS_Resize,  /* Resize */
    ADIOI_DAOS_Delete,  /* Delete */
    ADIOI_DAOS_Feature, /* Features */

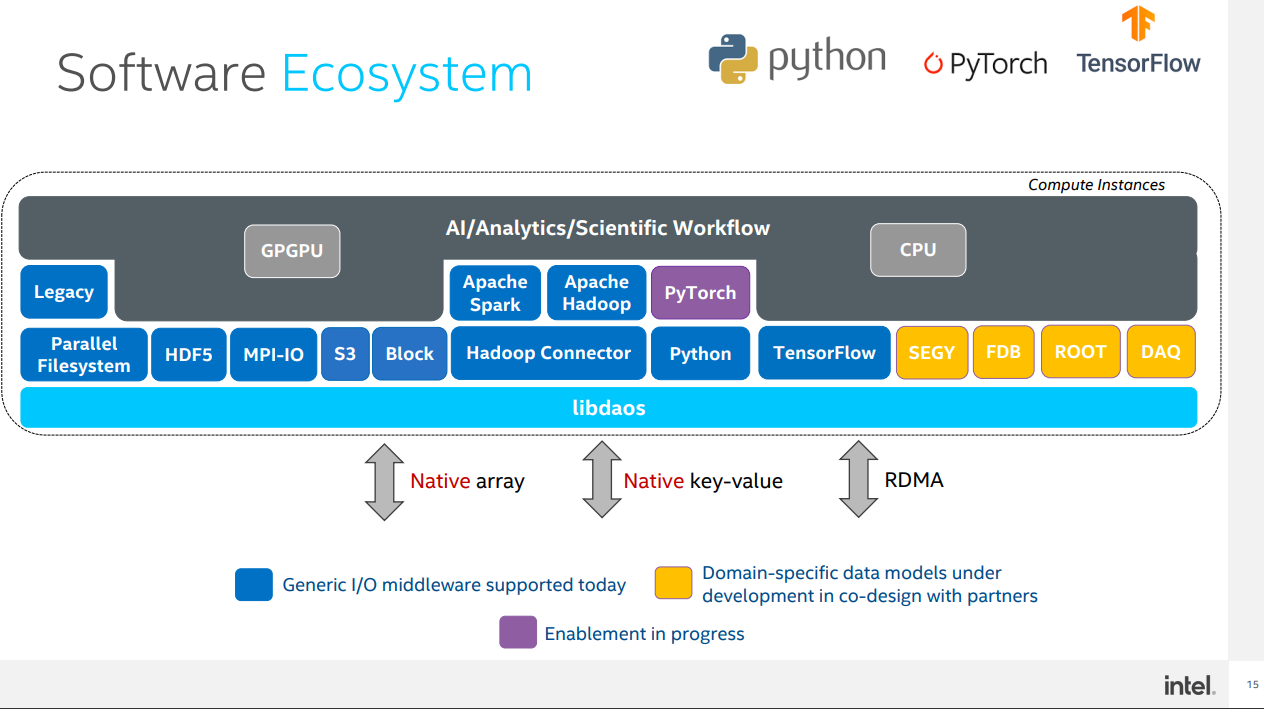

    "DAOS: ROMIO driver for DAOS",
    ADIOI_GEN_IreadStridedColl, /* IreadStridedColl */
    ADIOI_GEN_IwriteStridedColl,        /* IwriteStridedColl */
#if defined(F_SETLKW64)
    ADIOI_GEN_SetLock   /* SetLock */
#else
    ADIOI_GEN_SetLock64 /* SetLock */
#endif
};

MPI_File_iwrite_at -> 使用显式偏移的非阻塞写入, https://www.mpich.org/static/docs/v3.0.x/www3/MPI_File_iwrite_at.html
    MPIR_File_iwrite_at_impl
        MPIOI_File_iwrite
            ADIO_WriteContig -> ADIOI_DAOS_WriteContig
                DAOS_IOContig(fd, (void *) buf, count, datatype, file_ptr_type, offset, status, NULL, DAOS_WRITE, error_code)
                    daos_event_init(&aio_req->daos_event, DAOS_HDL_INVAL, NULL)
                    memcpy(&(aio_req->req), request, sizeof(MPI_Request))
                    d_iov_set(iov, buf, len)
                    ret = dfs_write(cont->dfs, cont->obj, sgl, offset, (request ? &aio_req->daos_event : NULL))
                    or ret = dfs_read(cont->dfs, cont->obj, sgl, offset, nbytes, (request ? &aio_req->daos_event : NULL))

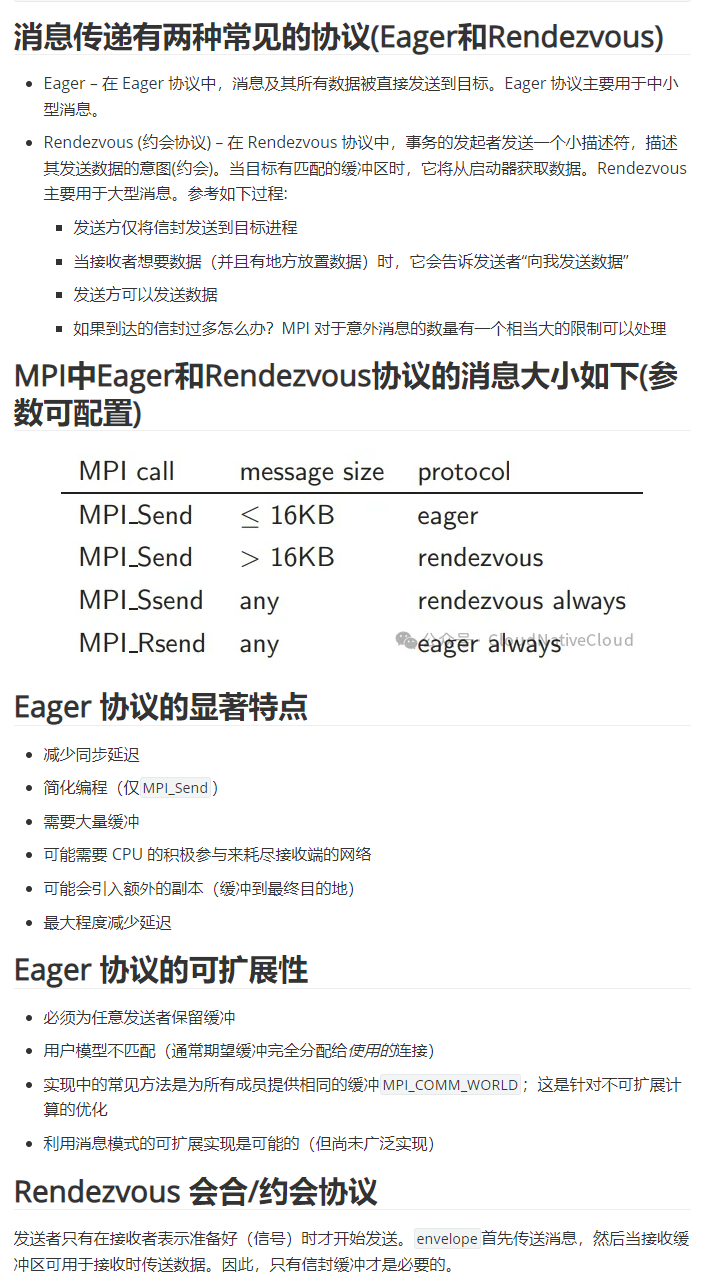

MPID_Send 实现 MPI_Send
MPL_STATIC_INLINE_PREFIX int MPID_Send(const void *buf,
                                       MPI_Aint count,
                                       MPI_Datatype datatype,
                                       int rank,
                                       int tag, MPIR_Comm * comm, int attr, MPIR_Request ** request)
{
    return MPID_Isend(buf, count, datatype, rank, tag, comm, attr, request);
        mpi_errno = MPIDI_isend
            MPIDI_NM_mpi_isend

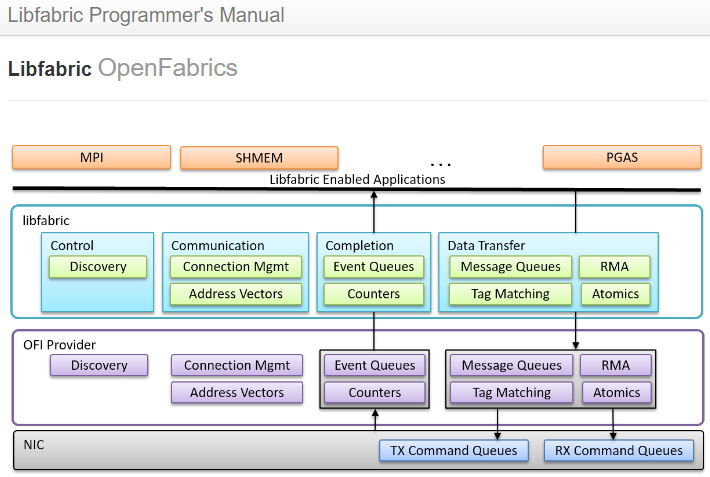

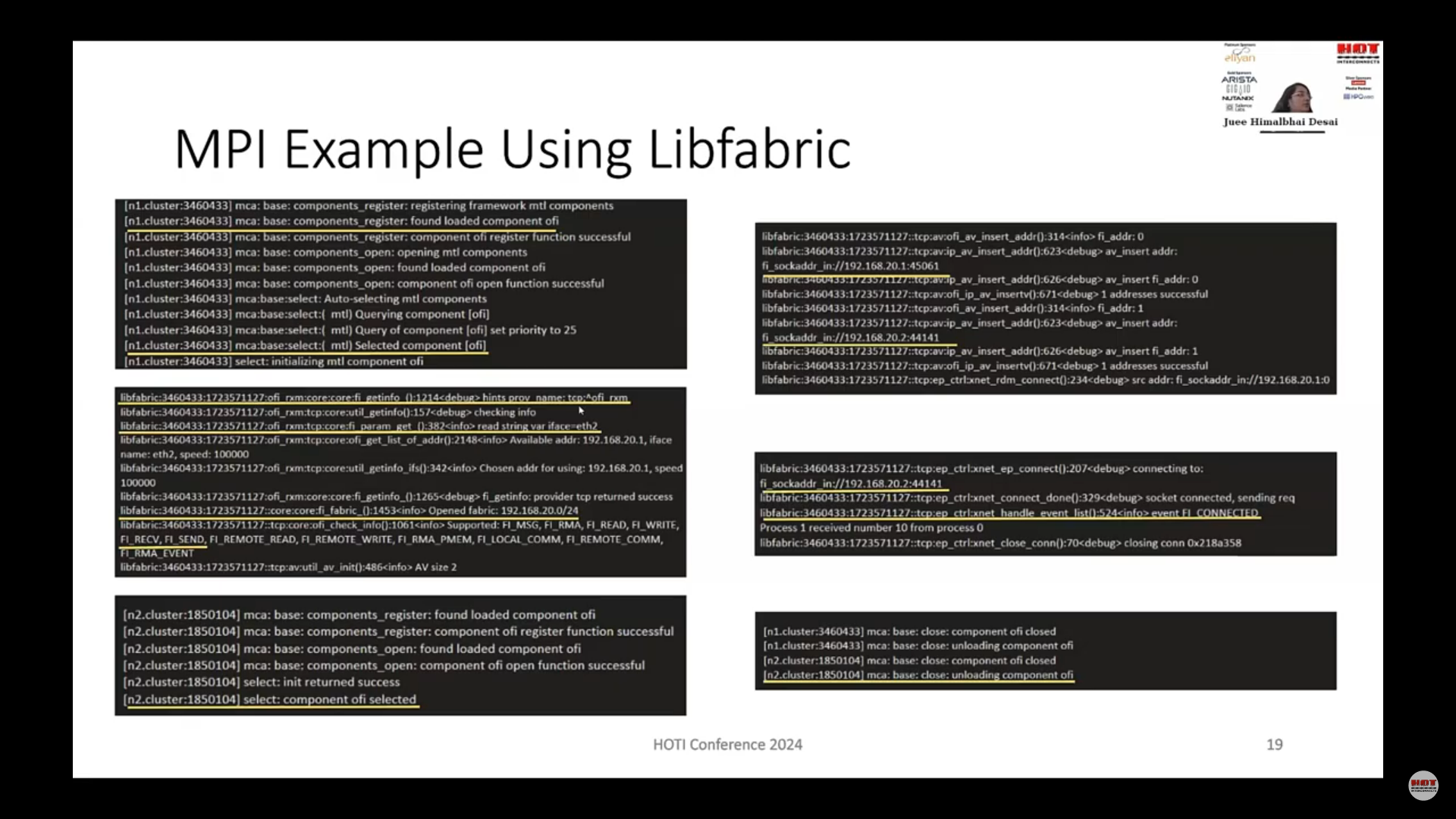

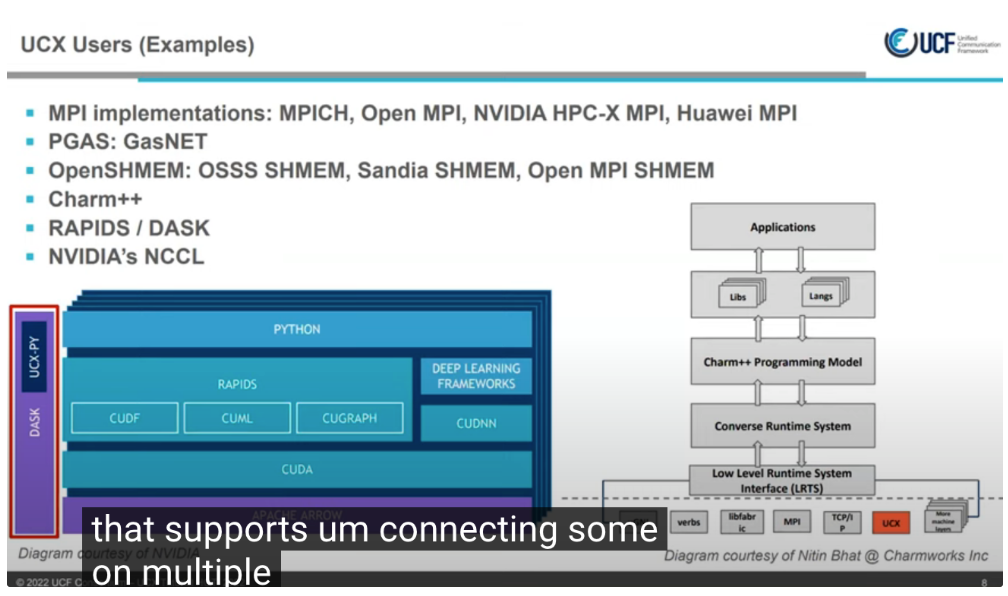

                MPIDI_OFI_send // ucx对应参考函数为: MPIDI_UCX_send
                    MPIDI_OFI_send_iov

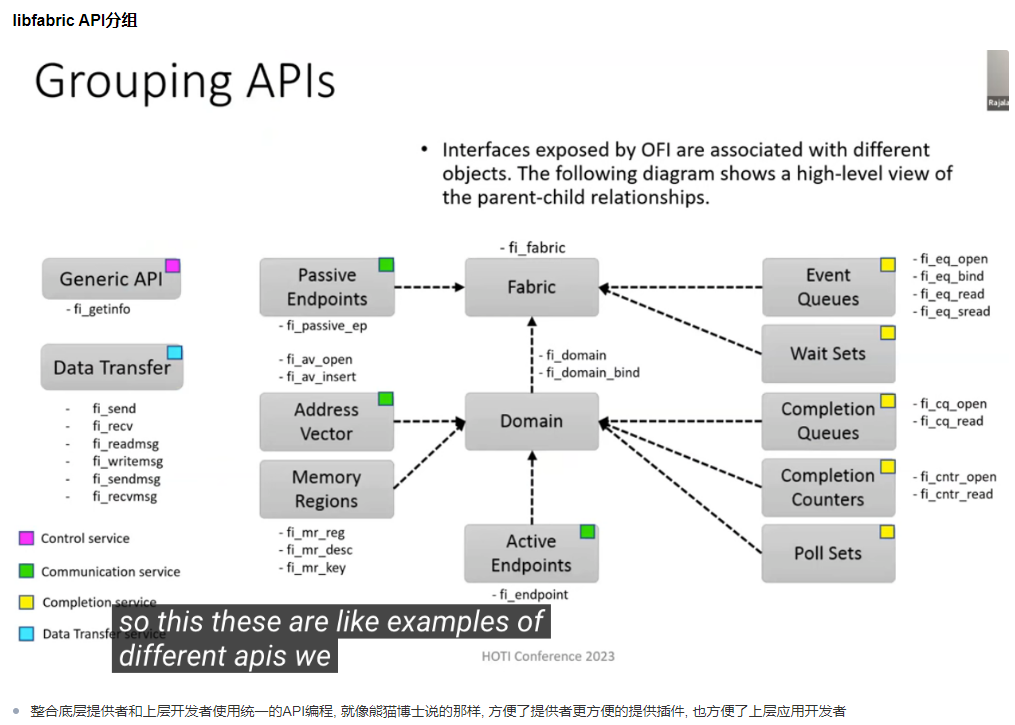

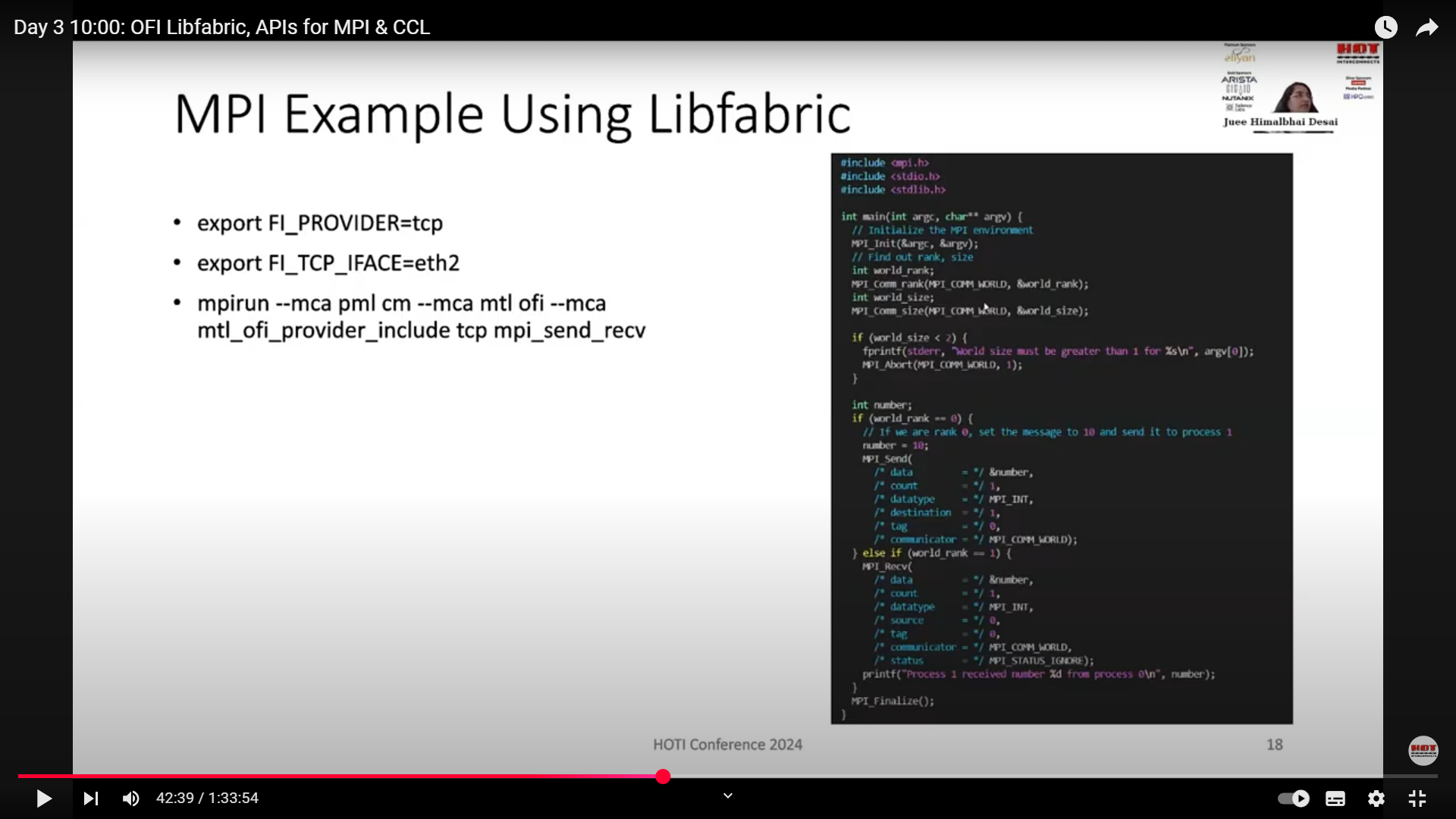

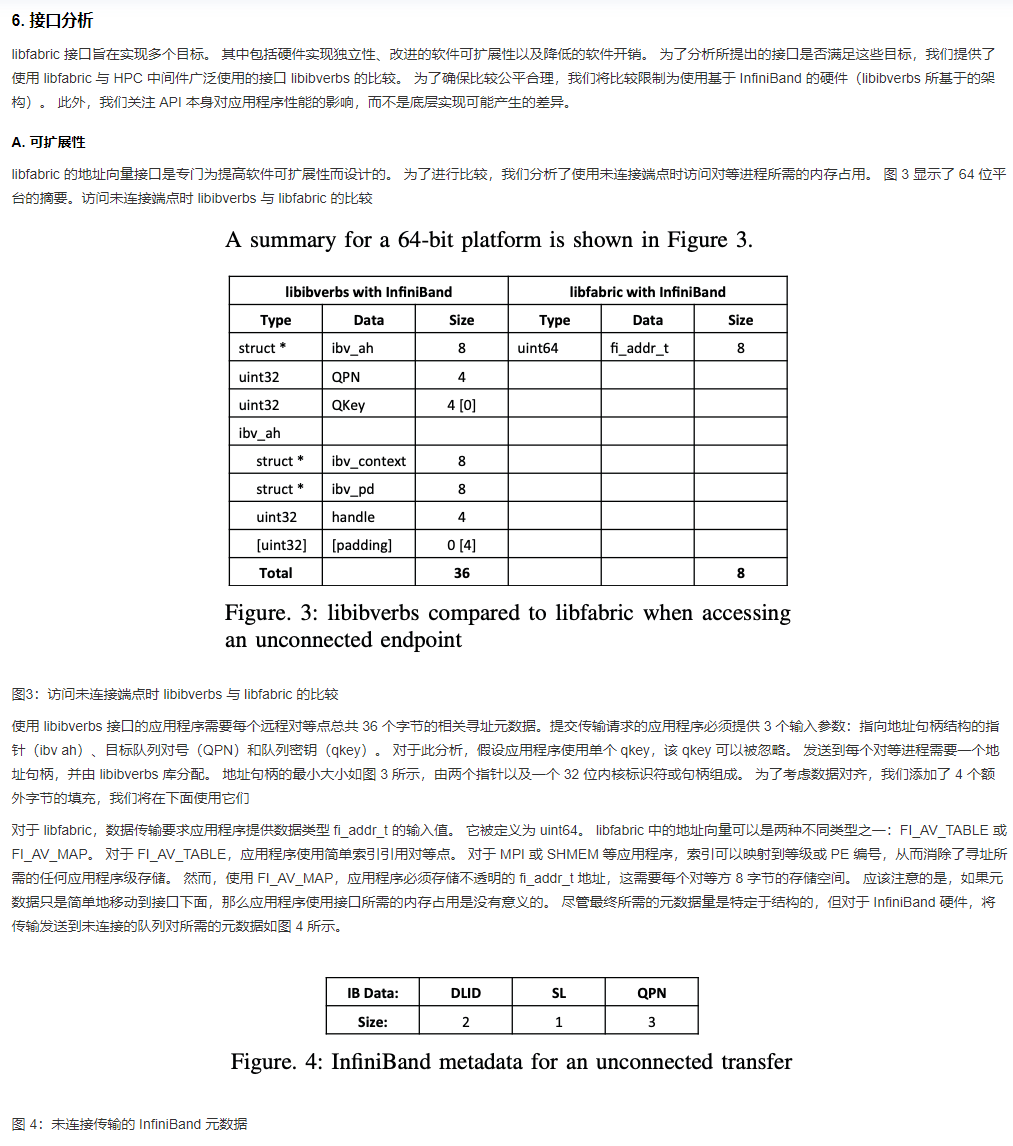

                        fi_tsendmsg(MPIDI_OFI_global.ctx[ctx_idx].tx, &msg, flags) // OFI带TAG发送消息的接口
                    or MPIDI_OFI_send_normal
}

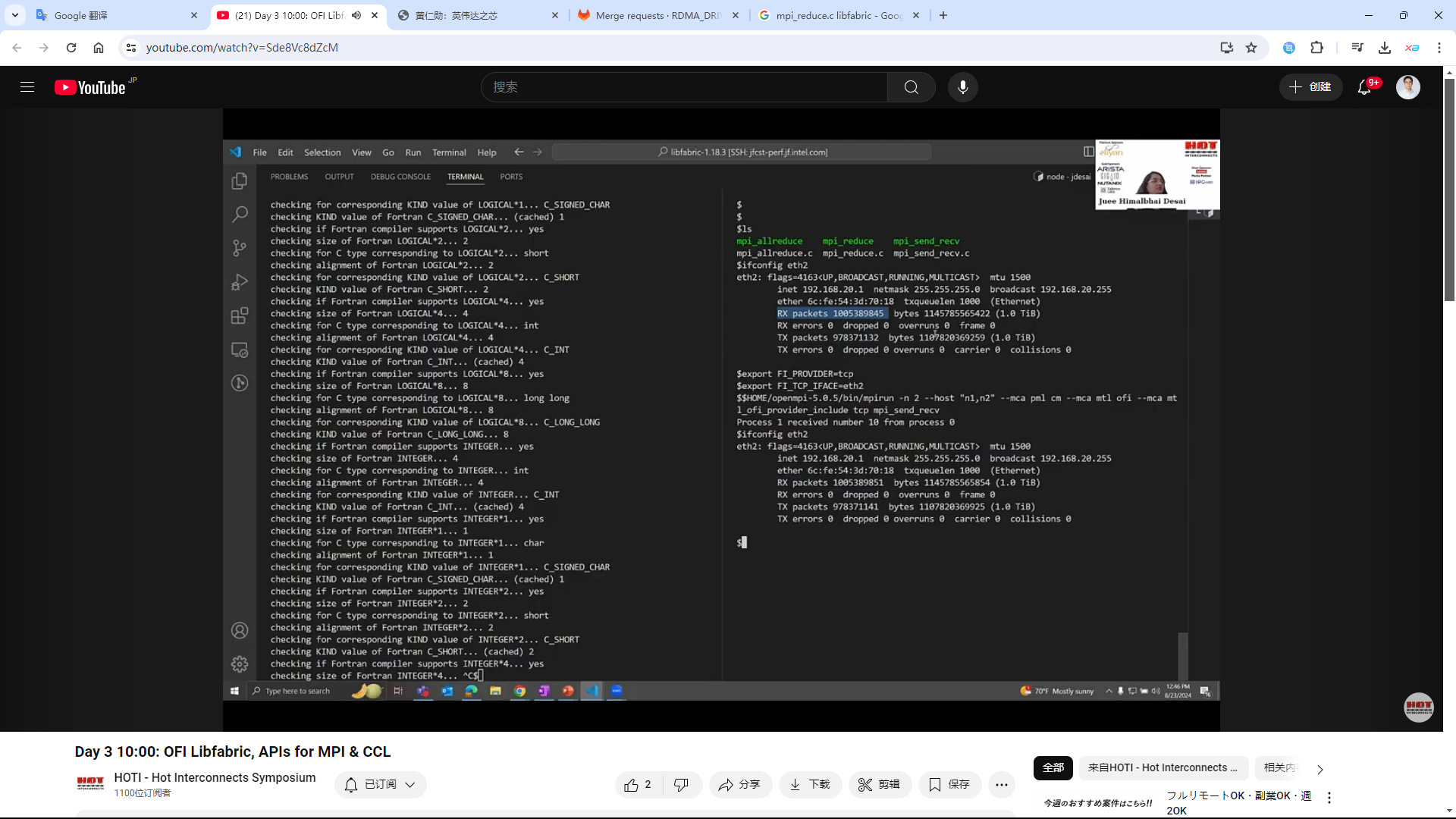

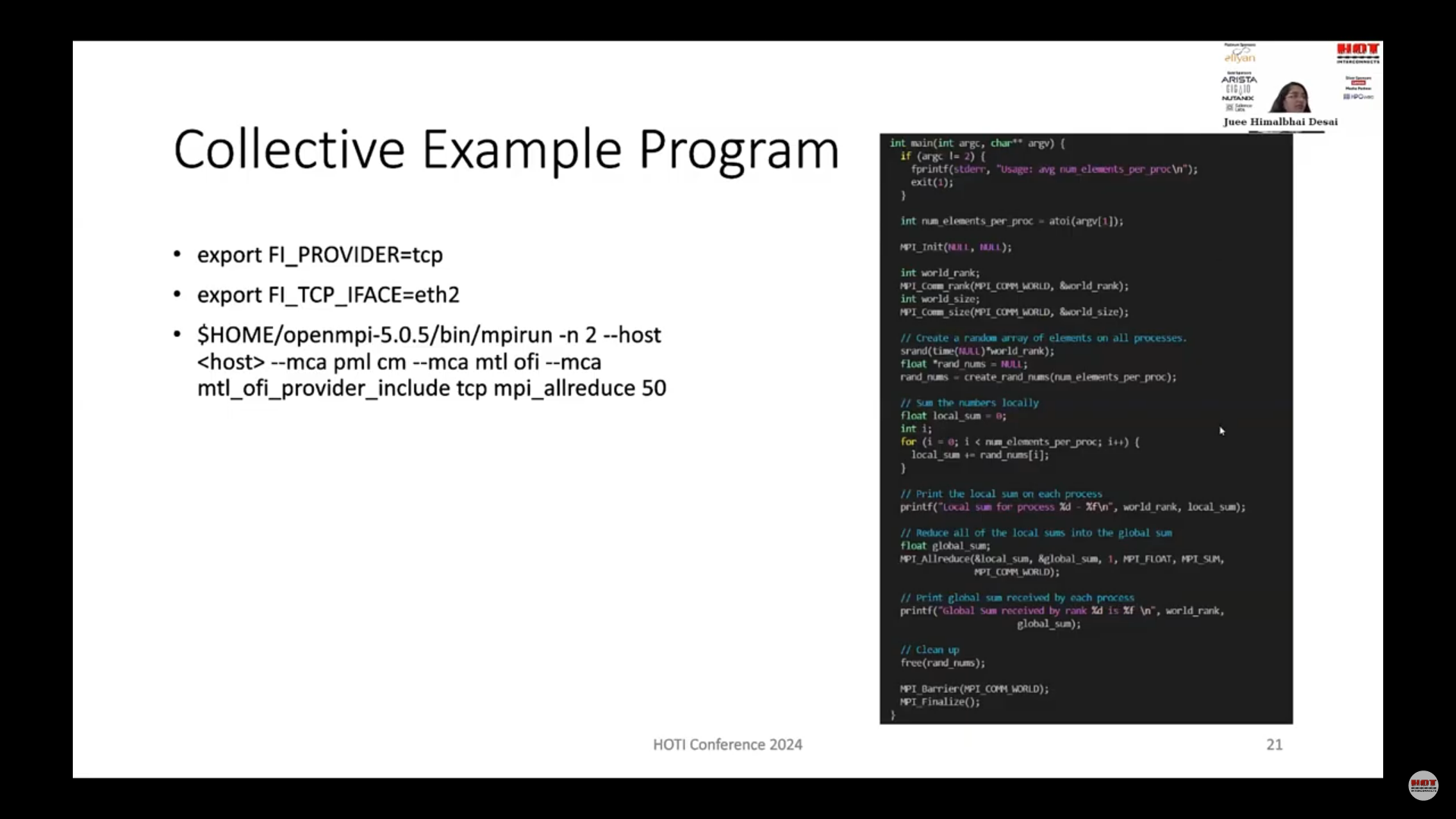

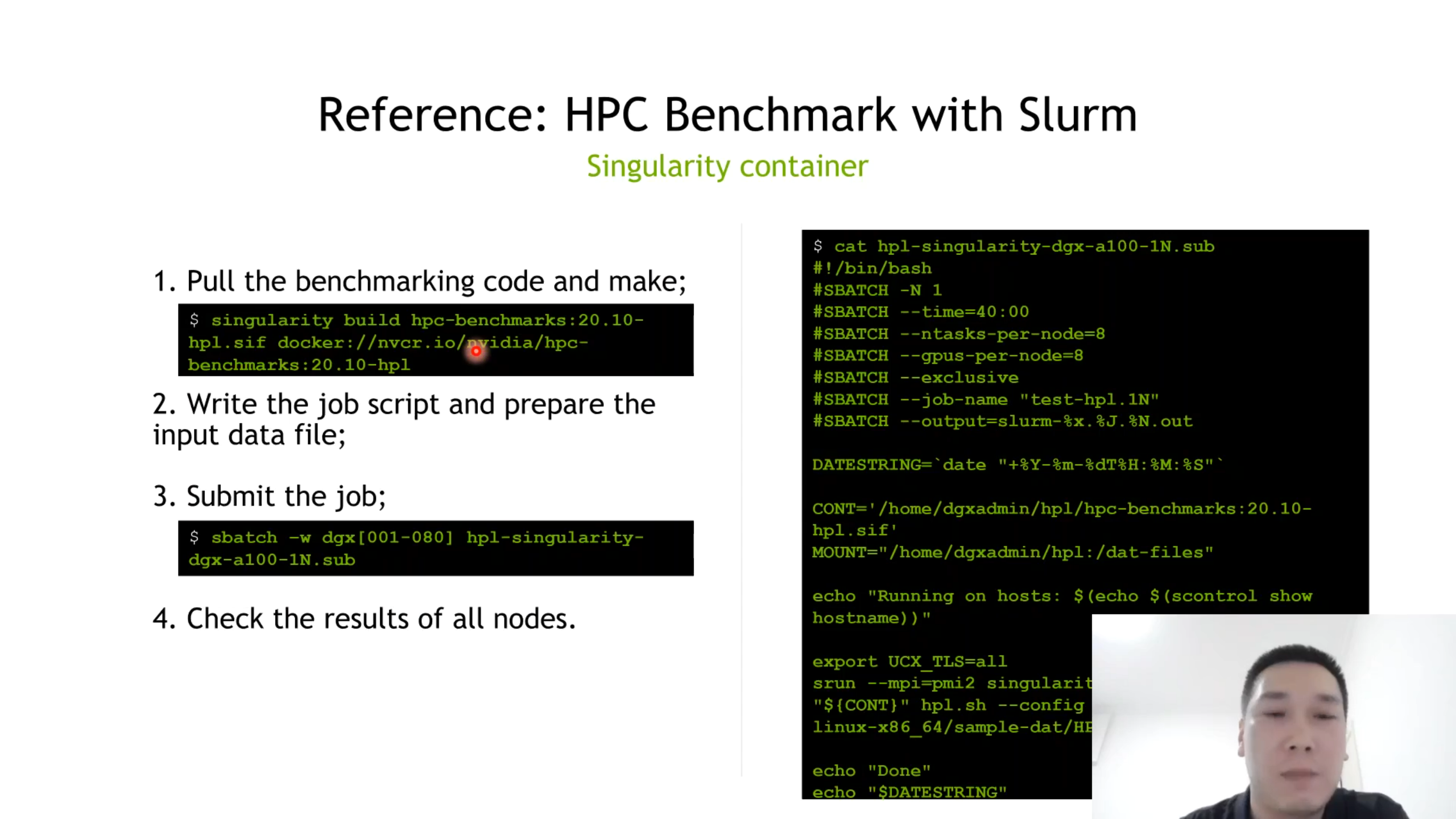

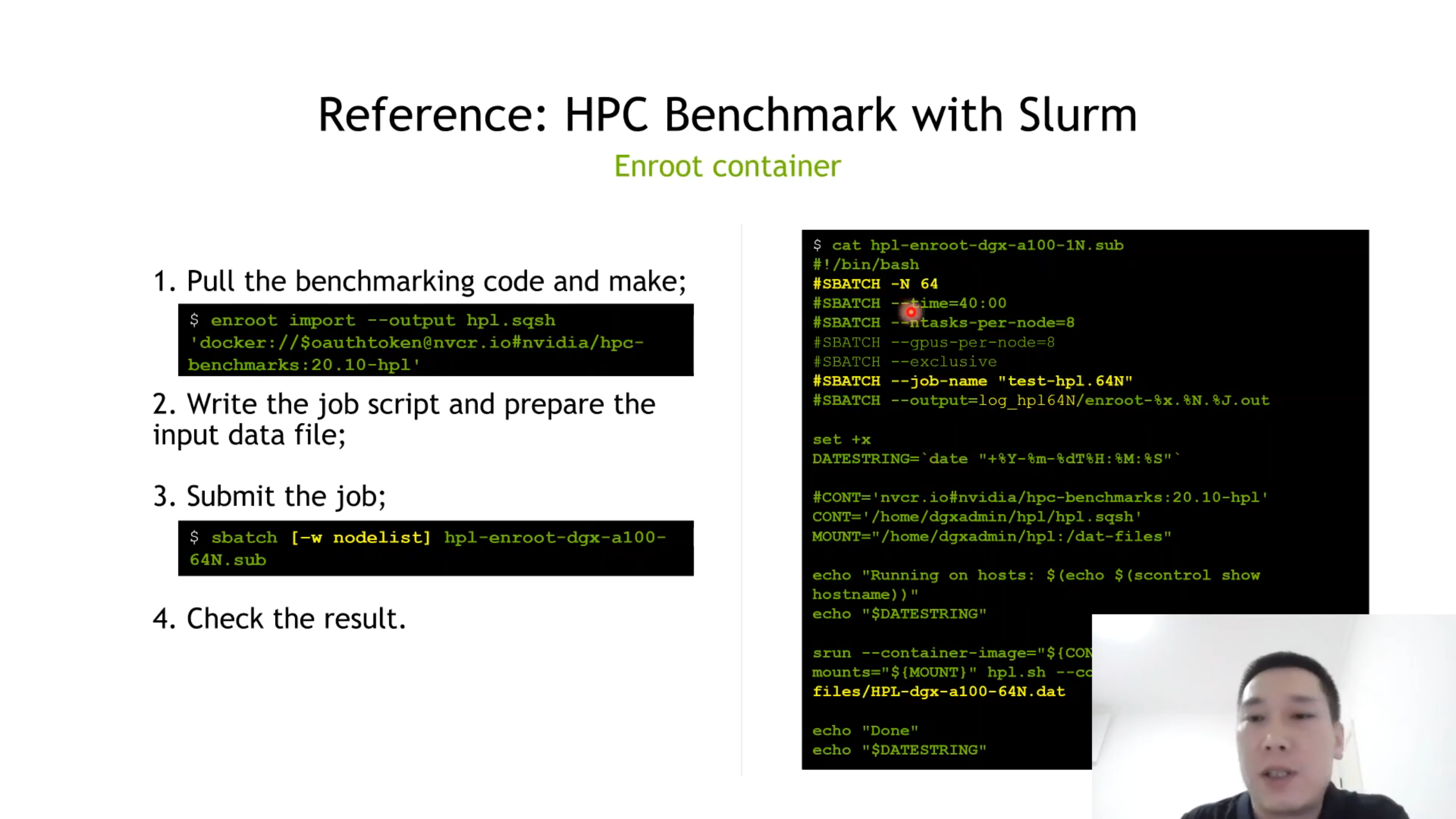

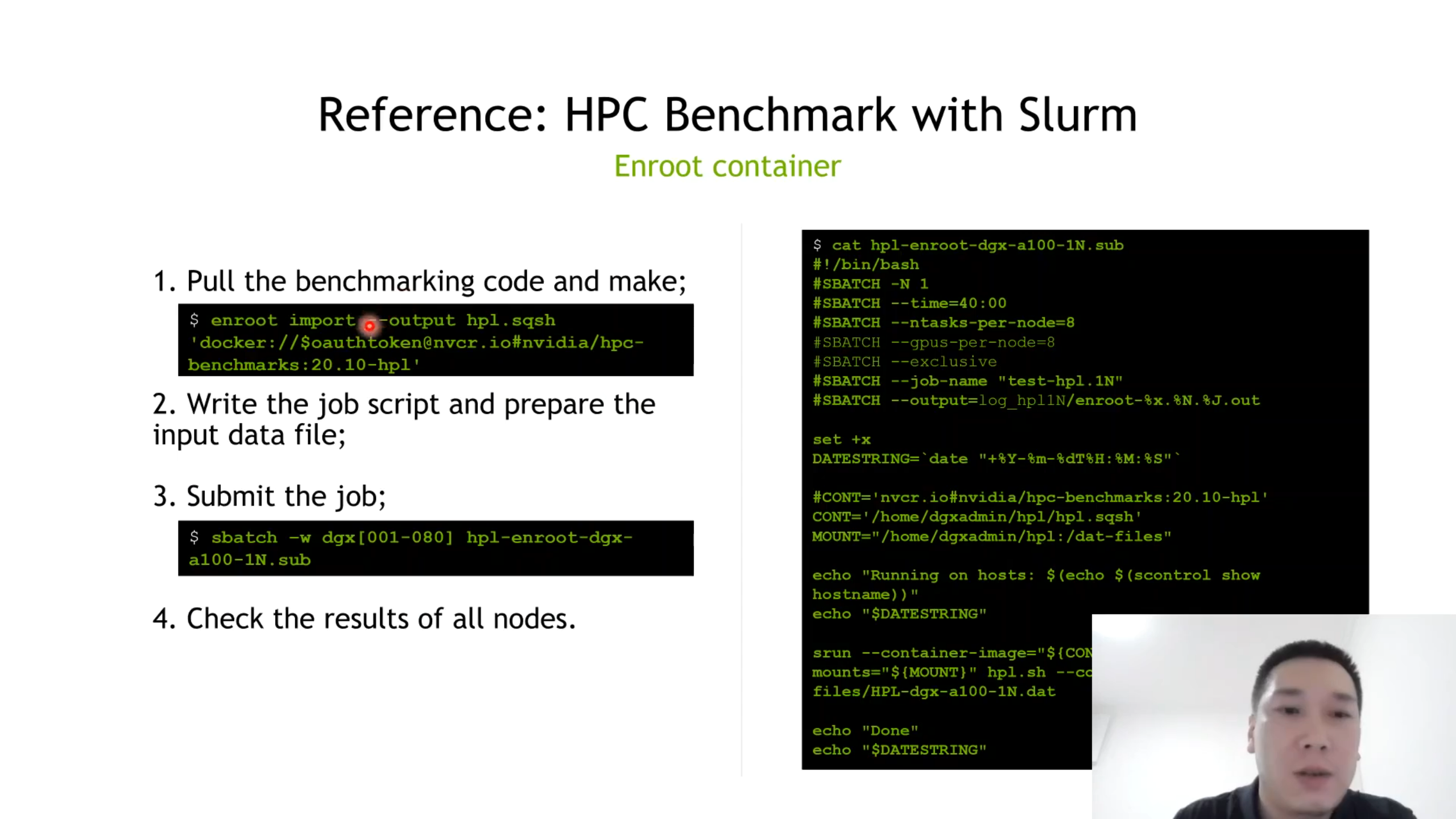

mpirun -n <number_of_processes> IMB- [arguments]
