tidyplots：一个全能绘图包(配色好看，一键式出图！可以取代ggplot2？)

## 使用西湖大学的 Bioconductor镜像
options(BioC_mirror="https://mirrors.westlake.edu.cn/bioconductor")
options("repos"=c(CRAN="https://mirrors.westlake.edu.cn/CRAN/"))
install.packages("tidyplots")

# 设置R包路径
.libPaths(c('~/R/x86_64-pc-linux-gnu-library/4.4',
            '/refdir/Rlib',
            '/usr/local/lib/R/library',
            "/home/data/t020448/miniconda3/envs/R4.4/lib/R/library"))

# 加载包
library(tidyverse)
library(tidyplots)

###################################################################
df <- read_csv("https://tidyplots.org/data/sequencing-qc-STAR.csv")
head(df)
# sample category           reads
# <chr>  <chr>              <dbl>
#   1 Eip_3  Uniquely mapped  2290862
# 2 Eip_5  Uniquely mapped 10414939
# 3 Eip_4  Uniquely mapped  4525002
# 4 Eip_2  Uniquely mapped  1599561
# 5 Eip_1  Uniquely mapped 15733471
# 6 Ein_3  Uniquely mapped 12839457

my_colors <- c("Uniquely mapped" = "#437bb1",
               "Mapped to multiple loci" = "#7cb5ec",
               "Mapped to too many loci" = "#f7a35c",
               "Unmapped: too short" = "#b1084c",
               "Unmapped: other" = "#7f0000")

my_colors

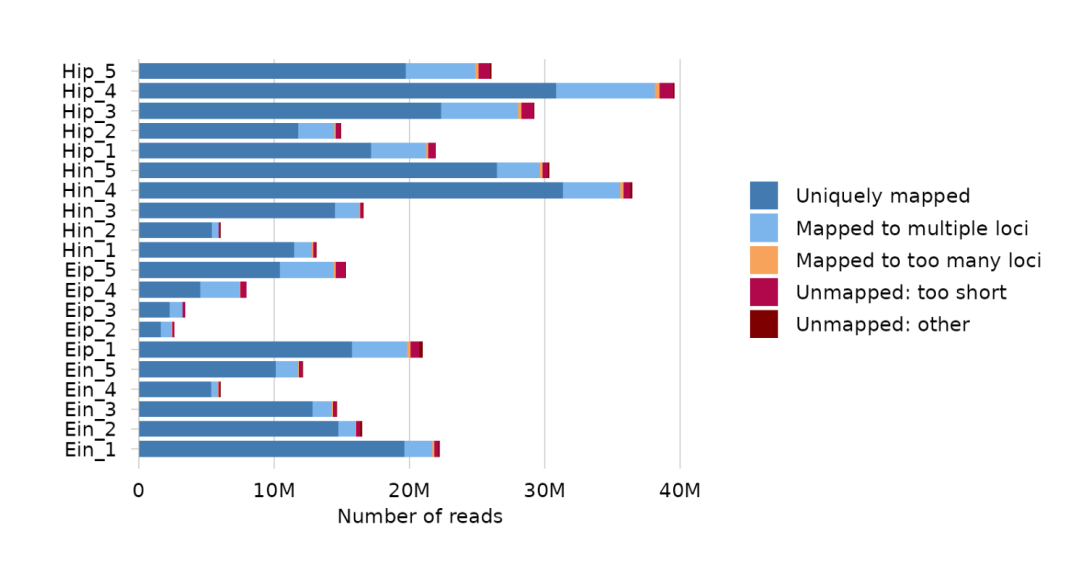

p <- df |>
  tidyplot(x = reads, y = sample, color = category) |>
  add_barstack_absolute(reverse = TRUE) |>
  theme_minimal_x() |>
  adjust_size(70, 50) |>
  adjust_colors(my_colors) |>
  adjust_x_axis(title = "Number of reads", cut_short_scale = TRUE) |>
  reorder_color_labels(names(my_colors)) |>
  remove_legend_title() |>
  remove_y_axis_title()
p
ggsave(filename = "maprateplot.png", width = 6, height = 4, plot = p)

# 百分比
p <- df |>
  tidyplot(x = reads, y = sample, color = category) |>
  add_barstack_relative(reverse = TRUE) |>
  theme_minimal_x() |>
  adjust_size(70, 50) |>
  adjust_colors(my_colors) |>
  adjust_x_axis(title = "Percentage of reads", labels = scales::percent) |>
  reorder_color_labels(names(my_colors)) |>
  remove_legend_title() |>
  remove_y_axis_title()
p
ggsave(filename = "maprateplot_percent.png", width = 6, height = 4, plot = p)

################################################################################
df <- read_csv("https://tidyplots.org/data/sequencing-qc-featureCounts.csv")
head(df)
# sample category    reads
# <chr>  <chr>       <dbl>
#   1 Eip_3  Assigned  1440266
# 2 Eip_5  Assigned  7212279
# 3 Eip_4  Assigned  1837152
# 4 Eip_2  Assigned   817712
# 5 Eip_1  Assigned  6777689
# 6 Ein_3  Assigned 10231698

table(df$category)
# Assigned    Unassigned_Ambiguity Unassigned_MultiMapping   Unassigned_NoFeatures
# 20                      20                      20                      20

my_colors <- c("Assigned" = "#7cb5ec",
               "Unassigned_Ambiguity" = "#434348",
               "Unassigned_MultiMapping" = "#90ed7d",
               "Unassigned_NoFeatures" = "#f7a35c")

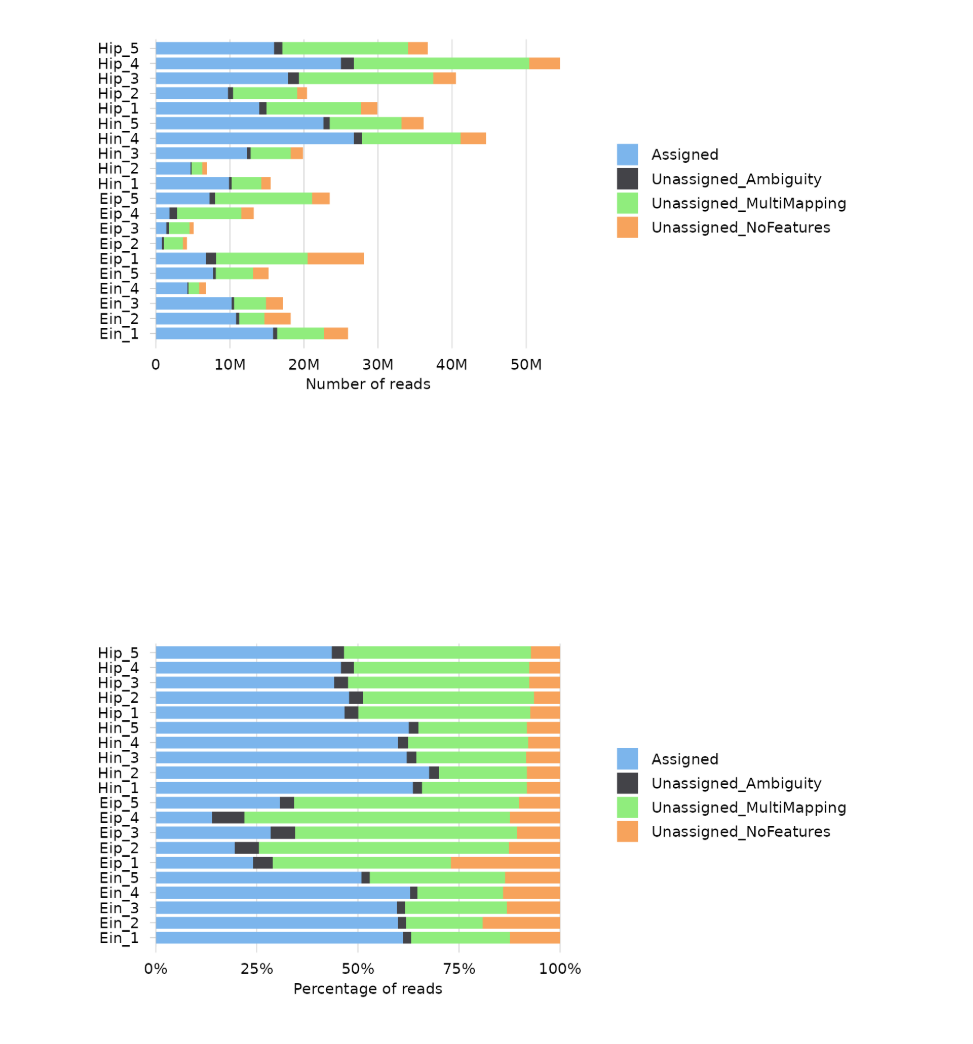

p1 <- df |>
  tidyplot(x = reads, y = sample, color = category) |>
  add_barstack_absolute(reverse = TRUE) |>
  theme_minimal_x() |>
  adjust_size(70, 50) |>
  adjust_colors(my_colors) |>
  adjust_x_axis(title = "Number of reads", cut_short_scale = TRUE) |>
  reorder_color_labels(names(my_colors)) |>
  remove_legend_title() |>
  remove_y_axis_title()

p2 <- df |>
  tidyplot(x = reads, y = sample, color = category) |>
  add_barstack_relative(reverse = TRUE) |>
  theme_minimal_x() |>
  adjust_size(70, 50) |>
  adjust_colors(my_colors) |>
  adjust_x_axis(title = "Percentage of reads", labels = scales::percent) |>
  reorder_color_labels(names(my_colors)) |>
  remove_legend_title() |>
  remove_y_axis_title()

p <- p1 / p2
ggsave(filename = "counts_plot.png", width = 7, height = 8, plot = p)

head(eu_countries)
str(eu_countries)

# area 与 population之间的关系
p <- eu_countries |>
  tidyplot(x = area, y = population,width = 80, height = 80) |>
  add_reference_lines(x = 2.5e5, y = 30) |>
  add_data_points(white_border = TRUE)
p
ggsave(filename = "points.png", width = 7, height = 8, plot = p, bg = "white")

head(energy)

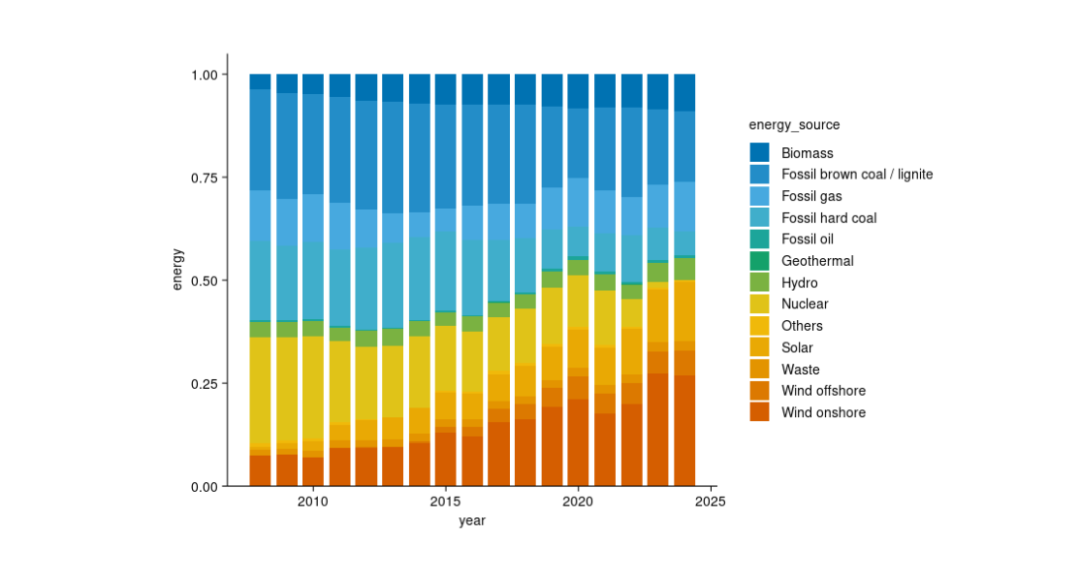

p <- energy |>
  dplyr::filter(year >= 2008) |>
  tidyplot(x = year, y = energy, color = energy_source, width = 90,height = 80) |>
  add_barstack_relative()
p

head(study)

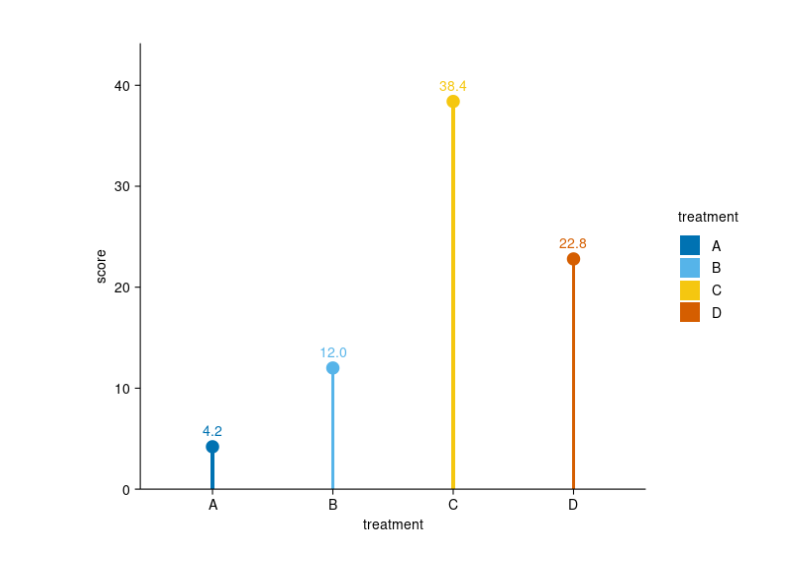

p <- study |>
  tidyplot(x = treatment, y = score, color = treatment, width = 90,height = 80) |>
  add_mean_dot(size = 2.5) |>
  add_mean_bar(width = 0.03) |>
  add_mean_value()
p

head(study)
str(study)
# tibble [20 × 7] (S3: tbl_df/tbl/data.frame)
# $ treatment  : chr [1:20] "A" "A" "A" "A" ...
# $ group      : chr [1:20] "placebo" "placebo" "placebo" "placebo" ...
# $ dose       : chr [1:20] "high" "high" "high" "high" ...
# $ participant: chr [1:20] "p01" "p02" "p03" "p04" ...
# $ age        : num [1:20] 23 45 32 37 24 23 45 32 37 24 ...
# $ sex        : chr [1:20] "female" "male" "female" "male" ...
# $ score      : num [1:20] 2 4 5 4 6 9 8 12 15 16 ...

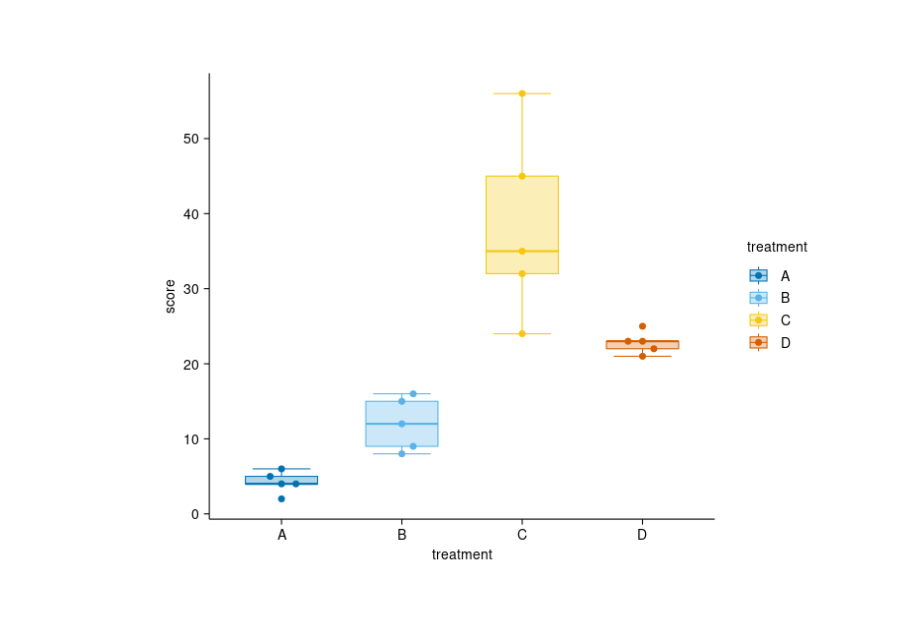

p <- study |>
  tidyplot(x = treatment, y = score, color = treatment, width = 90,height = 80) |>
  add_boxplot() |>
  add_data_points_beeswarm()
p

p <- study |>
  tidyplot(x = group, y = score, color = dose, width = 90,height = 80) |>
  add_mean_bar(alpha = 0.3) |>
  add_sem_errorbar() |>
  add_data_points() |>
  add_test_asterisks(hide_info = TRUE)
p

str(time_course)
# spc_tbl_ [1,710 × 4] (S3: spec_tbl_df/tbl_df/tbl/data.frame)
# $ day      : num [1:1710] 0 0 0 0 0 0 0 0 0 0 ...
# $ subject  : chr [1:1710] "id1" "id2" "id3" "id4" ...
# $ score    : num [1:1710] 0 0 0 0 0 0 0 0 0 0 ...
# $ treatment: chr [1:1710] "untreated" "untreated" "untreated" "untreated" ...

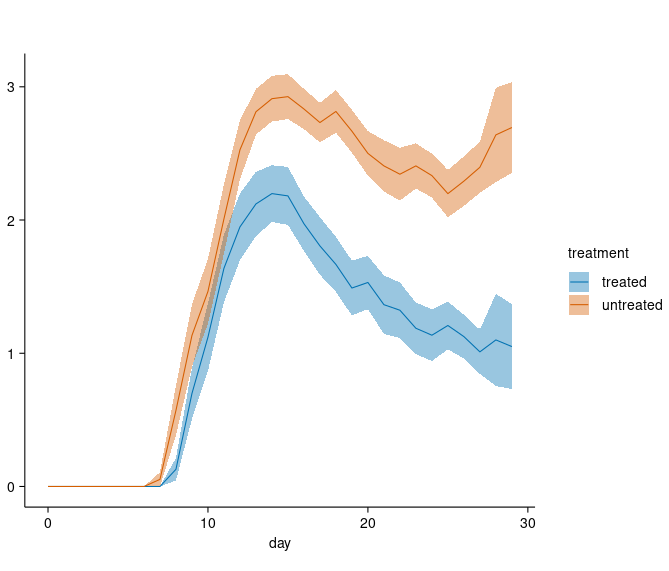

p <- time_course |>
  tidyplot(x = day, y = score, color = treatment, dodge_width = 0, width = 90,height = 80) |>
  add_mean_line() |>
  add_sem_ribbon()
p

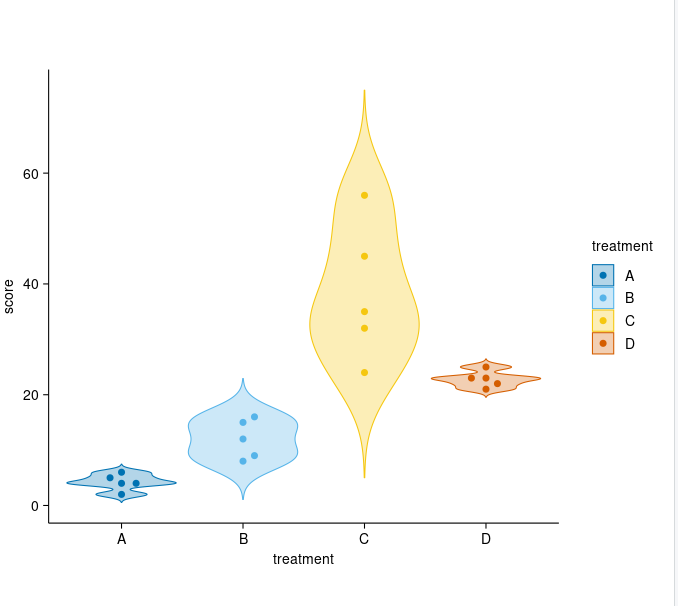

p <- study |>
  tidyplot(x = treatment, y = score, color = treatment, width = 90,height = 80) |>
  add_violin() |>
  add_data_points_beeswarm()
p

library(tidyverse)
head(gene_expression)

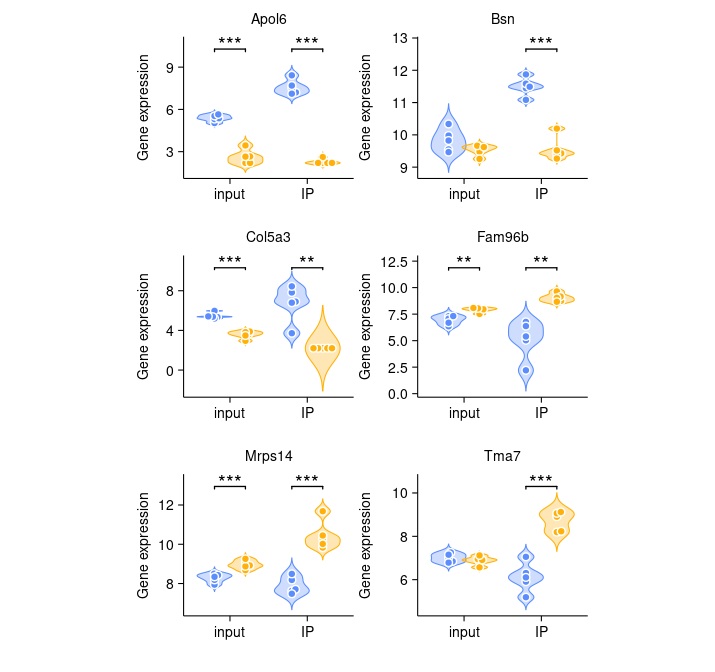

p <- gene_expression |>
  filter(external_gene_name %in% c("Apol6", "Col5a3", "Bsn", "Fam96b", "Mrps14", "Tma7")) |>
  tidyplot(x = sample_type, y = expression, color = condition) |>
  add_violin() |>
  add_data_points_beeswarm(white_border = TRUE) |>
  adjust_x_axis_title("") |>
  remove_legend() |>
  add_test_asterisks(hide_info = TRUE, bracket.nudge.y = 0.3) |>
  adjust_colors(colors_discrete_ibm) |>
  adjust_y_axis_title("Gene expression") |>
  split_plot(by = external_gene_name, ncol = 2)
p

# 导入差异分析结果
df <-
  read_csv("https://tidyplots.org/data/differential-expression-analysis.csv") |>
  mutate(
    neg_log10_padj = -log10(padj),
    direction = if_else(log2FoldChange > 0, "up", "down", NA),
    candidate = abs(log2FoldChange) >= 1 & padj < 0.05
  )

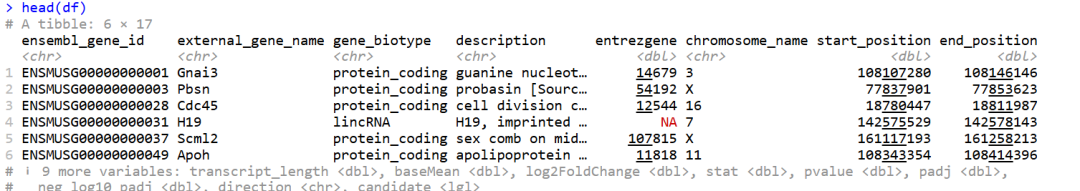

head(df)

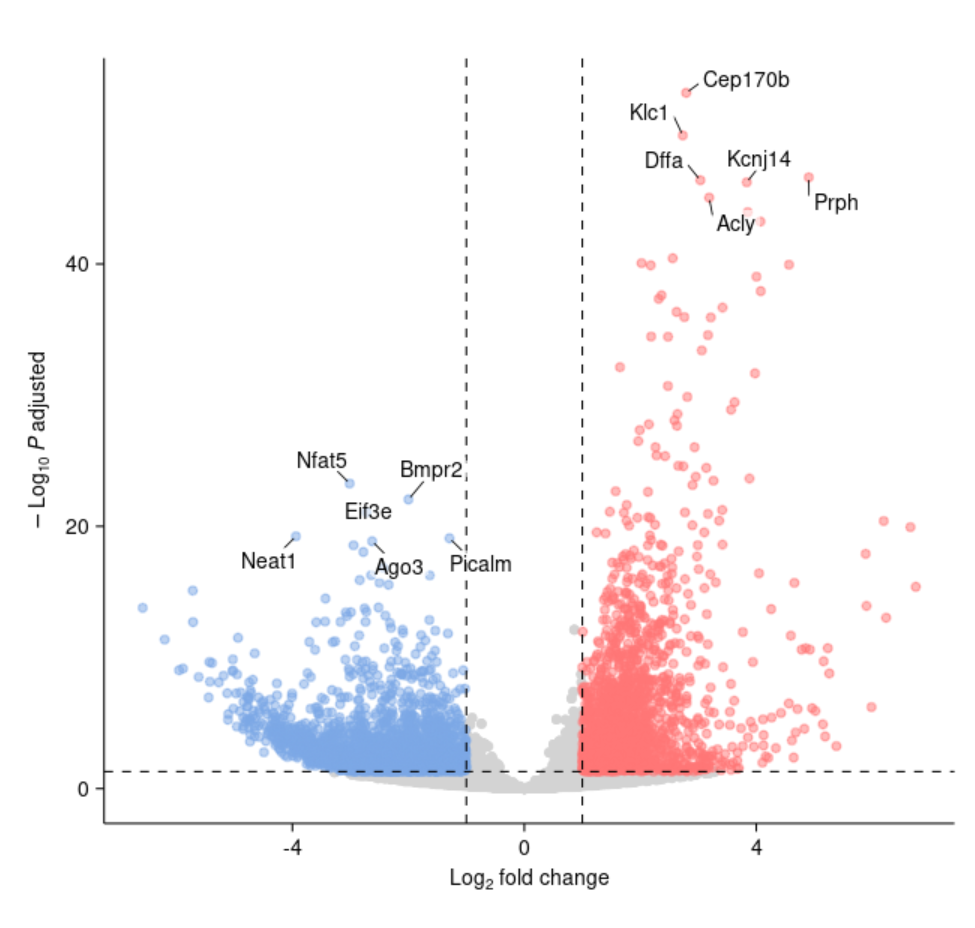

# 绘图
p <- df |>
  tidyplot(x = log2FoldChange, y = neg_log10_padj,, width = 100,height = 90) |>
  add_data_points(data = filter_rows(!candidate),
                  color = "lightgrey", rasterize = TRUE) |>
  add_data_points(data = filter_rows(candidate, direction == "up"),
                  color = "#FF7777", alpha = 0.5) |>
  add_data_points(data = filter_rows(candidate, direction == "down"),
                  color = "#7DA8E6", alpha = 0.5) |>
  add_reference_lines(x = c(-1, 1), y = -log10(0.05)) |>
  add_data_labels_repel(data = min_rows(padj, 6, by = direction), label = external_gene_name,
                        color = "#000000", min.segment.length = 0, background = TRUE) |>
  adjust_x_axis_title("$Log[2]~fold~change$") |>
  adjust_y_axis_title("$-Log[10]~italic(P)~adjusted$")
p
