🤩 miRTalk | 单细胞miRNA推断及细胞间通讯！~

rm(list = ls())
#devtools::install_github("multitalk/miRTalk")
library(miRTalk)
library(tidyverse)

load(paste0(system.file(package = "miRTalk"), "/extdata/example.rda"))

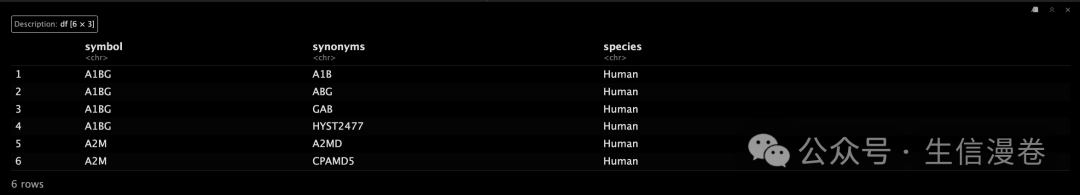

# demo_geneinfo
demo_geneinfo()

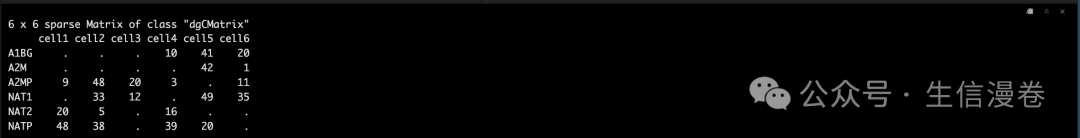

# demo_sc_data
demo_sc_data()

obj <- create_miRTalk(sc_data = sc_data,
                      sc_celltype = sc_celltype,
                      species = "Human",
                      condition = rep("condition",length(sc_celltype)),
                      evbiog = evbiog,
                      risc = risc,
                      ritac = ritac)

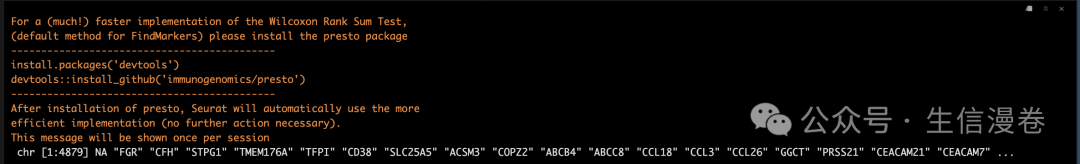

# find highly variable target genes
obj <- find_hvtg(object = obj)

# the result is a character
var_genes <- obj@data$var_genes
str(var_genes)

# find MiTIs with negative regulation by default using risc
obj <- find_miRNA(object = obj,
                  mir_info = mir_info,
                  mir2tar = mir2tar)

# find MiTIs with positive regulation by default using ritac
# obj <- find_miRNA(object = obj,
#                   mir_info = mir_info,
#                   mir2tar = mir2tar,
#                   regulation = "positive")

# Use different databases
# obj <- find_miRNA(object = obj,
#                   mir_info = mir_info,
#                   mir2tar = mir2tar,
#                   database = c("miRTarBase", "TarBase"))

# Use EXOmotif to refine EV-derived miRNAs
# obj <- find_miRNA(object = obj,
#                   mir_info = mir_info,
#                   mir2tar = mir2tar,
#                   EXOmotif = "CAUG")

# Correct to precursor miRNAs
# obj <- find_miRNA(object = obj,
#                   mir_info = mir_info,
#                   mir2tar = mir2tar,
#                   resolution = "precursor")

# Use human database (mir_info and mir2tar) for mouse or rat scRNA-seq data
# obj <- find_miRNA(object = obj,
#                   mir_info = mir_info,
#                   mir2tar = mir2tar,
#                   if_use_human_data = TRUE,
#                   gene2gene = gene2gene)

# infer cell-cell communications mediated by EV-derived miRNAs from senders to receivers
obj <- find_miRTalk(object = obj)

obj

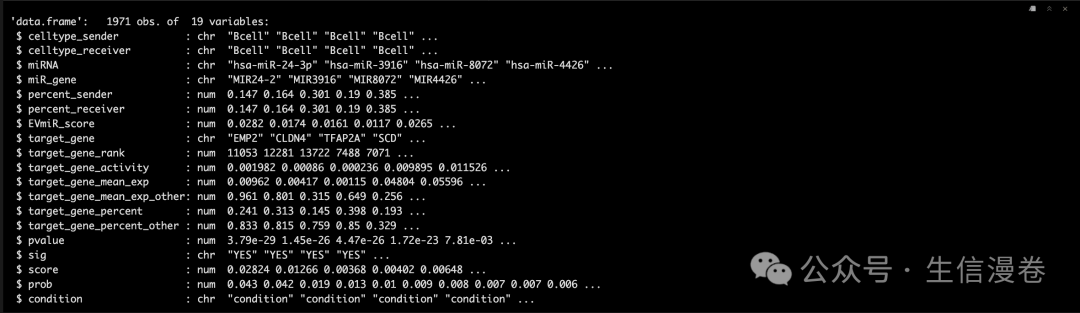

# the result is a data.frame
cci <- obj@cci

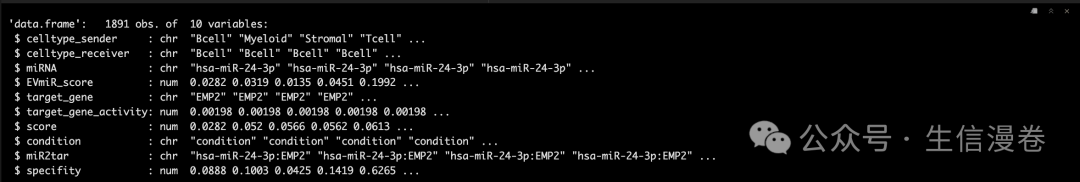

str(cci)

# get simple results of miRNA-target interactions
obj_cci <- get_miRTalk_cci(obj)
str(obj_cci)

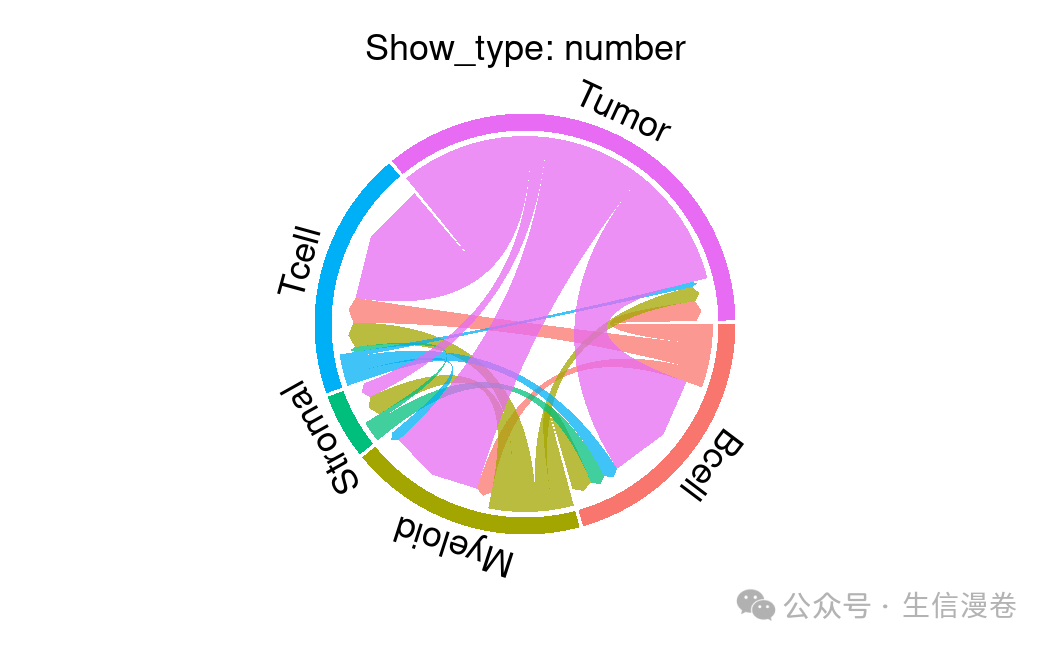

plot_miRTalk_chord(object = obj)

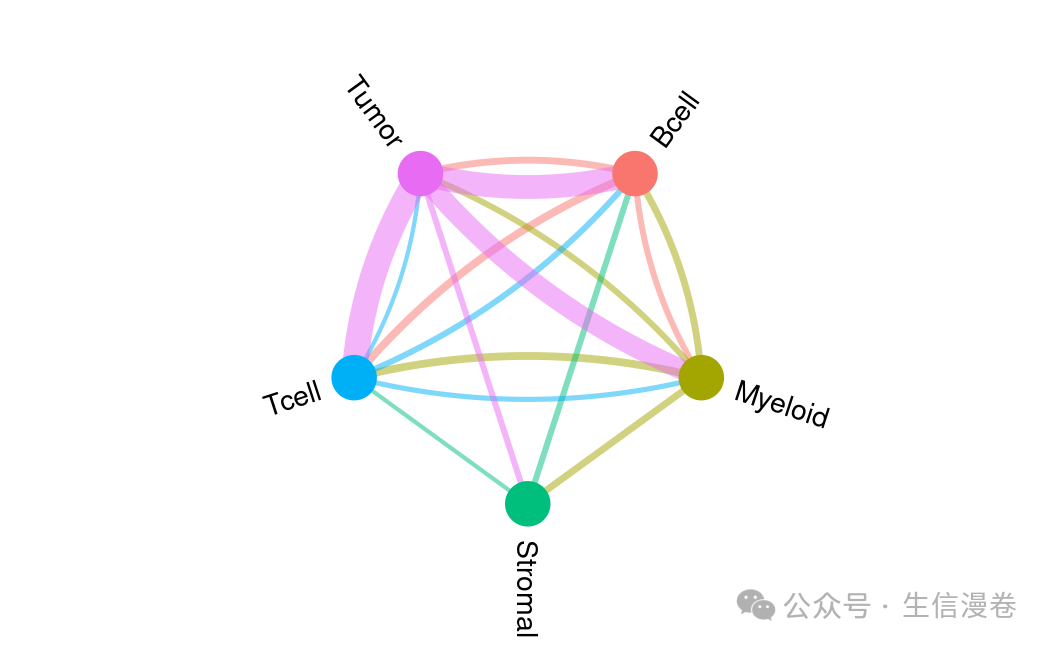

plot_miRTalk_circle(object = obj)

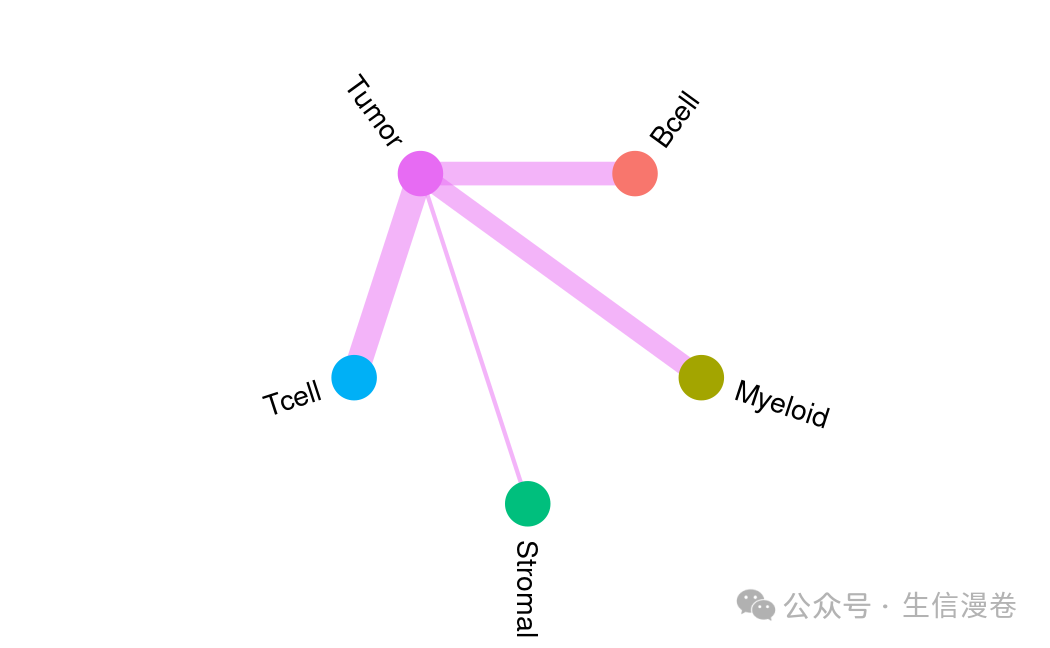

# as sender
plot_miRTalk_circle_simple(object = obj, celltype = "Tumor", celltype_dir = "sender")

# as receiver
plot_miRTalk_circle_simple(object = obj, celltype = "Tumor", celltype_dir = "reciver")

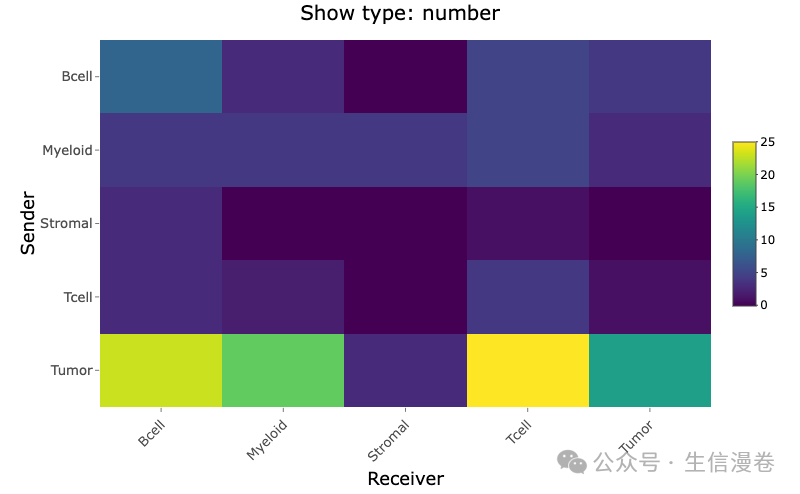

plot_miRTalk_heatmap(object = obj)

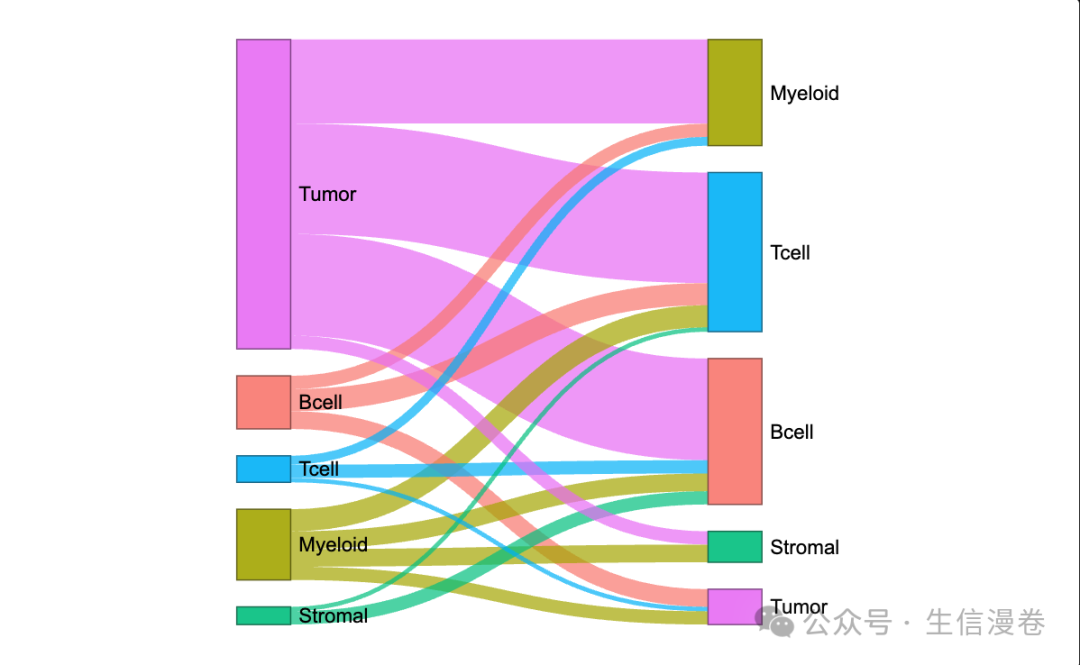

plot_miRTalk_sankey(object = obj)

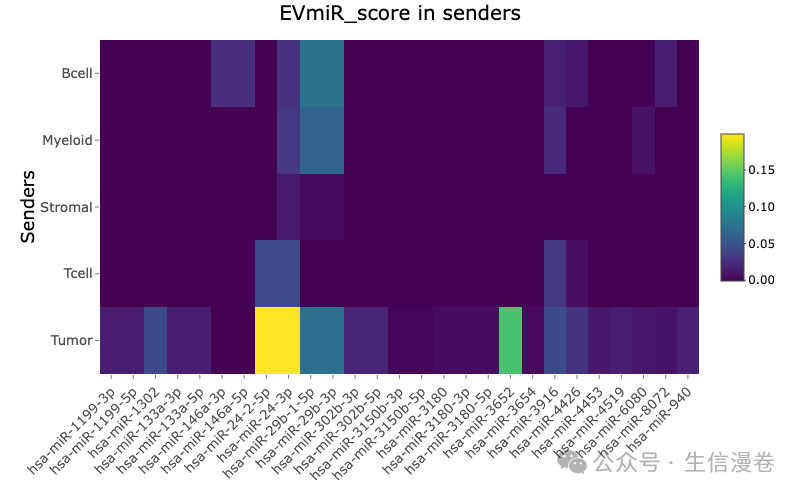

plot_miR_heatmap(object = obj)

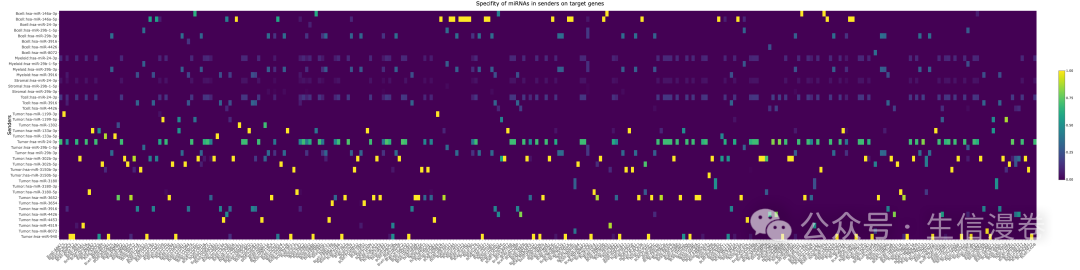

plot_target_heatmap(object = obj, celltype = "Bcell",
                    height = 1000,
                    width = 4000)

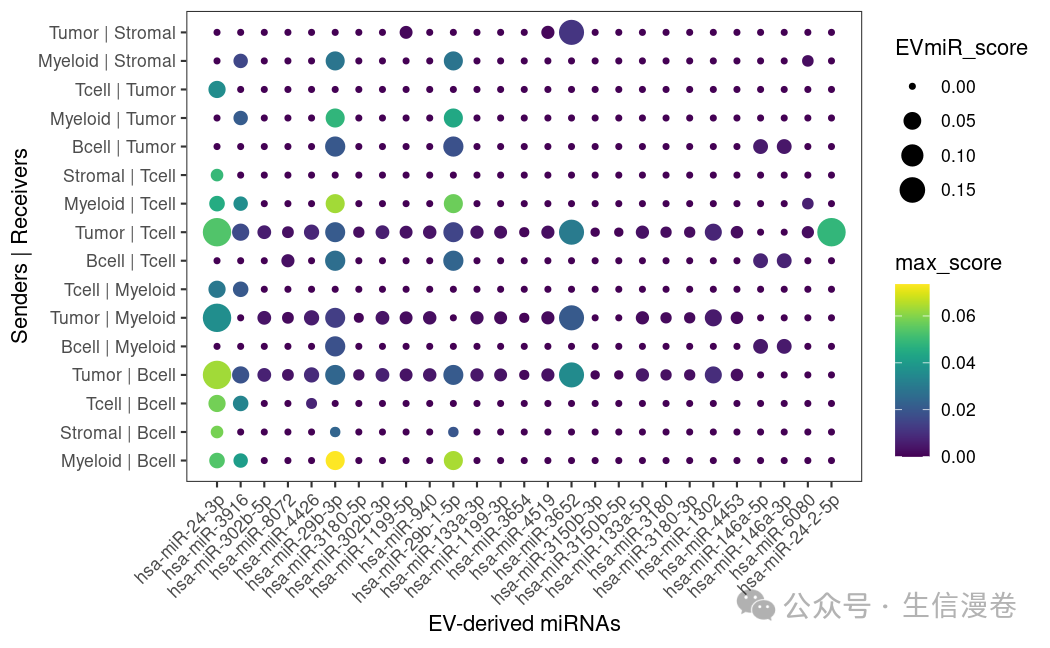

plot_miR_bubble(object = obj)

plot_miR2tar_chord(obj, celltype_sender = "Tumor", celltype_receiver = "Bcell")

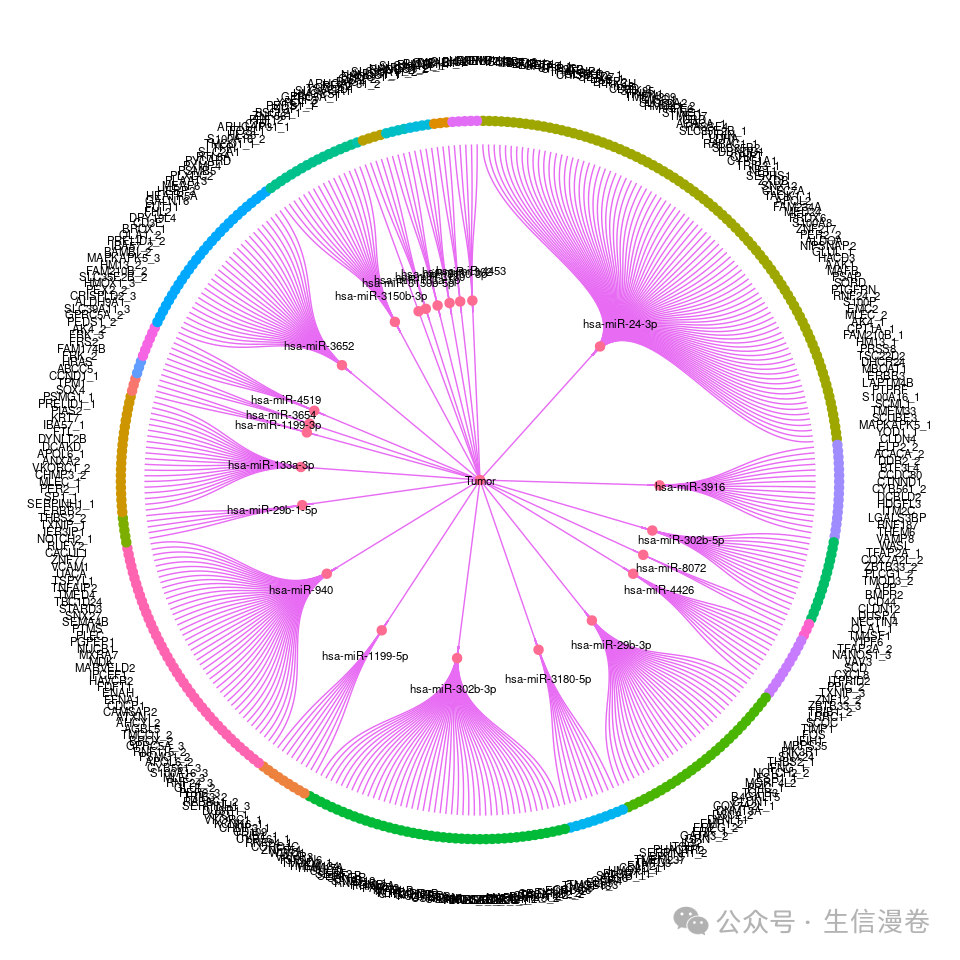

plot_miR2tar_circle(obj, celltype_sender = "Tumor", celltype_receiver = "Bcell")

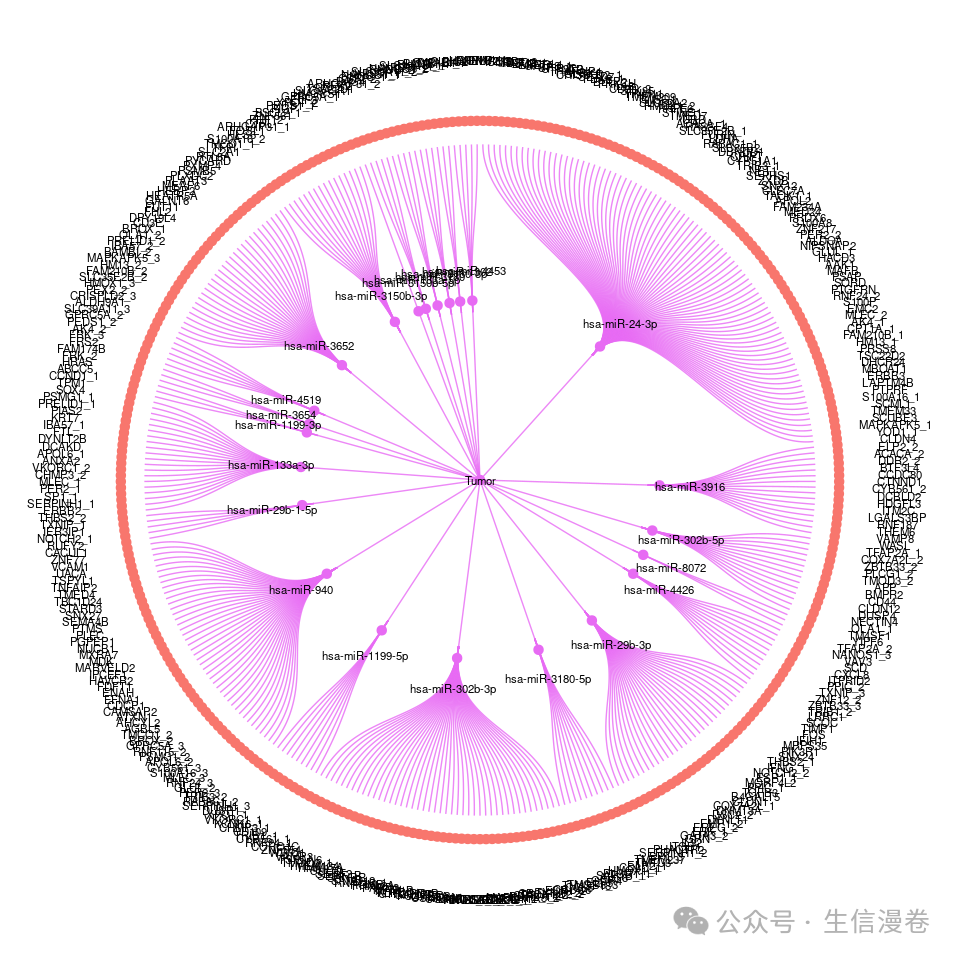

plot_miR2tar_circle(obj, celltype_sender = "Tumor", celltype_receiver = "Bcell", celltype_color = "NO")

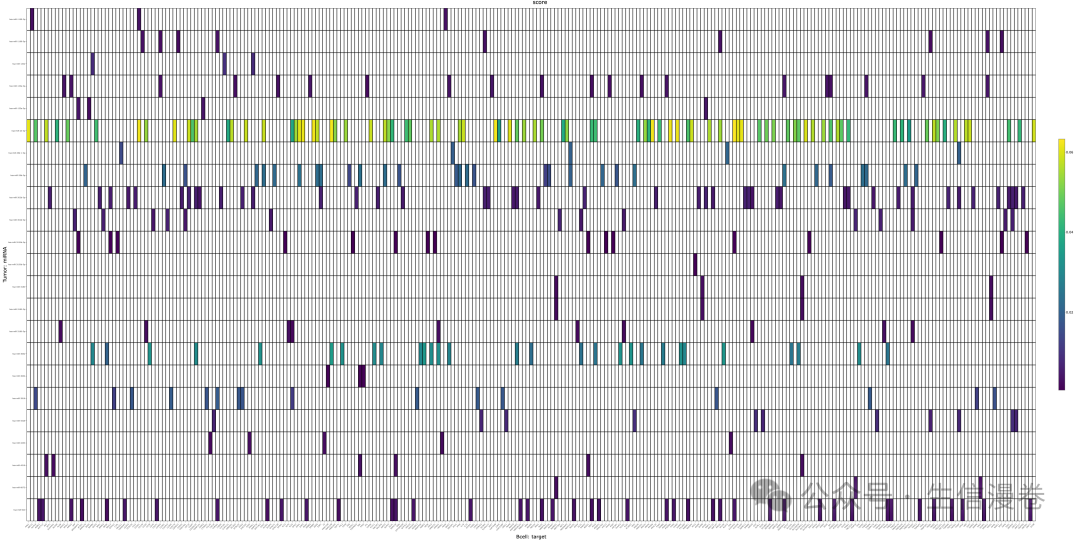

plot_miR2tar_heatmap(obj, celltype_sender = "Tumor", celltype_receiver = "Bcell", grid_color = "black",
                     height = 2000, width = 4000
                     )

# get pathways
res_pathway <- get_miRTalk_pathway(object = obj,
                                     gene2path = gene2path,
                                     mir2path = mir2path,
                                     miRNA = "hsa-miR-133a-3p",
                                     targetgenes = "ANXA2")

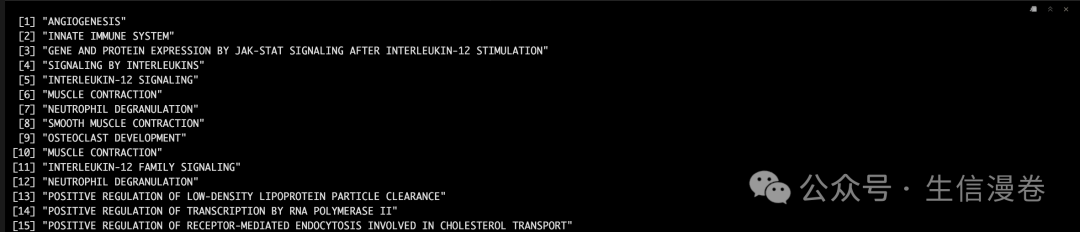

str(res_pathway[[1]]$miRNA_term) # pathways for hsa-miR-133a-3p

str(res_pathway[[2]]$target_gene_term) # pathways for ANXA2

res_pathway[[3]]$miRNA_term # overlapped/shared pathways

# get circulating miRNAs
res_circulating <- get_miRTalk_circulating_score(obj)
str(res_circulating)

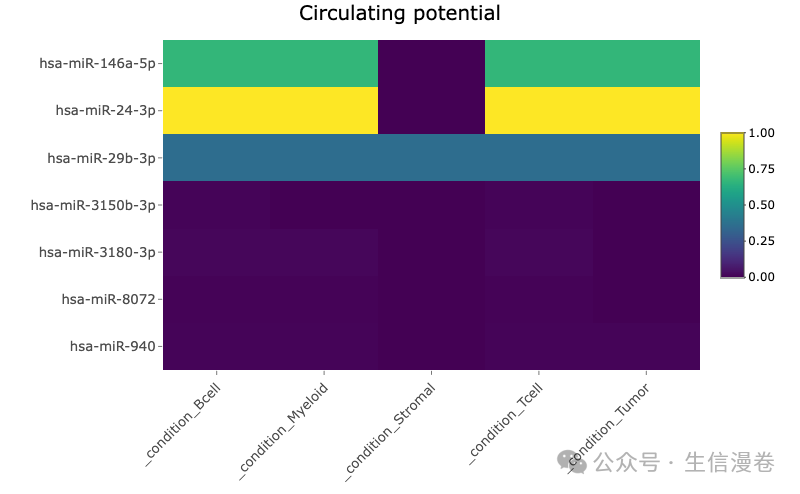

#plotting
res_circulating$celltype_receiver <- paste0(res_circulating$condition,"_",res_circulating$celltype_receiver)
res_circulating <- unique(res_circulating[,c("miRNA","score","celltype_receiver")])
res_cir_plot <- reshape2::dcast(data = res_circulating, formula = miRNA ~ celltype_receiver, value.var = "score", fun.aggregate = mean, fill = 0)
rownames(res_cir_plot) <- res_cir_plot$miRNA
res_cir_plot <- res_cir_plot[,-1]
heat_col <- viridis::viridis(n = 256, alpha = 1, begin = 0, end = 1, option = "D")
heatmaply::heatmaply(x = as.matrix(res_cir_plot), colors = heat_col, limits = c(0,1),dendrogram = "none",  margins = c(60,100,40,20), titleX = FALSE, main = "Circulating potential", branches_lwd = 0.1, fontsize_row = 10, fontsize_col = 10, labCol = colnames(res_cir_plot), labRow = rownames(res_cir_plot), heatmap_layers = theme(axis.line=element_blank()))
