基于Martin的全国基础底图实现

# Connection keep alive timeout [default: 75]
keep_alive: 75

# The socket address to bind [default: 0.0.0.0:3000]
listen_addresses: '0.0.0.0:3000'

# Set TileJSON URL path prefix. This overides the default of respecting the X-Rewrite-URL header.
# Only modifies the JSON (TileJSON) returned, martins' API-URLs remain unchanged. If you need to rewrite URLs, please use a reverse proxy.
# Must begin with a `/`.
# Examples: `/`, `/tiles`
base_path: /tiles

# Number of web server workers
worker_processes: 16

# Amount of memory (in MB) to use for caching tiles [default: 512, 0 to disable]
cache_size_mb: 50000

# If the client accepts multiple compression formats, and the tile source is not pre-compressed, which compression should be used. `gzip` is faster, but `brotli` is smaller, and may be faster with caching.  Default could be different depending on Martin version.
preferred_encoding: gzip

# Enable or disable Martin web UI. At the moment, only allows `enable-for-all` which enables the web UI for all connections. This may be undesirable in a production environment. [default: disable]
web_ui: enable

# Database configuration. This can also be a list of PG configs.
postgres:
  # Database connection string. You can use env vars too, for example:
  #   $DATABASE_URL
  #   ${DATABASE_URL:-postgresql://postgres@localhost/db} 'postgres://<database_username>:<database_userpassword>@<hostaddress>:<port_no>/<database_name>'
  connection_string: 'postgresql://postgres:root@localhost:5432/lzugis'

  #  If a spatial table has SRID 0, then this SRID will be used as a fallback
  default_srid: 4326

  # Maximum Postgres connections pool size [default: 20]
  pool_size: 20

  # Limit the number of table geo features included in a tile. Unlimited by default.
  # max_feature_count: 1000

  # Control the automatic generation of bounds for spatial tables [default: quick]
  # 'calc' - compute table geometry bounds on startup.
  # 'quick' - same as 'calc', but the calculation will be aborted if it takes more than 5 seconds.
  # 'skip' - do not compute table geometry bounds on startup.
  auto_bounds: skip

  # Enable automatic discovery of tables and functions.
  # You may set this to `false` to disable.
  auto_publish:
    # Optionally limit to just these schemas
    from_schemas:
      - public
    # Here we enable both tables and functions auto discovery.
    # You can also enable just one of them by not mentioning the other,
    # or setting it to false.  Setting one to true disables the other one as well.
    # E.g. `tables: false` enables just the functions auto-discovery.
    tables:
      # Optionally set how source ID should be generated based on the table's name, schema, and geometry column
      source_id_format: '{table}'
      # Add more schemas to the ones listed above
      # A table column to use as the feature ID
      # If a table has no column with this name, `id_column` will not be set for that table.
      # If a list of strings is given, the first found column will be treated as a feature ID.
      id_columns: gid
      # Boolean to control if geometries should be clipped or encoded as is, optional, default to true
      clip_geom: true
      # Buffer distance in tile coordinate space to optionally clip geometries, optional, default to 64
      buffer: 64
      # Tile extent in tile coordinate space, optional, default to 4096
      extent: 4096
    functions:
      # Optionally set how source ID should be generated based on the function's name and schema
      source_id_format: '{schema}.{function}'

  # Associative arrays of table sources
  tables:
    table_source_id:
      # ID of the MVT layer (optional, defaults to table name)
      layer_id: my_base

      # Table schema (required)
      schema: public

      # Table name (required)
      table: province,capital,city

      # Geometry SRID (required)
      srid: 4326

      # Geometry column name (required)
      geometry_column: geom

      # Feature id column name
      id_column: ~

      # An integer specifying the minimum zoom level
      minzoom: 0

      # An integer specifying the maximum zoom level. MUST be >= minzoom
      maxzoom: 10

      # The maximum extent of available map tiles. Bounds MUST define an area
      # covered by all zoom levels. The bounds are represented in WGS:84
      # latitude and longitude values, in the order left, bottom, right, top.
      # Values may be integers or floating point numbers.
      bounds: [ -180.0, -90.0, 180.0, 90.0 ]

      # Tile extent in tile coordinate space
      extent: 4096

      # Buffer distance in tile coordinate space to optionally clip geometries
      buffer: 64

      # Boolean to control if geometries should be clipped or encoded as is
      clip_geom: true

      # Geometry type
      geometry_type: GEOMETRY

      # List of columns, that should be encoded as tile properties (required)
      properties:
        gid: int4

  # Associative arrays of function sources
  functions:
    function_source_id:
      # Schema name (required)
      schema: public

      # Function name (required)
      function: function_zxy_query

      # An integer specifying the minimum zoom level
      minzoom: 0

      # An integer specifying the maximum zoom level. MUST be >= minzoom
      maxzoom: 30

      # The maximum extent of available map tiles. Bounds MUST define an area
      # covered by all zoom levels. The bounds are represented in WGS:84
      # latitude and longitude values, in the order left, bottom, right, top.
      # Values may be integers or floating point numbers.
      bounds: [ -180.0, -90.0, 180.0, 90.0 ]
sprites:
  paths:
    # all SVG files in this dir will be published as a "my_images" sprite source
    # - ./icons
  sources:
    # SVG images in this directory will be published as a "my_sprites" sprite source
    icons: ./icons
mbtiles:
  paths:
    # scan this whole dir, matching all *.mbtiles files
    # - /dir-path
    # specific mbtiles file will be published as mbtiles2 source
    - ./world_cities.mbtiles
  sources:
    # named source matching source name to a single file
    # mb-src1: /path/to/mbtiles1.mbtiles
# Font configuration
fonts:
  # A list of *.otf, *.ttf, and *.ttc font files and dirs to search recursively.
  - ./font/msyh.ttf

<html lang="en">

<head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width, initial-scale=1.0" />
  <title>Document</title>
  <link href="./public/lib/mapbox-gl.css" rel="stylesheet" />
  <style>
    html,
    body,
    #map {
      width: 100%;
      height: 100%;
      inset: 0;
      overflow: hidden;
      background-color: #efefef;
    }
  </style>
</head>

<body>
  <div id="map" class="map"></div>
  <script src="./public/lib/mapbox-gl.js"></script>
  <script>
    const url = 'http://localhost:3000/catalog'
    fetch(url).then(res => res.json()).then(res => {
      const { tiles, fonts } = res
      let sources = {}, fontsArray = Object.keys(fonts)
      Object.keys(tiles).forEach(tile => {
        sources[tile] = {
          type: "vector",
          tiles: [`http://127.0.0.1:3000/${tile}/{z}/{x}/{y}`],
        }
      })
      var style = {
        version: 8,
        name: "Mapbox Streets",
        sprite: "http://127.0.0.1:3000/sprite/icons",
        glyphs: `http://127.0.0.1:3000/font/${fontsArray.join(',')}/{fontstack}/{range}.pbf`,
        sources: sources,
        layers: [
          // 背景图层
          {
            id: 'background',
            type: 'background',
            paint: {
              'background-color': '#fff'
            }
          },
          // 省填充
          {
            id: "base_province_fill",
            type: "fill",
            source: "base_province",
            "source-layer": "base_province",
            paint: {
              "fill-color": "#f7f7f7",
              "fill-opacity": 0.8,
            },
          },

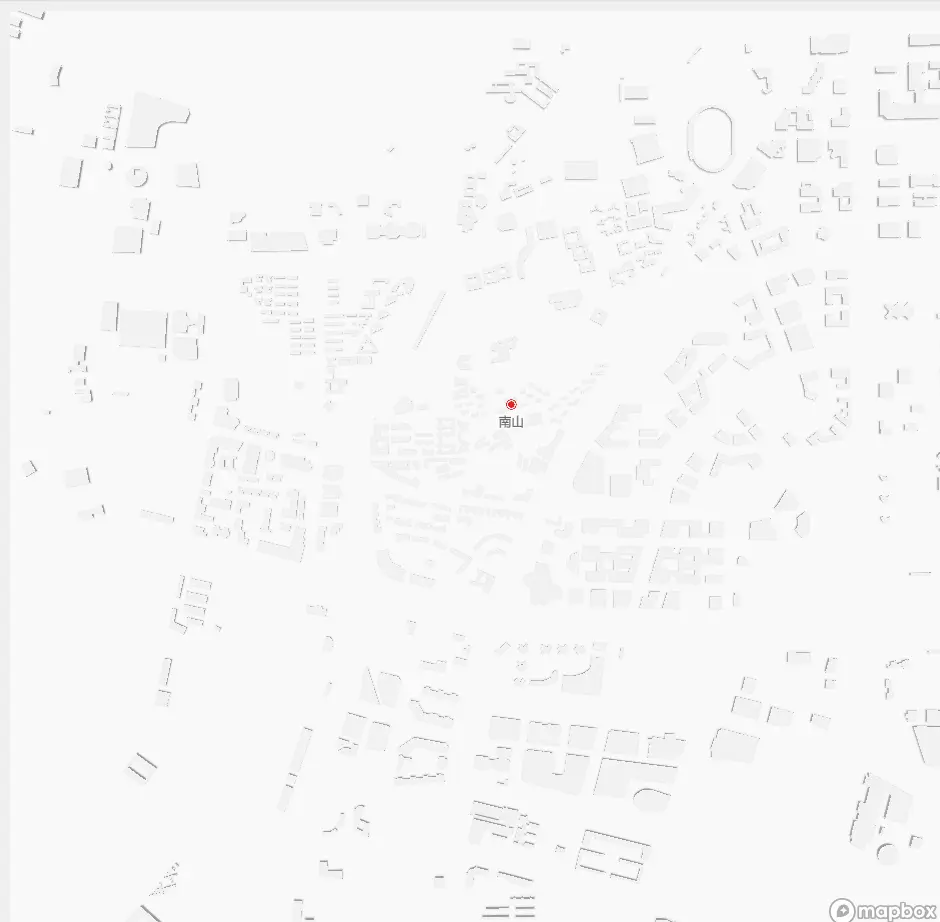

          // 建筑物填充
          {
            id: "theme_building",
            type: "fill",
            source: "theme_building",
            "source-layer": "theme_building",
            minzoom: 13,
            maxzoom: 14.4,
            paint: {
              "fill-color": "#eeeeee",
              "fill-opacity": 1,
            },
          },

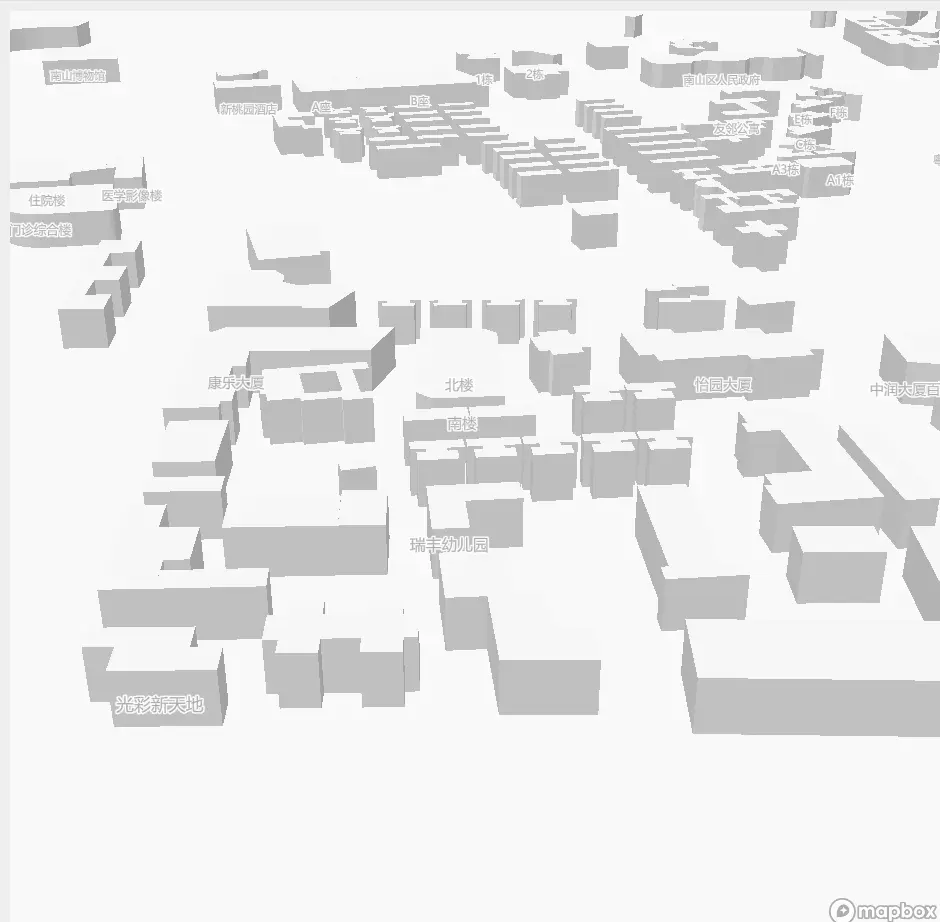

          // 建筑物拉伸
          {
            id: "theme_building_extrusion",
            type: "fill-extrusion",
            source: "theme_building",
            "source-layer": "theme_building",
            minzoom: 13,
            paint: {
              "fill-extrusion-color": "#eeeeee",
              "fill-extrusion-opacity": 0.6,
              'fill-extrusion-height': 25
            },
          },
          // 建筑物描边
          {
            id: "theme_building_border",
            type: "line",
            source: "theme_building",
            "source-layer": "theme_building",
            minzoom: 13,
            maxzoom: 14.5,
            paint: {
              "line-color": "#eee",
              "line-opacity": 1,
            },
          },
          // 建筑物标注
          {
            "id": "theme_building_label",
            "type": "symbol",
            "source": "theme_building",
            'source-layer': 'theme_building',
            minzoom: 14.5,
            'layout': {
              'text-field': ['get', 'name'],
              'text-size': 12,
              'text-allow-overlap': false,
              'text-justify': 'center',
              "text-font": [
                "Microsoft YaHei"
              ]
            },
            paint: {
              'text-color': '#a3a3a3',
              'text-halo-color': '#fff',
              'text-halo-width': 1.2,
            }
          },
          // 省边界
          {
            id: "base_province",
            type: "line",
            source: "base_province",
            "source-layer": "base_province",
            paint: {
              "line-color": "#989ea7",
              "line-width": 0.5,
              'line-opacity': 1,
            },
          },
          // 城市边界
          {
            id: "base_city",
            type: "line",
            source: "base_city",
            "source-layer": "base_city",
            minzoom: 6,
            paint: {
              "line-color": "#b6ccd8",
              "line-width": 0.5,
              'line-opacity': 0.75,
            },
          },
          // 区县边界
          {
            id: "base_county",
            type: "line",
            source: "base_county",
            "source-layer": "base_county",
            minzoom: 8.2,
            paint: {
              "line-color": "#b6ccd8",
              "line-width": 0.3,
              'line-opacity': 0.8,
            },
          },

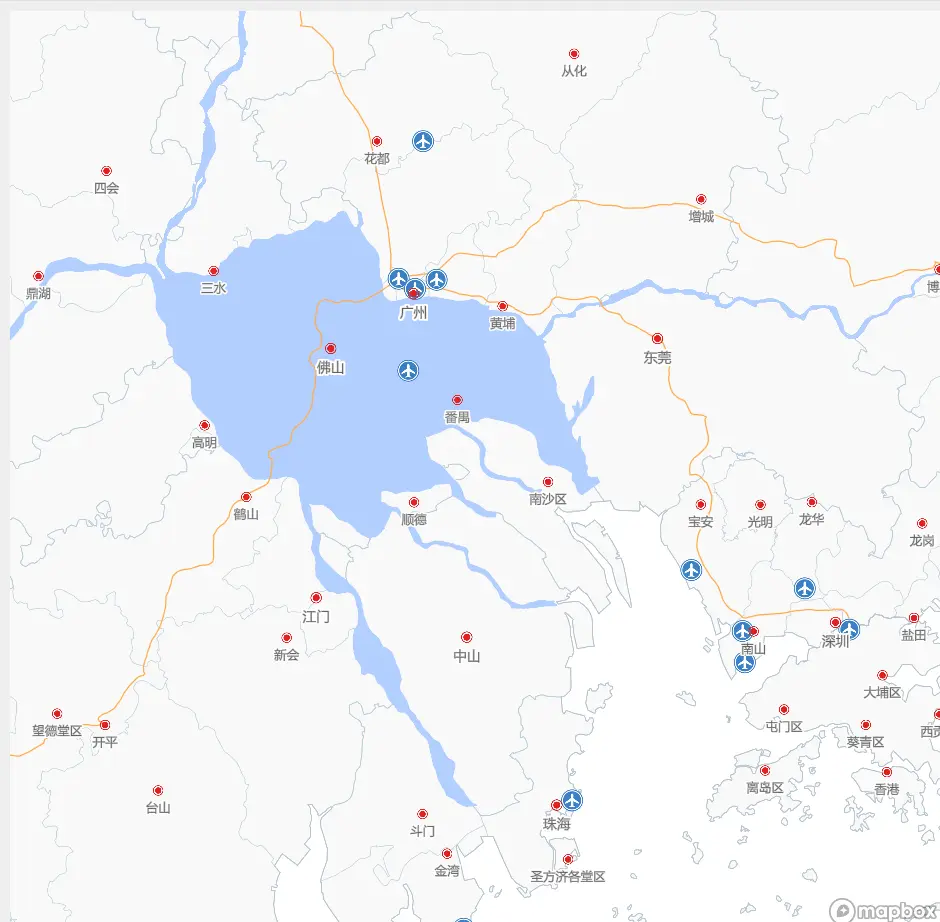

          // 一级水域面
          {
            id: "theme_hyd1_p",
            type: "fill",
            source: "theme_hyd1_p",
            "source-layer": "theme_hyd1_p",
            minzoom: 6,
            paint: {
              "fill-color": "#b2cefe",
              "fill-opacity": 1,
            },
          },
          // 二级水域面
          {
            id: "theme_hyd2_p",
            type: "fill",
            source: "theme_hyd2_p",
            "source-layer": "theme_hyd2_p",
            minzoom: 6,
            paint: {
              "fill-color": "#b2cefe",
              "fill-opacity": 1,
            },
          },
          // 一级水域线
          {
            id: "theme_hyd1_l",
            type: "line",
            source: "theme_hyd1_l",
            "source-layer": "theme_hyd1_l",
            paint: {
              "line-color": "#b2cefe",
              "line-width": 1,
            },
          },
          // 5级水域线
          {
            id: "theme_hyd5_l",
            type: "line",
            source: "theme_hyd5_l",
            "source-layer": "theme_hyd5_l",
            minzoom: 8.4,
            paint: {
              "line-color": "#b2cefe",
              "line-width": 0.8,
            },
          },
          // 路网
          {
            id: "theme_road",
            type: "line",
            source: "theme_road",
            "source-layer": "theme_road",
            minzoom: 6,
            paint: {
              "line-color": "#ffac4d",
              "line-width": 1,
            },
          },

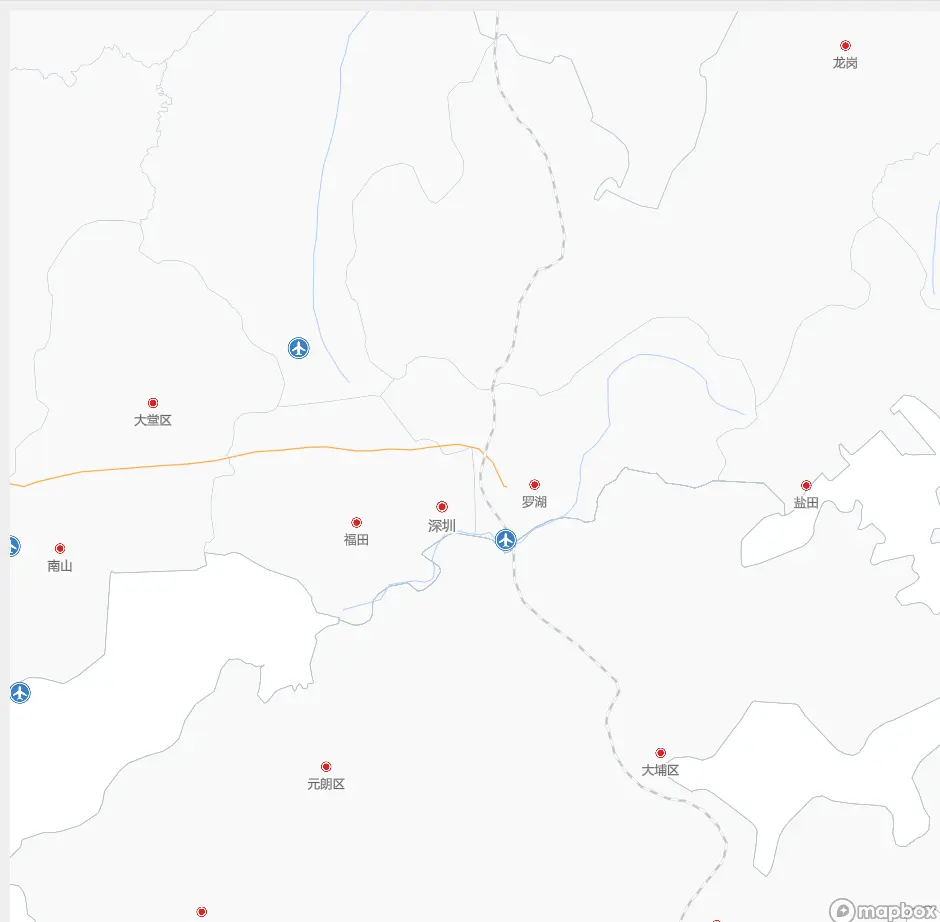

          // 铁路
          {
            id: "theme_railway",
            type: "line",
            source: "theme_railway",
            "source-layer": "theme_railway",
            minzoom: 8.4,
            paint: {
              "line-color": "#bec4cd",
              "line-width": 2,
            },
          },
          // 铁路白色
          {
            id: "theme_railway_bg",
            type: "line",
            source: "theme_railway",
            "source-layer": "theme_railway",
            minzoom: 8.4,
            paint: {
              "line-color": "#fff",
              "line-width": 1.5,
            },
          },
          // 铁路间隔
          {
            id: "theme_railway_interval",
            type: "line",
            source: "theme_railway",
            "source-layer": "theme_railway",
            minzoom: 8.4,
            paint: {
              "line-color": "#bec4cd",
              "line-width": 1.5,
              "line-dasharray": [3, 3]
            },
          },

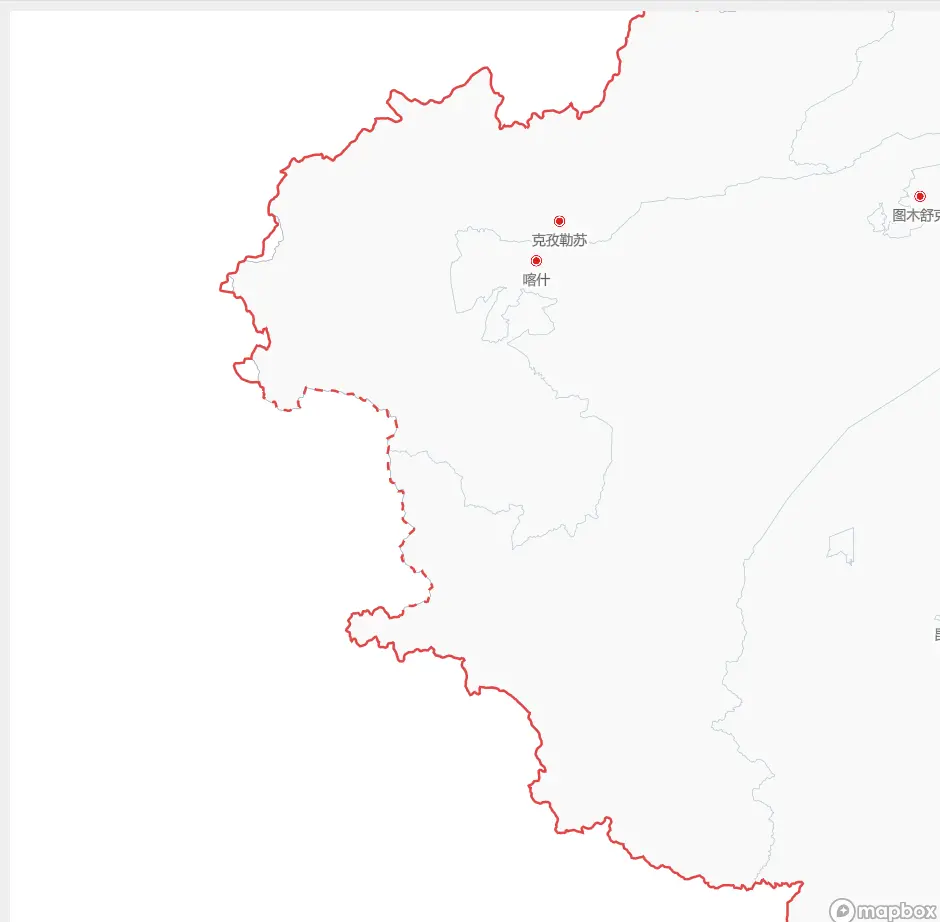

          // 国界线虚线
          {
            id: "base_boundry",
            type: "line",
            source: "base_boundry_l",
            "source-layer": "base_boundry_l",
            filter: ["==", "type", 1],
            paint: {
              "line-color": "#e04747",
              "line-width": 2,
              "line-dasharray": [3, 3]
            },
          },
          // 国界线
          {
            id: "base_boundry_l",
            type: "line",
            source: "base_boundry_l",
            "source-layer": "base_boundry_l",
            filter: ["!=", "type", 1],
            paint: {
              "line-color": "#e04747",
              "line-width": 2,
            },
          },
          // 九段线
          {
            id: "base_nineline",
            type: "line",
            source: "base_nineline",
            "source-layer": "base_nineline",
            paint: {
              "line-color": "#e04747",
              "line-width": 3,
            },
          },
          // 机场
          {
            "id": "theme_airport",
            "type": "symbol",
            "source": "theme_airport",
            'source-layer': 'theme_airport',
            minzoom: 8.2,
            'layout': {
              'icon-image': 'airport',
              'icon-size': 0.55,
              'icon-allow-overlap': true,
            },
            paint: {
              'icon-color': '#f00',
            }
          },
          // 区县名称
          {
            "id": "base_county_c",
            "type": "symbol",
            "source": "base_county_c",
            'source-layer': 'base_county_c',
            minzoom: 8.2,
            filter: ['!=', ['get', 'district'], '北京'],
            'layout': {
              'icon-image': 'capital',
              'icon-size': 0.32,
              'icon-allow-overlap': false,
              'text-field': ['get', 'district'],
              'text-size': 10,
              'text-allow-overlap': false,
              'text-justify': 'center',
              'text-offset': [0, 1.3],
              "text-font": [
                "Microsoft YaHei"
              ]
            },
            paint: {
              'text-color': 'rgb(80, 80, 80)',
              'text-halo-color': '#fff',
              'text-halo-width': 1.4,
            }
          },
          // 城市名称
          {
            "id": "base_city_c",
            "type": "symbol",
            "source": "base_city_c",
            'source-layer': 'base_city_c',
            minzoom: 6,
            filter: ['!=', ['get', 'district'], '北京'],
            'layout': {
              'icon-image': 'capital',
              'icon-size': 0.35,
              'icon-allow-overlap': false,
              'text-field': ['get', 'district'],
              'text-size': 11,
              'text-allow-overlap': false,
              'text-justify': 'center',
              'text-offset': [0, 1.3],
              "text-font": [
                "Microsoft YaHei"
              ]
            },
            paint: {
              'text-color': 'rgb(80, 80, 80)',
              'text-halo-color': '#fff',
              'text-halo-width': 1.8,
            }
          },
          // 省会城市
          {
            "id": "base_capital",
            "type": "symbol",
            "source": "base_capital",
            'source-layer': 'base_capital',
            filter: ['!=', ['get', 'name'], '北京'],
            maxzoom: 5.9,
            'layout': {
              'icon-image': 'capital',
              'icon-size': 0.38,
              'icon-allow-overlap': false,
              'text-field': ['get', 'name'],
              'text-size': 12,
              'text-allow-overlap': false,
              'text-justify': 'center',
              'text-offset': [0, 1.5],
              "text-font": [
                "Microsoft YaHei"
              ]
            },
            paint: {
              'text-color': 'rgb(80, 80, 80)',
              'text-halo-color': '#fff',
              'text-halo-width': 1.8,
            }
          },
          // 首都
          {
            "id": "base_capital_beijing",
            "type": "symbol",
            "source": "base_capital",
            'source-layer': 'base_capital',
            filter: ['==', ['get', 'name'], '北京'],
            'layout': {
              'icon-image': 'star',
              'icon-size': 0.5,
              'icon-allow-overlap': false,
              'text-field': ['get', 'name'],
              'text-size': 14,
              'text-allow-overlap': false,
              'text-justify': 'center',
              'text-offset': [0, 1.6],
              "text-font": [
                "Microsoft YaHei"
              ]
            },
            paint: {
              'text-color': 'rgb(255, 0, 0)',
              'text-halo-color': '#fff',
              'text-halo-width': 1.6,
              'icon-color': '#f00',
            }
          },
        ],
      };
      var map = new mapboxgl.Map({
        container: "map", // container ID
        style: style,
        center: [107.11040599933166, 34.26271532332011], // starting position [lng, lat]
        zoom: 3,
        minZoom: 3,
        doubleClickZoom: false,
        hash: false,
        localFontFamily: true,
        logoPosition: "bottom-right",
      });
      window.map = map
    })
  </script>
</body>

</html>
