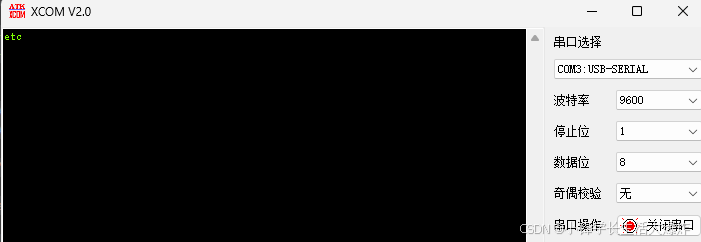

【教程】Digispark实现串口通信

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <inttypes.h>

#include "Arduino.h"
#include "wiring_private.h"

#if USE_SOFTWARE_SERIAL
#include "TinySoftwareSerial.h"

extern "C"{
uint8_t getch() {
  uint8_t ch = 0;
    __asm__ __volatile__ (
    "   rcall uartDelay\n"          // Get to 0.25 of start bit (our baud is too fast, so give room to correct)
    "1: rcall uartDelay\n"              // Wait 0.25 bit period
    "   rcall uartDelay\n"              // Wait 0.25 bit period
    "   rcall uartDelay\n"              // Wait 0.25 bit period
    "   rcall uartDelay\n"              // Wait 0.25 bit period
    "   clc\n"
    "   in r23,%[pin]\n"
    "   and r23, %[mask]\n"
    "   breq 2f\n"
    "   sec\n"
    "2: ror   %0\n"
    "   dec   %[count]\n"
    "   breq  3f\n"
    "   rjmp  1b\n"
    "3: rcall uartDelay\n"              // Wait 0.25 bit period
    "   rcall uartDelay\n"              // Wait 0.25 bit period
    :
      "=r" (ch)
    :
      "0" ((uint8_t)0),
      [count] "r" ((uint8_t)8),
      [pin] "I" (_SFR_IO_ADDR(ANALOG_COMP_PIN)),
      [mask] "r" (Serial._rxmask)
    :
      "r23",
      "r24",
      "r25"
    );
  return ch;
}

void uartDelay() {
  __asm__ __volatile__ (
    "mov r25,%[count]\n"
    "1:dec r25\n"
      "brne 1b\n"
      "ret\n"
    ::[count] "r" ((uint8_t)Serial._delayCount)
  );
}

#if !defined (ANALOG_COMP_vect) && defined(ANA_COMP_vect)
//rename the vector so we can use it.
  #define ANALOG_COMP_vect ANA_COMP_vect
#elif !defined (ANALOG_COMP_vect)
  #error Tiny Software Serial cannot find the Analog comparator interrupt vector!
#endif
ISR(ANALOG_COMP_vect){
  char ch = getch(); //read in the character softwarily - I know its not a word, but it sounded cool, so you know what: #define softwarily 1
  store_char(ch, Serial._rx_buffer);
  sbi(ACSR,ACI); //clear the flag.
}

}
soft_ring_buffer rx_buffer  =  { { 0 }, 0, 0 };

// Constructor

TinySoftwareSerial::TinySoftwareSerial(soft_ring_buffer *rx_buffer, uint8_t txBit, uint8_t rxBit)
{
  _rx_buffer = rx_buffer;

  _rxmask = _BV(rxBit);
  _txmask = _BV(txBit);
  _txunmask = ~_txmask;

  _delayCount = 0;
}

// Public Methods //
void TinySoftwareSerial::setTxBit(uint8_t txbit)
{
  _txmask=_BV(txbit);
  _txunmask=~txbit;
}

void TinySoftwareSerial::begin(long baud)
{
  long tempDelay = (((F_CPU/baud)-39)/12);
  if ((tempDelay > 255) || (tempDelay <= 0)){
  end(); //Cannot start as it would screw up uartDelay().
  }
  _delayCount = (uint8_t)tempDelay;
  cbi(ACSR,ACIE);  //turn off the comparator interrupt to allow change of ACD
#ifdef ACBG
  sbi(ACSR,ACBG); //enable the internal bandgap reference - used instead of AIN0 to allow it to be used for TX.
#endif
  cbi(ACSR,ACD);  //turn on the comparator for RX
#ifdef ACIC
  cbi(ACSR,ACIC);  //prevent the comparator from affecting timer1 - just to be safe.
#endif
  sbi(ACSR,ACIS1);  //interrupt on rising edge (this means RX has gone from Mark state to Start bit state).
  sbi(ACSR,ACIS0);
  //Setup the pins in case someone messed with them.
  ANALOG_COMP_DDR &= ~_rxmask; //set RX to an input
  ANALOG_COMP_PORT |= _rxmask; //enable pullup on RX pin - to prevent accidental interrupt triggers.
  ANALOG_COMP_DDR |= _txmask; //set TX to an output.
  ANALOG_COMP_PORT |= _txmask; //set TX pin high
  sbi(ACSR,ACI); //clear the flag.
  sbi(ACSR,ACIE);  //turn on the comparator interrupt to allow us to use it for RX
#ifdef ACSRB
  ACSRB = 0; //Use AIN0 as +, AIN1 as -, no hysteresis - just like ones without this register.
#endif
}

void TinySoftwareSerial::end()
{
  sbi(ACSR,ACI); //clear the flag.
  cbi(ACSR,ACIE);  //turn off the comparator interrupt to allow change of ACD, and because it needs to be turned off now too!
#ifdef ACBG
  cbi(ACSR,ACBG); //disable the bandgap reference
#endif
  sbi(ACSR,ACD);  //turn off the comparator to save power
  _delayCount = 0;
  _rx_buffer->head = _rx_buffer->tail;
}

int TinySoftwareSerial::available(void)
{
  return (unsigned int)(SERIAL_BUFFER_SIZE + _rx_buffer->head - _rx_buffer->tail) % SERIAL_BUFFER_SIZE;
}

void store_char(unsigned char c, soft_ring_buffer *buffer)
{
  int i = (unsigned int)(buffer->head + 1) % SERIAL_BUFFER_SIZE;

  // if we should be storing the received character into the location
  // just before the tail (meaning that the head would advance to the
  // current location of the tail), we're about to overflow the buffer
  // and so we don't write the character or advance the head.
  if (i != buffer->tail) {
    buffer->buffer[buffer->head] = c;
    buffer->head = i;
  }
}

int TinySoftwareSerial::peek(void)
{
  if (_rx_buffer->head == _rx_buffer->tail) {
    return -1;
  } else {
    return _rx_buffer->buffer[_rx_buffer->tail];
  }
}

int TinySoftwareSerial::read(void)
{
  // if the head isn't ahead of the tail, we don't have any characters
  if (_rx_buffer->head == _rx_buffer->tail) {
    return -1;
  } else {
    unsigned char c = _rx_buffer->buffer[_rx_buffer->tail];
    _rx_buffer->tail = (unsigned int)(_rx_buffer->tail + 1) % SERIAL_BUFFER_SIZE;
    return c;
  }
}

size_t TinySoftwareSerial::write(uint8_t ch)
{
  uint8_t oldSREG = SREG;
  cli(); //Prevent interrupts from breaking the transmission. Note: TinySoftwareSerial is half duplex.
  //it can either receive or send, not both (because receiving requires an interrupt and would stall transmission
  __asm__ __volatile__ (
    "   com %[ch]             \n" // ones complement, carry set
    "   sec                   \n"
    "1: brcc 2f               \n"
    "   in r23,%[uartPort]    \n"
    "   and r23,%[uartUnmask] \n"
    "   out %[uartPort],r23   \n"
    "   rjmp 3f               \n"
    "2: in r23,%[uartPort]    \n"
    "   or r23,%[uartMask]    \n"
    "   out %[uartPort],r23   \n"
    "   nop                   \n"
    "3: rcall uartDelay       \n"
    "   rcall uartDelay       \n"
    "   rcall uartDelay       \n"
    "   rcall uartDelay       \n"
    "   lsr %[ch]             \n"
    "   dec %[count]          \n"
    "   brne 1b               \n"
    :
    :
      [ch] "r" (ch),
      [count] "r" ((uint8_t)10),
      [uartPort] "I" (_SFR_IO_ADDR(ANALOG_COMP_PORT)),
      [uartMask] "r" (_txmask),
      [uartUnmask] "r" (_txunmask)
    : "r23",
      "r24",
      "r25"
  );
  SREG = oldSREG;
  return 1;
}

void TinySoftwareSerial::flush()
{

}

TinySoftwareSerial::operator bool() {
  return true;
}

// Preinstantiate Objects //
#ifndef ANALOG_COMP_DDR
#error Please define ANALOG_COMP_DDR in the pins_arduino.h file!
#endif

#ifndef ANALOG_COMP_PORT
#error Please define ANALOG_COMP_PORT in the pins_arduino.h file!
#endif

#ifndef ANALOG_COMP_PIN
#error Please define ANALOG_COMP_PIN in the pins_arduino.h file!
#endif

#ifndef ANALOG_COMP_AIN0_BIT
#error Please define ANALOG_COMP_AIN0_BIT in the pins_arduino.h file!
#endif

#ifndef ANALOG_COMP_AIN1_BIT
#error Please define ANALOG_COMP_AIN1_BIT in the pins_arduino.h file!
#endif

TinySoftwareSerial Serial(&rx_buffer, ANALOG_COMP_AIN0_BIT, ANALOG_COMP_AIN1_BIT);

#endif // whole file

#if USE_SOFTWARE_SERIAL
#ifndef TinySoftwareSerial_h
#define TinySoftwareSerial_h
#include <inttypes.h>
#include "Stream.h"

#if !defined(ACSR) && defined(ACSRA)
#define ACSR ACSRA
#endif

#if (RAMEND < 250)
  #define SERIAL_BUFFER_SIZE 8
#elif (RAMEND < 500)
  #define SERIAL_BUFFER_SIZE 16
#elif (RAMEND < 1000)
  #define SERIAL_BUFFER_SIZE 32
#else
  #define SERIAL_BUFFER_SIZE 128
#endif
struct soft_ring_buffer
{
  volatile unsigned char buffer[SERIAL_BUFFER_SIZE];
  volatile int head;
  volatile int tail;
};

extern "C"{
  void uartDelay() __attribute__ ((naked,used)); //used attribute needed to prevent LTO from throwing it out.
  uint8_t getch();
  void store_char(unsigned char c, soft_ring_buffer *buffer);
}

class TinySoftwareSerial : public Stream
{
  public: //should be private but needed by extern "C" {} functions.
  uint8_t _rxmask;
  uint8_t _txmask;
  uint8_t _txunmask;
  soft_ring_buffer *_rx_buffer;
  uint8_t _delayCount;
  public:
    TinySoftwareSerial(soft_ring_buffer *rx_buffer, uint8_t txBit, uint8_t rxBit);
    void begin(long);
    void setTxBit(uint8_t);
    void end();
    virtual int available(void);
    virtual int peek(void);
    virtual int read(void);
    virtual void flush(void);
    virtual size_t write(uint8_t);
    using Print::write; // pull in write(str) and write(buf, size) from Print
    operator bool();
};

#if (!defined(UBRRH) && !defined(UBRR0H)) || USE_SOFTWARE_SERIAL
  extern TinySoftwareSerial Serial;
#endif

//extern void putch(uint8_t);
#endif
#endif

#ifndef Pins_Arduino_h
#define Pins_Arduino_h

#include <avr/pgmspace.h>

#include "core_build_options.h"

//WARNING, if using software, TX is on AIN0, RX is on AIN1. Comparator is favoured to use its interrupt for the RX pin.
#define USE_SOFTWARE_SERIAL           1
//Please define the port on which the analog comparator is found.
#define ANALOG_COMP_DDR               DDRB
#define ANALOG_COMP_PORT              PORTB
#define ANALOG_COMP_PIN               PINB
#define ANALOG_COMP_AIN0_BIT          0
#define ANALOG_COMP_AIN1_BIT          1



#if defined( __AVR_ATtinyX313__ )
#define PORT_A_ID 1
#define PORT_B_ID 2
#define PORT_D_ID 4
#endif

#if defined( __AVR_ATtinyX4__ )
#define PORT_A_ID 1
#define PORT_B_ID 2
#endif

#if defined( __AVR_ATtinyX5__ )
#define PORT_B_ID 1
#endif

#define NOT_A_PIN 0
#define NOT_A_PORT 0

#define NOT_ON_TIMER 0
#define TIMER0A 1
#define TIMER0B 2
#define TIMER1A 3
#define TIMER1B 4

//changed it to uint16_t to uint8_t
extern const uint8_t PROGMEM port_to_mode_PGM[];
extern const uint8_t PROGMEM port_to_input_PGM[];
extern const uint8_t PROGMEM port_to_output_PGM[];
extern const uint8_t PROGMEM port_to_pcmask_PGM[];

extern const uint8_t PROGMEM digital_pin_to_port_PGM[];
// extern const uint8_t PROGMEM digital_pin_to_bit_PGM[];
extern const uint8_t PROGMEM digital_pin_to_bit_mask_PGM[];
extern const uint8_t PROGMEM digital_pin_to_timer_PGM[];

// Get the bit location within the hardware port of the given virtual pin.
// This comes from the pins_*.c file for the active board configuration.
//
// These perform slightly better as macros compared to inline functions
//
#define digitalPinToPort(P) ( pgm_read_byte( digital_pin_to_port_PGM + (P) ) )
#define digitalPinToBitMask(P) ( pgm_read_byte( digital_pin_to_bit_mask_PGM + (P) ) )
#define digitalPinToTimer(P) ( pgm_read_byte( digital_pin_to_timer_PGM + (P) ) )
#define analogInPinToBit(P) (P)
// in the following lines modified pgm_read_word in pgm_read_byte, word doesn't work on attiny45
#define portOutputRegister(P) ( (volatile uint8_t *)( pgm_read_byte( port_to_output_PGM + (P))) )
#define portInputRegister(P) ( (volatile uint8_t *)( pgm_read_byte( port_to_input_PGM + (P))) )
#define portModeRegister(P) ( (volatile uint8_t *)( pgm_read_byte( port_to_mode_PGM + (P))) )
#define portPcMaskRegister(P) ( (volatile uint8_t *)( pgm_read_byte( port_to_pcmask_PGM + (P))) )

#if defined(__AVR_ATtinyX5__)
#define digitalPinToPCICR(p)    (((p) >= 0 && (p) <= 5) ? (&GIMSK) : ((uint8_t *)NULL))
#define digitalPinToPCICRbit(p) (PCIE)
#define digitalPinToPCMSK(p)    (((p) >= 0 && (p) <= 5) ? (&PCMSK) : ((uint8_t *)NULL))
#define digitalPinToPCMSKbit(p) (p)
#endif

#if defined(__AVR_ATtinyX4__)
#define digitalPinToPCICR(p)    (((p) >= 0 && (p) <= 10) ? (&GIMSK) : ((uint8_t *)NULL))
#define digitalPinToPCICRbit(p) (((p) <= 2) ? PCIE1 : PCIE0)
#define digitalPinToPCMSK(p)    (((p) <= 2) ? (&PCMSK1) : (((p) <= 10) ? (&PCMSK0) : ((uint8_t *)NULL)))
#define digitalPinToPCMSKbit(p) (((p) <= 2) ? (p) : (10 - (p)))
#endif

#if defined(__AVR_ATtiny4313__)
#define digitalPinToPCX(p,s1,s2,s3,s4,s5) \
    (((p) >= 0) \
        ? (((p) <=  1) ? (s1)  /*  0 -  1  ==>  D0 - D1 */  \
        : (((p) <=  3) ? (s2)  /*  2 -  3  ==>  A1 - A0 */  \
        : (((p) <=  8) ? (s3)  /*  4 -  8  ==>  D2 - D6 */  \
        : (((p) <= 16) ? (s4)  /*  9 - 16  ==>  B0 - B7 */  \
        : (s5))))) \
        : (s5))
//                                                   s1 D     s2 A     s3 D     s4 B
#define digitalPinToPCICR(p)    digitalPinToPCX( p, &GIMSK,  &GIMSK,  &GIMSK,  &GIMSK,  NULL )
#define digitalPinToPCICRbit(p) digitalPinToPCX( p, PCIE2,   PCIE1,   PCIE2,   PCIE0,   0    )
#define digitalPinToPCMSK(p)    digitalPinToPCX( p, &PCMSK2, &PCMSK1, &PCMSK2, &PCMSK0, NULL )
#define digitalPinToPCMSKbit(p) digitalPinToPCX( p, p,       3-p,     p-2,     p-9,     0    )
#endif

#endif
