【愚公系列】2023年12月 HarmonyOS教学课程 017-ArkUI组件(Progress)

作者头像
愚公搬代码
发布2025-06-02 16:24:05
发布2025-06-02 16:24:05
12500
代码可运行
举报
文章被收录于专栏:历史专栏历史专栏
运行总次数:0
代码可运行

🚀一、Progress

Progress组件是一种用户界面(UI)元素,用于向用户显示某些任务的进度。它通常以进度条的形式出现,显示任务完成的百分比。Progress组件可以在确定任务持续时间未知的情况下提供有用的反馈,帮助用户了解任务的状态和进度。

在Web应用程序中,Progress组件通常是使用HTML5的元素来实现的。元素必须至少包含一个value属性来指定进度的百分比,以及一个max属性来指定任务的预期完成时间。可以使用CSS样式来自定义元素的外观。

  • 在Android应用程序中,Progress组件通常是使用ProgressBar控件来实现的。ProgressBar控件可以在水平或垂直方向上显示进度条,还可以使用自定义颜色和样式。
  • 在iOS应用程序中,Progress组件通常是使用UIProgressView控件来实现的。UIProgressView控件可以在水平或垂直方向上显示进度条,还可以使用自定义颜色和样式。
  • 在HarmonyOS应用程序中,Progress组件通常是使用Progress控件来实现的。Progress控件可以在水平或垂直方向上显示进度条,还可以使用自定义颜色和样式。

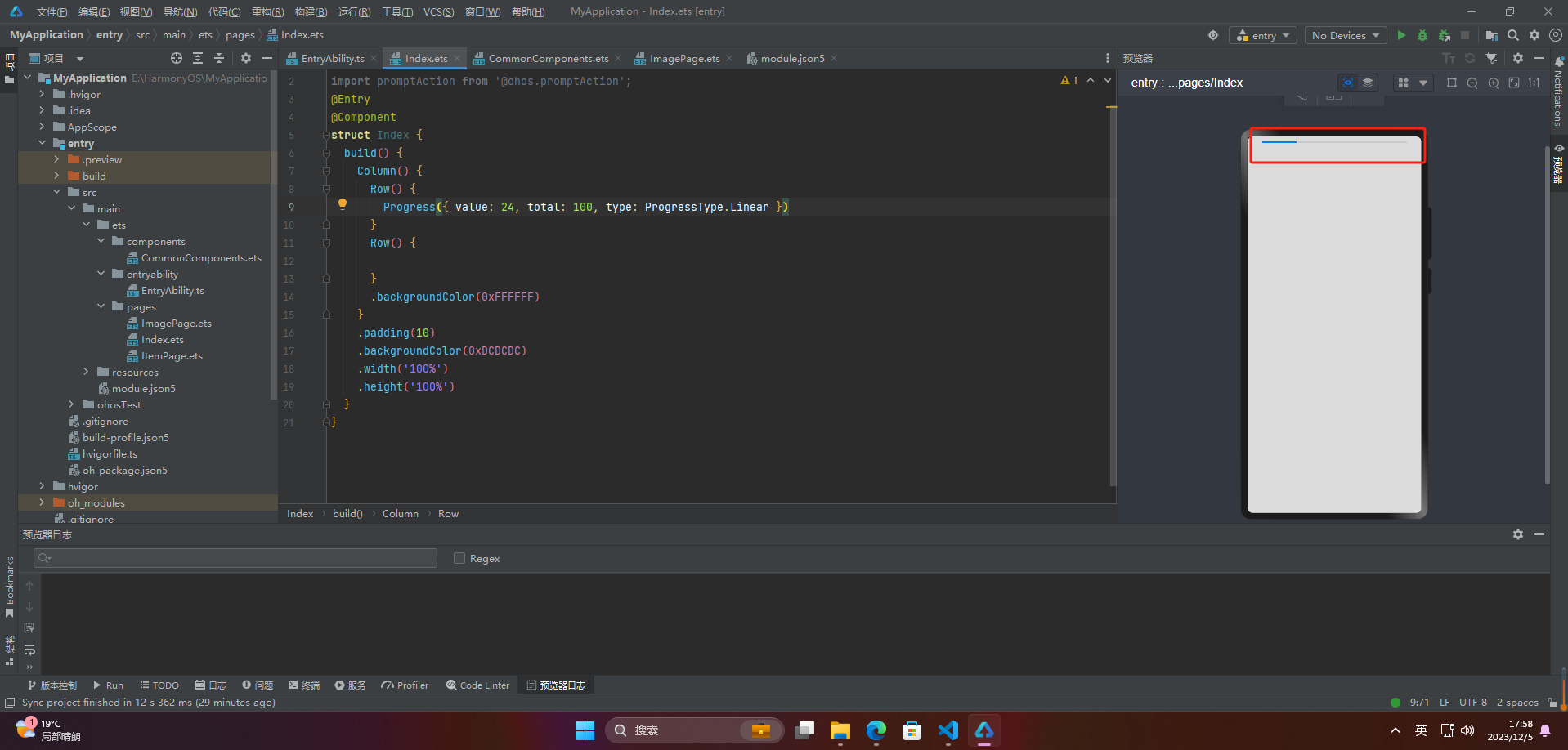

🔎1.创建进度条

语法说明:

代码语言:javascript
代码运行次数:0
运行
复制
Progress(options: {value: number, total?: number, type?: ProgressType})

使用:

代码语言:javascript
代码运行次数:0
运行
复制
// xxx.ets
import promptAction from '@ohos.promptAction';
@Entry
@Component
struct Index {
  build() {
    Column() {
      Row() {
        Progress({ value: 24, total: 100, type: ProgressType.Linear })
      }
      Row() {

      }
      .backgroundColor(0xFFFFFF)
    }
    .padding(10)
    .backgroundColor(0xDCDCDC)
    .width('100%')
    .height('100%')
  }
}

🔎2.设置进度条样式

组件名称

Progress

可选类型

5种:ProgressType.Linear、ProgressType.Ring、ProgressType.ScaleRing、ProgressType.Eclipse、ProgressType.Capsule

设置方式

在创建时通过设置ProgressType枚举类型给type可选项指定Progress类型

样式概述

ProgressType.Linear

线性样式

ProgressType.Ring

环形无刻度样式

ProgressType.ScaleRing

环形有刻度样式

ProgressType.Eclipse

圆形样式

ProgressType.Capsule

胶囊样式

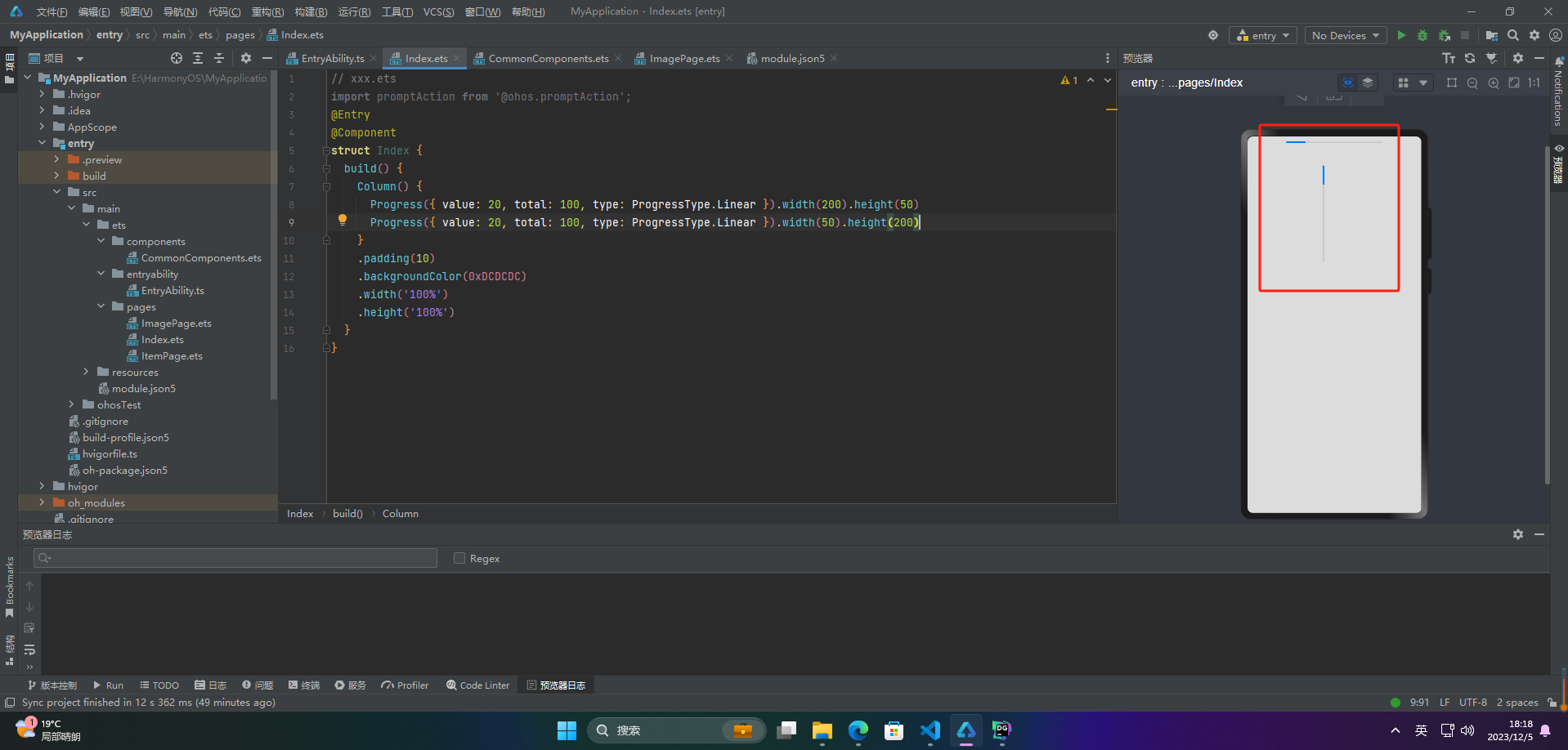

🦋2.1 线性样式
代码语言:javascript
代码运行次数:0
运行
复制
@Entry
@Component
struct Index {
  build() {
    Column() {
      Progress({ value: 20, total: 100, type: ProgressType.Linear }).width(200).height(50)
      Progress({ value: 20, total: 100, type: ProgressType.Linear }).width(50).height(200)
    }
    .padding(10)
    .backgroundColor(0xDCDCDC)
    .width('100%')
    .height('100%')
  }
}

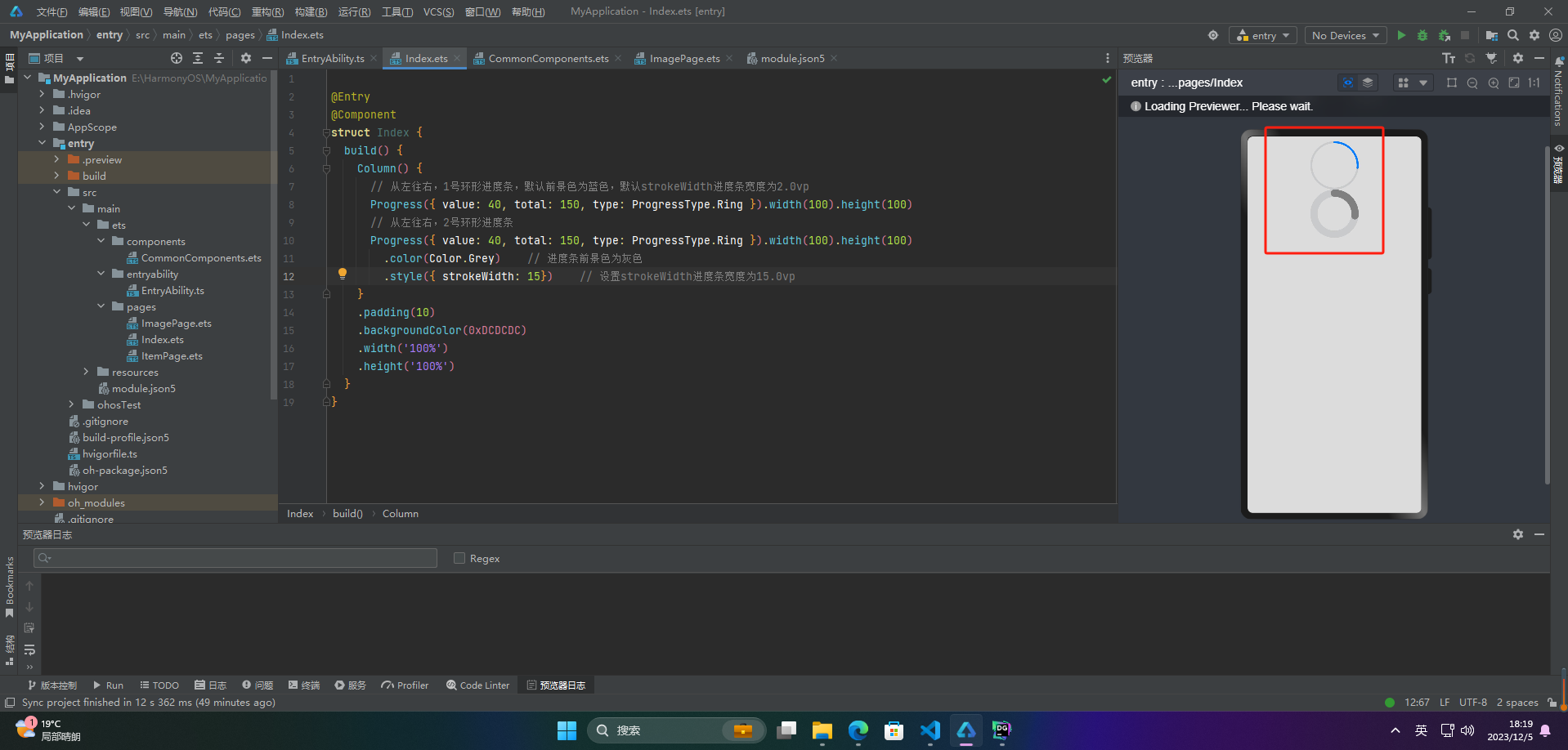

🦋2.2 环形无刻度样式
代码语言:javascript
代码运行次数:0
运行
复制
@Entry
@Component
struct Index {
  build() {
    Column() {
      // 从左往右,1号环形进度条,默认前景色为蓝色,默认strokeWidth进度条宽度为2.0vp
      Progress({ value: 40, total: 150, type: ProgressType.Ring }).width(100).height(100)
      // 从左往右,2号环形进度条
      Progress({ value: 40, total: 150, type: ProgressType.Ring }).width(100).height(100)
        .color(Color.Grey)    // 进度条前景色为灰色
        .style({ strokeWidth: 15})    // 设置strokeWidth进度条宽度为15.0vp
    }
    .padding(10)
    .backgroundColor(0xDCDCDC)
    .width('100%')
    .height('100%')
  }
}

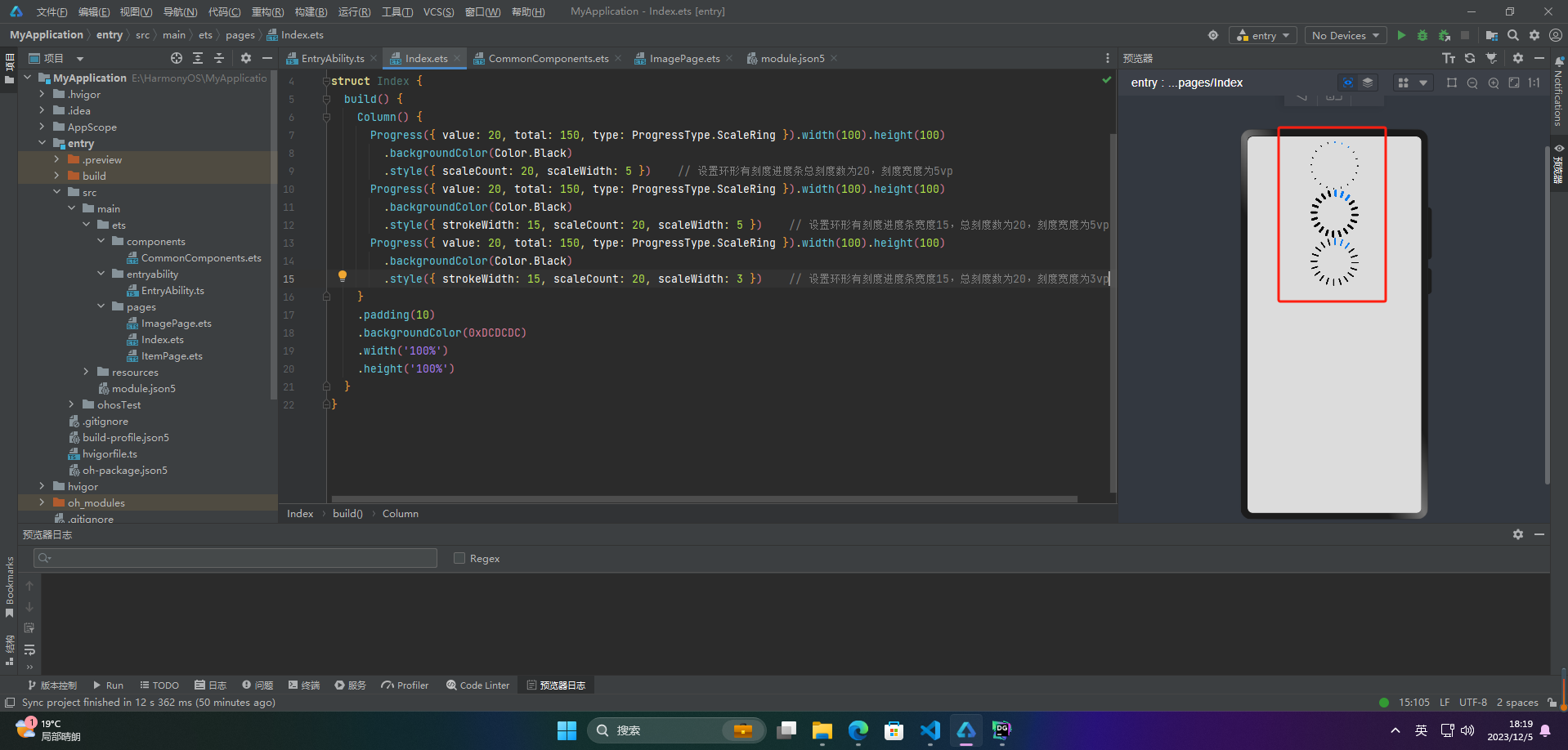

🦋2.3 环形有刻度样式
代码语言:javascript
代码运行次数:0
运行
复制
@Entry
@Component
struct Index {
  build() {
    Column() {
      Progress({ value: 20, total: 150, type: ProgressType.ScaleRing }).width(100).height(100)
        .backgroundColor(Color.Black)
        .style({ scaleCount: 20, scaleWidth: 5 })    // 设置环形有刻度进度条总刻度数为20,刻度宽度为5vp
      Progress({ value: 20, total: 150, type: ProgressType.ScaleRing }).width(100).height(100)
        .backgroundColor(Color.Black)
        .style({ strokeWidth: 15, scaleCount: 20, scaleWidth: 5 })    // 设置环形有刻度进度条宽度15,总刻度数为20,刻度宽度为5vp
      Progress({ value: 20, total: 150, type: ProgressType.ScaleRing }).width(100).height(100)
        .backgroundColor(Color.Black)
        .style({ strokeWidth: 15, scaleCount: 20, scaleWidth: 3 })    // 设置环形有刻度进度条宽度15,总刻度数为20,刻度宽度为3vp
    }
    .padding(10)
    .backgroundColor(0xDCDCDC)
    .width('100%')
    .height('100%')
  }
}
🦋2.4 圆形样式
代码语言:javascript
代码运行次数:0
运行
复制
@Entry
@Component
struct Index {
  build() {
    Column() {
      // 从左往右,1号圆形进度条,默认前景色为蓝色
      Progress({ value: 10, total: 150, type: ProgressType.Eclipse }).width(100).height(100)
      // 从左往右,2号圆形进度条,指定前景色为灰色
      Progress({ value: 20, total: 150, type: ProgressType.Eclipse }).color(Color.Grey).width(100).height(100)
    }
    .padding(10)
    .backgroundColor(0xDCDCDC)
    .width('100%')
    .height('100%')
  }
}
🦋2.5 胶囊样式
代码语言:javascript
代码运行次数:0
运行
复制
@Entry
@Component
struct Index {
  build() {
    Column() {
      Progress({ value: 10, total: 150, type: ProgressType.Capsule }).width(100).height(50)
      Progress({ value: 20, total: 150, type: ProgressType.Capsule }).width(50).height(100).color(Color.Grey)
      Progress({ value: 50, total: 150, type: ProgressType.Capsule }).width(50).height(100).backgroundColor(Color.Black)
    }
    .padding(10)
    .backgroundColor(0xDCDCDC)
    .width('100%')
    .height('100%')
  }
}

🔎3.案例

Progress组件通常用于展示某个任务或者进程的进度,可以向用户传达当前操作的进展情况。以下是Progress组件的一些实际应用场景:

  1. 文件上传或下载的进度条展示
  2. 音视频播放器中的播放进度条
  3. 游戏中的加载进度条
  4. 网页加载进度条
  5. 软件安装或更新的进度条展示
  6. 数据库操作的进度条展示
  7. 任务管理系统中的进度展示
  8. 项目管理系统中的任务进度展示

Progress组件可以直观地展示某个任务的完成情况,帮助用户了解任务的进度及剩余时间,提高用户体验和操作效率。

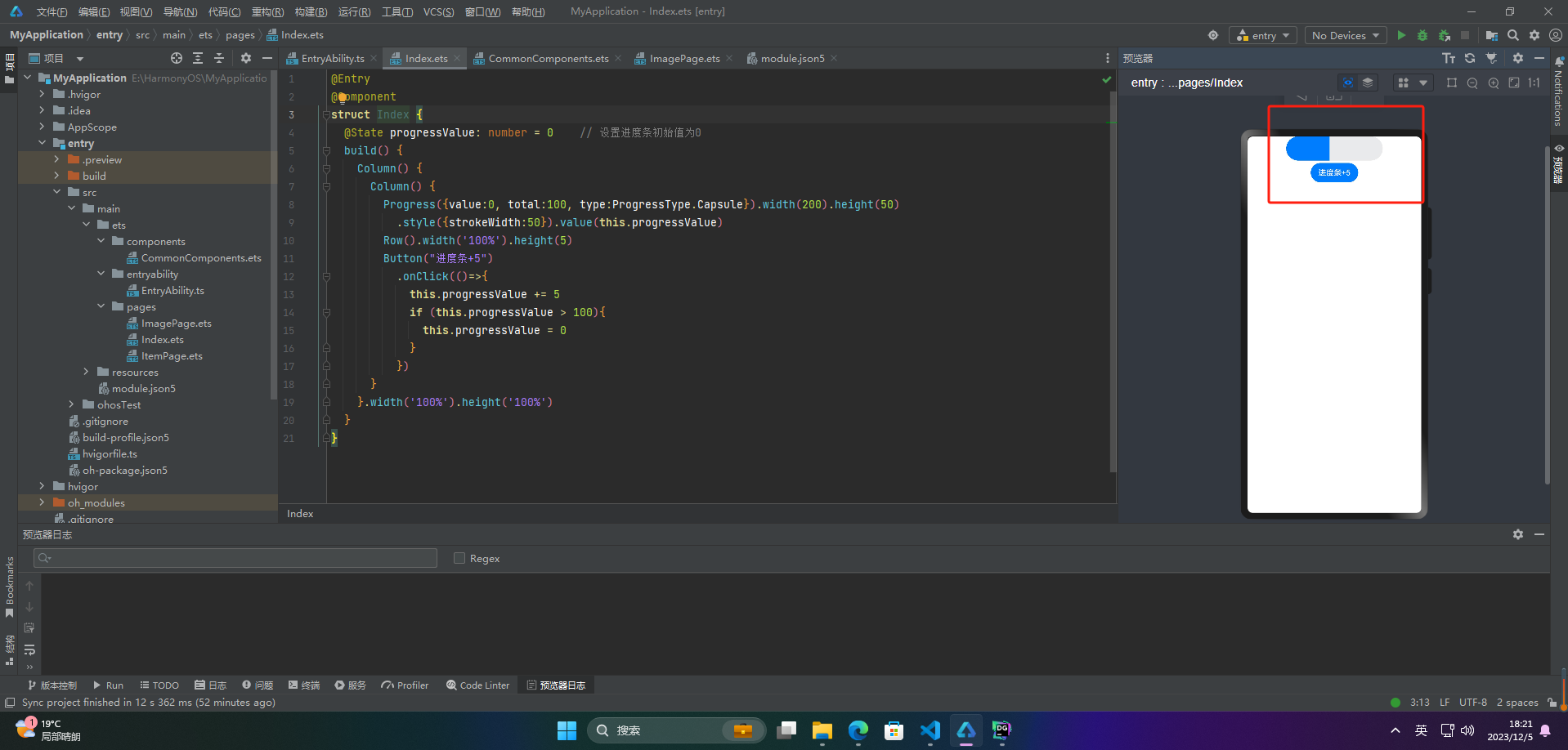

案例:

代码语言:javascript
代码运行次数:0
运行
复制
@Entry
@Component
struct Index {
  @State progressValue: number = 0    // 设置进度条初始值为0
  build() {
    Column() {
      Column() {
        Progress({value:0, total:100, type:ProgressType.Capsule}).width(200).height(50)
          .style({strokeWidth:50}).value(this.progressValue)
        Row().width('100%').height(5)
        Button("进度条+5")
          .onClick(()=>{
            this.progressValue += 5
            if (this.progressValue > 100){
              this.progressValue = 0
            }
          })
      }
    }.width('100%').height('100%')
  }
}
