Godot-放置棋子，实现黑白棋翻转

原创

kdyonly

发布于 2025-07-07 23:30:49

2490

前面的一节，我们发现棋盘本来应该是白色的格子，但是显示的是灰色，这里的原因是缺少光照。我们可以在主场景中添加光照的节点。

添加DirectionalLight3D平行光，Ratation(-60.0,45.0,0,0)，添加一个环境光WorldEnvironment用于补光，Environment → 添加 New Environment ，AmbientLight 可以设置自己需要的属性，这里就使用默认的。

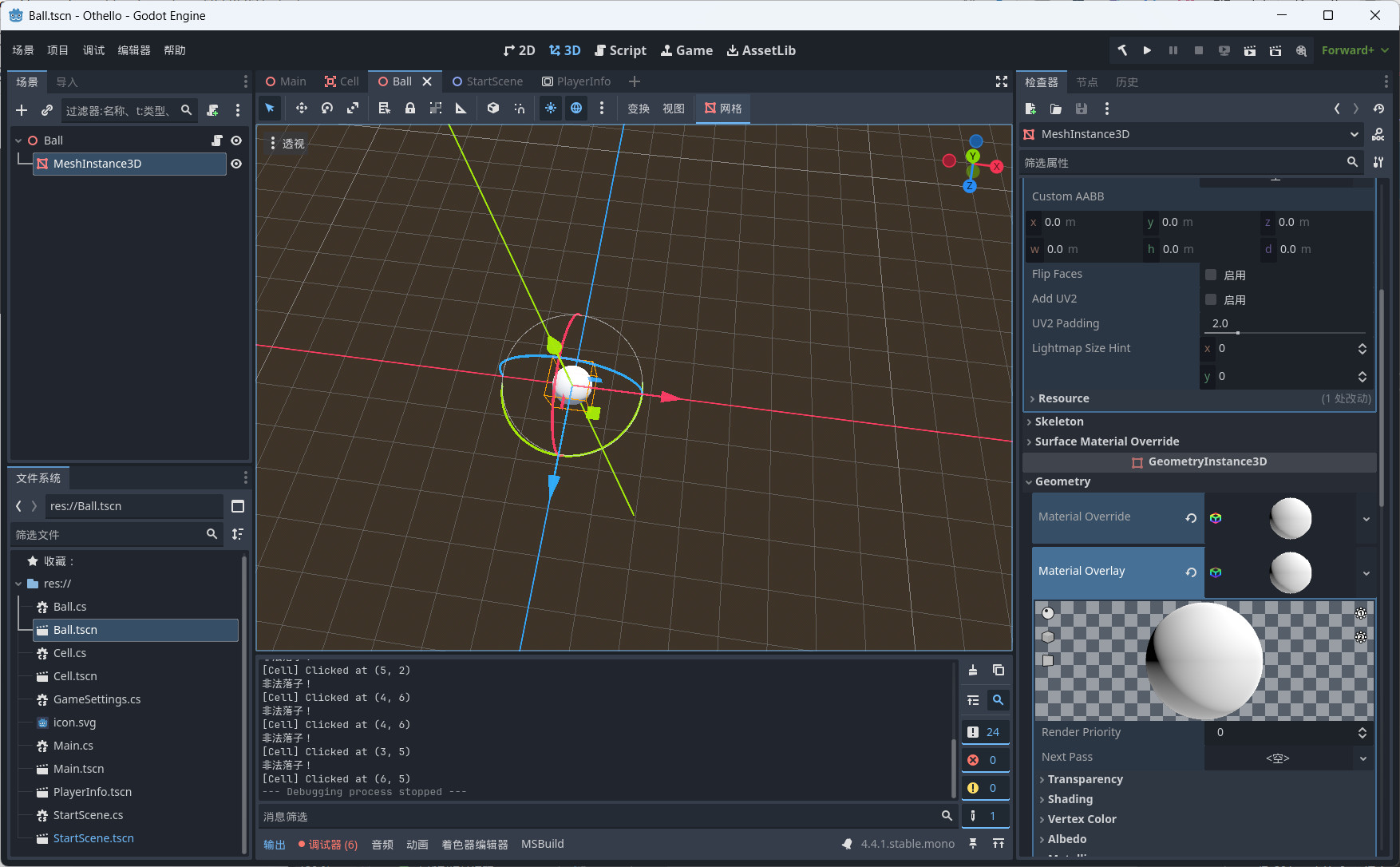

创建一个球场景

添加一个Ball.tscn，根节点维Node3D，添加子节点MeshInstance3D，Mesh设置为SphereMesh球体形状，Material Override 新建StandardMaterial3D。

添加脚本，主要实现球（棋子）的颜色变化，跳跃等动画效果，参考代码如下：

using Godot;
using System;

public partial class Ball : Node3D
{
    private StandardMaterial3D material;

    public override void _Ready()
    {
        material = new StandardMaterial3D();
    }

    public void FlipTo(Color targetColor, float duration = 0.4f)
    {
        var tween = GetTree().CreateTween();
        // 旋转动画
        tween.TweenProperty(this, "rotation_degrees", new Vector3(180, 0, 0), duration)
             .SetTrans(Tween.TransitionType.Sine)
             .SetEase(Tween.EaseType.InOut);

        // 缩放动画：放大到 1.2 再回到 1
        tween.TweenProperty(this, "scale", new Vector3(1.2f, 1.2f, 1.2f), duration / 2f)
             .SetTrans(Tween.TransitionType.Sine)
             .SetEase(Tween.EaseType.Out);
        tween.TweenProperty(this, "scale", new Vector3(1, 1, 1), duration / 2f)
             .SetTrans(Tween.TransitionType.Sine)
             .SetEase(Tween.EaseType.In);

        // 跳跃动画（Y轴偏移）
        Vector3 startPos = Position;
        Vector3 peakPos = Position + new Vector3(0, 0.2f, 0);
        tween.TweenProperty(this, "position", peakPos, duration / 2f)
             .SetTrans(Tween.TransitionType.Quad)
             .SetEase(Tween.EaseType.Out);
        tween.TweenProperty(this, "position", startPos, duration / 2f)
             .SetTrans(Tween.TransitionType.Quad)
             .SetEase(Tween.EaseType.In);

        // 颜色过渡
        Color fromColor = material.AlbedoColor;
        tween.TweenMethod(
            Callable.From((Color c) => material.AlbedoColor = c),
            fromColor,
            targetColor,
            duration
        ).SetTrans(Tween.TransitionType.Sine)
         .SetEase(Tween.EaseType.InOut);
    }
}

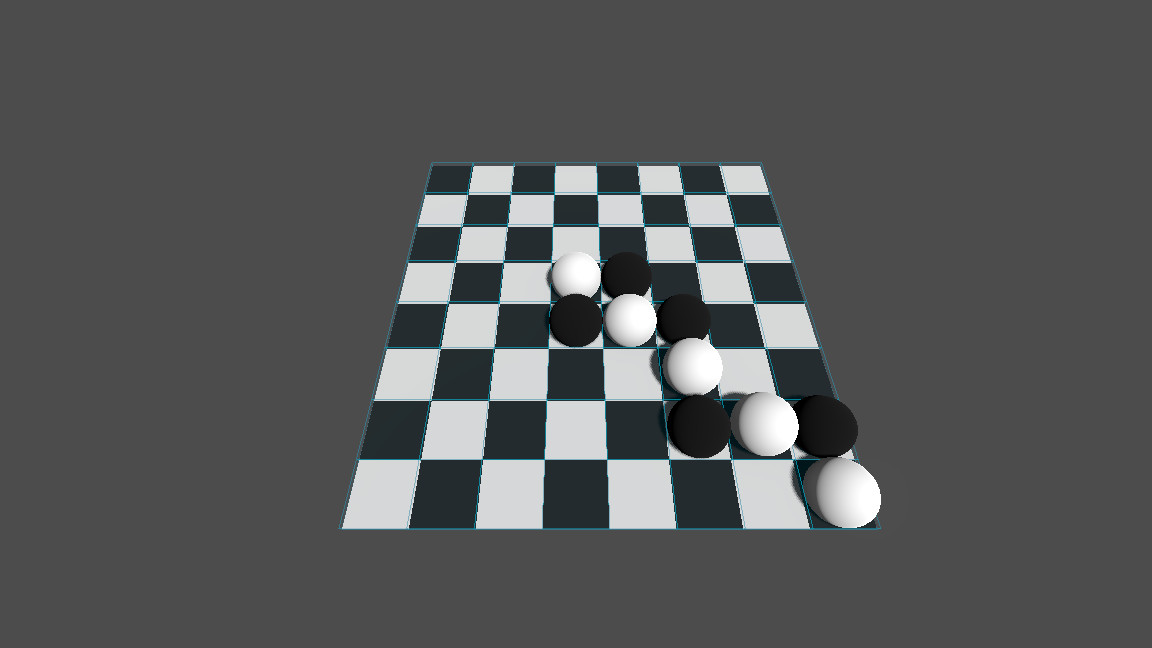

实现黑白棋的棋子变化游戏规则

点击单元格放置一个球，判断当前位置的8个方向的棋子是否需要翻转颜色，翻转完成之后，玩家切换为对手玩家。

添加单元格点击事件，参考代码如下：

//Cell.cs
using Godot;
using System;

public partial class Cell : Area3D
{
	public Vector2I BoardPosition{get;set;}
	[Signal]
	public delegate void CellClickedEventHandler(Vector2I boardPos);
	public override void _InputEvent(Camera3D camera, InputEvent @event, Vector3 position, Vector3 normal, int shapeIdx)
	{
		if (@event is InputEventMouseButton mb && mb.Pressed && mb.ButtonIndex == MouseButton.Left)
		{
			GD.Print($"[Cell] Clicked at {BoardPosition}");
			EmitSignal(nameof(CellClicked), BoardPosition);
		}
	}
}

点击单元格的时候放置球，获取需要翻转的棋子的位置，翻转棋子颜色，参考代码：

//Main.cs
private enum Piece { None, Black, White }
private Piece[,] boardState = new Piece[BoardSize, BoardSize];
private Piece currentPlayer = Piece.Black;

private void OnCellClicked(Vector2I position)
{
	if (boardState[position.X, position.Y] != Piece.None)
		return;

	var toFlip = GetFlippablePieces(position, currentPlayer);
	if (toFlip.Count == 0)
	{
		GD.Print("非法落子！");
		return;
	}

	// 落子
	boardState[position.X, position.Y] = currentPlayer;
	PlacePiece(position, currentPlayer);

	// 翻子
	foreach (var flipPos in toFlip)
	{
		boardState[flipPos.X, flipPos.Y] = currentPlayer;
		FlipPiece(flipPos, currentPlayer);
	}

	// 切换回合
	currentPlayer = currentPlayer == Piece.Black ? Piece.White : Piece.Black;
}
//获取需要翻转的棋子
private List<Vector2I> GetFlippablePieces(Vector2I pos, Piece player)
{
	List<Vector2I> totalToFlip = new();
	Piece opponent = (player == Piece.Black) ? Piece.White : Piece.Black;
	foreach (var dir in Directions)
	{
		List<Vector2I> toFlip = new();
		int x = pos.X + dir.X;
		int y = pos.Y + dir.Y;
		while (x >= 0 && x < BoardSize && y >= 0 && y < BoardSize)
		{
			var p = boardState[x, y];
			if (p == opponent)
			{
				toFlip.Add(new Vector2I(x, y));
			}
			else if (p == player)
			{
				if (toFlip.Count > 0)
				{
					totalToFlip.AddRange(toFlip);
				}
				break;
			}
			else // None
			{
				break;
			}
			x += dir.X;
			y += dir.Y;
		}
	}
	return totalToFlip;
}

/// <summary>
/// 放置棋子
/// </summary>
/// <param name="pos"></param>
/// <param name="piece"></param>
private void PlacePiece(Vector2I pos, Piece piece)
{
	var ball = ballScene.Instantiate<Node3D>();
	ball.Position = new Vector3(pos.X, 0.2f, pos.Y);

	var mesh = ball.GetNode<MeshInstance3D>("MeshInstance3D");
	var mat = new StandardMaterial3D();
	mat.AlbedoColor = (piece == Piece.Black) ? new Color(0, 0, 0) : new Color(1, 1, 1);
	mesh.MaterialOverride = mat;

	ball.Name = $"Piece_{pos.X}_{pos.Y}";
	boardNode.AddChild(ball);
}
/// <summary>
/// 翻转棋子
/// </summary>
/// <param name="pos"></param>
/// <param name="toColor"></param>
private void FlipPiece(Vector2I pos, Piece toColor)
{
	string nodeName = $"Piece_{pos.X}_{pos.Y}";
	if (boardNode.HasNode(nodeName))
	{
		var piece = boardNode.GetNodeOrNull<Ball>(nodeName);
		var mesh = piece.GetNode<MeshInstance3D>("MeshInstance3D");
		var mat = new StandardMaterial3D();
		mat.AlbedoColor = (toColor == Piece.Black) ? new Color(0, 0, 0) : new Color(1, 1, 1);
		mesh.MaterialOverride = mat;
		piece.FlipTo(currentPlayer == Piece.Black ? Colors.Black : Colors.White);
	}
}
