🤩 scanpy | 超高速完成单细胞分析！~（二）（轨迹推断）

import numpy as np
import matplotlib.pyplot as pl
import scanpy as sc

sc.settings.verbosity = 3
sc.logging.print_versions()
results_file = "./write/paul15.h5ad"

sc.settings.set_figure_params(dpi=80, frameon=False, figsize=(3, 3), facecolor="white")

adata = sc.datasets.paul15()

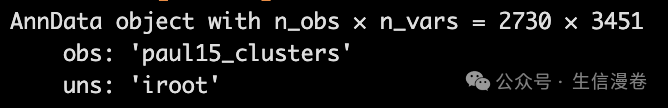

adata

adata.X = adata.X.astype("float64")

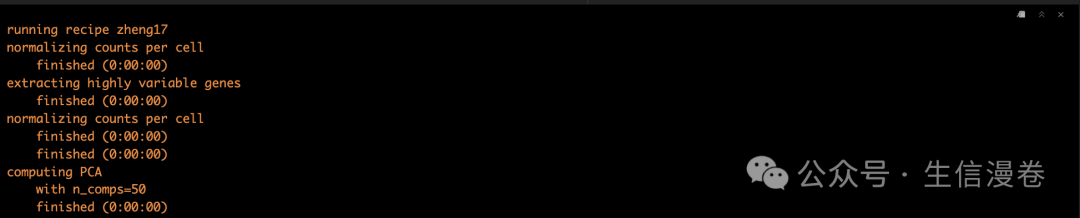

sc.pp.recipe_zheng17(adata)

sc.tl.pca(adata, svd_solver="arpack")

sc.pp.neighbors(adata, n_neighbors=4, n_pcs=20)
sc.tl.draw_graph(adata)

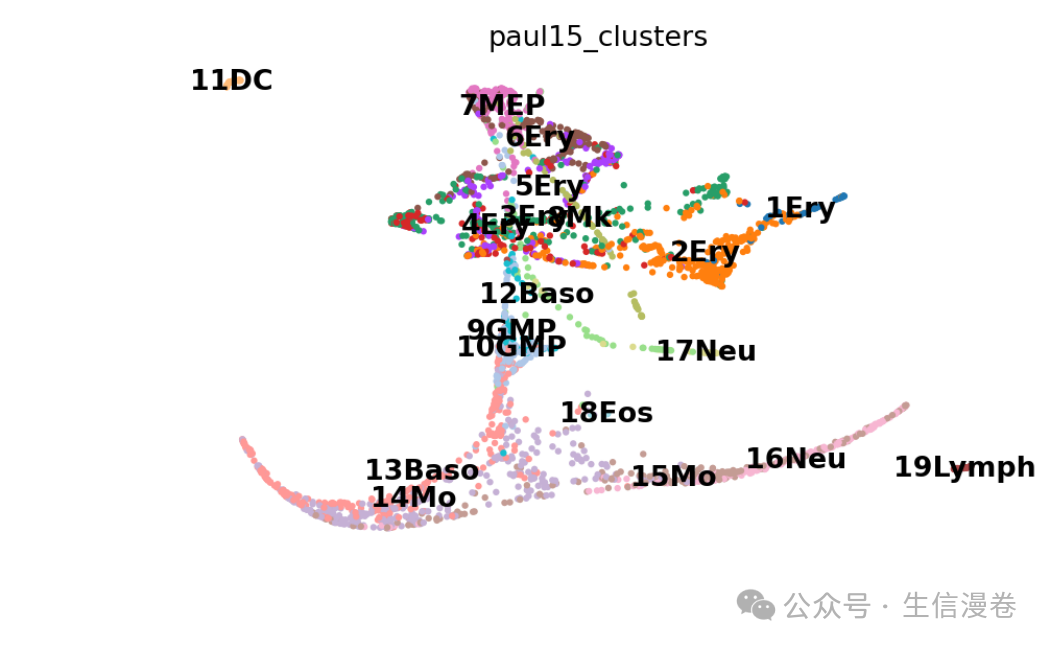

sc.pl.draw_graph(adata, color="paul15_clusters", legend_loc="on data")

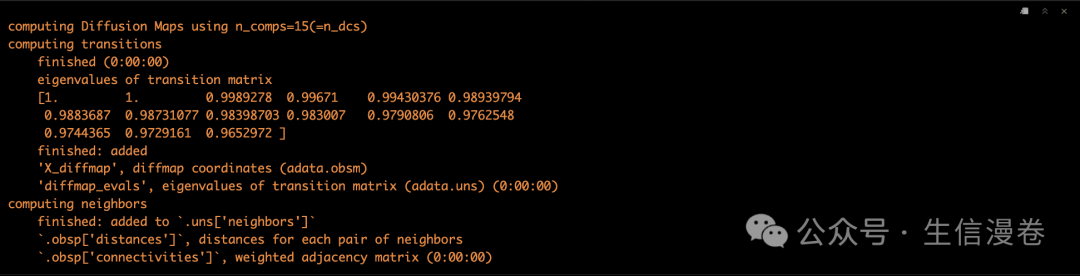

sc.tl.diffmap(adata)
sc.pp.neighbors(adata, n_neighbors=10, use_rep="X_diffmap")

sc.tl.draw_graph(adata)

sc.pl.draw_graph(adata, color="paul15_clusters", legend_loc="on data")

sc.tl.louvain(adata, resolution=1.0)

sc.tl.paga(adata, groups="louvain")

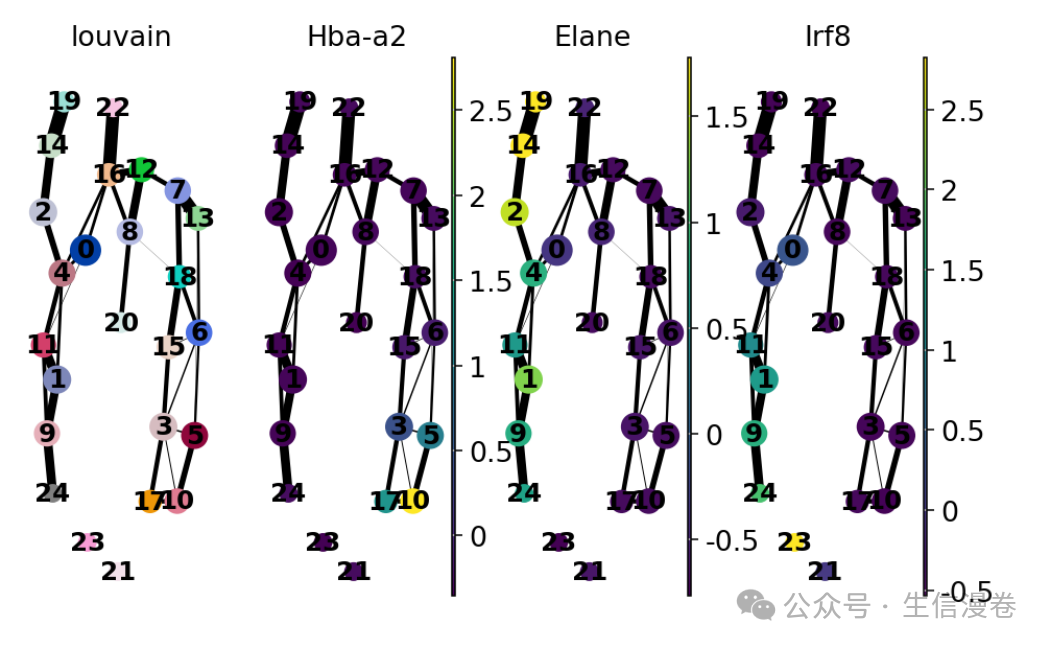

sc.pl.paga(adata, color=["louvain", "Hba-a2", "Elane", "Irf8"])

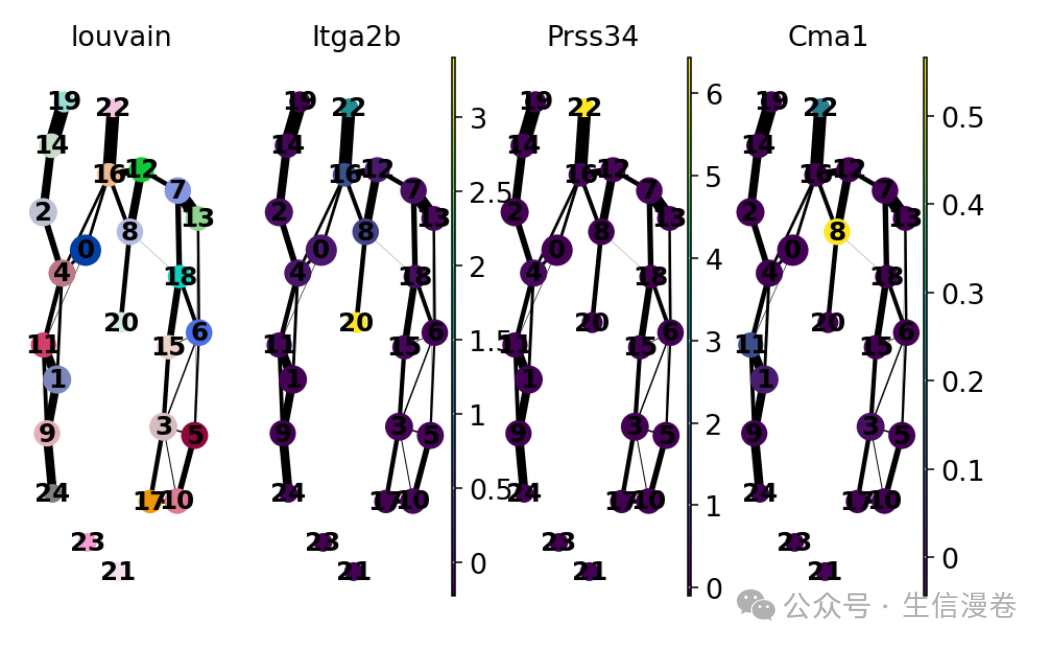

sc.pl.paga(adata, color=["louvain", "Itga2b", "Prss34", "Cma1"])

adata.obs["louvain"].cat.categories

adata.obs["louvain_anno"] = adata.obs["louvain"].cat.rename_categories(
    {
        "10": "10/Ery",
        "16": "16/Stem",
        "19": "19/Neu",
        "20": "20/Mk",
        "22": "22/Baso",
        "24": "24/Mo",
    }
)

sc.tl.paga(adata, groups="louvain_anno")

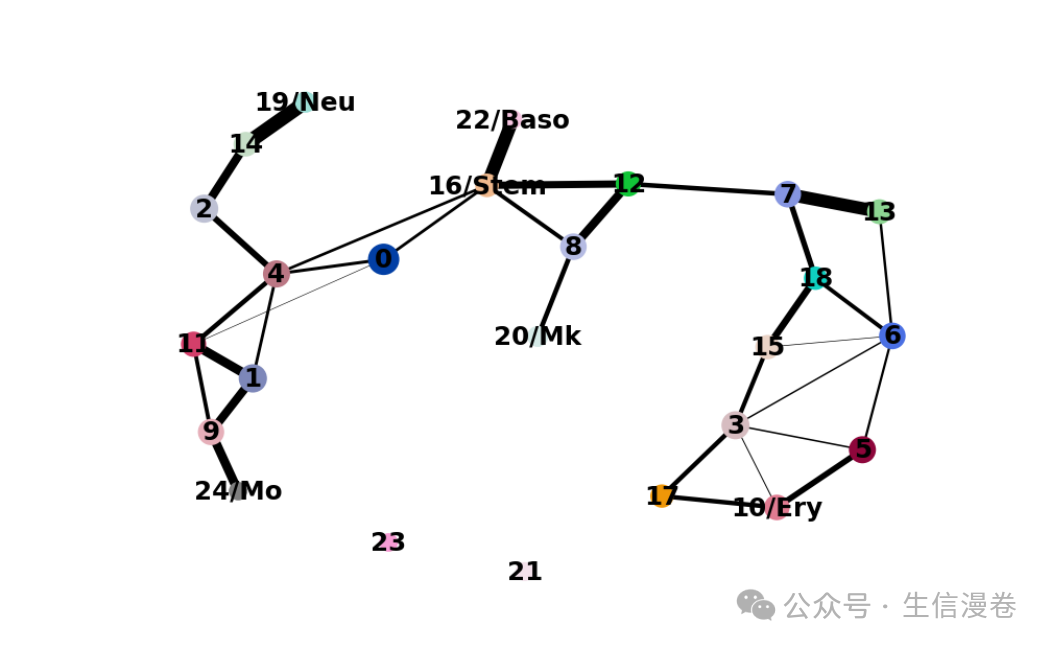

sc.pl.paga(adata, threshold=0.03, show=True)

sc.tl.draw_graph(adata, init_pos="paga")

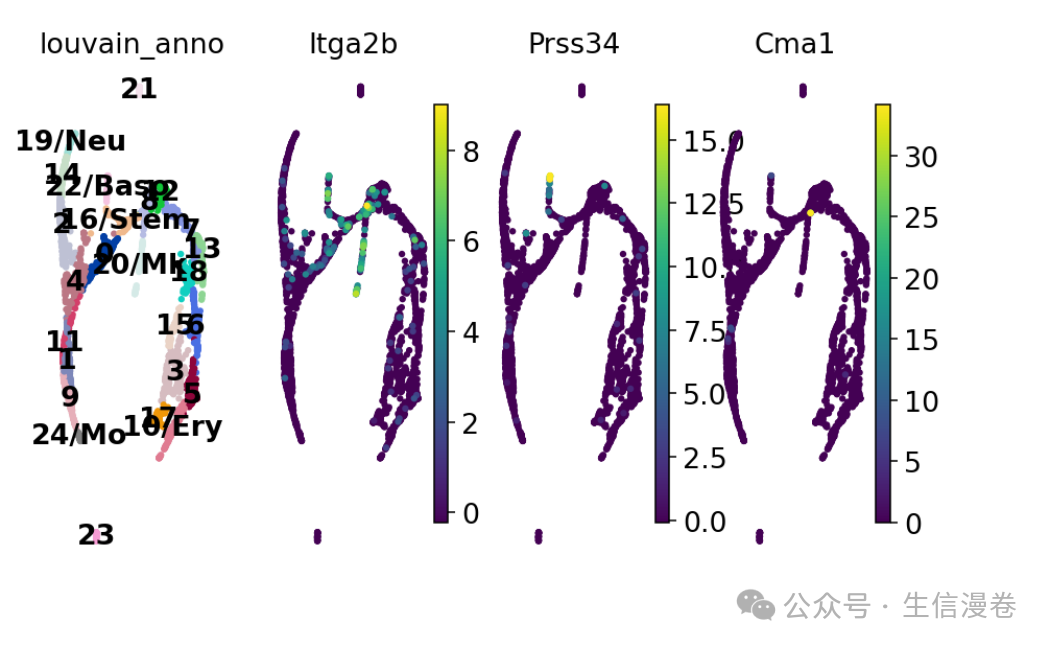

sc.pl.draw_graph(
    adata, color=["louvain_anno", "Itga2b", "Prss34", "Cma1"], legend_loc="on data"
)

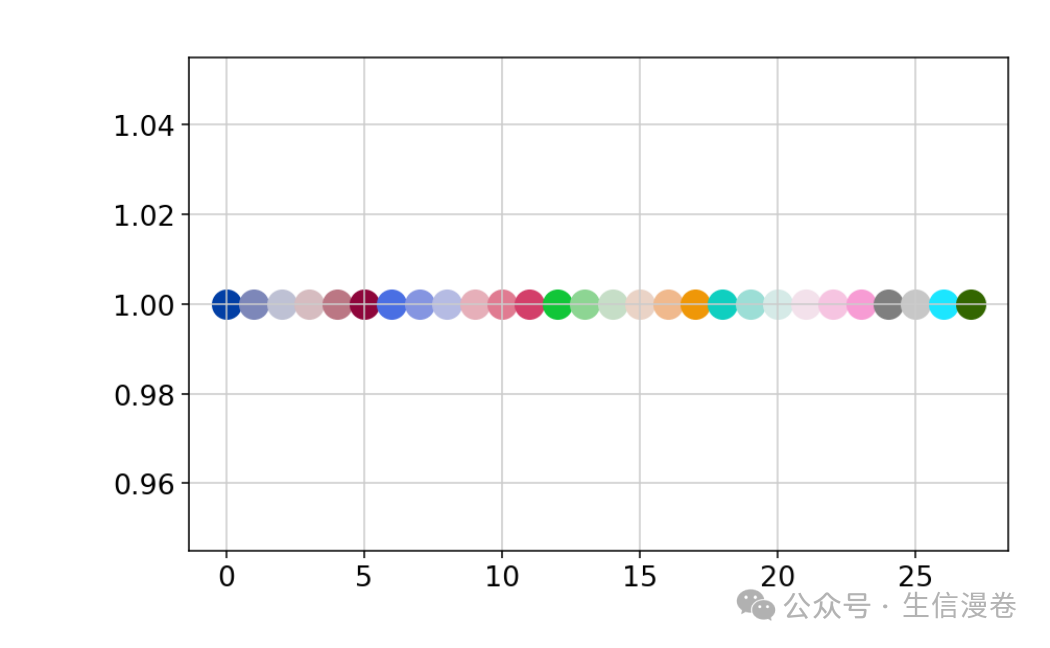

pl.figure(figsize=(8, 2))
for i in range(28):
    pl.scatter(i, 1, c=sc.pl.palettes.zeileis_28[i], s=200)
pl.show()

zeileis_colors = np.array(sc.pl.palettes.zeileis_28)
new_colors = np.array(adata.uns["louvain_anno_colors"])

new_colors[[16]] = zeileis_colors[[12]]  # Stem colors / green
new_colors[[10, 17, 5, 3, 15, 6, 18, 13, 7, 12]] = zeileis_colors[  # Ery colors / red
    [5, 5, 5, 5, 11, 11, 10, 9, 21, 21]
]
new_colors[[20, 8]] = zeileis_colors[[17, 16]]  # Mk early Ery colors / yellow
new_colors[[4, 0]] = zeileis_colors[[2, 8]]  # lymph progenitors / grey
new_colors[[22]] = zeileis_colors[[18]]  # Baso / turquoise
new_colors[[19, 14, 2]] = zeileis_colors[[6, 6, 6]]  # Neu / light blue
new_colors[[24, 9, 1, 11]] = zeileis_colors[[0, 0, 0, 0]]  # Mo / dark blue
new_colors[[21, 23]] = zeileis_colors[[25, 25]]  # outliers / grey

adata.uns["louvain_anno_colors"] = new_colors

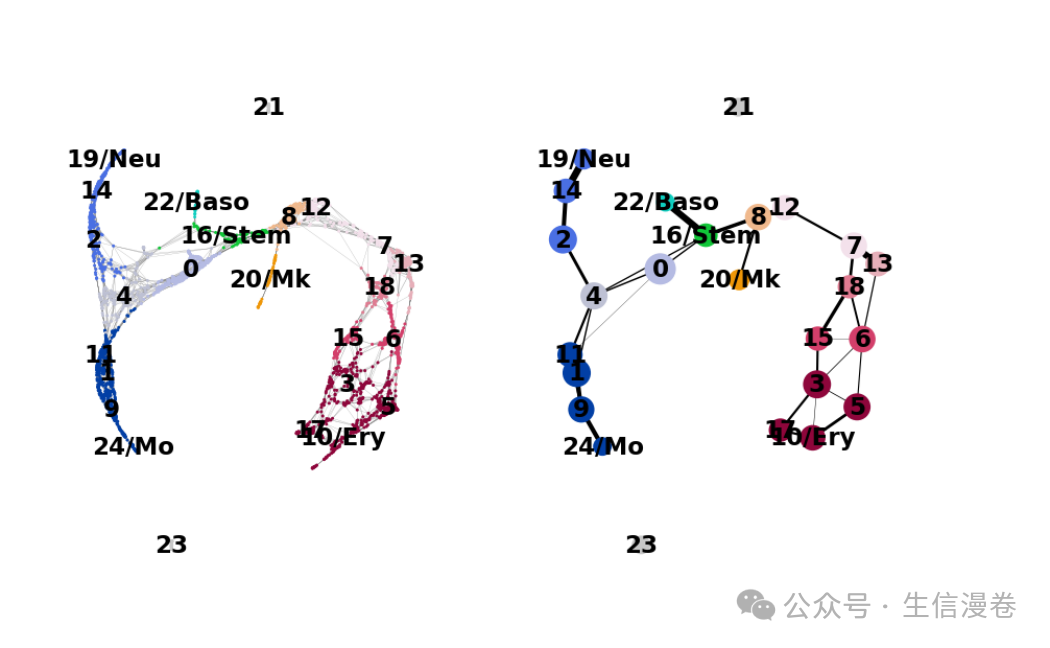

sc.pl.paga_compare(
    adata,
    threshold=0.03,
    title="",
    right_margin=0.2,
    size=10,
    edge_width_scale=0.5,
    legend_fontsize=12,
    fontsize=12,
    frameon=False,
    edges=True,
    save=False,
)

adata.uns["iroot"] = np.flatnonzero(adata.obs["louvain_anno"] == "16/Stem")[0]

sc.tl.dpt(adata)

gene_names = [
    *["Gata2", "Gata1", "Klf1", "Epor", "Hba-a2"],  # erythroid
    *["Elane", "Cebpe", "Gfi1"],  # neutrophil
    *["Irf8", "Csf1r", "Ctsg"],  # monocyte
]

adata_raw = sc.datasets.paul15()
sc.pp.log1p(adata_raw)
sc.pp.scale(adata_raw)
adata.raw = adata_raw

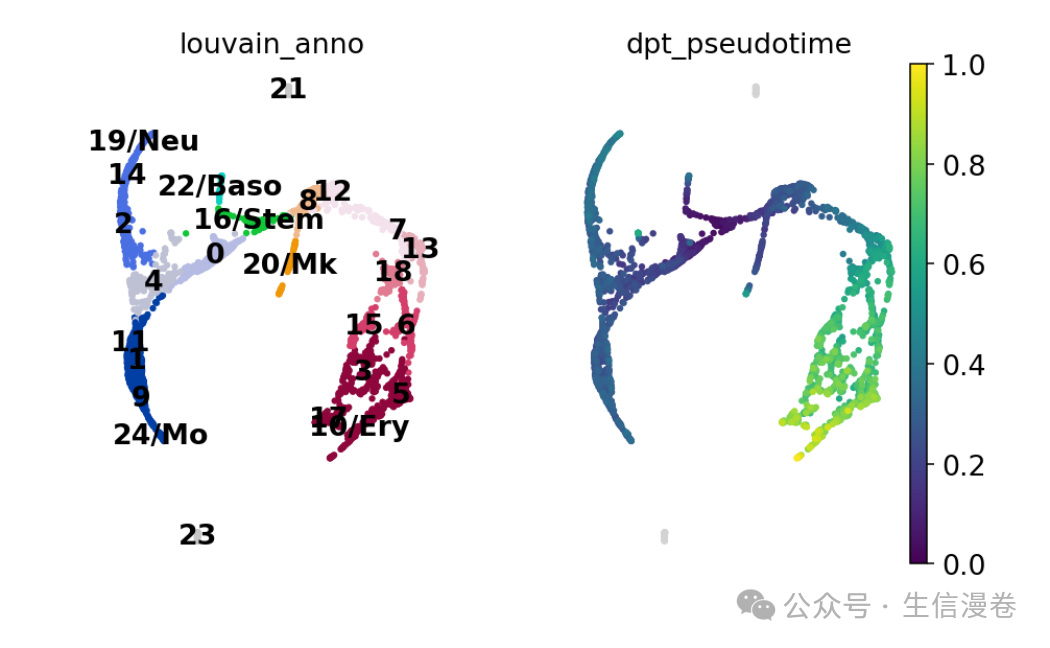

sc.pl.draw_graph(adata, color=["louvain_anno", "dpt_pseudotime"], legend_loc="on data")

paths = [
    ("erythrocytes", [16, 12, 7, 13, 18, 6, 5, 10]),
    ("neutrophils", [16, 0, 4, 2, 14, 19]),
    ("monocytes", [16, 0, 4, 11, 1, 9, 24]),
]

adata.obs["distance"] = adata.obs["dpt_pseudotime"]

adata.obs["clusters"] = adata.obs["louvain_anno"]  # just a cosmetic change

adata.uns["clusters_colors"] = adata.uns["louvain_anno_colors"]

!mkdir write

_, axs = pl.subplots(
    ncols=3, figsize=(6, 2.5), gridspec_kw={"wspace": 0.05, "left": 0.12}
)
pl.subplots_adjust(left=0.05, right=0.98, top=0.82, bottom=0.2)

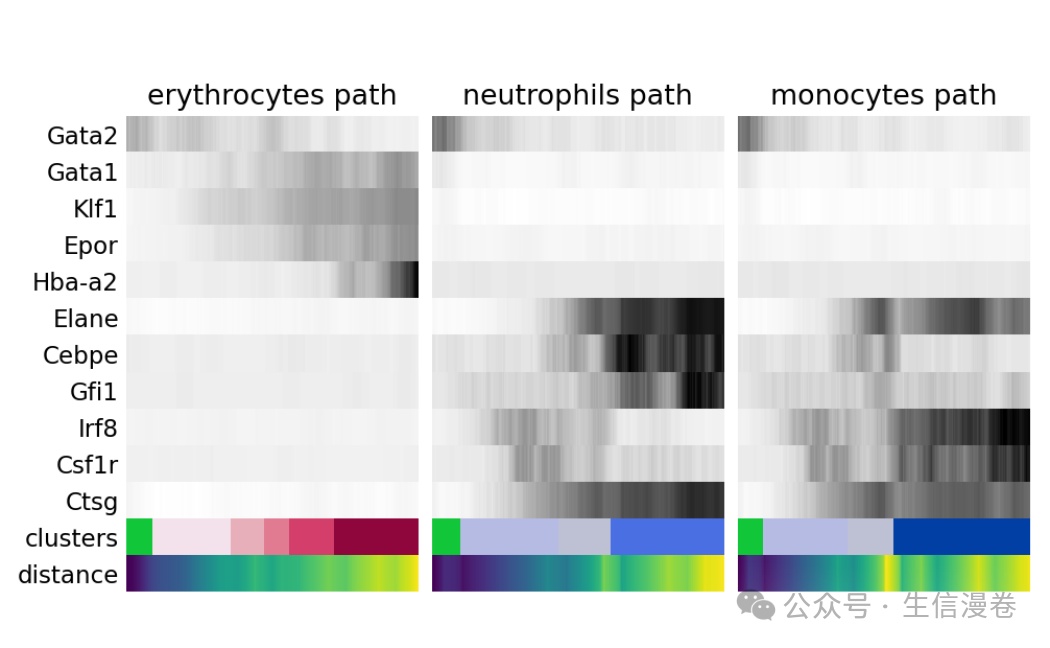

for ipath, (descr, path) in enumerate(paths):
    data = sc.pl.paga_path(
        adata,
        path,
        gene_names,
        show_node_names=False,
        ax=axs[ipath],
        ytick_fontsize=12,
        left_margin=0.15,
        n_avg=50,
        annotations=["distance"],
        show_yticks=True if ipath == 0 else False,
        show_colorbar=False,
        color_map="Greys",
        groups_key="clusters",
        color_maps_annotations={"distance": "viridis"},
        title="{} path".format(descr),
        return_data=True,
        show=False,
    )
#     data.to_csv("./write/paga_path_{}.csv".format(descr))
# pl.savefig("./figures/paga_path_paul15.pdf")
pl.show()
