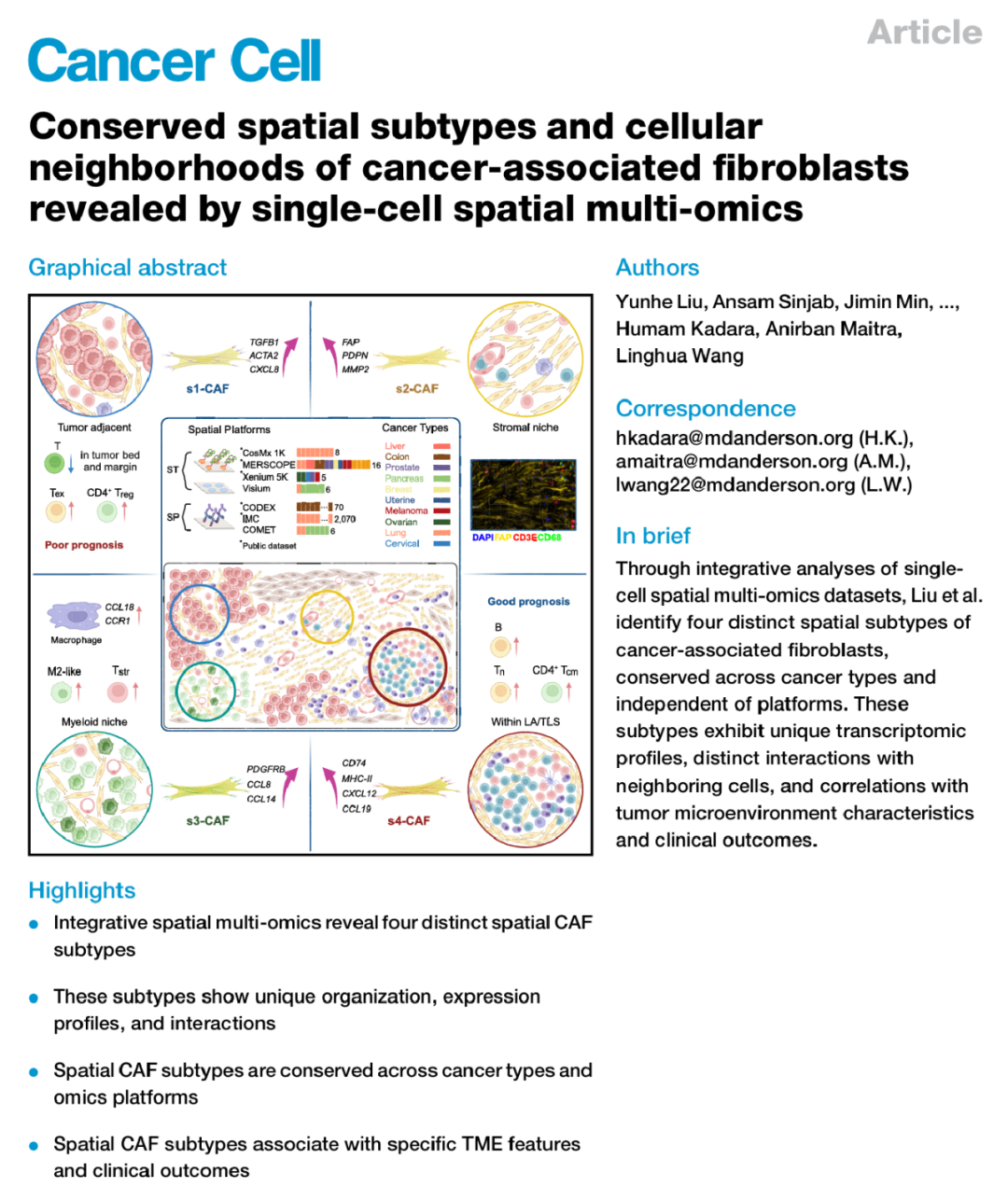

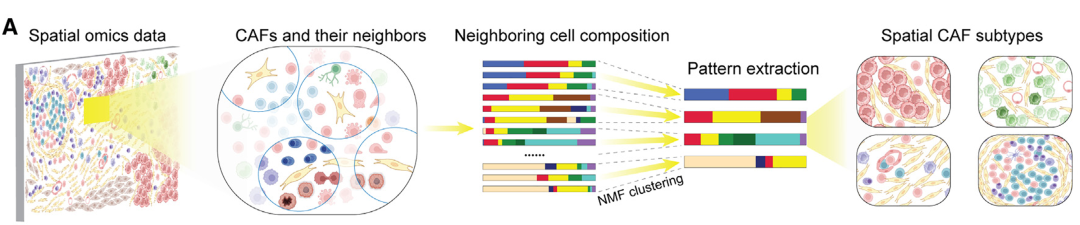

单细胞空间多组学揭示肿瘤相关成纤维细胞的保守空间亚型和细胞邻域-空间细胞亚群细分代码实现

import numpy as np
import pandas as pd
import scanpy as sc
from sklearn.neighbors import KDTree
from sklearn.decomposition import NMF
from sklearn.neighbors import NearestNeighbors
import matplotlib.pyplot as plt


# 函数封装
def identify_spatial_subtypes(adata, celltype_name='Fibroblasts', celltype_col='celltype', sample_col='sample', radius=80, n_components=5, resolution=0.1):
    """
    step1: 对每个celltype_name细胞计算其radius范围内邻域细胞类型构成，
           返回一个 cell × cell-type 比例的 DataFrame。
    """
    all_vecs = []
    all_indices = []
    for sample in adata.obs[sample_col].unique():
        adata_sample = adata[adata.obs[sample_col] == sample, :]
        coords = adata_sample.obsm['spatial']
        tree = KDTree(coords)
        caf_mask = adata_sample.obs[celltype_col] == celltype_name
        caf_indices = np.where(caf_mask)[0]
        caf_coords = coords[caf_mask]
        for i, idx in enumerate(caf_indices):
            center = coords[idx]
            ind = tree.query_radius(center.reshape(1, -1), r=radius)[0]
            neighbor_types = adata_sample.obs.iloc[ind][celltype_col].value_counts(normalize=True)
            vec = pd.Series(0, index=adata.obs[celltype_col].unique())
            vec[neighbor_types.index] = neighbor_types.values
            all_vecs.append(vec)
            all_indices.append(adata_sample.obs_names[idx])
    neighbor_matrix = pd.DataFrame(all_vecs, index=all_indices).fillna(0)
    # print(neighbor_matrix)
    """

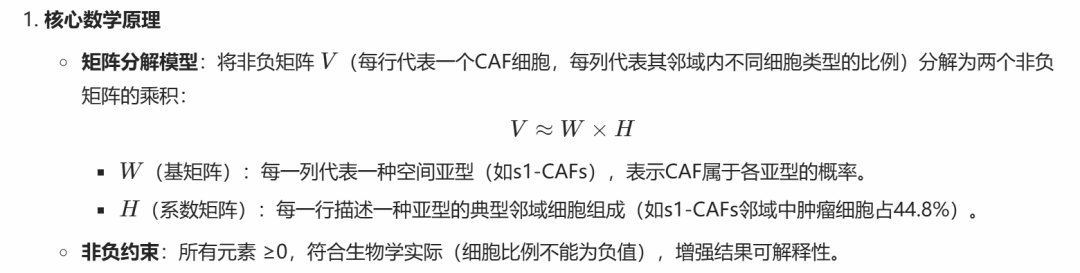

    step2: NMF分解
    """
    model = NMF(n_components=n_components, init='nndsvda', random_state=0)
    W = model.fit_transform(neighbor_matrix.values)   # cell × factor
    H = model.components_                             # factor × cell-type
    W_df = pd.DataFrame(W, index=neighbor_matrix.index, columns=[f'Factor_{i}' for i in range(n_components)])
    H_df = pd.DataFrame(H, columns=neighbor_matrix.columns, index=[f'Factor_{i}' for i in range(n_components)])
    # print("W_df", W_df)
    # print("H_df", H_df)
    """
    step3: 识别空间亚型
    """
    caf_adata = adata[adata.obs_names.isin(W_df.index)].copy()
    caf_adata.obsm['X_nmf'] = W_df.loc[caf_adata.obs_names].values
    sc.pp.neighbors(caf_adata, n_neighbors=20, use_rep='X_nmf', metric='cosine')
    sc.tl.leiden(caf_adata, resolution=resolution)
    # 写回主 AnnData
    adata.obs.loc[caf_adata.obs_names, celltype_name+'_sub'] = caf_adata.obs['leiden'].astype(str)
    """

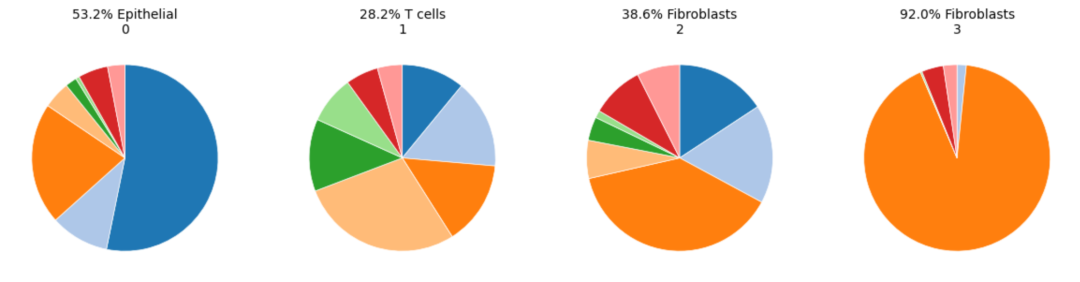

    step4: 统计绘图
    """
    subtypes = adata.obs.loc[neighbor_matrix.index, celltype_name+'_sub']
    neighbor_matrix_with_subtype = neighbor_matrix.copy()
    neighbor_matrix_with_subtype['subtype'] = subtypes
    avg_neighbor_composition = neighbor_matrix_with_subtype.groupby('subtype').mean()
    # print(avg_neighbor_composition)
    n_subtypes = avg_neighbor_composition.shape[0]
    fig, axes = plt.subplots(1, n_subtypes, figsize=(n_subtypes * 3, 3))
    # 自动生成颜色
    all_cell_types = avg_neighbor_composition.columns
    cmap = plt.get_cmap('tab20')
    cell_type_colors = {cell: cmap(i) for i, cell in enumerate(all_cell_types)}
    subtype_names = {i: f"s{i+1}-CAFs" for i in range(n_subtypes)}
    for i, (subtype, row) in enumerate(avg_neighbor_composition.iterrows()):
        ax = axes[i]
        values = row.values
        labels = row.index
        colors = [cell_type_colors[ct] for ct in labels]
        wedges, texts = ax.pie(
            values, colors=colors, startangle=90, counterclock=False,
            wedgeprops={'linewidth': 0.5, 'edgecolor': 'white'}
        )
        dominant_type = labels[values.argmax()]
        percent = values.max() * 100
        ax.set_title(f"{percent:.1f}% {dominant_type}\n{subtype_names.get(subtype, str(subtype))}", fontsize=10)
    plt.tight_layout()
    return adata
