Quick Start

Check that the library is working properly by running any of the following commands on any command-line interface program. In Ubuntu, Mac, and other Unix systems, use any command-line interface, such as Terminal or Terminator. In Windows, open the PowerShell (recommended) or Windows Command Prompt (CMD). They can be open by pressing the Windows button + X, and then A. Feel free to watch any Youtube video tutorial if you are not familiar with these non-GUI tools. Make sure that you are in the root directory of the project (i.e., in the OpenPose folder, not inside build/ nor windows/ nor bin/). In addition, examples/media/video.avi and examples/media do exist, no need to change the paths.

BODY_25 vs. COCO vs. MPI Models

The BODY_25 model (--model_pose BODY_25) includes both body and foot keypoints and it is based in OpenPose: Realtime Multi-Person 2D Pose Estimation using Part Affinity Fields. COCO and MPI models are slower, less accurate, and do not contain foot keypoints. They are based in our older paper Realtime Multi-Person 2D Pose Estimation using Part Affinity Fields. We highly recommend only using the BODY_25 model.

There is an exception, for CPU version, the COCO and MPI models seems to be faster. Accuracy is still better for the BODY_25 model.

Running on Video
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac
./build/examples/openpose/openpose.bin --video examples/media/video.avi
# With face and hands
./build/examples/openpose/openpose.bin --video examples/media/video.avi --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Portable Demo
bin\OpenPoseDemo.exe --video examples\media\video.avi
:: With face and hands
bin\OpenPoseDemo.exe --video examples\media\video.avi --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Library - Assuming you copied the DLLs following doc/installation.md#windows
build\x64\Release\OpenPoseDemo.exe --video examples\media\video.avi
:: With face and hands
build\x64\Release\OpenPoseDemo.exe --video examples\media\video.avi --face --hand
Running on Webcam
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac
./build/examples/openpose/openpose.bin
# With face and hands
./build/examples/openpose/openpose.bin --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Portable Demo
bin\OpenPoseDemo.exe
:: With face and hands
bin\OpenPoseDemo.exe --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Library - Assuming you copied the DLLs following doc/installation.md#windows
build\x64\Release\OpenPoseDemo.exe
:: With face and hands
build\x64\Release\OpenPoseDemo.exe --face --hand
Running on Images
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac
./build/examples/openpose/openpose.bin --image_dir examples/media/
# With face and hands
./build/examples/openpose/openpose.bin --image_dir examples/media/ --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Portable Demo
bin\OpenPoseDemo.exe --image_dir examples\media\
:: With face and hands
bin\OpenPoseDemo.exe --image_dir examples\media\ --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Library - Assuming you copied the DLLs following doc/installation.md#windows
build\x64\Release\OpenPoseDemo.exe --image_dir examples\media\
:: With face and hands
build\x64\Release\OpenPoseDemo.exe --image_dir examples\media\ --face --hand
Maximum Accuracy Configuration

This command provides the most accurate results we have been able to achieve for body, hand and face keypoint detection.

However:

  • This will not work on CPU given the huge ammount of memory required. Your only option with CPU-only versions is to manually crop the people to fit the whole area of the image that is fed into OpenPose.
  • It will also need ~10.5 GB of GPU memory for body-foot (BODY_25) model (~6.7 GB for COCO model).
  • This requires GPUs like Titan X, Titan XP, some Quadro models, P100, V100, etc.
  • Including hands and face will require >= 16GB GPUs (so the 12 GB GPUs like Titan X and XPs will no longer work).
  • This command runs at ~2 FPS on a Titan X for the body-foot model (~1 FPS for COCO).
  • Increasing --net_resolution will highly reduce the frame rate and increase latency, while it might increase the accuracy. However, this accuracy increase is not guaranteed in all scenarios, required a more detailed analysis for each particular scenario. E.g., it will work better for images with very small people, but usually worse for people taking a big ratio of the image. Thus, we recommend to follow the commands below for maximum accuracy in most cases for both big and small-size people.
  • Do not use this configuration for MPII model, its accuracy might be harmed by this multi-scale setting. This configuration is optimal only for COCO and COCO-extended (e.g., the default BODY_25) models.

Method overview:

代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac: Body
./build/examples/openpose/openpose.bin --net_resolution "1312x736" --scale_number 4 --scale_gap 0.25
# Ubuntu and Mac: Body + Hand + Face
./build/examples/openpose/openpose.bin --net_resolution "1312x736" --scale_number 4 --scale_gap 0.25 --hand --hand_scale_number 6 --hand_scale_range 0.4 --face
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Portable Demo: Body
bin\OpenPoseDemo.exe --net_resolution "1312x736" --scale_number 4 --scale_gap 0.25
:: Windows - Portable Demo: Body + Hand + Face
bin\OpenPoseDemo.exe --net_resolution "1312x736" --scale_number 4 --scale_gap 0.25 --hand --hand_scale_number 6 --hand_scale_range 0.4 --face
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Library - Assuming you copied the DLLs following doc/installation.md#windows: Body
build\x64\Release\OpenPoseDemo.exe --net_resolution "1312x736" --scale_number 4 --scale_gap 0.25
:: Windows - Library - Assuming you copied the DLLs following doc/installation.md#windows: Body + Hand + Face
build\x64\Release\OpenPoseDemo.exe --net_resolution "1312x736" --scale_number 4 --scale_gap 0.25 --hand --hand_scale_number 6 --hand_scale_range 0.4 --face

If you want to increase the accuracy value metric on COCO, while harming the qualitative accuracy, add the flag --maximize_positives. It reduces the thresholds to accept a person candidate. It highly increases both false and true positives. I.e., it maximizes average recall but could harm average precision. Our experience is that it looks much worse visually, but it improves the COCO accuracy numbers, so use it at your own risk.

In addition, our paper numbers are not based on the current models that have been released. We released our best model at the time but later found a better one. But given that the accuracy difference is less than 2%, we did not want to release yet another model to avoid confusion for the users (otherwise there would be more than 10 models released at this point). We will release a new one every time a major improvement is achieved.

If you are operating on Ubuntu, you can check the experimental scripts that we use to test our accuracy (we do not officially support it, i.e., we will not answer questions about it, as well as it might change it continuously), they are placed in openpose/scripts/tests/, called pose_accuracy_coco_test_dev.sh and pose_accuracy_coco_val.sh.

3-D Reconstruction
  1. Real-time demo
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac
./build/examples/openpose/openpose.bin --flir_camera --3d --number_people_max 1
# With face and hands
./build/examples/openpose/openpose.bin --flir_camera --3d --number_people_max 1 --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Portable Demo
bin\OpenPoseDemo.exe --flir_camera --3d --number_people_max 1
:: With face and hands
bin\OpenPoseDemo.exe --flir_camera --3d --number_people_max 1 --face --hand
代码语言:javascript
代码运行次数:0
运行
复制
:: Windows - Library - Assuming you copied the DLLs following doc/installation.md#windows
build\x64\Release\OpenPoseDemo.exe --flir_camera --3d --number_people_max 1
:: With face and hands
build\x64\Release\OpenPoseDemo.exe --flir_camera --3d --number_people_max 1 --face --hand
  1. Saving 3-D keypoints and video
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac (same flags for Windows version)
./build/examples/openpose/openpose.bin --flir_camera --3d --number_people_max 1 --write_json output_folder_path/ --write_video_3d output_folder_path/video_3d.avi
  1. Fast stereo camera image saving (without keypoint detection) for later post-processing
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac (same flags for Windows version)
# Saving video
# Note: saving in PNG rather than JPG will improve image quality, but slow down FPS (depending on hard disk writing speed and camera number)
./build/examples/openpose/openpose.bin --flir_camera --num_gpu 0 --write_video output_folder_path/video.avi --write_video_fps 5
# Saving images
# Note: saving in PNG rather than JPG will improve image quality, but slow down FPS (depending on hard disk writing speed and camera number)
./build/examples/openpose/openpose.bin --flir_camera --num_gpu 0 --write_images output_folder_path/ --write_images_format jpg
  1. Reading and processing previouly saved stereo camera images
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac (same flags for Windows version)
# Optionally add `--face` and/or `--hand` to include face and/or hands
# Assuming 3 cameras
# Note: We highly recommend to reduce `--output_resolution`. E.g., for 3 cameras recording at 1920x1080, the resulting image is (3x1920)x1080, so we recommend e.g. 640x360 (x3 reduction).
# Video
./build/examples/openpose/openpose.bin --video output_folder_path/video.avi --3d_views 3 --3d --number_people_max 1 --output_resolution {desired_output_resolution}
# Images
./build/examples/openpose/openpose.bin --image_dir output_folder_path/ --3d_views 3 --3d --number_people_max 1 --output_resolution {desired_output_resolution}
  1. Reconstruction when the keypoint is visible in at least x camera views out of the total n cameras
代码语言:javascript
代码运行次数:0
运行
复制
# Ubuntu and Mac (same flags for Windows version)
# Reconstruction when a keypoint is visible in at least 2 camera views (assuming `n` >= 2)
./build/examples/openpose/openpose.bin --flir_camera --3d --number_people_max 1 --3d_min_views 2 --output_resolution {desired_output_resolution}
# Reconstruction when a keypoint is visible in at least max(2, min(4, n-1)) camera views
./build/examples/openpose/openpose.bin --flir_camera --3d --number_people_max 1 --output_resolution {desired_output_resolution}
Tracking
  1. Runtime huge speed up by reducing the accuracy:
代码语言:javascript
代码运行次数:0
运行
复制
# Using OpenPose 1 frame, tracking the following e.g., 5 frames
./build/examples/openpose/openpose.bin --tracking 5 --number_people_max 1
  1. Runtime speed up while keeping most of the accuracy:
代码语言:javascript
代码运行次数:0
运行
复制
:: Using OpenPose 1 frame and tracking another frame
./build/examples/openpose/openpose.bin --tracking 1 --number_people_max 1
  1. Visual smoothness:
代码语言:javascript
代码运行次数:0
运行
复制
# Running both OpenPose and tracking on each frame. Note: There is no speed up/slow down
./build/examples/openpose/openpose.bin --tracking 0 --number_people_max 1

Expected Visual Results

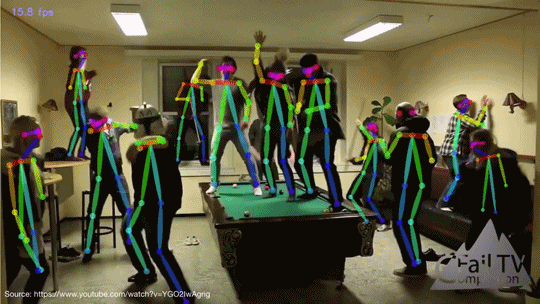

The visual GUI should show the original image with the poses blended on it, similarly to the pose of this gif:

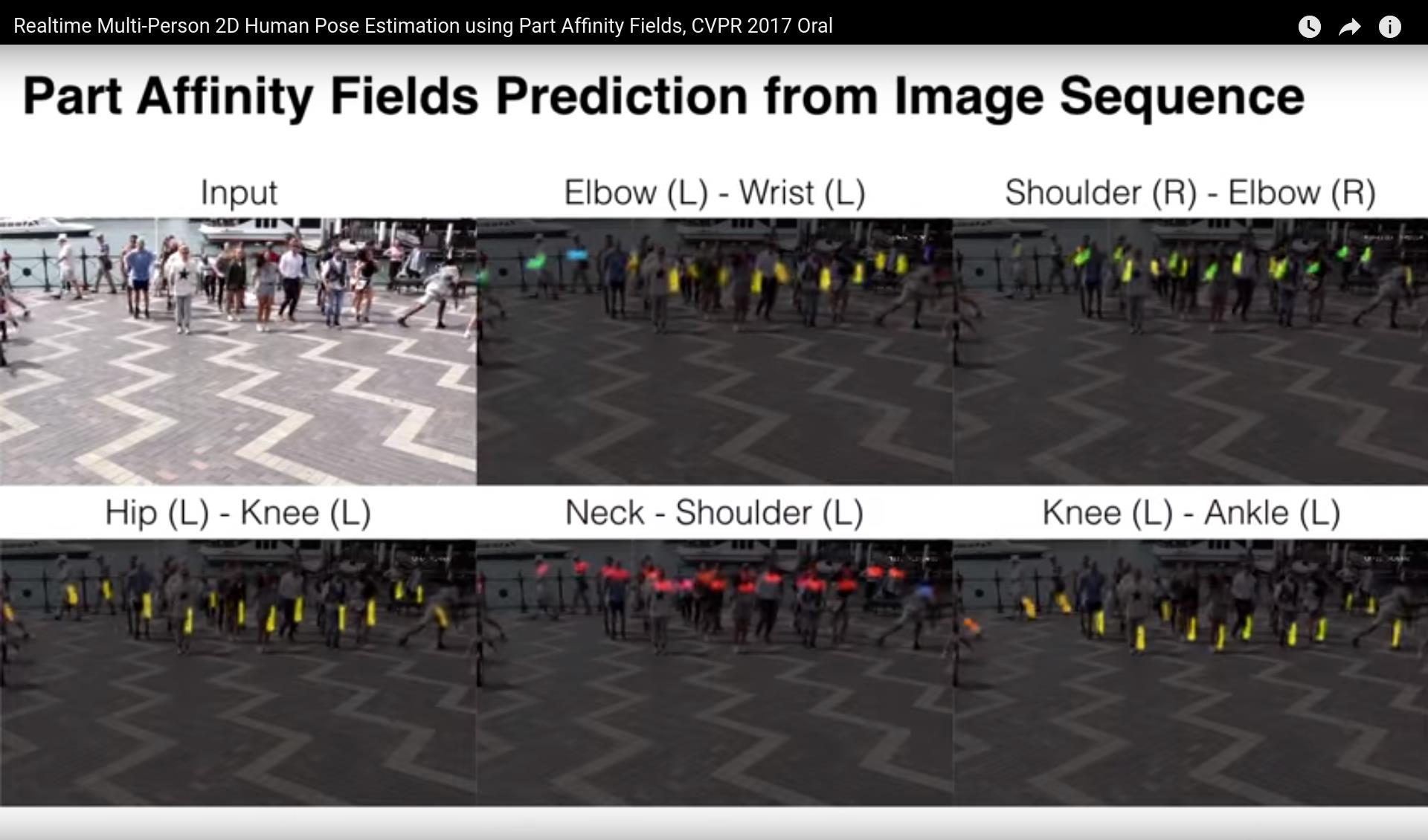

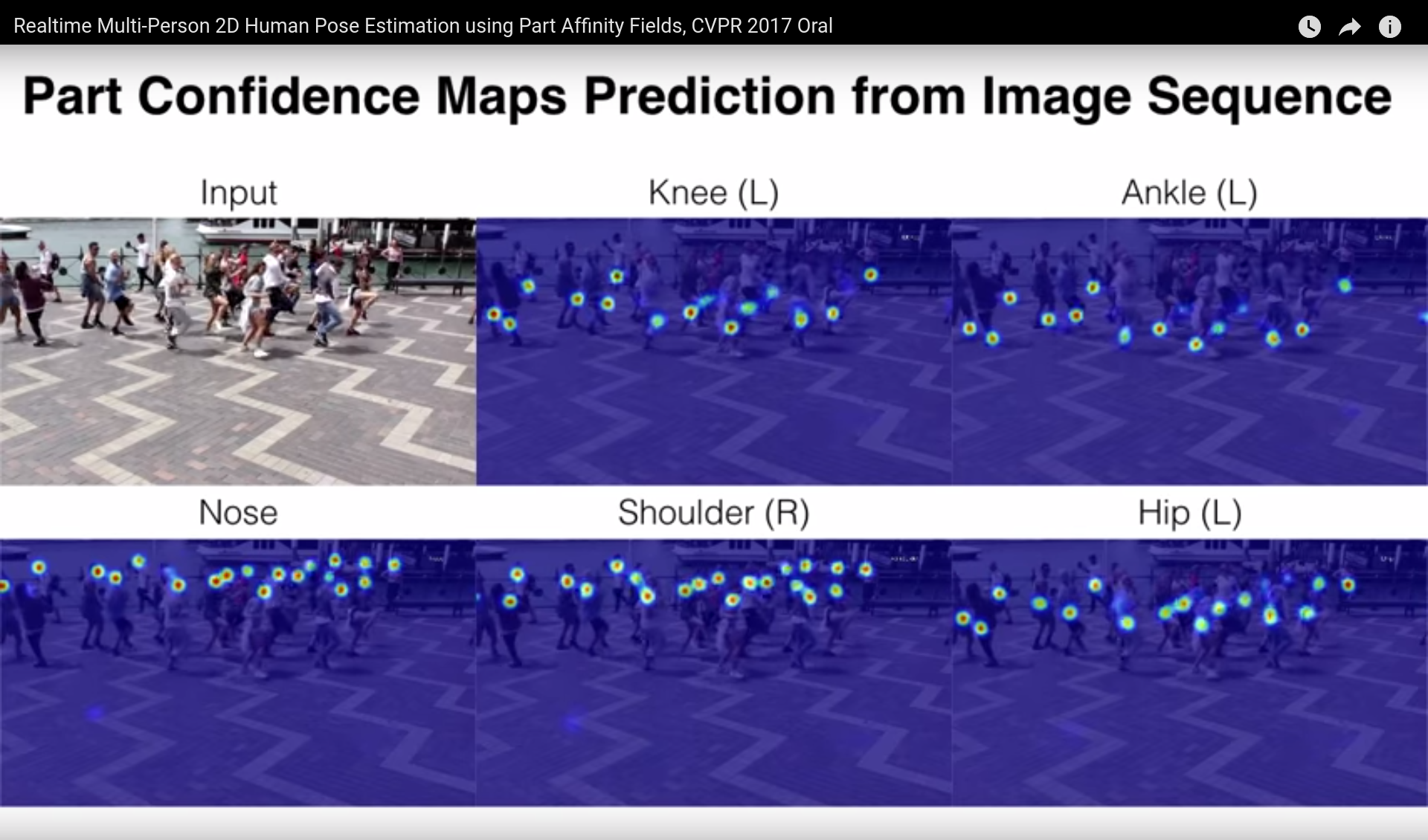

If you choose to visualize a body part or a PAF (Part Affinity Field) heat map with the command option --part_to_show, the result should be similar to one of the following images:
