基于pytorch卷积神经网络的人脸面部表情识别系统研究采用CNN+RestNet+VGG三种模型源码+模型+答辩材料

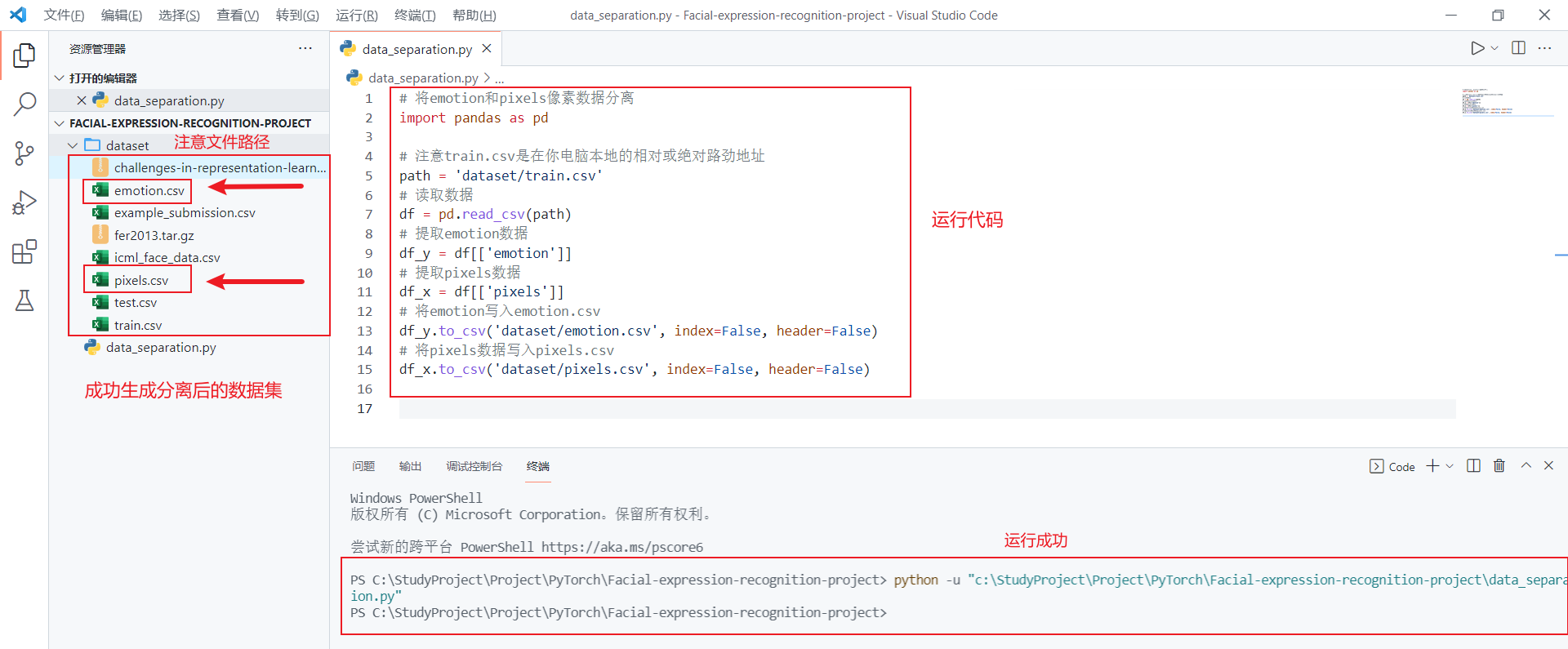

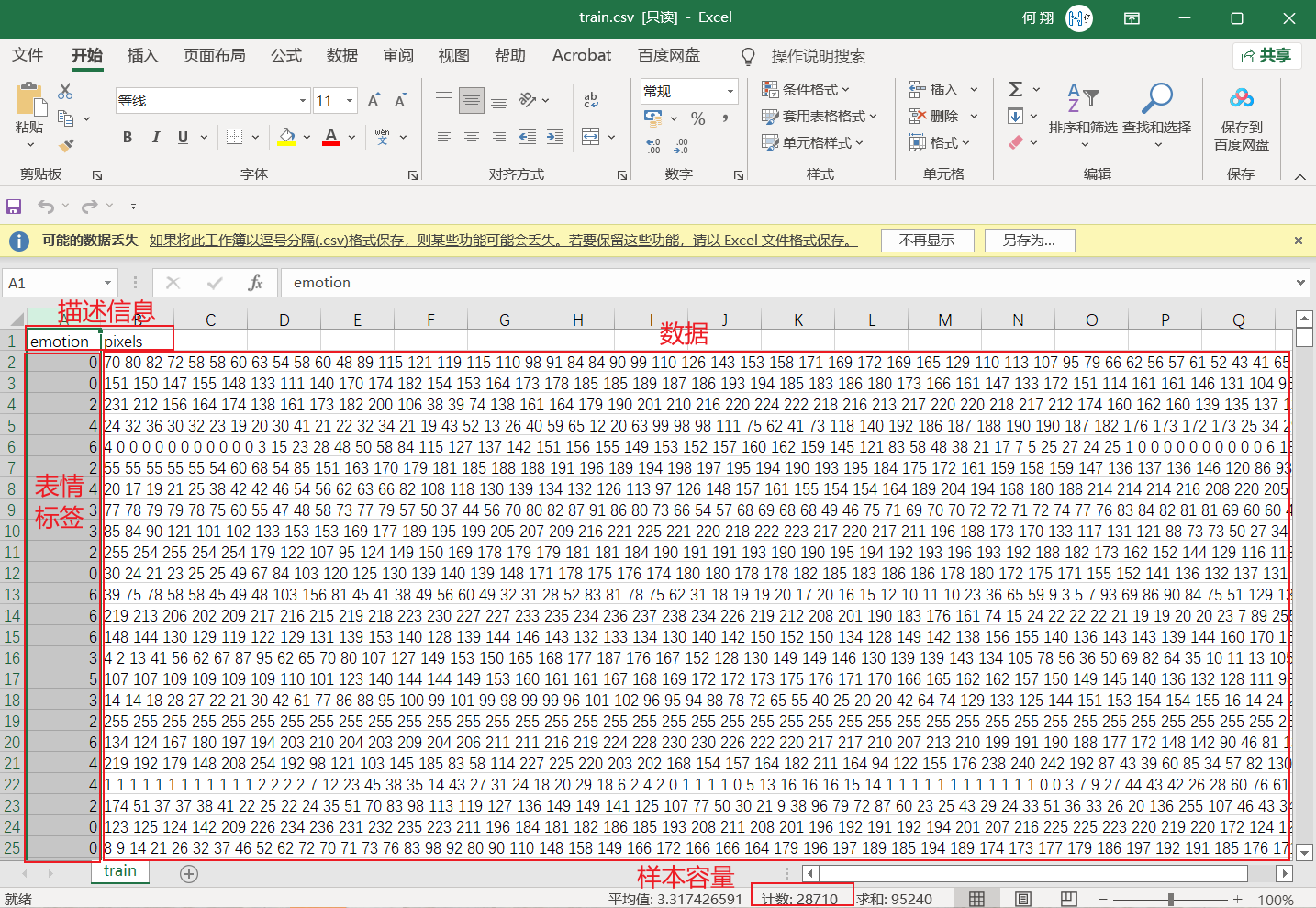

# 将emotion和pixels像素数据分离
import pandas as pd

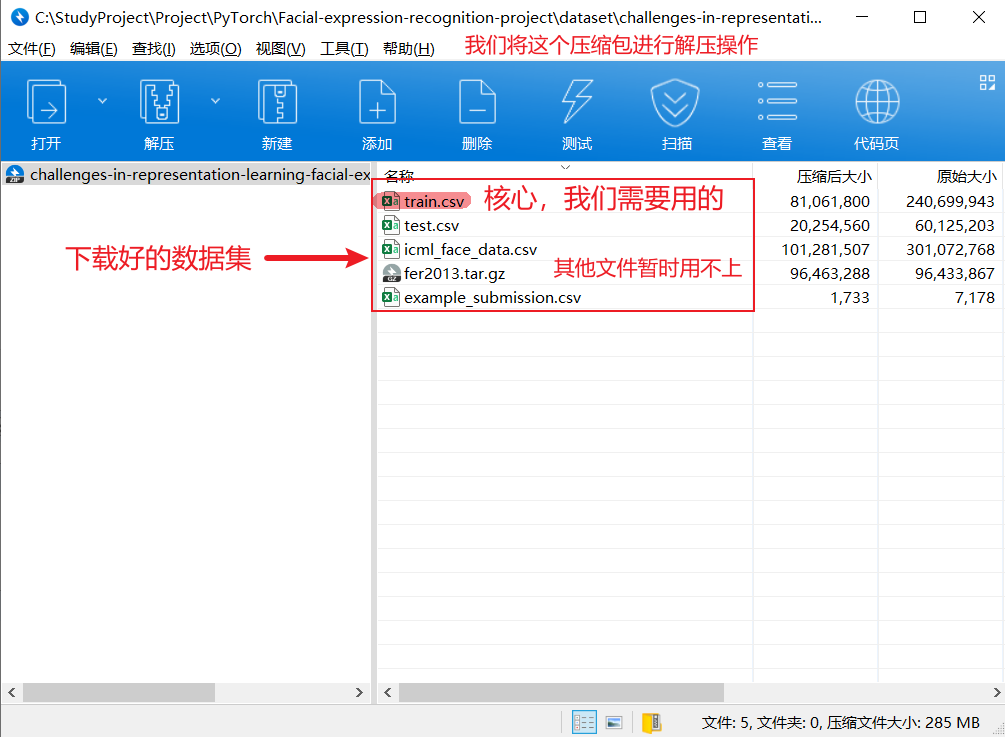

# 注意修改train.csv为你电脑上文件所在的相对或绝对路劲地址。
path = 'dataset/train.csv'
# 读取数据
df = pd.read_csv(path)
# 提取emotion数据
df_y = df[['emotion']]
# 提取pixels数据
df_x = df[['pixels']]
# 将emotion写入emotion.csv
df_y.to_csv('dataset/emotion.csv', index=False, header=False)
# 将pixels数据写入pixels.csv
df_x.to_csv('dataset/pixels.csv', index=False, header=False)

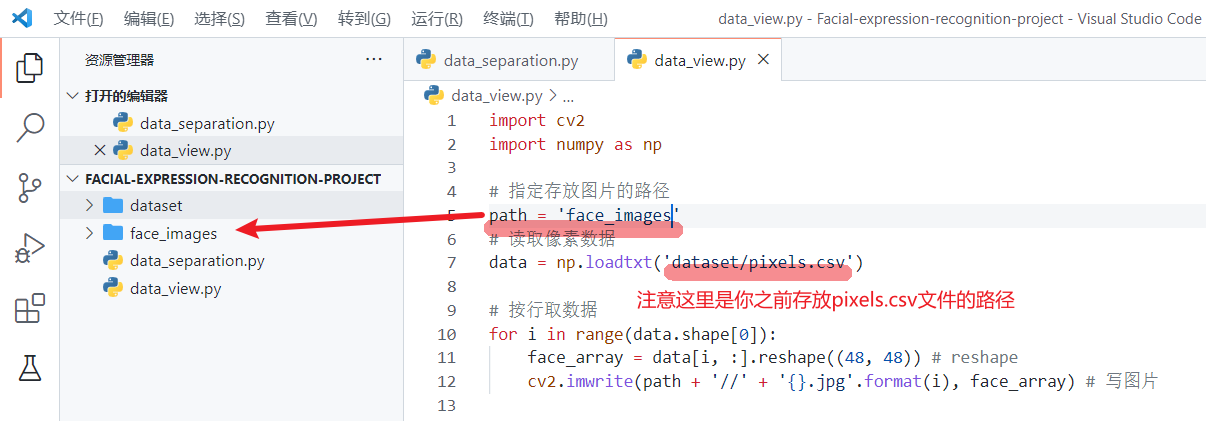

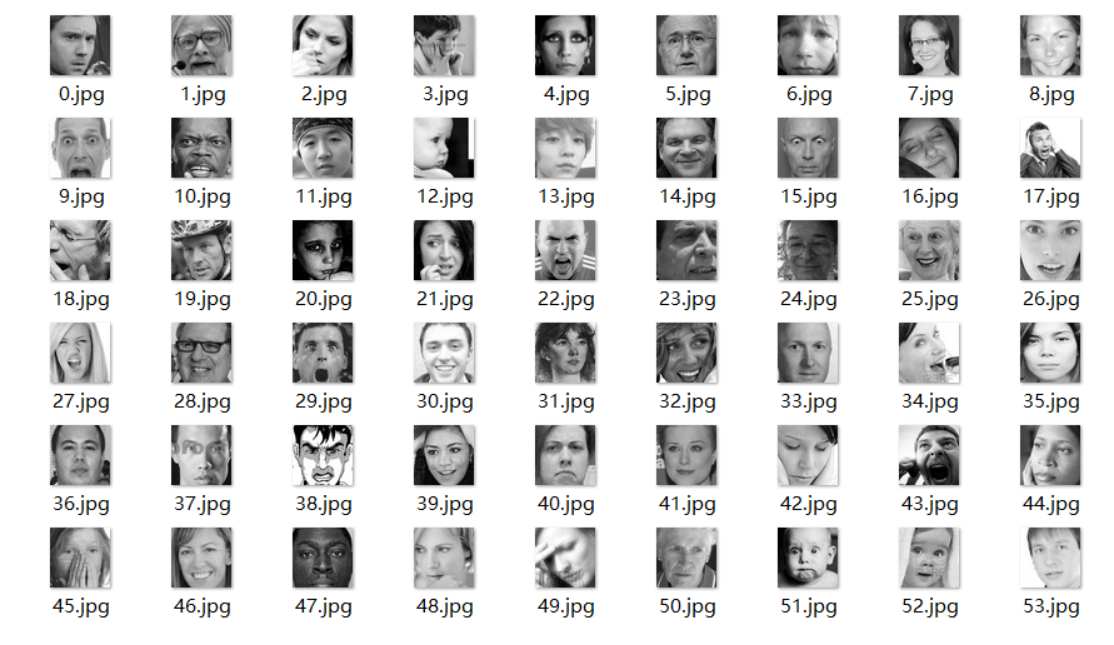

import cv2
import numpy as np

# 指定存放图片的路径
path = 'face_images'
# 读取像素数据
data = np.loadtxt('dataset/pixels.csv')

# 按行取数据
for i in range(data.shape[0]):
    face_array = data[i, :].reshape((48, 48)) # reshape
    cv2.imwrite(path + '//' + '{}.jpg'.format(i), face_array) # 写图片

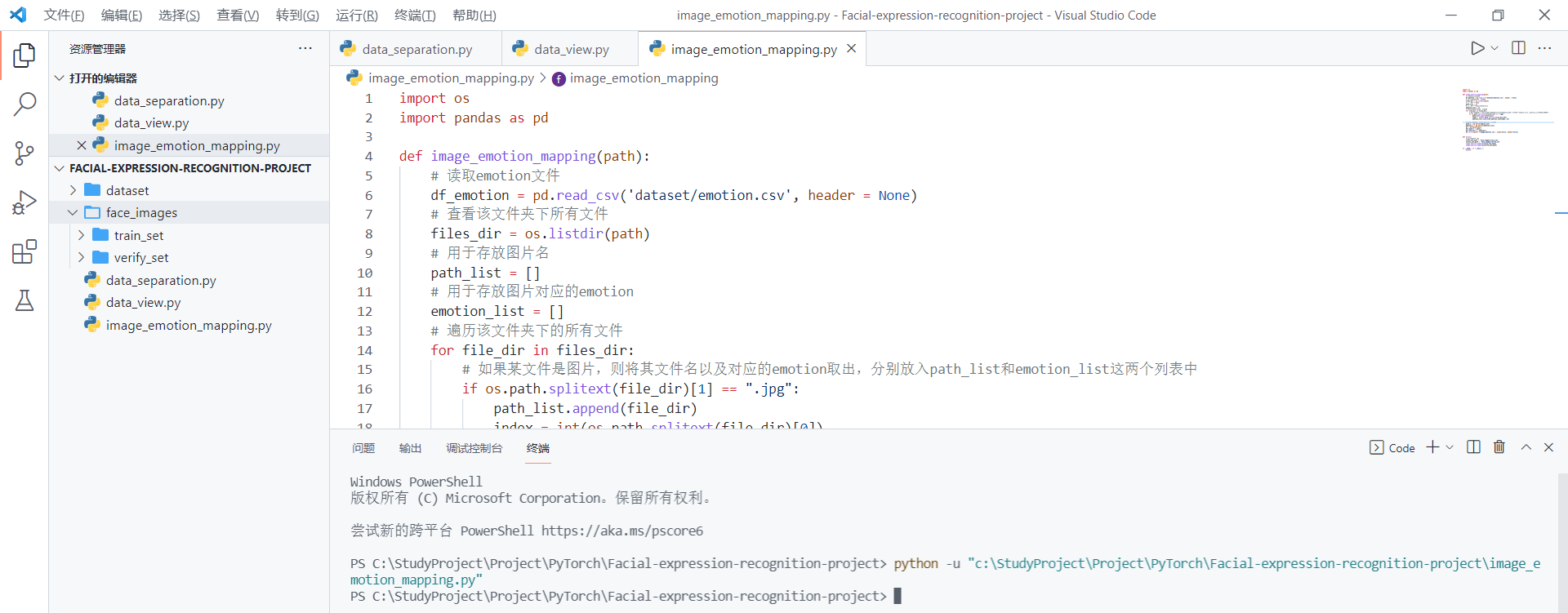

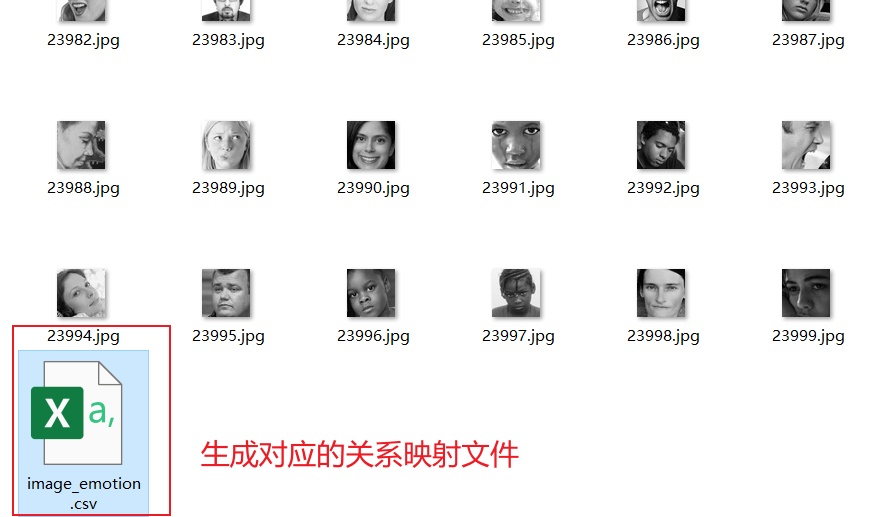

import os
import pandas as pd

def image_emotion_mapping(path):
    # 读取emotion文件
    df_emotion = pd.read_csv('dataset/emotion.csv', header = None)
    # 查看该文件夹下所有文件
    files_dir = os.listdir(path)
    # 用于存放图片名
    path_list = []
    # 用于存放图片对应的emotion
    emotion_list = []
    # 遍历该文件夹下的所有文件
    for file_dir in files_dir:
        # 如果某文件是图片，则将其文件名以及对应的emotion取出，分别放入path_list和emotion_list这两个列表中
        if os.path.splitext(file_dir)[1] == ".jpg":
            path_list.append(file_dir)
            index = int(os.path.splitext(file_dir)[0])
            emotion_list.append(df_emotion.iat[index, 0])

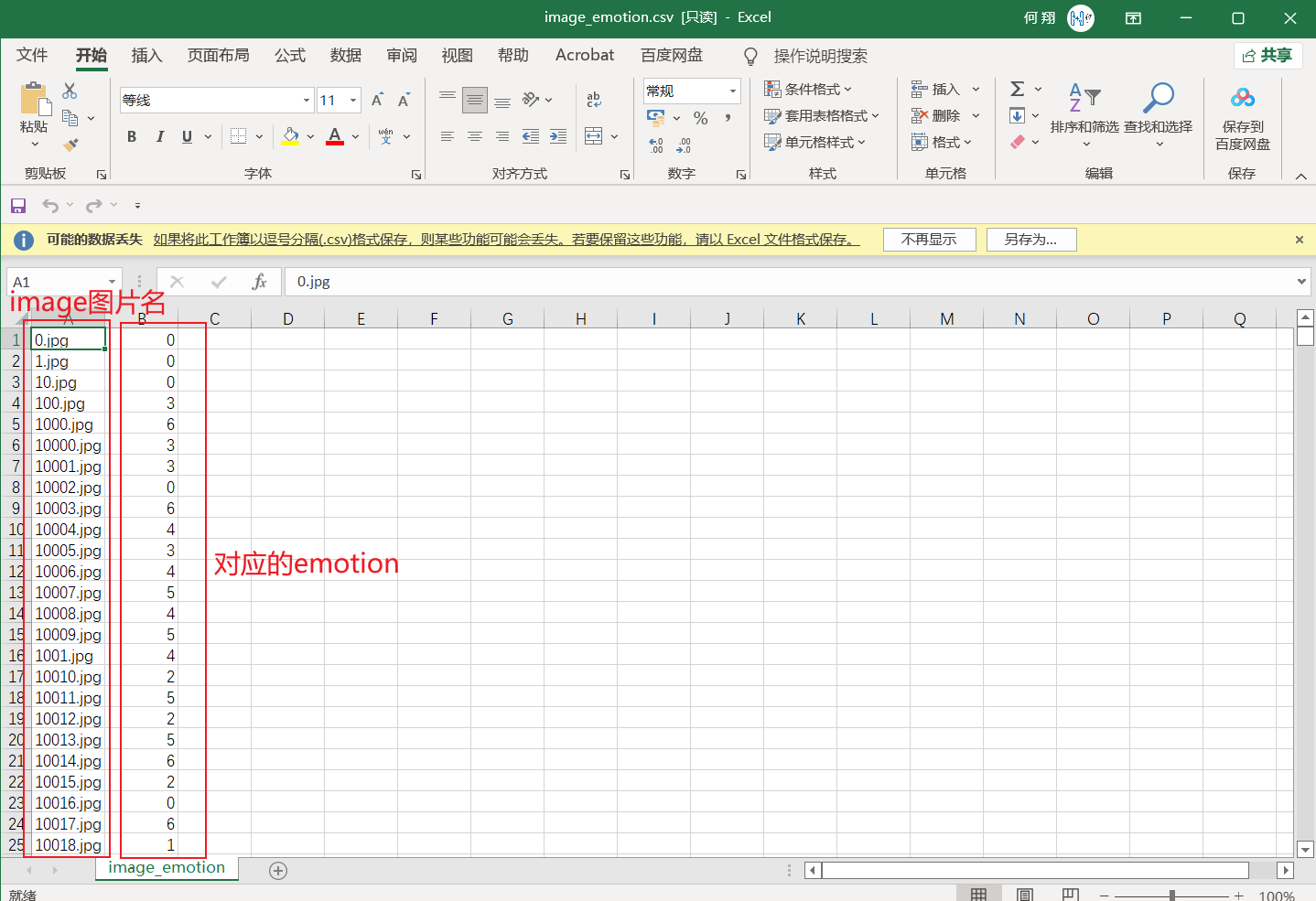

    # 将两个列表写进image_emotion.csv文件
    path_s = pd.Series(path_list)
    emotion_s = pd.Series(emotion_list)
    df = pd.DataFrame()
    df['path'] = path_s
    df['emotion'] = emotion_s
    df.to_csv(path+'\\image_emotion.csv', index=False, header=False)


def main():
    # 指定文件夹路径
    train_set_path = 'face_images/train_set'
    verify_set_path = 'face_images/verify_set'
    image_emotion_mapping(train_set_path)
    image_emotion_mapping(verify_set_path)

if __name__ == "__main__":
    main()

#源码
class Dataset(object):
"""An abstract class representing a Dataset.
All other datasets should subclass it. All subclasses should override
``__len__``, that provides the size of the dataset, and ``__getitem__``,
supporting integer indexing in range from 0 to len(self) exclusive.
"""

#这个函数就是根据索引，迭代的读取路径和标签。因此我们需要有一个路径和标签的 ‘容器’供我们读
def __getitem__(self, index):
	raise NotImplementedError

#返回数据的长度
def __len__(self):
	raise NotImplementedError
def __add__(self, other):
	return ConcatDataset([self, other])

import torch
from torch.utils import data
import numpy as np
import pandas as pd
import cv2

# 我们通过继承Dataset类来创建我们自己的数据加载类，命名为FaceDataset
class FaceDataset(data.Dataset):
    '''
    首先要做的是类的初始化。之前的image-emotion对照表已经创建完毕，
    在加载数据时需用到其中的信息。因此在初始化过程中，我们需要完成对image-emotion对照表中数据的读取工作。
    通过pandas库读取数据，随后将读取到的数据放入list或numpy中，方便后期索引。
    '''
    # 初始化
    def __init__(self, root):
        super(FaceDataset, self).__init__()
        self.root = root
        df_path = pd.read_csv(root + '\\image_emotion.csv', header=None, usecols=[0])
        df_label = pd.read_csv(root + '\\image_emotion.csv', header=None, usecols=[1])
        self.path = np.array(df_path)[:, 0]
        self.label = np.array(df_label)[:, 0]

    '''
    接着就要重写getitem()函数了，该函数的功能是加载数据。
    在前面的初始化部分，我们已经获取了所有图片的地址，在这个函数中，我们就要通过地址来读取数据。
    由于是读取图片数据，因此仍然借助opencv库。
    需要注意的是，之前可视化数据部分将像素值恢复为人脸图片并保存，得到的是3通道的灰色图（每个通道都完全一样），
    而在这里我们只需要用到单通道，因此在图片读取过程中，即使原图本来就是灰色的，但我们还是要加入参数从cv2.COLOR_BGR2GARY，
    保证读出来的数据是单通道的。读取出来之后，可以考虑进行一些基本的图像处理操作，如通过高斯模糊降噪、通过直方图均衡化来增强图像等。
    读出的数据是48X48的，而后续卷积神经网络中nn.Conv2d() API所接受的数据格式是(batch_size, channel, width, higth)，
    本次图片通道为1，因此我们要将48X48 reshape为1X48X48。
    '''

    # 读取某幅图片，item为索引号
    def __getitem__(self, item):
        face = cv2.imread(self.root + '\\' + self.path[item])
        # 读取单通道灰度图
        face_gray = cv2.cvtColor(face, cv2.COLOR_BGR2GRAY)
        # 高斯模糊
        # face_Gus = cv2.GaussianBlur(face_gray, (3,3), 0)
        # 直方图均衡化
        face_hist = cv2.equalizeHist(face_gray)
        # 像素值标准化
        face_normalized = face_hist.reshape(1, 48, 48) / 255.0 # 为与pytorch中卷积神经网络API的设计相适配，需reshape原图
        # 用于训练的数据需为tensor类型
        face_tensor = torch.from_numpy(face_normalized) # 将python中的numpy数据类型转化为pytorch中的tensor数据类型
        face_tensor = face_tensor.type('torch.FloatTensor') # 指定为'torch.FloatTensor'型，否则送进模型后会因数据类型不匹配而报错
        label = self.label[item]
        return face_tensor, label


    '''
    最后就是重写len()函数获取数据集大小了。
    self.path中存储着所有的图片名，获取self.path第一维的大小，即为数据集的大小。
    '''
    # 获取数据集样本个数
    def __len__(self):
        return self.path.shape[0]

import torch
import torch.utils.data as data
import torch.nn as nn
import torch.optim as optim
import numpy as np
import pandas as pd
import cv2

# 参数初始化
def gaussian_weights_init(m):
    classname = m.__class__.__name__
    # 字符串查找find，找不到返回-1，不等-1即字符串中含有该字符
    if classname.find('Conv') != -1:
        m.weight.data.normal_(0.0, 0.04)


# 验证模型在验证集上的正确率
def validate(model, dataset, batch_size):
    val_loader = data.DataLoader(dataset, batch_size)
    result, num = 0.0, 0
    for images, labels in val_loader:
        pred = model.forward(images)
        pred = np.argmax(pred.data.numpy(), axis=1)
        labels = labels.data.numpy()
        result += np.sum((pred == labels))
        num += len(images)
    acc = result / num
    return acc

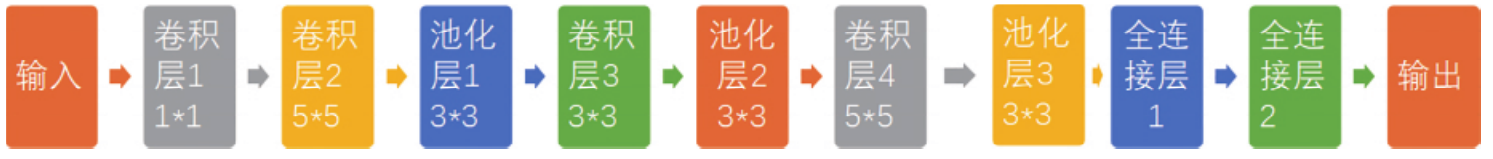

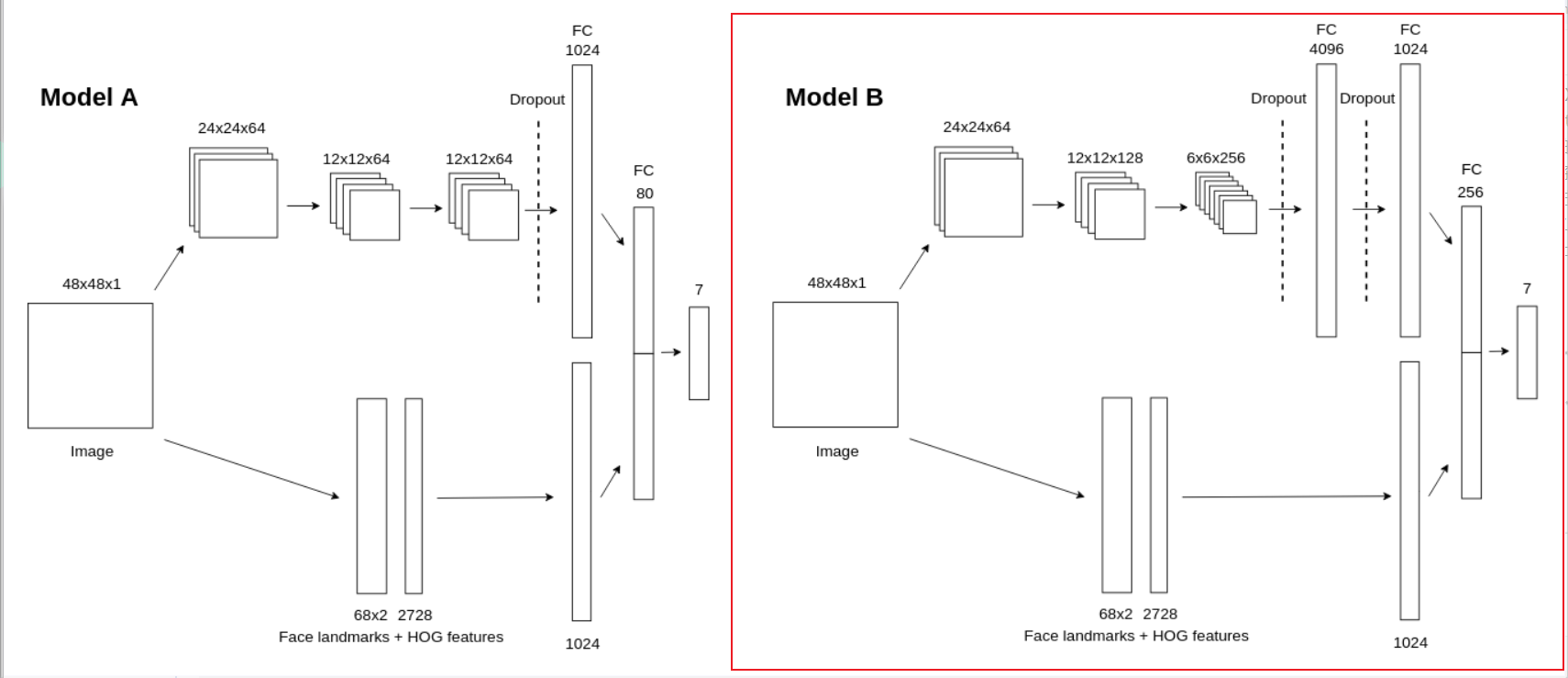

class FaceCNN(nn.Module):
    # 初始化网络结构
    def __init__(self):
        super(FaceCNN, self).__init__()

        # 第一次卷积、池化
        self.conv1 = nn.Sequential(
            # 输入通道数in_channels，输出通道数(即卷积核的通道数)out_channels，卷积核大小kernel_size，步长stride，对称填0行列数padding
            # input:(bitch_size, 1, 48, 48), output:(bitch_size, 64, 48, 48), (48-3+2*1)/1+1 = 48
            nn.Conv2d(in_channels=1, out_channels=64, kernel_size=3, stride=1, padding=1), # 卷积层
            nn.BatchNorm2d(num_features=64), # 归一化
            nn.RReLU(inplace=True), # 激活函数
            # output(bitch_size, 64, 24, 24)
            nn.MaxPool2d(kernel_size=2, stride=2), # 最大值池化
        )

        # 第二次卷积、池化
        self.conv2 = nn.Sequential(
            # input:(bitch_size, 64, 24, 24), output:(bitch_size, 128, 24, 24), (24-3+2*1)/1+1 = 24
            nn.Conv2d(in_channels=64, out_channels=128, kernel_size=3, stride=1, padding=1),
            nn.BatchNorm2d(num_features=128),
            nn.RReLU(inplace=True),
            # output:(bitch_size, 128, 12 ,12)
            nn.MaxPool2d(kernel_size=2, stride=2),
        )

        # 第三次卷积、池化
        self.conv3 = nn.Sequential(
            # input:(bitch_size, 128, 12, 12), output:(bitch_size, 256, 12, 12), (12-3+2*1)/1+1 = 12
            nn.Conv2d(in_channels=128, out_channels=256, kernel_size=3, stride=1, padding=1),
            nn.BatchNorm2d(num_features=256),
            nn.RReLU(inplace=True),
            # output:(bitch_size, 256, 6 ,6)
            nn.MaxPool2d(kernel_size=2, stride=2),
        )

        # 参数初始化
        self.conv1.apply(gaussian_weights_init)
        self.conv2.apply(gaussian_weights_init)
        self.conv3.apply(gaussian_weights_init)

        # 全连接层
        self.fc = nn.Sequential(
            nn.Dropout(p=0.2),
            nn.Linear(in_features=256*6*6, out_features=4096),
            nn.RReLU(inplace=True),
            nn.Dropout(p=0.5),
            nn.Linear(in_features=4096, out_features=1024),
            nn.RReLU(inplace=True),
            nn.Linear(in_features=1024, out_features=256),
            nn.RReLU(inplace=True),
            nn.Linear(in_features=256, out_features=7),
        )

    # 前向传播
    def forward(self, x):
        x = self.conv1(x)
        x = self.conv2(x)
        x = self.conv3(x)
        # 数据扁平化
        x = x.view(x.shape[0], -1)
        y = self.fc(x)
        return y

def train(train_dataset, val_dataset, batch_size, epochs, learning_rate, wt_decay):
    # 载入数据并分割batch
    train_loader = data.DataLoader(train_dataset, batch_size)
    # 构建模型
    model = FaceCNN()
    # 损失函数
    loss_function = nn.CrossEntropyLoss()
    # 优化器
    optimizer = optim.SGD(model.parameters(), lr=learning_rate, weight_decay=wt_decay)
    # 学习率衰减
    # scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=10, gamma=0.8)
    # 逐轮训练
    for epoch in range(epochs):
        # 记录损失值
        loss_rate = 0
        # scheduler.step() # 学习率衰减
        model.train() # 模型训练
        for images, emotion in train_loader:
            # 梯度清零
            optimizer.zero_grad()
            # 前向传播
            output = model.forward(images)
            # 误差计算
            loss_rate = loss_function(output, emotion)
            # 误差的反向传播
            loss_rate.backward()
            # 更新参数
            optimizer.step()

        # 打印每轮的损失

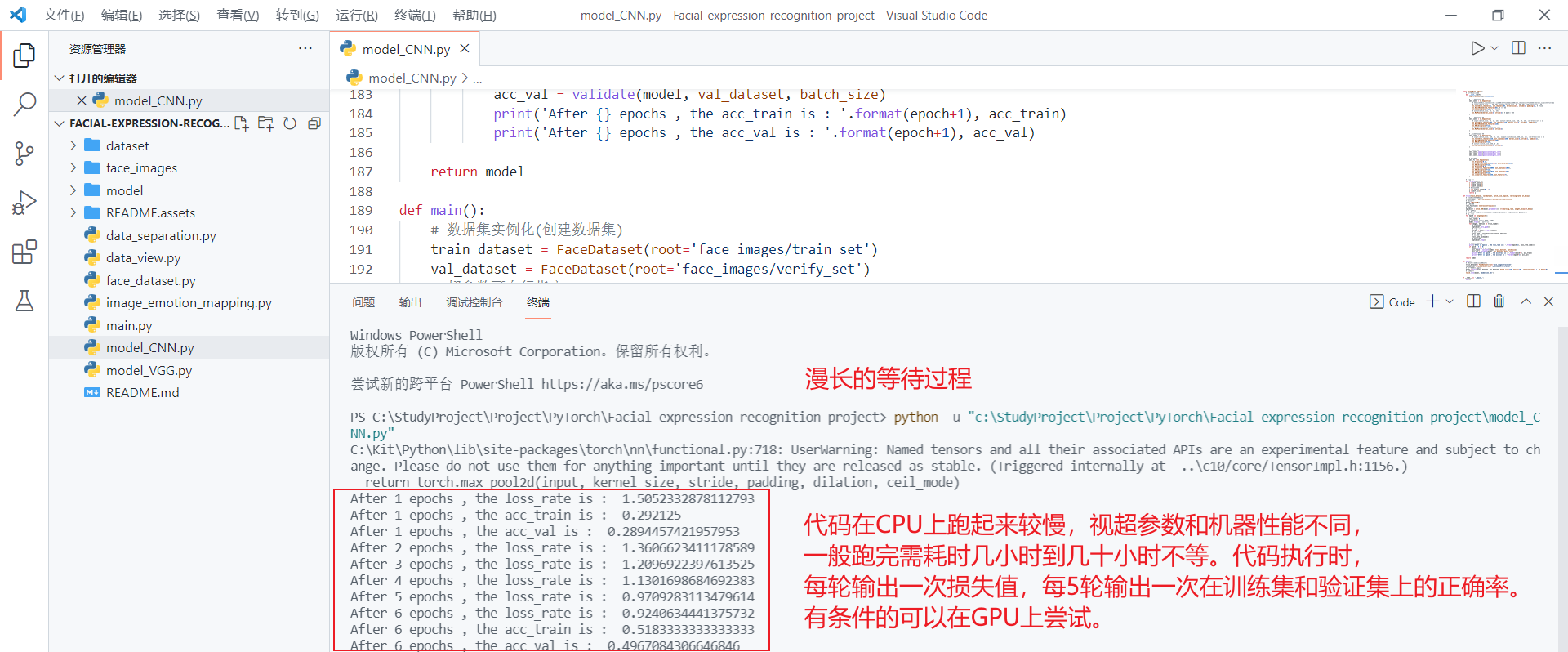

        print('After {} epochs , the loss_rate is : '.format(epoch+1), loss_rate.item())
        if epoch % 5 == 0:
            model.eval() # 模型评估
            acc_train = validate(model, train_dataset, batch_size)
            acc_val = validate(model, val_dataset, batch_size)
            print('After {} epochs , the acc_train is : '.format(epoch+1), acc_train)
            print('After {} epochs , the acc_val is : '.format(epoch+1), acc_val)

    return model

import torch
import torch.utils.data as data
import torch.nn as nn
import torch.optim as optim
import numpy as np
import pandas as pd
import cv2

# 参数初始化
def gaussian_weights_init(m):
    classname = m.__class__.__name__
    # 字符串查找find，找不到返回-1，不等-1即字符串中含有该字符
    if classname.find('Conv') != -1:
        m.weight.data.normal_(0.0, 0.04)


# 验证模型在验证集上的正确率
def validate(model, dataset, batch_size):
    val_loader = data.DataLoader(dataset, batch_size)
    result, num = 0.0, 0
    for images, labels in val_loader:
        pred = model.forward(images)
        pred = np.argmax(pred.data.numpy(), axis=1)
        labels = labels.data.numpy()
        result += np.sum((pred == labels))
        num += len(images)
    acc = result / num
    return acc

# 我们通过继承Dataset类来创建我们自己的数据加载类，命名为FaceDataset
class FaceDataset(data.Dataset):
    '''
    首先要做的是类的初始化。之前的image-emotion对照表已经创建完毕，
    在加载数据时需用到其中的信息。因此在初始化过程中，我们需要完成对image-emotion对照表中数据的读取工作。
    通过pandas库读取数据，随后将读取到的数据放入list或numpy中，方便后期索引。
    '''
    # 初始化
    def __init__(self, root):
        super(FaceDataset, self).__init__()
        self.root = root
        df_path = pd.read_csv(root + '\\image_emotion.csv', header=None, usecols=[0])
        df_label = pd.read_csv(root + '\\image_emotion.csv', header=None, usecols=[1])
        self.path = np.array(df_path)[:, 0]
        self.label = np.array(df_label)[:, 0]

    '''
    接着就要重写getitem()函数了，该函数的功能是加载数据。
    在前面的初始化部分，我们已经获取了所有图片的地址，在这个函数中，我们就要通过地址来读取数据。
    由于是读取图片数据，因此仍然借助opencv库。
    需要注意的是，之前可视化数据部分将像素值恢复为人脸图片并保存，得到的是3通道的灰色图（每个通道都完全一样），
    而在这里我们只需要用到单通道，因此在图片读取过程中，即使原图本来就是灰色的，但我们还是要加入参数从cv2.COLOR_BGR2GARY，
    保证读出来的数据是单通道的。读取出来之后，可以考虑进行一些基本的图像处理操作，
    如通过高斯模糊降噪、通过直方图均衡化来增强图像等（经试验证明，在本项目中，直方图均衡化并没有什么卵用，而高斯降噪甚至会降低正确率，可能是因为图片分辨率本来就较低，模糊后基本上什么都看不清了吧）。
    读出的数据是48X48的，而后续卷积神经网络中nn.Conv2d() API所接受的数据格式是(batch_size, channel, width, higth)，本次图片通道为1，因此我们要将48X48 reshape为1X48X48。
    '''

    # 读取某幅图片，item为索引号
    def __getitem__(self, item):
        face = cv2.imread(self.root + '\\' + self.path[item])
        # 读取单通道灰度图
        face_gray = cv2.cvtColor(face, cv2.COLOR_BGR2GRAY)
        # 高斯模糊
        # face_Gus = cv2.GaussianBlur(face_gray, (3,3), 0)
        # 直方图均衡化
        face_hist = cv2.equalizeHist(face_gray)
        # 像素值标准化
        face_normalized = face_hist.reshape(1, 48, 48) / 255.0 # 为与pytorch中卷积神经网络API的设计相适配，需reshape原图
        # 用于训练的数据需为tensor类型
        face_tensor = torch.from_numpy(face_normalized) # 将python中的numpy数据类型转化为pytorch中的tensor数据类型
        face_tensor = face_tensor.type('torch.FloatTensor') # 指定为'torch.FloatTensor'型，否则送进模型后会因数据类型不匹配而报错
        label = self.label[item]
        return face_tensor, label

    '''
    最后就是重写len()函数获取数据集大小了。
    self.path中存储着所有的图片名，获取self.path第一维的大小，即为数据集的大小。
    '''
    # 获取数据集样本个数
    def __len__(self):
        return self.path.shape[0]



class FaceCNN(nn.Module):
    # 初始化网络结构
    def __init__(self):
        super(FaceCNN, self).__init__()

        # 第一次卷积、池化
        self.conv1 = nn.Sequential(
            # 输入通道数in_channels，输出通道数(即卷积核的通道数)out_channels，卷积核大小kernel_size，步长stride，对称填0行列数padding
            # input:(bitch_size, 1, 48, 48), output:(bitch_size, 64, 48, 48), (48-3+2*1)/1+1 = 48
            nn.Conv2d(in_channels=1, out_channels=64, kernel_size=3, stride=1, padding=1), # 卷积层
            nn.BatchNorm2d(num_features=64), # 归一化
            nn.RReLU(inplace=True), # 激活函数
            # output(bitch_size, 64, 24, 24)
            nn.MaxPool2d(kernel_size=2, stride=2), # 最大值池化
        )

        # 第二次卷积、池化
        self.conv2 = nn.Sequential(
            # input:(bitch_size, 64, 24, 24), output:(bitch_size, 128, 24, 24), (24-3+2*1)/1+1 = 24
            nn.Conv2d(in_channels=64, out_channels=128, kernel_size=3, stride=1, padding=1),
            nn.BatchNorm2d(num_features=128),
            nn.RReLU(inplace=True),
            # output:(bitch_size, 128, 12 ,12)
            nn.MaxPool2d(kernel_size=2, stride=2),
        )

        # 第三次卷积、池化
        self.conv3 = nn.Sequential(
            # input:(bitch_size, 128, 12, 12), output:(bitch_size, 256, 12, 12), (12-3+2*1)/1+1 = 12
            nn.Conv2d(in_channels=128, out_channels=256, kernel_size=3, stride=1, padding=1),
            nn.BatchNorm2d(num_features=256),
            nn.RReLU(inplace=True),
            # output:(bitch_size, 256, 6 ,6)
            nn.MaxPool2d(kernel_size=2, stride=2),
        )

        # 参数初始化
        self.conv1.apply(gaussian_weights_init)
        self.conv2.apply(gaussian_weights_init)
        self.conv3.apply(gaussian_weights_init)

        # 全连接层
        self.fc = nn.Sequential(
            nn.Dropout(p=0.2),
            nn.Linear(in_features=256*6*6, out_features=4096),
            nn.RReLU(inplace=True),
            nn.Dropout(p=0.5),
            nn.Linear(in_features=4096, out_features=1024),
            nn.RReLU(inplace=True),
            nn.Linear(in_features=1024, out_features=256),
            nn.RReLU(inplace=True),
            nn.Linear(in_features=256, out_features=7),
        )

    # 前向传播
    def forward(self, x):
        x = self.conv1(x)
        x = self.conv2(x)
        x = self.conv3(x)
        # 数据扁平化
        x = x.view(x.shape[0], -1)
        y = self.fc(x)
        return y

def train(train_dataset, val_dataset, batch_size, epochs, learning_rate, wt_decay):
    # 载入数据并分割batch
    train_loader = data.DataLoader(train_dataset, batch_size)
    # 构建模型
    model = FaceCNN()
    # 损失函数
    loss_function = nn.CrossEntropyLoss()
    # 优化器
    optimizer = optim.SGD(model.parameters(), lr=learning_rate, weight_decay=wt_decay)
    # 学习率衰减
    # scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=10, gamma=0.8)
    # 逐轮训练
    for epoch in range(epochs):
        # 记录损失值
        loss_rate = 0
        # scheduler.step() # 学习率衰减
        model.train() # 模型训练
        for images, emotion in train_loader:
            # 梯度清零
            optimizer.zero_grad()
            # 前向传播
            output = model.forward(images)
            # 误差计算
            loss_rate = loss_function(output, emotion)
            # 误差的反向传播
            loss_rate.backward()
            # 更新参数
            optimizer.step()

        # 打印每轮的损失
        print('After {} epochs , the loss_rate is : '.format(epoch+1), loss_rate.item())
        if epoch % 5 == 0:
            model.eval() # 模型评估
            acc_train = validate(model, train_dataset, batch_size)
            acc_val = validate(model, val_dataset, batch_size)
            print('After {} epochs , the acc_train is : '.format(epoch+1), acc_train)
            print('After {} epochs , the acc_val is : '.format(epoch+1), acc_val)

    return model

def main():
    # 数据集实例化(创建数据集)
    train_dataset = FaceDataset(root='face_images/train_set')
    val_dataset = FaceDataset(root='face_images/verify_set')
    # 超参数可自行指定
    model = train(train_dataset, val_dataset, batch_size=128, epochs=100, learning_rate=0.1, wt_decay=0)

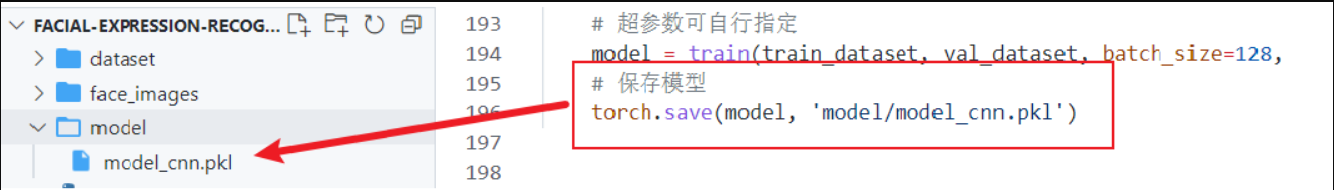

    # 保存模型
    torch.save(model, 'model/model_cnn.pkl')


if __name__ == '__main__':
    main()

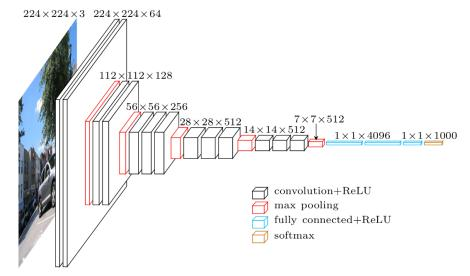

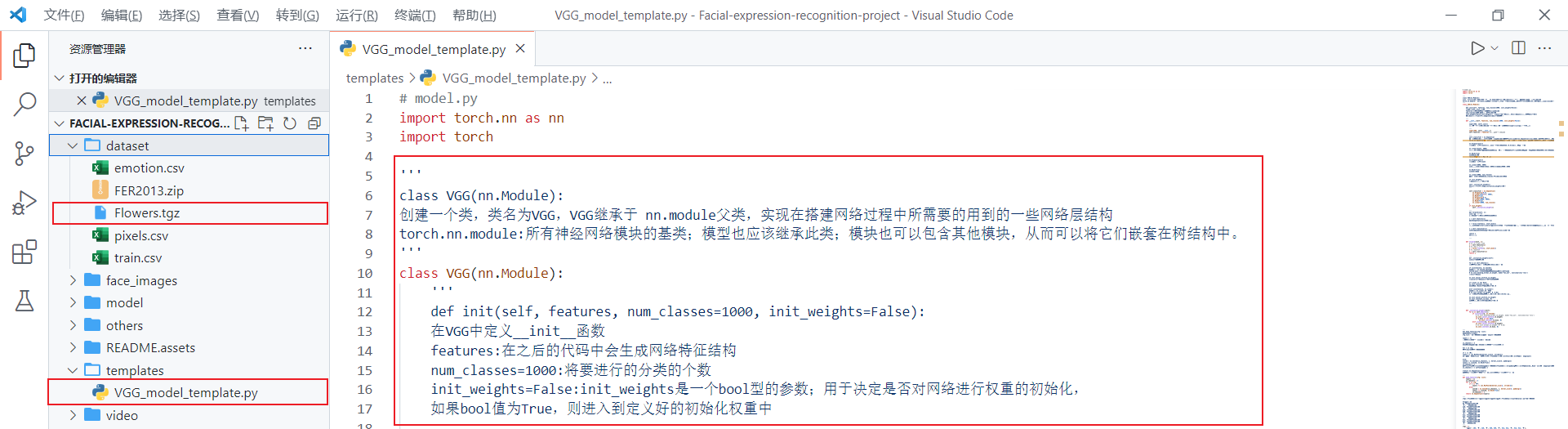

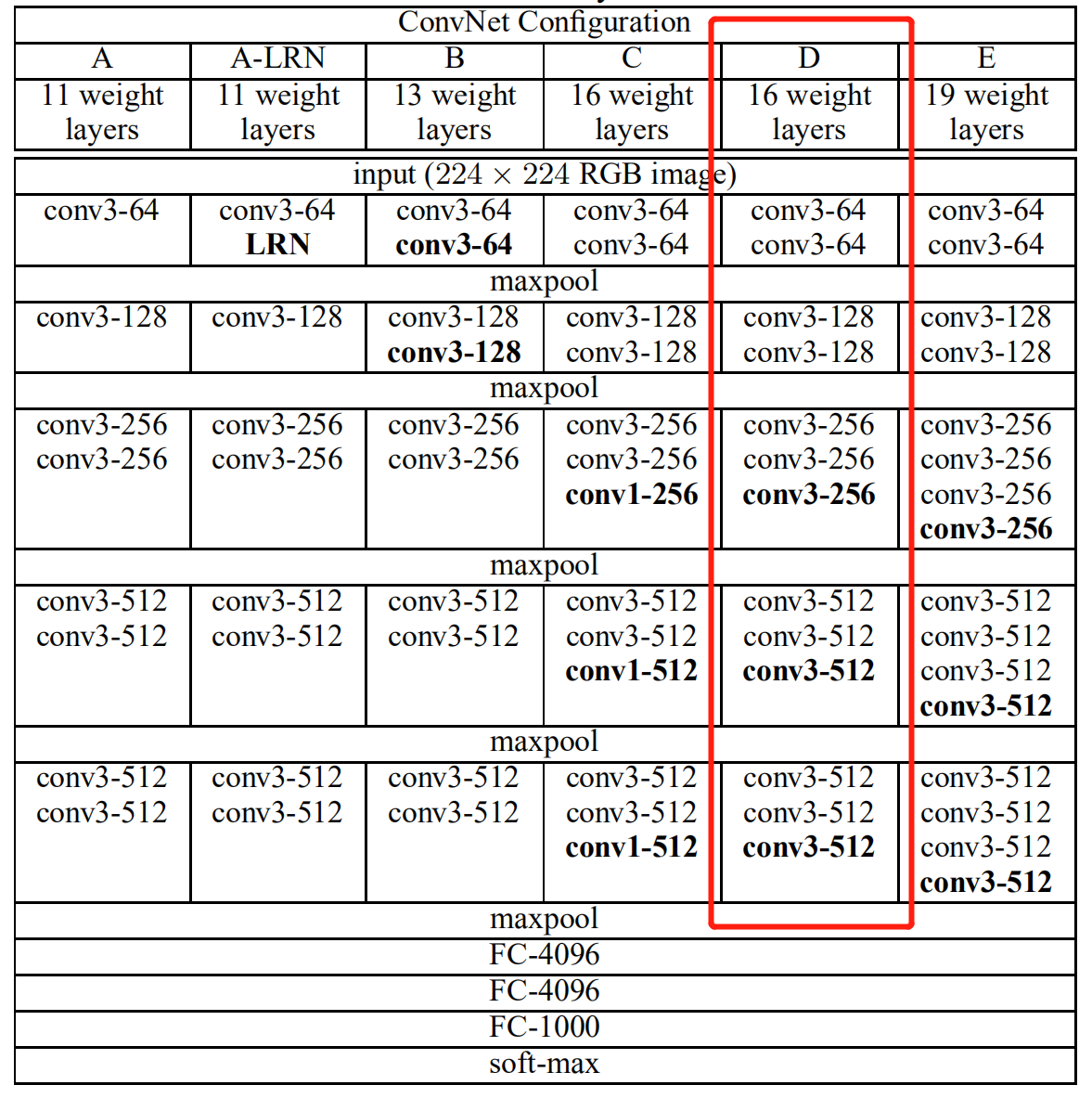

class VGG(nn.Module):
    def __init__(self, *args):
        super(VGG, self).__init__()

    def forward(self, x):
        return x.view(x.shape[0],-1)


def vgg_block(num_convs, in_channels, out_channels):
    blk = []
    for i in range(num_convs):
        if i == 0:
            blk.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1))
        else:
            blk.append(nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1))
        blk.append(nn.ReLU())
    blk.append(nn.MaxPool2d(kernel_size=2, stride=2)) # 这里会使宽高减半
    return nn.Sequential(*blk)


conv_arch = ((2, 1, 32), (3, 32, 64), (3, 64, 128))
# 经过5个vgg_block, 宽高会减半5次, 变成 224/32 = 7
fc_features = 128 * 6* 6 # c * w * h
fc_hidden_units = 4096 # 任意

def vgg(conv_arch, fc_features, fc_hidden_units):
    net = nn.Sequential()
    # 卷积层部分
    for i, (num_convs, in_channels, out_channels) in enumerate(conv_arch):
        # 每经过一个vgg_block都会使宽高减半
        net.add_module("vgg_block_" + str(i+1), vgg_block(num_convs, in_channels, out_channels))
    # 全连接层部分
    net.add_module("fc", nn.Sequential(
                                 VGG(),
                                 nn.Linear(fc_features, fc_hidden_units),
                                 nn.ReLU(),
                                 nn.Dropout(0.5),
                                 nn.Linear(fc_hidden_units, fc_hidden_units),
                                 nn.ReLU(),
                                 nn.Dropout(0.5),
                                 nn.Linear(fc_hidden_units, 7)
                                ))
    return net

train_loss = []
train_ac = []
vaild_loss = []
vaild_ac = []
y_pred = []

def train(model,device,dataset,optimizer,epoch):
    model.train()
    correct = 0
    for i,(x,y) in tqdm(enumerate(dataset)):
        x , y  = x.to(device), y.to(device)
        optimizer.zero_grad()
        output = model(x)
        pred = output.max(1,keepdim=True)[1]
        correct += pred.eq(y.view_as(pred)).sum().item()
        loss = criterion(output,y)
        loss.backward()
        optimizer.step()

    train_ac.append(correct/len(data_train))
    train_loss.append(loss.item())
    print("Epoch {} Loss {:.4f} Accuracy {}/{} ({:.0f}%)".format(epoch,loss,correct,len(data_train),100*correct/len(data_train)))

def vaild(model,device,dataset):
    model.eval()
    correct = 0
    with torch.no_grad():
        for i,(x,y) in tqdm(enumerate(dataset)):
            x,y = x.to(device) ,y.to(device)
            output = model(x)
            loss = criterion(output,y)
            pred = output.max(1,keepdim=True)[1]
            global  y_pred
            y_pred += pred.view(pred.size()[0]).cpu().numpy().tolist()
            correct += pred.eq(y.view_as(pred)).sum().item()

    vaild_ac.append(correct/len(data_vaild))
    vaild_loss.append(loss.item())
    print("Test Loss {:.4f} Accuracy {}/{} ({:.0f}%)".format(loss,correct,len(data_vaild),100.*correct/len(data_vaild)))

import torch
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
import torchvision
import torchvision.transforms as transforms
from tqdm import tqdm


BATCH_SIZE = 128
LR = 0.01
EPOCH = 60
DEVICE = torch.device('cpu')

path_train = 'face_images/vgg_train_set'
path_vaild = 'face_images/vgg_vaild_set'

transforms_train = transforms.Compose([
    transforms.Grayscale(),#使用ImageFolder默认扩展为三通道，重新变回去就行
    transforms.RandomHorizontalFlip(),#随机翻转
    transforms.ColorJitter(brightness=0.5, contrast=0.5),#随机调整亮度和对比度
    transforms.ToTensor()
])
transforms_vaild = transforms.Compose([
    transforms.Grayscale(),
    transforms.ToTensor()
])

data_train = torchvision.datasets.ImageFolder(root=path_train,transform=transforms_train)
data_vaild = torchvision.datasets.ImageFolder(root=path_vaild,transform=transforms_vaild)

train_set = torch.utils.data.DataLoader(dataset=data_train,batch_size=BATCH_SIZE,shuffle=True)
vaild_set = torch.utils.data.DataLoader(dataset=data_vaild,batch_size=BATCH_SIZE,shuffle=False)


class VGG(nn.Module):
    def __init__(self, *args):
        super(VGG, self).__init__()

    def forward(self, x):
        return x.view(x.shape[0],-1)


def vgg_block(num_convs, in_channels, out_channels):
    blk = []
    for i in range(num_convs):
        if i == 0:
            blk.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1))
        else:
            blk.append(nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1))
        blk.append(nn.ReLU())
    blk.append(nn.MaxPool2d(kernel_size=2, stride=2)) # 这里会使宽高减半
    return nn.Sequential(*blk)


conv_arch = ((2, 1, 32), (3, 32, 64), (3, 64, 128))
# 经过5个vgg_block, 宽高会减半5次, 变成 224/32 = 7
fc_features = 128 * 6* 6 # c * w * h
fc_hidden_units = 4096 # 任意

def vgg(conv_arch, fc_features, fc_hidden_units):
    net = nn.Sequential()
    # 卷积层部分
    for i, (num_convs, in_channels, out_channels) in enumerate(conv_arch):
        # 每经过一个vgg_block都会使宽高减半
        net.add_module("vgg_block_" + str(i+1), vgg_block(num_convs, in_channels, out_channels))
    # 全连接层部分
    net.add_module("fc", nn.Sequential(
                                 VGG(),
                                 nn.Linear(fc_features, fc_hidden_units),
                                 nn.ReLU(),
                                 nn.Dropout(0.5),
                                 nn.Linear(fc_hidden_units, fc_hidden_units),
                                 nn.ReLU(),
                                 nn.Dropout(0.5),
                                 nn.Linear(fc_hidden_units, 7)
                                ))
    return net

model = vgg(conv_arch, fc_features, fc_hidden_units)
model.to(DEVICE)
optimizer = optim.SGD(model.parameters(),lr=LR,momentum=0.9)
            #optim.Adam(model.parameters())
criterion = nn.CrossEntropyLoss()

train_loss = []
train_ac = []
vaild_loss = []
vaild_ac = []
y_pred = []

def train(model,device,dataset,optimizer,epoch):
    model.train()
    correct = 0
    for i,(x,y) in tqdm(enumerate(dataset)):
        x , y  = x.to(device), y.to(device)
        optimizer.zero_grad()
        output = model(x)
        pred = output.max(1,keepdim=True)[1]
        correct += pred.eq(y.view_as(pred)).sum().item()
        loss = criterion(output,y)
        loss.backward()
        optimizer.step()

    train_ac.append(correct/len(data_train))
    train_loss.append(loss.item())
    print("Epoch {} Loss {:.4f} Accuracy {}/{} ({:.0f}%)".format(epoch,loss,correct,len(data_train),100*correct/len(data_train)))

def vaild(model,device,dataset):
    model.eval()
    correct = 0
    with torch.no_grad():
        for i,(x,y) in tqdm(enumerate(dataset)):
            x,y = x.to(device) ,y.to(device)
            output = model(x)
            loss = criterion(output,y)
            pred = output.max(1,keepdim=True)[1]
            global  y_pred
            y_pred += pred.view(pred.size()[0]).cpu().numpy().tolist()
            correct += pred.eq(y.view_as(pred)).sum().item()

    vaild_ac.append(correct/len(data_vaild))
    vaild_loss.append(loss.item())
    print("Test Loss {:.4f} Accuracy {}/{} ({:.0f}%)".format(loss,correct,len(data_vaild),100.*correct/len(data_vaild)))

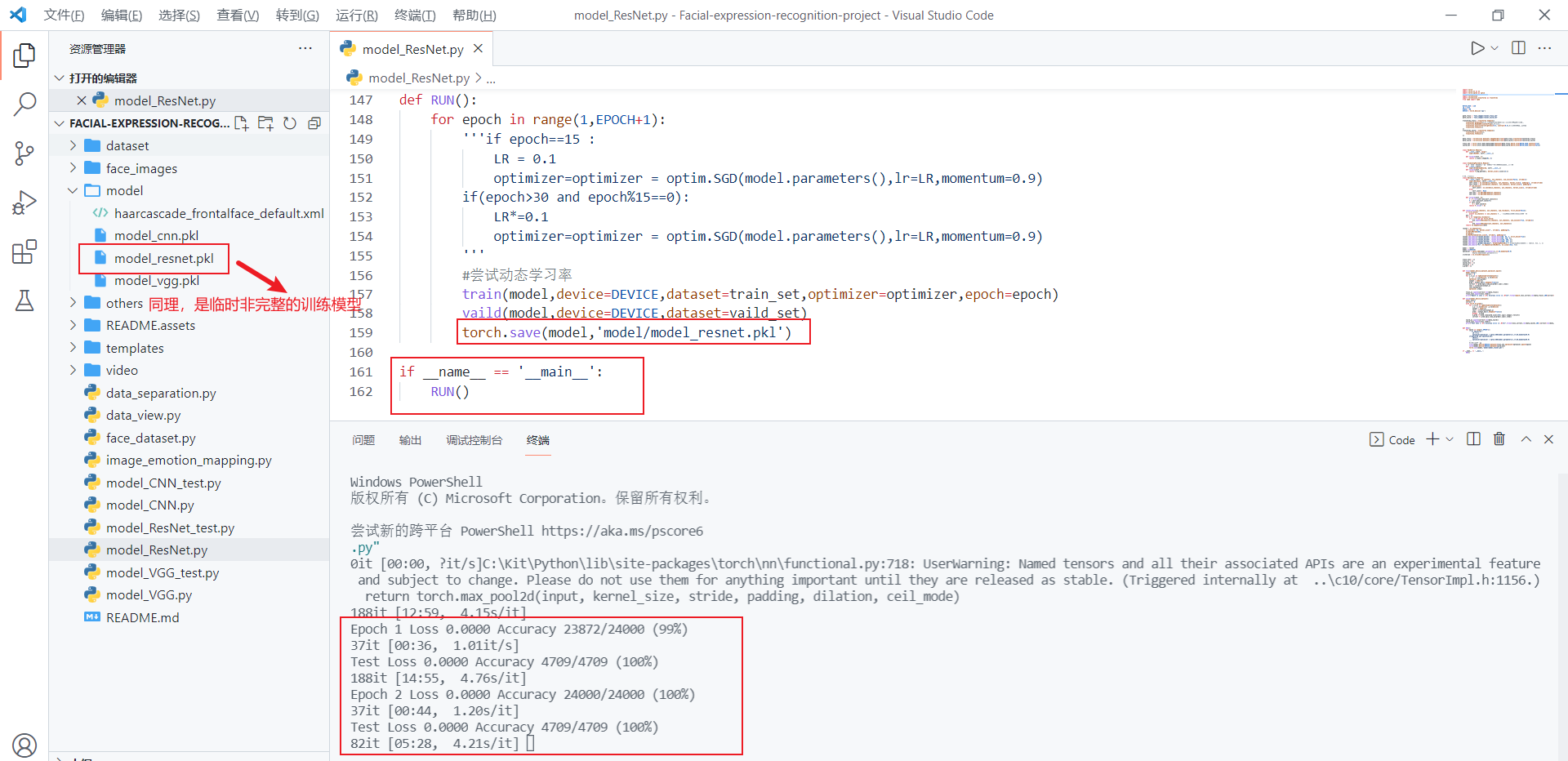

def RUN():
    for epoch in range(1,EPOCH+1):
        '''if epoch==15 :
            LR = 0.1
            optimizer=optimizer = optim.SGD(model.parameters(),lr=LR,momentum=0.9)
        if(epoch>30 and epoch%15==0):
            LR*=0.1
            optimizer=optimizer = optim.SGD(model.parameters(),lr=LR,momentum=0.9)
        '''
        #尝试动态学习率
        train(model,device=DEVICE,dataset=train_set,optimizer=optimizer,epoch=epoch)
        vaild(model,device=DEVICE,dataset=vaild_set)

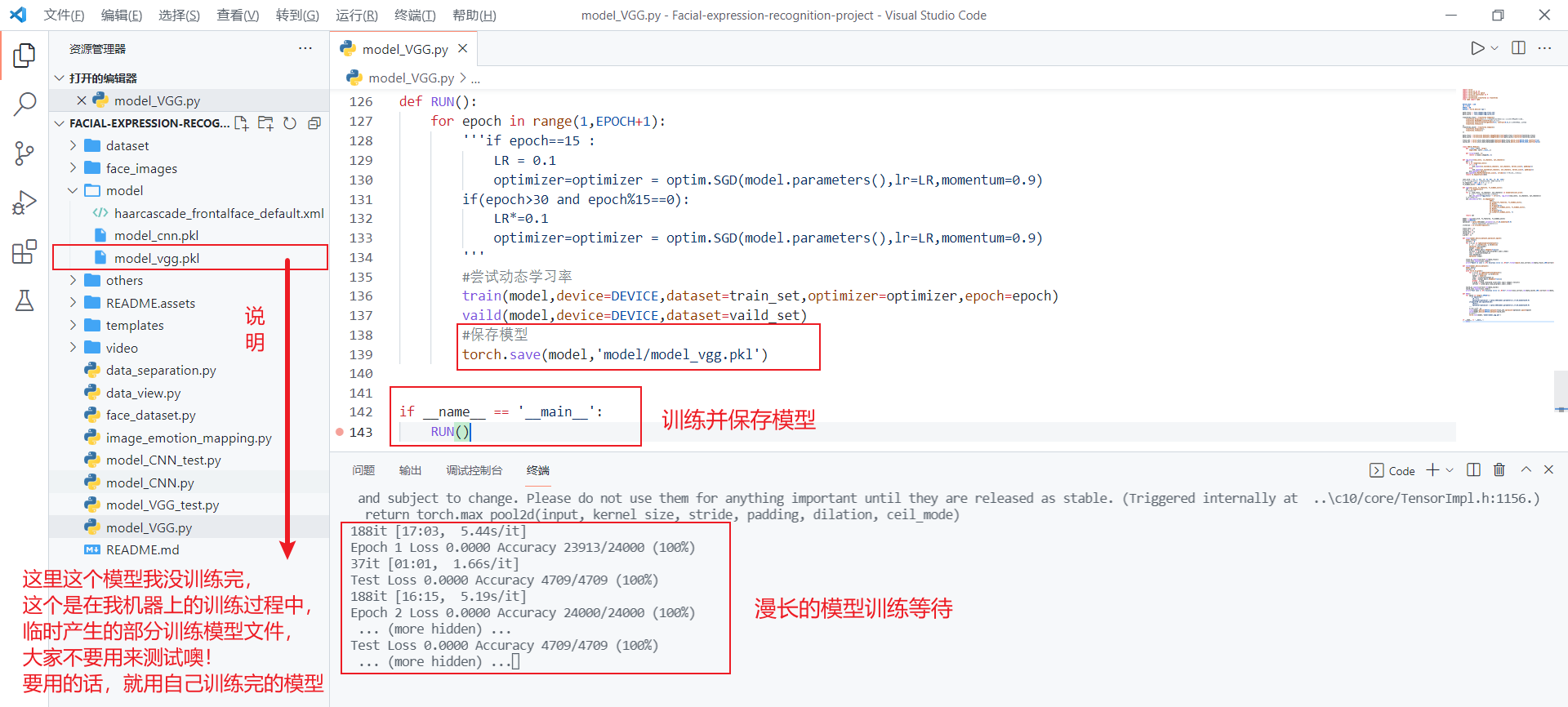

        #保存模型
        torch.save(model,'model/model_vgg.pkl')


if __name__ == '__main__':
    RUN()

# -*- coding: utf-8 -*-
import cv2
import torch
import torch.nn as nn
import numpy as np
from statistics import mode


# 人脸数据归一化,将像素值从0-255映射到0-1之间
def preprocess_input(images):
    """ preprocess input by substracting the train mean
    # Arguments: images or image of any shape
    # Returns: images or image with substracted train mean (129)
    """
    images = images/255.0
    return images



class VGG(nn.Module):
    def __init__(self, *args):
        super(VGG, self).__init__()

    def forward(self, x):
        return x.view(x.shape[0],-1)


def vgg_block(num_convs, in_channels, out_channels):
    blk = []
    for i in range(num_convs):
        if i == 0:
            blk.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1))
        else:
            blk.append(nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1))
        blk.append(nn.ReLU())
    blk.append(nn.MaxPool2d(kernel_size=2, stride=2)) # 这里会使宽高减半
    return nn.Sequential(*blk)


conv_arch = ((2, 1, 32), (3, 32, 64), (3, 64, 128))
# 经过5个vgg_block, 宽高会减半5次, 变成 224/32 = 7
fc_features = 128 * 6* 6 # c * w * h
fc_hidden_units = 4096 # 任意

def vgg(conv_arch, fc_features, fc_hidden_units):
    net = nn.Sequential()
    # 卷积层部分
    for i, (num_convs, in_channels, out_channels) in enumerate(conv_arch):
        # 每经过一个vgg_block都会使宽高减半
        net.add_module("vgg_block_" + str(i+1), vgg_block(num_convs, in_channels, out_channels))
    # 全连接层部分
    net.add_module("fc", nn.Sequential(
                                 VGG(),
                                 nn.Linear(fc_features, fc_hidden_units),
                                 nn.ReLU(),
                                 nn.Dropout(0.5),
                                 nn.Linear(fc_hidden_units, fc_hidden_units),
                                 nn.ReLU(),
                                 nn.Dropout(0.5),
                                 nn.Linear(fc_hidden_units, 7)
                                ))
    return net

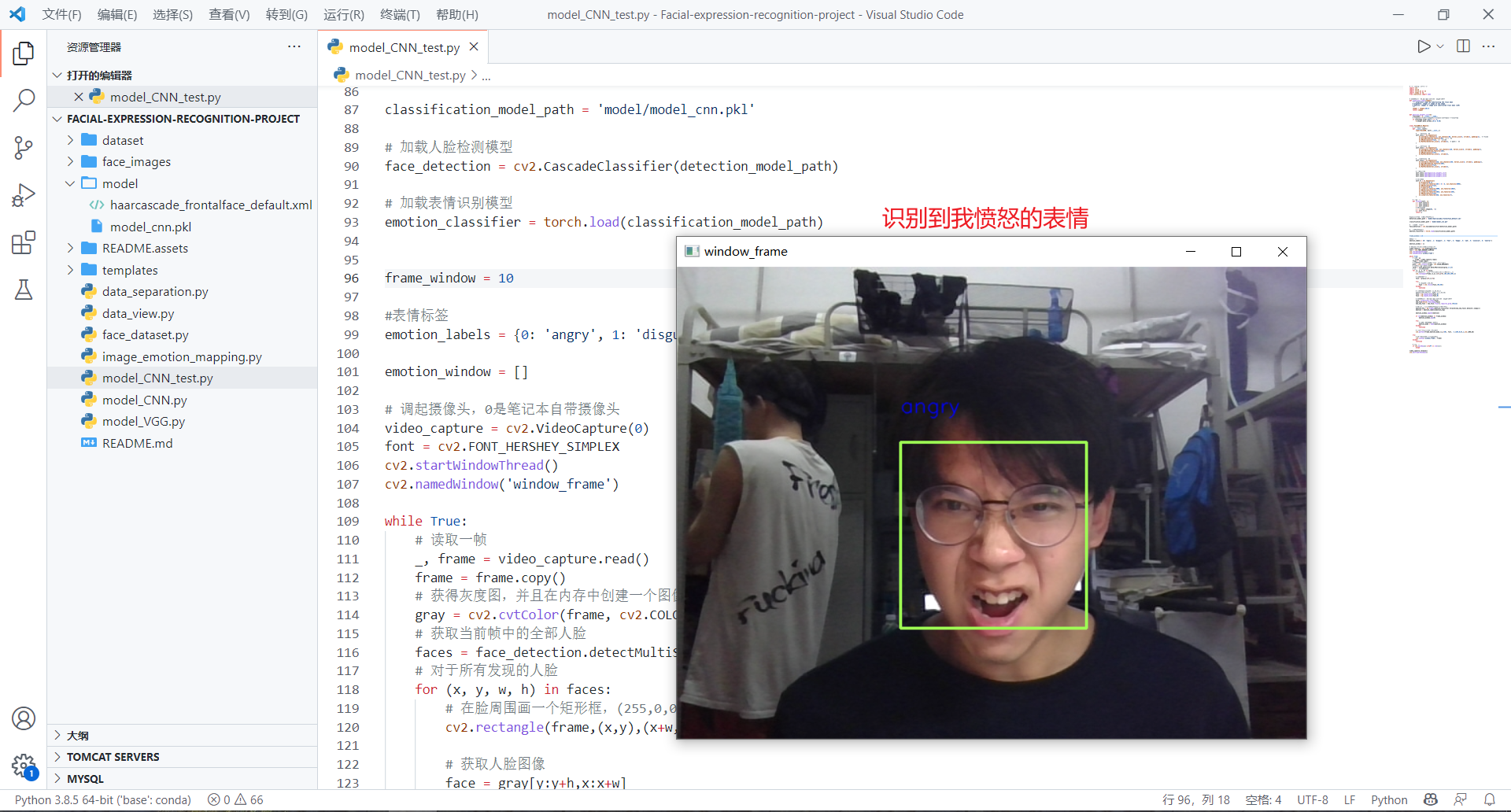

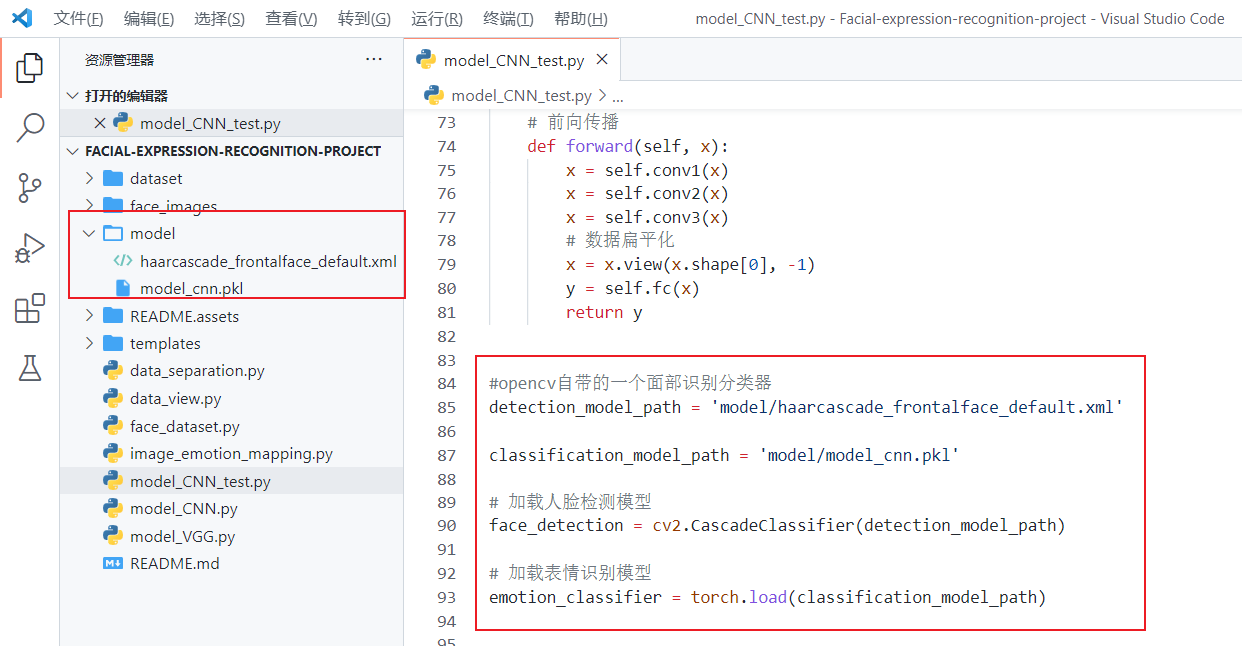

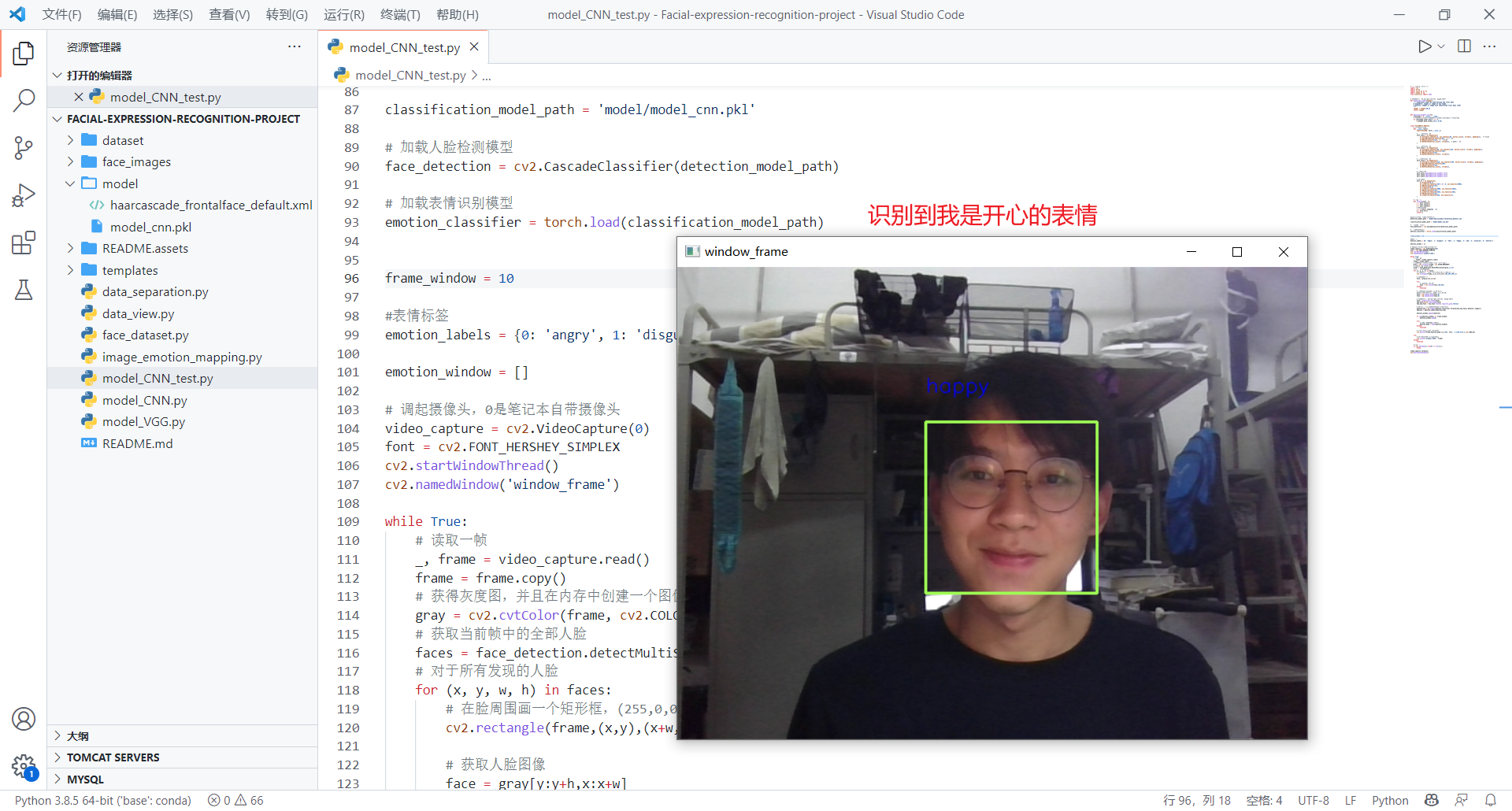

#opencv自带的一个面部识别分类器
detection_model_path = 'model/haarcascade_frontalface_default.xml'

classification_model_path = 'model/model_vgg.pkl'

# 加载人脸检测模型
face_detection = cv2.CascadeClassifier(detection_model_path)

# 加载表情识别模型
emotion_classifier = torch.load(classification_model_path)


frame_window = 10

#表情标签
emotion_labels = {0: 'angry', 1: 'disgust', 2: 'fear', 3: 'happy', 4: 'sad', 5: 'surprise', 6: 'neutral'}

emotion_window = []

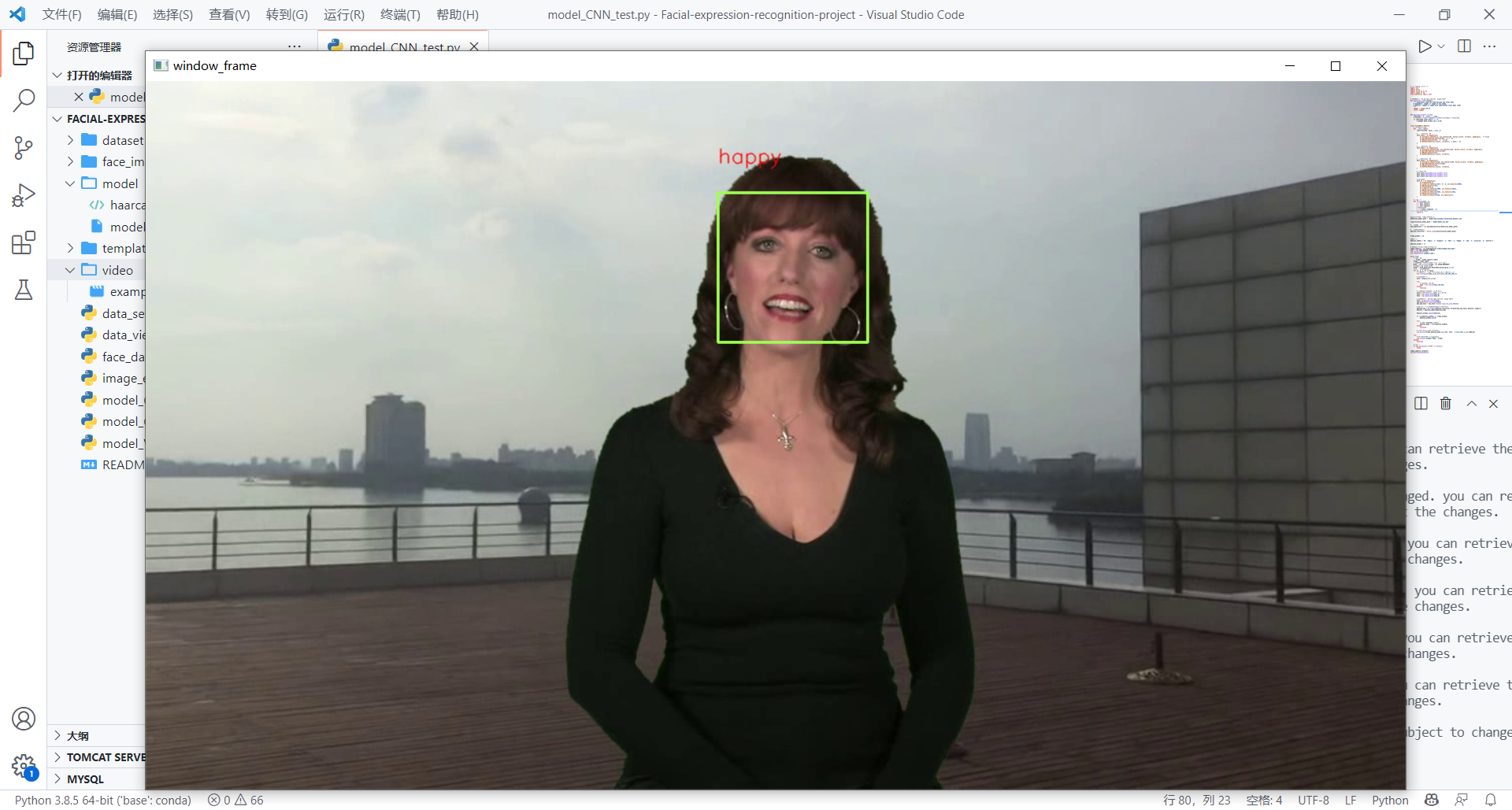

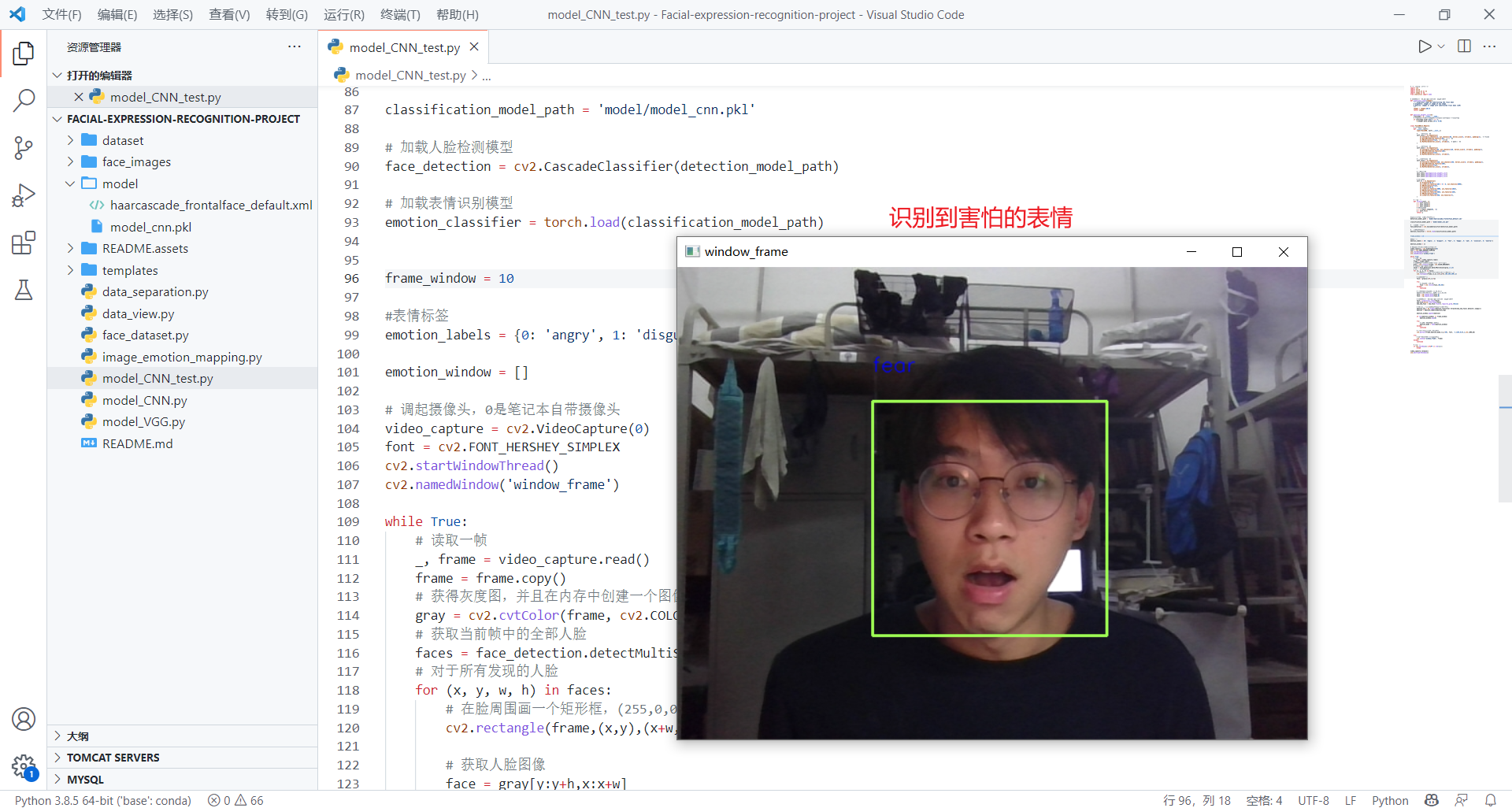

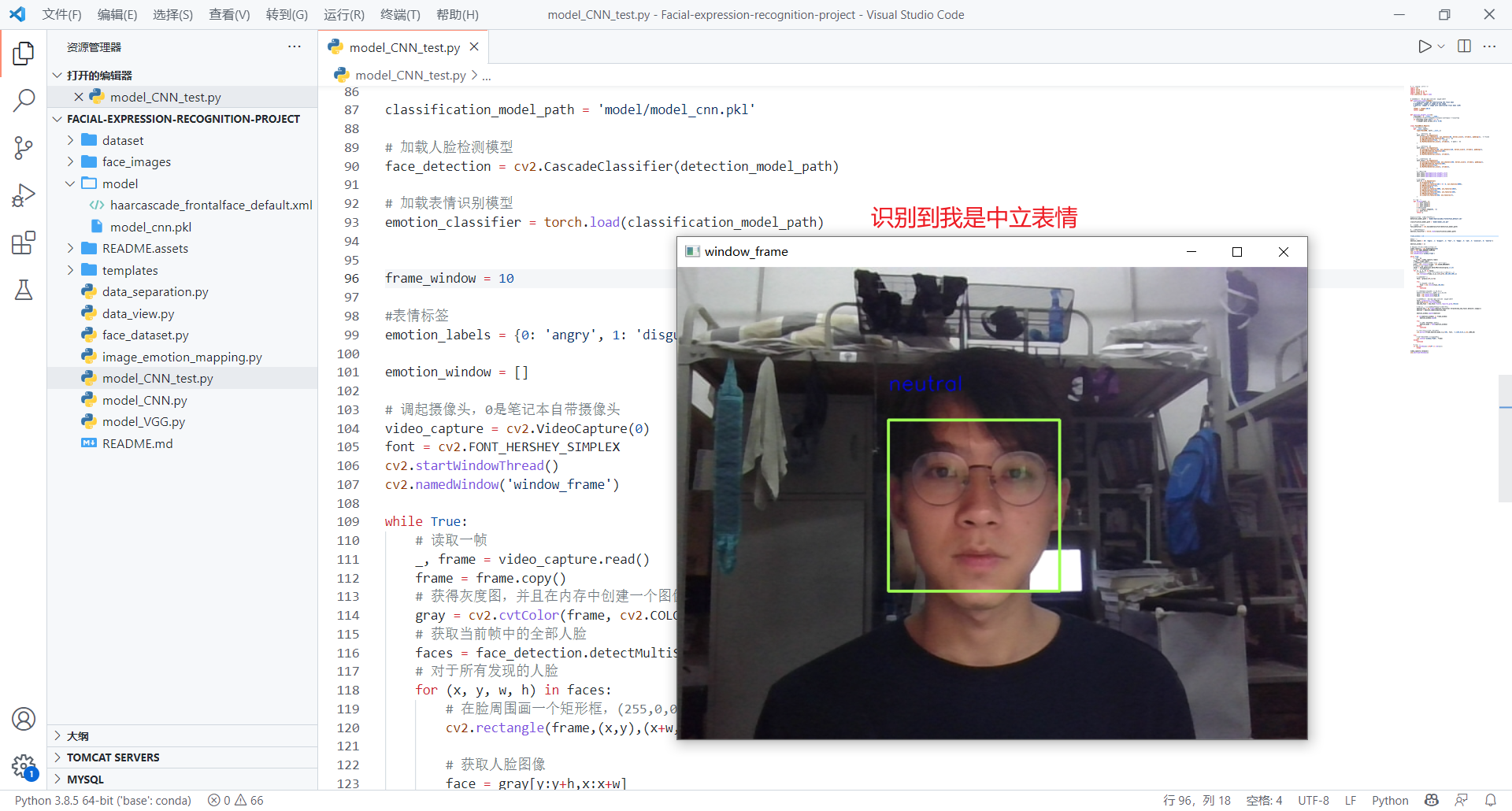

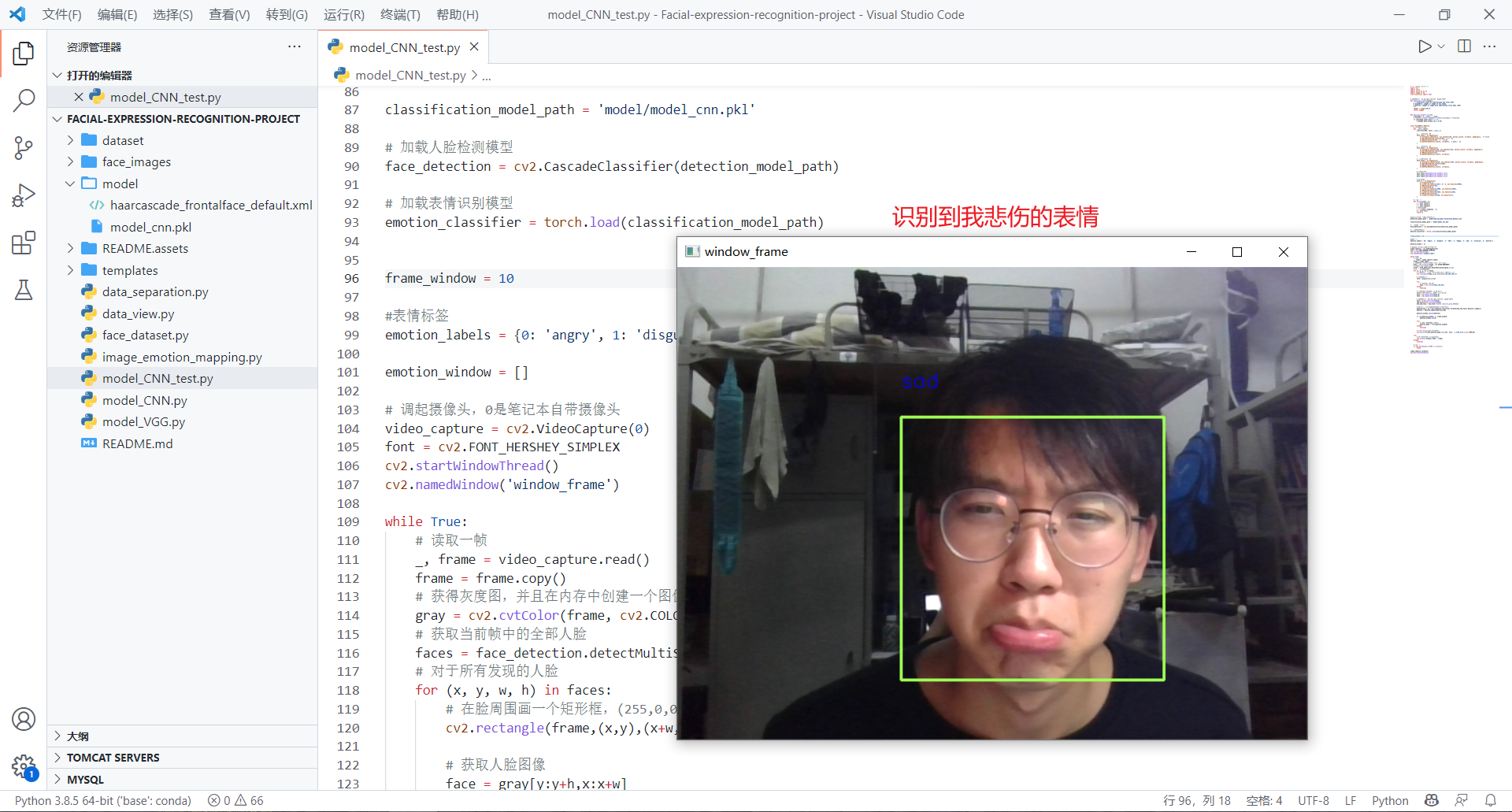

# 调起摄像头，0是笔记本自带摄像头
video_capture = cv2.VideoCapture(0)
# 视频文件识别
# video_capture = cv2.VideoCapture("video/example_dsh.mp4")
font = cv2.FONT_HERSHEY_SIMPLEX
cv2.startWindowThread()
cv2.namedWindow('window_frame')

while True:
    # 读取一帧
    _, frame = video_capture.read()
    frame = frame[:,::-1,:]#水平翻转，符合自拍习惯
    frame = frame.copy()
    # 获得灰度图，并且在内存中创建一个图像对象
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    # 获取当前帧中的全部人脸
    faces = face_detection.detectMultiScale(gray,1.3,5)
    # 对于所有发现的人脸
    for (x, y, w, h) in faces:
        # 在脸周围画一个矩形框，(255,0,0)是颜色，2是线宽
        cv2.rectangle(frame,(x,y),(x+w,y+h),(84,255,159),2)

        # 获取人脸图像
        face = gray[y:y+h,x:x+w]

        try:
            # shape变为(48,48)
            face = cv2.resize(face,(48,48))
        except:
            continue

        # 扩充维度，shape变为(1,48,48,1)
        #将（1，48，48，1）转换成为(1,1,48,48)
        face = np.expand_dims(face,0)
        face = np.expand_dims(face,0)

        # 人脸数据归一化，将像素值从0-255映射到0-1之间
        face = preprocess_input(face)
        new_face=torch.from_numpy(face)
        new_new_face = new_face.float().requires_grad_(False)

        # 调用我们训练好的表情识别模型，预测分类
        emotion_arg = np.argmax(emotion_classifier.forward(new_new_face).detach().numpy())
        emotion = emotion_labels[emotion_arg]

        emotion_window.append(emotion)

        if len(emotion_window) >= frame_window:
            emotion_window.pop(0)

        try:
            # 获得出现次数最多的分类
            emotion_mode = mode(emotion_window)
        except:
            continue

        # 在矩形框上部，输出分类文字
        cv2.putText(frame,emotion_mode,(x,y-30), font, .7,(0,0,255),1,cv2.LINE_AA)

    try:
        # 将图片从内存中显示到屏幕上
        cv2.imshow('window_frame', frame)
    except:
        continue

    # 按q退出
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

video_capture.release()
cv2.destroyAllWindows()

class Reshape(nn.Module):
    def __init__(self, *args):
        super(Reshape, self).__init__()

class GlobalAvgPool2d(nn.Module):

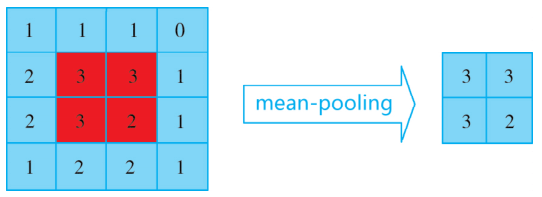

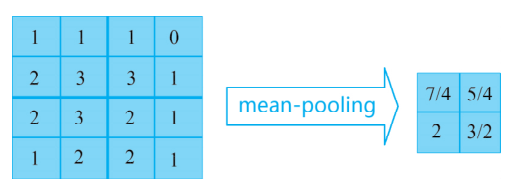

    # 全局平均池化层可通过将池化窗口形状设置成输入的高和宽实现
    def __init__(self):
        super(GlobalAvgPool2d, self).__init__()
    def forward(self, x):
        return F.avg_pool2d(x, kernel_size=x.size()[2:])

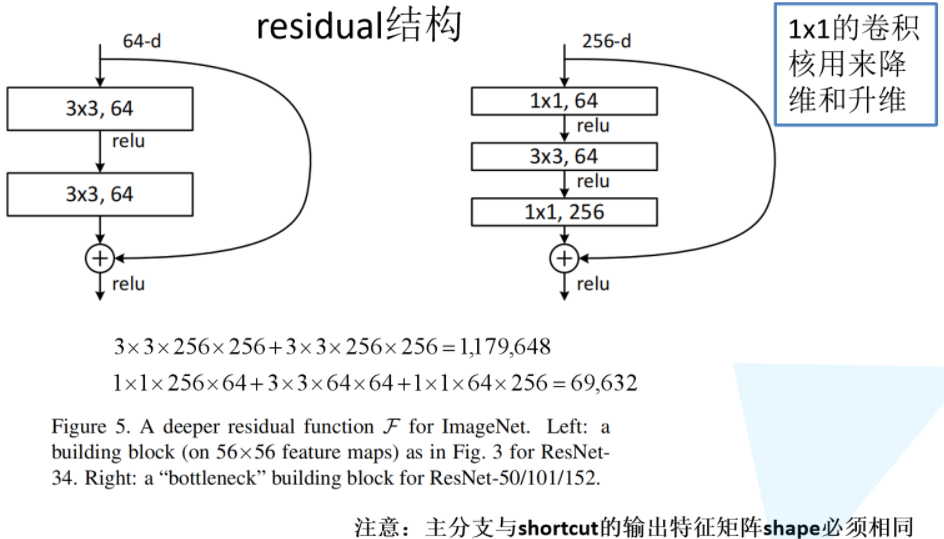

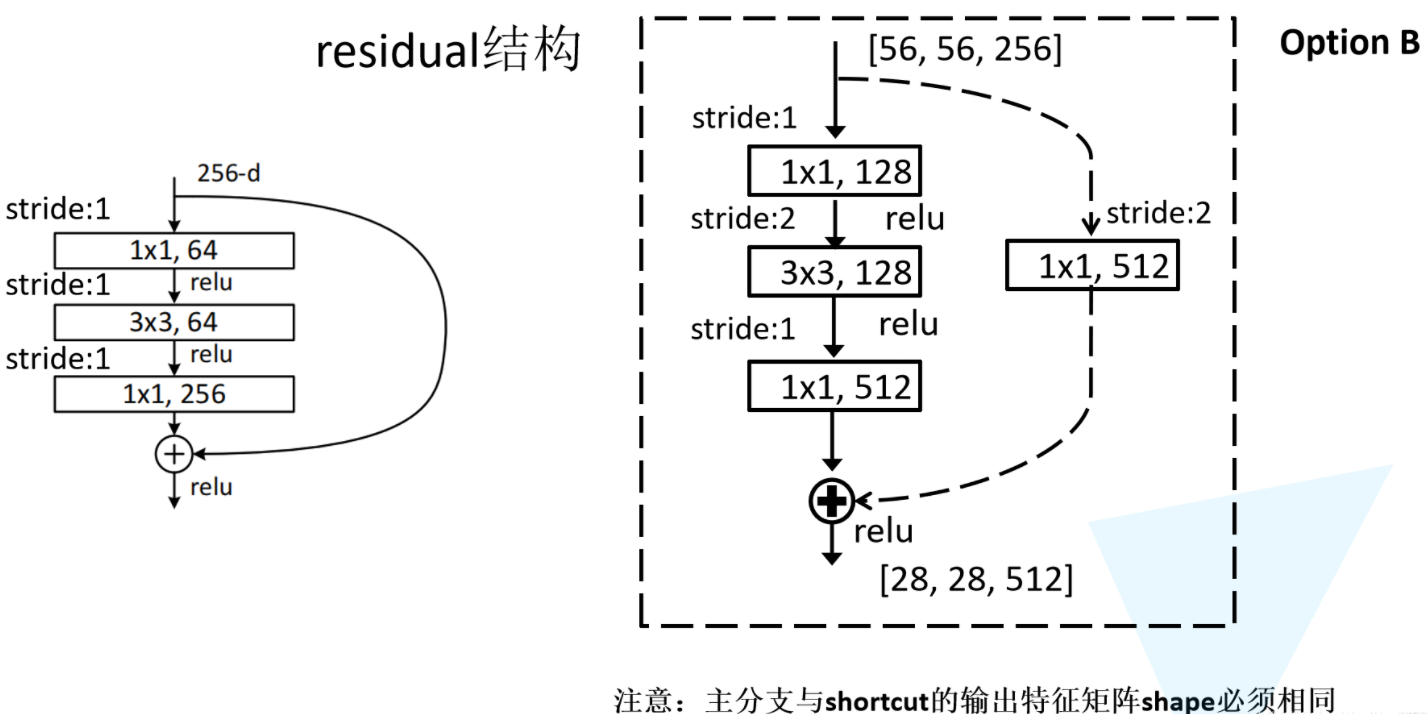

# 残差神经网络
class Residual(nn.Module):
    def __init__(self, in_channels, out_channels, use_1x1conv=False, stride=1):
        super(Residual, self).__init__()
        self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1, stride=stride)
        self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1)
        if use_1x1conv:
            self.conv3 = nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride)
        else:
            self.conv3 = None
        self.bn1 = nn.BatchNorm2d(out_channels)
        self.bn2 = nn.BatchNorm2d(out_channels)

    def forward(self, X):
        Y = F.relu(self.bn1(self.conv1(X)))
        Y = self.bn2(self.conv2(Y))
        if self.conv3:
            X = self.conv3(X)
        return F.relu(Y + X)


def resnet_block(in_channels, out_channels, num_residuals, first_block=False):
    if first_block:
        assert in_channels == out_channels # 第一个模块的通道数同输入通道数一致
    blk = []
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.append(Residual(in_channels, out_channels, use_1x1conv=True, stride=2))
        else:
            blk.append(Residual(out_channels, out_channels))
    return nn.Sequential(*blk)

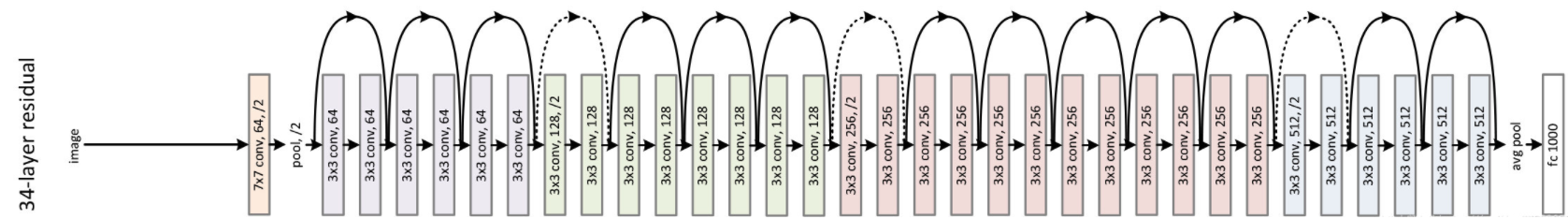

resnet = nn.Sequential(
    nn.Conv2d(1, 64, kernel_size=7 , stride=2, padding=3),
    nn.BatchNorm2d(64),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=3, stride=2, padding=1))
resnet.add_module("resnet_block1", resnet_block(64, 64, 2, first_block=True))
resnet.add_module("resnet_block2", resnet_block(64, 128, 2))
resnet.add_module("resnet_block3", resnet_block(128, 256, 2))
resnet.add_module("resnet_block4", resnet_block(256, 512, 2))
resnet.add_module("global_avg_pool", GlobalAvgPool2d()) # GlobalAvgPool2d的输出: (Batch, 512, 1, 1)
resnet.add_module("fc", nn.Sequential(Reshape(), nn.Linear(512, 7)))

import torch
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
import torchvision
import torchvision.transforms as transforms
from tqdm import tqdm



BATCH_SIZE = 128
LR = 0.01
EPOCH = 60
DEVICE = torch.device('cpu')


path_train = 'face_images/resnet_train_set'
path_vaild = 'face_images/resnet_vaild_set'

transforms_train = transforms.Compose([
    transforms.Grayscale(),#使用ImageFolder默认扩展为三通道，重新变回去就行
    transforms.RandomHorizontalFlip(),#随机翻转
    transforms.ColorJitter(brightness=0.5, contrast=0.5),#随机调整亮度和对比度
    transforms.ToTensor()
])
transforms_vaild = transforms.Compose([
    transforms.Grayscale(),
    transforms.ToTensor()
])

data_train = torchvision.datasets.ImageFolder(root=path_train,transform=transforms_train)
data_vaild = torchvision.datasets.ImageFolder(root=path_vaild,transform=transforms_vaild)

train_set = torch.utils.data.DataLoader(dataset=data_train,batch_size=BATCH_SIZE,shuffle=True)
vaild_set = torch.utils.data.DataLoader(dataset=data_vaild,batch_size=BATCH_SIZE,shuffle=False)


class ResNet(nn.Module):
    def __init__(self, *args):
        super(ResNet, self).__init__()

    def forward(self, x):
        return x.view(x.shape[0],-1)


class GlobalAvgPool2d(nn.Module):
    # 全局平均池化层可通过将池化窗口形状设置成输入的高和宽实现
    def __init__(self):
        super(GlobalAvgPool2d, self).__init__()
    def forward(self, x):
        return F.avg_pool2d(x, kernel_size=x.size()[2:])


# 残差神经网络
class Residual(nn.Module):
    def __init__(self, in_channels, out_channels, use_1x1conv=False, stride=1):
        super(Residual, self).__init__()
        self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1, stride=stride)
        self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1)
        if use_1x1conv:
            self.conv3 = nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride)
        else:
            self.conv3 = None
        self.bn1 = nn.BatchNorm2d(out_channels)
        self.bn2 = nn.BatchNorm2d(out_channels)

    def forward(self, X):
        Y = F.relu(self.bn1(self.conv1(X)))
        Y = self.bn2(self.conv2(Y))
        if self.conv3:
            X = self.conv3(X)
        return F.relu(Y + X)


def resnet_block(in_channels, out_channels, num_residuals, first_block=False):
    if first_block:
        assert in_channels == out_channels # 第一个模块的通道数同输入通道数一致
    blk = []
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.append(Residual(in_channels, out_channels, use_1x1conv=True, stride=2))
        else:
            blk.append(Residual(out_channels, out_channels))
    return nn.Sequential(*blk)

resnet = nn.Sequential(
    nn.Conv2d(1, 64, kernel_size=7 , stride=2, padding=3),
    nn.BatchNorm2d(64),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=3, stride=2, padding=1))
resnet.add_module("resnet_block1", resnet_block(64, 64, 2, first_block=True))
resnet.add_module("resnet_block2", resnet_block(64, 128, 2))
resnet.add_module("resnet_block3", resnet_block(128, 256, 2))
resnet.add_module("resnet_block4", resnet_block(256, 512, 2))
resnet.add_module("global_avg_pool", GlobalAvgPool2d()) # GlobalAvgPool2d的输出: (Batch, 512, 1, 1)
resnet.add_module("fc", nn.Sequential(ResNet(), nn.Linear(512, 7)))

model = resnet
model.to(DEVICE)
optimizer = optim.SGD(model.parameters(),lr=LR,momentum=0.9)
            #optim.Adam(model.parameters())
criterion = nn.CrossEntropyLoss()


train_loss = []
train_ac = []
vaild_loss = []
vaild_ac = []
y_pred = []


def train(model,device,dataset,optimizer,epoch):
    model.train()
    correct = 0
    for i,(x,y) in tqdm(enumerate(dataset)):
        x , y  = x.to(device), y.to(device)
        optimizer.zero_grad()
        output = model(x)
        pred = output.max(1,keepdim=True)[1]
        correct += pred.eq(y.view_as(pred)).sum().item()
        loss = criterion(output,y)
        loss.backward()
        optimizer.step()

    train_ac.append(correct/len(data_train))
    train_loss.append(loss.item())
    print("Epoch {} Loss {:.4f} Accuracy {}/{} ({:.0f}%)".format(epoch,loss,correct,len(data_train),100*correct/len(data_train)))

def vaild(model,device,dataset):
    model.eval()
    correct = 0
    with torch.no_grad():
        for i,(x,y) in tqdm(enumerate(dataset)):
            x,y = x.to(device) ,y.to(device)
            output = model(x)
            loss = criterion(output,y)
            pred = output.max(1,keepdim=True)[1]
            global  y_pred
            y_pred += pred.view(pred.size()[0]).cpu().numpy().tolist()
            correct += pred.eq(y.view_as(pred)).sum().item()

    vaild_ac.append(correct/len(data_vaild))
    vaild_loss.append(loss.item())
    print("Test Loss {:.4f} Accuracy {}/{} ({:.0f}%)".format(loss,correct,len(data_vaild),100.*correct/len(data_vaild)))


def RUN():
    for epoch in range(1,EPOCH+1):
        '''if epoch==15 :
            LR = 0.1
            optimizer=optimizer = optim.SGD(model.parameters(),lr=LR,momentum=0.9)
        if(epoch>30 and epoch%15==0):
            LR*=0.1
            optimizer=optimizer = optim.SGD(model.parameters(),lr=LR,momentum=0.9)
        '''
        #尝试动态学习率
        train(model,device=DEVICE,dataset=train_set,optimizer=optimizer,epoch=epoch)
        vaild(model,device=DEVICE,dataset=vaild_set)
        torch.save(model,'model/model_resnet.pkl')

if __name__ == '__main__':
    RUN()

# -*- coding: utf-8 -*-
import cv2
import torch
import torch.nn as nn
import torch.nn.functional as F
import numpy as np
from statistics import mode


# 人脸数据归一化,将像素值从0-255映射到0-1之间
def preprocess_input(images):
    """ preprocess input by substracting the train mean
    # Arguments: images or image of any shape
    # Returns: images or image with substracted train mean (129)
    """
    images = images/255.0
    return images




class ResNet(nn.Module):
    def __init__(self, *args):
        super(ResNet, self).__init__()

    def forward(self, x):
        return x.view(x.shape[0],-1)


class GlobalAvgPool2d(nn.Module):
    # 全局平均池化层可通过将池化窗口形状设置成输入的高和宽实现
    def __init__(self):
        super(GlobalAvgPool2d, self).__init__()
    def forward(self, x):
        return F.avg_pool2d(x, kernel_size=x.size()[2:])


# 残差神经网络
class Residual(nn.Module):
    def __init__(self, in_channels, out_channels, use_1x1conv=False, stride=1):
        super(Residual, self).__init__()
        self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1, stride=stride)
        self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1)
        if use_1x1conv:
            self.conv3 = nn.Conv2d(in_channels, out_channels, kernel_size=1, stride=stride)
        else:
            self.conv3 = None
        self.bn1 = nn.BatchNorm2d(out_channels)
        self.bn2 = nn.BatchNorm2d(out_channels)

    def forward(self, X):
        Y = F.relu(self.bn1(self.conv1(X)))
        Y = self.bn2(self.conv2(Y))
        if self.conv3:
            X = self.conv3(X)
        return F.relu(Y + X)


def resnet_block(in_channels, out_channels, num_residuals, first_block=False):
    if first_block:
        assert in_channels == out_channels # 第一个模块的通道数同输入通道数一致
    blk = []
    for i in range(num_residuals):
        if i == 0 and not first_block:
            blk.append(Residual(in_channels, out_channels, use_1x1conv=True, stride=2))
        else:
            blk.append(Residual(out_channels, out_channels))
    return nn.Sequential(*blk)

resnet = nn.Sequential(
    nn.Conv2d(1, 64, kernel_size=7 , stride=2, padding=3),
    nn.BatchNorm2d(64),
    nn.ReLU(),
    nn.MaxPool2d(kernel_size=3, stride=2, padding=1))
resnet.add_module("resnet_block1", resnet_block(64, 64, 2, first_block=True))
resnet.add_module("resnet_block2", resnet_block(64, 128, 2))
resnet.add_module("resnet_block3", resnet_block(128, 256, 2))
resnet.add_module("resnet_block4", resnet_block(256, 512, 2))
resnet.add_module("global_avg_pool", GlobalAvgPool2d()) # GlobalAvgPool2d的输出: (Batch, 512, 1, 1)
resnet.add_module("fc", nn.Sequential(ResNet(), nn.Linear(512, 7)))


#opencv自带的一个面部识别分类器
detection_model_path = 'model/haarcascade_frontalface_default.xml'

classification_model_path = 'model/model_resnet.pkl'

# 加载人脸检测模型
face_detection = cv2.CascadeClassifier(detection_model_path)

# 加载表情识别模型
emotion_classifier = torch.load(classification_model_path)


frame_window = 10

#表情标签
emotion_labels = {0: 'angry', 1: 'disgust', 2: 'fear', 3: 'happy', 4: 'sad', 5: 'surprise', 6: 'neutral'}

emotion_window = []

# 调起摄像头，0是笔记本自带摄像头
video_capture = cv2.VideoCapture(0)
# 视频文件识别
# video_capture = cv2.VideoCapture("video/example_dsh.mp4")
font = cv2.FONT_HERSHEY_SIMPLEX
cv2.startWindowThread()
cv2.namedWindow('window_frame')

while True:
    # 读取一帧
    _, frame = video_capture.read()
    frame = frame[:,::-1,:]#水平翻转，符合自拍习惯
    frame = frame.copy()
    # 获得灰度图，并且在内存中创建一个图像对象
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    # 获取当前帧中的全部人脸
    faces = face_detection.detectMultiScale(gray,1.3,5)
    # 对于所有发现的人脸
    for (x, y, w, h) in faces:
        # 在脸周围画一个矩形框，(255,0,0)是颜色，2是线宽
        cv2.rectangle(frame,(x,y),(x+w,y+h),(84,255,159),2)

        # 获取人脸图像
        face = gray[y:y+h,x:x+w]

        try:
            # shape变为(48,48)
            face = cv2.resize(face,(48,48))
        except:
            continue

        # 扩充维度，shape变为(1,48,48,1)
        #将（1，48，48，1）转换成为(1,1,48,48)
        face = np.expand_dims(face,0)
        face = np.expand_dims(face,0)

        # 人脸数据归一化，将像素值从0-255映射到0-1之间
        face = preprocess_input(face)
        new_face=torch.from_numpy(face)
        new_new_face = new_face.float().requires_grad_(False)

        # 调用我们训练好的表情识别模型，预测分类
        emotion_arg = np.argmax(emotion_classifier.forward(new_new_face).detach().numpy())
        emotion = emotion_labels[emotion_arg]

        emotion_window.append(emotion)

        if len(emotion_window) >= frame_window:
            emotion_window.pop(0)

        try:
            # 获得出现次数最多的分类
            emotion_mode = mode(emotion_window)
        except:
            continue

        # 在矩形框上部，输出分类文字
        cv2.putText(frame,emotion_mode,(x,y-30), font, .7,(0,0,255),1,cv2.LINE_AA)

    try:
        # 将图片从内存中显示到屏幕上
        cv2.imshow('window_frame', frame)
    except:
        continue

    # 按q退出
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

video_capture.release()
cv2.destroyAllWindows()
