Polygon 升级的背景与 EIP-7702 的引入

Polygon 网络（原 Matic Network）自 2021 年以来不断演进，2025 年 7 月的 Bhilai Hardfork 是其关键里程碑。这一升级整合了 Ethereum 的 Pectra 升级元素，包括 EIP-7702、EIP-7594 等提案，旨在优化网络性能、降低 gas 费用，并提升账户灵活性。根据 Polygon 官方文档，Bhilai Hardfork 于 2025 年 7 月 10 日激活，区块高度约 75,000,000 左右。这次升级使 Polygon 支持 Type 4 交易类型，即 EIP-7702 交易。

EIP-7702 是 Ethereum 社区在 2024 年提出的提案，由 Vitalik Buterin 等核心开发者推动。它允许 EOA 在交易期间临时 “借用” 合约代码执行复杂操作，如批量调用或代币批准，而无需将 EOA 转换为智能合约账户。这降低了部署成本，提高了用户体验，尤其适用于智能钱包（如 Coinbase Wallet 或 Safe）。在 Polygon 上，EIP-7702 的支持意味着开发者可以创建更先进的 DApp，例如赞助交易（relayer 支付 gas 费用）或账户抽象操作。

然而，这一升级并非一帆风顺。它引入了新交易类型和严格的验证规则，导致原有工具和代码需要调整。用户在尝试复制旧交易（如基于 ERC-4337 的账户抽象交易）时，经常遇到兼容性问题。这正是您在对话中遇到的错误源头：从 “invalid BytesLike value” 到 “bad address checksum” 和 “invalid address (value=null)”。

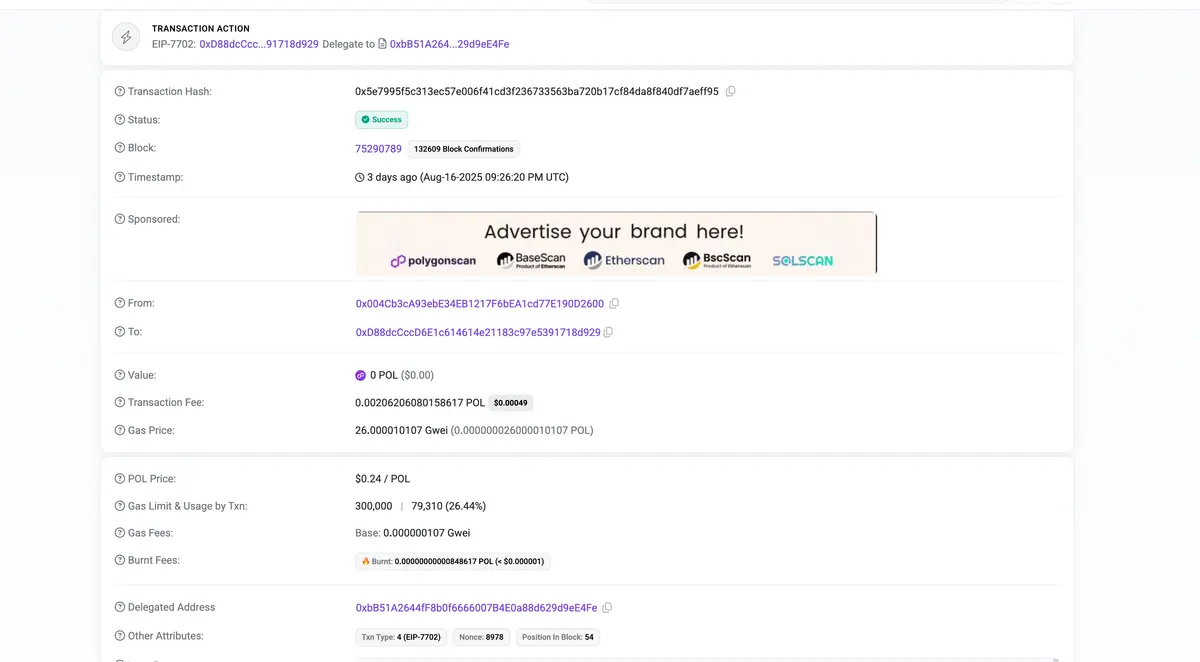

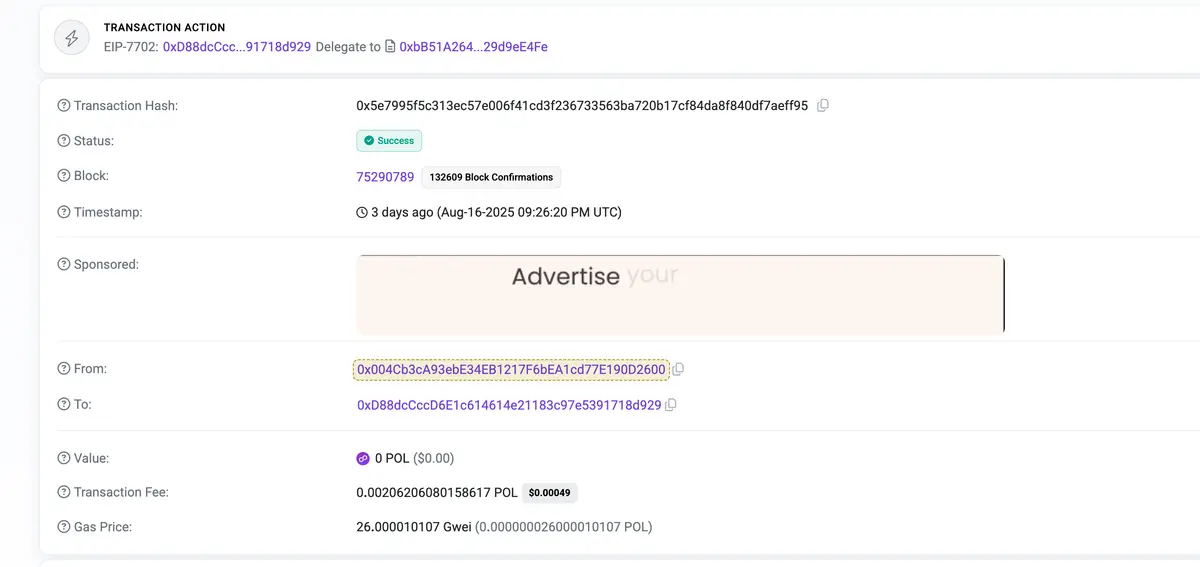

但兴奋没持续多久，就撞上了铁壁。问题是这样的：我试图复制一个成功的EIP-7702交易（哈希0x5e7995f5c313ec57e006f41cd3f236733563ba720b17cf84da8f840df7aeff95），

https://polygonscan.com/tx/0x5e7995f5c313ec57e006f41cd3f236733563ba720b17cf84da8f840df7aeff95

这是一个批准USDT权限的操作，使用relayer执行批量调用。目标是让我的Spender地址0xE3FBCE7898d7b92591730cDD63A859F90F89D110代表Owner地址0xD88dcCccD6e1c614614e21183c97e5391718d929无限花费USDT。我用ethers.js v6.15.0和Remix构建脚本，一切看起来完美。但运行sendEIP7702Tx.js时，错误如洪水般涌来：先是“invalid BytesLike value”，然后“bad address checksum”，最后“invalid address (value=null)”。这些错误像链条一样缠绕。

作为密码朋克，我不相信权威的“升级”，我相信代码的真相。问题出现于Polygon升级后：Bhilai Hardfork激活了EIP-7702，让网络支持Type 4交易，但这也引入了更严格的验证机制。ethers.js开始强制执行EIP-55校验和规则，地址必须是混合大小写的完美格式，否则就报“bad address checksum”。我的目标地址0xd88DcCcCD6e1C614614e21183c97e5391718D929看起来合法，但大小写不匹配哈希计算，导致验证失败。这不是bug，这是升级为安全设计的：防止地址输入错误，避免资金丢失。但对我们极客来说，这是对旧代码的宣战——全小写地址突然成了叛徒。

更深层的问题是“invalid BytesLike value”。EIP-7702要求contractCode（临时合约字节码）是有效的BytesLike值，必须以“0x”开头，并通过ethers.getBytes转换。但我的字节码从Remix复制时缺少前缀，或包含隐形字符，导致解析失败。升级后，ethers.js对字节码的检查更严苛，以防恶意代码注入。这体现了密码朋克精神：安全第一，但也增加了调试的痛苦。

最棘手的“invalid address (value=null)”则指向authorizationList。EIP-7702的授权对象在ethers.js中必须包含address字段（授权的目标地址），如果缺失，内部验证会视其为null，导致错误。这不是EIP-7702规范的要求，而是ethers.js的实现细节——升级后，库加强了授权验证，以防止重放攻击。签名格式也需v、r、s，而非yParity，否则转换失败。这些错误串联起来：从字节码格式，到地址校验，到授权字段缺失，全是升级引入的新标准导致的兼容断层。

分析这些问题，我看到Polygon升级的双刃剑。Bhilai Hardfork整合了Ethereum的Pectra升级，提升了网络性能和账户灵活性，但牺牲了向后兼容。EIP-7702本是为自由设计的：EOA可以临时执行代码，如批量批准代币，而relayer支付gas，实现赞助交易。这对隐私至关重要——不再需要暴露主账户。但升级后，工具生态跟不上：Remix不支持Type 4，ethers.js验证更严，旧代码崩盘。这让我回想起密码朋克的起源：Cypherpunks write code。我们必须自己破解，而不是等待中心化实体修复。

解决过程像一场黑客马拉松。首先，修复字节码：从Remix复制运行时object字段，确保以“0x”开头，并用ethers.getBytes(contractCode)转换。运行signAuthorization.js生成签名时，也应用相同字节码，避免不匹配。Nonce设为126（当前125的下一个），防止重放。

合约代码

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.20;

contract EIP7702Executor {
    struct Call {
        address target;
        uint256 value;
        bytes data;
    }

    function executeBatch(Call[] calldata calls) external {
        for (uint256 i = 0; i < calls.length; i) {
            (bool success, ) = calls[i].target.call{value: calls[i].value}(calls[i].data);
            require(success, "Call failed");
            unchecked { i++; }
        }
    }
}

其次，处理校验和：用ethers.getAddress转换所有地址，如targetAddress = ethers.getAddress('0xd88dccccd6e1c614614e21183c97e5391718d929')，输出正确的0xD88dcCccD6e1c614614e21183c97e5391718d929。更新to字段和data中的嵌入地址（如USDT和Spender）为校验和格式。

最后，补全authorizationList：添加address字段，值为to地址，并将yParity转换为v = Number(yParity) + 27（例如0x0 -> 27）。签名用v, r, s格式。更新sendEIP7702Tx.js后，运行成功，交易哈希0x0351e55499007b8139635950f4a01878845fc5ef9e336e9cc703f05112e9ab7c确认。

signAuthorization.js

const ethers = require('ethers');

// 目标地址的私钥（0xd88DcCcCD6e1C614614e21183c97e5391718D929）
const privateKey = ''; // 替换为实际私钥，切勿公开
const wallet = new ethers.Wallet(privateKey);

// 合约字节码（从 Remix 复制）
const contractBytecode = '0x608060405234801561000f575f80fd5b506104a18061001d5f395ff3fe608060405234801561000f575f80fd5b5060043610610029575f3560e01c806334fcd5be1461002d575b5f80fd5b6100476004803603810190610042919061020d565b610049565b005b5f5b8282905081101561019f575f83838381811061006a57610069610258565b5b905060200281019061007c9190610291565b5f01602081019061008d9190610312565b73ffffffffffffffffffffffffffffffffffffffff168484848181106100b6576100b5610258565b5b90506020028101906100c89190610291565b602001358585858181106100df576100de610258565b5b90506020028101906100f19190610291565b8060400190610100919061033d565b60405161010e9291906103db565b5f6040518083038185875af1925050503d805f8114610148576040519150601f19603f3d011682016040523d82523d5f602084013e61014d565b606091505b5050905080610191576040517f08c379a00000000000000000000000000000000000000000000000000000000081526004016101889061044d565b60405180910390fd5b81806001019250505061004b565b505050565b5f80fd5b5f80fd5b5f80fd5b5f80fd5b5f80fd5b5f8083601f8401126101cd576101cc6101ac565b5b8235905067ffffffffffffffff8111156101ea576101e96101b0565b5b602083019150836020820283011115610206576102056101b4565b5b9250929050565b5f8060208385031215610223576102226101a4565b5b5f83013567ffffffffffffffff8111156102405761023f6101a8565b5b61024c858286016101b8565b92509250509250929050565b7f4e487b71000000000000000000000000000000000000000000000000000000005f52603260045260245ffd5b5f80fd5b5f80fd5b5f80fd5b5f823560016060038336030381126102ac576102ab610285565b5b80830191505092915050565b5f73ffffffffffffffffffffffffffffffffffffffff82169050919050565b5f6102e1826102b8565b9050919050565b6102f1816102d7565b81146102fb575f80fd5b50565b5f8135905061030c816102e8565b92915050565b5f60208284031215610327576103266101a4565b5b5f610334848285016102fe565b91505092915050565b5f808335600160200384360303811261035957610358610285565b5b80840192508235915067ffffffffffffffff82111561037b5761037a610289565b5b6020830192506001820236038313156103975761039661028d565b5b509250929050565b5f81905092915050565b828183375f83830152505050565b5f6103c2838561039f565b93506103cf8385846103a9565b82840190509392505050565b5f6103e78284866103b7565b91508190509392505050565b5f82825260208201905092915050565b7f43616c6c206661696c65640000000000000000000000000000000000000000005f82015250565b5f610437600b836103f3565b915061044282610403565b602082019050919050565b5f6020820190508181035f8301526104648161042b565b905091905056fea26469706673582212207b699850cde1f81d5a2400678982028b07b490c46bea5d83d2b544c7661efb6964736f6c63430008140033'; // 替换为 EIP7702Executor.sol 的字节码

// Nonce（基于您提供的结果，使用 126，因为 125 已用于之前的签名）
const nonce = 126;

// 创建授权数据
const authorization = {
    contractCode: contractBytecode,
    nonce: nonce,
};

// 编码并签名
async function signAuthorization() {
    const domain = {
        name: 'EIP7702',
        version: '1',
        chainId: 137, // Polygon 主网
        verifyingContract: '0x0000000000000000000000000000000000000000',
    };
    const types = {
        Authorization: [
            { name: 'contractCode', type: 'bytes' },
            { name: 'nonce', type: 'uint256' },
        ],
    };
    const signature = await wallet.signTypedData(domain, types, authorization);
    console.log('Signature:', signature);

    // 拆分签名
    const sig = ethers.Signature.from(signature);
    console.log('yParity:', sig.v === 27 ? '0x0' : '0x1');
    console.log('r:', sig.r);
    console.log('s:', sig.s);
}

signAuthorization();

encodeInputData.js

const { ethers } = require('ethers');

// Define the ABI for the executeBatch function
const abi = ['function executeBatch(tuple(address target, uint256 value, bytes data)[] calls)'];
const iface = new ethers.Interface(abi);

// Encode the approve call data
const usdtAbi = ['function approve(address spender, uint256 value)'];
const usdtInterface = new ethers.Interface(usdtAbi);
const approveData = usdtInterface.encodeFunctionData('approve', [
    '0xE3FBCE7898d7b92591730cDD63A859F90F89D110', // Spender address
    '115792089237316195423570985008687907853269984665640564039457584007913129639935' // Max uint256
]);

// Define the calls array
const calls = [
    {
        target: '0xc2132D05D31c914a87C6611C10748AEb04B58e8F', // USDT contract
        value: 0,
        data: ethers.getBytes(approveData) // Ensure BytesLike format
    }
];

// Encode the executeBatch call
const inputData = iface.encodeFunctionData('executeBatch', [calls]);
console.log('Input Data:', inputData);

sendEIP7702Tx.js

const { ethers } = require('ethers');

async function sendEIP7702Tx() {
    // 连接 Polygon 主网
    const provider = new ethers.JsonRpcProvider('https://polygon-bor-rpc.publicnode.com');
    const wallet = new ethers.Wallet('', provider); // 0xE3FBCE7898d7b92591730cDD63A859F90F89D110 的私钥

    // 修复地址校验和问题
    const privateKey = '';
    const wallets = new ethers.Wallet(privateKey);
    console.log('Address:', wallets.address);

    const nonce = await provider.getTransactionCount(wallets.address, 'latest')
    console.log('nonce:', nonce);

    // 交易参数
    const tx = {
        type: 4, // EIP-7702
        to:  wallets.address,
        value: 0,
        data: '0x34fcd5be000000000000000000000000000000000000000000000000000000000000002000000000000000000000000000000000000000000000000000000000000000010000000000000000000000000000000000000000000000000000000000000020000000000000000000000000c2132d05d31c914a87c6611c10748aeb04b58e8f000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000600000000000000000000000000000000000000000000000000000000000000044095ea7b3000000000000000000000000e3fbce7898d7b92591730cdd63a859f90f89d110ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff00000000000000000000000000000000000000000000000000000000', // 从 encodeInputData.js
        gasLimit: 300000,
        gasPrice: ethers.parseUnits('26', 'gwei'),
        // nonce: 126,
        chainId: 137,
        authorizationList: [
            {
                address:  '0xE3FBCE7898d7b92591730cDD63A859F90F89D110', // 必需字段：授权的目标地址 (EIP7702Executor合约地址)
                code: ethers.getBytes('0x608060405234801561000f575f80fd5b506104a18061001d5f395ff3fe608060405234801561000f575f80fd5b5060043610610029575f3560e01c806334fcd5be1461002d575b5f80fd5b6100476004803603810190610042919061020d565b610049565b005b5f5b8282905081101561019f575f83838381811061006a57610069610258565b5b905060200281019061007c9190610291565b5f01602081019061008d9190610312565b73ffffffffffffffffffffffffffffffffffffffff168484848181106100b6576100b5610258565b5b90506020028101906100c89190610291565b602001358585858181106100df576100de610258565b5b90506020028101906100f19190610291565b8060400190610100919061033d565b60405161010e9291906103db565b5f6040518083038185875af1925050503d805f8114610148576040519150601f19603f3d011682016040523d82523d5f602084013e61014d565b606091505b5050905080610191576040517f08c379a00000000000000000000000000000000000000000000000000000000081526004016101889061044d565b60405180910390fd5b81806001019250505061004b565b505050565b5f80fd5b5f80fd5b5f80fd5b5f80fd5b5f80fd5b5f8083601f8401126101cd576101cc6101ac565b5b8235905067ffffffffffffffff8111156101ea576101e96101b0565b5b602083019150836020820283011115610206576102056101b4565b5b9250929050565b5f8060208385031215610223576102226101a4565b5b5f83013567ffffffffffffffff8111156102405761023f6101a8565b5b61024c858286016101b8565b92509250509250929050565b7f4e487b71000000000000000000000000000000000000000000000000000000005f52603260045260245ffd5b5f80fd5b5f80fd5b5f80fd5b5f823560016060038336030381126102ac576102ab610285565b5b80830191505092915050565b5f73ffffffffffffffffffffffffffffffffffffffff82169050919050565b5f6102e1826102b8565b9050919050565b6102f1816102d7565b81146102fb575f80fd5b50565b5f8135905061030c816102e8565b92915050565b5f60208284031215610327576103266101a4565b5b5f610334848285016102fe565b91505092915050565b5f808335600160200384360303811261035957610358610285565b5b80840192508235915067ffffffffffffffff82111561037b5761037a610289565b5b6020830192506001820236038313156103975761039661028d565b5b509250929050565b5f81905092915050565b828183375f83830152505050565b5f6103c2838561039f565b93506103cf8385846103a9565b82840190509392505050565b5f6103e78284866103b7565b91508190509392505050565b5f82825260208201905092915050565b7f43616c6c206661696c65640000000000000000000000000000000000000000005f82015250565b5f610437600b836103f3565b915061044282610403565b602082019050919050565b5f6020820190508181035f8301526104648161042b565b905091905056fea26469706673582212207b699850cde1f81d5a2400678982028b07b490c46bea5d83d2b544c7661efb6964736f6c63430008140033'), // 确保包含 0x 前缀
                nonce: nonce,
                v: 27, // yParity 是 '0x0'，所以 v = 27
                r: '0x64f64fec2f1adbde8e0282f18e9d95b917f45735d3a9dcf69de5827fa867872a',
                s: '0x501b7e02202fcd6c65f1b5f7980f0592241e8f5268d23c8bba738854d8bd66dd'
            }
        ]
    };

    // 发送交易
    const txResponse = await wallet.sendTransaction(tx);
    console.log('Transaction Hash:', txResponse.hash);
    await txResponse.wait();
    console.log('Transaction Confirmed');
}

sendEIP7702Tx().catch(console.error);

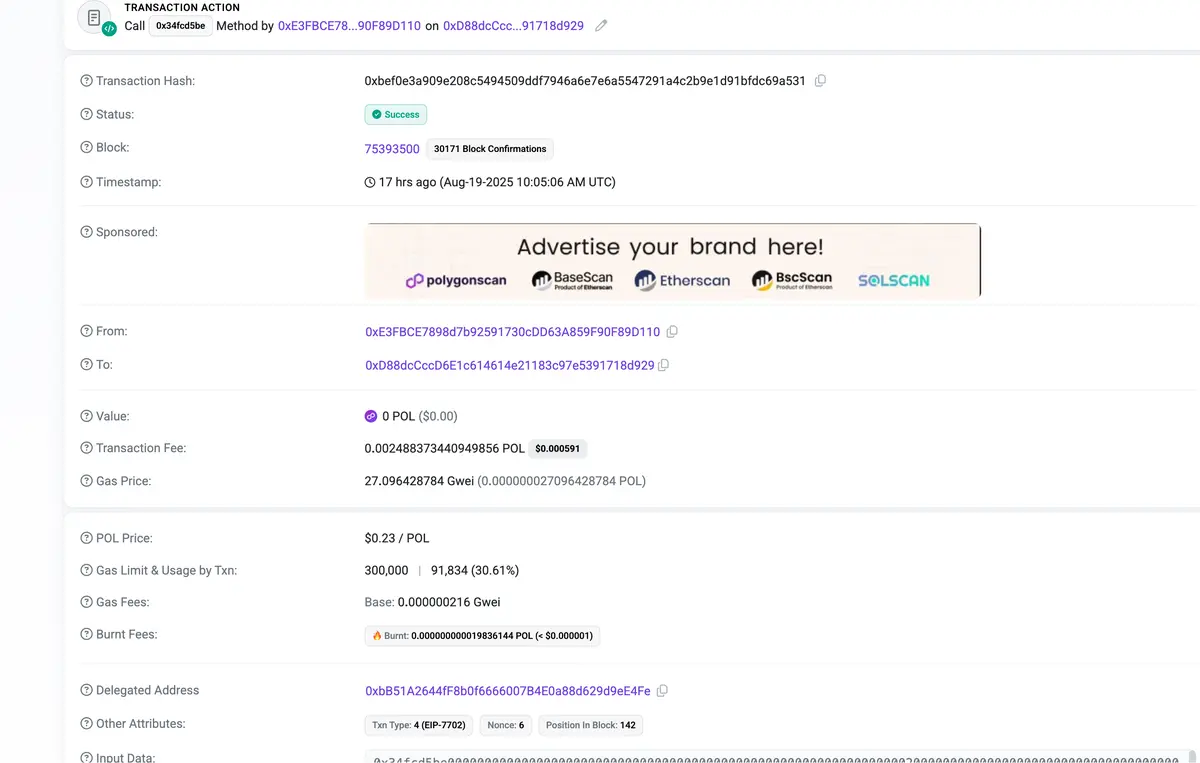

https://polygonscan.com/tx/0xbef0e3a909e208c5494509ddf7946a6e7e6a5547291a4c2b9e1d91bfdc69a531

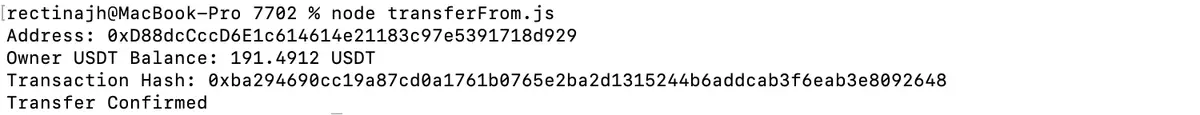

整个过程让我体会到密码朋克的真谛：问题即机会。通过开源工具和社区文档，我破解了升级的陷阱。现在，我可以用Spender调用transferFrom转移USDT，实现了真正去中心化的控制。

transferFrom.js

const { ethers } = require('ethers');

async function transferFromUSDT() {
    // 连接 Polygon 主网
    const provider = new ethers.JsonRpcProvider('https://polygon-bor-rpc.publicnode.com');
    const privateKey = ''; // Spender 私钥 (0xE3FBCE7898d7b92591730cDD63A859F90F89D110)
    const wallet = new ethers.Wallet(privateKey, provider);

    // USDT 合约地址和 ABI
    const usdtAddress = '0xc2132D05D31c914a87C6611C10748AEb04B58e8F';
    const usdtAbi = [
        'function balanceOf(address owner) view returns (uint256)',
        'function transferFrom(address from, address to, uint256 value) returns (bool)'
      ];
    const usdtContract = new ethers.Contract(usdtAddress, usdtAbi, wallet);

    // 转移参数
    // const wallet = new ethers.Wallet('', provider); // 0xE3FBCE7898d7b92591730cDD63A859F90F89D110 的私钥

    // 修复地址校验和问题
    const privateKey2 = '0x07288a0740191b921bff404ea2294a87afad9377180c79ea192a81f98def5d5d';
    const wallets = new ethers.Wallet(privateKey2);
    console.log('Address:', wallets.address);

    const fromAddress = wallets.address; // Owner 地址
    const toAddress = wallet.address; // 替换为您希望接收 USDT 的地址
    const amount = ethers.parseUnits('191.4', 6); // 转移 100 USDT (6 位小数)

    // 检查余额
    const balance = await usdtContract.balanceOf(fromAddress);
    console.log(`Owner USDT Balance: ${ethers.formatUnits(balance, 6)} USDT`);

    if (balance < amount) {
        throw new Error('Insufficient USDT balance in Owner address');
    }

    // 调用 transferFrom
    const tx = await usdtContract.transferFrom(fromAddress, toAddress, amount, {
        gasLimit: 100000,
        gasPrice: ethers.parseUnits('26', 'gwei')
    });

    console.log('Transaction Hash:', tx.hash);
    await tx.wait();
    console.log('Transfer Confirmed');
}

transferFromUSDT().catch(console.error);
