Background: For the filled-in types of examination number or answers, traditional border detection is used. An appropriate threshold is set to detect the objects, and then based on the arrangement, the student number or the filled-in options can be obtained.

Shortcomings: It heavily relies on the quality of the printing and the standardization of filling. For large-scale identification, it cannot guarantee the accuracy of the results.

Here the source code for example:

代码语言:txt
复制
#include <iostream>
#include<opencv2/opencv.hpp>
using namespace std;
using namespace cv;

int main()
{
    Mat img = imread("d:\\Images\\stucard\\2.jpg", cv::IMREAD_UNCHANGED);
    if (img.empty())
    {
        printf("图像无法正常加载\n");
        return 0;
    }
    Mat gray;
    if (img.channels() > 1)
        cv::cvtColor(img, gray, COLOR_RGB2GRAY);
    else
        gray = img.clone();

    Mat result_Color_img;
    cvtColor(gray, result_Color_img, COLOR_GRAY2BGR);

    cv::Ptr<cv::CLAHE> clahe = cv::createCLAHE(2.0, cv::Size(8, 8));
    cv::Mat tmpresult;
    clahe->apply(gray, tmpresult);
    cv::GaussianBlur(tmpresult, tmpresult, cv::Size(3, 3), 0);
    cv::Mat binary;
    cv::threshold(tmpresult, binary, 0, 255, cv::THRESH_BINARY_INV | cv::THRESH_OTSU);

    std::vector<std::vector<cv::Point>> contours;
    cv::findContours(binary, contours, cv::RETR_EXTERNAL, cv::CHAIN_APPROX_SIMPLE);

    std::vector<cv::Rect> rectarray;
    double epsilon = 0.02;
    for (const auto& contour : contours) {
        cv::Rect rect = cv::boundingRect(contour);
        int rectsize = 0;

        if (rect.width < 60 && rect.height < 36 && rect.width>12 && rect.height >12) {

            double contourArea = cv::contourArea(contour);
            double rectArea = rect.width * rect.height;
            if (contourArea / rectArea > 0.4) {

                std::vector<cv::Point> approx;
                cv::approxPolyDP(contour, approx, epsilon * cv::arcLength(contour, true), true);
                if (approx.size() >= 4) {
                    rectarray.push_back(rect);
                    cv::rectangle(result_Color_img, rect, Scalar(0, 0, 255), 2);
                }
            }
        }
    }

    namedWindow("original", WINDOW_FREERATIO);
    int window_width = 400;
    resizeWindow("original", Size(window_width, window_width * img.rows / img.cols));
    imshow("original", result_Color_img);

    waitKey(0);
    destroyAllWindows();
    return 0;
}

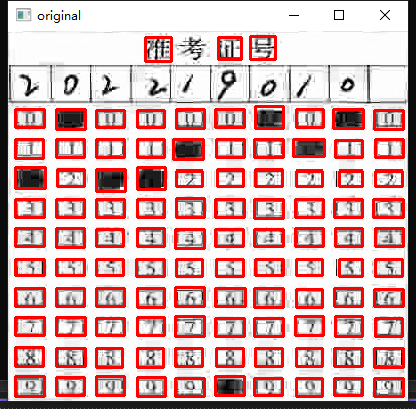

The result:
