CodeSpirit.Amis 表单项组使用指南

[FormGroup("basic", "基本信息", "Name,Email,Phone")]
[FormGroup("address", "地址信息", "Province,City,Address")]
publicclassUserFormDto
{
    [DisplayName("姓名")]
    [Required]
    publicstring Name { get; set; }

    [DisplayName("邮箱")]
    [EmailAddress]
    publicstring Email { get; set; }

    [DisplayName("电话")]
    publicstring Phone { get; set; }

    [DisplayName("省份")]
    publicstring Province { get; set; }

    [DisplayName("城市")]
    publicstring City { get; set; }

    [DisplayName("详细地址")]
    publicstring Address { get; set; }
}

[FormGroup("basic", "基本信息", "Name,Email",
    Order = 1,
    Mode = FormGroupMode.Horizontal,
    Gap = FormGroupGap.Large,
    ShowBorder = true)]
[FormGroup("optional", "可选信息", "Phone,Remark",
    Order = 2,
    Hidden = false,
    VisibleOn = "${showOptional}")]
public class AdvancedFormDto
{
    // 属性定义...
}

[FormGroup("custom", "自定义组", "Field1,Field2",
    ClassName = "my-custom-group",
    AdditionalConfig = "{\"style\":{\"backgroundColor\":\"#f5f5f5\"}}")]
public class CustomFormDto
{
    // 属性定义...
}

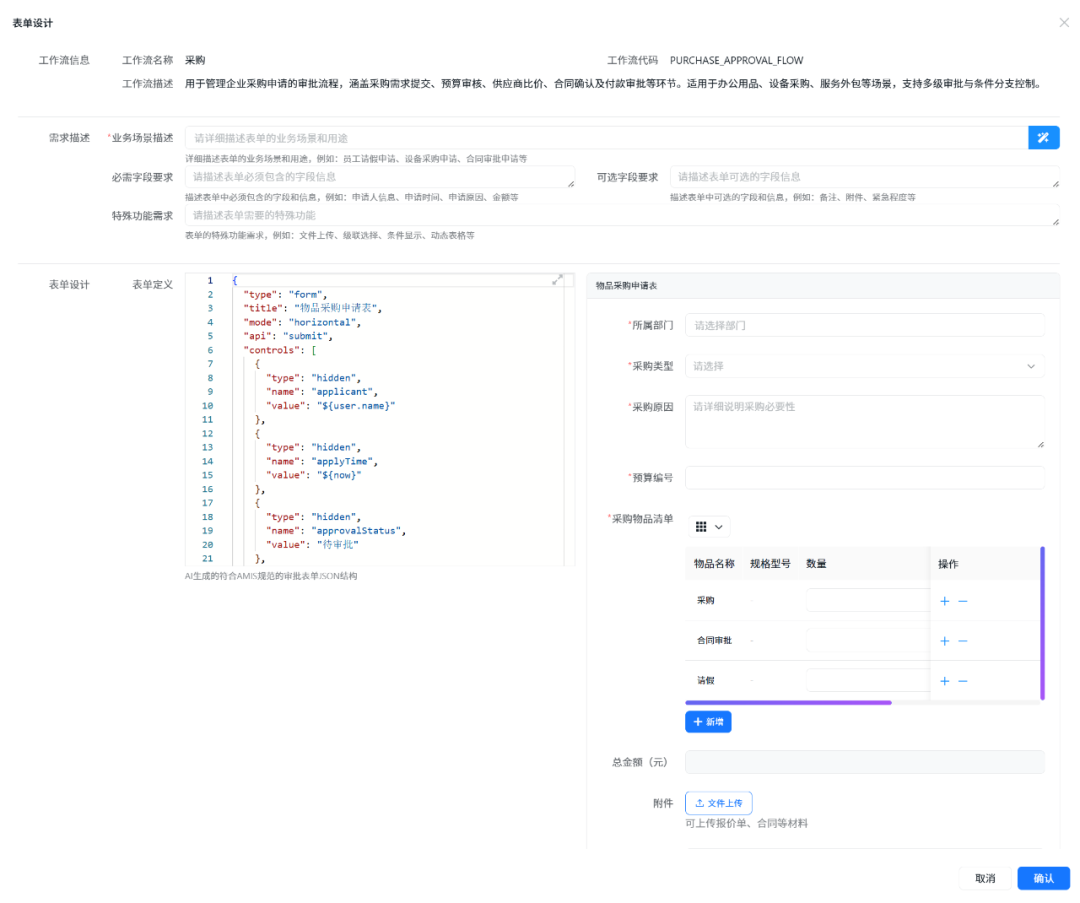

/// <summary>
/// 表单设计DTO - 展示表单项组的实际应用
/// </summary>
[AiFormFill(
    TriggerField = nameof(BusinessScenario),
    UseIndependentLLM = true,
    MaxTokens = 3000,
    EnableCache = true,
    CacheExpirationMinutes = 30,
    GlobalFillPrompt = "根据选定的工作流和业务场景，智能设计符合AMIS规范的审批表单结构"
)]
[FormGroup("workflow", "工作流信息", "Name,Code,Description", Order = 1)]
[FormGroup("requirements", "需求描述", "BusinessScenario,RequiredFields,OptionalFields,SpecialFeatures", Order = 2)]
[FormGroup("formSchema", "表单设计", "FormSchema,FormSchemaReview", Order = 3, Direction = FormGroupDirection.Vertical)]
publicclassFormDesignDto
{
    /// <summary>
    /// 工作流名称（只读，用于显示）
    /// </summary>
    [DisplayName("工作流名称")]
    [AmisFormField(Type = "static", VisibleOn = "${id}", ColumnRatio = 6)]
    publicstring? Name { get; set; }

    /// <summary>
    /// 工作流代码（只读，用于显示）
    /// </summary>
    [DisplayName("工作流代码")]
    [AmisFormField(Type = "static", VisibleOn = "${id}", ColumnRatio = 6)]
    publicstring? Code { get; set; }

    /// <summary>
    /// 工作流描述（只读，用于显示）
    /// </summary>
    [DisplayName("工作流描述")]
    [AmisFormField(Type = "static", VisibleOn = "${id}", ColumnRatio = 12)]
    publicstring? Description { get; set; }

    /// <summary>
    /// 业务场景描述
    /// </summary>
    [Required]
    [StringLength(500, ErrorMessage = "业务场景描述长度不能超过500个字符")]
    [DisplayName("业务场景描述")]
    [Description("详细描述表单的业务场景和用途")]
    [AiFieldFill(Weight = 4, Priority = 1)]
    [AmisInputTextField(Placeholder = "请详细描述表单的业务场景和用途", ColumnRatio = 12)]
    publicstring BusinessScenario { get; set; } = string.Empty;

    /// <summary>
    /// 必需字段要求
    /// </summary>
    [StringLength(1000)]
    [DisplayName("必需字段要求")]
    [Description("描述表单中必须包含的字段和信息")]
    [AiFieldFill(Weight = 3, Priority = 2)]
    [AmisTextareaField(Placeholder = "请描述表单必须包含的字段信息", ColumnRatio = 6)]
    publicstring? RequiredFields { get; set; }

    /// <summary>
    /// 可选字段要求
    /// </summary>
    [StringLength(1000)]
    [DisplayName("可选字段要求")]
    [Description("描述表单中可选的字段和信息")]
    [AiFieldFill(Weight = 2, Priority = 3)]
    [AmisTextareaField(Placeholder = "请描述表单可选的字段信息", ColumnRatio = 6)]
    publicstring? OptionalFields { get; set; }

    /// <summary>
    /// 特殊功能需求
    /// </summary>
    [StringLength(1000)]
    [DisplayName("特殊功能需求")]
    [Description("表单的特殊功能需求")]
    [AiFieldFill(Weight = 2, Priority = 6)]
    [AmisTextareaField(Placeholder = "请描述表单需要的特殊功能", ColumnRatio = 12)]
    publicstring? SpecialFeatures { get; set; }

    /// <summary>
    /// 生成的表单Schema
    /// </summary>
    [DisplayName("表单定义")]
    [Description("AI生成的符合AMIS规范的审批表单JSON结构")]
    [AiFieldFill(Weight = 5, Priority = 7)]
    [AmisFormField(Type = "editor", AdditionalConfig = "{\"language\":\"json\"}", ColumnRatio = 6)]
    publicstring? FormSchema { get; set; }

    /// <summary>
    /// 表单预览
    /// </summary>
    [DisplayName("")]
    [AmisFormField(Type = "amis", AdditionalConfig = "{\"name\":\"formSchema\"}", ColumnRatio = 6)]
    publicstring? FormSchemaReview { get; set; }
}

// 检查类型是否定义了表单项组
var hasGroups = typeof(FormDesignDto).HasFormGroups();
Console.WriteLine($"Has form groups: {hasGroups}");

// 获取所有表单项组
var groups = typeof(FormDesignDto).GetFormGroups();
foreach (var group in groups)
{
    Console.WriteLine($"Group: {group.Name}, Title: {group.Title}, Fields: {group.Fields}");
}

var properties = typeof(FormDesignDto).GetProperties();
foreach (var property in properties)
{
    var belongsToGroup = property.BelongsToFormGroup(typeof(FormDesignDto));
    var group = property.GetBelongingFormGroup(typeof(FormDesignDto));
    Console.WriteLine($"Property: {property.Name}, Belongs to group: {belongsToGroup}, Group: {group?.Name}");
}

// 获取生成的配置
var properties = typeof(FormDesignDto).GetProperties();
var fieldsWithGroups = formFieldHelper.GetAmisFormFieldsFromProperties(properties, typeof(FormDesignDto));

// 输出配置用于调试
foreach (var field in fieldsWithGroups)
{
    Console.WriteLine($"Field Type: {field["type"]}, Name: {field["name"]}, Label: {field["label"]}");
    if (field["body"] != null)
    {
        Console.WriteLine($"Group Body: {field["body"]}");
    }
}

// 验证 AdditionalConfig 的 JSON 格式
var group = typeof(FormDesignDto).GetFormGroups().FirstOrDefault();
if (!string.IsNullOrEmpty(group?.AdditionalConfig))
{
    try
    {
        var config = JObject.Parse(group.AdditionalConfig);
        Console.WriteLine("JSON config is valid");
    }
    catch (Exception ex)
    {
        Console.WriteLine($"Invalid JSON config: {ex.Message}");
    }
}
