SQL Relational Algebra（数据库关系代数）

What is an “Algebra”

Mathematical system consisting of:

• Operands --- variables or values from which new values can be constructed.（操作数，用于构建新值的变量或者值）
• Operators --- symbols denoting procedures that construct new values from given values.（运算符，标志着从给定值创建新值的过程）

What is Relational Algebra?

• An algebra whose operands are relations or variables that represent relations.（关系代数是操作数是关系或者是表示关系的变量）
• Operators are designed to do the most common things that we need to do with relations in a database.
• The result is an algebra that can be used as a query language for relations.（关系代数语言将会是数据库语言的基础）

Core Relational Algebra

• Union, intersection, and difference.（并、交、差）

Usual set operations, but both operands must have the same relation schema.（两个操作数之间必须要有一样的关系模式）

• Selection: picking certain rows.（也就是SQL中的WHERE）
• Projection: picking certain columns.
• Products and joins: compositions of relations.（笛卡尔积和连接：笛卡尔积是全组合、连接是条件组合）
• Renaming of relations and attributes.

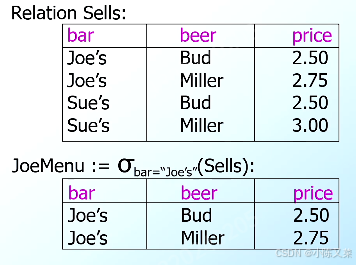

Selection

R_{1}:=\sigma _{C}(R_{2})

• C is a condition (as in “if” statements) that refers to attributes of R2.
• R1 is all those tuples of R2 that satisfy C.

这两个关系之间没有任何关系

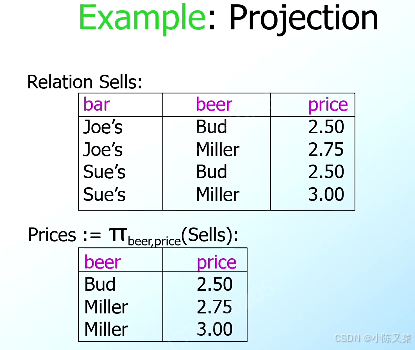

Projection

R_{1}:=\pi _{L}(R_{2})

• L is a list of attributes from the schema of R2.（L是R2关系模式中的一串属性）
• R1 is constructed by looking at each tuple of R2, extracting the attributes on list L, in the order specified, and creating from those components a tuple for R1.（查看R2的属性列表，然后提取出L属性列表中的属性，然后按照特定顺序创建R1的元组）
• Eliminate duplicate tuples, if any.（消除重复项）

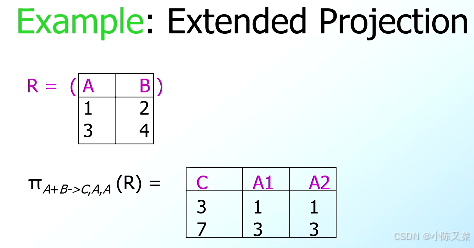

Extended Projection

• Using the same

\pi _{L}

operator, we allow the list L to contain arbitrary expressions（任意表达式） involving attributes:

• Arithmetic on attributes, e.g., A+B->C.
• Duplicate occurrences of the same attribute.

Product（笛卡尔积）

R_{3}:=R_{1}\times R_{2}

• Pair each tuple t1 of R1 with each tuple t2 of R2.
• Concatenation t1t2 is a tuple of R3.
• Schema of R3 is the attributes of R1 and then R2, in order.

But beware attribute A of the same name in R1 and R2: use R1.A and R2.A.（如果R1、R2中有相同的属性使用R1.A和R2.A来进行区分）

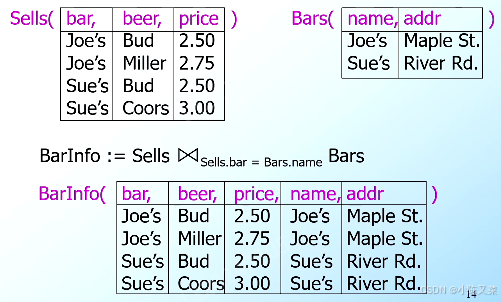

Theta-Join

R_{3}:=R_{1}\bowtie _{C}R_{2}

• Take the product R1 Χ R2.
• Then apply

\bowtie _{C}

to the result.

• As for σ, C can be any boolean-valued condition.（对于C来说，可以是任何布尔值的表达式）

Historic versions of this operator allowed only A

\theta

B, where

\theta

is = , <, etc.; hence the name “theta-join.”

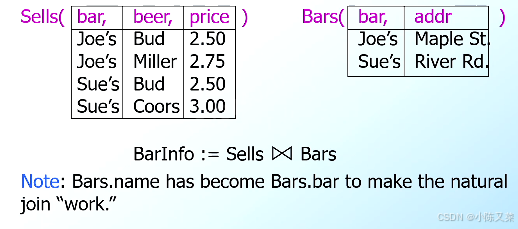

Natural Join

• A useful join variant (natural join) connects two relations by:
• Equating（等值比较） attributes of the same name, and Projecting out one copy of each pair of equated attributes.（将等值属性的一组副本投影掉）
• Denoted R3 := R1 ⋈ R2.

Renaming

• The ρ operator gives a new schema to a relation.

R_{1}:=\rho _{R1(A_{1}A_{2}...A_{n})}(R2)

makes R1 be a relation with attributes A1,…,An and the same tuples as R2.

• Simplified notation:

R1(A_{1}A_{2}...A_{n}):=R2

Building Complex Expressions

Combine operators with parentheses and precedence rules.（通过括号或者优先运算规则对操作符进行组合）

Three notations, just as in arithmetic:

• Sequences of assignment statements.
• Expressions with several operators.
• Expression trees.

Sequences of Assignments

• Create temporary relation names.
• Renaming can be implied by giving relations a list of attributes.
• Example:

R3 := R1 ⋈ C R2 can be written: R4 := R1 Χ R2 R3 := σ C (R4)

Expressions in a Single Assignment

• Example:

the theta-join R3 := R1 ⋈C R2 can be written: R3 := σC (R1 Χ R2)

• Precedence of relational operators:

1. [σ, π, ρ] (highest).
2. [Χ, ⋈].
3. ∩.
4. [∪, —]

Expression Trees

• Leaves are operands --- either variables standing for relations or particular constant relations.（叶子结点是操作数，可以是标识关系的变量也可以是常量）
• Interior nodes are operators, applied to their child or children.（内部结点是操作符，作用于子结点）

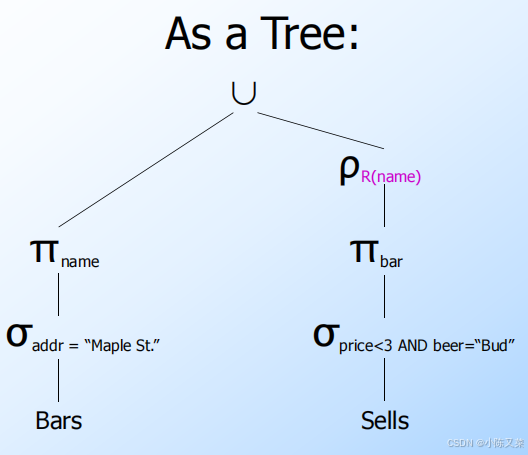

Example: Tree for a Query

Using the relations Bars(name, addr) and Sells(bar, beer, price), find the names of all the bars that are either on Maple St. or sell Bud for less than $3.

Example: Self-Join

Using Sells(bar, beer, price) , find the bars that sell two different beers at the same price.

Strategy :

• by renaming, define a copy of Sells, called S(bar, beer1, price).
• The natural join of Sells and S consists of quadruples (bar, beer, beer1, price)
• such that the bar sells both beers at this price.

先通过重命名得到一个Sells的副本，然后将原表与副本进行自连接，自连接的条件是price相同，然后进行选择，最后投影出name

Operations on Bags

• Selection applies to each tuple, so its effect on bags is like its effect on sets.
• Projection also applies to each tuple, but as a bag operator, we do not eliminate duplicates.
• Products and joins are done on each pair of tuples, so duplicates in bags have no effect on how we operate.
