Nordic PPK2低功耗测量仪器开源Python接口（YUNSWJ设计版）

应用层    │ PPK命令协议 (本文档定义)
数据链路层 │ 串行数据帧
物理层    │ USB转串口 (115200 bps)

const PPKCommands = {
    TriggerSet: 0x01,           // 设置触发参数
    AvgNumSet: 0x02,            // 设置平均采样数 (no-firmware)
    TriggerWindowSet: 0x03,     // 设置触发窗口
    TriggerIntervalSet: 0x04,   // 设置触发间隔 (no-firmware)
    TriggerSingleSet: 0x05,     // 单次触发设置
    AverageStart: 0x06,         // 开始平均采样
    AverageStop: 0x07,          // 停止平均采样
    RangeSet: 0x08,             // 设置测量范围 (no-firmware)
    LCDSet: 0x09,               // LCD显示设置 (no-firmware)
    DeviceRunningSet: 0x0c,     // 设置设备运行状态
    RegulatorSet: 0x0d,         // 设置稳压器参数
    SwitchPointDown: 0x0e,      // 下切换点设置
    SwitchPointUp: 0x0f,        // 上切换点设置
    TriggerExtToggle: 0x11,     // 外部触发切换
    SetPowerMode: 0x11,         // 设置电源模式 (与0x11重复)
    ResUserSet: 0x12,           // 用户电阻设置
    SpikeFilteringOn: 0x15,     // 开启尖峰滤波
    SpikeFilteringOff: 0x16,    // 关闭尖峰滤波
    GetMetadata: 0x19,          // 获取设备元数据
    Reset: 0x20,                // 设备复位
    SetUserGains: 0x25,         // 设置用户增益
};

字节 0-3: 电流数据 (32位，小端序)
字节 4-5: 数字通道数据 (16位，小端序)

电压值 = ADC值 × (1.8V / 163840)
电流值(μA) = (电压值 / 电阻值) × 1,000,000

import serial
import struct
import time
import threading
from typing import Callable, Optional, Dict, Tuple

class PPK2Controller:
    """PPK2设备串口控制器"""

    # PPK命令常量
    COMMANDS = {
        'TRIGGER_SET': 0x01,
        'AVG_NUM_SET': 0x02,
        'TRIGGER_WINDOW_SET': 0x03,
        'TRIGGER_INTERVAL_SET': 0x04,
        'TRIGGER_SINGLE_SET': 0x05,
        'AVERAGE_START': 0x06,
        'AVERAGE_STOP': 0x07,
        'RANGE_SET': 0x08,
        'LCD_SET': 0x09,
        'DEVICE_RUNNING_SET': 0x0c,
        'REGULATOR_SET': 0x0d,
        'SWITCH_POINT_DOWN': 0x0e,
        'SWITCH_POINT_UP': 0x0f,
        'TRIGGER_EXT_TOGGLE': 0x11,
        'SET_POWER_MODE': 0x11,
        'RES_USER_SET': 0x12,
        'SPIKE_FILTERING_ON': 0x15,
        'SPIKE_FILTERING_OFF': 0x16,
        'GET_METADATA': 0x19,
        'RESET': 0x20,
        'SET_USER_GAINS': 0x25,
    }

    def __init__(self, port: str, baudrate: int = 115200):
        """初始化PPK2控制器

        Args:
            port: 串口设备路径
            baudrate: 波特率，默认115200
        """
        self.port = port
        self.baudrate = baudrate
        self.serial_conn: Optional[serial.Serial] = None
        self.data_callback: Optional[Callable] = None
        self.running = False
        self.read_thread: Optional[threading.Thread] = None

        # 设备参数
        self.adc_mult = 1.8 / 163840
        self.resistors = [1031.64, 101.65, 10.15, 0.94, 0.043]
        self.user_gains = [1.0, 1.0, 1.0, 1.0, 1.0]

    def connect(self) -> bool:
        """连接PPK2设备

        Returns:
            bool: 连接是否成功
        """
        try:
            self.serial_conn = serial.Serial(
                port=self.port,
                baudrate=self.baudrate,
                bytesize=8,
                parity=serial.PARITY_NONE,
                stopbits=1,
                timeout=1
            )
            print(f"PPK2设备连接成功: {self.port}")
            return True
        except Exception as e:
            print(f"PPK2设备连接失败: {e}")
            return False

    def disconnect(self):
        """断开PPK2设备连接"""
        self.stop_sampling()
        if self.serial_conn and self.serial_conn.is_open:
            self.serial_conn.close()
            print("PPK2设备已断开连接")

    def send_command(self, command: list) -> bool:
        """发送命令到PPK2设备

        Args:
            command: 命令字节列表

        Returns:
            bool: 命令发送是否成功
        """
        if not self.serial_conn or not self.serial_conn.is_open:
            print("设备未连接")
            return False

        try:
            cmd_bytes = bytes(command)
            self.serial_conn.write(cmd_bytes)
            return True
        except Exception as e:
            print(f"命令发送失败: {e}")
            return False

    def initialize_device(self) -> Optional[Dict]:
        """初始化PPK2设备

        Returns:
            Dict: 设备元数据，失败时返回None
        """
        print("正在初始化PPK2设备...")

        # 1. 获取设备元数据
        metadata = self.get_metadata()
        if not metadata:
            print("获取设备元数据失败")
            return None

        print(f"设备元数据: {metadata}")

        # 2. 设置稳压器电压
        vdd = metadata.get('vdd', 3300)
        self.set_regulator(vdd)

        # 3. 设置用户增益
        for i in range(5):
            self.set_user_gains(i, self.user_gains[i])

        # 4. 设置为安培计模式
        self.set_power_mode(ampere_mode=True)

        # 5. 启用设备运行
        self.set_device_running(True)

        print("PPK2设备初始化完成")
        return metadata

    def get_metadata(self) -> Optional[Dict]:
        """获取PPK2设备元数据

        Returns:
            Dict: 解析后的元数据字典
        """
        if not self.send_command([self.COMMANDS['GET_METADATA']]):
            return None

        metadata_str = ""
        start_time = time.time()

        # 等待元数据响应
        while time.time() - start_time < 5:  # 5秒超时
            if self.serial_conn.in_waiting > 0:
                data = self.serial_conn.read(self.serial_conn.in_waiting)
                try:
                    metadata_str += data.decode('utf-8', errors='ignore')
                except:
                    continue

                if 'END' in metadata_str:
                    break
            time.sleep(0.01)

        return self._parse_metadata(metadata_str)

    def _parse_metadata(self, metadata_str: str) -> Dict:
        """解析元数据字符串

        Args:
            metadata_str: 原始元数据字符串

        Returns:
            Dict: 解析后的元数据字典
        """
        try:
            import json

            # 清理和格式化元数据字符串
            cleaned = metadata_str.replace('END', '').strip().lower()
            cleaned = cleaned.replace('-nan', 'null')
            cleaned = cleaned.replace('\n', ',\n"')
            cleaned = cleaned.replace(': ', '": ')
            json_str = '{"' + cleaned + '}'

            return json.loads(json_str)
        except Exception as e:
            print(f"元数据解析失败: {e}")
            return {}

    def set_power_mode(self, ampere_mode: bool = True):
        """设置电源模式

        Args:
            ampere_mode: True=安培计模式, False=源表模式
        """
        mode = 1 if ampere_mode else 2
        self.send_command([self.COMMANDS['SET_POWER_MODE'], mode])
        print(f"电源模式设置为: {'安培计' if ampere_mode else '源表'}")

    def set_regulator(self, voltage_mv: int):
        """设置稳压器电压

        Args:
            voltage_mv: 电压值（毫伏）
        """
        high_byte = (voltage_mv >> 8) & 0xFF
        low_byte = voltage_mv & 0xFF
        self.send_command([self.COMMANDS['REGULATOR_SET'], high_byte, low_byte])
        print(f"稳压器电压设置为: {voltage_mv} mV")

    def set_user_gains(self, range_index: int, gain: float):
        """设置用户增益

        Args:
            range_index: 量程索引 (0-4)
            gain: 增益值
        """
        if 0 <= range_index < 5:
            self.user_gains[range_index] = gain
            gain_bytes = list(struct.pack('<f', gain))
            command = [self.COMMANDS['SET_USER_GAINS'], range_index] + gain_bytes
            self.send_command(command)
            print(f"量程{range_index}增益设置为: {gain}")

    def set_device_running(self, running: bool):
        """设置设备运行状态

        Args:
            running: True=运行, False=停止
        """
        state = 1 if running else 0
        self.send_command([self.COMMANDS['DEVICE_RUNNING_SET'], state])
        print(f"设备运行状态: {'运行' if running else '停止'}")

    def start_sampling(self):
        """开始数据采样"""
        if not self.send_command([self.COMMANDS['AVERAGE_START']]):
            return False

        self.running = True

        # 启动数据读取线程
        self.read_thread = threading.Thread(target=self._read_data_loop, daemon=True)
        self.read_thread.start()

        print("开始数据采样")
        return True

    def stop_sampling(self):
        """停止数据采样"""
        self.running = False
        self.send_command([self.COMMANDS['AVERAGE_STOP']])

        if self.read_thread:
            self.read_thread.join(timeout=1)

        print("停止数据采样")

    def _read_data_loop(self):
        """数据读取循环（在独立线程中运行）"""
        buffer = b''

        while self.running and self.serial_conn and self.serial_conn.is_open:
            try:
                if self.serial_conn.in_waiting > 0:
                    data = self.serial_conn.read(self.serial_conn.in_waiting)
                    buffer += data

                    # 处理完整的数据包（每个采样点6字节）
                    while len(buffer) >= 6:
                        sample_data = buffer[:6]
                        buffer = buffer[6:]

                        # 解析采样数据
                        current, digital_channels = self._parse_sample_data(sample_data)

                        # 调用数据回调函数
                        if self.data_callback:
                            self.data_callback(current, digital_channels)

                time.sleep(0.001)  # 1ms延迟

            except Exception as e:
                print(f"数据读取错误: {e}")
                break

    def _parse_sample_data(self, data: bytes) -> Tuple[float, int]:
        """解析6字节采样数据

        Args:
            data: 6字节原始数据

        Returns:
            Tuple[float, int]: (电流值(μA), 数字通道状态)
        """
        if len(data) != 6:
            return 0.0, 0

        try:
            # 解析32位数据
            raw_value = struct.unpack('<I', data[:4])[0]
            digital_data = struct.unpack('<H', data[4:6])[0]

            # 提取各个字段
            adc_value = raw_value & 0x3FFF          # 14位ADC值
            range_value = (raw_value >> 14) & 0x7   # 3位量程
            counter = (raw_value >> 18) & 0x3F      # 6位计数器
            digital_channels = (raw_value >> 24) & 0xFF  # 8位数字通道

            # 转换为实际电流值
            current_ua = self._convert_to_current(adc_value, range_value)

            return current_ua, digital_channels

        except Exception as e:
            print(f"数据解析错误: {e}")
            return 0.0, 0

    def _convert_to_current(self, adc_value: int, range_idx: int) -> float:
        """将ADC值转换为电流值（微安）

        Args:
            adc_value: ADC采样值
            range_idx: 量程索引

        Returns:
            float: 电流值（微安）
        """
        if range_idx >= len(self.resistors):
            return 0.0

        try:
            voltage = adc_value * self.adc_mult
            resistance = self.resistors[range_idx]
            gain = self.user_gains[range_idx]

            # 计算电流值（微安）
            current_ua = (voltage / resistance) * gain * 1000000
            return current_ua

        except Exception:
            return 0.0

    def set_data_callback(self, callback: Callable[[float, int], None]):
        """设置数据回调函数

        Args:
            callback: 回调函数，参数为(电流值, 数字通道状态)
        """
        self.data_callback = callback

class PPK2Trigger:
    """PPK2触发器控制类"""

    def __init__(self, ppk2_controller: PPK2Controller):
        self.ppk2 = ppk2_controller
        self.analog_trigger_level = 0.0
        self.analog_trigger_rising = True
        self.analog_trigger_active = False
        self.digital_trigger_mask = 0x00
        self.digital_trigger_active = False
        self.trigger_callback = None

    def set_analog_trigger(self, level_ua: float, rising_edge: bool = True):
        """设置模拟触发器

        Args:
            level_ua: 触发电流阈值（微安）
            rising_edge: True=上升沿触发, False=下降沿触发
        """
        self.analog_trigger_level = level_ua
        self.analog_trigger_rising = rising_edge
        self.analog_trigger_active = True
        print(f"模拟触发器设置: {level_ua}μA, {'上升沿' if rising_edge else '下降沿'}")

    def set_digital_trigger(self, channel_mask: int):
        """设置数字触发器

        Args:
            channel_mask: 8位通道掩码，1表示高电平触发
        """
        self.digital_trigger_mask = channel_mask & 0xFF
        self.digital_trigger_active = True
        print(f"数字触发器设置: 0b{channel_mask:08b}")

    def check_trigger(self, current_ua: float, digital_channels: int) -> bool:
        """检查触发条件

        Args:
            current_ua: 当前电流值
            digital_channels: 数字通道状态

        Returns:
            bool: 是否触发
        """
        triggered = False

        # 检查模拟触发
        if self.analog_trigger_active:
            if self.analog_trigger_rising:
                triggered = current_ua > self.analog_trigger_level
            else:
                triggered = current_ua < self.analog_trigger_level

        # 检查数字触发
        if self.digital_trigger_active:
            triggered = triggered or (digital_channels & self.digital_trigger_mask) != 0

        if triggered and self.trigger_callback:
            self.trigger_callback(current_ua, digital_channels)

        return triggered

    def set_trigger_callback(self, callback: Callable[[float, int], None]):
        """设置触发回调函数"""
        self.trigger_callback = callback

import csv
from datetime import datetime

class PPK2DataLogger:
    """PPK2数据记录器"""

    def __init__(self, filename: str = None):
        if filename is None:
            timestamp = datetime.now().strftime("%Y%m%d_%H%M%S")
            filename = f"ppk2_data_{timestamp}.csv"

        self.filename = filename
        self.file = None
        self.writer = None
        self.sample_count = 0
        self.start_time = None

    def start_logging(self):
        """开始数据记录"""
        try:
            self.file = open(self.filename, 'w', newline='', encoding='utf-8')
            self.writer = csv.writer(self.file)

            # 写入CSV头部
            self.writer.writerow([
                'timestamp', 'elapsed_ms', 'current_ua',
                'digital_channels', 'channel_0', 'channel_1',
                'channel_2', 'channel_3', 'channel_4',
                'channel_5', 'channel_6', 'channel_7'
            ])

            self.start_time = time.time()
            self.sample_count = 0
            print(f"开始数据记录: {self.filename}")
            return True

        except Exception as e:
            print(f"数据记录启动失败: {e}")
            return False

    def log_sample(self, current_ua: float, digital_channels: int):
        """记录采样数据

        Args:
            current_ua: 电流值（微安）
            digital_channels: 数字通道状态
        """
        if not self.writer:
            return

        try:
            current_time = time.time()
            elapsed_ms = (current_time - self.start_time) * 1000

            # 解析数字通道
            channels = [(digital_channels >> i) & 1 for i in range(8)]

            # 写入数据行
            self.writer.writerow([
                current_time, elapsed_ms, current_ua,
                f"0b{digital_channels:08b}"
            ] + channels)

            self.sample_count += 1

        except Exception as e:
            print(f"数据记录错误: {e}")

    def stop_logging(self):
        """停止数据记录"""
        if self.file:
            self.file.close()
            duration = time.time() - self.start_time if self.start_time else 0
            print(f"数据记录完成: {self.sample_count} 个采样点, 持续时间: {duration:.2f}秒")
            print(f"文件保存为: {self.filename}")

def basic_usage_example():
    """基础使用示例"""

    def data_handler(current_ua, digital_channels):
        """数据处理回调函数"""
        print(f"电流: {current_ua:8.2f} μA, 数字通道: {digital_channels:08b}")

    # 1. 创建PPK2控制器
    ppk2 = PPK2Controller("COM3")  # 根据实际端口修改

    try:
        # 2. 连接设备
        if not ppk2.connect():
            return

        # 3. 初始化设备
        metadata = ppk2.initialize_device()
        if not metadata:
            return

        # 4. 设置数据回调
        ppk2.set_data_callback(data_handler)

        # 5. 开始采样
        if ppk2.start_sampling():
            print("采样进行中，按Ctrl+C停止...")

            # 6. 运行采样
            try:
                while True:
                    time.sleep(0.1)
            except KeyboardInterrupt:
                print("\n用户中断采样")

    finally:
        # 7. 清理资源
        ppk2.stop_sampling()
        ppk2.disconnect()

if __name__ == "__main__":
    basic_usage_example()

def advanced_usage_example():
    """高级功能使用示例"""

    # 创建控制器和功能模块
    ppk2 = PPK2Controller("COM3")
    trigger = PPK2Trigger(ppk2)
    logger = PPK2DataLogger("advanced_measurement.csv")

    # 统计变量
    sample_count = 0
    trigger_count = 0

    def data_handler(current_ua, digital_channels):
        """数据处理函数"""
        nonlocal sample_count
        sample_count += 1

        # 记录数据
        logger.log_sample(current_ua, digital_channels)

        # 检查触发条件
        if trigger.check_trigger(current_ua, digital_channels):
            nonlocal trigger_count
            trigger_count += 1

        # 每1000个采样点显示一次统计
        if sample_count % 1000 == 0:
            print(f"采样: {sample_count}, 触发: {trigger_count}, "
                  f"当前电流: {current_ua:.2f}μA")

    def trigger_handler(current_ua, digital_channels):
        """触发事件处理函数"""
        print(f"*** 触发事件 *** 电流: {current_ua:.2f}μA, "
              f"数字通道: {digital_channels:08b}")

    try:
        # 连接和初始化
        if not ppk2.connect():
            return

        metadata = ppk2.initialize_device()
        if not metadata:
            return

        # 配置触发器
        trigger.set_analog_trigger(1000.0, rising_edge=True)  # 1mA上升沿触发
        trigger.set_digital_trigger(0b00000001)  # 通道0高电平触发
        trigger.set_trigger_callback(trigger_handler)

        # 设置回调和开始记录
        ppk2.set_data_callback(data_handler)
        logger.start_logging()

        # 开始采样
        if ppk2.start_sampling():
            print("高级测量开始，按Ctrl+C停止...")
            print("触发条件: 电流>1000μA 或 数字通道0=高")

            try:
                while True:
                    time.sleep(1)
            except KeyboardInterrupt:
                print("\n测量结束")

    finally:
        # 清理资源
        ppk2.stop_sampling()
        logger.stop_logging()
        ppk2.disconnect()

        print(f"\n测量统计:")
        print(f"总采样数: {sample_count}")
        print(f"触发次数: {trigger_count}")
        print(f"触发率: {trigger_count/sample_count*100:.2f}%" if sample_count > 0 else "N/A")

if __name__ == "__main__":
    advanced_usage_example()

# 串口设备检测代码
import serial.tools.list_ports

def list_serial_ports():
    """列出所有可用串口"""
    ports = serial.tools.list_ports.comports()
    for port in ports:
        print(f"端口: {port.device}, 描述: {port.description}")

list_serial_ports()

def reset_device(self):
    """复位PPK2设备"""
    self.send_command([self.COMMANDS['RESET']])
    time.sleep(2)  # 等待设备复位完成

class OptimizedPPK2Controller(PPK2Controller):
    """优化版PPK2控制器"""

    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.buffer_size = 1024  # 增大缓冲区
        self.batch_size = 100    # 批量处理大小

    def _read_data_loop(self):
        """优化的数据读取循环"""
        buffer = b''
        sample_batch = []

        while self.running and self.serial_conn and self.serial_conn.is_open:
            try:
                # 批量读取数据
                if self.serial_conn.in_waiting >= self.buffer_size:
                    data = self.serial_conn.read(self.buffer_size)
                    buffer += data

                    # 批量处理采样点
                    while len(buffer) >= 6 * self.batch_size:
                        for i in range(self.batch_size):
                            sample_data = buffer[i*6:(i+1)*6]
                            current, digital = self._parse_sample_data(sample_data)
                            sample_batch.append((current, digital))

                        buffer = buffer[6 * self.batch_size:]

                        # 批量回调
                        if self.data_callback:
                            for current, digital in sample_batch:
                                self.data_callback(current, digital)
                        sample_batch.clear()

                time.sleep(0.001)

            except Exception as e:
                print(f"数据读取错误: {e}")
                break

class MemoryEfficientLogger:
    """内存高效的数据记录器"""

    def __init__(self, filename: str, buffer_size: int = 10000):
        self.filename = filename
        self.buffer_size = buffer_size
        self.buffer = []
        self.file = None
        self.writer = None

    def log_sample(self, current_ua: float, digital_channels: int):
        """缓冲式数据记录"""
        self.buffer.append((time.time(), current_ua, digital_channels))

        # 缓冲区满时批量写入
        if len(self.buffer) >= self.buffer_size:
            self._flush_buffer()

    def _flush_buffer(self):
        """刷新缓冲区到文件"""
        if self.writer and self.buffer:
            for timestamp, current, digital in self.buffer:
                self.writer.writerow([timestamp, current, digital])
            self.buffer.clear()
            self.file.flush()  # 强制写入磁盘

# 快速命令参考
COMMANDS = {
    # 基础控制
    'START_SAMPLING': [0x06],
    'STOP_SAMPLING': [0x07],
    'DEVICE_ON': [0x0c, 1],
    'DEVICE_OFF': [0x0c, 0],
    'RESET': [0x20],

    # 电源模式
    'AMPERE_MODE': [0x11, 1],
    'SOURCE_MODE': [0x11, 2],

    # 电压设置 (3.3V)
    'SET_3V3': [0x0d, 0x0c, 0xe4],
    'SET_5V0': [0x0d, 0x13, 0x88],

    # 滤波控制
    'FILTER_ON': [0x15],
    'FILTER_OFF': [0x16],
}

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
PPK2 最小连接演示

这是一个最简单的PPK2串口连接示例，演示如何：
1. 连接PPK2设备
2. 初始化设备
3. 开始数据采集
4. 读取和显示数据

使用方法：
1. 确保PPK2设备已连接到电脑
2. 修改SERIAL_PORT为实际的串口设备路径
3. 运行脚本：python ppk2_minimal_demo.py
"""

import serial
import struct
import time
import threading
from typing import Optional

# ============================================================================
# 配置参数
# ============================================================================

# 串口配置
SERIAL_PORT = "COM4"  # Windows示例，Linux使用 "/dev/ttyUSB0" 或 "/dev/ttyACM0"
BAUD_RATE = 115200
TIMEOUT = 1.0

# PPK2命令常量
PPK_COMMANDS = {
    'GET_METADATA': 0x19,
    'AVERAGE_START': 0x06,
    'AVERAGE_STOP': 0x07,
    'DEVICE_RUNNING_SET': 0x0c,
    'SET_POWER_MODE': 0x11,
    'REGULATOR_SET': 0x0d,
    'RESET': 0x20,
}

# 数据格式常量
FRAME_SIZE = 6  # 每个数据点6字节（4字节电流 + 2字节数字通道）

# ============================================================================
# PPK2最小控制类
# ============================================================================

class PPK2MinimalController:
    """PPK2最小控制器

    提供最基本的PPK2连接和数据读取功能
    """

    def __init__(self, port: str, baudrate: int = BAUD_RATE):
        """初始化控制器

        Args:
            port: 串口设备路径
            baudrate: 波特率
        """
        self.port = port
        self.baudrate = baudrate
        self.serial_conn: Optional[serial.Serial] = None
        self.running = False
        self.data_count = 0

    def connect(self) -> bool:
        """连接PPK2设备

        Returns:
            bool: 连接是否成功
        """
        try:
            print(f"正在连接PPK2设备: {self.port}")
            self.serial_conn = serial.Serial(
                port=self.port,
                baudrate=self.baudrate,
                bytesize=8,
                parity=serial.PARITY_NONE,
                stopbits=1,
                timeout=TIMEOUT
            )
            print(f"✓ PPK2设备连接成功")
            return True
        except Exception as e:
            print(f"✗ PPK2设备连接失败: {e}")
            return False

    def disconnect(self):
        """断开PPK2设备连接"""
        self.stop_sampling()
        if self.serial_conn and self.serial_conn.is_open:
            self.serial_conn.close()
            print("PPK2设备已断开连接")

    def send_command(self, command: list) -> bool:
        """发送命令到PPK2

        Args:
            command: 命令字节列表

        Returns:
            bool: 命令发送是否成功
        """
        if not self.serial_conn or not self.serial_conn.is_open:
            print("设备未连接")
            return False

        try:
            cmd_bytes = bytes(command)
            self.serial_conn.write(cmd_bytes)
            return True
        except Exception as e:
            print(f"命令发送失败: {e}")
            return False

    def get_metadata(self) -> dict:
        """获取PPK2设备元数据

        Returns:
            dict: 设备元数据
        """
        print("正在获取设备元数据...")

        if not self.send_command([PPK_COMMANDS['GET_METADATA']]):
            return {}

        metadata_str = ""
        start_time = time.time()

        # 等待元数据响应（最多5秒）
        while time.time() - start_time < 5:
            if self.serial_conn.in_waiting > 0:
                try:
                    data = self.serial_conn.read(self.serial_conn.in_waiting)
                    metadata_str += data.decode('utf-8', errors='ignore')

                    if 'END' in metadata_str:
                        break
                except Exception as e:
                    print(f"读取元数据时出错: {e}")
                    break
            time.sleep(0.01)

        if 'END' in metadata_str:
            print("✓ 设备元数据获取成功")
            # 简单解析元数据（实际项目中需要更完善的解析）
            lines = metadata_str.replace('END', '').strip().split('\n')
            metadata = {}
            for line in lines:
                if ':' in line:
                    key, value = line.split(':', 1)
                    metadata[key.strip().lower()] = value.strip()
            return metadata
        else:
            print("✗ 设备元数据获取失败")
            return {}

    def initialize_device(self) -> bool:
        """初始化PPK2设备

        Returns:
            bool: 初始化是否成功
        """
        print("正在初始化PPK2设备...")

        # 1. 获取设备元数据
        metadata = self.get_metadata()
        if not metadata:
            print("✗ 设备初始化失败：无法获取元数据")
            return False

        print(f"设备信息: {metadata.get('hw', 'Unknown')}")

        # 2. 设置为安培计模式（模式1）
        if not self.send_command([PPK_COMMANDS['SET_POWER_MODE'], 1]):
            print("✗ 设置电源模式失败")
            return False

        # 3. 启用设备运行
        if not self.send_command([PPK_COMMANDS['DEVICE_RUNNING_SET'], 1]):
            print("✗ 启用设备运行失败")
            return False

        print("✓ PPK2设备初始化完成")
        return True

    def start_sampling(self) -> bool:
        """开始数据采样

        Returns:
            bool: 采样启动是否成功
        """
        if not self.send_command([PPK_COMMANDS['AVERAGE_START']]):
            print("✗ 启动采样失败")
            return False

        self.running = True
        self.data_count = 0
        print("✓ 数据采样已开始")
        return True

    def stop_sampling(self):
        """停止数据采样"""
        self.running = False
        if self.serial_conn and self.serial_conn.is_open:
            self.send_command([PPK_COMMANDS['AVERAGE_STOP']])
        print("数据采样已停止")

    def parse_sample_data(self, data: bytes) -> tuple:
        """解析6字节采样数据

        Args:
            data: 6字节原始数据

        Returns:
            tuple: (电流值(μA), 数字通道状态)
        """
        if len(data) != FRAME_SIZE:
            return 0.0, 0

        try:
            # 解析32位数据（小端序）
            raw_value = struct.unpack('<I', data[:4])[0]
            digital_data = struct.unpack('<H', data[4:6])[0]

            # 提取ADC值（14位）
            adc_value = raw_value & 0x3FFF

            # 简化的电流转换（实际需要校准参数）
            # 这里使用一个近似的转换公式
            voltage = adc_value * (1.8 / 16384)  # ADC转电压
            current_ua = voltage * 1000  # 简化的电流计算

            return current_ua, digital_data

        except Exception as e:
            print(f"数据解析错误: {e}")
            return 0.0, 0

    def read_data_loop(self, duration: float = 10.0):
        """数据读取循环

        Args:
            duration: 读取持续时间（秒）
        """
        print(f"开始读取数据，持续时间: {duration}秒")
        print("数据格式: [时间] 电流(μA) 数字通道")
        print("-" * 50)

        buffer = b''
        start_time = time.time()
        last_display_time = start_time

        while self.running and (time.time() - start_time) < duration:
            try:
                if self.serial_conn.in_waiting > 0:
                    # 读取可用数据
                    new_data = self.serial_conn.read(self.serial_conn.in_waiting)
                    buffer += new_data

                    # 处理完整的6字节数据包
                    while len(buffer) >= FRAME_SIZE:
                        sample_data = buffer[:FRAME_SIZE]
                        buffer = buffer[FRAME_SIZE:]

                        # 解析数据
                        current_ua, digital_channels = self.parse_sample_data(sample_data)
                        self.data_count += 1

                        # 每秒显示一次数据（避免输出过多）
                        current_time = time.time()
                        if current_time - last_display_time >= 1.0:
                            elapsed = current_time - start_time
                            print(f"[{elapsed:6.1f}s] {current_ua:8.2f} μA  0b{digital_channels:08b}")
                            last_display_time = current_time

                time.sleep(0.001)  # 1ms延迟

            except Exception as e:
                print(f"数据读取错误: {e}")
                break

        print("-" * 50)
        print(f"数据读取完成，共处理 {self.data_count} 个采样点")

# ============================================================================
# 主程序
# ============================================================================

def main():
    """主程序入口"""
    print("PPK2 最小连接演示")
    print("=" * 50)

    # 首先检查可用串口
    print("\n检查可用串口设备:")
    list_serial_ports()
    print()

    # 尝试自动检测PPK2设备
    detected_port = auto_detect_ppk2()
    if detected_port:
        print(f"自动检测到PPK2设备: {detected_port}")
        port_to_use = detected_port
    else:
        print(f"未自动检测到PPK2设备，使用默认端口: {SERIAL_PORT}")
        port_to_use = SERIAL_PORT

    # 创建PPK2控制器
    ppk2 = PPK2MinimalController(port_to_use)

    try:
        # 1. 连接设备
        if not ppk2.connect():
            print("连接失败，请检查：")
            print("1. PPK2设备是否已连接到电脑")
            print("2. 串口路径是否正确")
            print("3. 设备驱动是否已安装")
            print("\n可用的串口设备:")
            list_serial_ports()
            return

        # 2. 初始化设备
        if not ppk2.initialize_device():
            print("设备初始化失败")
            return

        # 3. 开始采样
        if not ppk2.start_sampling():
            print("启动采样失败")
            return

        # 4. 读取数据（10秒）
        try:
            ppk2.read_data_loop(duration=10.0)
        except KeyboardInterrupt:
            print("\n用户中断采样")

    except Exception as e:
        print(f"程序运行出错: {e}")

    finally:
        # 5. 清理资源
        ppk2.disconnect()
        print("程序结束")

def list_serial_ports():
    """列出可用的串口设备"""
    try:
        import serial.tools.list_ports

        ports = serial.tools.list_ports.comports()

        if not ports:
            print("未找到任何串口设备")
            return []

        for i, port in enumerate(ports, 1):
            print(f"{i}. {port.device} - {port.description}")
            if 'PPK' in port.description.upper() or 'NORDIC' in port.description.upper():
                print(f"   *** 可能是PPK2设备 ***")

        return ports

    except ImportError:
        print("需要安装pyserial库: pip install pyserial")
        return []
    except Exception as e:
        print(f"列出串口设备时出错: {e}")
        return []

def auto_detect_ppk2():
    """自动检测PPK2设备

    Returns:
        str: PPK2设备的串口路径，如果未找到则返回None
    """
    try:
        import serial.tools.list_ports

        ports = serial.tools.list_ports.comports()

        # 查找可能的PPK2设备
        for port in ports:
            description = port.description.upper()
            # 检查描述中是否包含PPK或Nordic相关关键词
            if any(keyword in description for keyword in ['PPK', 'NORDIC', 'SEGGER', 'J-LINK']):
                return port.device

        return None

    except Exception as e:
        print(f"自动检测PPK2设备时出错: {e}")
        return None

if __name__ == "__main__":
    main()

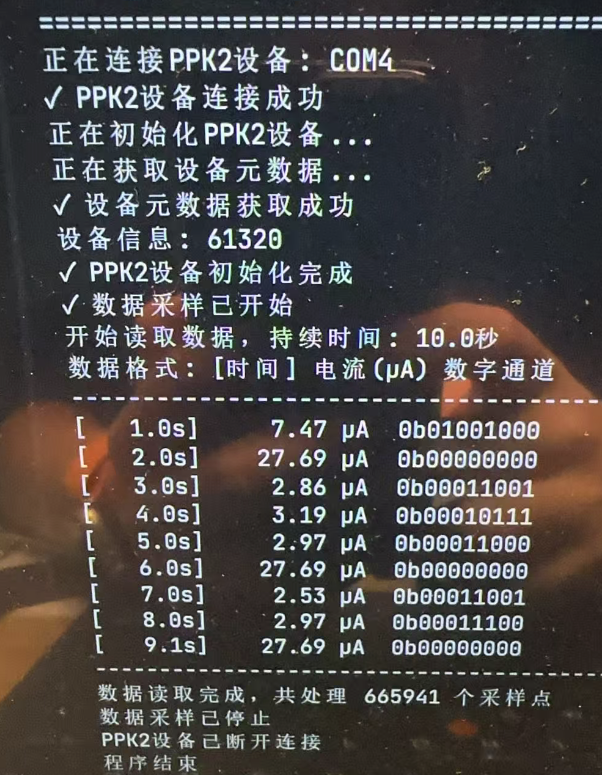

PPK2 最小连接演示
==================================================

检查可用串口设备:
1. COM3 - USB 串行设备 (COM3)
2. COM4 - nRF Connect USB CDC ACM (COM4)

未自动检测到PPK2设备，使用默认端口: COM4
正在连接PPK2设备: COM4
✓ PPK2设备连接成功
正在初始化PPK2设备...
正在获取设备元数据...
✓ 设备元数据获取成功
设备信息: 61320
✓ PPK2设备初始化完成
✓ 数据采样已开始
开始读取数据，持续时间: 10.0秒
数据格式: [时间] 电流(μA) 数字通道
--------------------------------------------------
[   1.0s]     3.19 μA  0b00011110
[   2.0s]    27.69 μA  0b00000000
[   3.0s]    27.69 μA  0b00000000
[   4.0s]     3.19 μA  0b00011110
[   5.0s]    27.69 μA  0b00000000
[   6.0s]    27.69 μA  0b00000000
[   7.1s]     3.52 μA  0b00011001
[   8.1s]    19.78 μA  0b10111000
[   9.1s]     3.08 μA  0b00011110
--------------------------------------------------
数据读取完成，共处理 664917 个采样点
数据采样已停止
PPK2设备已断开连接
程序结束

检查可用串口设备:
1. COM3 - USB 串行设备 (COM3)
2. COM4 - nRF Connect USB CDC ACM (COM4)

正在连接PPK2设备: COM4
✓ PPK2设备连接成功
正在初始化PPK2设备...
正在获取设备元数据...
✓ 设备元数据获取成功
设备信息: 61320
✓ PPK2设备初始化完成

✓ 数据采样已开始
开始读取数据，持续时间: 10.0秒
数据格式: [时间] 电流(μA) 数字通道
--------------------------------------------------
[   1.0s]     3.19 μA  0b00011110
[   2.0s]    27.69 μA  0b00000000
[   3.0s]    27.69 μA  0b00000000

数据读取完成，共处理 664917 个采样点

# 安装Python依赖
pip install pyserial>=3.4

# 可选：安装额外的分析工具
pip install numpy matplotlib pandas

PPK2设备 ──USB线──> 电脑USB端口

pip install pyserial

python ppk2_minimal_demo.py

# 添加CSV数据记录功能
import csv
from datetime import datetime

class DataLogger:
    def __init__(self):
        timestamp = datetime.now().strftime("%Y%m%d_%H%M%S")
        self.filename = f"ppk2_data_{timestamp}.csv"
        self.file = open(self.filename, 'w', newline='')
        self.writer = csv.writer(self.file)
        self.writer.writerow(['timestamp', 'current_ua', 'digital_channels'])

    def log_data(self, current_ua, digital_channels):
        self.writer.writerow([time.time(), current_ua, digital_channels])

# 添加matplotlib实时图表
import matplotlib.pyplot as plt
from collections import deque

class RealTimePlotter:
    def __init__(self, max_points=1000):
        self.times = deque(maxlen=max_points)
        self.currents = deque(maxlen=max_points)

        plt.ion()
        self.fig, self.ax = plt.subplots()
        self.line, = self.ax.plot([], [])

    def update_plot(self, current_ua):
        self.times.append(time.time())
        self.currents.append(current_ua)

        self.line.set_data(self.times, self.currents)
        self.ax.relim()
        self.ax.autoscale_view()
        plt.pause(0.01)

# 添加电流阈值触发功能
class CurrentTrigger:
    def __init__(self, threshold_ua=10.0):
        self.threshold = threshold_ua
        self.triggered = False

    def check_trigger(self, current_ua):
        if current_ua > self.threshold and not self.triggered:
            print(f"触发！电流超过阈值: {current_ua:.2f} μA > {self.threshold} μA")
            self.triggered = True
            return True
        elif current_ua <= self.threshold:
            self.triggered = False
        return False
