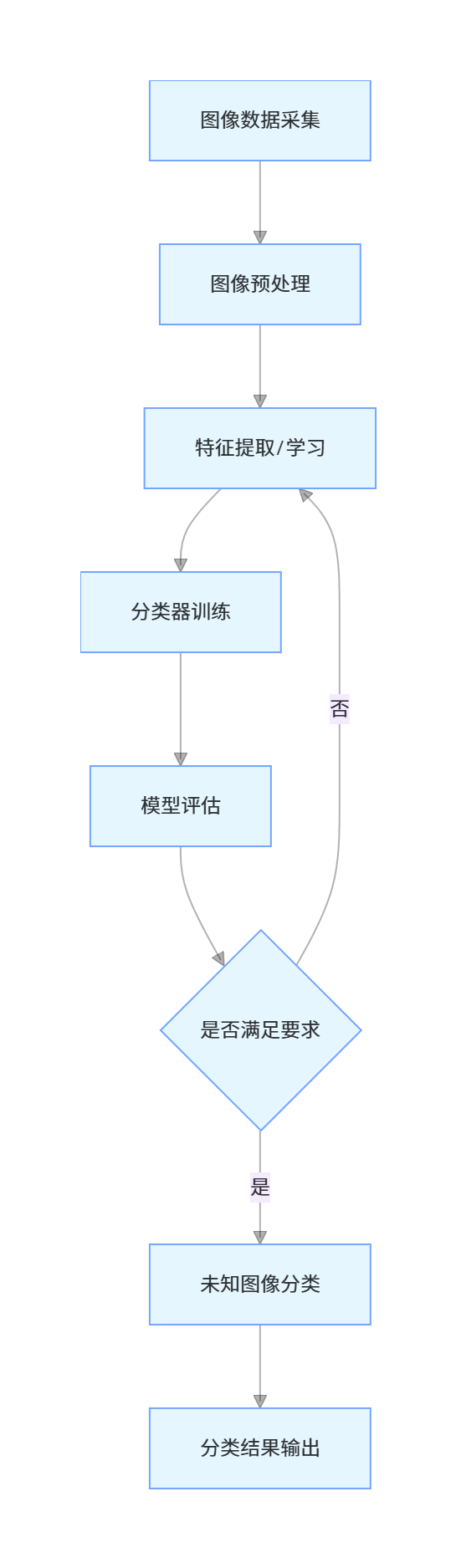

《数字图像处理》第 12 章 - 图像模式分类

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_digits
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
plt.rcParams["axes.unicode_minus"] = False  # 解决负号显示问题

# 1. 加载数据并预处理
digits = load_digits()

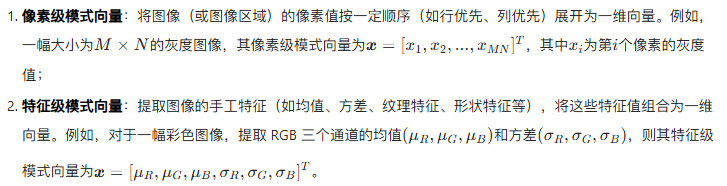

X = digits.data  # 模式向量（像素级，8x8图像展开为64维向量）
y = digits.target  # 标签（0-9）

# 划分训练集和测试集
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

# 2. 计算每个类别的均值向量（原型）
classes = np.unique(y_train)
class_means = {}  # 存储每个类别的均值向量
for cls in classes:
    # 提取该类别的所有样本
    cls_samples = X_train[y_train == cls]
    # 计算均值向量
    cls_mean = np.mean(cls_samples, axis=0)
    class_means[cls] = cls_mean

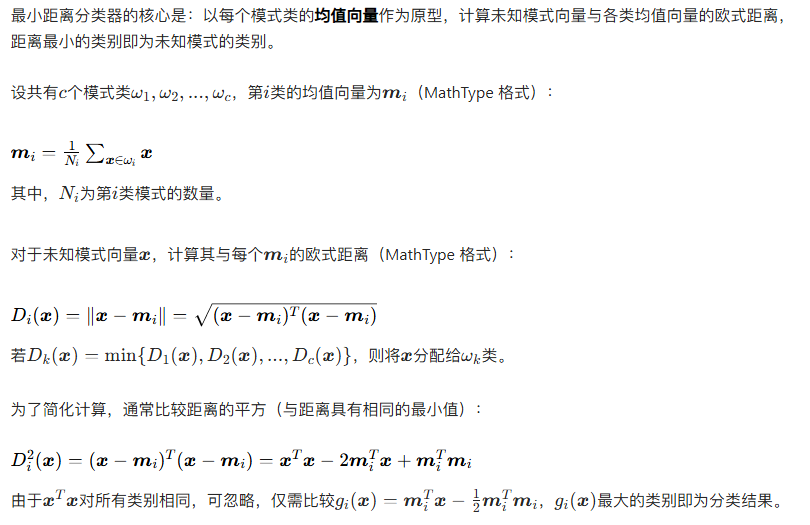

# 3. 实现最小距离分类器
def min_distance_classifier(x, class_means):
    """
    最小距离分类器预测单个样本
    :param x: 未知样本的模式向量
    :param class_means: 各类别均值向量字典
    :return: 预测类别
    """
    min_dist = float('inf')
    pred_cls = -1
    for cls, mean_vec in class_means.items():
        # 计算欧式距离
        dist = np.linalg.norm(x - mean_vec)
        if dist < min_dist:
            min_dist = dist
            pred_cls = cls
    return pred_cls

# 4. 对测试集进行预测
y_pred = [min_distance_classifier(x, class_means) for x in X_test]

# 5. 计算准确率
accuracy = accuracy_score(y_test, y_pred)
print(f"最小距离分类器测试集准确率：{accuracy:.4f}")

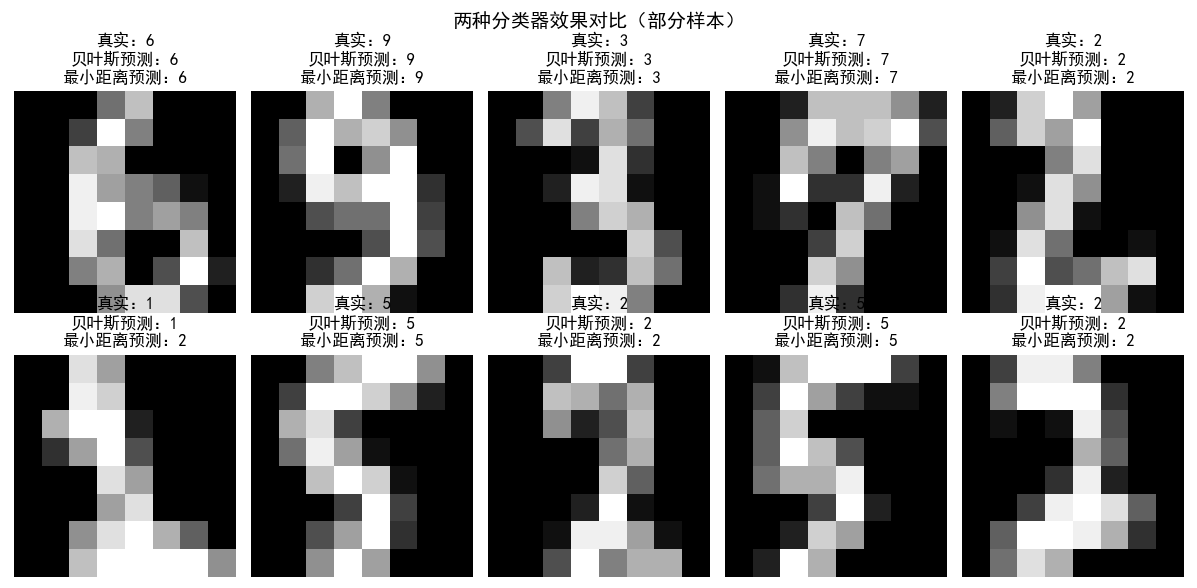

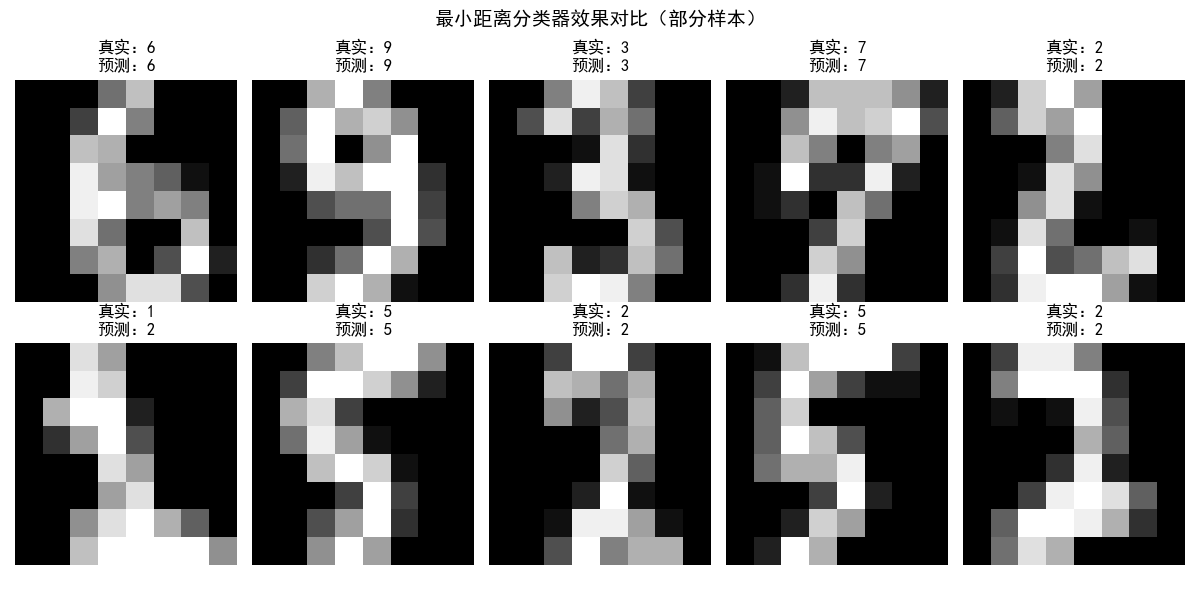

# 6. 效果可视化：展示部分测试样本的真实标签与预测标签
fig, axes = plt.subplots(2, 5, figsize=(12, 6))
axes = axes.flatten()
for i in range(10):
    # 还原图像（64维向量转为8x8）
    img = X_test[i].reshape(8, 8)
    axes[i].imshow(img, cmap='gray')
    axes[i].set_title(f"真实：{y_test[i]}\n预测：{y_pred[i]}")
    axes[i].axis('off')
plt.suptitle("最小距离分类器效果对比（部分样本）", fontsize=14)
plt.tight_layout()
plt.show()

# 7. 可视化各类别均值原型（每个类别的典型图像）
fig, axes = plt.subplots(2, 5, figsize=(12, 6))
axes = axes.flatten()
for cls in classes:
    mean_img = class_means[cls].reshape(8, 8)
    axes[cls].imshow(mean_img, cmap='gray')
    axes[cls].set_title(f"类别{cls}均值原型")
    axes[cls].axis('off')
plt.suptitle("各类别均值原型图像", fontsize=14)
plt.tight_layout()
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_digits
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
plt.rcParams["axes.unicode_minus"] = False

# 1. 加载数据并预处理（保留二维图像格式，不展开为一维向量）
digits = load_digits()
X = digits.images  # 二维图像格式，(1797, 8, 8)
y = digits.target

# 划分训练集和测试集
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

# 2. 计算每个类别的均值原型（二维图像）
classes = np.unique(y_train)
class_2d_means = {}
for cls in classes:
    cls_samples = X_train[y_train == cls]
    cls_2d_mean = np.mean(cls_samples, axis=0)
    class_2d_means[cls] = cls_2d_mean

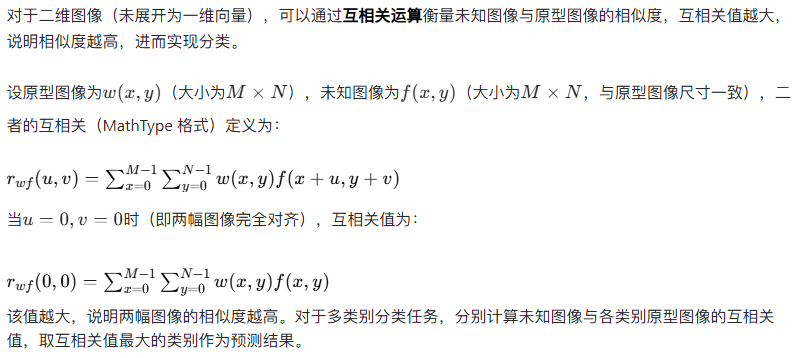

# 3. 基于互相关的匹配分类器
def cross_correlation_classifier(img, class_2d_means):
    """
    互相关匹配分类器
    :param img: 未知二维图像
    :param class_2d_means: 各类别二维均值原型字典
    :return: 预测类别
    """
    max_corr = -float('inf')
    pred_cls = -1
    for cls, proto_img in class_2d_means.items():
        # 计算互相关值（对齐情况下）
        corr = np.sum(proto_img * img)
        if corr > max_corr:
            max_corr = corr
            pred_cls = cls
    return pred_cls

# 4. 对测试集进行预测
y_corr_pred = [cross_correlation_classifier(img, class_2d_means) for img in X_test]

# 5. 计算准确率
corr_accuracy = accuracy_score(y_test, y_corr_pred)
print(f"互相关匹配分类器测试集准确率：{corr_accuracy:.4f}")

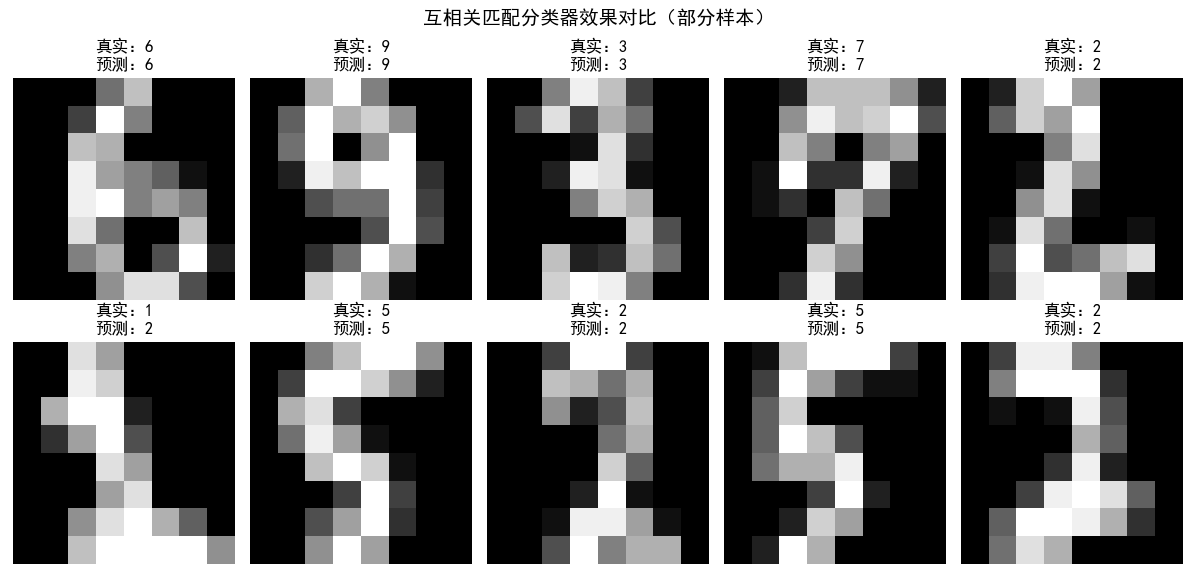

# 6. 效果可视化：对比真实标签与预测标签
fig, axes = plt.subplots(2, 5, figsize=(12, 6))
axes = axes.flatten()
for i in range(10):
    axes[i].imshow(X_test[i], cmap='gray')
    axes[i].set_title(f"真实：{y_test[i]}\n预测：{y_corr_pred[i]}")
    axes[i].axis('off')
plt.suptitle("互相关匹配分类器效果对比（部分样本）", fontsize=14)
plt.tight_layout()
plt.show()

# 7. 可视化互相关值分布（以类别0和类别1为例）
cls0_proto = class_2d_means[0]
cls1_proto = class_2d_means[1]
# 提取测试集中类别0和类别1的样本
cls0_test_samples = X_test[y_test == 0]
cls1_test_samples = X_test[y_test == 1]

# 计算类别0样本与两个原型的互相关值
cls0_corr0 = [np.sum(sample * cls0_proto) for sample in cls0_test_samples]
cls0_corr1 = [np.sum(sample * cls1_proto) for sample in cls0_test_samples]

# 计算类别1样本与两个原型的互相关值
cls1_corr0 = [np.sum(sample * cls0_proto) for sample in cls1_test_samples]
cls1_corr1 = [np.sum(sample * cls1_proto) for sample in cls1_test_samples]

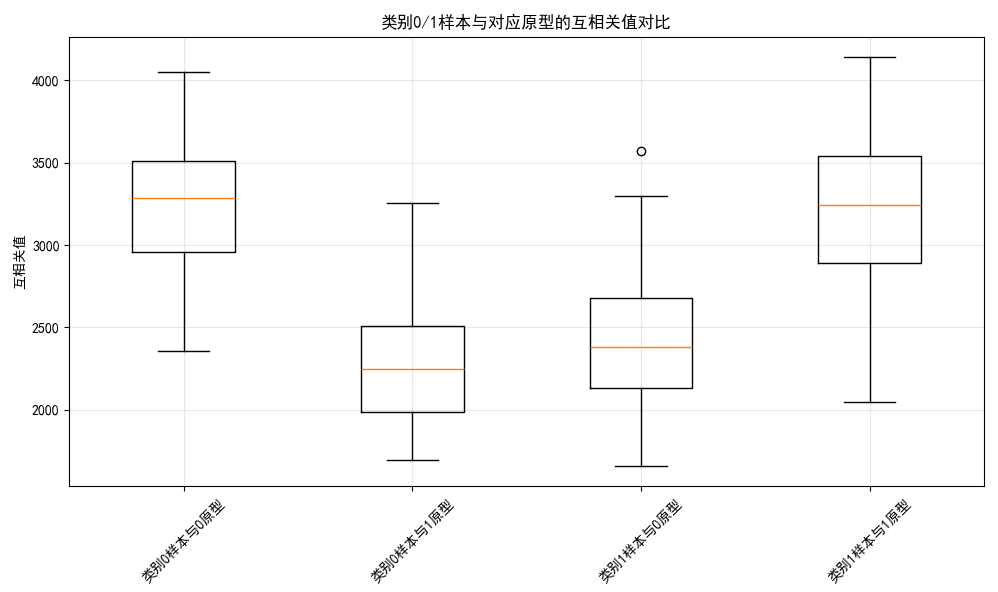

# 绘制箱线图对比
fig, ax = plt.subplots(1, 1, figsize=(10, 6))
box_data = [cls0_corr0, cls0_corr1, cls1_corr0, cls1_corr1]
labels = ["类别0样本与0原型", "类别0样本与1原型", "类别1样本与0原型", "类别1样本与1原型"]
ax.boxplot(box_data, labels=labels)
ax.set_title("类别0/1样本与对应原型的互相关值对比")
ax.set_ylabel("互相关值")
ax.grid(alpha=0.3)
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()

import cv2
import numpy as np
import matplotlib.pyplot as plt
import os

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
plt.rcParams["axes.unicode_minus"] = False

# 注意：需要确保安装了opencv-contrib-python（包含SIFT算法）
# 安装命令：pip install opencv-contrib-python==4.5.5.62

# 1. 准备原型图像（手动创建或下载简单图像，这里以自制简单形状为例）
# 先创建保存原型图像的临时目录
if not os.path.exists("sift_prototypes"):
    os.makedirs("sift_prototypes")

# 创建3类原型图像：圆形、正方形、三角形
def create_prototype_images():
    # 圆形原型
    circle_img = np.zeros((200, 200), dtype=np.uint8)
    cv2.circle(circle_img, (100, 100), 80, 255, -1)
    cv2.imwrite("sift_prototypes/circle.jpg", circle_img)

    # 正方形原型
    square_img = np.zeros((200, 200), dtype=np.uint8)
    cv2.rectangle(square_img, (40, 40), (160, 160), 255, -1)
    cv2.imwrite("sift_prototypes/square.jpg", square_img)

    # 三角形原型
    triangle_img = np.zeros((200, 200), dtype=np.uint8)
    pts = np.array([[100, 40], [40, 160], [160, 160]], np.int32)
    cv2.fillPoly(triangle_img, [pts], 255)
    cv2.imwrite("sift_prototypes/triangle.jpg", triangle_img)

# 创建原型图像
create_prototype_images()

# 2. 加载原型图像并提取SIFT特征
proto_classes = ["circle", "square", "triangle"]
proto_sift = {}  # 存储每个类别的SIFT描述子
sift = cv2.SIFT_create()

for cls in proto_classes:
    img_path = f"sift_prototypes/{cls}.jpg"
    img = cv2.imread(img_path, 0)
    # 提取SIFT特征点和描述子
    kp, des = sift.detectAndCompute(img, None)
    proto_sift[cls] = (img, kp, des)

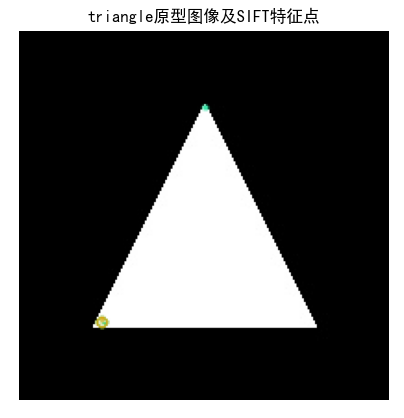

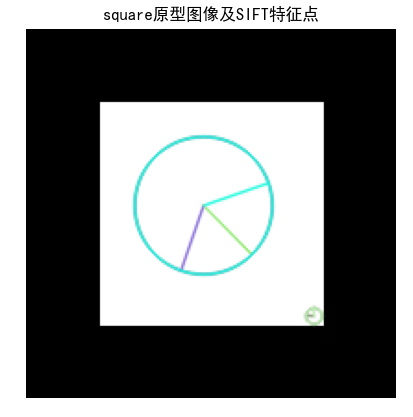

    # 绘制特征点
    img_with_kp = cv2.drawKeypoints(img, kp, None, flags=cv2.DRAW_MATCHES_FLAGS_DRAW_RICH_KEYPOINTS)
    plt.imshow(img_with_kp, cmap='gray')
    plt.title(f"{cls}原型图像及SIFT特征点")
    plt.axis('off')
    plt.show()

# 3. 创建测试图像（带旋转、缩放的形状）
def create_test_images():
    if not os.path.exists("sift_test"):
        os.makedirs("sift_test")

    # 旋转缩放后的圆形
    circle_test = np.zeros((200, 200), dtype=np.uint8)
    cv2.circle(circle_test, (100, 100), 60, 255, -1)
    # 旋转45度
    M = cv2.getRotationMatrix2D((100, 100), 45, 1)
    circle_test_rot = cv2.warpAffine(circle_test, M, (200, 200))
    cv2.imwrite("sift_test/circle_test.jpg", circle_test_rot)

    # 旋转缩放后的正方形
    square_test = np.zeros((200, 200), dtype=np.uint8)
    cv2.rectangle(square_test, (50, 50), (150, 150), 255, -1)
    M = cv2.getRotationMatrix2D((100, 100), 30, 0.8)
    square_test_rot = cv2.warpAffine(square_test, M, (200, 200))
    cv2.imwrite("sift_test/square_test.jpg", square_test_rot)

    # 旋转缩放后的三角形
    triangle_test = np.zeros((200, 200), dtype=np.uint8)
    pts = np.array([[100, 50], [50, 150], [150, 150]], np.int32)
    cv2.fillPoly(triangle_test, [pts], 255)
    M = cv2.getRotationMatrix2D((100, 100), 60, 1.2)
    triangle_test_rot = cv2.warpAffine(triangle_test, M, (200, 200))
    cv2.imwrite("sift_test/triangle_test.jpg", triangle_test_rot)

# 创建测试图像
create_test_images()

# 4. SIFT特征匹配分类
def sift_classify(test_img_path, proto_sift, flann_index=0):
    """
    SIFT特征匹配分类
    :param test_img_path: 测试图像路径
    :param proto_sift: 原型图像SIFT特征字典
    :param flann_index: FLANN匹配器索引类型
    :return: 预测类别、匹配可视化图像
    """
    # 加载测试图像并提取SIFT特征
    test_img = cv2.imread(test_img_path, 0)
    test_kp, test_des = sift.detectAndCompute(test_img, None)
    if test_des is None:
        return "未知类别", None

    # 初始化FLANN匹配器
    FLANN_INDEX_KDTREE = flann_index
    index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
    search_params = dict(checks=50)
    flann = cv2.FlannBasedMatcher(index_params, search_params)

    max_matches = 0
    pred_cls = "未知类别"
    best_match_img = None

    for cls, (proto_img, proto_kp, proto_des) in proto_sift.items():
        if proto_des is None:
            continue
        # K近邻匹配
        matches = flann.knnMatch(proto_des, test_des, k=2)
        # 应用Lowe's比率测试筛选优质匹配
        good_matches = []
        for m, n in matches:
            if m.distance < 0.7 * n.distance:
                good_matches.append(m)

        # 记录匹配数最多的类别
        if len(good_matches) > max_matches:
            max_matches = len(good_matches)
            pred_cls = cls
            # 绘制匹配图像
            best_match_img = cv2.drawMatches(proto_img, proto_kp, test_img, test_kp, good_matches, None,
                                             flags=cv2.DrawMatchesFlags_NOT_DRAW_SINGLE_POINTS)

    return pred_cls, best_match_img

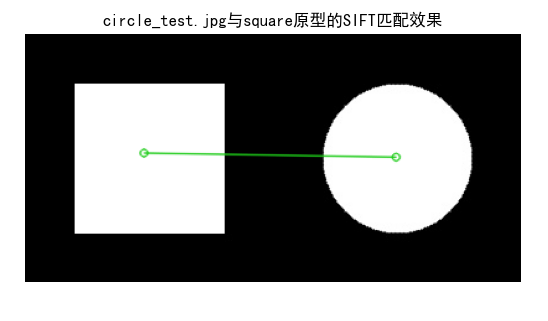

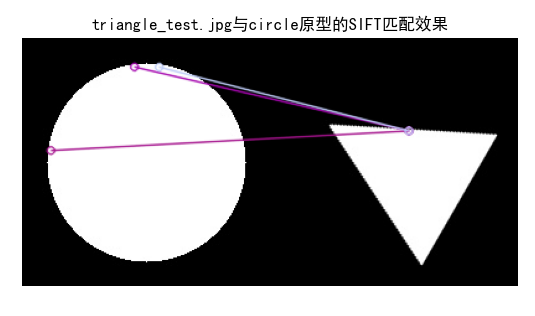

# 5. 对每个测试图像进行分类并可视化
test_images = ["circle_test.jpg", "square_test.jpg", "triangle_test.jpg"]
for test_img_name in test_images:
    test_img_path = f"sift_test/{test_img_name}"
    pred_cls, match_img = sift_classify(test_img_path, proto_sift)
    print(f"测试图像{test_img_name}的预测类别：{pred_cls}")

    if match_img is not None:
        # 转换为RGB格式（opencv默认BGR）
        match_img_rgb = cv2.cvtColor(match_img, cv2.COLOR_BGR2RGB)
        plt.imshow(match_img_rgb)
        plt.title(f"{test_img_name}与{pred_cls}原型的SIFT匹配效果")
        plt.axis('off')
        plt.show()

import cv2
import numpy as np
import matplotlib.pyplot as plt
import os

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei"]
plt.rcParams["axes.unicode_minus"] = False

# 1. 定义结构原型（形状的结构特征：顶点数、边数、轮廓面积比）
structure_prototypes = {
    "circle": {"vertex_num": 0, "edge_num": 1, "area_ratio": 0.785},  # 圆面积/外接正方形面积≈π/4≈0.785
    "square": {"vertex_num": 4, "edge_num": 4, "area_ratio": 1.0},  # 正方形面积/外接正方形面积=1.0
    "triangle": {"vertex_num": 3, "edge_num": 3, "area_ratio": 0.433}  # 正三角形面积/外接正方形面积≈√3/4≈0.433
}


# 2. 提取形状的结构特征
def extract_structure_features(img_path):
    """
    提取形状的结构特征
    :param img_path: 图像路径
    :return: 顶点数、边数、面积比
    """
    # 检查文件是否存在
    if not os.path.exists(img_path):
        print(f"错误：图像文件 {img_path} 不存在！")
        return 0, 0, 0

    # 加载图像
    img = cv2.imread(img_path, 0)
    if img is None:
        print(f"错误：无法加载图像 {img_path}！")
        return 0, 0, 0

    # 二值化（阈值分割）
    _, binary_img = cv2.threshold(img, 127, 255, cv2.THRESH_BINARY)
    # 提取轮廓
    contours, _ = cv2.findContours(binary_img, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
    if len(contours) == 0:
        print("警告：未提取到图像轮廓！")
        return 0, 0, 0

    main_contour = max(contours, key=cv2.contourArea)
    # 计算轮廓面积
    contour_area = cv2.contourArea(main_contour)
    # 计算外接正方形
    x, y, w, h = cv2.boundingRect(main_contour)
    square_area = w * h
    area_ratio = contour_area / square_area if square_area != 0 else 0

    # 多边形逼近（提取顶点）
    epsilon = 0.02 * cv2.arcLength(main_contour, True)
    approx = cv2.approxPolyDP(main_contour, epsilon, True)
    vertex_num = len(approx)
    edge_num = vertex_num  # 闭合多边形边数=顶点数

    # 特殊处理圆形（顶点数≥8时判定为圆）
    if vertex_num >= 8:
        vertex_num_cal = 0
        edge_num_cal = 1
    else:
        vertex_num_cal = vertex_num
        edge_num_cal = edge_num

    return vertex_num_cal, edge_num_cal, area_ratio

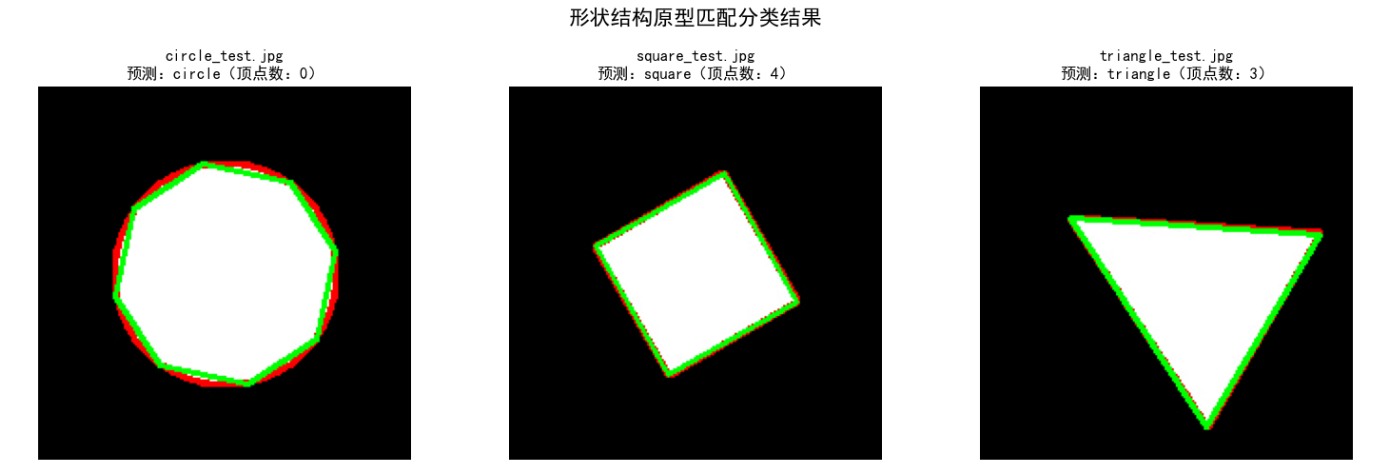

# 3. 结构原型匹配分类
def structure_match_classify(img_path, structure_prototypes):
    """
    结构原型匹配分类
    :param img_path: 测试图像路径
    :param structure_prototypes: 结构原型字典
    :return: 预测类别、结构特征
    """
    vertex_num, edge_num, area_ratio = extract_structure_features(img_path)
    min_feature_dist = float('inf')
    pred_cls = "未知类别"

    for cls, proto_feat in structure_prototypes.items():
        # 计算特征距离（加权和）
        v_dist = abs(vertex_num - proto_feat["vertex_num"])
        e_dist = abs(edge_num - proto_feat["edge_num"])
        a_dist = abs(area_ratio - proto_feat["area_ratio"])
        total_dist = v_dist * 0.4 + e_dist * 0.4 + a_dist * 0.2  # 加权分配
        if total_dist < min_feature_dist:
            min_feature_dist = total_dist
            pred_cls = cls

    return pred_cls, (vertex_num, edge_num, area_ratio)


# 4. 初始化画布（创建单个窗口，包含3个子图）
fig, axes = plt.subplots(1, 3, figsize=(15, 5))  # 1行3列的子图布局，设置画布大小
fig.suptitle("形状结构原型匹配分类结果", fontsize=16, fontweight='bold')  # 总标题

# 5. 遍历测试图像进行分类和可视化
test_images = ["circle_test.jpg", "square_test.jpg", "triangle_test.jpg"]
for idx, test_img_name in enumerate(test_images):
    test_img_path = f"sift_test/{test_img_name}"
    # 调用分类函数获取结果
    pred_cls, features = structure_match_classify(test_img_path, structure_prototypes)
    vertex_num, edge_num, area_ratio = features

    print(f"\n测试图像：{test_img_name}")
    print(f"提取的结构特征：顶点数={vertex_num}, 边数={edge_num}, 面积比={area_ratio:.3f}")
    print(f"预测类别：{pred_cls}")

    # 绘制当前图像到对应子图
    ax = axes[idx]  # 获取当前子图对象
    if os.path.exists(test_img_path) and cv2.imread(test_img_path) is not None:
        img = cv2.imread(test_img_path)
        img_rgb = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
        # 提取轮廓用于绘制
        gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
        _, binary = cv2.threshold(gray, 127, 255, cv2.THRESH_BINARY)
        contours, _ = cv2.findContours(binary, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
        if len(contours) > 0:
            cv2.drawContours(img_rgb, contours, -1, (255, 0, 0), 2)
            # 绘制多边形逼近
            main_contour = max(contours, key=cv2.contourArea)
            epsilon = 0.02 * cv2.arcLength(main_contour, True)
            approx = cv2.approxPolyDP(main_contour, epsilon, True)
            cv2.drawContours(img_rgb, [approx], -1, (0, 255, 0), 2)

        ax.imshow(img_rgb)
        ax.set_title(f"{test_img_name}\n预测：{pred_cls}（顶点数：{vertex_num}）", fontsize=12)
    else:
        ax.text(0.5, 0.5, "图像加载失败", ha='center', va='center', fontsize=12)
        ax.set_title(test_img_name, fontsize=12)

    ax.axis('off')  # 关闭子图坐标轴

# 调整子图间距，避免标题重叠
plt.tight_layout(rect=[0, 0, 1, 0.95])  # rect参数预留总标题空间
# 显示单个窗口（包含所有子图）
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_digits
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score
from scipy.stats import multivariate_normal

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
plt.rcParams["axes.unicode_minus"] = False

# 1. 加载数据并预处理
digits = load_digits()
X = digits.data
y = digits.target
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

# 2. 估计贝叶斯分类器的参数（先验概率、均值向量、协方差矩阵）
classes = np.unique(y_train)
n_classes = len(classes)
d = X_train.shape[1]  # 特征维度

# 先验概率 P(ω_i)
prior_probs = {}
for cls in classes:
    prior_probs[cls] = np.sum(y_train == cls) / len(y_train)

# 均值向量 m_i
class_means = {}
for cls in classes:
    class_means[cls] = np.mean(X_train[y_train == cls], axis=0)

# 协方差矩阵 Σ_i（添加微小扰动避免奇异）
class_covs = {}
epsilon = 1e-6  # 防止协方差矩阵奇异
for cls in classes:
    cls_samples = X_train[y_train == cls]
    cov = np.cov(cls_samples, rowvar=False)
    class_covs[cls] = cov + epsilon * np.eye(d)

# 3. 高斯贝叶斯分类器
def gaussian_bayes_classifier(x, classes, prior_probs, class_means, class_covs):
    """
    高斯模式类贝叶斯分类器
    :param x: 未知模式向量
    :param classes: 类别列表
    :param prior_probs: 先验概率字典
    :param class_means: 均值向量字典
    :param class_covs: 协方差矩阵字典
    :return: 预测类别
    """
    max_g = -float('inf')
    pred_cls = -1
    for cls in classes:
        m_i = class_means[cls]
        cov_i = class_covs[cls]
        prior_i = prior_probs[cls]

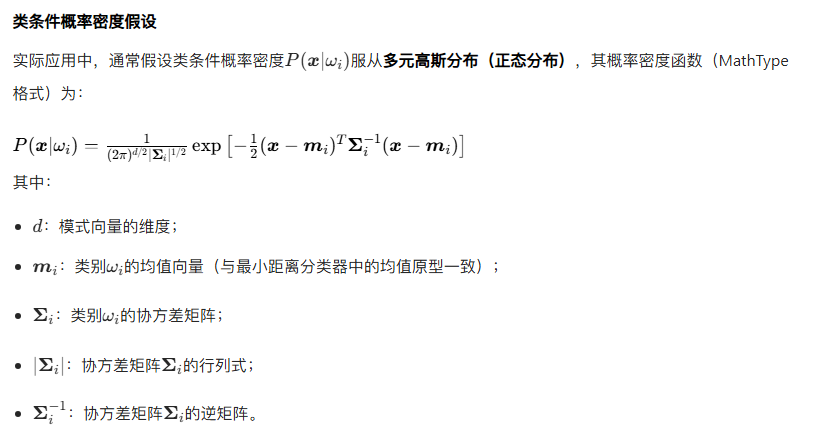

        # 计算类条件概率密度 P(x|ω_i)
        try:
            p_x_wi = multivariate_normal.pdf(x, mean=m_i, cov=cov_i)
        except:
            p_x_wi = 1e-20  # 异常情况赋值极小值

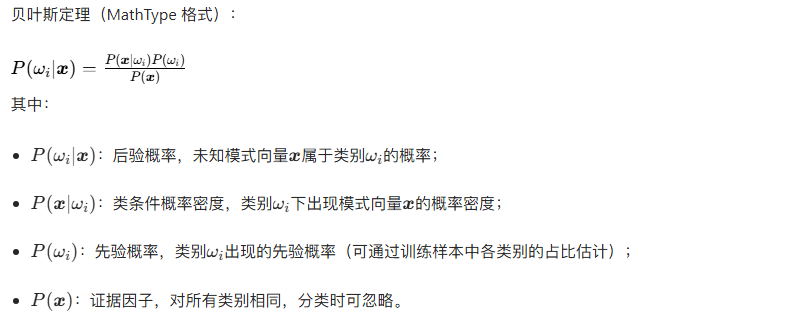

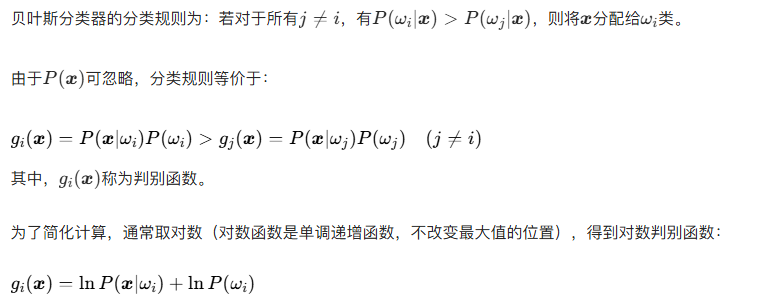

        # 计算判别函数 g_i(x) = ln(P(x|ω_i)) + ln(P(ω_i))
        if p_x_wi == 0:
            g_i = -float('inf')
        else:
            g_i = np.log(p_x_wi) + np.log(prior_i)

        if g_i > max_g:
            max_g = g_i
            pred_cls = cls
    return pred_cls

# 4. 对测试集进行预测
y_bayes_pred = [gaussian_bayes_classifier(x, classes, prior_probs, class_means, class_covs) for x in X_test]

# 5. 计算准确率并对比最小距离分类器
bayes_accuracy = accuracy_score(y_test, y_bayes_pred)
print(f"高斯贝叶斯分类器测试集准确率：{bayes_accuracy:.4f}")

# 加载之前最小距离分类器的结果（重新运行最小距离分类器）
def min_distance_classifier(x, class_means):
    min_dist = float('inf')
    pred_cls = -1
    for cls, mean_vec in class_means.items():
        dist = np.linalg.norm(x - mean_vec)
        if dist < min_dist:
            min_dist = dist
            pred_cls = cls
    return pred_cls

y_min_dist_pred = [min_distance_classifier(x, class_means) for x in X_test]
min_dist_accuracy = accuracy_score(y_test, y_min_dist_pred)
print(f"最小距离分类器测试集准确率：{min_dist_accuracy:.4f}")

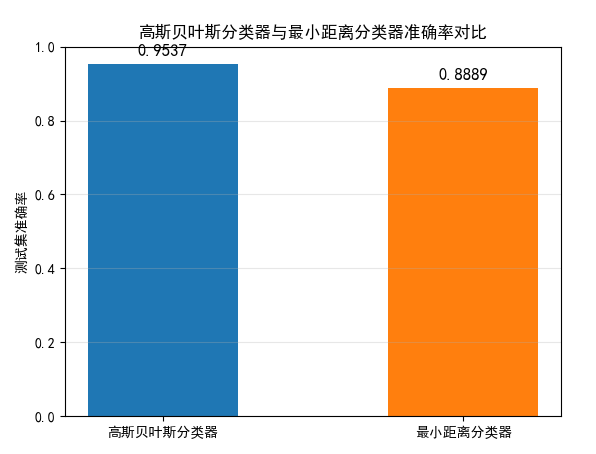

# 6. 效果可视化：准确率对比
methods = ["高斯贝叶斯分类器", "最小距离分类器"]
accuracies = [bayes_accuracy, min_dist_accuracy]

plt.bar(methods, accuracies, width=0.5, color=['#1f77b4', '#ff7f0e'])
plt.ylim(0, 1)
plt.ylabel("测试集准确率")
plt.title("高斯贝叶斯分类器与最小距离分类器准确率对比")
for i, acc in enumerate(accuracies):
    plt.text(i, acc + 0.02, f"{acc:.4f}", ha='center', fontsize=12)
plt.grid(alpha=0.3, axis='y')
plt.show()

# 7. 可视化部分样本的分类结果
fig, axes = plt.subplots(2, 5, figsize=(12, 6))
axes = axes.flatten()
for i in range(10):
    img = X_test[i].reshape(8, 8)
    axes[i].imshow(img, cmap='gray')
    axes[i].set_title(f"真实：{y_test[i]}\n贝叶斯预测：{y_bayes_pred[i]}\n最小距离预测：{y_min_dist_pred[i]}")
    axes[i].axis('off')
plt.suptitle("两种分类器效果对比（部分样本）", fontsize=14)
plt.tight_layout()
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import make_circles
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
plt.rcParams["axes.unicode_minus"] = False

# 1. 生成复杂非线性可分数据（环形数据，比月亮数据更难分类）
X, y = make_circles(n_samples=400, noise=0.1, factor=0.5, random_state=42)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)

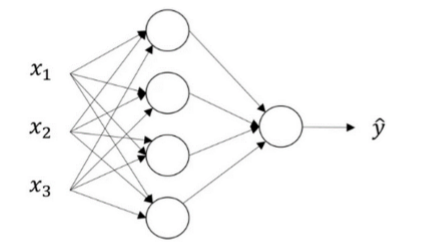

# 2. 实现基于反向传播的深层神经网络
class DeepNN:
    def __init__(self, layer_sizes, learning_rate=0.05, max_iter=5000):
        """
        深层神经网络（支持多层隐藏层）
        :param layer_sizes: 层大小列表，如[2, 16, 8, 2]（输入层2→隐藏层16→隐藏层8→输出层2）
        :param learning_rate: 学习率
        :param max_iter: 最大迭代次数
        """
        self.layer_sizes = layer_sizes  # 各层神经元数量
        self.lr = learning_rate          # 学习率
        self.max_iter = max_iter        # 最大迭代次数
        self.weights = []                # 存储各层权重 W^(l)
        self.biases = []                 # 存储各层偏置 b^(l)
        self.num_layers = len(layer_sizes)  # 网络总层数（含输入层、输出层）
        self.loss_history = []           # 记录训练损失变化

    def relu(self, z):
        """ReLU激活函数：引入非线性，缓解梯度消失"""
        return np.maximum(0, z)

    def relu_deriv(self, z):
        """ReLU激活函数的导数"""
        return np.where(z > 0, 1, 0)

    def softmax(self, z):
        """Softmax激活函数：输出层多分类，将结果转为概率分布"""
        # 减去最大值防止指数溢出
        exp_z = np.exp(z - np.max(z, axis=1, keepdims=True))
        return exp_z / np.sum(exp_z, axis=1, keepdims=True)

    def forward(self, X):
        """
        正向传播：计算各层的加权和z和激活输出a
        :param X: 输入数据 (n_samples, input_size)
        :return: zs（各层z值）、activations（各层a值）
        """
        activations = [X]  # 第0层激活输出=输入数据
        zs = []            # 存储第1层到输出层的z值
        a = X              # 当前层激活输出

        # 逐层计算
        for i in range(self.num_layers - 1):
            w = self.weights[i]
            b = self.biases[i]
            z = np.dot(a, w) + b  # 计算当前层加权和 z^(l)
            zs.append(z)

            # 根据层类型选择激活函数
            if i < self.num_layers - 2:  # 隐藏层：使用ReLU
                a = self.relu(z)
            else:  # 输出层：使用Softmax
                a = self.softmax(z)
            activations.append(a)

        return zs, activations

    def backward(self, zs, activations, y_one_hot):
        """
        反向传播：计算各层权重和偏置的梯度
        :param zs: 正向传播的z值列表
        :param activations: 正向传播的a值列表
        :param y_one_hot: 真实标签的one-hot编码 (n_samples, output_size)
        :return: weight_grads（权重梯度）、bias_grads（偏置梯度）
        """
        n_samples = y_one_hot.shape[0]
        # 初始化梯度存储（与权重/偏置形状一致）
        weight_grads = [np.zeros_like(w) for w in self.weights]
        bias_grads = [np.zeros_like(b) for b in self.biases]

        # 1. 计算输出层（第L层）的梯度 δ^L
        delta = activations[-1] - y_one_hot  # Softmax+交叉熵损失的梯度简化结果
        # 输出层权重梯度 ∂L/∂W^L
        weight_grads[-1] = np.dot(activations[-2].T, delta) / n_samples
        # 输出层偏置梯度 ∂L/∂b^L
        bias_grads[-1] = np.mean(delta, axis=0, keepdims=True)

        # 2. 反向计算各隐藏层的梯度
        for l in range(self.num_layers - 3, -1, -1):
            # 当前层的z值
            z = zs[l]
            # 计算当前层梯度 δ^l
            delta = np.dot(delta, self.weights[l+1].T) * self.relu_deriv(z)
            # 当前层权重梯度 ∂L/∂W^l
            weight_grads[l] = np.dot(activations[l].T, delta) / n_samples
            # 当前层偏置梯度 ∂L/∂b^l
            bias_grads[l] = np.mean(delta, axis=0, keepdims=True)

        return weight_grads, bias_grads

    def fit(self, X, y):
        """
        训练深层神经网络
        :param X: 训练数据 (n_samples, input_size)
        :param y: 训练标签 (n_samples,)
        """
        # 1. 初始化权重和偏置（Xavier初始化：缓解梯度消失/爆炸）
        for i in range(self.num_layers - 1):
            input_size = self.layer_sizes[i]
            output_size = self.layer_sizes[i+1]
            # Xavier初始化：权重服从正态分布 N(0, √(1/input_size))
            w = np.random.randn(input_size, output_size) * np.sqrt(1 / input_size)
            b = np.zeros((1, output_size))  # 偏置初始化为0
            self.weights.append(w)
            self.biases.append(b)

        # 2. 转换标签为one-hot编码
        y_one_hot = np.eye(self.layer_sizes[-1])[y]

        # 3. 梯度下降迭代训练
        for epoch in range(self.max_iter):
            # 正向传播
            zs, activations = self.forward(X)
            # 计算交叉熵损失并记录
            loss = -np.mean(np.sum(y_one_hot * np.log(activations[-1] + 1e-8), axis=1))
            self.loss_history.append(loss)

            # 反向传播计算梯度
            weight_grads, bias_grads = self.backward(zs, activations, y_one_hot)

            # 更新权重和偏置（梯度下降）
            for i in range(self.num_layers - 1):
                self.weights[i] -= self.lr * weight_grads[i]
                self.biases[i] -= self.lr * bias_grads[i]

            # 每1000轮打印训练状态
            if epoch % 1000 == 0:
                train_pred = self.predict(X)
                train_acc = accuracy_score(y, train_pred)
                print(f"Epoch {epoch:4d} | 训练损失: {loss:.4f} | 训练准确率: {train_acc:.4f}")

    def predict(self, X):
        """
        预测函数
        :param X: 测试数据 (n_samples, input_size)
        :return: 预测标签 (n_samples,)
        """
        _, activations = self.forward(X)
        # 输出层概率最大的类别即为预测结果
        return np.argmax(activations[-1], axis=1)

# 3. 初始化并训练深层神经网络
# 网络结构：输入层(2) → 隐藏层1(16) → 隐藏层2(8) → 输出层(2)
dnn = DeepNN(layer_sizes=[2, 16, 8, 2], learning_rate=0.05, max_iter=5000)
dnn.fit(X_train, y_train)

# 4. 对测试集进行预测并评估
y_pred = dnn.predict(X_test)
test_acc = accuracy_score(y_test, y_pred)
print(f"\n深层神经网络测试集准确率：{test_acc:.4f}")

# 5. 效果可视化

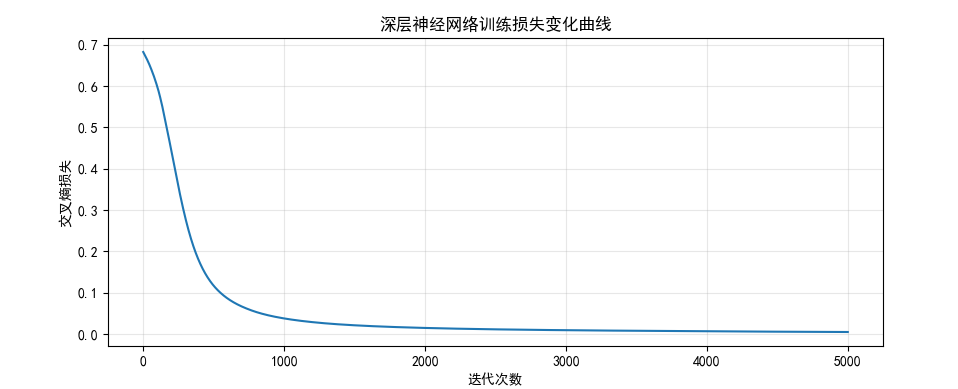

# 5.1 训练损失变化曲线
plt.figure(figsize=(10, 4))
plt.plot(range(dnn.max_iter), dnn.loss_history, color='#1f77b4', linewidth=1.5)
plt.xlabel("迭代次数")
plt.ylabel("交叉熵损失")
plt.title("深层神经网络训练损失变化曲线")
plt.grid(alpha=0.3)
plt.show()

# 5.2 决策边界可视化
def plot_dnn_decision_boundary(model, X, y, title):
    """绘制深层神经网络的决策边界"""
    # 生成网格点
    x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
    y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
    xx, yy = np.meshgrid(np.arange(x_min, x_max, 0.01),
                         np.arange(y_min, y_max, 0.01))
    # 预测网格点类别
    Z = model.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)
    # 绘制
    plt.contourf(xx, yy, Z, alpha=0.3, cmap=plt.cm.Spectral)
    plt.scatter(X[:, 0], X[:, 1], c=y, cmap=plt.cm.Spectral, edgecolors='k', s=50)
    plt.title(title)
    plt.xlabel("特征1")
    plt.ylabel("特征2")
    plt.show()

# 训练集决策边界

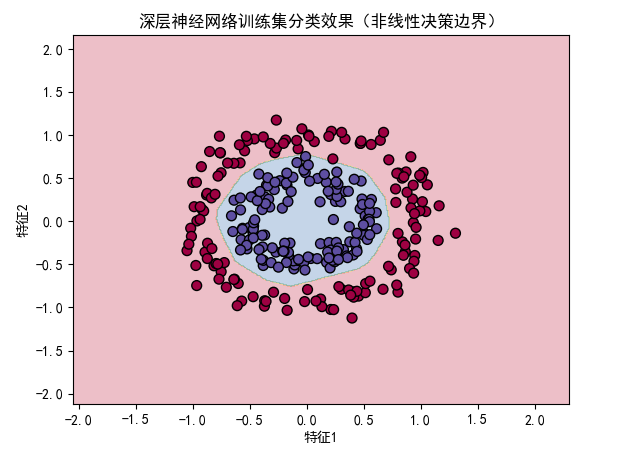

plot_dnn_decision_boundary(dnn, X_train, y_train, "深层神经网络训练集分类效果（非线性决策边界）")
# 测试集决策边界
plot_dnn_decision_boundary(dnn, X_test, y_test, "深层神经网络测试集分类效果（非线性决策边界）")

# 5.3 对比感知机（感知机无法处理环形数据）
from sklearn.linear_model import Perceptron
# 训练感知机
perceptron = Perceptron(eta0=0.01, max_iter=1000, random_state=42)
perceptron.fit(X_train, y_train)
perceptron_test_acc = accuracy_score(y_test, perceptron.predict(X_test))
print(f"感知机测试集准确率：{perceptron_test_acc:.4f}")

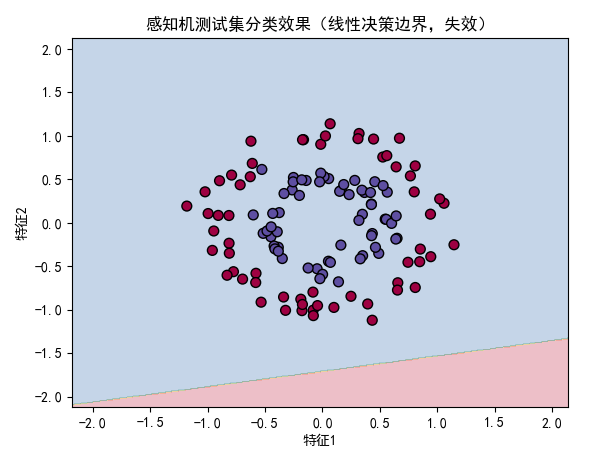

# 绘制感知机决策边界
plot_dnn_decision_boundary(perceptron, X_test, y_test, "感知机测试集分类效果（线性决策边界，失效）")

import numpy as np
import matplotlib.pyplot as plt

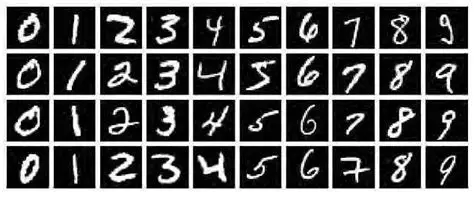

from tensorflow.keras.datasets import mnist
from tensorflow.keras.utils import to_categorical

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei"]
plt.rcParams["axes.unicode_minus"] = False

# 1. 加载并预处理MNIST数据
(x_train, y_train), (x_test, y_test) = mnist.load_data()
# 归一化+增加通道维度（(28,28)→(28,28,1)）
x_train = x_train.astype(np.float32) / 255.0
x_test = x_test.astype(np.float32) / 255.0
x_train = np.expand_dims(x_train, axis=-1)
x_test = np.expand_dims(x_test, axis=-1)
# 标签one-hot编码
y_train_onehot = to_categorical(y_train, 10)
y_test_onehot = to_categorical(y_test, 10)

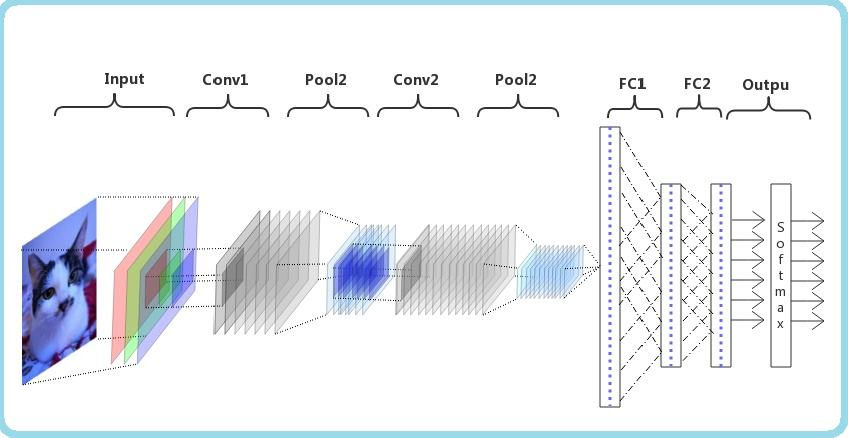

# 2. 实现简单CNN的正向传播
class SimpleCNN:
    def __init__(self):
        # 初始化卷积层参数（1输入通道，8输出通道，3×3卷积核）
        self.conv1_kernels = np.random.randn(3, 3, 1, 8) * 0.01  # (kh, kw, cin, cout)
        self.conv1_bias = np.zeros((8,))

        # 初始化全连接层参数（卷积+池化后特征图尺寸：28→14（2×2池化））
        self.fc1_weights = np.random.randn(14 * 14 * 8, 128) * 0.01  # (flatten_dim, hidden_dim)
        self.fc1_bias = np.zeros((128,))
        self.fc2_weights = np.random.randn(128, 10) * 0.01  # (hidden_dim, num_classes)
        self.fc2_bias = np.zeros((10,))

    def relu(self, z):
        """ReLU激活函数"""
        return np.maximum(0, z)

    def conv2d(self, x, kernels, bias, stride=1, padding='same'):
        """
        2D卷积操作（正向传播）
        :param x: 输入特征图 (H, W, Cin)
        :param kernels: 卷积核 (Kh, Kw, Cin, Cout)
        :param bias: 偏置 (Cout,)
        :param stride: 步幅
        :param padding: 填充方式
        :return: 卷积输出 (Hout, Wout, Cout)
        """
        H, W, Cin = x.shape
        Kh, Kw, Cin, Cout = kernels.shape

        # 计算填充大小（Same填充：保持输出尺寸与输入一致）
        if padding == 'same':
            pad_h = (Kh - 1) // 2
            pad_w = (Kw - 1) // 2
        else:
            pad_h = pad_w = 0

        # 填充输入
        x_padded = np.pad(x, ((pad_h, pad_h), (pad_w, pad_w), (0, 0)), mode='constant')

        # 计算输出尺寸
        Hout = (H + 2 * pad_h - Kh) // stride + 1
        Wout = (W + 2 * pad_w - Kw) // stride + 1

        # 初始化输出
        output = np.zeros((Hout, Wout, Cout))

        # 卷积操作
        for c_out in range(Cout):
            for i in range(0, Hout * stride, stride):
                for j in range(0, Wout * stride, stride):
                    # 提取局部窗口
                    window = x_padded[i:i + Kh, j:j + Kw, :]
                    # 卷积计算
                    output[i // stride, j // stride, c_out] = np.sum(window * kernels[..., c_out]) + bias[c_out]

        return output

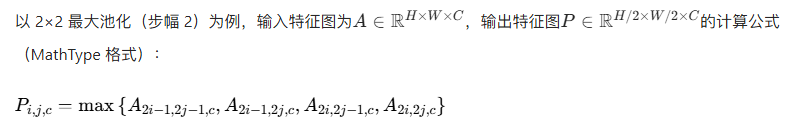

    def max_pool2d(self, x, pool_size=2, stride=2):
        """
        2D最大池化（正向传播）
        :param x: 输入特征图 (H, W, C)
        :param pool_size: 池化窗口大小
        :param stride: 步幅
        :return: 池化输出 (Hout, Wout, C)
        """
        H, W, C = x.shape
        Hout = (H - pool_size) // stride + 1
        Wout = (W - pool_size) // stride + 1
        output = np.zeros((Hout, Wout, C))

        for c in range(C):
            for i in range(0, Hout * stride, stride):
                for j in range(0, Wout * stride, stride):
                    window = x[i:i + pool_size, j:j + pool_size, c]
                    output[i // stride, j // stride, c] = np.max(window)

        return output

    def flatten(self, x):
        """扁平化：(H, W, C) → (H*W*C,)"""
        return x.reshape(-1)

    def dense(self, x, weights, bias):
        """全连接层正向传播"""
        return np.dot(x, weights) + bias

    def softmax(self, z):
        """Softmax激活函数"""
        exp_z = np.exp(z - np.max(z))
        return exp_z / np.sum(exp_z)

    def forward(self, x):
        """
        CNN完整正向传播
        :param x: 输入图像 (28, 28, 1)
        :return: 各层输出（用于反向传播）、最终类别概率
        """
        # 卷积层1 + ReLU
        conv1_out = self.conv2d(x, self.conv1_kernels, self.conv1_bias, stride=1, padding='same')
        relu1_out = self.relu(conv1_out)

        # 最大池化1
        pool1_out = self.max_pool2d(relu1_out, pool_size=2, stride=2)

        # 扁平化
        flatten_out = self.flatten(pool1_out)

        # 全连接层1 + ReLU
        fc1_out = self.dense(flatten_out, self.fc1_weights, self.fc1_bias)
        relu2_out = self.relu(fc1_out)

        # 全连接层2 + Softmax
        fc2_out = self.dense(relu2_out, self.fc2_weights, self.fc2_bias)
        softmax_out = self.softmax(fc2_out)

        # 保存各层输出
        layers_output = {
            'conv1': conv1_out, 'relu1': relu1_out, 'pool1': pool1_out,
            'flatten': flatten_out, 'fc1': fc1_out, 'relu2': relu2_out,
            'fc2': fc2_out, 'softmax': softmax_out
        }

        return layers_output, softmax_out

# 3. 测试CNN正向传播
cnn = SimpleCNN()
# 取一张测试图像
test_img = x_test[0]
test_label = y_test[0]
# 正向传播
layers_output, pred_probs = cnn.forward(test_img)
pred_label = np.argmax(pred_probs)

# 打印结果
print(f"真实标签：{test_label}")
print(f"预测标签：{pred_label}")
print(f"预测概率分布：{np.round(pred_probs, 4)}")
print("提示：概率均匀分布是因为网络未训练，参数随机初始化导致的正常现象")

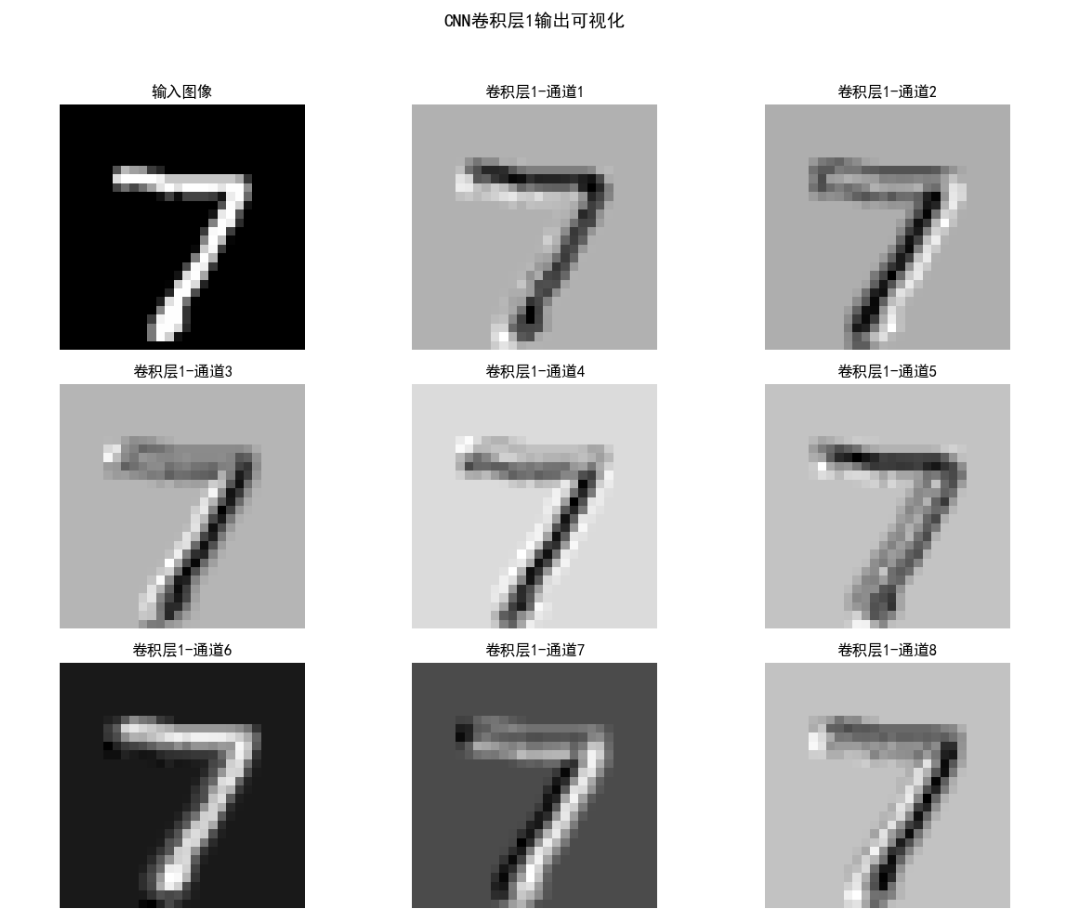

# 4. 可视化各层输出（修正子图布局）
# 4.1 输入图像 + 卷积层1输出（8通道）：调整为3行3列（可容纳9个子图）
plt.figure(figsize=(12, 10))
# 输入图像
plt.subplot(3, 3, 1)
plt.imshow(test_img.squeeze(), cmap='gray')
plt.title("输入图像")
plt.axis('off')

# 卷积层1输出（8个通道）
conv1_out = layers_output['conv1']
for c in range(8):
    plt.subplot(3, 3, c + 2)  # 位置2~9，适配3×3布局
    plt.imshow(conv1_out[..., c], cmap='gray')
    plt.title(f"卷积层1-通道{c + 1}")
    plt.axis('off')
plt.suptitle("CNN卷积层1输出可视化", fontsize=14)
plt.tight_layout(rect=[0, 0, 1, 0.95])  # 预留总标题空间
plt.show()

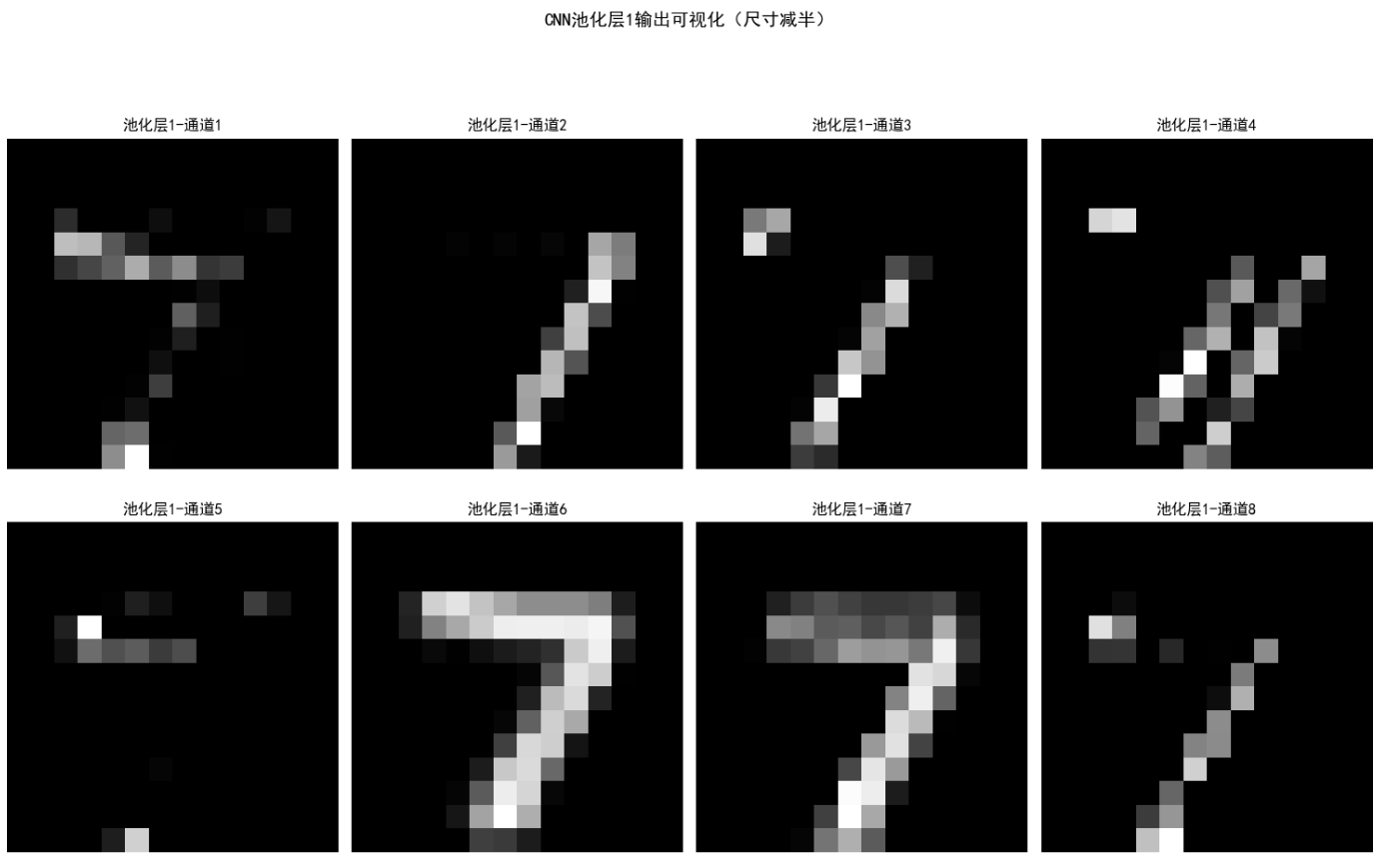

# 4.2 池化层1输出（8通道）：使用2行4列（刚好容纳8个子图，无需调整）
plt.figure(figsize=(15, 10))
pool1_out = layers_output['pool1']
for c in range(8):
    plt.subplot(2, 4, c + 1)
    plt.imshow(pool1_out[..., c], cmap='gray')
    plt.title(f"池化层1-通道{c + 1}")
    plt.axis('off')
plt.suptitle("CNN池化层1输出可视化（尺寸减半）", fontsize=14)
plt.tight_layout(rect=[0, 0, 1, 0.95])
plt.show()

import numpy as np
import matplotlib.pyplot as plt
from tensorflow.keras.datasets import mnist
from tensorflow.keras.utils import to_categorical

# 解决matplotlib中文显示问题
plt.rcParams["font.family"] = ["SimHei", "WenQuanYi Micro Hei", "Heiti TC"]
plt.rcParams["axes.unicode_minus"] = False

# 1. 加载并预处理MNIST数据
(x_train, y_train), (x_test, y_test) = mnist.load_data()
# 归一化+增加通道维度+批量处理
x_train = x_train.astype(np.float32) / 255.0
x_test = x_test.astype(np.float32) / 255.0
x_train = np.expand_dims(x_train, axis=-1)
x_test = np.expand_dims(x_test, axis=-1)
# 标签one-hot编码
y_train_onehot = to_categorical(y_train, 10)
y_test_onehot = to_categorical(y_test, 10)

# 2. 实现带反向传播的简单CNN
class TrainableCNN:
    def __init__(self, learning_rate=0.01):
        self.lr = learning_rate
        # 卷积层1参数（3×3核，1→8通道）
        self.conv1_kernels = np.random.randn(3, 3, 1, 8) * 0.01
        self.conv1_bias = np.zeros((8,))
        # 全连接层参数
        self.fc1_weights = np.random.randn(14*14*8, 128) * 0.01
        self.fc1_bias = np.zeros((128,))
        self.fc2_weights = np.random.randn(128, 10) * 0.01
        self.fc2_bias = np.zeros((10,))
        # 训练记录
        self.train_loss_history = []
        self.train_acc_history = []

    # 正向传播相关函数（同前）
    def relu(self, z):
        return np.maximum(0, z)

    def relu_deriv(self, z):
        return np.where(z > 0, 1, 0)

    def conv2d(self, x, kernels, bias, stride=1, padding='same'):
        H, W, Cin = x.shape
        Kh, Kw, Cin, Cout = kernels.shape
        if padding == 'same':
            pad_h = (Kh - 1) // 2
            pad_w = (Kw - 1) // 2
        else:
            pad_h = pad_w = 0
        x_padded = np.pad(x, ((pad_h, pad_h), (pad_w, pad_w), (0, 0)), mode='constant')
        Hout = (H + 2*pad_h - Kh) // stride + 1
        Wout = (W + 2*pad_w - Kw) // stride + 1
        output = np.zeros((Hout, Wout, Cout))
        for c_out in range(Cout):
            for i in range(0, Hout*stride, stride):
                for j in range(0, Wout*stride, stride):
                    window = x_padded[i:i+Kh, j:j+Kw, :]
                    output[i//stride, j//stride, c_out] = np.sum(window * kernels[..., c_out]) + bias[c_out]
        return output

    def max_pool2d(self, x, pool_size=2, stride=2, return_mask=False):
        H, W, C = x.shape
        Hout = (H - pool_size) // stride + 1
        Wout = (W - pool_size) // stride + 1
        output = np.zeros((Hout, Wout, C))
        mask = np.zeros_like(x)  # 记录最大值位置的掩码
        for c in range(C):
            for i in range(0, Hout*stride, stride):
                for j in range(0, Wout*stride, stride):
                    window = x[i:i+pool_size, j:j+pool_size, c]
                    max_val = np.max(window)
                    output[i//stride, j//stride, c] = max_val
                    # 记录最大值位置
                    max_pos = np.unravel_index(np.argmax(window), window.shape)
                    mask[i+max_pos[0], j+max_pos[1], c] = 1
        if return_mask:
            return output, mask
        else:
            return output

    def flatten(self, x):
        return x.reshape(-1)

    def dense(self, x, weights, bias):
        return np.dot(x, weights) + bias

    def softmax(self, z):
        exp_z = np.exp(z - np.max(z))
        return exp_z / np.sum(exp_z)

    def forward(self, x, return_mask=True):
        # 卷积层1
        conv1_out = self.conv2d(x, self.conv1_kernels, self.conv1_bias, stride=1, padding='same')
        relu1_out = self.relu(conv1_out)
        # 池化层1（返回掩码用于反向传播）
        if return_mask:
            pool1_out, pool1_mask = self.max_pool2d(relu1_out, pool_size=2, stride=2, return_mask=True)
        else:
            pool1_out = self.max_pool2d(relu1_out, pool_size=2, stride=2, return_mask=False)
            pool1_mask = None
        # 扁平化
        flatten_out = self.flatten(pool1_out)
        # 全连接层1
        fc1_out = self.dense(flatten_out, self.fc1_weights, self.fc1_bias)
        relu2_out = self.relu(fc1_out)
        # 全连接层2
        fc2_out = self.dense(relu2_out, self.fc2_weights, self.fc2_bias)
        softmax_out = self.softmax(fc2_out)
        # 保存各层输出
        layers_output = {
            'conv1': conv1_out, 'relu1': relu1_out, 'pool1': pool1_out,
            'pool1_mask': pool1_mask, 'flatten': flatten_out,
            'fc1': fc1_out, 'relu2': relu2_out, 'fc2': fc2_out, 'softmax': softmax_out
        }
        return layers_output, softmax_out

    # 反向传播相关函数
    def flatten_backward(self, delta_flatten, pool1_shape):
        """扁平化反向传播：将一维梯度转为池化输出形状"""
        return delta_flatten.reshape(pool1_shape)

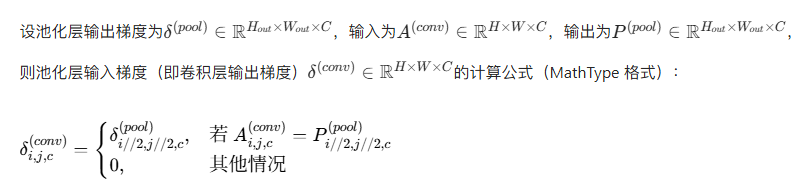

    def max_pool2d_backward(self, delta_pool, pool1_mask):
        """最大池化反向传播：根据掩码回传梯度"""
        return delta_pool.repeat(2, axis=0).repeat(2, axis=1) * pool1_mask

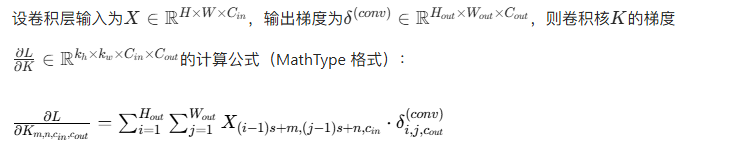

    def conv2d_backward(self, delta_conv, x, kernels, stride=1, padding='same'):
        """
        卷积层反向传播：计算卷积核梯度和输入梯度
        :param delta_conv: 卷积层输出梯度
        :param x: 卷积层输入
        :param kernels: 卷积核
        :return: d_kernels（卷积核梯度）、d_x（输入梯度）
        """
        H, W, Cin = x.shape
        Kh, Kw, Cin, Cout = kernels.shape
        Hout, Wout, Cout = delta_conv.shape

        # 计算填充
        if padding == 'same':
            pad_h = (Kh - 1) // 2
            pad_w = (Kw - 1) // 2
        else:
            pad_h = pad_w = 0
        x_padded = np.pad(x, ((pad_h, pad_h), (pad_w, pad_w), (0, 0)), mode='constant')

        # 1. 计算卷积核梯度 d_kernels
        d_kernels = np.zeros_like(kernels)
        for c_out in range(Cout):
            for c_in in range(Cin):
                for m in range(Kh):
                    for n in range(Kw):
                        # 提取x窗口和delta窗口
                        x_window = x_padded[m:m+Hout*stride:stride, n:n+Wout*stride:stride, c_in]
                        delta_window = delta_conv[..., c_out]
                        d_kernels[m, n, c_in, c_out] = np.sum(x_window * delta_window)

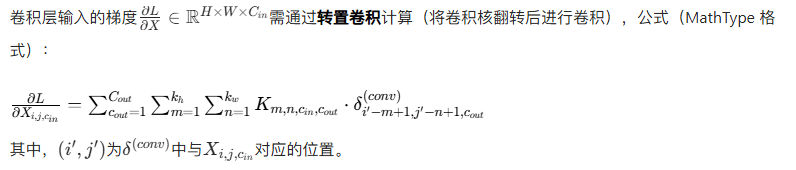

        # 2. 计算输入梯度 d_x（转置卷积）
        d_x_padded = np.zeros_like(x_padded)
        for c_out in range(Cout):
            for i in range(Hout):
                for j in range(Wout):
                    # 卷积核翻转（转置卷积）
                    kernel_flip = np.flip(kernels[..., c_out], axis=(0, 1))
                    # 梯度回传
                    d_x_padded[i*stride:i*stride+Kh, j*stride:j*stride+Kw, :] += kernel_flip * delta_conv[i, j, c_out]
        # 去除填充
        d_x = d_x_padded[pad_h:pad_h+H, pad_w:pad_w+W, :]

        # 计算偏置梯度
        d_bias = np.sum(delta_conv, axis=(0, 1))

        return d_kernels, d_bias, d_x

    def dense_backward(self, delta_out, x, weights):
        """全连接层反向传播：计算权重梯度、偏置梯度、输入梯度"""
        d_weights = np.outer(x, delta_out)
        d_bias = delta_out
        d_x = np.dot(delta_out, weights.T)
        return d_weights, d_bias, d_x

    def backward(self, layers_output, y_true):
        """
        CNN完整反向传播
        :param layers_output: 正向传播各层输出
        :param y_true: 真实标签one-hot编码
        :return: 各参数梯度
        """
        # 1. 输出层（fc2）梯度
        delta_fc2 = layers_output['softmax'] - y_true
        # fc2参数梯度
        d_fc2_weights, d_fc2_bias, d_relu2 = self.dense_backward(delta_fc2, layers_output['relu2'], self.fc2_weights)

        # 2. 全连接层1（fc1）梯度
        delta_fc1 = d_relu2 * self.relu_deriv(layers_output['fc1'])
        d_fc1_weights, d_fc1_bias, d_flatten = self.dense_backward(delta_fc1, layers_output['flatten'], self.fc1_weights)

        # 3. 扁平化反向传播
        d_pool1 = self.flatten_backward(d_flatten, layers_output['pool1'].shape)

        # 4. 池化层1反向传播
        d_relu1 = self.max_pool2d_backward(d_pool1, layers_output['pool1_mask'])

        # 5. 卷积层1反向传播
        delta_conv1 = d_relu1 * self.relu_deriv(layers_output['conv1'])
        d_conv1_kernels, d_conv1_bias, _ = self.conv2d_backward(delta_conv1, layers_output['conv1'], self.conv1_kernels)

        # 整理所有梯度
        grads = {
            'conv1_kernels': d_conv1_kernels, 'conv1_bias': d_conv1_bias,
            'fc1_weights': d_fc1_weights, 'fc1_bias': d_fc1_bias,
            'fc2_weights': d_fc2_weights, 'fc2_bias': d_fc2_bias
        }
        return grads

    def update_params(self, grads):
        """更新网络参数（梯度下降）"""
        self.conv1_kernels -= self.lr * grads['conv1_kernels']
        self.conv1_bias -= self.lr * grads['conv1_bias']
        self.fc1_weights -= self.lr * grads['fc1_weights']
        self.fc1_bias -= self.lr * grads['fc1_bias']
        self.fc2_weights -= self.lr * grads['fc2_weights']
        self.fc2_bias -= self.lr * grads['fc2_bias']

    def train(self, x_train, y_train_onehot, epochs=5, batch_size=32):
        """训练CNN"""
        n_samples = x_train.shape[0]
        for epoch in range(epochs):
            epoch_loss = 0.0
            correct_preds = 0

            # 批量训练
            for i in range(0, n_samples, batch_size):
                batch_x = x_train[i:i+batch_size]
                batch_y = y_train_onehot[i:i+batch_size]

                for idx in range(len(batch_x)):
                    # 正向传播
                    layers_output, pred_probs = self.forward(batch_x[idx])
                    # 计算交叉熵损失
                    loss = -np.sum(batch_y[idx] * np.log(pred_probs + 1e-8))
                    epoch_loss += loss
                    # 统计正确预测
                    pred_label = np.argmax(pred_probs)
                    true_label = np.argmax(batch_y[idx])
                    if pred_label == true_label:
                        correct_preds += 1
                    # 反向传播
                    grads = self.backward(layers_output, batch_y[idx])
                    # 更新参数
                    self.update_params(grads)

            # 计算epoch指标
            avg_loss = epoch_loss / n_samples
            train_acc = correct_preds / n_samples
            self.train_loss_history.append(avg_loss)
            self.train_acc_history.append(train_acc)
            print(f"Epoch {epoch+1}/{epochs} | 平均损失: {avg_loss:.4f} | 训练准确率: {train_acc:.4f}")

    def predict(self, x):
        """批量预测"""
        preds = []
        for img in x:
            _, pred_probs = self.forward(img, return_mask=False)
            preds.append(np.argmax(pred_probs))
        return np.array(preds)

# 3. 初始化并训练CNN
cnn = TrainableCNN(learning_rate=0.01)
print("开始训练CNN...")
cnn.train(x_train[:1000], y_train_onehot[:1000], epochs=5, batch_size=32)  # 取1000个样本快速训练

# 4. 测试模型
test_preds = cnn.predict(x_test[:100])
test_acc = accuracy_score(y_test[:100], test_preds)
print(f"\nCNN测试集准确率（100个样本）：{test_acc:.4f}")

# 5. 可视化训练过程
plt.figure(figsize=(12, 4))
# 损失曲线
plt.subplot(1, 2, 1)
plt.plot(range(1, len(cnn.train_loss_history)+1), cnn.train_loss_history, color='#1f77b4', linewidth=2)
plt.xlabel("Epoch")
plt.ylabel("平均交叉熵损失")
plt.title("CNN训练损失变化")
plt.grid(alpha=0.3)

# 准确率曲线
plt.subplot(1, 2, 2)
plt.plot(range(1, len(cnn.train_acc_history)+1), cnn.train_acc_history, color='#ff7f0e', linewidth=2)
plt.xlabel("Epoch")
plt.ylabel("训练准确率")
plt.title("CNN训练准确率变化")
plt.grid(alpha=0.3)
plt.tight_layout()
plt.show()

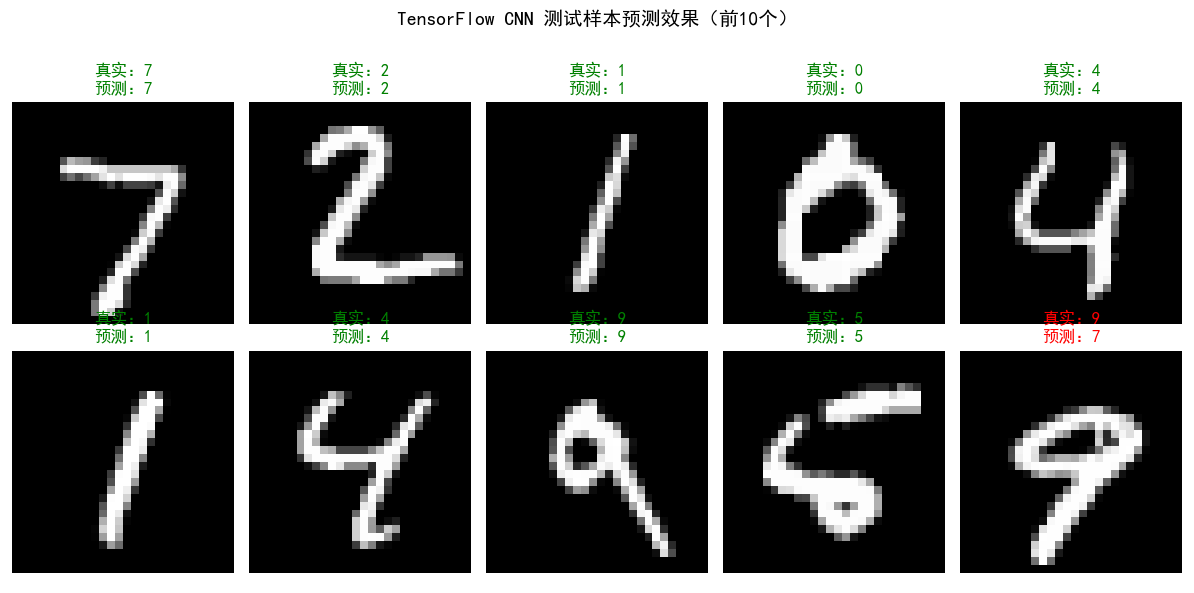

# 6. 可视化测试样本预测效果
plt.figure(figsize=(12, 6))
for i in range(10):
    plt.subplot(2, 5, i+1)
    plt.imshow(x_test[i].squeeze(), cmap='gray')
    pred_label = test_preds[i]
    true_label = y_test[i]
    color = 'green' if pred_label == true_label else 'red'
    plt.title(f"真实：{true_label}\n预测：{pred_label}", color=color)
    plt.axis('off')
plt.suptitle("CNN测试样本预测效果", fontsize=14)
plt.tight_layout()
plt.show()
