快速接入(Flutter)

最近更新时间:2026-01-21 11:30:22

我的收藏
本文档将帮助开发者使用 AtomicXCore SDKLiveListStoreLiveSeatStore 快速构建一个包含主播开播和观众进房功能的语聊房 App

核心概念

在开始集成之前,请先通过下表了解一下 LiveSeatStore 相关的几个核心概念:
核心概念
类型
核心职责与描述
class
麦位管理核心,负责管理房间内的所有麦位信息和麦位相关操作。
通过 liveSeatState.seatList 暴露实时的麦位列表数据流。
class
代表麦位的当前状态。
seatList 是一个 ValueListenable<List<SeatInfo>> 类型,存储了麦位列表的实时状态;
speakingUsers 则代表当前正在说话的人和对应的音量。
SeatInfo
class
单个麦位的数据模型。LiveSeatStore 所推送的麦位列表(seatList)就是由多个 SeatInfo 对象组成的。关键字段:
index(麦位的索引)。
isLocked(麦位是否被锁定)。
userInfo(麦位上的用户信息,如果麦位为空,此字段也为空对象)。
class
麦上用户的详细数据模型。当一个用户成功上麦后,SeatInfo 中的 userInfo 字段就会被填充为此用户。关键字段:
userID(用户的唯一 ID)
userName(用户的昵称)
avatarURL(用户的头像 URL)
microphoneStatus(麦克风状态)
cameraStatus(摄像头状态)。

准备工作

步骤1:开通服务

请参见 开通服务,获取体验版或付费版 SDK

步骤2:在当前项目中导入 AtomicXCore

1. 安装组件:请在您的 pubspec.yaml 文件中添加 atomic_x_core 依赖,然后执行 flutter pub get
dependencies:
atomic_x_core: ^3.6.0
2. 配置工程权限:Android 和 iOS 工程都需要配置权限。
Android
iOS
android/app/src/main/AndroidManifest.xml 文件中添加麦克风的使用权限说明。
<uses-permission android:name="android.permission.RECORD_AUDIO" />
在应用 ios 目录的 Podfileios/Runner 目录的 Info.plist 文件中添加麦克风的使用权限说明。
Podfile
post_install do |installer|
installer.pods_project.targets.each do |target|
flutter_additional_ios_build_settings(target)
target.build_configurations.each do |config|
config.build_settings['GCC_PREPROCESSOR_DEFINITIONS'] ||= [
'$(inherited)',
'PERMISSION_MICROPHONE=1',
]
end
end
end
Info.plist
<key>NSMicrophoneUsageDescription</key>
<string>TUILiveKit需要访问您的麦克风权限,开启后录制的视频才会有声音</string>

步骤3:实现登录逻辑

在项目中调用 LoginStore.shared.login 完成登录,这是使用 AtomicXCore 所有功能的关键前提
重要:
推荐在您 App 自身的用户账户登录成功后,再调用 LoginStore.shared.login,以确保登录业务逻辑的清晰和一致。
import 'package:flutter/material.dart';
import 'package:atomic_x_core/atomicxcore.dart';

// main.dart
void main() async {
WidgetsFlutterBinding.ensureInitialized();

// 登录
final result = await LoginStore.shared.login(
sdkAppID: 1400000001, // 替换为您的 sdkAppID
userID: "test_001", // 替换为您的 userID
userSig: "xxxxxxxxxxx", // 替换为您的 userSig
);

if (result.isSuccess) {
debugPrint("login success");
} else {
debugPrint("login failed code: ${result.code}, message: ${result.message}");
}

runApp(const MyApp());
}
登录接口参数说明:
参数
类型
说明
sdkAppID
int
控制台 获取,通常是以 140160 开头的 10 位整数。
userID
String
当前用户的唯一 ID,仅包含英文字母、数字、连字符和下划线。为避免多端登录冲突,请勿使用1123等简单 ID
userSig
String
用于腾讯云鉴权的票据。请注意:
开发环境:您可以采用本地 GenerateTestUserSig.genTestSig 函数生成 userSig 或者通过 UserSig 辅助工具 生成临时的 UserSig。
生产环境:为了防止密钥泄露,请务必采用服务端生成 UserSig 的方式。详细信息请参考 服务端生成 UserSig
更多信息请参见 如何计算及使用 UserSig

构建基础语聊房应用

步骤1:实现房主创建语聊房

房主开播流程如下,您只需执行以下几步操作,即可快速搭建一个语聊房。

1. 初始化麦位 Store

在您的房主页面中,创建一个 LiveSeatStore 实例。您需要监听 liveSeatStore.liveSeatState 的变化,以实时获取麦位数据来渲染您的 UI
import 'package:flutter/material.dart';
import 'package:atomic_x_core/atomicxcore.dart';

// YourAnchorPage 代表您的房主页面
class YourAnchorPage extends StatefulWidget {
const YourAnchorPage({super.key});

@override
State<YourAnchorPage> createState() => _YourAnchorPageState();
}

class _YourAnchorPageState extends State<YourAnchorPage> {
final _liveListStore = LiveListStore.shared;
final _deviceStore = DeviceStore.shared;

// 使用 liveID 初始化 LiveSeatStore
final String _liveID = "test_voice_room_001";
late final LiveSeatStore _liveSeatStore;
late final VoidCallback _seatListListener = _onSeatListChanged;

@override
void initState() {
super.initState();
_liveSeatStore = LiveSeatStore.create(_liveID);

// 监听麦位列表变化
_observeSeatList();
}

void _observeSeatList() {
// 监听 liveSeatState.seatList 的变化,并更新您的麦位 UI
_liveSeatStore.liveSeatState.seatList.addListener(_seatListListener);
}

void _onSeatListChanged() {
// 在这里根据 seatInfoList 渲染您的麦位 UI
final seatInfoList = _liveSeatStore.liveSeatState.seatList.value;
debugPrint("Seat list updated: ${seatInfoList.length} seats");
setState(() {});
}

@override
void dispose() {
_liveSeatStore.liveSeatState.seatList.removeListener(_seatListListener);
super.dispose();
}

@override
Widget build(BuildContext context) {
// 假设您有自己的布局
return Container();
}
}

2. 打开麦克风

通过调用 DeviceStoreopenLocalMicrophone 接口打开麦克风,示例代码如下:
class _YourAnchorPageState extends State<YourAnchorPage> {
// ... 其他代码 ...

void _openDevices() {
// 打开麦克风
DeviceStore.shared.openLocalMicrophone();
}
}

3. 开始语聊

通过调用 LiveListStorecreateLive 接口开始语聊房直播,完整示例代码如下:
class _YourAnchorPageState extends State<YourAnchorPage> {
// ... 其他代码 ...
final String _liveID = "test_voice_room_001";

@override
void initState() {
super.initState();
// ... 其他代码 ...

// 开始语聊
_startLive();
}

Future<void> _startLive() async {
// 1. 准备 LiveInfo 对象
final liveInfo = LiveInfo(
// 2. 设置房间 id
liveID: _liveID,
// 3. 设置房间名称
liveName: "test 语聊房",
// 4. 配置为语聊房(启用麦位)
isSeatEnabled: true,
// 5. 房主默认上麦
keepOwnerOnSeat: true,
// 6. 设置麦位布局模板(例如 70 为 10 麦位模板)
// 重要:请根据产品规范传入正确的 ID
seatLayoutTemplateID: 70,
// 7. 设置上麦模式,例如申请上麦
seatMode: TakeSeatMode.apply,
// 8. 设置最大麦位数
maxSeatCount: 10,
);

// 9. 调用 createLive 开始直播
final result = await _liveListStore.createLive(liveInfo);

if (result.isSuccess) {
debugPrint("Response startLive onSuccess");
// 房主创建成功后,默认会上麦,此时您可以调用 unmuteMicrophone
_liveSeatStore.unmuteMicrophone();
} else {
debugPrint("Response startLive onError: ${result.message}");
}
}
}
LiveInfo 参数说明:
参数名
类型
属性
描述
liveID
String
必填
直播间的唯一标识符
liveName
String
选填
直播间的标题
notice
String
选填
直播间的公告信息
isMessageDisable
bool
选填
是否禁言(true:是,false:否)
isPublicVisible
bool
选填
是否公开可见(true:是,false:否)
isSeatEnabled
bool
选填
是否启用麦位功能(true:是,false:否)
keepOwnerOnSeat
bool
选填
是否保持房主在麦位上
maxSeatCount
int
选填
最大麦位数量
seatMode
TakeSeatMode
选填
上麦模式(free:自由上麦,apply:申请上麦)
seatLayoutTemplateID
int
必填
麦位布局模板 ID
coverURL
String
选填
直播间的封面图片地址
backgroundURL
String
选填
直播间的背景图片地址
categoryList
List<int>
选填
直播间的分类标签列表
activityStatus
int
选填
直播活动状态
isGiftEnabled
bool
选填
是否启用礼物功能(true:是,false:否)

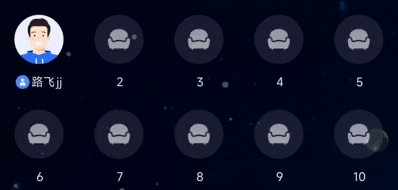

4. 构建麦位 UI 界面

提示:
麦位 UI 效果的业务代码,可参考 TUILiveKit 开源项目中的 seat_grid_widget.dart 文件来了解完整的实现逻辑。
通过 LiveSeatStore 实例,监听 liveSeatState.seatList 的变化,以实时获取麦位数据来渲染您的 UI。您可以在页面中(例如 YourAnchorPageYourAudiencePage)通过以下方式监听数据:
class _YourAnchorPageState extends State<YourAnchorPage> {
// ... 其他代码 ...
late final LiveSeatStore _liveSeatStore;
late final VoidCallback _seatListListener = _onSeatListChanged;

@override
void initState() {
super.initState();
_liveSeatStore = LiveSeatStore.create("your_live_id");
// ... 其他代码 ...

// 监听 seatList 变化
_observeSeatList();
}

void _observeSeatList() {
// 监听 liveSeatState.seatList 变化,并更新您的麦位 UI
_liveSeatStore.liveSeatState.seatList.addListener(_seatListListener);
}

void _onSeatListChanged() {
// seatInfoList 即为最新的麦位列表 (List<SeatInfo>)
final seatInfoList = _liveSeatStore.liveSeatState.seatList.value;
// 在这里根据 seatInfoList 渲染您的麦位 UI
debugPrint("Seat list updated: ${seatInfoList.length} seats");
setState(() {});
}

@override
void dispose() {
_liveSeatStore.liveSeatState.seatList.removeListener(_seatListListener);
super.dispose();
}

@override
Widget build(BuildContext context) {
return ValueListenableBuilder<List<SeatInfo>>(
valueListenable: _liveSeatStore.liveSeatState.seatList,
builder: (context, seatList, child) {
return GridView.builder(
gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 4,
),
itemCount: seatList.length,
itemBuilder: (context, index) {
final seat = seatList[index];
return _buildSeatItem(seat);
},
);
},
);
}

Widget _buildSeatItem(SeatInfo seat) {
// 构建单个麦位 UI
return Container();
}
}

5. 结束语聊

语聊结束后,房主可以调用 LiveListStoreendLive 接口结束语聊,SDK 会处理停止推流和销毁房间的逻辑。
class _YourAnchorPageState extends State<YourAnchorPage> {
// ... 其他代码 ...

// 结束语聊
Future<void> _stopLive() async {
final result = await _liveListStore.endLive();

if (result.isSuccess) {
debugPrint("endLive success");
} else {
debugPrint("endLive error: ${result.message}");
}
}
}

步骤2:实现观众进入语聊房

观众进房流程如下,通过简单几步操作,即可实现观众进入语聊房。

1. 初始化麦位 Store

在您的观众页面中,创建 LiveSeatStore 实例,并监听 liveSeatState.seatList 的变化,以渲染麦位 UI
import 'package:flutter/material.dart';
import 'package:atomic_x_core/atomicxcore.dart';

// YourAudiencePage 代表您的观众页面
class YourAudiencePage extends StatefulWidget {
const YourAudiencePage({super.key});

@override
State<YourAudiencePage> createState() => _YourAudiencePageState();
}

class _YourAudiencePageState extends State<YourAudiencePage> {
final _liveListStore = LiveListStore.shared;

// 确保 liveID 与房主一致
final String _liveID = "test_voice_room_001";
late final LiveSeatStore _liveSeatStore;
late final VoidCallback _seatListListener = _onSeatListChanged;

@override
void initState() {
super.initState();
_liveSeatStore = LiveSeatStore.create(_liveID);

// 监听麦位列表变化
_observeSeatList();
}

void _observeSeatList() {
// 监听 liveSeatState.seatList 变化,并更新您的麦位 UI
_liveSeatStore.liveSeatState.seatList.addListener(_seatListListener);
}

void _onSeatListChanged() {
// 在这里根据 seatInfoList 渲染您的麦位 UI
final seatInfoList = _liveSeatStore.liveSeatState.seatList.value;
debugPrint("AudiencePage Seat list updated: ${seatInfoList.length} seats");
setState(() {});
}

@override
void dispose() {
_liveSeatStore.liveSeatState.seatList.removeListener(_seatListListener);
super.dispose();
}

@override
Widget build(BuildContext context) {
// 假设您有自己的布局
return Container();
}
}

2. 进入语聊房

通过调用 LiveListStorejoinLive 接口加入语聊房,完整示例代码如下:
class _YourAudiencePageState extends State<YourAudiencePage> {
// ... 其他代码 ...

@override
void initState() {
super.initState();
// ... 其他代码 ...

// 进入语聊房
_joinLive();
}

Future<void> _joinLive() async {
// 调用 joinLive 进入语聊房
final result = await _liveListStore.joinLive(_liveID);

if (result.isSuccess) {
debugPrint("joinLive success");
} else {
debugPrint("joinLive error: ${result.message}");
}
}
}

3. 构建麦位 UI 界面

观众构建麦位 UI 界面的流程与主播完全一致,请参考构建麦位 UI 界面

4. 退出语聊房

观众退出语聊房时,需要调用 LiveListStoreleaveLive 接口来退出。
class _YourAudiencePageState extends State<YourAudiencePage> {
// ... 其他代码 ...

Future<void> _leaveLive() async {
final result = await _liveListStore.leaveLive();

if (result.isSuccess) {
debugPrint("leaveLive success");
} else {
debugPrint("leaveLive error: ${result.message}");
}
}
}

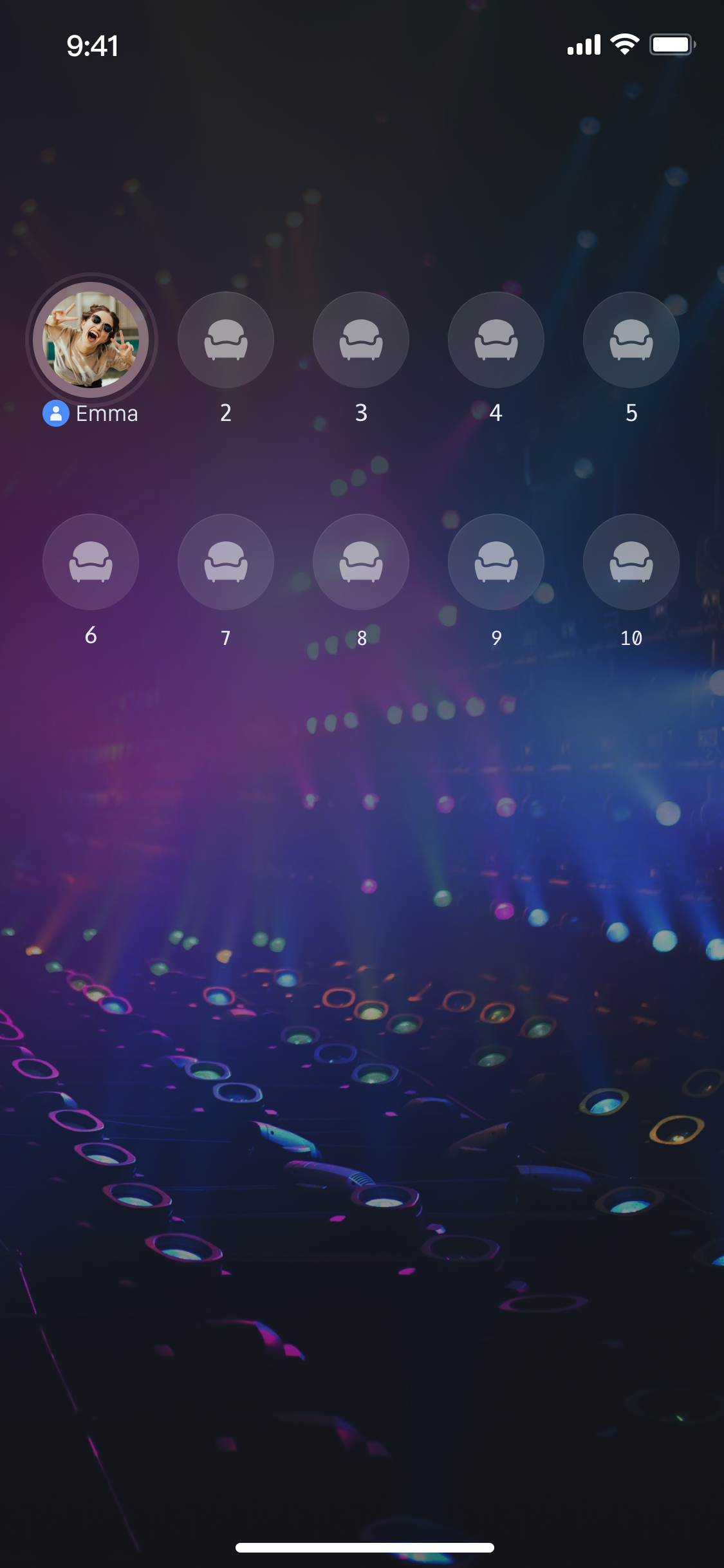

运行效果

完成上述步骤后,即可完成一个最基础的语聊直播场景。您可以参考 丰富语聊房场景 来完善语聊场景。


功能进阶

实现麦上用户说话音浪

在语聊房场景中,一个常见的需求是当麦上用户说话时,在其头像上显示一个波浪动画,以提示全房间用户"谁在说话",LiveSeatStore 提供了 speakingUsers 数据流,专门用于实现此功能。


实现方式

提示:
麦上用户说话时展示波浪动画效果,可参考 TUILiveKit 开源项目中的 seat_grid_widget.dart 文件来了解完整的实现逻辑。
YourAnchorPageYourAudiencePage 中监听 speakingUsers 变化,并更新"正在说话"状态,代码示例如下:
class _YourAnchorPageState extends State<YourAnchorPage> {
late final VoidCallback _speakingUsersListener = _onSpeakingUsersChanged;
// ... 其他代码 ...

@override
void initState() {
super.initState();
// ... 其他代码 ...

// 监听 speakingUsers 变化
_observeSpeakingUsersState();
}

void _observeSpeakingUsersState() {
// 监听 liveSeatState.speakingUsers 变化,并更新"正在说话"状态
_liveSeatStore.liveSeatState.speakingUsers.addListener(_speakingUsersListener);
}

void _onSpeakingUsersChanged() {
// 将 "正在说话" 的用户 ID 集合传递给 UI,更新 UI 状态
final speakingUserMap = _liveSeatStore.liveSeatState.speakingUsers.value;
debugPrint("Speaking users updated: ${speakingUserMap.length} users");
setState(() {});
}

@override
void dispose() {
_liveSeatStore.liveSeatState.speakingUsers.removeListener(_speakingUsersListener);
super.dispose();
}

@override
Widget build(BuildContext context) {
return ValueListenableBuilder<Map<String, int>>(
valueListenable: _liveSeatStore.liveSeatState.speakingUsers,
builder: (context, speakingUsers, child) {
// speakingUsers 是一个 Map,key 是 userID,value 是音量
return YourSpeakingIndicatorWidget(speakingUsers: speakingUsers);
},
);
}
}

// 示例:正在说话指示器组件
class YourSpeakingIndicatorWidget extends StatelessWidget {
final Map<String, int> speakingUsers;

const YourSpeakingIndicatorWidget({
super.key,
required this.speakingUsers,
});

@override
Widget build(BuildContext context) {
return Container();
}
}

丰富语聊房场景

当您完成了基础的语聊房功能后,您可以参考以下功能指南来为语聊房添加丰富的互动玩法。
功能
功能介绍
功能 Stores
实现指南
实现听众上麦
听众申请上麦,与房主进行实时语音互动。
添加弹幕聊天功能
房间内成员可以发送和接收实时文字消息。
构建礼物赠送系统
观众可以向主播赠送虚拟礼物,增加互动和趣味性。
GiftStore

API 文档

Store/Component
功能描述
API 文档
LiveListStore
直播间全生命周期管理:创建 / 加入 / 离开 / 销毁房间,查询房间列表,修改直播信息(名称、公告等),监听直播状态(如被踢出、结束)。
LiveSeatStore
麦位管理核心:管理麦位列表、麦上用户状态、麦位相关操作(上麦、下麦、踢人、锁麦、开关麦克风/摄像头等),监听麦位事件。
DeviceStore
音视频设备控制:麦克风(开关 / 音量)、摄像头(开关 / 切换 / 画质)、屏幕共享,设备状态实时监听。
CoGuestStore
观众连麦管理:连麦申请 / 邀请 / 同意 / 拒绝,连麦成员权限控制(麦克风 / 摄像头),状态同步。
CoHostStore
主播跨房连线:支持多布局模板(动态网格等),发起 / 接受 / 拒绝连线,连麦主播互动管理。
BattleStore
主播 PK 对战:发起 PK(配置时长 / 对手),管理 PK 状态(开始 / 结束),同步分数,监听对战结果。
GiftStore
礼物互动:获取礼物列表,发送 / 接收礼物,监听礼物事件(含发送者、礼物详情)。
BarrageStore
弹幕功能:发送文本 / 自定义弹幕,维护弹幕列表,实时监听弹幕状态。
LikeStore
点赞互动:发送点赞,监听点赞事件,同步总点赞数。
LiveAudienceStore
观众管理:获取实时观众列表(ID / 名称 / 头像),统计观众数量,监听观众进出事件。
AudioEffectStore
音频特效:变声(童声 / 男声)、混响(KTV 等)、耳返调节,实时切换特效。
BaseBeautyStore
基础美颜:调节磨皮 / 美白 / 红润(0-100 级),重置美颜状态,同步效果参数。

常见问题

听众进房后无声音

检查设备权限:请确保 App 已在 Info.plist(iOS)或 AndroidManifest.xml(Android)中声明并获得了麦克风的系统使用权限。
检查房主端:房主端是否正常调用 DeviceStore.shared.openLocalMicrophone() 打开了麦克风。
检查网络:请检查设备网络连接是否正常。

麦位列表未显示或更新

检查 Store 初始化:请确保您在 createLivejoinLive 之前,已经使用相同的 liveID 正确创建了 LiveSeatStore 实例(LiveSeatStore.create(liveID))。
检查数据监听:请检查您是否正确使用了 addListener 来监听 liveSeatStore.liveSeatState.seatList,并确保在 dispose 中调用 removeListener 移除监听。
检查接口调用:请确保 createLive(房主)或 joinLive(听众)接口已成功调用(在回调结果的 isSuccesstrue 时确认)。
