数据库自动化采集与数据库层别的建立

create database if not exists 【DBname】;

-- 只需要从下列【关键字】替换后即可获取所需的完整建表语句
create external table if not exists 【Ⅰ. TBLname】
comment 【Ⅱ. TBL_Cmmt】
【Ⅲ. [columns_info_list]】
partitioned by 【Ⅳ. partition_info】
ROW FORMAT 【Ⅴ. delimitered | serde】
STORED AS 【Ⅵ. store_type】
location 【Ⅶ. path】
TBLPROPERTIES 【Ⅷ. optional】

-- 如果是整个数据库移植，可以通过查询目标数据库的表名获取
show tables;

alter table 表名 add if not exists partition 【partition_set】
location 【partition_path_on_HDFS】

#!/usr/bin/env bash
# /bin/bash

# partition名设置
biz_date=20210101
# 条件判断用的日期
biz_fmt_date=2021-01-01
# 目标文件夹
dw_parent_dir=/target_path/……
# 工作目录
workhome=/workhome_path/……
# 需要采集的oracle表名list
oracle_tables=${workhome}/oracle_tables.txt
# 连接Oracle配置：主机IP 端口 SID 用户 用户密码
orcl_srv=hostname
orcl_port=1521
orcl_sid=sid
orcl_user=orcl_user_name
orcl_pwd=****

# 创建日志文件夹
mkdir ${workhome}/log

# sqoop条件命令拼接变量设置：
# 作业的用户类路径优先避免类冲突
sqoop_condition_params="--where \"'${biz_fmt_date}'=to_char(CREATE_TIME,'yyyy-mm-dd')\""
sqoop_import_params="sqoop import -Dmapreduce.job.user.classpath.first=true --outdir ${workhome}/java_code --as-avrodatafile"
# sqoop连接Oracle的命令
sqoop_jdbc_params="--connect jdbc:oracle:thin:@${orcl_srv}:${orcl_port}:${orcl_sid} --username ${orcl_user} --password ${orcl_pwd}"

# 加载hadoop/sqoop环境配置
source /etc/profile

while read p; do
    # 删除旧文件，覆盖写入
    hdfs fs -rm -r ${dw_parent_dir}/${p}/${biz_date}
    # 拼接sqoop语句
    ${sqoop_import_params} ${sqoop_jdbc_params} --target-dir ${dw_parent_dir}/${p}/${biz_date} --table ${p^^} ${sqoop_condition_params} -m 1 &
    # 语句执行时间预留
    sleep 30

done < ${oracle_tables}

#!/usr/bin/env bash
# /bin/bash

workhome=/workhome_path/……
hdfs_schema_dir=/store_path/……/avsc
biz_date=20210101
biz_fmt_date=2021-01-01
local_schema_backup_filename=schema_${biz_date}.tar.gz
hdfs_schema_backup_filename=${hdfs_schema_dir}/avro_schema_${biz_date}.tar.gz
log_file=${workhome}/log/upload_avro_schema_${biz_fmt_date}.log

source /etc/profile
cd ${workhome}

hdfs fs -test -e ${hdfs_schema_dir} > /dev/null

if [ $? != 0 ]; then
    hdfs fs -mkdir -p ${hdfs_schema_dir}
fi

hdfs fs -test -e ${hdfs_schema_dir}/CISS4_CISS_BASE_AREAS.avsc.avsc > /dev/null
if [ $? != 0 ]; then
    hdfs fs -put ${workhome}/java_code/*.avsc ${hdfs_schema_dir}
fi

if [ ! -e ${local_schema_backup_filename} ]; then
    tar -czf ${local_schema_backup_filename} ./java_code/*.avsc
fi

hdfs fs -test -e ${hdfs_schema_backup_filename} > /dev/null
if [ $? != 0 ]; then
    hdfs fs -put ${local_schema_backup_filename} ${hdfs_schema_backup_filename}

import configparser
import cx_Oracle
from pyhive import hive
​
config = configparser.ConfigParser()
config.read(r'config_path\……\config.txt')
config.read(r'D:\Py_code\……)
ORACLE_HOST=config.get('OracleConn','oracleHost')
# …… 略
HIVE_HOST=config.get('OracleConn','hiveHost')
# …… 略

dsn = cx_Oracle.makedsn(ORACLE_HOST, ORACLE_PORT, service_name=ORACLE_SID)
# 这里建立了连接Oracle的对象
oracleConn = cx_Oracle.connect(ORACLE_USER, ORACLE_PASSWORD, dsn)
​

HiveConn = hive.Connection(host=HIVE_HOST,
                                port=HIVE_PORT,
                                username=HIVE_UNAME,
                                auth='CUSTOM',
                                password=SPARK_HIVE_PASSWORD)

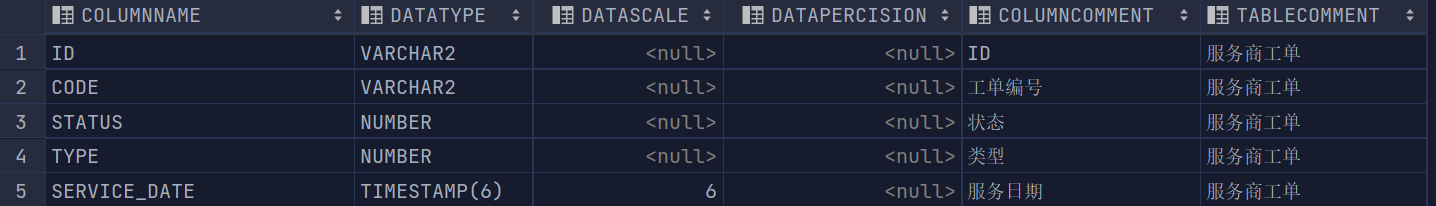

with t1 as (
    select  -- 获取列表数据类型
           column_name columnName,
           data_type dataType,
           DATA_SCALE dataScale,
           DATA_PRECISION dataPercision,
           TABLE_NAME
    from all_tab_cols where '【TBLname】' = TABLE_NAME
),
t2 as(  -- 获取表格备注
        select
               comments tableComment,TABLE_NAME
        from all_tab_comments WHERE '【TBLname】' = TABLE_NAME
    ),
t3 as(  -- 获取列表备注
        select comments columnComment, COLUMN_NAME
        from all_col_comments WHERE '【TBLname】'= TABLE_NAME
    )
select
columnName, dataType, dataScale, dataPercision, columnComment, tableComment
from t1
    left join t2 on t1.TABLE_NAME = t2.TABLE_NAME
    left join t3 on t1.columnName = t3.COLUMN_NAME

# 读取sql语句
GetOracleMetaData=open(r"\……\GetOracleMetaData.txt")
oracle_cmd=GetOracleMetaData.read()
GetOracleMetaData.close()
# 读取目标表名
fr = open(r"\……\tablenames.txt")
tableNameList = []
for line in fr.readlines():
    curLine = line.rstrip('\n')
    tableNameList.append(curLine)

# 将所有表的元数据信息存放在列表中
MetaDataLit=dict()
for tbl in tableNameList:
    oracle_cmd.replace('【TBLname】',tbl.upper())
    cursor.execute(oracleSql)
    resultSet = cursor.fetchall()
    MetaDataLit[tbl]=resultSet

# ods层数据库的建表语句create_table.txt
create external table if not exists [DB_TBLname]
comment '[COMMT]'
partitioned by[partition_info]
ROW FORMAT SERDE
	'org.apache.hadoop.hive.serde2.avro.AvroSerDe'
STORED AS
	INPUTFORMAT 'org.apache.hadoop.hive.ql.io.avro.AvroContainerInputFormat'
	OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.avro.AvroContainerOutputFormat'
location '[TBL_HDFS_path]'
tblproperties('avro.schema.url'='[AVSC_folder_path][AVSC_filename].avsc';

command_file=open(r"D:\Py_code\tmp\create_table.txt")
tble_create_cmd=command_file.read()
command_file.close()
cmd=tble_create_cmd
replace_dict=dict()

for tbl in tableNameList:
    replace_dict['[DB_TBLname]']='ods.'tbl
    replace_dict['[COMMT]']=MetaDataLit[tbl][0][5]
    replace_dict['[partition_info]']='(dt string)'
    replace_dict['[TBL_HDFS_path]']='hdfs:///workhome/ods/'+tbl
    replace_dict['[AVSC_folder_path]']='hdfs:///workhome/dw/ods/avsc/'
    replace_dict['[AVSC_filename]']=tbl.upper()
    for k,v in replace_dict.items():
        cmd=cmd.replace(k,v)
    HIVE_cursor.execute(cmd)
    cmd=tble_create_cmd
    replace_dict=dict()

# ods层表分区语句add_partition.txt
alter table [DB_TBLname] add if not exists partition ([partition_set])
location '[TBL_HDFS_path][partition_path]'

command_file=open(r"D:\Py_code\tmp\add_partition.txt")
tble_create_cmd=command_file.read()
command_file.close()
cmd=tble_create_cmd
partition_dict=dict()
for tbl in tableNameList:
    partition_dict['[partition_set]']='dt="20210101"'
    partition_dict['[partition_path]']='/20210101'
    partition_dict['[DB_TBLname]']=tbl
    partition_dict['[TBL_HDFS_path]']='hdfs:///workhome/ods/'+tbl
    for k,v in partition_dict.items():
        cmd=cmd.replace(k,v)
    HIVE_cursor.execute(cmd)
    cmd=add_partition_cmd
    partition_dict=dict()

# dwd层表格创建语句create_dwd_tbl.txt
create table if not exists [TBLname](
[columns_list]
)
comment '[TBLComment]'
partitioned by(dt string)
stored as orc
location '[TBLpath][TBLname]'

# columnName 列名
# dataType   列的数据类型
# dataScale  类列的长度
# dataScope  小数类列的精度
# columnComment 列的备注

def oracal2Hive(columnName,dataType,dataScale,dataScope,columnComment):
    col_dict=dict()
    col_dict['columnName']=columnName
    col_dict['columnComment']=columnComment

    if dataType.lower()=='timestamp':
        col_dict['columnType']='long'
    # 如果Oracle中为数值类型
    elif dataType.lower()=='number':
        # 如果长度为None或者长度小于1
        if dataScale is None or dataScale < 1:
            # 整数类型，返回bigint
            col_dict['columnType']= 'bigint'
        # 为数值，但是有小数点
        else:
            # 返回dicimal类型
            col_dict['columnType']= f'decimal({dataScope}, {dataScale})'
    # 其他类型全部返回String类型
    else:
        col_dict['columnType'] = 'string'

    return col_dict

create_dwd_tbl=open(r"\……\create_dwd_tbl.txt")
dwd_tbl_create_cmd=create_dwd_tbl.read()
create_dwd_tbl.close()
col_info_list=[]
replace_dict=dict()
for tbl in tableNameList:
    TBLComment=MetaDataLit[tbl][0][5]
    if TBLComment is None:
        TBLComment=''
    for col_info in MetaDataLit[tbl]:
        columnName= col_info[0]        # 获取表元素据-列的名称
        dataType = col_info[1]          # 获取表元素据-列的类型
        dataScale = col_info[2]         # 获取表元素据-列值长度
        dataScope = col_info[3]         # 获取表元素据-列值精度
        columnComment = col_info[4]     # 获获取表元素据-列的注释
        if dataScale is None:
            dataScale=0
        if dataScope is None:
            dataScope=0
        # Oracle->hive类型转换
        col_info_list.append(oracal2Hive(columnName,dataType,dataScale,dataScope,columnComment))
    cols_cmd=[]
    # 每一列按照建表语法格式存储在列表中
    for i in col_info_list:
        cols_cmd.append(f"\t`{i.get('columnName')}` {i.get('columnType')} comment'{i.get('columnComment')}',")
    # 拼接列表,并去除最后的逗号，
    columns_list='\n'.join(cols_cmd)[:-1]

    cmd=dwd_tbl_create_cmd
    replace_dict['[TBLname]']='dwd.'+tbl
    replace_dict['[columns_list]']=columns_list
    replace_dict['[partition_info]']='(dt string)'
    replace_dict['[TBLComment]']=TBLComment
    replace_dict['[TBLpath]']='/workhome/dwd/'+tbl'
    for k,v in replace_dict.items():
        cmd=cmd.replace(k,v)

    HIVE_cursor.execute(cmd)
    cmd=dwd_tbl_create_cmd
    replace_dict=dict()
    col_info_list=[]

# dwd数据插入语句insert_dwd_tbl.txt
insert overwrite table [Target_TBL] partition([partition_set])
select
[select_cols]
from [TBLname]
where [where_set]

insert_dwd_tbl=open(r"\……\insert_dwd_tbl.txt")
dwd_tbl_insert_cmd=insert_dwd_tbl.read()
insert_dwd_tbl.close()
select_list=[]
insert_dict=dict()
for tbl in tableNameList:
    for col_info in MetaDataLit[tbl]:
        select_list.append(f'\t`{col_info[0]},`')

    select_list='\n'.join(select_list)[:-1]
    cmd=dwd_tbl_insert_cmd

    insert_dict['[Target_TBL]']='dwd.'+tbl
    insert_dict['[TBLname]']='ods.'+tbl
    insert_dict['[partition_set]']='dt="20210101"'
    insert_dict['[select_cols]']=select_list
    insert_dict['[where_set]']='dt="20210101"'

    for k,v in insert_dict.items():
        cmd=cmd.replace(k,v)

    HIVE_cursor.execute(cmd)
    select_list=[]
    cmd=dwd_tbl_insert_cmd
