YOLOv12优化：图像去噪 | AAAI2025 Transformer |一种基于Transformer的盲点网络（TBSN）架构 ，结合空间和通道自注意力

class DilatedOCA(nn.Module):
    def __init__(self, dim, window_size, overlap_ratio, num_heads, dim_head, bias):
        super(DilatedOCA, self).__init__()
        self.num_spatial_heads = num_heads
        self.dim = dim
        self.window_size = window_size
        self.overlap_win_size = int(window_size * overlap_ratio) + window_size
        self.dim_head = dim_head
        self.inner_dim = self.dim_head * self.num_spatial_heads
        self.scale = self.dim_head**-0.5

        self.unfold = nn.Unfold(kernel_size=(self.overlap_win_size, self.overlap_win_size), stride=window_size, padding=(self.overlap_win_size-window_size)//2)
        self.qkv = nn.Conv2d(self.dim, self.inner_dim*3, kernel_size=1, bias=bias)
        self.project_out = nn.Conv2d(self.inner_dim, dim, kernel_size=1, bias=bias)
        self.rel_pos_emb = RelPosEmb(
            block_size = window_size,
            rel_size = window_size + (self.overlap_win_size - window_size),
            dim_head = self.dim_head
        )
        self.fixed_pos_emb = FixedPosEmb(window_size, self.overlap_win_size)
    def forward(self, x):
        b, c, h, w = x.shape
        qkv = self.qkv(x)
        qs, ks, vs = qkv.chunk(3, dim=1)

        # spatial attention
        qs = rearrange(qs, 'b c (h p1) (w p2) -> (b h w) (p1 p2) c', p1 = self.window_size, p2 = self.window_size)
        ks, vs = map(lambda t: self.unfold(t), (ks, vs))
        ks, vs = map(lambda t: rearrange(t, 'b (c j) i -> (b i) j c', c = self.inner_dim), (ks, vs))

        # print(f'qs.shape:{qs.shape}, ks.shape:{ks.shape}, vs.shape:{vs.shape}')
        #split heads
        qs, ks, vs = map(lambda t: rearrange(t, 'b n (head c) -> (b head) n c', head = self.num_spatial_heads), (qs, ks, vs))

        # attention
        qs = qs * self.scale
        spatial_attn = (qs @ ks.transpose(-2, -1))
        spatial_attn += self.rel_pos_emb(qs)
        spatial_attn += self.fixed_pos_emb()
        spatial_attn = spatial_attn.softmax(dim=-1)

        out = (spatial_attn @ vs)

        out = rearrange(out, '(b h w head) (p1 p2) c -> b (head c) (h p1) (w p2)', head = self.num_spatial_heads, h = h // self.window_size, w = w // self.window_size, p1 = self.window_size, p2 = self.window_size)

        # merge spatial and channel
        out = self.project_out(out)

        return out


class FeedForward(nn.Module):
    def __init__(self, dim, ffn_expansion_factor, bias):
        super(FeedForward, self).__init__()

        hidden_features = int(dim * ffn_expansion_factor)

        self.project_in = nn.Conv2d(dim, hidden_features, kernel_size=3, stride=1, dilation=2, padding=2, bias=bias)
        self.project_out = nn.Conv2d(hidden_features, dim, kernel_size=3, stride=1, dilation=2, padding=2, bias=bias)

    def forward(self, x):
        x = self.project_in(x)
        x = F.gelu(x)
        x = self.project_out(x)
        return x


class DTAB(nn.Module):
    def __init__(self, dim, window_size=4, overlap_ratio=0.5, num_channel_heads=4, num_spatial_heads=2, spatial_dim_head=16, ffn_expansion_factor=1, bias=False, LayerNorm_type='BiasFree'):
        super(DTAB, self).__init__()

        self.spatial_attn = DilatedOCA(dim, window_size, overlap_ratio, num_spatial_heads, spatial_dim_head, bias)
        self.channel_attn = DilatedMDTA(dim, num_channel_heads, bias)

        self.norm1 = LayerNorm(dim, LayerNorm_type)
        self.norm2 = LayerNorm(dim, LayerNorm_type)
        self.norm3 = LayerNorm(dim, LayerNorm_type)
        self.norm4 = LayerNorm(dim, LayerNorm_type)

        self.channel_ffn = FeedForward(dim, ffn_expansion_factor, bias)
        self.spatial_ffn = FeedForward(dim, ffn_expansion_factor, bias)


    def forward(self, x):
        x = x + self.channel_attn(self.norm1(x))
        x = x + self.channel_ffn(self.norm2(x))
        x = x + self.spatial_attn(self.norm3(x))
        x = x + self.spatial_ffn(self.norm4(x))
        return x

https://blog.csdn.net/m0_63774211/article/details/146339033

# YOLOv12 🚀, AGPL-3.0 license
# YOLOv12 object detection model with P3-P5 outputs. For Usage examples see https://docs.ultralytics.com/tasks/detect

# Parameters
nc: 80 # number of classes
scales: # model compound scaling constants, i.e. 'model=yolov12n.yaml' will call yolov12.yaml with scale 'n'
  # [depth, width, max_channels]
  n: [0.50, 0.25, 1024] # summary: 465 layers, 2,603,056 parameters, 2,603,040 gradients, 6.7 GFLOPs
  s: [0.50, 0.50, 1024] # summary: 465 layers, 9,285,632 parameters, 9,285,616 gradients, 21.7 GFLOPs
  m: [0.50, 1.00, 512] # summary: 501 layers, 20,201,216 parameters, 20,201,200 gradients, 68.1 GFLOPs
  l: [1.00, 1.00, 512] # summary: 831 layers, 26,454,880 parameters, 26,454,864 gradients, 89.7 GFLOPs
  x: [1.00, 1.50, 512] # summary: 831 layers, 59,216,928 parameters, 59,216,912 gradients, 200.3 GFLOPs

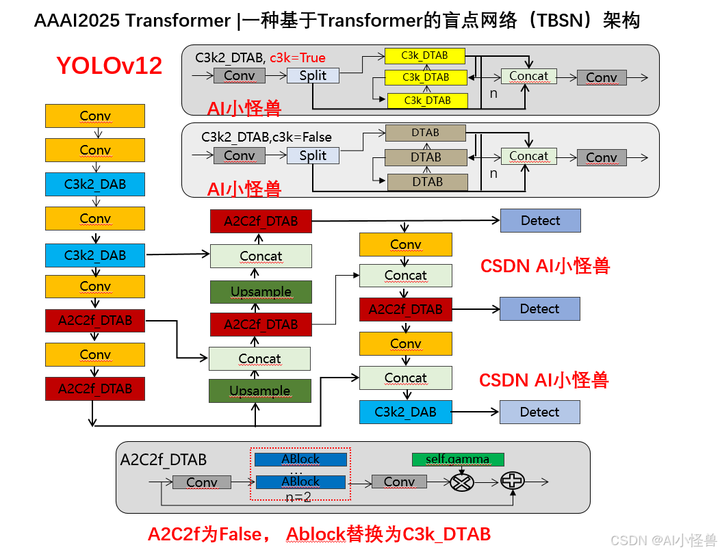

# YOLO12n backbone
backbone:
  # [from, repeats, module, args]
  - [-1, 1, Conv,  [64, 3, 2]] # 0-P1/2
  - [-1, 1, Conv,  [128, 3, 2]] # 1-P2/4
  - [-1, 2, C3k2_DTAB,  [256, False, 0.25]]
  - [-1, 1, Conv,  [256, 3, 2]] # 3-P3/8
  - [-1, 2, C3k2_DTAB,  [512, False, 0.25]]
  - [-1, 1, Conv,  [512, 3, 2]] # 5-P4/16
  - [-1, 4, A2C2f_DTAB, [512, True, 4]]
  - [-1, 1, Conv,  [1024, 3, 2]] # 7-P5/32
  - [-1, 4, A2C2f_DTAB, [1024, True, 1]] # 8

# YOLO12n head
head:
  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 6], 1, Concat, [1]] # cat backbone P4
  - [-1, 2, A2C2f_DTAB, [512, False, -1]] # 11

  - [-1, 1, nn.Upsample, [None, 2, "nearest"]]
  - [[-1, 4], 1, Concat, [1]] # cat backbone P3
  - [-1, 2, A2C2f_DTAB, [256, False, -1]] # 14

  - [-1, 1, Conv, [256, 3, 2]]
  - [[-1, 11], 1, Concat, [1]] # cat head P4
  - [-1, 2, A2C2f_DTAB, [512, False, -1]] # 17

  - [-1, 1, Conv, [512, 3, 2]]
  - [[-1, 8], 1, Concat, [1]] # cat head P5
  - [-1, 2, C3k2_DTAB, [1024, True]] # 20 (P5/32-large)

  - [[14, 17, 20], 1, Detect, [nc]] # Detect(P3, P4, P5)
