多 Servlet 环境下，请求的 ServletPath 是什么

Servlet

Servlet 是 Java EE（现为 Jakarta EE）规范中的一个重要组件，用于处理客户端请求并生成动态响应。Servlet 通常运行在 Servlet 容器（如 Apache Tomcat、Jetty 等）中，负责接收 HTTP 请求、处理业务逻辑并返回 HTTP 响应。

Servlet 规范有很多版本，目前主流的是 4.x 及 6.x。以下内容引自 廖雪峰的官方网站 - 手写Tomcat - Servlet规范[1]：

Servlet 3.0：支持异步处理的Servlet，支持注解配置Servlet和过滤器，增加了SessionCookieConfig接口； Servlet 3.1：提供了WebSocket的支持，增加了对HTTP请求和响应的流式操作的支持，增加了对HTTP协议的新特性的支持； Servlet 4.0：支持HTTP/2的新特性，提供了HTTP/2的Server Push等特性； Servlet 5.0：主要是把javax.servlet包名改成了jakarta.servlet； Servlet 6.0：继续增加一些新功能，并废除一部分功能。

Servlet 4.0 及之前的规范，可以从 https://jcp.org/en/jsr/summary?id=servlet 获取：

• JSR-000369 Java Servlet 4.0 Specification Final Release[2]
• Online JavaDoc[3]

Servlet 5.0 及之后的规范，可直接在线获取：

• Jakarta Servlet Specification 6.1[4]
• Online JavaDoc[5]
• Project jakartaee/servlet on GitHub[6]

Maven 坐标从 4.0.2 开始，由

<!-- https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
<dependency>
    <groupId>javax.servlet</groupId>
    <artifactId>javax.servlet-api</artifactId>
    <version>4.0.1</version>
    <scope>provided</scope>
</dependency>

更换为：

<!-- https://mvnrepository.com/artifact/jakarta.servlet/jakarta.servlet-api -->
<dependency>
    <groupId>jakarta.servlet</groupId>
    <artifactId>jakarta.servlet-api</artifactId>
    <version>4.0.2</version>
    <scope>provided</scope>
</dependency>

源码 package 从 5.0 开始由 javax.servlet[7] 更换为 jakarta.servlet[8]。

附：Servlet 规范相关资源

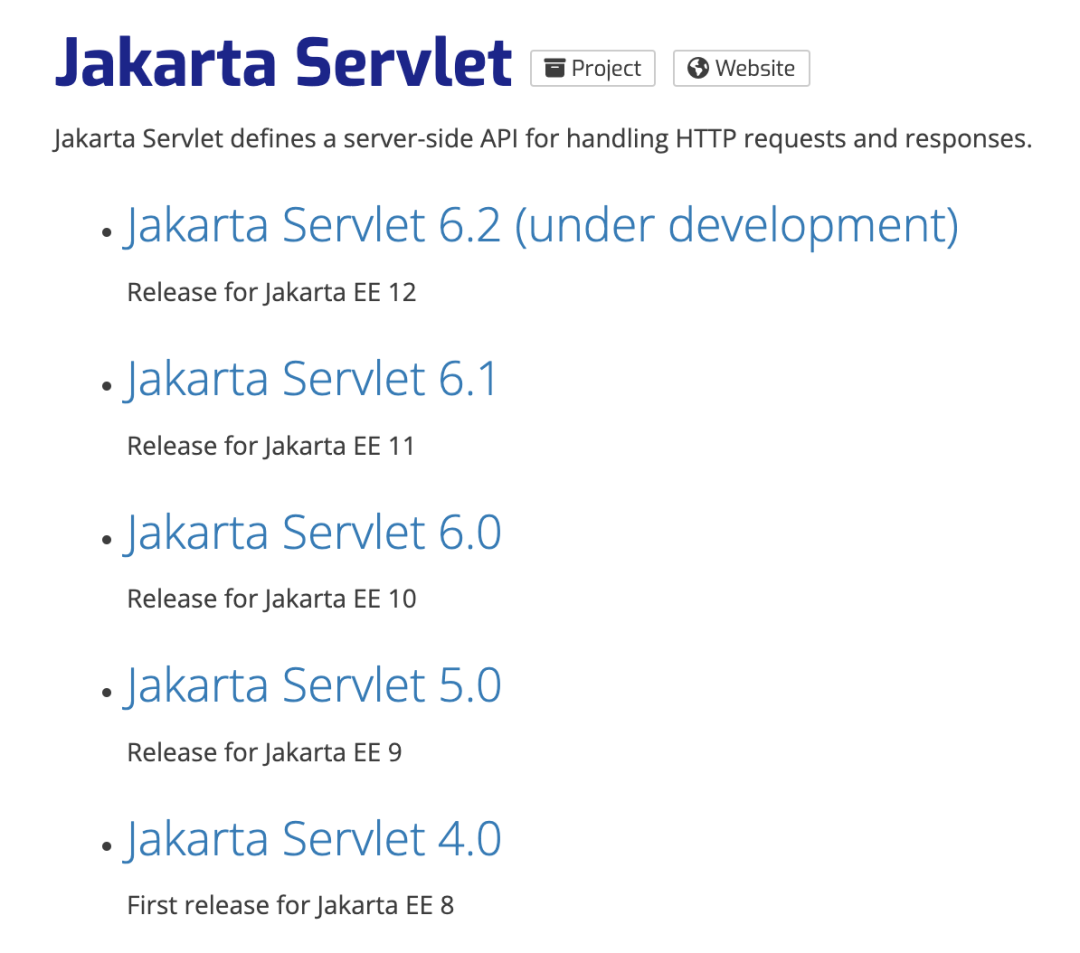

• Jakarta Servlet 4.0~6.2[9]
• Jakarta Servlet GitHub Pages[10]
• Java Community Process[11]
• Eclipse EE4J Servlet Project[12]

HttpServletRequest.getServletPath()

Servlet 规范中，HttpServletRequest 接口关于 getServletPath() 方法的描述如下。

Servlet 4.0[13]

    /**
     * Returns the part of this request's URL that calls the servlet. This path
     * starts with a "/" character and includes either the servlet name or a
     * path to the servlet, but does not include any extra path information or a
     * query string. Same as the value of the CGI variable SCRIPT_NAME.
     * <p>
     * This method will return an empty string ("") if the servlet used to
     * process this request was matched using the "/*" pattern.
     *
     * @return a <code>String</code> containing the name or path of the servlet
     *         being called, as specified in the request URL, decoded, or an
     *         empty string if the servlet used to process the request is
     *         matched using the "/*" pattern.
     */
    public String getServletPath();

Servlet 6.1[14]

    /**
     * Returns the part of this request's URL that calls the servlet. This path starts with a "/" character and includes the
     * path to the servlet, but does not include any extra path information or a query string.
     *
     * <p>
     * This method will return an empty string ("") if the servlet used to process this request was matched using the "/*"
     * pattern.
     *
     * @return a <code>String</code> containing the path of the servlet being called, as specified in the request URL, or an
     * empty string if the servlet used to process the request is matched using the "/*" pattern. The path will be
     * canonicalized as per <a href=
     * "https://jakarta.ee/specifications/servlet/6.0/jakarta-servlet-spec-6.0.html#request-uri-path-processing">Servlet
     * 6.0, 3.5</a>. This method will not return any encoded characters unless the container is configured specifically to
     * allow them.
     * @throws IllegalArgumentException In standard configuration, this method will never throw. However, a container may be
     * configured to not reject some suspicious sequences identified by <a href=
     * "https://jakarta.ee/specifications/servlet/6.0/jakarta-servlet-spec-6.0.html#uri-path-canonicalization">Servlet 6.0,
     * 3.5.2<a/>, furthermore the container may be configured to allow such paths to only be accessed via safer methods like
     * {@link #getRequestURI()} and to throw IllegalArgumentException if this method is called for such suspicious paths.
     */
    String getServletPath();

两个版本细节处有些区别，没有本质差异。

规范文档中，针对 requestURI 的组成部分及各部分含义有明确的说明，以及一个简明的例子：

requestURI = contextPath + servletPath + pathInfo

有三个 Servlet：

不同请求 URI 对应的各部分值：

可以看到其中 ServletPath 与 Servlet Mapping 的 Pattern 是对应的。

但是这个例子中没有提到存在匹配 /* 路径的 Servlet 的情况。按照接口描述中说明，此时返回的 ServletPath 应该是空字符串 ""。让我们看看一些 Servlet 容器实际的实现情况。

Demo 工程

延续 还在给每个请求加前缀避免模块间接口冲突呢？[15] 中构造的 demo 工程 multi-dispatcher[16]，略微调整以适应本文示例需求。

通过 env 参数切换使用不同的 Servlet 容器：

# 默认使用 tomcat 容器
$ ./gradlew bootRun
# 使用 jetty 容器
$ ./gradlew bootRun -Denv=jetty
# 使用 undertow 容器
$ ./gradlew bootRun -Denv=undertow

添加 --args='--server.servlet.context-path=/demo' 指定上下文根：

$ ./gradlew bootRun -Denv=undertow --args='--server.servlet.context-path=/demo'

启动后可通过类似下面的日志验证使用的容器：

2025-09-06 11:18:52.297  INFO 6679 --- [           main] o.s.b.w.e.u.UndertowServletWebServer     : Undertow started on port(s) 8080 (http) with context path '/demo'

之后访问如下地址：

• http://localhost:8080/demo/same/path
• http://localhost:8080/demo/foo/same/path
• http://localhost:8080/demo/bar/same/path

示例响应：

{
  "Context Path": "/demo",
  "Request URL": "http://localhost:8080/demo/foo/same/path",
  "Servlet Path": "/foo",
  "Request URI": "/demo/foo/same/path",
  "Servlet": "Foo Servlet",
  "Path Info": "/same/path",
  "URL Mapping": "/foo/*"
}

Tomcat 的实现

在 Servlet 注册到了哪？[17] 和 Tomcat 是怎么找到用来处理请求的 Servlet 的？[18] 中，我们梳理过 Tomcat 处理请求的过程。本文继续以 Tomcat 9 为例，说明其实现 Servlet 4.0 规范的情况，Tomcat 版本与 Servlet 版本的对应关系可见：Apache Tomcat Versions[19]。

org.apache.catalina.connector.Request[20] 实现了 HttpServletRequest 接口，对 getServletPath() 方法的实现如下：

    @Override
    public String getServletPath() {
        return mappingData.wrapperPath.toStringType();
    }

mappingData 是在 org.apache.catalina.connector.CoyoteAdapter.postParseRequest[21] 方法中映射上的：

connector.getService().getMapper().map(serverName, decodedURI, version, request.getMappingData());

不同类型的 Servlet，对 MappingData[22] 的 wrapperPath 的设置方式不同。

默认 Serlvet：

Mapper.internalMapWrapper[23]

        // Rule 7 -- Default servlet
        if (mappingData.wrapper == null && !checkJspWelcomeFiles) {
            if (contextVersion.defaultWrapper != null) {
                mappingData.wrapper = contextVersion.defaultWrapper.object;
                mappingData.requestPath.setChars(path.getBuffer(), path.getStart(), path.getLength());
                mappingData.wrapperPath.setChars(path.getBuffer(), path.getStart(), path.getLength());
                mappingData.matchType = MappingMatch.DEFAULT;
            }
        ...

通配符匹配的 Servlet：

Mapper.internalMapWildcardWrapper[24]

            if (found) {
                mappingData.wrapperPath.setString(wrappers[pos].name);
                if (path.getLength() > length) {
                    mappingData.pathInfo.setChars(path.getBuffer(), path.getStart() + length,
                            path.getLength() - length);
                }
                mappingData.requestPath.setChars(path.getBuffer(), path.getStart(), path.getLength());
                mappingData.wrapper = wrappers[pos].object;
                mappingData.jspWildCard = wrappers[pos].jspWildCard;
                mappingData.matchType = MappingMatch.PATH;
            }

实测

$ ./gradlew bootRun --args='--server.servlet.context-path=/demo'

由默认 Servlet（URL mapping 是 /*）处理的请求，其 ServletPath 是请求的实际路径，跟 Servlet 规范中描述的情况不一致：

Servlet Path: The path section that directly corresponds to the mapping which activated this request. This path starts with a ’/’ character except in the case where the request is matched with the ‘/*’ or ““ pattern, in which case it is an empty string

Jetty 和 Undertow 的结果

以下面命令分别切换容器启动：

$ ./gradlew bootRun -Denv=jetty --args='--server.servlet.context-path=/demo'
$ ./gradlew bootRun -Denv=undertow --args='--server.servlet.context-path=/demo'

结果与使用 Tomcat 容器的情况一致，均是：

结论

目前三个主流的开源 Servlet 容器：Tomcat、Jetty 和 Undertow，处理请求的 ServletPath 方式基本一致：

1. 由默认 Servlet 处理的请求，其 ServletPath 是请求的实际路径（Context Path 之后，不包括请求参数等）；
2. 非默认 Servlet 处理的请求，其 ServletPath 是 Servlet 的映射路径，不包括请求的实际路径。
