环境准备

服务器1：安装docker环境，安装harbor 服务器2：安装docker环境，添加docker仓库测试服务器集群1：运行K8S集群

部署harbor docker镜像库

服务器1 下载解压 https://github.com/goharbor/harbor/releases

tar -xvzf harbor-online-installer-v2.14.1.tgz

进入目录

cd harbor

创建配置文件

cp harbor.yml.tmpl harbor.yml

准备真实有效的证书，并通过DNS服务器正确解析域名reg.90apt.com至192.168.4.9

修改配置文件harbor.yml

hostname: reg.90apt.com

# http related config
http:
# port for http, default is 80. If https enabled, this port will redirect to https port
  port:

https:
# https port for harbor, default is 443
  port:
# The path of cert and key files for nginx
  certificate: /root/90apt.pem
  private_key: /root/90apt.key

预配置

./prepare

部署

./install.sh

查看状态

docker compose ps

关闭

docker compose stop

启动

docker compose start

后台运行

docker compose up -d

删除

harbor docker-compose down

默认账号密码

admin
Harbor12345

docker主机添加Harbor仓库

服务器2 添加并重启docker

/etc/docker/daemon.json
{
"registry-mirrors":[
"https://docker.1ms.run"
],
"insecure-registries":["reg.90apt.com"]
}

systemctl restart docker

查看docker配置是否成功

docker info

登录harbor

docker login reg.90apt.com

运行一个uptime-kuma

docker run -d --restart=always -p :3001 -v uptime-kuma:/app/data --name uptime-kuma louislam/uptime-kuma:1

修改镜像tag

docker tag louislam/uptime-kuma:1 reg.90apt.com/library/uptime-kuma:1

推送

docker push reg.90apt.com/library/uptime-kuma:1

拉取镜像

docker pull reg.90apt.com/library/uptime-kuma:1

K8S使用自建镜像仓库

服务器集群1 K8S官方教程，使用命令行方式 https://kubernetes.io/zh-cn/docs/tasks/configure-pod-container/pull-image-private-registry/

使用命令行创建Secret

kubectl create secret docker-registry 90apt \
  --docker-server=reg.90apt.com \
  --docker-username=admin \
  --docker-password=Harbor12345 \
  --docker-email=<你的邮箱地址，此项可忽略>

检查 Secret 90apt

kubectl get secret 90apt --output=yaml

创建一个使用Secret的Pod my-private-reg-pod.yaml

apiVersion: v1
kind: Pod
metadata:
  name: private-reg
  labels:
    app: private-reg
spec:
  containers:
  - name: private-reg-container
    image: reg.90apt.com/library/uptime-kuma:1
    ports:
    - containerPort:
      protocol: TCP
  imagePullSecrets:
  - name: 90apt

创建一个service 90aptservice.yaml

apiVersion: v1
kind: Service
metadata:
  name: uptime-kuma-service
spec:
  type: NodePort
  selector:
    app: private-reg
  ports:
  - port: # Service内部端口
    targetPort: # Pod容器端口
    nodePort: # 节点上的端口（必须在30000-32767范围内）

运行并查看

kubectl apply -f my-private-reg-pod.yaml
kubectl apply -f 90aptservice.yaml

查看运行状态

kubectl get pod private-reg

NAME          READY   STATUS    RESTARTS   AGE
private-reg   /1     Running             174m

查看serveices端口映射情况

kubectl get services

NAME                  TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)
uptime-kuma-service   NodePort    10.109.66.144    <none>:30010/TCP   173m

查看详情

kubectl describe pod private-reg

Name:         private-reg
Namespace:    default
Priority:
Node:         testk8s-node2/192.168.4.12
Start Time:   Wed,  Dec :25:51 +0800
..........
Tolerations:     node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                 node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:          <none>

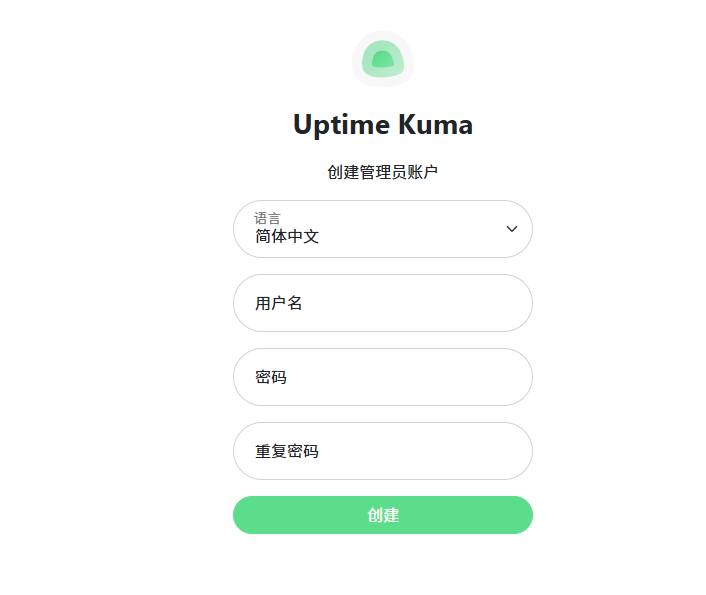

通过K8S集群访问测试，成功 http://node-ip:30010
