社区首页 >问答首页 >为什么从数据流/束管道写入BigQuery的速度很慢？

问为什么从数据流/束管道写入BigQuery的速度很慢？
EN

Stack Overflow用户
提问于 2017-08-25 22:09:02
回答 1查看 1.6K关注 0票数 2

我们有一个非常简单的管道，从GCS读取，执行一个简单的ParDo，然后将结果写入BigQuery。这是自动标度多达50个VM，运行在GCP上，不做任何花哨的事情。

从GCS (~10B records & ~700+GB)读取所有数据并对其进行转换，所有这些都发生得相对较快(前7-10分钟)。

但是，当它到达BigQuery写(使用BigQueryIO)时，它就会慢下来--尽管它只需要写大约100万条记录(~60 1M )。单是这一步就需要20米。

除了对BigQuery的缓慢写入之外，图表还显示该步骤是“停止”的，尽管它是成功的(尽管非常慢)。对于一个简单的BigQuery写操作来说，这个步骤看起来也太复杂了(见下图)。

瓶颈似乎是当它到达步骤Executing operation BigQueryIO.Write/BatchLoads/WriteRename时(参见下面的日志)。

我的代码有什么地方做错了吗？

代码：

代码语言：javascript
复制
public class Pipeline {
    private static final String BIG_QUERY_TABLE = "<redacted>:<redacted>.melbourne_titles";
    private static final String BUCKET = "gs://<redacted>/*.gz";

    public static void main(String[] args) {
        DataflowPipelineOptions options = PipelineOptionsFactory
                .fromArgs(args)
                .withValidation()
                .as(DataflowPipelineOptions.class);
        options.setAutoscalingAlgorithm(THROUGHPUT_BASED);
        Pipeline pipeline = Pipeline.create(options);
        pipeline.apply(TextIO.read().from(BUCKET).withCompressionType(GZIP))
                .apply(ParDo.of(new DoFn<String, TableRow>() {
                    @ProcessElement
                    public void processElement(ProcessContext c) throws Exception {
                        String input = c.element();
                        String title = input.split(",")[5];
                        if (title.toLowerCase().contains("melbourne")) {
                            TableRow tableRow = new TableRow();
                            tableRow.set("title", title);
                            c.output(tableRow);
                        }
                    }
                }))
                .apply(BigQueryIO.writeTableRows()
                        .to(BIG_QUERY_TABLE)
                        .withCreateDisposition(CREATE_IF_NEEDED)
                        .withWriteDisposition(WRITE_TRUNCATE)
                        .withSchema(getSchema()));
        pipeline.run();
    }

    private static TableSchema getSchema() {
        List<TableFieldSchema> fields = new ArrayList<>();
        fields.add(new TableFieldSchema().setName("title").setType("STRING"));
        TableSchema schema = new TableSchema().setFields(fields);
        return schema;
    }
}

日志片段：

代码语言：javascript
复制
  2017-08-25 (21:30:23) Executing operation BigQueryIO.Write/BatchLoads/View.AsSingleton/BatchViewOverrides.GroupByWindowHas...
  2017-08-25 (21:30:23) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/Distinct Keys/Combine.perKey(Anonym...
  2017-08-25 (21:30:23) Executing operation BigQueryIO.Write/BatchLoads/GroupByKey/Create
  2017-08-25 (21:30:23) Executing operation BigQueryIO.Write/BatchLoads/TempFilePrefixView/BatchViewOverrides.GroupByWindowH...
  2017-08-25 (21:30:23) Starting 50 workers in australia-southeast1-a...
  2017-08-25 (21:30:23) Executing operation TextIO.Read/Read+ParDo(Anonymous)+BigQueryIO.Write/PrepareWrite/ParDo(Anonymous)...
  2017-08-25 (21:30:23) Executing operation BigQueryIO.Write/BatchLoads/TriggerIdCreation/Read(CreateSource)+BigQueryIO.Writ...
  2017-08-25 (21:30:23) Executing operation BigQueryIO.Write/BatchLoads/Create/Read(CreateSource)+BigQueryIO.Write/BatchLoad...
  2017-08-25 (21:31:21) Executing operation BigQueryIO.Write/BatchLoads/View.AsSingleton/BatchViewOverrides.GroupByWindowHas...
  2017-08-25 (21:31:21) Executing operation BigQueryIO.Write/BatchLoads/View.AsSingleton/BatchViewOverrides.GroupByWindowHas...
  2017-08-25 (21:31:22) Executing operation BigQueryIO.Write/BatchLoads/TempFilePrefixView/BatchViewOverrides.GroupByWindowH...
  2017-08-25 (21:31:23) Executing operation BigQueryIO.Write/BatchLoads/TempFilePrefixView/BatchViewOverrides.GroupByWindowH...
  2017-08-25 (21:38:10) Executing operation BigQueryIO.Write/BatchLoads/TempFilePrefixView/CreateDataflowView
  2017-08-25 (21:38:13) Executing operation BigQueryIO.Write/BatchLoads/View.AsSingleton/CreateDataflowView
  2017-08-25 (21:38:45) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/Distinct Keys/Combine.perKey(Anonym...
  2017-08-25 (21:38:45) Executing operation BigQueryIO.Write/BatchLoads/GroupByKey/Close
  2017-08-25 (21:38:45) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForData/BatchViewOverri...
  2017-08-25 (21:38:45) Executing operation BigQueryIO.Write/BatchLoads/GroupByKey/Read+BigQueryIO.Write/BatchLoads/GroupByK...
  2017-08-25 (21:38:45) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/Distinct Keys/Combine.perKey(Anonym...
  2017-08-25 (21:38:49) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForData/BatchViewOverri...
  2017-08-25 (21:38:49) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForSize/Create
  2017-08-25 (21:38:49) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForKeys/Create
  2017-08-25 (21:38:49) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForData/BatchViewOverri...
  2017-08-25 (21:38:56) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForSize/Close
  2017-08-25 (21:38:56) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForKeys/Close
  2017-08-25 (21:38:56) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForSize/Read+BigQueryIO...
  2017-08-25 (21:38:56) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/GBKaSVForKeys/Read+BigQueryIO...
  2017-08-25 (21:39:00) Executing operation s35-u80
  2017-08-25 (21:39:01) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/Flatten.PCollections
  2017-08-25 (21:39:03) Executing operation BigQueryIO.Write/BatchLoads/CalculateSchemas/asMap/CreateDataflowView
  2017-08-25 (21:39:06) Executing operation BigQueryIO.Write/BatchLoads/ResultsView/CreateDataflowView
  2017-08-25 (21:39:12) Executing operation BigQueryIO.Write/BatchLoads/SinglePartitionsReshuffle/GroupByKey/Create
  2017-08-25 (21:39:12) Executing operation BigQueryIO.Write/BatchLoads/MultiPartitionsReshuffle/GroupByKey/Create
  2017-08-25 (21:39:12) Executing operation BigQueryIO.Write/BatchLoads/Create.Values/Read(CreateSource)+BigQueryIO.Write/Ba...
  2017-08-25 (21:39:33) Executing operation BigQueryIO.Write/BatchLoads/SinglePartitionsReshuffle/GroupByKey/Close
  2017-08-25 (21:39:33) Executing operation BigQueryIO.Write/BatchLoads/MultiPartitionsReshuffle/GroupByKey/Close
  2017-08-25 (21:39:33) Executing operation BigQueryIO.Write/BatchLoads/SinglePartitionsReshuffle/GroupByKey/Read+BigQueryIO...
  2017-08-25 (21:39:33) Executing operation BigQueryIO.Write/BatchLoads/TempTablesView/BatchViewOverrides.GroupByWindowHashA...
  2017-08-25 (21:39:33) Executing operation BigQueryIO.Write/BatchLoads/MultiPartitionsReshuffle/GroupByKey/Read+BigQueryIO....
  2017-08-25 (21:39:35) Executing operation BigQueryIO.Write/BatchLoads/TempTablesView/BatchViewOverrides.GroupByWindowHashA...
  2017-08-25 (21:39:35) Executing operation BigQueryIO.Write/BatchLoads/TempTablesView/BatchViewOverrides.GroupByWindowHashA...
  2017-08-25 (21:39:46) Executing operation BigQueryIO.Write/BatchLoads/TempTablesView/CreateDataflowView
  2017-08-25 (21:39:46) Executing operation BigQueryIO.Write/BatchLoads/WriteRename
  2017-08-25 (21:57:43) Stopping worker pool...

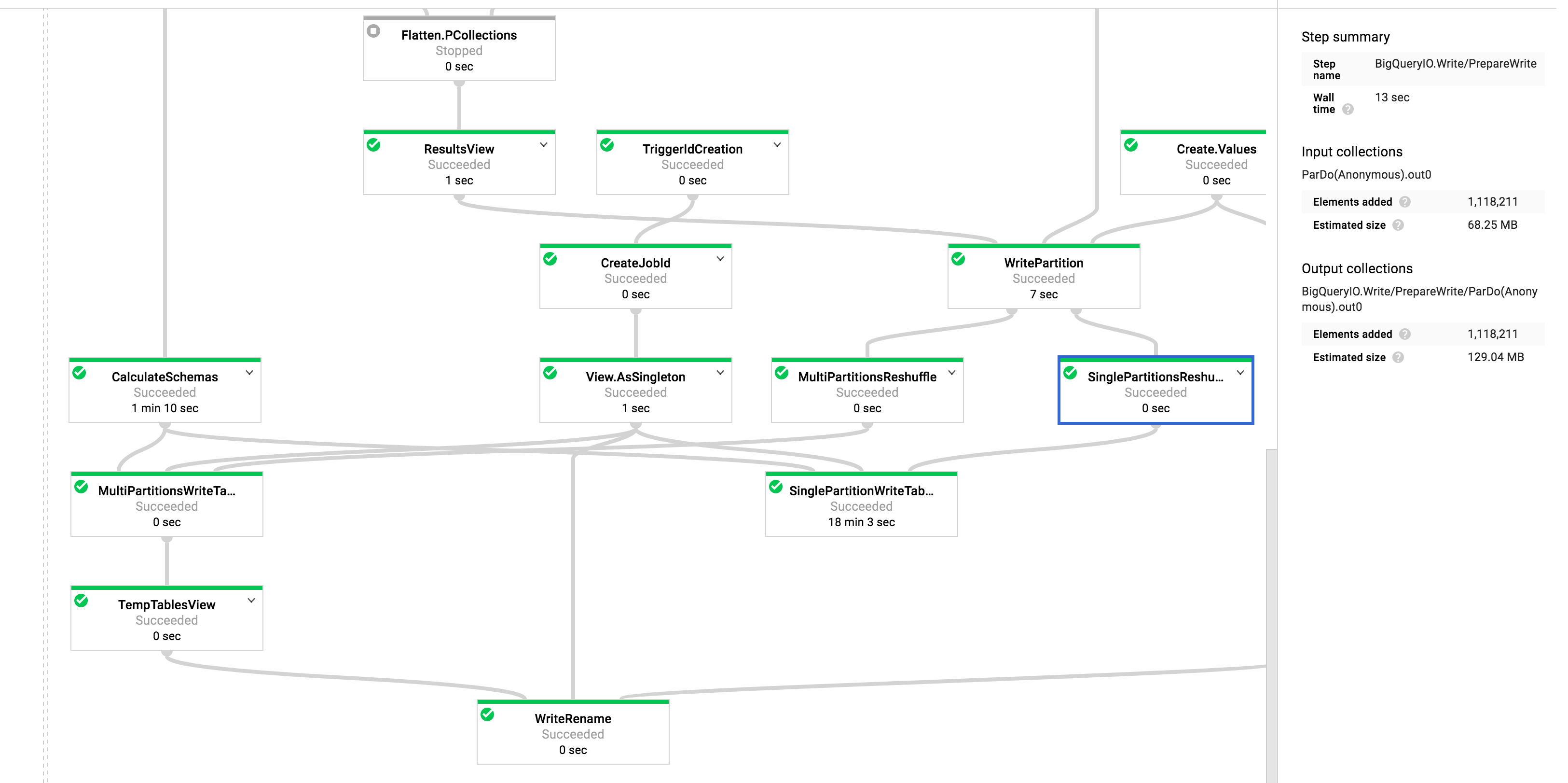

过于复杂的外观步骤：

​

​

职务详细信息：

  • 数据流Java SDK: 2.0.0
  • 职位编号: 2017-08-25_04_29_54-7210937293145071720

更新

我认为问题在于Dataflow生成的文件的数量，以及随后BigQuery必须加载的文件的数量。它可能只有100万行，但是Dataflow正在生成要加载的850+文件：

代码语言：javascript
复制
  "configuration" : {
    "load" : {
      "createDisposition" : "CREATE_IF_NEEDED",
      "destinationTable" : {
        "datasetId" : "dataflow_on_a_tram",
        "projectId" : "grey-sort-challenge",
        "tableId" : "melbourne_titles"
      },
      "schema" : {
        "fields" : [ {
          "name" : "year",
          "type" : "STRING"
        }, {
          "name" : "month",
          "type" : "STRING"
        }, {
          "name" : "day",
          "type" : "STRING"
        }, {
          "name" : "wikimedia_project",
          "type" : "STRING"
        }, {
          "name" : "language",
          "type" : "STRING"
        }, {
          "name" : "title",
          "type" : "STRING"
        }, {
          "name" : "views",
          "type" : "INTEGER"
        } ]
      },
      "sourceFormat" : "NEWLINE_DELIMITED_JSON",
      "sourceUris" : [
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/51221a43-8fd8-417d-90ca-2f3c3e5789d2",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/5e1c3cb8-20d1-45ef-b0bb-209645c36093",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/0ed8d240-2bc2-4c8b-808d-792540448c73",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/d7a1fefe-6dd8-4f30-bf97-040c3692e448",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/b7c4d9a8-d45d-4cc6-b375-291e6435ed53",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/17a7bbf4-5695-4188-b03a-3ef5cda8607c",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/783af461-c114-4a41-aa5f-ed1c7db86bab",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/dad046fc-eabf-4212-83f1-7d7fa71075c1",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/7b9ffec1-7424-4248-83b4-98a4ef4233b9",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/bb297232-8e84-4a14-9dc6-3efde1b2b586",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/0693972a-1319-4637-af9f-8a4a3d5cb0f7",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/41b1e722-f76c-404d-a71b-bd36c09e8a06",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/19cfd89e-c9ee-4221-aee1-b3503dbcd93b",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/574467f2-5771-479a-b213-2941225a24bd",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/4d872304-0f42-47f2-89cf-b3a3f856ca67",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/1c086246-8eec-4bbe-be98-b01abb181d33",
 "gs://<redacted>/tmp/BigQueryWriteTemp/615faf65cef743718624cbeb8fd96f14/9439f5f4-5020-471d-b631-e1a3fea1584f",

[..]851 files!

google-cloud-dataflow
apache-beam
EN

回答 1

Stack Overflow用户

发布于 2017-09-07 17:15:57

需要记住的一点是，BigQuery并不能保证加载作业的延迟。如果同时发出许多其他加载作业，则作业可能在队列中等待调度。如果您能够再次运行此作业，我们应该能够帮助您检查BigQuery加载作业本身，以查看正在发生的事情。

票数 1
EN
