3D Python谱图(如matlab的谱图函数)
3D Python谱图(如matlab的谱图函数)
提问于 2019-06-27 10:12:34
我的问题如下：
我有一个光谱图(scipy.fftpack.fft)所需要的所有值。我想在python中创建一个三维谱图。
在MATLAB中，这是一个非常简单的任务，而在python中，这似乎要复杂得多。我尝试了mayavi，3D绘图matplotlib，但我没有做到这一点。
谢谢
我的代码：
import numpy as np
import pandas as pd
import numpy as np
from scipy import signal
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from matplotlib import cm
from matplotlib.collections import PolyCollection
fs = 11240.
t = 10
time = np.arange(fs*t) / fs
frequency = 1000.
mysignal = np.sin(2.0 * np.pi * frequency * time)
nperseg = 2**14
noverlap = 2**13
f, t, Sxx = signal.spectrogram(mysignal, fs, nperseg=nperseg,noverlap=noverlap)
myfilter = (f>800) & (f<1200)
fig,ax = plt.subplots()
plt.pcolormesh(t, f[myfilter], 10*np.log10(Sxx[myfilter, :]), cmap='jet')
plt.show()
fig = plt.figure()
ax = fig.gca(projection='3d')
x = []
y = []
for counter,i in enumerate(f):
x.append(np.array([i for k in t]))
y.append(t)
ax.plot_surface(np.array(x), np.array(y), 10.0*np.log10(Sxx), cmap=cm.coolwarm)
plt.show()类似的未回答问题：How to convert a spectrogram to 3d plot. Python

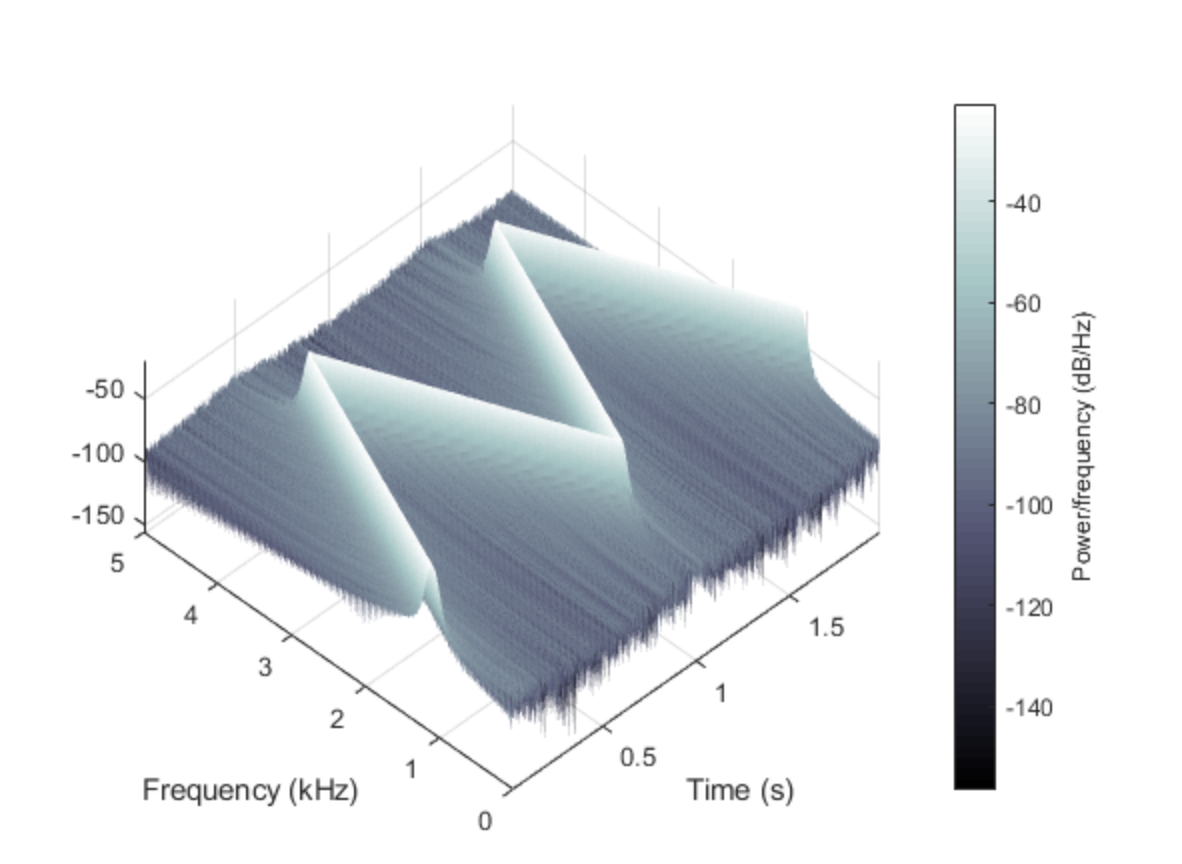

在python中所需的绘图，如Matlab的图(最后一幅图：https://www.mathworks.com/help/signal/ref/spectrogram.html)
回答 2
Stack Overflow用户
回答已采纳
发布于 2019-06-27 12:06:54
只需将数组设置为正确的形状：
fs = 11240.
t = 10
time = np.arange(fs*t) / fs
frequency = 1000.
mysignal = np.sin(2.0 * np.pi * frequency * time)
nperseg = 2**14
noverlap = 2**13
f, t, Sxx = signal.spectrogram(mysignal, fs, nperseg=nperseg,noverlap=noverlap)
myfilter = (f>800) & (f<1200)
f = f[myfilter]
Sxx = Sxx[myfilter, ...]
fig = plt.figure()
ax = fig.gca(projection='3d')
ax.plot_surface(f[:, None], t[None, :], 10.0*np.log10(Sxx), cmap=cm.coolwarm)
plt.show()Stack Overflow用户
发布于 2021-04-08 11:33:34
这里是@Nils的答案的改编版本，有不同的变量名和完整的导入集。
import numpy as np
import matplotlib.pyplot as plt
from scipy import signal # spectrogram function
from matplotlib import cm # colour map
# basic config
sample_rate = 11240. #
sig_len_secs = 10
frequency = 2000.
# generate the signal
timestamps_secs = np.arange(samplerate*sig_len_secs) / sample_rate
mysignal = np.sin(2.0 * np.pi * frequency * timestamps_secs)
# extract the spectrum
freq_bins, timestamps, spec = signal.spectrogram(mysignal, sample_rate)
# 3d plot
fig = plt.figure()
ax = fig.gca(projection='3d')
ax.plot_surface(freq_bins[:, None], timestamps[None, :], 10.0*np.log10(spec), cmap=cm.coolwarm)
plt.show()
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/56788798
