CI/CD 实战：GitHub Actions 自动化部署 Spring Boot 项目

CI/CD 实战：GitHub Actions 自动化部署 Spring Boot 项目

🌟 Hello，我是摘星！🌈 在彩虹般绚烂的技术栈中，我是那个永不停歇的色彩收集者。🦋 每一个优化都是我培育的花朵，每一个特性都是我放飞的蝴蝶。🔬 每一次代码审查都是我的显微镜观察，每一次重构都是我的化学实验。🎵 在编程的交响乐中，我既是指挥家也是演奏者。让我们一起，在技术的音乐厅里，奏响属于程序员的华美乐章。

摘要

作为一名在 DevOps 领域摸爬滚打多年的技术人，我深知自动化部署对于现代软件开发的重要性。在这个快节奏的互联网时代，手动部署不仅效率低下，还容易出错，更是团队协作的瓶颈。今天，我将与大家分享如何使用 GitHub Actions 构建一套完整的 CI/CD 流水线，实现 Spring Boot 项目的自动化部署。

在我的实际项目经验中，传统的部署方式往往需要开发人员手动执行一系列繁琐的步骤：代码拉取、编译打包、测试验证、服务器部署、环境配置等。这个过程不仅耗时，还极易因为人为操作失误导致生产环境故障。而 GitHub Actions 的出现，让我们能够将这些重复性工作完全自动化，从代码提交到生产部署，整个流程一气呵成。

本文将从零开始，详细介绍如何设计和实现一个企业级的 CI/CD 流水线。我们将涵盖工作流配置、多环境部署策略、安全性考虑、性能优化等关键环节。通过实际案例和最佳实践，帮助大家构建稳定、高效、可维护的自动化部署体系。无论你是 DevOps 新手还是有经验的工程师，都能从中获得实用的技术洞察和操作指导。

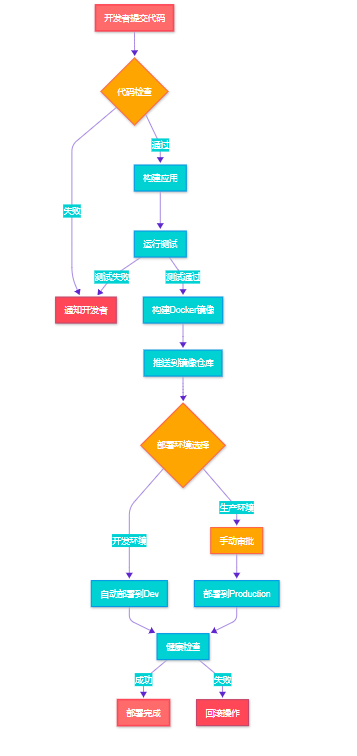

图1：CI/CD 流水线整体流程图 - 展示从代码提交到部署完成的完整自动化流程

1. GitHub Actions 基础概念与架构

1.1 核心组件解析

GitHub Actions 是 GitHub 提供的持续集成和持续部署平台，它允许我们在代码仓库中定义工作流，自动化软件开发生命周期中的各个环节。

工作流（Workflow） 是自动化流程的顶层概念，定义在 .github/workflows 目录下的 YAML 文件中。每个工作流包含一个或多个作业（Job），作业之间可以并行执行或按依赖关系顺序执行。

作业（Job） 是工作流中的执行单元，运行在指定的运行器（Runner）上。每个作业包含多个步骤（Step），这些步骤按顺序执行，共享同一个文件系统和环境变量。

步骤（Step） 是作业中的最小执行单元，可以是运行命令、执行脚本或使用预定义的动作（Action）。

# .github/workflows/ci-cd.yml name: Spring Boot CI/CD Pipeline on: push: branches: [ main, develop ] pull_request: branches: [ main ] env: JAVA_VERSION: '17' MAVEN_OPTS: '-Xmx1024m' DOCKER_REGISTRY: 'ghcr.io' jobs: test: runs-on: ubuntu-latest steps: - name: Checkout code uses: actions/checkout@v4 - name: Set up JDK uses: actions/setup-java@v4 with: java-version: ${{ env.JAVA_VERSION }} distribution: 'temurin' - name: Cache Maven dependencies uses: actions/cache@v3 with: path: ~/.m2 key: ${{ runner.os }}-m2-${{ hashFiles('**/pom.xml') }} restore-keys: ${{ runner.os }}-m2

这个基础配置展示了工作流的核心结构。on 字段定义了触发条件，env 设置全局环境变量，jobs 包含具体的执行逻辑。缓存配置能显著提升构建速度，避免重复下载依赖。

1.2 运行器与执行环境

GitHub 提供了多种运行器选择，包括 GitHub 托管的运行器和自托管运行器。对于大多数项目，GitHub 托管的 ubuntu-latest 运行器已经足够使用。

2. Spring Boot 项目 CI/CD 配置实战

2.1 完整工作流配置

基于我在生产环境中的实践经验，下面是一个完整的 Spring Boot CI/CD 工作流配置：

name: Spring Boot Production Pipeline on: push: branches: [ main ] tags: [ 'v*' ] pull_request: branches: [ main ] env: JAVA_VERSION: '17' MAVEN_OPTS: '-Xmx2048m -XX:MaxPermSize=512m' DOCKER_REGISTRY: 'ghcr.io' IMAGE_NAME: 'mycompany/spring-boot-app' jobs: # 代码质量检查和测试 quality-gate: runs-on: ubuntu-latest outputs: version: ${{ steps.version.outputs.version }} steps: - name: Checkout repository uses: actions/checkout@v4 with: fetch-depth: 0 # 获取完整历史用于 SonarQube 分析 - name: Set up JDK ${{ env.JAVA_VERSION }} uses: actions/setup-java@v4 with: java-version: ${{ env.JAVA_VERSION }} distribution: 'temurin' - name: Cache Maven dependencies uses: actions/cache@v3 with: path: ~/.m2 key: ${{ runner.os }}-m2-${{ hashFiles('**/pom.xml') }} restore-keys: | ${{ runner.os }}-m2- - name: Extract version id: version run: | if [[ $GITHUB_REF == refs/tags/* ]]; then VERSION=${GITHUB_REF#refs/tags/v} else VERSION=$(mvn help:evaluate -Dexpression=project.version -q -DforceStdout)-${GITHUB_SHA::8} fi echo "version=$VERSION" >> $GITHUB_OUTPUT echo "Version: $VERSION" - name: Run tests with coverage run: | mvn clean verify \ -Dmaven.test.failure.ignore=false \ -Dspring.profiles.active=test \ jacoco:report - name: SonarQube analysis env: GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }} SONAR_TOKEN: ${{ secrets.SONAR_TOKEN }} run: | mvn sonar:sonar \ -Dsonar.projectKey=spring-boot-app \ -Dsonar.organization=mycompany \ -Dsonar.host.url=https://sonarcloud.io \ -Dsonar.coverage.jacoco.xmlReportPaths=target/site/jacoco/jacoco.xml - name: Upload test results uses: actions/upload-artifact@v3 if: always() with: name: test-results path: | target/surefire-reports/ target/site/jacoco/

这个质量检查阶段包含了版本提取、测试执行、代码覆盖率分析和 SonarQube 静态代码分析。版本号的动态生成策略能够区分正式发布和开发构建。

2.2 Docker 镜像构建与推送

# Docker 镜像构建 build-image: needs: quality-gate runs-on: ubuntu-latest if: github.event_name == 'push' outputs: image-digest: ${{ steps.build.outputs.digest }} steps: - name: Checkout repository uses: actions/checkout@v4 - name: Set up JDK ${{ env.JAVA_VERSION }} uses: actions/setup-java@v4 with: java-version: ${{ env.JAVA_VERSION }} distribution: 'temurin' - name: Cache Maven dependencies uses: actions/cache@v3 with: path: ~/.m2 key: ${{ runner.os }}-m2-${{ hashFiles('**/pom.xml') }} - name: Build application run: | mvn clean package -DskipTests \ -Dspring.profiles.active=prod \ -Dmaven.compiler.debug=false \ -Dmaven.compiler.debuglevel=none - name: Set up Docker Buildx uses: docker/setup-buildx-action@v3 - name: Log in to Container Registry uses: docker/login-action@v3 with: registry: ${{ env.DOCKER_REGISTRY }} username: ${{ github.actor }} password: ${{ secrets.GITHUB_TOKEN }} - name: Extract metadata id: meta uses: docker/metadata-action@v5 with: images: ${{ env.DOCKER_REGISTRY }}/${{ env.IMAGE_NAME }} tags: | type=ref,event=branch type=ref,event=pr type=semver,pattern={{version}} type=semver,pattern={{major}}.{{minor}} type=sha,prefix={{branch}}- - name: Build and push Docker image id: build uses: docker/build-push-action@v5 with: context: . file: ./Dockerfile push: true tags: ${{ steps.meta.outputs.tags }} labels: ${{ steps.meta.outputs.labels }} cache-from: type=gha cache-to: type=gha,mode=max platforms: linux/amd64,linux/arm64

Docker 构建阶段使用了多平台构建和缓存优化，能够显著提升构建效率。标签策略支持多种版本管理需求。

2.3 优化的 Dockerfile

# 多阶段构建 Dockerfile FROM eclipse-temurin:17-jdk-alpine AS builder # 设置工作目录 WORKDIR /app # 复制 Maven 配置文件 COPY pom.xml . COPY .mvn .mvn COPY mvnw . # 下载依赖（利用 Docker 层缓存） RUN ./mvnw dependency:go-offline -B # 复制源代码 COPY src ./src # 构建应用 RUN ./mvnw clean package -DskipTests -B && \ java -Djarmode=layertools -jar target/*.jar extract # 运行时镜像 FROM eclipse-temurin:17-jre-alpine # 创建非 root 用户 RUN addgroup -g 1001 -S spring && \ adduser -u 1001 -S spring -G spring # 安装必要的工具 RUN apk add --no-cache curl tzdata && \ cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \ echo "Asia/Shanghai" > /etc/timezone WORKDIR /app # 复制应用层（按依赖关系分层，优化缓存） COPY --from=builder --chown=spring:spring app/dependencies/ ./ COPY --from=builder --chown=spring:spring app/spring-boot-loader/ ./ COPY --from=builder --chown=spring:spring app/snapshot-dependencies/ ./ COPY --from=builder --chown=spring:spring app/application/ ./ # 切换到非 root 用户 USER spring:spring # 健康检查 HEALTHCHECK --interval=30s --timeout=10s --start-period=60s --retries=3 \ CMD curl -f http://localhost:8080/actuator/health || exit 1 # 暴露端口 EXPOSE 8080 # JVM 优化参数 ENV JAVA_OPTS="-XX:+UseContainerSupport -XX:MaxRAMPercentage=75.0 -XX:+UseG1GC -XX:+UseStringDeduplication" # 启动应用 ENTRYPOINT ["sh", "-c", "java $JAVA_OPTS org.springframework.boot.loader.JarLauncher"]

这个 Dockerfile 采用了多阶段构建和分层优化策略，能够显著减小镜像大小并提升构建效率。

3. 多环境部署策略

3.1 环境配置管理

在实际项目中，我们通常需要支持开发、测试、预生产和生产等多个环境。每个环境都有不同的配置需求和部署策略。

# 开发环境自动部署 deploy-dev: needs: [quality-gate, build-image] runs-on: ubuntu-latest if: github.ref == 'refs/heads/develop' environment: name: development url: https://dev.myapp.com steps: - name: Deploy to Development uses: azure/k8s-deploy@v1 with: manifests: | k8s/dev/deployment.yaml k8s/dev/service.yaml k8s/dev/ingress.yaml images: | ${{ env.DOCKER_REGISTRY }}/${{ env.IMAGE_NAME }}:${{ needs.quality-gate.outputs.version }} kubectl-version: 'latest' # 生产环境手动部署 deploy-prod: needs: [quality-gate, build-image] runs-on: ubuntu-latest if: startsWith(github.ref, 'refs/tags/v') environment: name: production url: https://myapp.com steps: - name: Checkout repository uses: actions/checkout@v4 - name: Configure kubectl run: | echo "${{ secrets.KUBE_CONFIG }}" | base64 -d > kubeconfig export KUBECONFIG=kubeconfig - name: Deploy to Production run: | # 更新镜像标签 sed -i "s|IMAGE_TAG|${{ needs.quality-gate.outputs.version }}|g" k8s/prod/deployment.yaml # 应用配置 kubectl apply -f k8s/prod/ # 等待部署完成 kubectl rollout status deployment/spring-boot-app -n production --timeout=300s - name: Run smoke tests run: | # 等待服务就绪 sleep 30 # 执行冒烟测试 curl -f https://myapp.com/actuator/health || exit 1 curl -f https://myapp.com/api/v1/status || exit 1

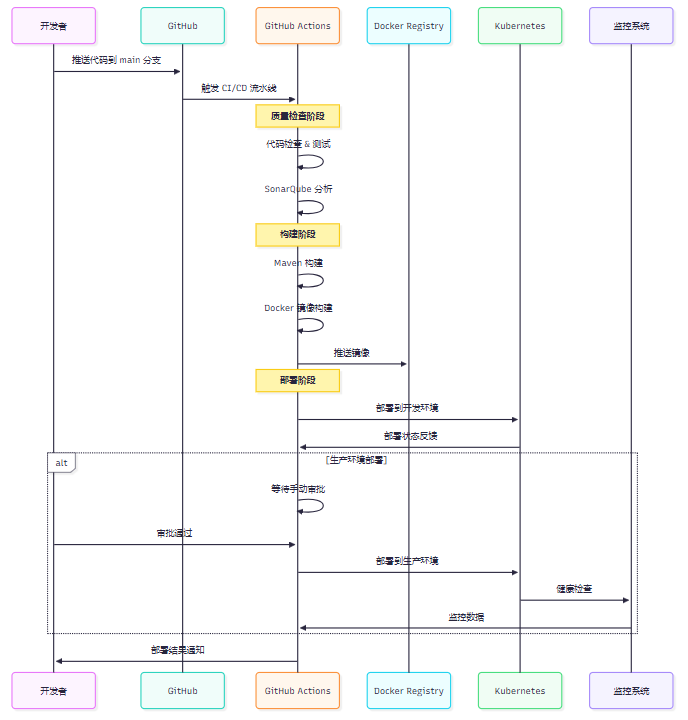

图3：多环境部署时序图 - 展示从代码提交到多环境部署的完整交互流程

3.2 Kubernetes 部署配置

# k8s/prod/deployment.yaml apiVersion: apps/v1 kind: Deployment metadata: name: spring-boot-app namespace: production labels: app: spring-boot-app version: IMAGE_TAG spec: replicas: 3 strategy: type: RollingUpdate rollingUpdate: maxSurge: 1 maxUnavailable: 0 selector: matchLabels: app: spring-boot-app template: metadata: labels: app: spring-boot-app version: IMAGE_TAG annotations: prometheus.io/scrape: "true" prometheus.io/port: "8080" prometheus.io/path: "/actuator/prometheus" spec: serviceAccountName: spring-boot-app securityContext: runAsNonRoot: true runAsUser: 1001 fsGroup: 1001 containers: - name: app image: ghcr.io/mycompany/spring-boot-app:IMAGE_TAG ports: - containerPort: 8080 name: http env: - name: SPRING_PROFILES_ACTIVE value: "prod" - name: JAVA_OPTS value: "-XX:+UseContainerSupport -XX:MaxRAMPercentage=75.0" resources: requests: memory: "512Mi" cpu: "250m" limits: memory: "1Gi" cpu: "500m" livenessProbe: httpGet: path: /actuator/health/liveness port: 8080 initialDelaySeconds: 60 periodSeconds: 30 timeoutSeconds: 10 failureThreshold: 3 readinessProbe: httpGet: path: /actuator/health/readiness port: 8080 initialDelaySeconds: 30 periodSeconds: 10 timeoutSeconds: 5 failureThreshold: 3 volumeMounts: - name: config mountPath: /app/config readOnly: true - name: logs mountPath: /app/logs volumes: - name: config configMap: name: spring-boot-app-config - name: logs emptyDir: {}

这个 Kubernetes 部署配置包含了生产环境的最佳实践：滚动更新策略、资源限制、健康检查、安全配置等。

4. 安全性与最佳实践

4.1 密钥管理策略

在 CI/CD 流水线中，安全性是至关重要的考虑因素。GitHub Actions 提供了多层次的密钥管理机制：

security-scan: runs-on: ubuntu-latest steps: - name: Checkout code uses: actions/checkout@v4 - name: Run Trivy vulnerability scanner uses: aquasecurity/trivy-action@master with: image-ref: ${{ env.DOCKER_REGISTRY }}/${{ env.IMAGE_NAME }}:${{ needs.quality-gate.outputs.version }} format: 'sarif' output: 'trivy-results.sarif' - name: Upload Trivy scan results uses: github/codeql-action/upload-sarif@v2 with: sarif_file: 'trivy-results.sarif' - name: OWASP Dependency Check uses: dependency-check/Dependency-Check_Action@main with: project: 'spring-boot-app' path: '.' format: 'ALL' - name: Upload dependency check results uses: actions/upload-artifact@v3 with: name: dependency-check-report path: reports/

4.2 访问控制与审批流程

# 生产环境保护规则配置 production: protection_rules: required_reviewers: 2 restrict_pushes: true required_status_checks: - "quality-gate" - "security-scan" - "build-image" deployment_branch_policy: protected_branches: true custom_branch_policies: false

安全原则：在生产环境部署中，永远不要跳过安全检查和代码审查。每一次部署都应该经过严格的质量门禁和人工审批，这是保障系统稳定性的最后一道防线。

5. 性能优化与监控

5.1 构建性能优化

基于我的实践经验，以下是一些关键的性能优化策略：

optimized-build: runs-on: ubuntu-latest steps: - name: Checkout with shallow clone uses: actions/checkout@v4 with: fetch-depth: 1 # 浅克隆，减少网络传输 - name: Setup Java with cache uses: actions/setup-java@v4 with: java-version: ${{ env.JAVA_VERSION }} distribution: 'temurin' cache: 'maven' # 自动缓存 Maven 依赖 - name: Parallel Maven build run: | mvn clean package \ -T 2C \ # 使用 2 倍 CPU 核心数的线程 -DskipTests \ -Dmaven.javadoc.skip=true \ -Dmaven.source.skip=true \ --batch-mode \ --no-transfer-progress - name: Docker build with cache uses: docker/build-push-action@v5 with: context: . cache-from: type=gha cache-to: type=gha,mode=max build-args: | BUILDKIT_INLINE_CACHE=1

5.2 部署监控与告警

post-deployment-monitoring: needs: deploy-prod runs-on: ubuntu-latest steps: - name: Wait for deployment stabilization run: sleep 120 - name: Health check with retry run: | for i in {1..10}; do if curl -f https://myapp.com/actuator/health; then echo "Health check passed" break fi echo "Attempt $i failed, retrying in 30s..." sleep 30 done - name: Performance baseline test run: | # 使用 Apache Bench 进行基准测试 ab -n 1000 -c 10 https://myapp.com/api/v1/status - name: Send deployment notification uses: 8398a7/action-slack@v3 with: status: ${{ job.status }} channel: '#deployments' webhook_url: ${{ secrets.SLACK_WEBHOOK }} if: always()

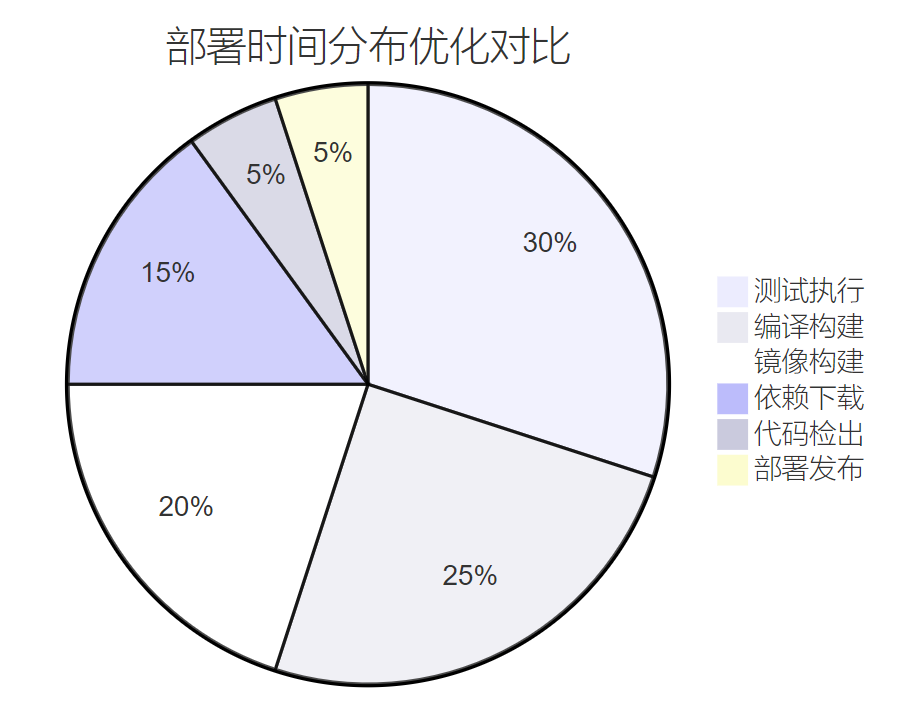

图4：部署时间分布饼图 - 展示各阶段耗时占比，指导优化重点

6. 故障处理与回滚策略

6.1 自动回滚机制

rollback-on-failure: needs: deploy-prod runs-on: ubuntu-latest if: failure() steps: - name: Get previous successful deployment id: previous run: | PREVIOUS_TAG=$(kubectl get deployment spring-boot-app -n production -o jsonpath='{.metadata.annotations.deployment\.kubernetes\.io/revision}') echo "previous-tag=$PREVIOUS_TAG" >> $GITHUB_OUTPUT - name: Rollback deployment run: | kubectl rollout undo deployment/spring-boot-app -n production kubectl rollout status deployment/spring-boot-app -n production --timeout=300s - name: Verify rollback run: | sleep 60 curl -f https://myapp.com/actuator/health || exit 1 - name: Notify rollback uses: 8398a7/action-slack@v3 with: status: 'failure' channel: '#alerts' webhook_url: ${{ secrets.SLACK_WEBHOOK }} text: | 🚨 Production deployment failed and rolled back Repository: ${{ github.repository }} Commit: ${{ github.sha }} Previous version restored successfully

6.2 蓝绿部署策略

blue-green-deployment: runs-on: ubuntu-latest steps: - name: Deploy to Green Environment run: | # 部署到绿色环境 kubectl apply -f k8s/green/ kubectl rollout status deployment/spring-boot-app-green -n production - name: Run Integration Tests run: | # 对绿色环境执行集成测试 ./scripts/integration-tests.sh https://green.myapp.com - name: Switch Traffic to Green run: | # 切换流量到绿色环境 kubectl patch service spring-boot-app -n production -p '{"spec":{"selector":{"version":"green"}}}' - name: Monitor Green Environment run: | # 监控绿色环境 5 分钟 for i in {1..10}; do curl -f https://myapp.com/actuator/health || exit 1 sleep 30 done - name: Cleanup Blue Environment run: | # 清理蓝色环境 kubectl delete deployment spring-boot-app-blue -n production

图5：部署成功率趋势图 - 展示 CI/CD 优化前后的部署成功率对比

7. 高级特性与扩展

7.1 矩阵构建策略

对于需要支持多个 Java 版本或操作系统的项目，可以使用矩阵构建：

matrix-build: runs-on: ${{ matrix.os }} strategy: matrix: os: [ubuntu-latest, windows-latest, macos-latest] java-version: ['11', '17', '21'] exclude: - os: windows-latest java-version: '11' steps: - name: Checkout code uses: actions/checkout@v4 - name: Set up JDK ${{ matrix.java-version }} uses: actions/setup-java@v4 with: java-version: ${{ matrix.java-version }} distribution: 'temurin' - name: Run tests run: mvn test -Djava.version=${{ matrix.java-version }}

7.2 条件执行与路径过滤

on: push: branches: [ main, develop ] paths: - 'src/**' - 'pom.xml' - '.github/workflows/**' pull_request: branches: [ main ] paths-ignore: - 'docs/**' - '*.md' - '.gitignore' jobs: conditional-deploy: if: | github.event_name == 'push' && github.ref == 'refs/heads/main' && !contains(github.event.head_commit.message, '[skip ci]')

7.3 自定义 Actions 开发

# .github/actions/deploy-spring-boot/action.yml name: 'Deploy Spring Boot Application' description: 'Custom action for deploying Spring Boot apps' inputs: environment: description: 'Target environment' required: true image-tag: description: 'Docker image tag' required: true kubeconfig: description: 'Kubernetes config' required: true outputs: deployment-url: description: 'Deployed application URL' value: ${{ steps.deploy.outputs.url }} runs: using: 'composite' steps: - name: Setup kubectl uses: azure/setup-kubectl@v3 with: version: 'latest' - name: Deploy application id: deploy shell: bash run: | echo "${{ inputs.kubeconfig }}" | base64 -d > kubeconfig export KUBECONFIG=kubeconfig # 替换镜像标签 sed -i "s|IMAGE_TAG|${{ inputs.image-tag }}|g" k8s/${{ inputs.environment }}/deployment.yaml # 执行部署 kubectl apply -f k8s/${{ inputs.environment }}/ kubectl rollout status deployment/spring-boot-app -n ${{ inputs.environment }} # 获取服务 URL URL=$(kubectl get ingress spring-boot-app -n ${{ inputs.environment }} -o jsonpath='{.spec.rules[0].host}') echo "url=https://$URL" >> $GITHUB_OUTPUT

8. 性能监控与指标分析

8.1 关键指标定义

在 CI/CD 流水线中，我们需要关注以下关键指标：

8.2 监控仪表板配置

metrics-collection: runs-on: ubuntu-latest steps: - name: Collect build metrics run: | # 收集构建指标 BUILD_TIME=${{ github.event.workflow_run.conclusion == 'success' && github.event.workflow_run.updated_at - github.event.workflow_run.created_at || 0 }} # 发送到监控系统 curl -X POST https://metrics.mycompany.com/api/v1/metrics \ -H "Content-Type: application/json" \ -d '{ "metric": "cicd.build.duration", "value": "'$BUILD_TIME'", "tags": { "repository": "'${{ github.repository }}'", "branch": "'${{ github.ref_name }}'", "status": "'${{ job.status }}'" } }' - name: Update deployment dashboard uses: actions/github-script@v6 with: script: | const { data: deployments } = await github.rest.repos.listDeployments({ owner: context.repo.owner, repo: context.repo.repo, per_page: 10 }); // 更新部署统计 console.log(`Recent deployments: ${deployments.length}`);

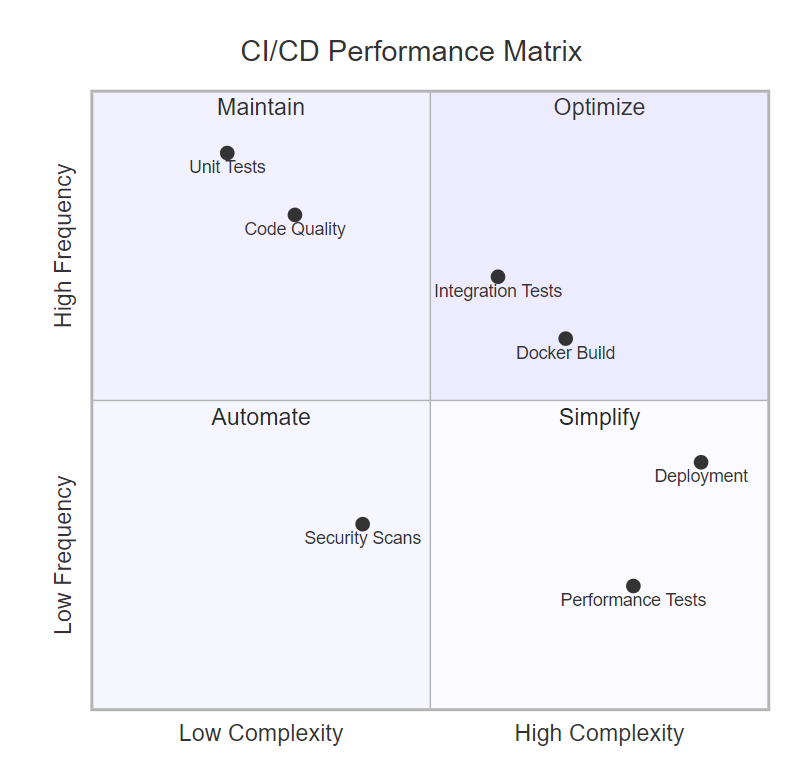

图6：CI/CD 性能象限图 - 展示不同流程的复杂度与频率分布，指导优化策略

9. 团队协作与工作流优化

9.1 分支策略与工作流

# 基于 GitFlow 的工作流配置 name: GitFlow CI/CD on: push: branches: [ main, develop, 'release/*', 'hotfix/*' ] pull_request: branches: [ main, develop ] jobs: determine-strategy: runs-on: ubuntu-latest outputs: deploy-env: ${{ steps.strategy.outputs.environment }} skip-tests: ${{ steps.strategy.outputs.skip-tests }} steps: - name: Determine deployment strategy id: strategy run: | if [[ "${{ github.ref }}" == "refs/heads/main" ]]; then echo "environment=production" >> $GITHUB_OUTPUT echo "skip-tests=false" >> $GITHUB_OUTPUT elif [[ "${{ github.ref }}" == "refs/heads/develop" ]]; then echo "environment=development" >> $GITHUB_OUTPUT echo "skip-tests=false" >> $GITHUB_OUTPUT elif [[ "${{ github.ref }}" == refs/heads/release/* ]]; then echo "environment=staging" >> $GITHUB_OUTPUT echo "skip-tests=false" >> $GITHUB_OUTPUT elif [[ "${{ github.ref }}" == refs/heads/hotfix/* ]]; then echo "environment=hotfix" >> $GITHUB_OUTPUT echo "skip-tests=true" >> $GITHUB_OUTPUT else echo "environment=none" >> $GITHUB_OUTPUT echo "skip-tests=false" >> $GITHUB_OUTPUT fi

9.2 代码审查集成

code-review-automation: runs-on: ubuntu-latest if: github.event_name == 'pull_request' steps: - name: Checkout PR uses: actions/checkout@v4 with: fetch-depth: 0 - name: Run automated code review uses: github/super-linter@v4 env: DEFAULT_BRANCH: main GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }} VALIDATE_JAVA: true VALIDATE_DOCKERFILE: true VALIDATE_YAML: true - name: Comment PR with review results uses: actions/github-script@v6 with: script: | const fs = require('fs'); const path = './super-linter.log'; if (fs.existsSync(path)) { const logContent = fs.readFileSync(path, 'utf8'); const issues = logContent.split('\n').filter(line => line.includes('ERROR')); if (issues.length > 0) { await github.rest.issues.createComment({ issue_number: context.issue.number, owner: context.repo.owner, repo: context.repo.repo, body: `## 🔍 Code Review Results\n\nFound ${issues.length} issues:\n\n${issues.slice(0, 10).map(issue => `- ${issue}`).join('\n')}` }); } }

10. 故障排查与调试技巧

10.1 常见问题诊断

在实际使用中，我遇到过各种各样的问题，以下是一些常见的故障排查方法：

debug-workflow: runs-on: ubuntu-latest steps: - name: Debug environment run: | echo "=== System Information ===" uname -a df -h free -m echo "=== Environment Variables ===" env | sort echo "=== GitHub Context ===" echo "Event: ${{ github.event_name }}" echo "Ref: ${{ github.ref }}" echo "SHA: ${{ github.sha }}" echo "Actor: ${{ github.actor }}" - name: Debug with tmate (remote access) uses: mxschmitt/action-tmate@v3 if: ${{ failure() && github.event.inputs.debug == 'true' }} with: limit-access-to-actor: true

10.2 日志收集与分析

- name: Collect logs on failure if: failure() run: | # 收集系统日志 sudo journalctl --no-pager > system.log # 收集 Docker 日志 docker logs $(docker ps -aq) > docker.log 2>&1 || true # 收集应用日志 kubectl logs -l app=spring-boot-app -n production --tail=1000 > app.log || true - name: Upload failure artifacts uses: actions/upload-artifact@v3 if: failure() with: name: failure-logs-${{ github.run_id }} path: | *.log target/surefire-reports/ target/failsafe-reports/ retention-days: 30

总结

通过这次深入的 CI/CD 实战分享，我希望能够帮助大家建立起完整的自动化部署体系。从我多年的实践经验来看，一个成功的 CI/CD 流水线不仅仅是技术的堆砌，更是团队协作文化和工程效率的体现。

在实施过程中，我们需要循序渐进，从简单的自动化构建开始，逐步完善测试、安全检查、多环境部署等环节。每一个环节都要考虑到实际的业务需求和团队能力，不能盲目追求技术的先进性而忽略了实用性和可维护性。

特别值得强调的是，CI/CD 不是一次性的项目，而是需要持续优化和改进的过程。随着项目的发展和团队的成长，我们的流水线也需要不断演进。监控指标、性能优化、安全加固这些工作都需要持续投入。

在安全性方面，我们必须始终保持警惕。密钥管理、访问控制、漏洞扫描这些环节一个都不能少。生产环境的部署更是需要严格的审批流程和回滚机制，这是对用户负责，也是对团队负责。

最后，我想说的是，技术是为业务服务的。再完美的 CI/CD 流水线，如果不能提升团队效率、保障产品质量、降低运维成本，那就失去了它存在的意义。我们要始终以解决实际问题为导向，用技术的力量让开发和运维工作变得更加高效和可靠。

希望这篇文章能够为大家在 DevOps 道路上提供一些有价值的参考。技术的世界日新月异，但工程实践的核心原则是相通的：自动化、标准化、可观测性。让我们一起在这条路上不断探索，用代码改变世界，用自动化释放创造力。

我是摘星！如果这篇文章在你的技术成长路上留下了印记👁️ 【关注】与我一起探索技术的无限可能，见证每一次突破👍 【点赞】为优质技术内容点亮明灯，传递知识的力量🔖 【收藏】将精华内容珍藏，随时回顾技术要点💬 【评论】分享你的独特见解，让思维碰撞出智慧火花🗳️ 【投票】用你的选择为技术社区贡献一份力量技术路漫漫，让我们携手前行，在代码的世界里摘取属于程序员的那片星辰大海！
