❝群里小伙伴提出来可否复现一篇scientific reports 杂志的文章，文章题目为：综合单细胞和空间转录组学揭示了银屑病成纤维细胞和关键基因的异质性。说是复现文章，除非文章给了代码和比较准确的数据可以做到准确复现外，我现在做的复现只是按照常规流程降维分群，然后根据文章给出的一些marker gene，结合文章和自我理解人工定义细胞亚群。 也正好借今天复现的这篇文献把代码稍微更新一下，是曾老师今年年初的时候整理的。整体变化不大，只是把代码都汇总到不同.R文件中了，qc.R, harmony.R 和 check-all-marker.R。 ❞
文章

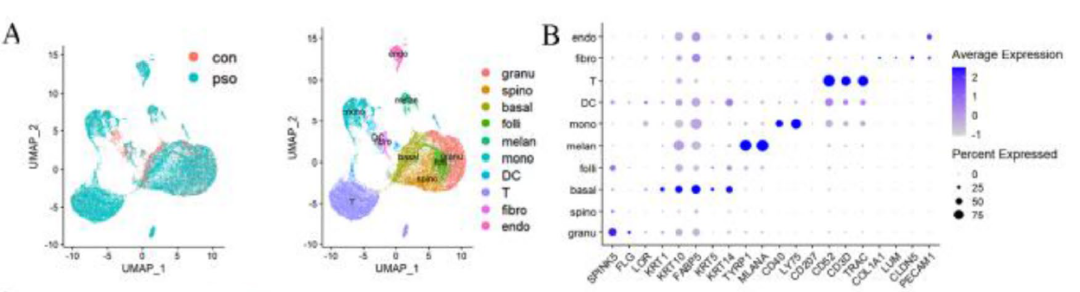

复现的图：
文章给的图太糊了
数据集：
下载数据，然后解压数据，整理数据
https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE151177
library(stringr)
fs = list.files('./GSE151177_raw/',pattern = '^GSM')
#执行这一步需要解压tar -xvf
samples=str_split(fs,'_',simplify = T)[,1]
#dir.create("./GSE151177_raw")
fs
lapply(unique(samples),function(x){
y=fs[grepl(x,fs)]
folder=paste0("GSE151177_raw/", str_split(y[1],'_',simplify = T)[,1])
dir.create(folder,recursive = T)
#为每个样本创建子文件夹
file.rename(paste0("GSE151177_raw/",y[1]),file.path(folder,"barcodes.tsv.gz"))
#重命名文件，并移动到相应的子文件夹里
file.rename(paste0("GSE151177_raw/",y[2]),file.path(folder,"features.tsv.gz"))
file.rename(paste0("GSE151177_raw/",y[3]),file.path(folder,"matrix.mtx.gz"))
})
复现代码：
library(harmony)
library(ggsci)
library(dplyr)
library(future)
library(Seurat)
library(clustree)
library(cowplot)
library(data.table)
library(dplyr)
library(ggplot2)
library(patchwork)
library(stringr)
dir='./GSE151177_raw/'
samples=list.files( dir )
samples
sceList = lapply(samples,function(pro){
# pro=samples[1]
print(pro)
sce = CreateSeuratObject(counts = Read10X(file.path(dir,pro )) ,
project = gsub('^GSM[0-9]*_','',
gsub('filtered_feature_bc_matrix','',pro) ) ,# pro, #
min.cells = 5,
min.features = 500 )
print(sce)
cid = tail(colnames(sce)[order(sce$nFeature_RNA)],8000)
sce$nFeature_RNA[cid]
sce=sce[,colnames(sce) %in% cid]
print(sce)
return(sce)
})
sce.all=merge(x=sceList[[1]],
y=sceList[ -1 ],
add.cell.ids = gsub('^GSM[0-9]*_','',
gsub('filtered_feature_bc_matrix','',samples)) )
as.data.frame(sce.all@assays$RNA@counts[1:10, 1:2])
head(sce.all@meta.data, 10)
table(sce.all$orig.ident)
table(sce.all@meta.data$orig.ident)
sce.all$group<-ifelse(grepl("GSM4567877|GSM4567878|GSM4567879|GSM4567880|GSM4567881|GSM4567882",sce.all$orig.ident),
"Cons","Pso")
table(sce.all@meta.data$group)
QC质控
###### step2:QC质控 ######
dir.create("./1-QC")
setwd("./1-QC")
# 如果过滤的太狠，就需要去修改这个过滤代码
source('../scRNA_scripts/qc.R')
sce.all.filt = basic_qc(sce.all)
print(dim(sce.all))
print(dim(sce.all.filt))
setwd('../')
「以下为qc.R代码」
basic_qc <- function(input_sce){
#计算线粒体基因比例
mito_genes=rownames(input_sce)[grep("^MT-", rownames(input_sce),ignore.case = T)]
print(mito_genes) #可能是13个线粒体基因
#input_sce=PercentageFeatureSet(input_sce, "^MT-", col.name = "percent_mito")
input_sce=PercentageFeatureSet(input_sce, features = mito_genes, col.name = "percent_mito")
fivenum(input_sce@meta.data$percent_mito)
#计算核糖体基因比例
ribo_genes=rownames(input_sce)[grep("^Rp[sl]", rownames(input_sce),ignore.case = T)]
print(ribo_genes)
input_sce=PercentageFeatureSet(input_sce, features = ribo_genes, col.name = "percent_ribo")
fivenum(input_sce@meta.data$percent_ribo)
#计算红血细胞基因比例
Hb_genes=rownames(input_sce)[grep("^Hb[^(p)]", rownames(input_sce),ignore.case = T)]
print(Hb_genes)
input_sce=PercentageFeatureSet(input_sce, features = Hb_genes,col.name = "percent_hb")
fivenum(input_sce@meta.data$percent_hb)
#可视化细胞的上述比例情况
feats <- c("nFeature_RNA", "nCount_RNA", "percent_mito", "percent_ribo", "percent_hb")
feats <- c("nFeature_RNA", "nCount_RNA")
p1=VlnPlot(input_sce, group.by = "orig.ident", features = feats, pt.size = 0, ncol = 2) +
NoLegend()
p1
w=length(unique(input_sce$orig.ident))/3+5;w
ggsave(filename="Vlnplot1.pdf",plot=p1,width = w,height = 5)
feats <- c("percent_mito", "percent_ribo", "percent_hb")
p2=VlnPlot(input_sce, group.by = "orig.ident", features = feats, pt.size = 0, ncol = 3, same.y.lims=T) +
scale_y_continuous(breaks=seq(0, 100, 5)) +
NoLegend()
p2
w=length(unique(input_sce$orig.ident))/2+5;w
ggsave(filename="Vlnplot2.pdf",plot=p2,width = w,height = 5)
p3=FeatureScatter(input_sce, "nCount_RNA", "nFeature_RNA", group.by = "orig.ident", pt.size = 0.5)
ggsave(filename="Scatterplot.pdf",plot=p3)
#根据上述指标，过滤低质量细胞/基因
#过滤指标1:最少表达基因数的细胞&最少表达细胞数的基因
# 一般来说，在CreateSeuratObject的时候已经是进行了这个过滤操作
# 如果后期看到了自己的单细胞降维聚类分群结果很诡异，就可以回过头来看质量控制环节
# 先走默认流程即可
if(F){
selected_c <- WhichCells(input_sce, expression = nFeature_RNA > 200)
selected_f <- rownames(input_sce)[Matrix::rowSums(input_sce@assays$RNA@counts > 0 ) > 3]
input_sce.filt <- subset(input_sce, features = selected_f, cells = selected_c)
dim(input_sce)
dim(input_sce.filt)
}
input_sce.filt = input_sce
# par(mar = c(4, 8, 2, 1))
# 这里的C 这个矩阵，有一点大，可以考虑随抽样
C=subset(input_sce.filt,downsample=100)@assays$RNA@counts
dim(C)
C=Matrix::t(Matrix::t(C)/Matrix::colSums(C)) * 100
most_expressed <- order(apply(C, 1, median), decreasing = T)[50:1]
pdf("TOP50_most_expressed_gene.pdf",width=14)
boxplot(as.matrix(Matrix::t(C[most_expressed, ])),
cex = 0.1, las = 1,
xlab = "% total count per cell",
col = (scales::hue_pal())(50)[50:1],
horizontal = TRUE)
dev.off()
rm(C)
#过滤指标2:线粒体/核糖体基因比例(根据上面的violin图)
selected_mito <- WhichCells(input_sce.filt, expression = percent_mito < 30)
selected_ribo <- WhichCells(input_sce.filt, expression = percent_ribo > 3)
selected_hb <- WhichCells(input_sce.filt, expression = percent_hb < 1 )
length(selected_hb)
length(selected_ribo)
length(selected_mito)
input_sce.filt <- subset(input_sce.filt, cells = selected_mito)
input_sce.filt <- subset(input_sce.filt, cells = selected_ribo)
input_sce.filt <- subset(input_sce.filt, cells = selected_hb)
dim(input_sce.filt)
table(input_sce.filt$orig.ident)
#可视化过滤后的情况
feats <- c("nFeature_RNA", "nCount_RNA")
p1_filtered=VlnPlot(input_sce.filt, group.by = "orig.ident", features = feats, pt.size = 0, ncol = 2) +
NoLegend()
w=length(unique(input_sce.filt$orig.ident))/3+5;w
ggsave(filename="Vlnplot1_filtered.pdf",plot=p1_filtered,width = w,height = 5)
feats <- c("percent_mito", "percent_ribo", "percent_hb")
p2_filtered=VlnPlot(input_sce.filt, group.by = "orig.ident", features = feats, pt.size = 0, ncol = 3) +
NoLegend()
w=length(unique(input_sce.filt$orig.ident))/2+5;w
ggsave(filename="Vlnplot2_filtered.pdf",plot=p2_filtered,width = w,height = 5)
return(input_sce.filt)
}
harmony整合多个单细胞样品
sp='human'
###### step3: harmony整合多个单细胞样品 ######
dir.create("2-harmony")
getwd()
setwd("2-harmony")
source('../scRNA_scripts/harmony.R')
sce.all.int = run_harmony(sce.all.filt)
setwd('../')
「其中harmony.R 如下」
run_harmony <- function(input_sce){
print(dim(input_sce))
input_sce <- NormalizeData(input_sce,
normalization.method = "LogNormalize",
scale.factor = 1e4)
input_sce <- FindVariableFeatures(input_sce)
input_sce <- ScaleData(input_sce)
input_sce <- RunPCA(input_sce, features = VariableFeatures(object = input_sce))
seuratObj <- RunHarmony(input_sce, "orig.ident")
names(seuratObj@reductions)
seuratObj <- RunUMAP(seuratObj, dims = 1:15,
reduction = "harmony")
# p = DimPlot(seuratObj,reduction = "umap",label=T )
# ggsave(filename='umap-by-orig.ident-after-harmony',plot = p)
input_sce=seuratObj
input_sce <- FindNeighbors(input_sce, reduction = "harmony",
dims = 1:15)
input_sce.all=input_sce
#设置不同的分辨率，观察分群效果(选择哪一个？)
for (res in c(0.01, 0.05, 0.1, 0.2, 0.3, 0.5,0.8,1)) {
input_sce.all=FindClusters(input_sce.all, #graph.name = "CCA_snn",
resolution = res, algorithm = 1)
}
colnames(input_sce.all@meta.data)
apply(input_sce.all@meta.data[,grep("RNA_snn",colnames(input_sce.all@meta.data))],2,table)
p1_dim=plot_grid(ncol = 3, DimPlot(input_sce.all, reduction = "umap", group.by = "RNA_snn_res.0.01") +
ggtitle("louvain_0.01"), DimPlot(input_sce.all, reduction = "umap", group.by = "RNA_snn_res.0.1") +
ggtitle("louvain_0.1"), DimPlot(input_sce.all, reduction = "umap", group.by = "RNA_snn_res.0.2") +
ggtitle("louvain_0.2"))
ggsave(plot=p1_dim, filename="Dimplot_diff_resolution_low.pdf",width = 14)
p1_dim=plot_grid(ncol = 3, DimPlot(input_sce.all, reduction = "umap", group.by = "RNA_snn_res.0.8") +
ggtitle("louvain_0.8"), DimPlot(input_sce.all, reduction = "umap", group.by = "RNA_snn_res.1") +
ggtitle("louvain_1"), DimPlot(input_sce.all, reduction = "umap", group.by = "RNA_snn_res.0.3") +
ggtitle("louvain_0.3"))
ggsave(plot=p1_dim, filename="Dimplot_diff_resolution_high.pdf",width = 18)
p2_tree=clustree(input_sce.all@meta.data, prefix = "RNA_snn_res.")
ggsave(plot=p2_tree, filename="Tree_diff_resolution.pdf")
table(input_sce.all@active.ident)
saveRDS(input_sce.all, "sce.all_int.rds")
return(input_sce.all)
}
降维分群和maker gene
###### step4: 降维聚类分群和看标记基因库 ######
# 原则上分辨率是需要自己肉眼判断，取决于个人经验
# 为了省力，我们直接看 0.1和0.8即可。

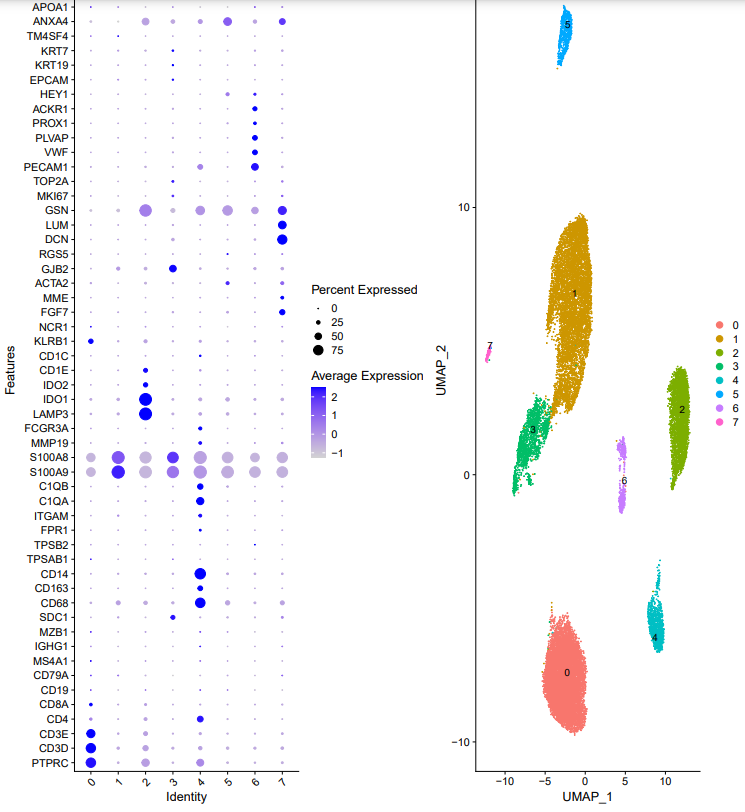

#由于篇幅有限，我这里只展示了0.1的，下面的分群也都是根据0.1的来的。
table(Idents(sce.all.int))
table(sce.all.int$seurat_clusters)
table(sce.all.int$RNA_snn_res.0.1)
table(sce.all.int$RNA_snn_res.0.8)
#remotes::install_github(repo = 'genecell/COSGR')
library(COSG)
getwd()
dir.create('check-by-0.1')
setwd('check-by-0.1')
sel.clust = "RNA_snn_res.0.1"
sce.all.int <- SetIdent(sce.all.int, value = sel.clust)
table(sce.all.int@active.ident)
source('../scRNA_scripts/check-all-markers.R')
setwd('../')
getwd()
check-all-markers.R代码所包含的marker gene比较多，我这里就只展示一部分。
只需在harmony的时候定义好sp='human'或者sp='mouse'
last_markers = c('PTPRC', 'CD3D', 'CD3E', 'CD4','CD8A',
'CD19', 'CD79A', 'MS4A1' ,
'IGHG1', 'MZB1', 'SDC1',
'CD68', 'CD163', 'CD14',
'TPSAB1' , 'TPSB2', # mast cells,
'RCVRN','FPR1' , 'ITGAM' ,
'C1QA', 'C1QB', # mac
'S100A9', 'S100A8', 'MMP19',# monocyte
'FCGR3A',
'LAMP3', 'IDO1','IDO2',## DC3
'CD1E','CD1C', # DC2
'KLRB1','NCR1', # NK
'FGF7','MME', 'ACTA2', ## human fibo
'GJB2', 'RGS5',
'DCN', 'LUM', 'GSN' , ## mouse PDAC fibo
'MKI67' , 'TOP2A',
'PECAM1', 'VWF', ## endo
"PLVAP",'PROX1','ACKR1','CA4','HEY1',
'EPCAM' , 'KRT19','KRT7', # epi
'FYXD2', 'TM4SF4', 'ANXA4',# cholangiocytes
'APOC3', 'FABP1', 'APOA1', # hepatocytes
'Serpina1c',
'PROM1', 'ALDH1A1' )

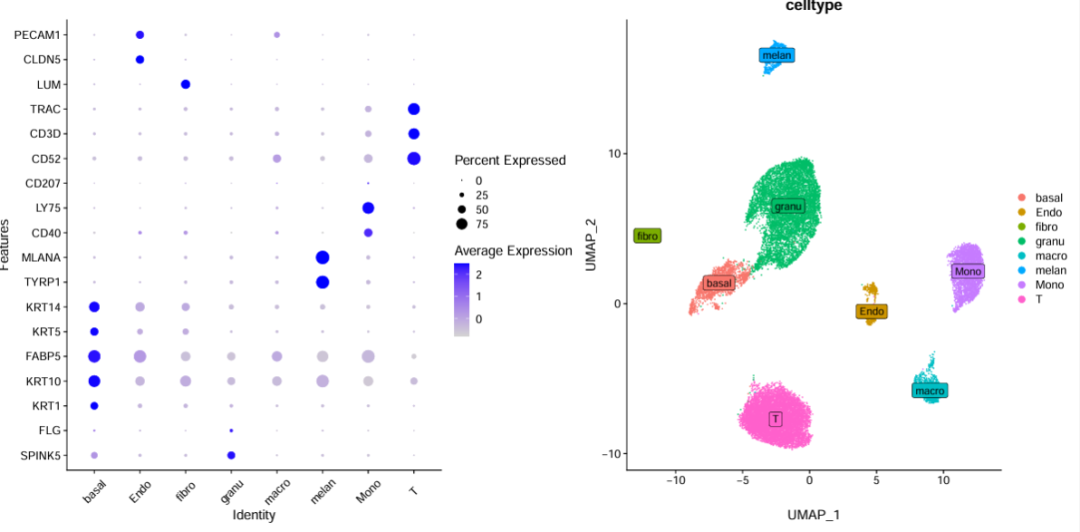

genes_to_check=c("SPINK5", "FLG",
"LDR", "KRT1",
"KRT10", "FABP5",
"KRT5", "KRT14",
"TYRP1", "MLANA",
"CD40",
"LY75","CD207",
"CD52","CD3D",
"TRAC", "CCL1A1",
"LUM", "CLDN5",
"PECAM1")
last_markers
genes_to_check
markers = c('last_markers',"GSE_gene","all_gene")
p_umap=DimPlot(sce.all.int, reduction = "umap",raster = F,label = T,repel = T)
p_umap
if(sp=='human'){
lapply(markers, function(x){
#x=markers[1]
genes_to_check=str_to_upper(get(x))
DotPlot(sce.all.int , features = genes_to_check ) +
coord_flip() +
theme(axis.text.x=element_text(angle=45,hjust = 1))
h=length( genes_to_check )/6+3;h
ggsave(paste('check_for_',x,'.pdf'),height = h)
})
lapply(markers_list, function(x){
# x=markers_list[1]
genes_to_check = lapply(get(x), str_to_upper)
dup=names(table(unlist(genes_to_check)))[table(unlist(genes_to_check))>1]
genes_to_check = lapply(genes_to_check, function(x) x[!x %in% dup])
DotPlot(sce.all.int , features = genes_to_check ) +
# coord_flip() +
theme(axis.text.x=element_text(angle=45,hjust = 1))
w=length( unique(unlist(genes_to_check)) )/5+6;w
ggsave(paste('check_for_',x,'.pdf'),width = w)
})
last_markers_to_check <<- str_to_upper(last_markers )
}else if(sp=='mouse'){
lapply(markers, function(x){
#x=markers[1]
genes_to_check=str_to_title(get(x))
DotPlot(sce.all.int , features = genes_to_check ) +
coord_flip() +
theme(axis.text.x=element_text(angle=45,hjust = 1))
h=length( genes_to_check )/6+3;h
w=length( unique(unlist(genes_to_check)) )/5+6;w
ggsave(paste('check_for_',x,'.pdf'),height = h,width = w)
})
lapply(markers_list, function(x){
# x=markers_list[1]
genes_to_check = lapply(get(x), str_to_title)
dup=names(table(unlist(genes_to_check)))[table(unlist(genes_to_check))>1]
genes_to_check = lapply(genes_to_check, function(x) x[!x %in% dup])
DotPlot(sce.all.int , features = genes_to_check ) +
# coord_flip() +
theme(axis.text.x=element_text(angle=45,hjust = 1))
w=length( unique(unlist(genes_to_check)) )/5+6;w
ggsave(paste('check_for_',x,'.pdf'),width = w)
})
last_markers_to_check <<- str_to_title(last_markers )
}else {
print('we only accept human or mouse')
}
p_all_markers = DotPlot(sce.all.int , features = last_markers_to_check ) +
coord_flip() +
theme(axis.text.x=element_text(angle=45,hjust = 1))
p_all_markers+p_umap
h=length( last_markers_to_check )/6+3;h
w=length( unique( Idents(sce.all.int)) )/5+10;w
ggsave(paste('last_markers_and_umap.pdf'),width = w,height = h)
确定单细胞亚群生物学名字
###### step5: 确定单细胞亚群生物学名字 ######
# 一般来说，为了节省工作量，我们选择0.1的分辨率进行命名
# 因为命名这个步骤是纯人工操作,除非0.1确实分群太粗狂了，我们就选择0.8。
source('scRNA_scripts/lib.R')
#sce.all.int = readRDS('2-harmony/sce.all_int.rds')
# sp='human'
colnames(sce.all.int@meta.data)
table(sce.all.int$RNA_snn_res.0.1)
# 7：Fibro
# 6：Endo
# 4: macro
# 1: granu
# 0: T
# 2: Mono
# 3:basal
# 5:melan
sce.all.int
celltype=data.frame(ClusterID=0:7 ,
celltype= 0:7)
#定义细胞亚群
celltype[celltype$ClusterID %in% c( 0),2]='T'
celltype[celltype$ClusterID %in% c( 1),2]='granu'
celltype[celltype$ClusterID %in% c( 2 ),2]= 'Mono' # 'myeloids'
celltype[celltype$ClusterID %in% c( 3 ),2]='basal' # 'myeloids'
celltype[celltype$ClusterID %in% c( 4 ),2]='macro' # 'myeloids'
celltype[celltype$ClusterID %in% c( 5 ),2]='melan'
celltype[celltype$ClusterID %in% c( 6),2]='Endo'
celltype[celltype$ClusterID %in% c(7),2]='fibro'
head(celltype)
table(celltype$celltype)
sce.all.int@meta.data$celltype = "NA"
for(i in 1:nrow(celltype)){
sce.all.int@meta.data[which(sce.all.int@meta.data$RNA_snn_res.0.1 == celltype$ClusterID[i]),'celltype'] <- celltype$celltype[i]}
Idents(sce.all.int)=sce.all.int$celltype
sel.clust = "celltype"
sce.all.int <- SetIdent(sce.all.int, value = sel.clust)
table(sce.all.int@active.ident)
一些可视化
last_markers = c('PTPRC', 'CD3D', 'CD3E', 'CD4','CD8A',
'CD19', 'CD79A', 'MS4A1' ,
'IGHG1', 'MZB1', 'SDC1',
'CD68', 'CD163', 'CD14',
'C1QA', 'C1QB', # mac
'S100A9', 'S100A8', 'MMP19',# monocyte
'FCGR3A',
'LAMP3', 'IDO1','IDO2',## DC3
'CD1E','CD1C', # DC2
'FGF7','MME', 'ACTA2', ## human fibo
'GJB2', 'RGS5',
'DCN', 'LUM', 'GSN' , ## mouse PDAC fibo
'MKI67' , 'TOP2A',
'PECAM1', 'VWF', ## endo
'EPCAM' , 'KRT19','KRT7', # epi
'FYXD2', 'TM4SF4', 'ANXA4',# cholangiocytes
'APOC3', 'FABP1', 'APOA1', # hepatocytes
'Serpina1c',
'PROM1', 'ALDH1A1' )

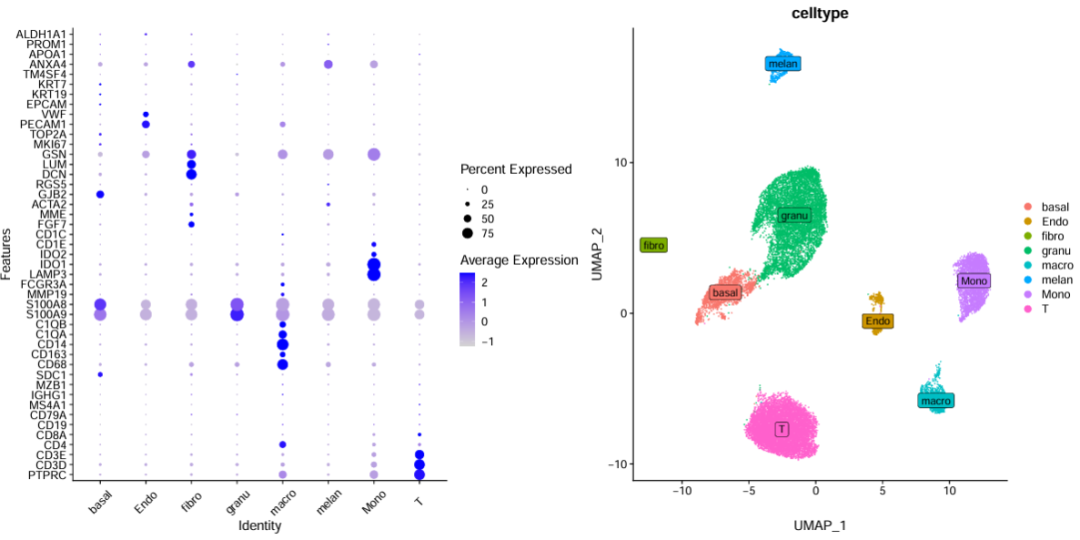

library(patchwork)
p_all_markers=DotPlot(sce.all.int, features = str_to_upper(last_markers),
assay='RNA' ,group.by = 'celltype' ) + coord_flip()+
theme(axis.text.x = element_text(angle = 45, vjust = 0.5, hjust=0.5))
p_umap=DimPlot(sce.all.int, reduction = "umap", group.by = "celltype",label = T,label.box = T)
p_all_markers+p_umap
ggsave('markers_umap_by_celltype.pdf',width = 16,height = 8)
library(patchwork)
p_all_markers=DotPlot(sce.all.int, features = str_to_upper(genes_to_check),
assay='RNA' ,group.by = 'celltype' ) + coord_flip()+
theme(axis.text.x = element_text(angle = 45, vjust = 0.5, hjust=0.5))
p_umap=DimPlot(sce.all.int, reduction = "umap", group.by = "celltype",label = T,label.box = T)
p_all_markers+p_umap
ggsave('GSE151177_umap_by_celltype.pdf',width = 16,height = 8)

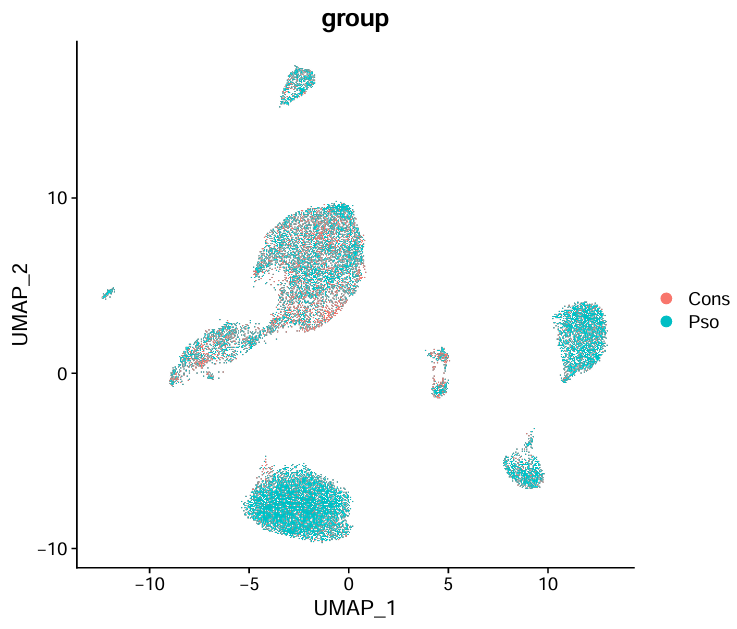

DimPlot(sce.all.int,group.by = 'group',raster = T)
ggsave('umap-by-group.pdf',width = 7,height = 6)
pdf('celltype-vs-orig.ident.pdf',width = 10)
本文参与 腾讯云自媒体同步曝光计划，分享自微信公众号。
原始发表：2023-12-14，如有侵权请联系 cloudcommunity@tencent.com 删除
评论
登录后参与评论
推荐阅读
目录
腾讯云开发者
