decoupleR：一站式scRNA通路活性分析及转录因子活性推断

KS科研分享与服务-TS的美梦

发布于 2026-04-29 13:44:48

1360

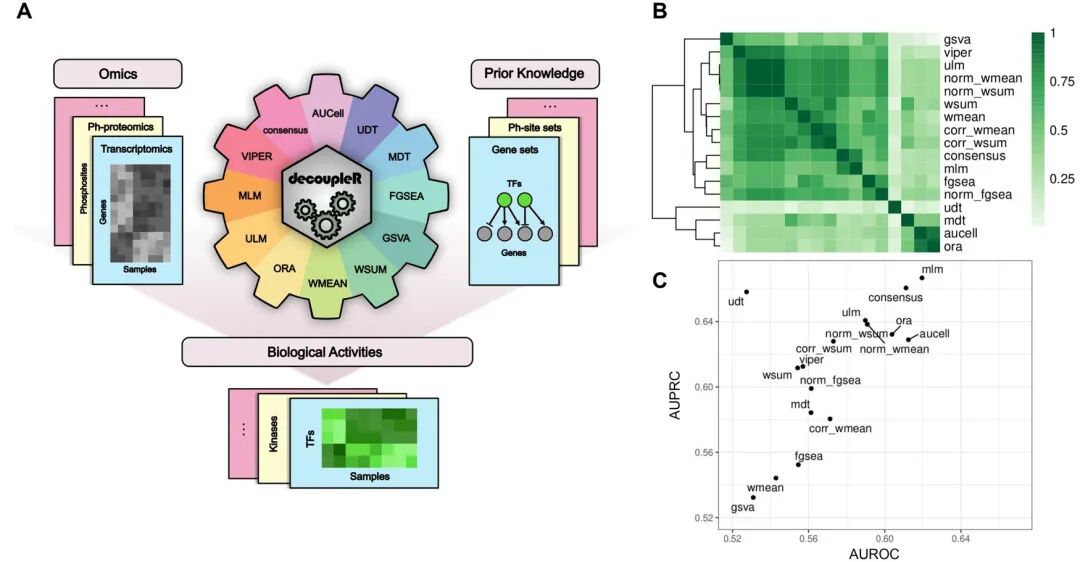

decoupleR是提供了一套统一框架下的多种计算方法，用于从组学数据中推断和提取生物学活性的R包。能够进行转录组数据通路活性分析以及转录因子活性分析。从通路活性分析角度来看，是一个集合多种方法的框架，比如常见的基因集评分方法它都具备；从转录因子活性分析来看，是SCENIC的减配版平替。decoupleR依托先验知识数据库，分析比较简单。

markdown版详细内容已发布微信VIP群，请自行下载！

Github：https://github.com/saezlab/decoupleR/?tab=readme-ov-file

Citation:Badia-i-Mompel P., Vélez Santiago J., Braunger J., Geiss C., Dimitrov D., Müller-Dott S., Taus P., Dugourd A., Holland C.H., Ramirez Flores R.O. and Saez-Rodriguez J. 2022. decoupleR: ensemble of computational methods to infer biological activities from omics data. Bioinformatics Advances. https://doi.org/10.1093/bioadv/vbac016

安装包：

#install.packages('remotes')
#remotes::install_github('saezlab/decoupleR')
library(decoupleR)
packageVersion("decoupleR")

setwd("/home/tq_ziv/data_analysis/R版decoupleR")
library(decoupleR)
library(dplyr)
library(tibble)
library(tidyr)
library(ggplot2)
library(pheatmap)
library(ggrepel)
library(Seurat)

查看下decoupleR包所有的method：

## # A tibble: 12 × 2
##    Function      Name
##    <chr>         <chr>
##  1 run_aucell    AUCell
##  2 run_consensus Consensus score between methods
##  3 run_fgsea     Fast Gene Set Enrichment Analysis (FGSEA)
##  4 run_gsva      Gene Set Variation Analysis (GSVA)
##  5 run_mdt       Multivariate Decision Trees (MDT)
##  6 run_mlm       Multivariate Linear Model (MLM)
##  7 run_ora       Over Representation Analysis (ORA)
##  8 run_udt       Univariate Decision Tree (UDT)
##  9 run_ulm       Univariate Linear Model (ULM)
## 10 run_viper     Virtual Inference of Protein-activity by Enriched Regulon anal…
## 11 run_wmean     Weighted Mean (WMEAN)
## 12 run_wsum      Weighted Sum (WSUM)

加载单细胞数据：

load("~/data_analysis/R版decoupleR/sce_cca_cellltype.RData")

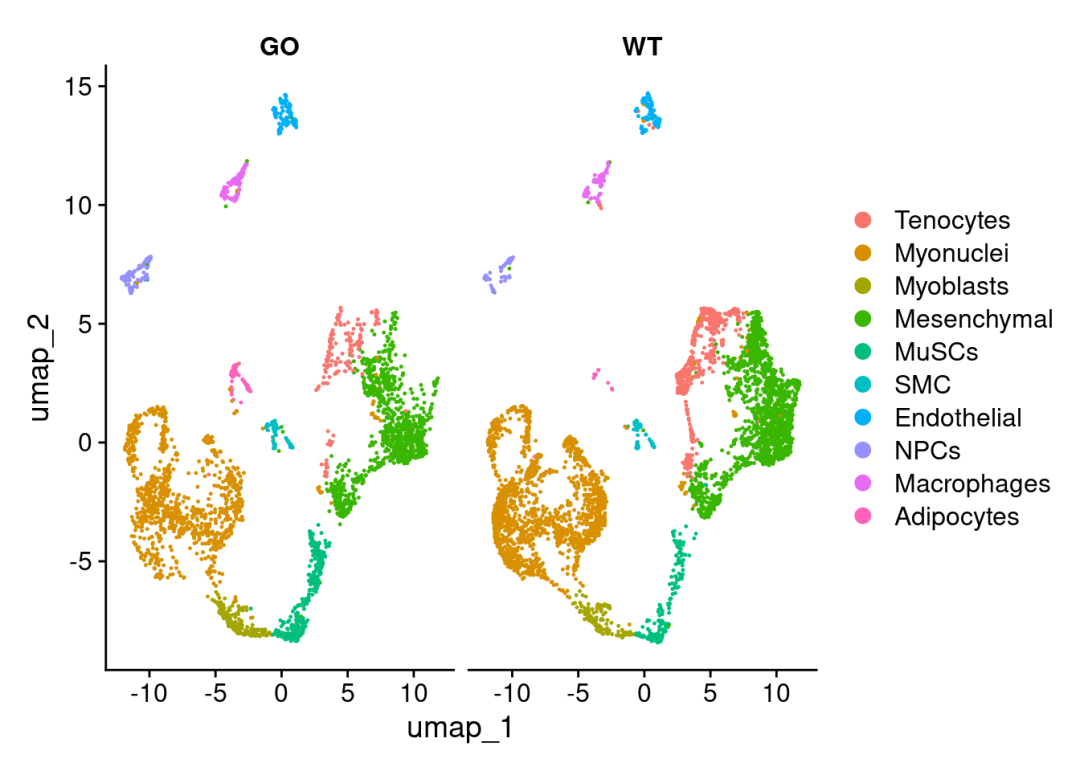

DimPlot(sce_cca,split.by = 'orig.ident')

分析1-scRNA通路活性推断

首先获取PROGENyhttps://saezlab.github.io/progeny/通路网络，PROGENy: Pathway RespOnsive GENes for activity inference，是利用大量公开可用的信号通路干扰实验汇编而成的资料，为人类和小鼠生成了通路响应基因的共同核心资源。这些基因与任何统计方法相结合，可用于从总体或单细胞转录组学中推断通路活性。也就是说，PROGENy是基于先验知识的总结，是一个综合资源库，其中包含经过整理的通路及其目标基因，以及每个相互作用的权重。在decoupleR中，可以使用get_progeny（）函数获取资源数据，用于下游的分析推断。获取的内容是一个dataframe，包括source pthway，target gene，权重及P值。get_progeny（）获取的通路包括14种pathway,都是常见熟悉的通路，简介如下：

Androgen: involved in the growth and development of the male reproductive organs. EGFR: regulates growth, survival, migration, apoptosis, proliferation, and differentiation in mammalian cells. Estrogen: promotes the growth and development of the female reproductive organs. Hypoxia: promotes angiogenesis and metabolic reprogramming when O2 levels are low. JAK-STAT: involved in immunity, cell division, cell death, and tumor formation. MAPK: integrates external signals and promotes cell growth and proliferation. NFkB: regulates immune response, cytokine production and cell survival. p53: regulates cell cycle, apoptosis, DNA repair and tumor suppression. PI3K: promotes growth and proliferation. TGFb: involved in development, homeostasis, and repair of most tissues. TNFa: mediates haematopoiesis, immune surveillance, tumour regression and protection from infection. Trail: induces apoptosis. VEGF: mediates angiogenesis, vascular permeability, and cell migration. WNT: regulates organ morphogenesis during development and tissue repair.

很显然，内置的PROGENy并不能满足个性化的分析需求，比如自己关注的通路不在，那么还能使用decoupleR进行通路活性推断吗？答案是肯定的，自定义数据只需要按照decoupleR需求的格式整理数据即可。

net <- decoupleR::get_progeny(organism = 'mouse', #只支持“human”或者“mouse”
                              top = 500) #返回每条通路top n的基因

通路活性推断：

单细胞数据需要标准化后的表达矩阵：推断矩阵中每个cells的通路活性评分。

mat <- GetAssayData(sce_cca, layer = 'data')

decoupleR的方法基本分为两类，一类是线性模型，例如run_ulm，run_mlm，run_mdt，run_viper，run_udt，这些都利用“regulator–target网络+基因表达”，推断上游调控因子活性。另一类是基因集富集打分型，例如run_aucell，run_gsva，run_fgsea，run_ora等，这些更像“传统基因集富集”。run_consensus是一种组合方法，输入多个方法的结果，对它们的得分/排序做融合得到更稳健的总体结果。具体的方法介绍参考：

https://academic.oup.com/bioinformaticsadvances/article/2/1/vbac016/6544613?login=false.这里使用Multivariate Linear Model (mlm) 方法推断通路富集分数，对于数据集中的每个样本，它拟合一个线性模型，该模型基于所有通路的通路 - 基因相互作用权重来预测观察到的基因表达。一旦拟合完成，所获得的斜率的t值即为得分。如果该值为正，则解释为该通路处于活跃状态；如果为负，则解释为该通路处于不活跃状态。

# Run mlm
acts <- decoupleR::run_mlm(mat = mat,
                           net = net,
                           .source = 'source', #输入net中的source列
                           .target = 'target', #输入net中的target列
                           .mor = 'weight',  #输入net中的权重列
                           minsize = 5)

将结果返回seurat：分析得到的acts是一个长数据，将其转化为宽数据矩阵，添加到seurat中新的assay。

sce_cca[['pathwaysmlm']] <- acts %>%
                         tidyr::pivot_wider(id_cols = 'source',
                                            names_from = 'condition',
                                            values_from = 'score') %>%
                         tibble::column_to_rownames(var = 'source') %>%
                         Seurat::CreateAssayObject(.)

DefaultAssay(sce_cca) <- 'pathwaysmlm'
# Scale the data
sce_cca <- Seurat::ScaleData(sce_cca)

sce_cca@assays$pathwaysmlm@data <- sce_cca@assays$pathwaysmlm@scale.data

colors <- rev(RColorBrewer::brewer.pal(n = 11, name = "RdBu")[c(2, 10)])

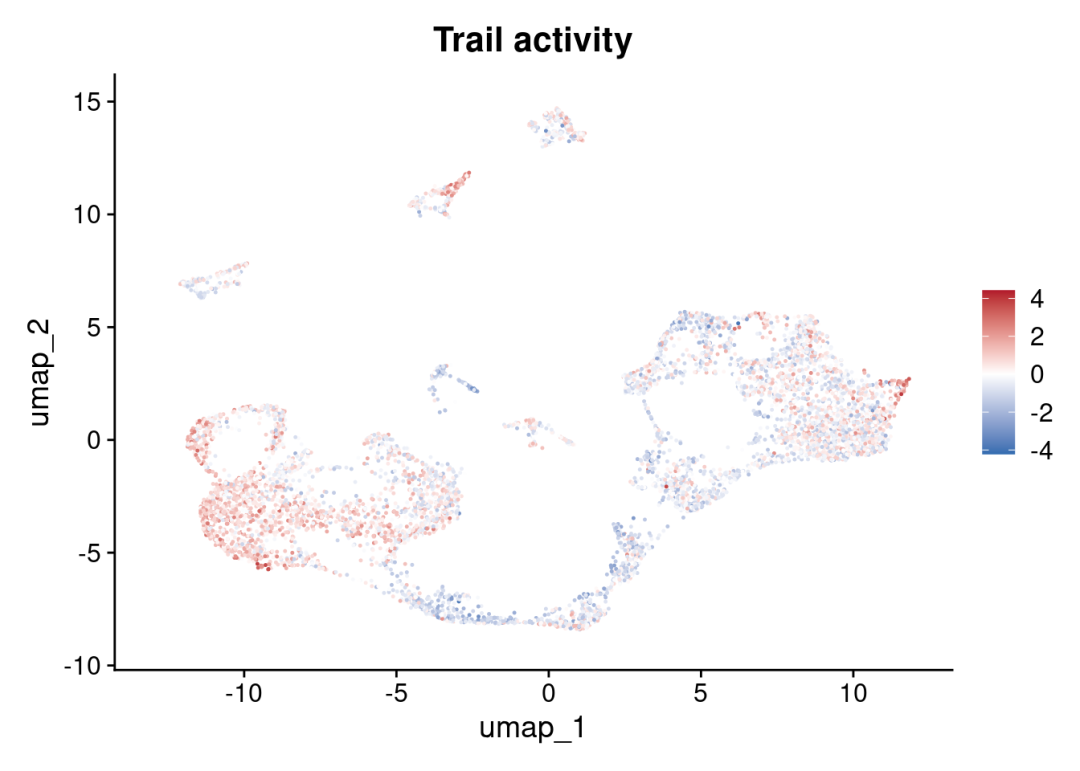

FeaturePlot(sce_cca, features = c("Trail")) +
      ggplot2::scale_colour_gradient2(low = colors[1], mid = 'white', high = colors[2]) +
      ggplot2::ggtitle('Trail activity')

colors <- rev(RColorBrewer::brewer.pal(n = 11, name = "RdBu")[c(2, 10)])

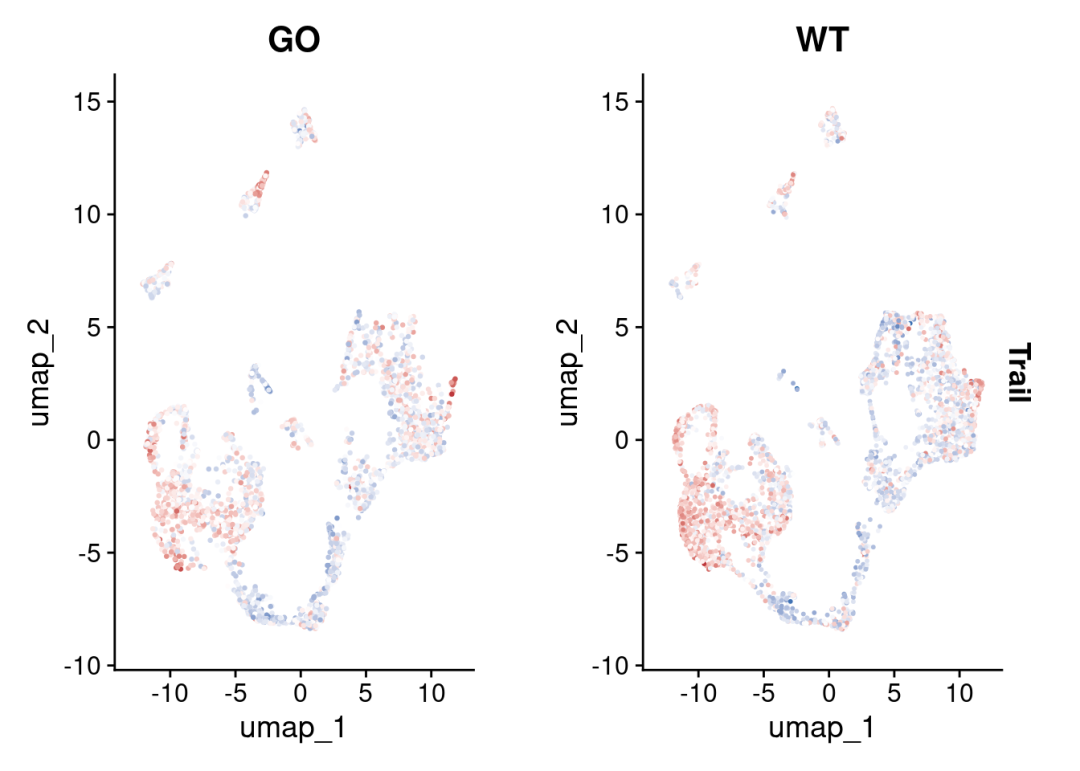

FeaturePlot(sce_cca, features = c("Trail"),split.by = 'orig.ident') &
      ggplot2::scale_colour_gradient2(low = colors[1], mid = 'white', high = colors[2])

#例如只看一个细胞类型
Idents(sce_cca) <- "celltype"
MUscs <- subset(sce_cca, idents = "MuSCs")
#看看celltype内通路活性差异

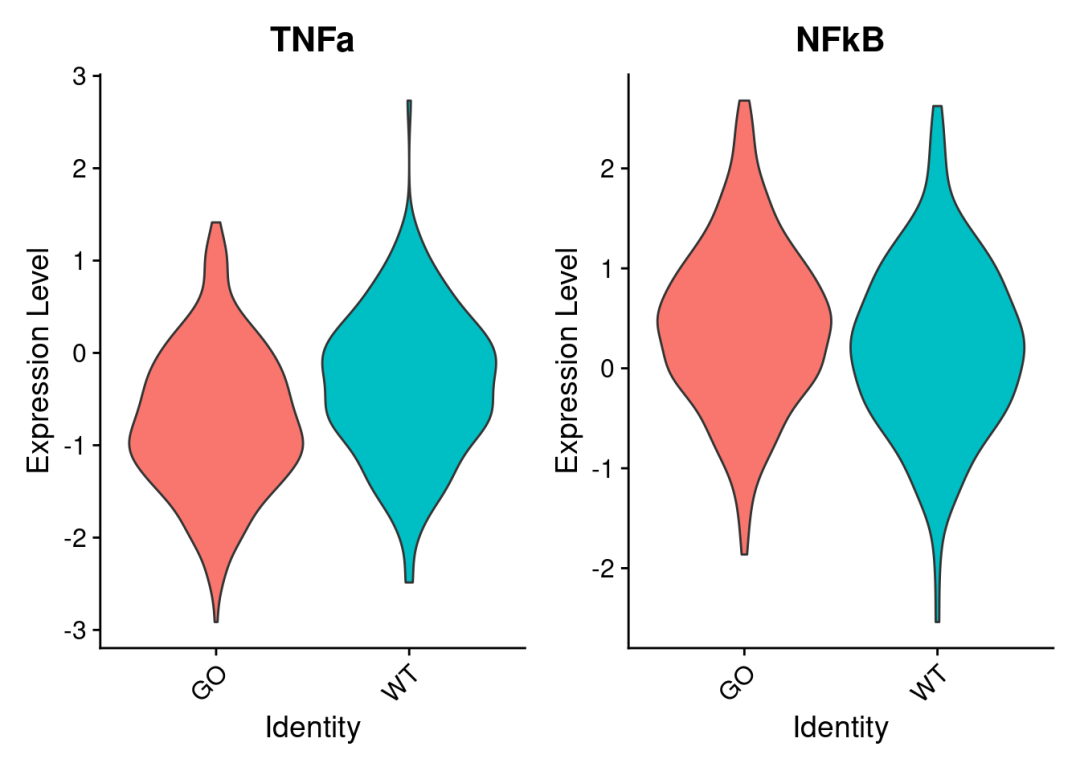

VlnPlot(
  MUscs,
  features = c("TNFa", "NFkB"),
  group.by = "orig.ident",
  pt.size = 0
)

sce_cca$group_cells <- paste0(sce_cca$orig.ident,"_",sce_cca$celltype)
Idents(sce_cca) <- "group_cells"
# Extract activities from object as a long dataframe
df <- t(as.matrix(sce_cca@assays$pathwaysmlm@data)) %>%
      as.data.frame() %>%
      dplyr::mutate(cluster = Seurat::Idents(sce_cca)) %>%
      tidyr::pivot_longer(cols = -cluster,
                          names_to = "source",
                          values_to = "score") %>%
      dplyr::group_by(cluster, source) %>%
      dplyr::summarise(mean = mean(score))

# Transform to wide matrix
top_acts_mat <- df %>%
                tidyr::pivot_wider(id_cols = 'cluster',
                                   names_from = 'source',
                                   values_from = 'mean') %>%
                tibble::column_to_rownames(var = 'cluster') %>%
                as.matrix()

# Color scale
colors <- rev(RColorBrewer::brewer.pal(n = 11, name = "RdBu"))
colors.use <- grDevices::colorRampPalette(colors = colors)(100)
my_breaks <- c(seq(-1.25, 0, length.out = ceiling(100 / 2) + 1),
               seq(0.05, 1.25, length.out = floor(100 / 2)))
top_acts_mat <- top_acts_mat[c("WT_Tenocytes","GO_Tenocytes",
                               "WT_Myonuclei","GO_Myonuclei",
                               "WT_Myoblasts","GO_Myoblasts",
                               "WT_Mesenchymal","GO_Mesenchymal",
                               "WT_MuSCs","GO_SMC",
                               "WT_SMC","GO_SMC",
                               "WT_Endothelial","GO_Endothelial",
                               "WT_NPCs","GO_NPCs",
                               "WT_Macrophages","GO_Macrophages",
                               "WT_Adipocytes","GO_Adipocytes"),]

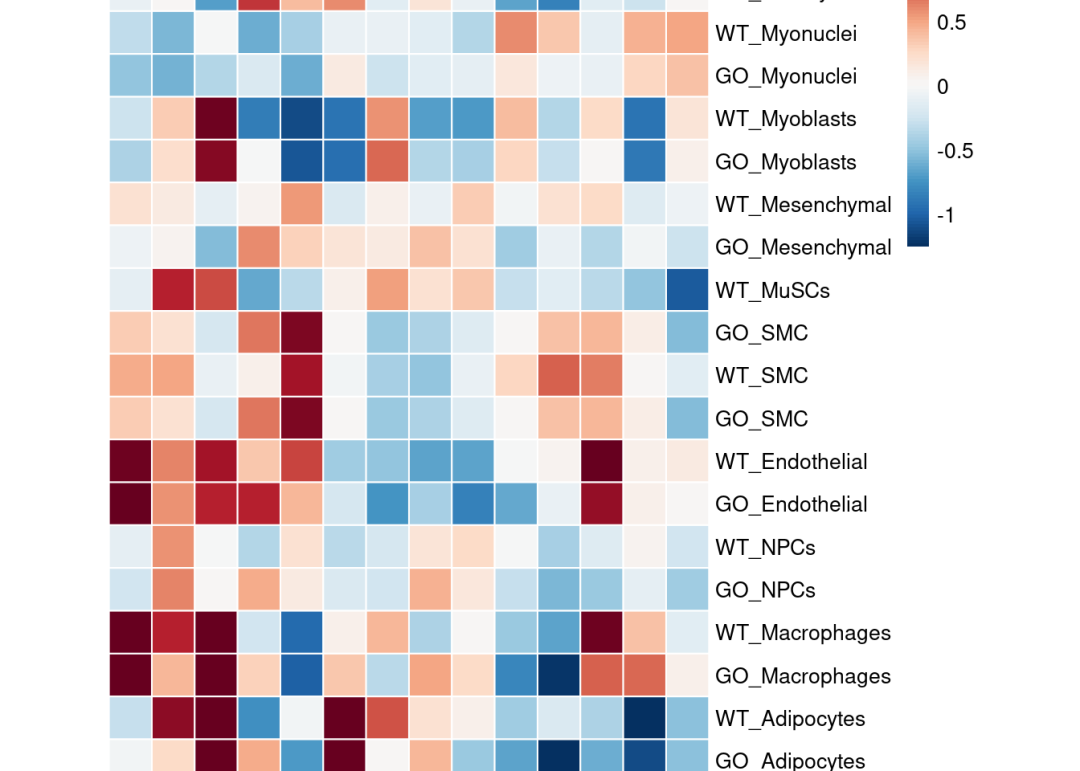

pheatmap::pheatmap(mat = top_acts_mat,
                   color = colors.use,
                   border_color = "white",
                   breaks = my_breaks,
                   cellwidth = 20,
                   cellheight = 20,
                   treeheight_row = 20,
                   treeheight_col = 20,
                   cluster_rows = F)

分析2-scRNA转录因子活性推断

转录因子通过调控下游靶基因的转录，在细胞命运决定和疾病发生发展中发挥核心作用。从转录组数据可靠地推断TF活性，成为解析细胞异质性和识别关键调控因子的关键问题。我们介绍最多，使用非常多的方法SCENIC（pySCENIC）是有效的方法，但是流程复杂，计算工作量大，且对于普通bulk RNA数据效果不好（样本量不足）。decoupleR利用利用现成网络+多算法打分，进行单细胞及BULK转录组数据的转录因子活性推断。数据库来源于先验知识，使用CollecTRI network，其中包含从12个不同来源精心整理的转录因子及其转录靶点的集合,是DoRothEA（DoRothEA: collection of human and mouse regulons）网络的拓展，但是与其和其他基于文献的基因调控网络相比，该集合提供了更广泛的转录因子覆盖范围，并且在识别受干扰的转录因子方面表现更优。与DoRothEA类似，相互作用根据其调节模式（激活或抑制）进行加权。转录因子合集可以通过decoupleR函数get_collectri进行获取，其中参数split_complexes 用于保留复合物或将其拆分为亚基，默认情况下，建议保留复合物。

tf_net <- decoupleR::get_collectri(organism = 'mouse', #物种human or mouse
                                split_complexes = FALSE)

Activity inference with Univariate Linear Model (ULM)：使用ulm推断转录因子（TF）的富集分数。对于数据集中的每个样本（cell）以及网络（tf_net）中的每个转录因子，它拟合一个线性模型，该模型仅根据TF的TF-基因相互作用权重来预测观察到的基因表达。拟合完成后，所获得的斜率的t值即为分数。如果该值为正，则解释为转录因子处于活跃状态；如果为负，则解释为处于不活跃状态。分析的输入与前面通路活性推断类似，需要一个输入矩阵（mat）、一个输入的先验知识网络（net）以及我们想要使用的net中的列名。

tf_acts <- decoupleR::run_ulm(mat = mat,
                           net = tf_net,
                           .source = 'source',
                           .target = 'target',
                           .mor='mor',
                           minsize = 5)

可视化与通路活性可视化一样：

# Extract ulm and store it in tfsulm in pbmc
sce_cca[['tfsulm']] <- tf_acts %>%
                    tidyr::pivot_wider(id_cols = 'source',
                                       names_from = 'condition',
                                       values_from = 'score') %>%
                    tibble::column_to_rownames('source') %>%
                    Seurat::CreateAssayObject(.)
# Change assay
DefaultAssay(object = sce_cca) <- "tfsulm"
# Scale the data
sce_cca <- Seurat::ScaleData(sce_cca)

sce_cca@assays$tfsulm@data <- sce_cca@assays$tfsulm@scale.data

colors <- rev(RColorBrewer::brewer.pal(n = 11, name = "RdBu")[c(2, 10)])

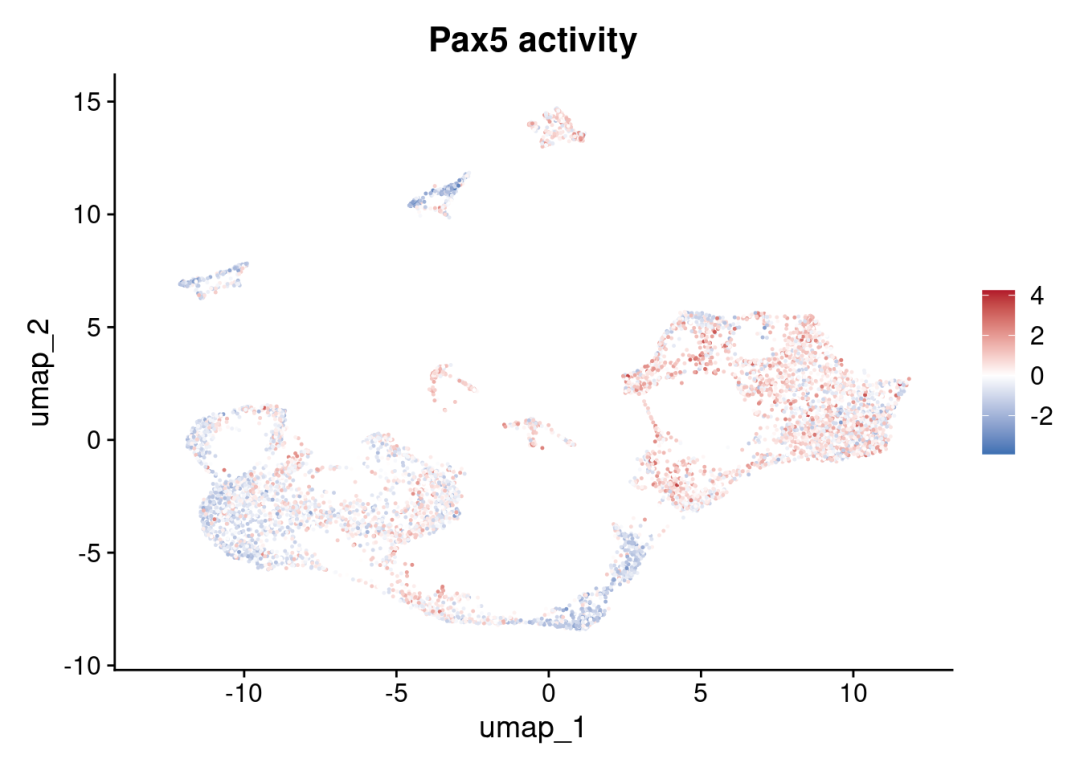

FeaturePlot(sce_cca, features = c("Pax5")) +
      ggplot2::scale_colour_gradient2(low = colors[1], mid = 'white', high = colors[2]) +
      ggplot2::ggtitle('Pax5 activity')

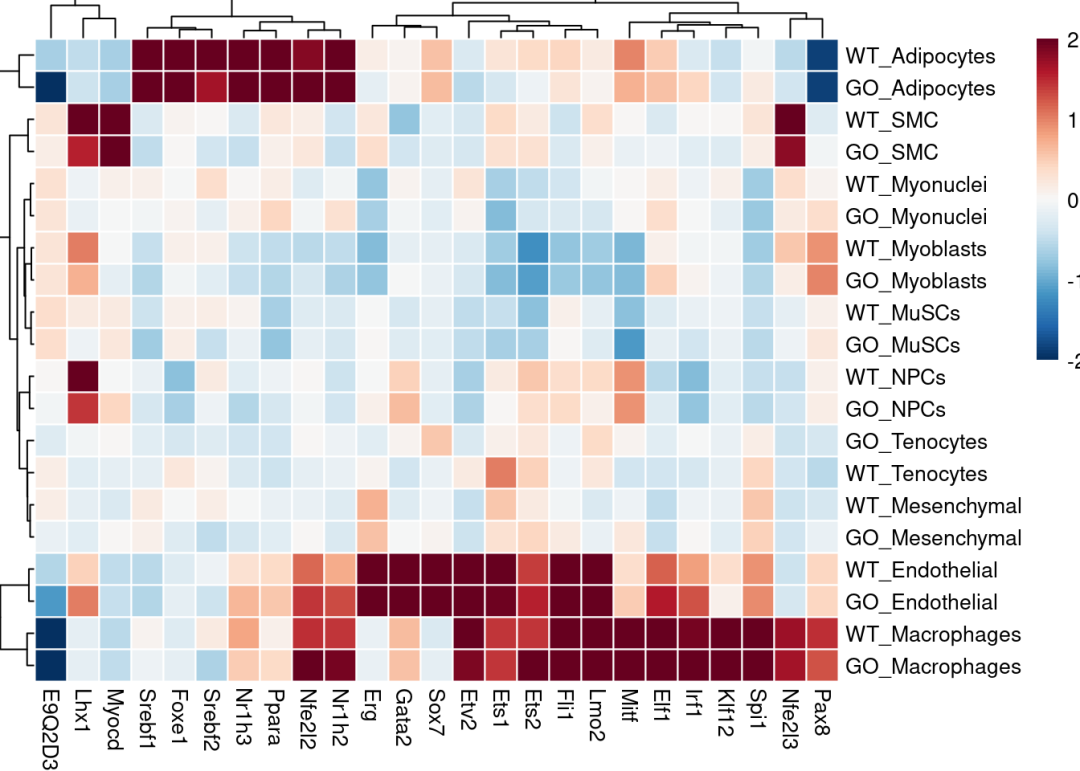

热图可视化每组平均TF活性：展示top25

n_tfs <- 25
# Extract activities from object as a long dataframe
df <- t(as.matrix(sce_cca@assays$tfsulm@data)) %>%
      as.data.frame() %>%
      dplyr::mutate(cluster = Seurat::Idents(sce_cca)) %>%
      tidyr::pivot_longer(cols = -cluster,
                          names_to = "source",
                          values_to = "score") %>%
      dplyr::group_by(cluster, source) %>%
      dplyr::summarise(mean = mean(score))
 # Get top tfs with more variable means across clusters
tfs <- df %>%
       dplyr::group_by(source) %>%
       dplyr::summarise(std = stats::sd(mean)) %>%
       dplyr::arrange(-abs(std)) %>%
       head(n_tfs) %>%
       dplyr::pull(source)
# Subset long data frame to top tfs and transform to wide matrix
top_acts_mat <- df %>%
                dplyr::filter(source %in% tfs) %>%
                tidyr::pivot_wider(id_cols = 'cluster',
                                   names_from = 'source',
                                   values_from = 'mean') %>%
                tibble::column_to_rownames('cluster') %>%
                as.matrix()
# Choose color palette
colors <- rev(RColorBrewer::brewer.pal(n = 11, name = "RdBu"))
colors.use <- grDevices::colorRampPalette(colors = colors)(100)
my_breaks <- c(seq(-2, 0, length.out = ceiling(100 / 2) + 1),
               seq(0.05, 2, length.out = floor(100 / 2)))
# Plot
pheatmap::pheatmap(mat = top_acts_mat,
                   color = colors.use,
                   border_color = "white",
                   breaks = my_breaks,
                   cellwidth = 15,
                   cellheight = 15,
                   treeheight_row = 20,
                   treeheight_col = 20)
