PyTorch 分布式训练底层原理与 DDP 实战指南

 import torch

# Let us define a tensor with requires_grad = True
x = torch.tensor(4.0, requires_grad=True)
# Creating a function y=x^2
y = x*x
# Calculating dy/dx
y.backward(retain_graph=True)
# retain_graph = True because pytorch automatically removes the computation
# graph and intermediate tensors once backward is called to save memory
# If we want to call backward again, we need to tell pytorch not to delete
# the computation graph and intermediate tensors
print(f"Gradient of y w.r.t x after the first backward: {x.grad}")
# Output: 8.0 as dy/dx = 2*x = 2*4
# Now let us try to call backward again
y.backward()
print(f"Gradient of y w.r.t x after the second backward: {x.grad}")
 # Output = 16 because 8 from the previous backward is added up here

 import torch
import torch.nn as nn
from torch.utils.data import Dataset

class SimpleDataset(Dataset):
    def __init__(self, size=100):
        self.size = size
        self.data = torch.randn(size, 10) # generate 100 samples each having dimension 10
        self.labels = torch.randn(size, 1) # generate labels corresponding to each sample

    def __len__(self):
        return self.size

    def __getitem__(self, idx):
        return self.data[idx], self.labels[idx]

class SimpleModel(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(10, 5)
        self.fc2 = nn.Linear(5, 1)

    def forward(self, x):
        x = torch.relu(self.fc1(x))
         return self.fc2(x)

 import os
import torch.distributed as dist

def setup(rank, world_size):
    os.environ['MASTER_ADDR'] = 'localhost' # IP of the "master" node
    os.environ['MASTER_PORT'] = '12355' # Port of communication

    # If we have 4 processes, each process independently calls setup() with
    # its own rank
    dist.init_process_group(backend='gloo', rank=rank, world_size=world_size)
    # 'gloo' is the collective communication backend used for CPU
    # nccl is used for CUDA

    print(f"\n{'='*60}")
    print(f"[Rank {rank}] Process initialized!")
    print(f"[Rank {rank}] Backend: {dist.get_backend()}")
    print(f"[Rank {rank}] World Size: {dist.get_world_size()}")
     print(f"{'='*60}\n")

 # Example usage conceptual
# Create DistributedSampler for each rank
# sampler_rank0 = DistributedSampler(dataset, num_replicas=4, rank=0)
# ...

# Loop
for epoch in range(num_epochs):
    train_sampler.set_epoch(epoch)  # Different shuffle each epoch
    for batch in train_loader:
         # Training code

 from torch.nn.parallel import DistributedDataParallel as DDP

def print_separator(rank, message):
   print(f"\n[Rank {rank}] {'-'*40}")
   print(f"[Rank {rank}] {message}")
   print(f"[Rank {rank}] {'-'*40}")

def train_worker(rank, world_size, num_epochs=2, batch_size=8):
  # setup the distributed environment
  setup(rank, world_size)

  model = SimpleModel()

  # wrap the model with DDP
  # This is where weights are synchronized across ranks
  ddp_model = DDP(model)

  dataset = SimpleDataset(size=32)
  sampler = DistributedSampler(dataset, num_replicas=world_size, rank=rank, shuffle=False)
  dataloader = DataLoader(dataset, batch_size=batch_size, sampler=sampler)

  optimizer = optim.SGD(ddp_model.parameters(), lr=0.01)
  criterion = nn.MSELoss()

   for epoch in range(num_epochs):
       sampler.set_epoch(epoch)  # Ensure different shuffling per epoch
       epoch_loss = 0.0
       for batch_idx, (data, target) in enumerate(dataloader):
           optimizer.zero_grad()
           output = ddp_model(data)
           loss = criterion(output, target)

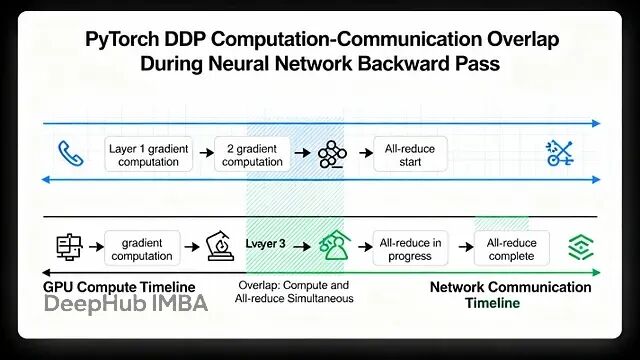

           # Backward pass - THIS IS WHERE DDP MAGIC HAPPENS
           loss.backward()

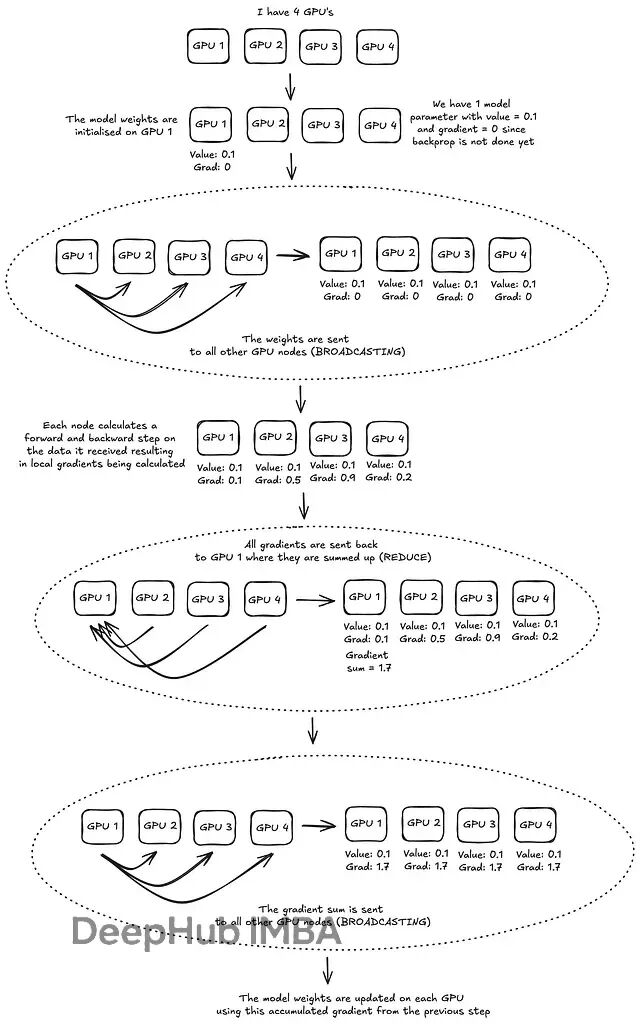

           # Gradients are synchronized (All-Reduce) here automatically

           optimizer.step()
           epoch_loss += loss.item()

  dist.destroy_process_group()
   print(f"[Rank {rank}] Training completed and cleaned up!\n")

 def validate(model, val_loader, criterion, rank, epoch):
    model.eval()
    val_loss = 0.0
    num_samples = 0

    with torch.no_grad():
        for batch_idx, (data, target) in enumerate(val_loader):
            output = model(data)
            loss = criterion(output, target)
            val_loss += loss.item() * data.size(0)
            num_samples += data.size(0)

    # Aggregate metrics across all processes
    total_loss_tensor = torch.tensor([val_loss])
    total_samples_tensor = torch.tensor([num_samples])

    # Sum across all processes
    dist.all_reduce(total_loss_tensor, op=dist.ReduceOp.SUM)
    dist.all_reduce(total_samples_tensor, op=dist.ReduceOp.SUM)

    global_avg_loss = total_loss_tensor.item() / total_samples_tensor.item()
     return global_avg_loss

 defmain():
    world_size=2
    mp.spawn(
        demo_worker,
        args=(world_size,),
        nprocs=world_size,
        join=True
    )

 # Code expects env vars
 rank = int(os.environ["RANK"])
 local_rank = int(os.environ["LOCAL_RANK"])
 world_size = int(os.environ["WORLD_SIZE"])
 demo_worker(rank, world_size)

 torchrun --nproc_per_node=4 train.py
