现在这里开个坑,这个系列带着做一下shadertoy的一些案例,这个系列教程大概只能算基础教学(目录在下方),所以这个系列教程没有任何压力,有手就能学会。

代码语言:javascript
代码运行次数:0
运行
AI代码解释
复制
教程1. 开发环境配置与介绍
教程2. 语法与调试
教程3. 迁移脚本到游戏引擎

如果你是一个游戏开发者那么对Shader应该不会陌生,UE的Shader用的是HLSL,Unity兼容HLSL,与GLSL主推cg(HLSL)。那么shadertoy主要用的是什么语言呢?GLSL 当然要在unity或者ue使用shadertoy的代码怎么去做这个兼容后面的文章我们再聊一下,本篇就不作教学。

本系列的教程主要兴趣导向的,所以有时间的话可以玩玩看。

网站

https://www.shadertoy.com 下方的介绍来自维基百科

Shadertoy is an online community and platform for computer graphics professionals, academics[1] and enthusiasts who share, learn and experiment with rendering techniques and procedural art through GLSL code. There are more than 52 thousand public contributions as of mid-2021 coming from thousands of users. WebGL[2] allows Shadertoy to access the compute power of the GPU to generate procedural art, animation, models, lighting, state based logic and sound.

Shadertoy是一个在线社区和平台,面向计算机图形专业人员、学者[1]和爱好者,他们通过GLSL代码共享、学习和实验渲染技术和程序艺术。截至21年年中,有超过52000个公共捐款来自数千名用户。WebGL[2]允许Shadertoy访问GPU的计算能力,以生成程序艺术、动画、模型、照明、基于状态的逻辑和声音。

VsCode的插件安装

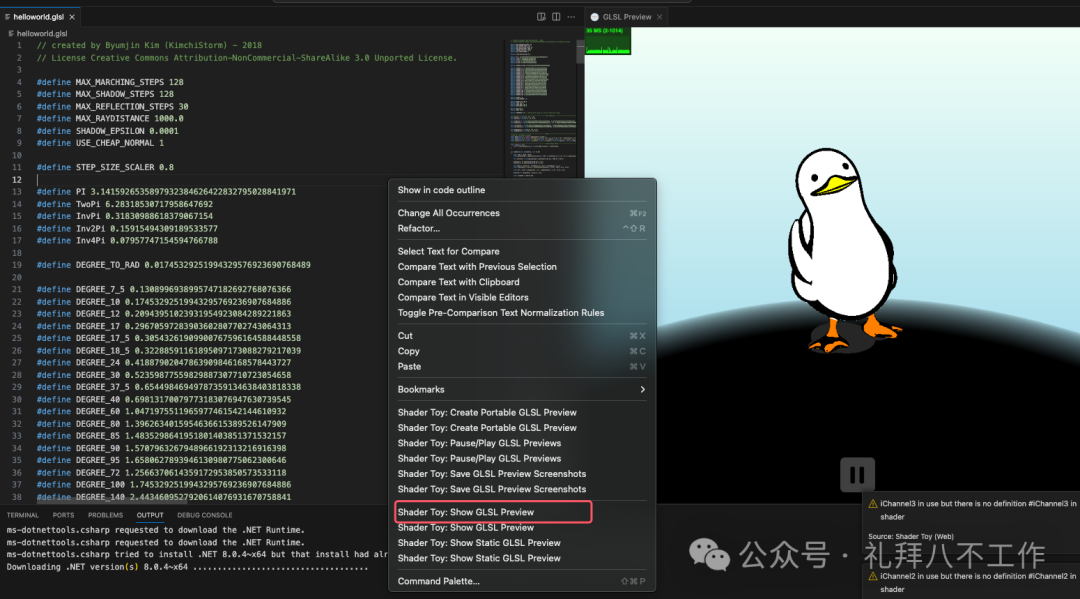

插件名: shadertoy 注意是第一个

安装完毕预览图glsl文件效果

下载与调试

在shadertoy上找到你想要下载的代码,复制并在本地创建一个glsl文件,如果有报错信息就会在右侧预览中显示。

你可以直接复制下面的代码到本地创建一个名为cube.glsl的文件。

代码语言:javascript
代码运行次数:0
运行
AI代码解释
复制
/**
 * Part 3 Challenges
 * - Make the camera move up and down while still pointing at the cube
 * - Make the camera roll (stay looking at the cube, and don't change the eye point)
 * - Make the camera zoom in and out
 */

const int MAX_MARCHING_STEPS = 255;
const float MIN_DIST = 0.0;
const float MAX_DIST = 100.0;
const float EPSILON = 0.0001;

/**
 * Signed distance function for a cube centered at the origin
 * with width = height = length = 2.0
 */
float cubeSDF(vec3 p) {
    // If d.x < 0, then -1 < p.x < 1, and same logic applies to p.y, p.z
    // So if all components of d are negative, then p is inside the unit cube
    vec3 d = abs(p) - vec3(1.0, 1.0, 1.0);

    // Assuming p is inside the cube, how far is it from the surface?
    // Result will be negative or zero.
    float insideDistance = min(max(d.x, max(d.y, d.z)), 0.0);

    // Assuming p is outside the cube, how far is it from the surface?
    // Result will be positive or zero.
    float outsideDistance = length(max(d, 0.0));

    return insideDistance + outsideDistance;
}

/**
 * Signed distance function for a sphere centered at the origin with radius 1.0;
 */
float sphereSDF(vec3 p) {
    return length(p) - 1.0;
}

/**
 * Signed distance function describing the scene.
 *
 * Absolute value of the return value indicates the distance to the surface.
 * Sign indicates whether the point is inside or outside the surface,
 * negative indicating inside.
 */
float sceneSDF(vec3 samplePoint) {
    return cubeSDF(samplePoint);
}

/**
 * Return the shortest distance from the eyepoint to the scene surface along
 * the marching direction. If no part of the surface is found between start and end,
 * return end.
 *
 * eye: the eye point, acting as the origin of the ray
 * marchingDirection: the normalized direction to march in
 * start: the starting distance away from the eye
 * end: the max distance away from the ey to march before giving up
 */
float shortestDistanceToSurface(vec3 eye, vec3 marchingDirection, float start, float end) {
    float depth = start;
    for (int i = 0; i < MAX_MARCHING_STEPS; i++) {
        float dist = sceneSDF(eye + depth * marchingDirection);
        if (dist < EPSILON) {
      return depth;
        }
        depth += dist;
        if (depth >= end) {
            return end;
        }
    }
    return end;
}


/**
 * Return the normalized direction to march in from the eye point for a single pixel.
 *
 * fieldOfView: vertical field of view in degrees
 * size: resolution of the output image
 * fragCoord: the x,y coordinate of the pixel in the output image
 */
vec3 rayDirection(float fieldOfView, vec2 size, vec2 fragCoord) {
    vec2 xy = fragCoord - size / 2.0;
    float z = size.y / tan(radians(fieldOfView) / 2.0);
    return normalize(vec3(xy, -z));
}

/**
 * Using the gradient of the SDF, estimate the normal on the surface at point p.
 */
vec3 estimateNormal(vec3 p) {
    return normalize(vec3(
        sceneSDF(vec3(p.x + EPSILON, p.y, p.z)) - sceneSDF(vec3(p.x - EPSILON, p.y, p.z)),
        sceneSDF(vec3(p.x, p.y + EPSILON, p.z)) - sceneSDF(vec3(p.x, p.y - EPSILON, p.z)),
        sceneSDF(vec3(p.x, p.y, p.z  + EPSILON)) - sceneSDF(vec3(p.x, p.y, p.z - EPSILON))
    ));
}

/**
 * Lighting contribution of a single point light source via Phong illumination.
 *
 * The vec3 returned is the RGB color of the light's contribution.
 *
 * k_a: Ambient color
 * k_d: Diffuse color
 * k_s: Specular color
 * alpha: Shininess coefficient
 * p: position of point being lit
 * eye: the position of the camera
 * lightPos: the position of the light
 * lightIntensity: color/intensity of the light
 *
 * See https://en.wikipedia.org/wiki/Phong_reflection_model#Description
 */
vec3 phongContribForLight(vec3 k_d, vec3 k_s, float alpha, vec3 p, vec3 eye,
                          vec3 lightPos, vec3 lightIntensity) {
    vec3 N = estimateNormal(p);
    vec3 L = normalize(lightPos - p);
    vec3 V = normalize(eye - p);
    vec3 R = normalize(reflect(-L, N));

    float dotLN = dot(L, N);
    float dotRV = dot(R, V);

    if (dotLN < 0.0) {
        // Light not visible from this point on the surface
        return vec3(0.0, 0.0, 0.0);
    }

    if (dotRV < 0.0) {
        // Light reflection in opposite direction as viewer, apply only diffuse
        // component
        return lightIntensity * (k_d * dotLN);
    }
    return lightIntensity * (k_d * dotLN + k_s * pow(dotRV, alpha));
}

/**
 * Lighting via Phong illumination.
 *
 * The vec3 returned is the RGB color of that point after lighting is applied.
 * k_a: Ambient color
 * k_d: Diffuse color
 * k_s: Specular color
 * alpha: Shininess coefficient
 * p: position of point being lit
 * eye: the position of the camera
 *
 * See https://en.wikipedia.org/wiki/Phong_reflection_model#Description
 */
vec3 phongIllumination(vec3 k_a, vec3 k_d, vec3 k_s, float alpha, vec3 p, vec3 eye) {
    const vec3 ambientLight = 0.5 * vec3(1.0, 1.0, 1.0);
    vec3 color = ambientLight * k_a;

    vec3 light1Pos = vec3(4.0 * sin(iTime),
                          2.0,
                          4.0 * cos(iTime));
    vec3 light1Intensity = vec3(0.4, 0.4, 0.4);

    color += phongContribForLight(k_d, k_s, alpha, p, eye,
                                  light1Pos,
                                  light1Intensity);

    vec3 light2Pos = vec3(2.0 * sin(0.37 * iTime),
                          2.0 * cos(0.37 * iTime),
                          2.0);
    vec3 light2Intensity = vec3(0.4, 0.4, 0.4);

    color += phongContribForLight(k_d, k_s, alpha, p, eye,
                                  light2Pos,
                                  light2Intensity);
    return color;
}

/**
 * Return a transform matrix that will transform a ray from view space
 * to world coordinates, given the eye point, the camera target, and an up vector.
 *
 * This assumes that the center of the camera is aligned with the negative z axis in
 * view space when calculating the ray marching direction. See rayDirection.
 */
mat4 viewMatrix(vec3 eye, vec3 center, vec3 up) {
    // Based on gluLookAt man page
    vec3 f = normalize(center - eye);
    vec3 s = normalize(cross(f, up));
    vec3 u = cross(s, f);
    return mat4(
        vec4(s, 0.0),
        vec4(u, 0.0),
        vec4(-f, 0.0),
        vec4(0.0, 0.0, 0.0, 1)
    );
}

void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
  vec3 viewDir = rayDirection(45.0, iResolution.xy, fragCoord);
    vec3 eye = vec3(8.0, 5.0, 7.0);

    mat4 viewToWorld = viewMatrix(eye, vec3(0.0, 0.0, 0.0), vec3(0.0, 1.0, 0.0));

    vec3 worldDir = (viewToWorld * vec4(viewDir, 0.0)).xyz;

    float dist = shortestDistanceToSurface(eye, worldDir, MIN_DIST, MAX_DIST);

    if (dist > MAX_DIST - EPSILON) {
        // Didn't hit anything
        fragColor = vec4(0.0, 0.0, 0.0, 0.0);
    return;
    }

    // The closest point on the surface to the eyepoint along the view ray
    vec3 p = eye + dist * worldDir;

    vec3 K_a = vec3(0.2, 0.2, 0.2);
    vec3 K_d = vec3(0.7, 0.2, 0.2);
    vec3 K_s = vec3(1.0, 1.0, 1.0);
    float shininess = 10.0;

    vec3 color = phongIllumination(K_a, K_d, K_s, shininess, p, eye);

    fragColor = vec4(color, 1.0);
}

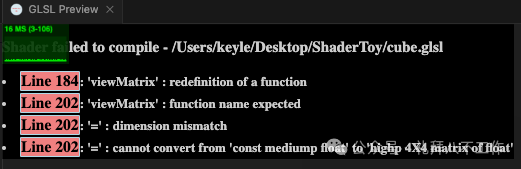

创建文件后打开预览发现有报错

很显然上面显示的是一个重复函数名的报错,我们找到上面对应的函数 viewMatrix,将其与相关引用改为 viewMatrix1

现在我们可以看到渲染出一个红色方块,并且随着光照有不同的明暗变化。

本文引用资料

官方教程

https://inspirnathan.com/posts/47-shadertoy-tutorial-part-1

文章开头视频的脚本地址

https://www.shadertoy.com/view/4sdcz8
