课前准备---HD数据结合图像识别获取真实的空间单细胞级数据

import scanpy as sc
import os
import bin2cell as b2c
import celltypist
from celltypist import models
import numpy as np
from matplotlib import rcParams
from matplotlib import font_manager
import matplotlib.pyplot as plt
rcParams['pdf.fonttype'] = 42
sc.settings.set_figure_params(dpi = 150, color_map = 'RdPu', dpi_save = 150, vector_friendly = True, format = 'pdf')
font_manager.fontManager.addfont(".../software/Arial.ttf")
print(font_manager.findfont("Arial"))
plt.rcParams["font.sans-serif"] = ["Arial"]
sc.settings.set_figure_params(dpi = 150, color_map = 'RdPu', dpi_save = 300, vector_friendly = True, format = 'pdf')

path008 = ".../visium_hd/gut_public/square_008um/"
path002 = ".../visium_hd/gut_public/square_002um/"
source_image_path = ".../10X_datasets/human_CRC/Visium_HD_Human_Colon_Cancer_tissue_image.btf"

bdata = b2c.read_visium(path008, source_image_path = source_image_path)
bdata.var_names_make_unique()

bdata.raw = bdata.copy()

sc.pp.filter_genes(bdata, min_cells=3)
sc.pp.filter_cells(bdata, min_genes=100)
sc.pp.calculate_qc_metrics(bdata,inplace=True)

sc.pp.highly_variable_genes(bdata,n_top_genes=5000,flavor="seurat_v3")
sc.pp.normalize_total(bdata,target_sum=1e4)
sc.pp.log1p(bdata)

predictions_8bin_mega = celltypist.annotate(bdata, model ='/nfs/team205/rb29/VisiumHD_intestine/Src/celltypist_models/model_from_megaGut_colon_CRC_level3.pkl', majority_voting = False)
predictions_8bin_crc = celltypist.annotate(bdata, model = 'Human_Colorectal_Cancer.pkl', majority_voting = False)

# combine 2 models for cell annotations
# add the healthy gut model
bdata = predictions_8bin_mega.to_adata()
bdata.obs['predicted_labels_healthy'] = bdata.obs['predicted_labels']
bdata.obs['conf_score_healthy'] = bdata.obs['conf_score']

# add the colorectal cancer model
bdata = predictions_8bin_crc.to_adata()
bdata.obs['predicted_labels_crc'] = bdata.obs['predicted_labels']
bdata.obs['conf_score_crc'] = bdata.obs['conf_score']

# remove old annotations
del bdata.obs['predicted_labels']
del bdata.obs['conf_score']

# find the cell that have higher confidence in the crc model
bdata.obs['higher_in_crc'] = bdata.obs['conf_score_healthy']<bdata.obs['conf_score_crc']

# eclude the ones that labeled as unknown in crc model
bdata.obs.loc[bdata.obs['predicted_labels_crc']=='Unknown','higher_in_crc'] = False
bdata.obs['higher_in_crc'].value_counts()

# create new unified annotations
bdata.obs['predicted_labels'] = bdata.obs['predicted_labels_healthy']
bdata.obs['predicted_labels'] = bdata.obs['predicted_labels'].astype('object')
bdata.obs.loc[bdata.obs['higher_in_crc'],'predicted_labels'] = bdata.obs.loc[bdata.obs['higher_in_crc'],'predicted_labels_crc']
bdata.obs['predicted_labels'] = bdata.obs['predicted_labels'].astype('category')
bdata.obs['predicted_labels']

bdata = bdata[:, bdata.var["highly_variable"]].copy()
sc.pp.scale(bdata, max_value=10)
sc.pp.pca(bdata, use_highly_variable=True)
sc.pp.neighbors(bdata)
sc.tl.umap(bdata)

sc.set_figure_params(dpi=50,fontsize=10,)
sc.pl.violin(bdata, ['n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes'],
             jitter=0.1, multi_panel=True)

sc.set_figure_params(dpi=100,fontsize=10,)
os.chdir('.../visium_hd/gut_public/')
sc.tl.leiden(bdata,resolution=6,key_added='leiden')

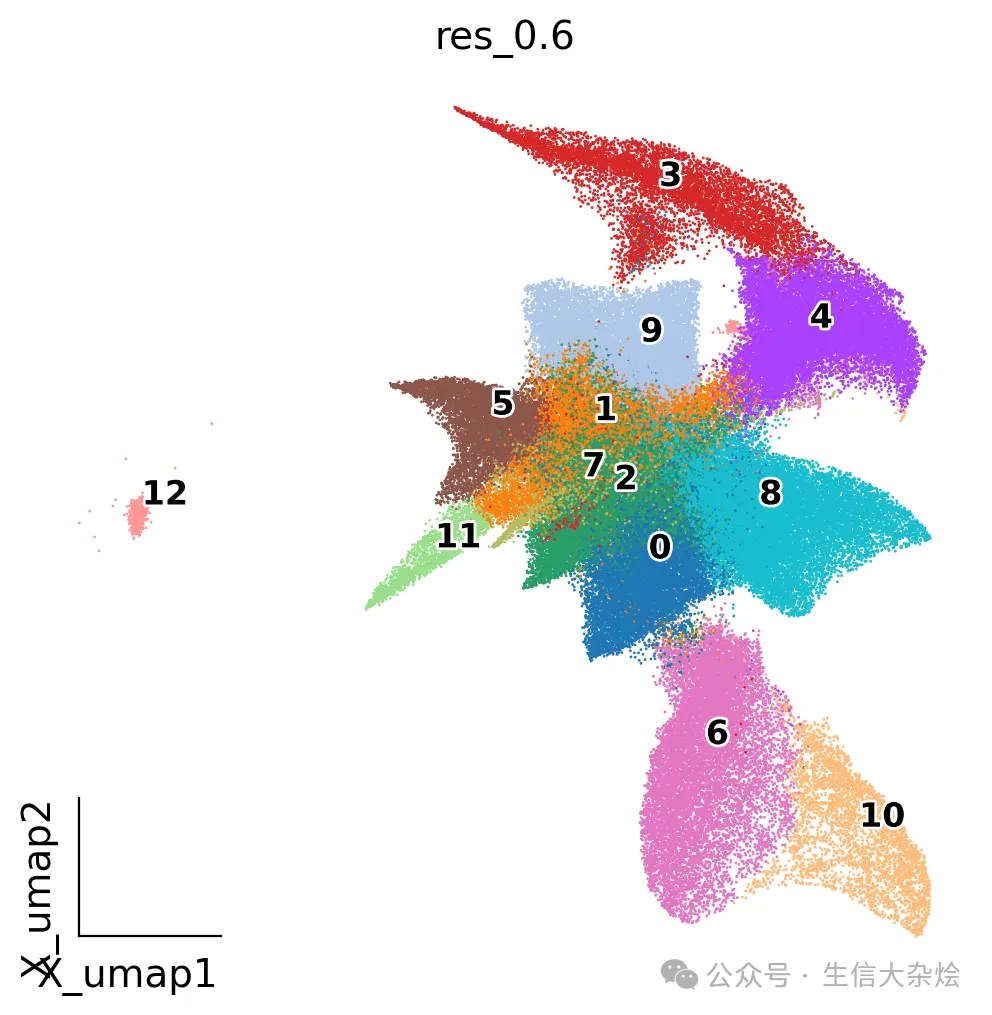

sc.pl.umap(bdata,color=['leiden'],size=2,wspace=0.25,frameon=False)

####bdata.raw.to_adata().write('.../visium_hd/gut_public/crc_8um.h5ad')

cdata = sc.read_h5ad(path002+'b2c_crc.h5ad')
cdata.var_names_make_unique()
cdata = cdata[cdata.obs['bin_count']>5] # min 6 bins
#need integers for seuratv3 hvgs
cdata.X.data = np.round(cdata.X.data)
cdata.raw = cdata.copy()

sc.pp.filter_genes(cdata, min_cells=3)
sc.pp.filter_cells(cdata,min_genes=100)
sc.pp.calculate_qc_metrics(cdata,inplace=True)

sc.pp.highly_variable_genes(cdata,n_top_genes=5000,flavor="seurat_v3")
sc.pp.normalize_total(cdata,target_sum=1e4)
sc.pp.log1p(cdata)

predictions_b2c_mega = celltypist.annotate(cdata, model ='/nfs/team205/rb29/VisiumHD_intestine/Src/celltypist_models/model_from_megaGut_colon_CRC_level3.pkl', majority_voting = False)
predictions_b2c_crc = celltypist.annotate(cdata, model = 'Human_Colorectal_Cancer.pkl', majority_voting = False)

# combine 2 models for cell annotations
# add the healthy gut model
cdata = predictions_b2c_mega.to_adata()
cdata.obs['predicted_labels_healthy'] = cdata.obs['predicted_labels']
cdata.obs['conf_score_healthy'] = cdata.obs['conf_score']

# add the colorectal cancer model
cdata = predictions_b2c_crc.to_adata()
cdata.obs['predicted_labels_crc'] = cdata.obs['predicted_labels']
cdata.obs['conf_score_crc'] = cdata.obs['conf_score']

# remove old annotations
del cdata.obs['predicted_labels']
del cdata.obs['conf_score']

# find the cell that have higher confidence in the crc model
cdata.obs['higher_in_crc'] = cdata.obs['conf_score_healthy']<cdata.obs['conf_score_crc']

# eclude the ones that labeled as unknown in crc model
cdata.obs.loc[cdata.obs['predicted_labels_crc']=='Unknown','higher_in_crc'] = False
cdata.obs['higher_in_crc'].value_counts()

# create new unified annotations
cdata.obs['predicted_labels'] = cdata.obs['predicted_labels_healthy']
cdata.obs['predicted_labels'] = cdata.obs['predicted_labels'].astype('object')
cdata.obs.loc[cdata.obs['higher_in_crc'],'predicted_labels'] = cdata.obs.loc[cdata.obs['higher_in_crc'],'predicted_labels_crc']
cdata.obs['predicted_labels'] = cdata.obs['predicted_labels'].astype('category')
cdata.obs['predicted_labels']

cdata = cdata[:, cdata.var["highly_variable"]]
sc.pp.scale(cdata, max_value=10)
sc.pp.pca(cdata, use_highly_variable=True)
sc.pp.neighbors(cdata)
sc.tl.umap(cdata)

sc.set_figure_params(dpi=50,fontsize=10,)
sc.pl.violin(cdata, ['n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes','bin_count'],
             jitter=0.05, multi_panel=True)

sc.set_figure_params(dpi=100,fontsize=10,)
os.chdir('.../visium_hd/gut_public/')
sc.tl.leiden(cdata,resolution=6,key_added='leiden')
sc.pl.umap(cdata,color=['leiden'],size=2,wspace=0.25,frameon=False)
####cdata.raw.to_adata().write('.../visium_hd/gut_public/crc_b2c.h5ad')

bdata = sc.read_h5ad('.../visium_hd/gut_public/crc_8um.h5ad')
cdata = sc.read_h5ad('.../visium_hd/gut_public/crc_b2c.h5ad')

# fix the conf score value
bdata.obs['conf_score'] = bdata.obs['conf_score_healthy']
bdata.obs.loc[bdata.obs['higher_in_crc'],'conf_score'] = bdata.obs.loc[bdata.obs['higher_in_crc'],'conf_score_crc']

# fix the conf score value
cdata.obs['conf_score'] = cdata.obs['conf_score_healthy']
cdata.obs.loc[cdata.obs['higher_in_crc'],'conf_score'] = cdata.obs.loc[cdata.obs['higher_in_crc'],'conf_score_crc']

# unify labels
merged_annotations = {
# B cells and plasma cells:
    'B_cells':['B_GC_I','B_GC_II','B_preB','B_proB','CD19+CD20+ B','B_naive', 'B_memory','B_plasmablast'],
    "B_IgA_plasma":['IgA+ Plasma', 'B_plasma_IgA1','B_plasma_IgA2'],
    "B_IgG_plasma":['IgG+ Plasma', 'B_plasma_IgG'],
    'B_IgM_plasma':['B_plasma_IgM'],

# Epithelial:
    'BEST4_colonocyte':['BEST4_enterocyte_colonocyte'],
    'Colonocyte': ['Colonocyte','Enterocyte'],
    "DCS_MUC17":['DCS_MUC17','DCS_MUC17_cycling'],
    'Goblet':['Goblet','Goblet cells''Goblet_cycling','Goblet_progenitor'],
    'Mature_colonocyte':['Mature_colonocyte','Mature Enterocytes type 1','Mature Enterocytes type 2'],
    'Intermediate_colonocyte':['Intermediate'],
    'TA':['TA','Stem-like/TA'],
    'Epithelial_stem': ['Epithelial_stem'],
    'Tuft': ['Tuft'],
    "ECC":['Enterochromaffin'],
    "EEC":['Enteroendocrine','Enteroendocrine_G','Enteroendocrine_MX','Enteroendocrine_X','Enteroendocrine_progenitor'],
#Cancer cells:
    'CMS1':['CMS1'],#very few predicted, this tumor is CMS2.
    'CMS2':['CMS2'],
    'CMS3':['CMS3'],# Normal TA cells are predicted as CMS3.
# Endothelial:
    'EC_arterial':['EC_arterial_1','EC_arterial_2'],
    'EC_venous':['EC_venous'],
    'EC_lymphatic': ['EC_lymphatic', 'Lymphatic ECs'],#lacteals
    'EC_capillary': ['EC_capillary'],
    'EC_cycling':['EC_cycling','Proliferative ECs'],
    'Tip-like ECs': ['Tip-like ECs'], #TECs: Tip-like ECs are involved in the promotion of tumor angiogenesis and inhibition on anti-tumor immune responses
    'Stalk-like ECs': ['Stalk-like ECs'], #TECs:https://doi.org/10.1158/0008-5472.CAN-17-2728
    #in tumor angiogenesis, dynamic interactions between specialized ECs allow some ECs to sprout and migrate from a blood vessel (so-called tip cells), whereas other cells remain relatively more static and form the shaft behind the sprout (so-called stalk cells).

#Myeloid:
    'cDC':['cDC','DC_cDC1','DC_cDC2','DC_migratory'],
    'Mono/neutrophil_MPO':['Mono/neutrophil_MPO'],#There are more neutrophils than these ones, annotate from the clusters
    'Monocyte':['Monocyte'],
    'Macrophage':['Macrophage','Macrophage_CD5L','Macrophage_LYVE1','Macrophage_MMP9','Macrophage_TREM2'],
    'Macrophage_SPP1+':['SPP1+'],
    'Macrophage_prolif': ['Proliferating'],
    'Macrophage_Pro-inflam':['Pro-inflammatory'],
    'Mast':['Mast','Mast cells'],

#Mesenchymal:
    'Fibroblast':['Oral_mucosa_fibroblast','Rectum_fibroblast', 'Villus_fibroblast_F3',
                  'Crypt_fibroblast_PI16','Fibroblast_reticular','Lamina_propria_fibroblast_ADAMDEC1'],
    'Myofibroblast':['Myofibroblast','Myofibroblasts'],
    "Smooth_muscle":['Vascular_smooth_muscle','Smooth muscle cells'],
    "Stromal":['Stromal 1','Stromal 2','Stromal 3'],
    'Pericyte':['Pericyte','Pericytes','Immune_recruiting_pericyte'],

#Enteric Nervous System/Glia:
    'Neural':['Enteric_neural_crest_cycling','Neuroblast'],
    'Glial':['Glial/Enteric_neural_crest','Glial_1','Glial_2','Glial_3','Enteric glial cells'],

# T cells / ILCs:
    'ILC3':['ILC3'],
    'Tfh':['Tfh','Tfh_naive','T follicular helper cells'],
    'Th17':['Trm_Th17','T helper 17 cells'],
    'T/NK_cycling':['T/NK_cycling'],
    'gdT':['gdT','gdT_naive','gamma delta T cells'],
    'Treg':[ 'Treg', 'Treg_IL10', 'Regulatory T cells'],
    'CD4_Tcells':['CD4+ T cells','Tnaive/cm_CD4','Trm_CD4'],
    'CD8_Tcells':['CD8+ T cells','Tnaive/cm_CD8','Trm/em_CD8','Trm_CD8'],
    'MAIT':['MAIT'],
    'NKcells':['NK cells','NK_CD16','NK_CD56bright'],
#OTHERS:
   'Erythrocytes':['Erythrocytes'],

   'REMOVE!!':['Chief','Gastric_fetal_epithelial', 'Pareital','Surface_foveolar','Mesothelium','Microfold','DC_pDC','DC_langerhans',
               'Oesophagus_fibroblast','Follicular_DC','Mucous_gland_neck', 'Unknown', 'Cycling'],#MUC6+cells in CRC!!# 'Cycling' is Generic for all the celltypes!
}

bdata.obs['predicted_labels'] = bdata.obs['predicted_labels'].astype('object')
cdata.obs['predicted_labels'] = cdata.obs['predicted_labels'].astype('object')

for key,value in merged_annotations.items():
    print(key)
    bdata.obs.loc[bdata.obs['predicted_labels'].isin(value),'predicted_labels'] = key
    cdata.obs.loc[cdata.obs['predicted_labels'].isin(value),'predicted_labels'] = key

bdata.obs['predicted_labels'] = bdata.obs['predicted_labels'].astype('category')
cdata.obs['predicted_labels'] = cdata.obs['predicted_labels'].astype('category')

bdata = bdata[bdata.obs['predicted_labels']!='REMOVE!!']
cdata = cdata[cdata.obs['predicted_labels']!='REMOVE!!']

# # asses corespondance beteeen leiden clusters to cell types
from sklearn.metrics import homogeneity_score
print('8um homogeneity score - '+str(homogeneity_score(bdata.obs['leiden'],bdata.obs['predicted_labels'])))
print('b2c homogeneity score - '+str(homogeneity_score(cdata.obs['leiden'],cdata.obs['predicted_labels'])))

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# Calculate the median confidence score for each cell type in bdata
bdata_medians = bdata.obs.groupby('predicted_labels')['conf_score'].median().reset_index(name='median_conf_score')
bdata_medians.set_index('predicted_labels', inplace=True)
bdata_medians['Source'] = '8um bin'
bdata_medians['counts'] = bdata.obs.groupby('predicted_labels')['conf_score'].count()

# Calculate the median confidence score for each cell type in cdata
cdata_medians = cdata.obs.groupby('predicted_labels')['conf_score'].median().reset_index(name='median_conf_score')
cdata_medians.set_index('predicted_labels', inplace=True)
cdata_medians['Source'] = 'b2c'
cdata_medians['counts'] = cdata.obs.groupby('predicted_labels')['conf_score'].count()

# Combine the results from all datasets
combined_medians = pd.concat([cdata_medians, bdata_medians], axis=1, keys=['b2c', '8um bin'])
combined_medians.columns = ['_'.join(col).strip() for col in combined_medians.columns.values]

# Calculate the maximum confidence score for each cell type across conditions
max_conf_scores = combined_medians[['b2c_median_conf_score', '8um bin_median_conf_score']].max(axis=1)
max_counts = combined_medians[['b2c_counts', '8um bin_counts']].max(axis=1)

# Filter out cell types with a maximum confidence score lower than 0.01
cell_types_to_keep = max_conf_scores[max_conf_scores >= 0.01].index
cell_types_to_keep2 = max_counts[max_counts >= 50].index

combined_medians_filtered = combined_medians.loc[combined_medians.index.isin(cell_types_to_keep)]
combined_medians_filtered = combined_medians_filtered.loc[combined_medians_filtered.index.isin(cell_types_to_keep2)]

# Determine the color based on which condition has the higher median confidence score
combined_medians_filtered['color'] = combined_medians_filtered.apply(
    lambda row: 'red' if row['8um bin_median_conf_score'] > row['b2c_median_conf_score'] else 'blue', axis=1)

# Count the number of categories higher in each condition
higher_in_8um = sum(combined_medians_filtered['color'] == 'red')
higher_in_b2c = sum(combined_medians_filtered['color'] == 'blue')

# Create a scatter plot to visualize the data
plt.figure(figsize=(10, 8))  # Adjust figure size as needed
ax = sns.scatterplot(data=combined_medians_filtered,
                     x='8um bin_median_conf_score', y='b2c_median_conf_score',
                     s=100, hue='color', palette={'red': 'red', 'blue': 'blue'}, alpha=0.5)

# Add a diagonal line for reference
plt.plot([0, 1], [0, 1], linestyle='--', color='gray', linewidth=1)

# Restrict x and y axes to the relevant values
plt.xlim(0, combined_medians_filtered['8um bin_median_conf_score'].max() + 0.1)
plt.ylim(0, combined_medians_filtered['b2c_median_conf_score'].max() + 0.1)

# Add custom legend
handles, labels = ax.get_legend_handles_labels()
labels = [f'8um bin higher ({higher_in_8um})',f'b2c higher ({higher_in_b2c})',]
ax.legend(handles=handles, labels=labels, title='Source')

plt.title('Scatter Plot of median Confidence Scores by Cell Type')
plt.xlabel('median Confidence Score (8um bin)')
plt.ylabel('median Confidence Score (b2c)')
plt.tight_layout()
plt.savefig('.../visium_hd/gut_public/figures/predictions_scatter_colored.pdf')
plt.show()
combined_medians_filtered.to_csv('.../visium_hd/gut_public/combined_medians_filtered_conf_score.csv')

import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

# Calculate the mean of n_genes_by_counts for each cell type in bdata
bdata_means = bdata.obs.groupby('predicted_labels')['n_genes_by_counts'].mean().reset_index(name='mean_n_genes_by_counts')
bdata_means.set_index('predicted_labels', inplace=True)
bdata_means['Source'] = '8um bin'
bdata_means['counts'] = bdata.obs.groupby('predicted_labels')['n_genes_by_counts'].count()

# Calculate the mean of n_genes_by_counts for each cell type in cdata
cdata_means = cdata.obs.groupby('predicted_labels')['n_genes_by_counts'].mean().reset_index(name='mean_n_genes_by_counts')
cdata_means.set_index('predicted_labels', inplace=True)
cdata_means['Source'] = 'b2c'
cdata_means['counts'] = cdata.obs.groupby('predicted_labels')['n_genes_by_counts'].count()

# Combine the results from all datasets
combined_means = pd.concat([cdata_means, bdata_means], axis=1, keys=['b2c', '8um bin'])
combined_means.columns = ['_'.join(col).strip() for col in combined_means.columns.values]

# Calculate the maximum n_genes_by_counts for each cell type across conditions
max_n_genes_by_counts = combined_means[['b2c_mean_n_genes_by_counts', '8um bin_mean_n_genes_by_counts']].max(axis=1)
max_counts = combined_means[['b2c_counts', '8um bin_counts']].max(axis=1)

# Filter out cell types with a maximum n_genes_by_counts lower than 0.1
cell_types_to_keep = max_counts[max_counts >= 50].index

combined_means_filtered = combined_means.loc[combined_means.index.isin(cell_types_to_keep)]

# Determine the color based on which condition has the higher mean n_genes_by_counts
combined_means_filtered['color'] = combined_means_filtered.apply(
    lambda row: 'red' if row['8um bin_mean_n_genes_by_counts'] > row['b2c_mean_n_genes_by_counts'] else 'blue', axis=1)

# Count the number of categories higher in each condition
higher_in_8um = sum(combined_means_filtered['color'] == 'red')
higher_in_b2c = sum(combined_means_filtered['color'] == 'blue')

# Create a scatter plot to visualize the data
plt.figure(figsize=(10, 8))  # Adjust figure size as needed
ax = sns.scatterplot(data=combined_means_filtered,
                     x='8um bin_mean_n_genes_by_counts', y='b2c_mean_n_genes_by_counts',
                     s=100, hue='color', palette={'red': 'red', 'blue': 'blue'}, alpha=0.5)

# Add a diagonal line for reference
max_val = max(combined_means_filtered['8um bin_mean_n_genes_by_counts'].max(), combined_means_filtered['b2c_mean_n_genes_by_counts'].max()) + 100
plt.plot([0, max_val], [0, max_val], linestyle='--', color='gray', linewidth=1)

# Restrict x and y axes to the relevant values
plt.xlim(0, combined_means_filtered['8um bin_mean_n_genes_by_counts'].max() + 100)
plt.ylim(0, combined_means_filtered['b2c_mean_n_genes_by_counts'].max() + 100)

# Add custom legend
handles, labels = ax.get_legend_handles_labels()
labels = [ f'b2c higher ({higher_in_b2c})',f'8um bin higher ({higher_in_8um})']
ax.legend(handles=handles, labels=labels, title='Source')

plt.title('Scatter Plot of Mean n_genes_by_counts by Cell Type')
plt.xlabel('Mean n_genes_by_counts (8um bin)')
plt.ylabel('Mean n_genes_by_counts (b2c)')
plt.tight_layout()
plt.savefig('.../visium_hd/gut_public/figures/n_genes_scatter_8um_vs_b2c.pdf')
plt.show()
combined_means_filtered.to_csv('.../visium_hd/gut_public/combined_means_filtered_n_genes.csv')

bdata.write_h5ad('.../visium_hd/gut_public/crc_8um_anno.h5ad')
cdata.write_h5ad('.../visium_hd/gut_public/crc_b2c_anno.h5ad')

bdata = sc.read_h5ad('.../visium_hd/gut_public/crc_8um_anno.h5ad')
cdata = sc.read_h5ad('.../visium_hd/gut_public/crc_b2c_anno.h5ad')

import matplotlib.pyplot as plt
import scanpy as sc
import seaborn as sns
import warnings
warnings.filterwarnings('ignore')
plt.set_loglevel('WARNING')

#
# Confidence threshold
conf_th = 0

# Set figure parameters
sc.set_figure_params(dpi=100, dpi_save=2000, figsize=[10, 10], format='jpg')

# Plot for 8um bin

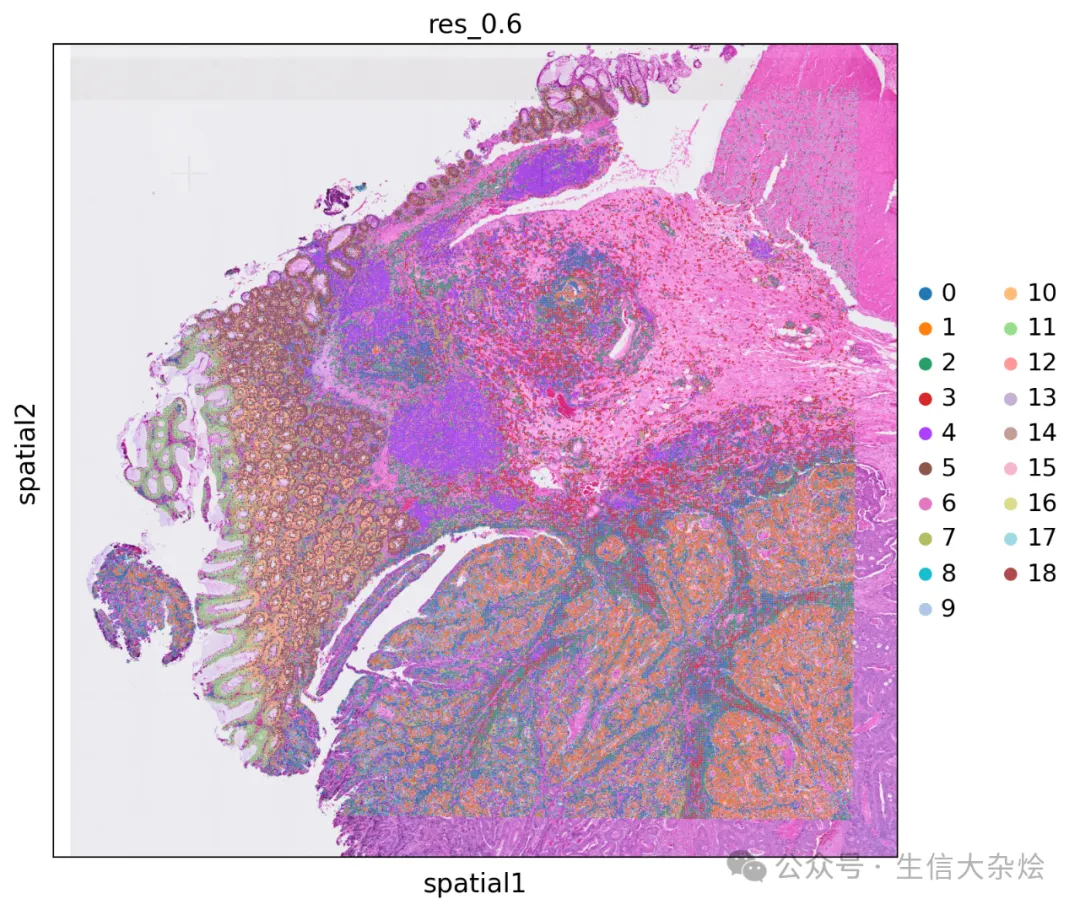

sc.pl.spatial(bdata, color='leiden',
              title='8um bin', size=20, img_key='hires', legend_fontsize=5,
              spot_size=1, frameon=False, save='_8bin_leiden')

# Plot for b2c he
sc.pl.spatial(cdata, color='leiden',
              title='b2c he', size=20, img_key='hires', legend_fontsize=5,
              spot_size=1, frameon=False, save='_b2c_leiden',)

import matplotlib.pyplot as plt
import scanpy as sc
import seaborn as sns
import warnings
warnings.filterwarnings('ignore')
plt.set_loglevel('WARNING')

# Confidence threshold
conf_th = 0.01
mask_thr = [1900, 2100, 2400, 2600]

# Define a mask to easily pull out this region of the object /4 is to account for 8um column data as opposed to b2c which is in the original 2um col data system
bmask = ((bdata.obs['array_row'] >= mask_thr[0]/4) &
         (bdata.obs['array_row'] <= mask_thr[1]/4) &
         (bdata.obs['array_col'] >= mask_thr[2]/4) &
         (bdata.obs['array_col'] <= mask_thr[3]/4))

# Define a mask to easily pull out this region of the object
cmask = ((cdata.obs['array_row'] >= mask_thr[0]) &
         (cdata.obs['array_row'] <= mask_thr[1]) &
         (cdata.obs['array_col'] >= mask_thr[2]) &
         (cdata.obs['array_col'] <= mask_thr[3]))

# Set figure parameters
sc.set_figure_params(dpi=50, dpi_save=300, figsize=[10, 10], format='pdf')

# Filter data based on the masks and confidence threshold
temp_bdata = bdata[bmask]
temp_bdata = temp_bdata[temp_bdata.obs['conf_score'] > conf_th]

temp_cdata = cdata[cmask]
temp_cdata = temp_cdata[temp_cdata.obs['conf_score'] > conf_th]

# Filter out label types with fewer than 20 members in bdata
b_label_counts = temp_bdata.obs['predicted_labels'].value_counts()
b_labels_to_keep = b_label_counts[b_label_counts >= 20].index
temp_bdata = temp_bdata[temp_bdata.obs['predicted_labels'].isin(b_labels_to_keep)]

# Filter out label types with fewer than 10 members in cdata
c_label_counts = temp_cdata.obs['predicted_labels'].value_counts()
c_labels_to_keep = c_label_counts[c_label_counts >= 10].index
temp_cdata = temp_cdata[temp_cdata.obs['predicted_labels'].isin(c_labels_to_keep)]

# Get unique labels from both datasets
b_labels = set(temp_bdata.obs['predicted_labels'].unique())
c_labels = set(temp_cdata.obs['predicted_labels'].unique())

# Create sets of mutual and unique labels
mutual_labels = b_labels & c_labels
unique_b_labels = b_labels - mutual_labels
unique_c_labels = c_labels - mutual_labels

# Ensure enough unique colors by combining multiple palettes if necessary
mutual_palette = sns.color_palette("Set2", len(mutual_labels))
unique_b_palette = sns.color_palette("Set3", len(unique_b_labels))
unique_c_palette = sns.color_palette("Set1", len(unique_c_labels))

color_dict = {}
color_dict.update(dict(zip(mutual_labels, mutual_palette)))
color_dict.update(dict(zip(unique_b_labels, unique_b_palette)))
color_dict.update(dict(zip(unique_c_labels, unique_c_palette)))

# Plot for 8um bin with consistent colors for mutual labels
sc.pl.spatial(temp_bdata, color='predicted_labels', title='8um bin', size=20, img_key='hires', legend_fontsize=12, spot_size=0.75, frameon=False, save='_8bin_all_cells_roi_1.png', palette=color_dict)

# Plot for b2c with consistent colors for mutual labels
sc.pl.spatial(temp_cdata, color='predicted_labels', title='b2c he', size=20, img_key='0.3_mpp', legend_fontsize=12, spot_size=0.75, frameon=False, save='_b2c_all_cells_roi_1.png', palette=color_dict, basis='spatial_cropped')

# region 2

mask_thr = [500,750,1500,1750]
#define a mask to easily pull out this region of the object /4 is to account for 8um column data as oppoed to b2c which is in the original 2um col data system
bmask = ((bdata.obs['array_row'] >= mask_thr[0]/4) &
        (bdata.obs['array_row'] <= mask_thr[1]/4) &
        (bdata.obs['array_col'] >= mask_thr[2]/4) &
        (bdata.obs['array_col'] <= mask_thr[3]/4))

#define a mask to easily pull out this region of the object
cmask = ((cdata.obs['array_row'] >= mask_thr[0]) &
        (cdata.obs['array_row'] <= mask_thr[1]) &
        (cdata.obs['array_col'] >= mask_thr[2]) &
        (cdata.obs['array_col'] <= mask_thr[3]))


# Set figure parameters
sc.set_figure_params(dpi=50, dpi_save=300, figsize=[10, 10], format='pdf')

# Filter data based on the masks and confidence threshold
temp_bdata = bdata[bmask]
temp_bdata = temp_bdata[temp_bdata.obs['conf_score'] > conf_th]

temp_cdata = cdata[cmask]
temp_cdata = temp_cdata[temp_cdata.obs['conf_score'] > conf_th]

# Filter out label types with fewer than 20 members in bdata
b_label_counts = temp_bdata.obs['predicted_labels'].value_counts()
b_labels_to_keep = b_label_counts[b_label_counts >= 20].index
temp_bdata = temp_bdata[temp_bdata.obs['predicted_labels'].isin(b_labels_to_keep)]

# Filter out label types with fewer than 10 members in cdata
c_label_counts = temp_cdata.obs['predicted_labels'].value_counts()
c_labels_to_keep = c_label_counts[c_label_counts >= 10].index
temp_cdata = temp_cdata[temp_cdata.obs['predicted_labels'].isin(c_labels_to_keep)]

# Get unique labels from both datasets
b_labels = set(temp_bdata.obs['predicted_labels'].unique())
c_labels = set(temp_cdata.obs['predicted_labels'].unique())

# Create sets of mutual and unique labels
mutual_labels = b_labels & c_labels
unique_b_labels = b_labels - mutual_labels
unique_c_labels = c_labels - mutual_labels

# Ensure enough unique colors by combining multiple palettes if necessary
mutual_palette = sns.color_palette("tab20", len(mutual_labels))
unique_b_palette = sns.color_palette("Set1", len(unique_b_labels))
unique_c_palette = sns.color_palette("Set3", len(unique_c_labels))

color_dict = {}
color_dict.update(dict(zip(mutual_labels, mutual_palette)))
color_dict.update(dict(zip(unique_b_labels, unique_b_palette)))
color_dict.update(dict(zip(unique_c_labels, unique_c_palette)))

# Plot for 8um bin with consistent colors for mutual labels
sc.pl.spatial(temp_bdata, color='predicted_labels', title='8um bin', size=20, img_key='hires', legend_fontsize=12, spot_size=0.75, frameon=False, save='_8bin_all_cells_roi_2.png', palette=color_dict)

# Plot for b2c with consistent colors for mutual labels
sc.pl.spatial(temp_cdata, color='predicted_labels', title='b2c he', size=20, img_key='0.3_mpp', legend_fontsize=12, spot_size=0.75, frameon=False, save='_b2c_all_cells_roi_2.png', palette=color_dict, basis='spatial_cropped')

# region all

# Filter data based on the masks and confidence threshold
temp_bdata = bdata[bdata.obs['conf_score'] > conf_th]

temp_cdata = cdata[cdata.obs['conf_score'] > conf_th]

# Plot for 8um bin with consistent colors for mutual labels
sc.pl.spatial(temp_bdata, color='predicted_labels', title='8um bin', size=20, img_key='hires', legend_fontsize=12, spot_size=1, frameon=False, save='_8bin_all_cells_full', palette=color_dict)

# Plot for b2c with consistent colors for mutual labels
sc.pl.spatial(temp_cdata, color='predicted_labels', title='b2c he', size=20, img_key='0.3_mpp', legend_fontsize=12, spot_size=1, frameon=False, save='_b2c_all_cells_full', palette=color_dict, basis='spatial_cropped')
